Parts for G0588 - 12" Sliding Table Saw

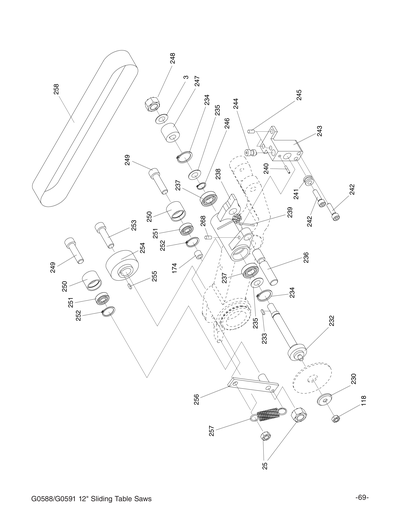

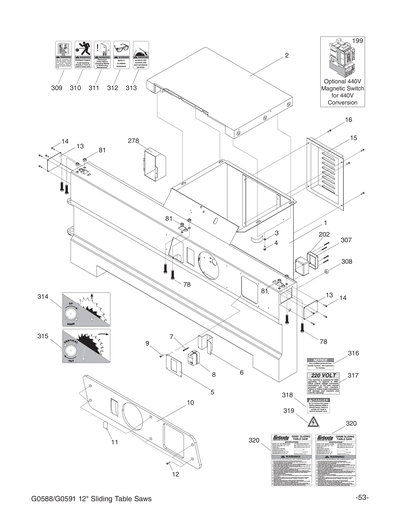

Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588
Part Diagram for G0588

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*BODY
Item is no longer available
Price
N/A
2
*DISCD*TABLE
Item is no longer available
Price
N/A
3
FLAT WASHER 8MM
Price
N/A
4
CAP SCREW M8-1.25 X 30
Price
N/A
5
*DISCD*SWITCH PLATE
Item is no longer available
Price
N/A
6
*DISCD*SWITCH BASE
Item is no longer available
Price
N/A
7
PHLP HD SCR M5-.8 X 20
Price
N/A
8
*DISCD*MAG SWITCH 220V 25A
Item is no longer available
Price
N/A
8-1
*DISCD*RELAY NHD NTH-25 21-25A
Price
$48.05
9
CAP SCREW M6-1 X 20
Price
N/A
10
*DISCD*COVER PLATE
Price
$17.00
11
*DISCD*SCALE PLATE
Item is no longer available
Price
N/A
12
CAP SCREW M6-1 X 20
Price
N/A
13
*DISCD*ADJUSTMENT BOLT COVER
Item is no longer available
Price
N/A
14
CAP SCREW M6-1 X 12
Price
N/A
15
*DISCD*MOTOR COVER
Item is no longer available
Price
N/A
16
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
17
*DISCD*TABLE INSERT
Item is no longer available
Price
N/A
18
FLAT HD SCR M5-.8 X 10
Price
N/A
19
*DISCD*EXTENSION WING FRONT
Price
$118.20
20
CAP SCREW M8-1.25 X 30
Price
N/A
21
SET SCREW M8-1.25 X 10
Price
N/A
22
HEX NUT M8-1.25
Price
N/A
23
*DISCD*EXTENSION WING RIGHT
Price
$181.15
24
HEX BOLT M10-1.5 X 45
Price
N/A
25
FLAT WASHER 10MM
Price
N/A
26
*DISCD*EXTENSION WING SUPPORT
Item is no longer available
Price
N/A
27
HEX BOLT M16-2 X 100
Price
N/A
28
HEX NUT M16-2
Price
N/A
29
HEX NUT M6-1
Price
N/A
30
FLAT WASHER 6MM
Price
N/A
31
*DISCD*SCALE BASE
Price
$43.15
32
*DISCD*TUBE PLUG
Price
$1.49
33
*DISCD*SCALE
Item is no longer available
Price
N/A
36
*DISCD*RACK
Price
$32.20
37
CAP SCREW M5-.8 X 8
Price
N/A
38
*DISCD*RAIL
Item is no longer available
Price
N/A
39
*DISCD*STUD-SE M12-1.75 X 120 100
Item is no longer available
Price
N/A
40
HEX NUT M12-1.75
Price
N/A
41
FLAT WASHER 12MM
Price
N/A
42

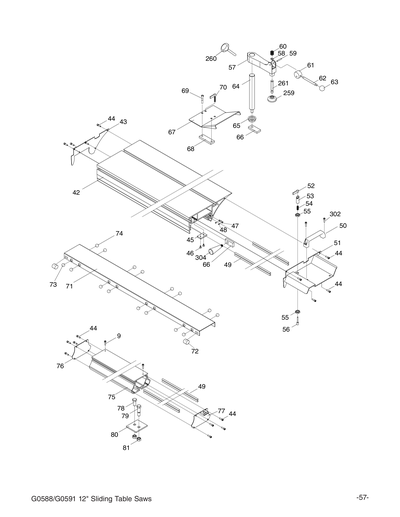

*DISCD*SLIDING TABLE
Item is no longer available
Price
N/A
42A
*DISCD*COMPLETE TABLE ASSY BOX 2
Price
N/A
43
*DISCD*SLIDING TABLE END
Price
$11.25
44
CAP SCREW M6-1 X 16
Price
N/A
45
*DISCD*PLATE ASSEMBLY V2.04.10
Price
N/A
45V2
*DISCD*POLYURETHANE PLATE V2.04.10
Item is no longer available
Price
N/A
45V2-1
*DISCD*PLATE KEEPER V2.04.10
Item is no longer available
Price
N/A
45V2A
*DISCD*PLATE ASSEMBLY V2.04.10
Price
$2.60
46
FLAT HD SCR M8-1.25 X 16
Price
N/A
47
*DISCD*GIB
Item is no longer available
Price
N/A
48
HEX BOLT M6-1 X 16
Price
N/A
49
*DISCD*STEEL RAILS
Price
$74.75
50
*DISCD*HANDLE
Price
$1.49
51
*DISCD*HANDLE COVER V1
Price
$35.95
51A
*DISCD*HANDLE COVER V2.01.08
Item is no longer available
Price
N/A
52
*DISCD*STOP LEVER
Item is no longer available
Price
N/A
53
*DISCD*SLEEVE
Item is no longer available
Price
N/A
54
*DISCD*EXTENSION SPRING
Item is no longer available
Price
N/A
55
HEX NUT M16-2
Price
N/A
56
*DISCD*STOP PIN 2-1/4" LONG
Price
$2.90
56V2
*DISCD*STOP PIN 2-3/4" LONG
Price
N/A
57
*DISCD*HOLD DOWN BRACKET
Price
$19.85
58
EXT RETAINING RING 14MM
Price
N/A
59
ROLL PIN 5 X 32
Price
N/A
60
*DISCD*COMPRESSION SPRING
Price
$1.49
61
*DISCD*CAM
Price
$10.10
62
*DISCD*HANDLE SHAFT
Price
$3.45
63
*DISCD*BALL HANDLE
Price
$2.30
64
*DISCD*HOLD DOWN ARBOR
Item is no longer available
Price
N/A
65
*DISCD*HOLD DOWN WASHER PLASTIC
Item is no longer available
Price
N/A
66
*DISCD*T-NUT PLATE
Item is no longer available
Price
N/A
67
*DISCD*EDGE SHOE PLATE
Item is no longer available
Price
N/A
68
*DISCD*T-NUT PLATE
Item is no longer available
Price
N/A
69
HEX BOLT M10-1.5 X 20
Price
N/A
70
*DISCD*ADJUSTABLE HANDLE M10-1.5 X 16
Price
$5.75
71
*DISCD*STEEL BALL BASE
Item is no longer available
Price
N/A
72
*DISCD*STEEL BALL BASE SPONGE
Item is no longer available
Price
N/A
73
*DISCD*STEEL BALL 18MM DIA
Item is no longer available
Price
N/A
74
*DISCD*STEEL BALL 11/16" DIA
Item is no longer available
Price
N/A
75
*DISCD*SLIDING BASE
Item is no longer available
Price
N/A
76
*DISCD*SLIDING BASE COVER BACK
Item is no longer available
Price
N/A
77
*DISCD*SLIDING BASE COVER FRONT
Item is no longer available
Price
N/A
78
HEX BOLT M14-2 X 30
Price
N/A
79
HEX BOLT M14-2 X 60
Price
N/A
80
*DISCD*ADJUSTMENT PLATE V1
Price
$6.05
80V2
*DISCD*ADJUSTMENT PLATE 2MM V2.05.09
Item is no longer available
Price
N/A
81
HEX NUT M14-2
Price
N/A
82

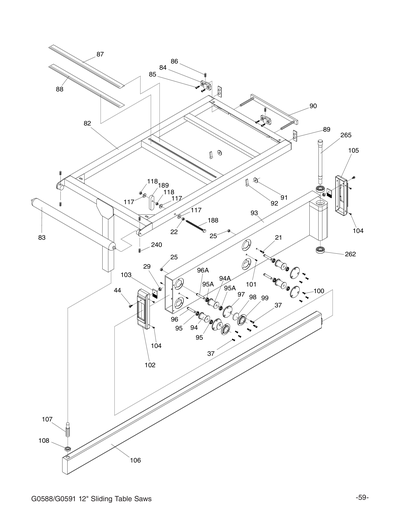

*DISCD*CROSS CUT TABLE
Price
$169.95
83
*DISCD*CROSS CUT TABLE ROLLER
Price
$41.70
84
*DISCD*SUPPORT ADJUSTMENT BLOCK
Item is no longer available
Price
N/A
85
CAP SCREW M6-1 X 10
Price
N/A
86
SET SCREW M8-1.25 X 20
Price
N/A
87
*DISCD*SCALE LABEL RIGHT
Item is no longer available
Price
N/A
88
*DISCD*SCALE LABEL LEFT
Item is no longer available
Price
N/A
89
*DISCD*SLIDING SURFACE PLATE
Item is no longer available
Price
N/A
90
*DISCD*CROSS CUT TABLE LOCK PLATE
Price
$13.55
91
FLAT WASHER 10MM
Price
N/A
92
*DISCD*ADJUST HANDLE M10-1.5
Item is no longer available
Price
N/A
93
*DISCD*SWING ARM
Price
$76.80
93A
*DISCD*SWING ARM ASSEMBLY
Price
$629.05
94
*DISCD*ECCENTRIC ROLLER
Price
N/A
94A
*DISCD*ECCENTRIC ROLLER
Item is no longer available
Price
N/A
95
BALL BEARING 6900ZZ
Price
N/A
95A
BALL BEARING 6901ZZ
Price
N/A
96
*DISCD*ECCENTRIC SHAFT
Price
N/A
96A
*DISCD*ECCENTRIC SHAFT
Price
$7.80
97
*DISCD*ROTATE ARBOR SUPPORT
Price
$11.50
98
*DISCD*MAGNET
Price
$1.75
99
*DISCD*MAGNETIC BASE
Price
$2.05
100
FLAT HD SCR M5-.8 X 8
Price
N/A
101
*DISCD*NYLON SCREW M12-1.75 X 12
Price
$2.60
102
*DISCD*SWING ARM END
Item is no longer available
Price
N/A
103
*DISCD*BRUSH
Price
$4.60
104
*DISCD*BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
105
*DISCD*SWING ARM END
Item is no longer available
Price
N/A
106
*DISCD*EXTENSION SWING ARM
Price
$150.95
107
*DISCD*SWING ARM ADJUST SCREW M20-2.5
Price
$7.20
108
HEX NUT M20-2.5
Price
N/A
109
*DISCD*STOP PLATE
Item is no longer available
Price
N/A
109-1
SET SCREW M6-1 X 6
Price
N/A
110
*DISCD*NYLON PAD
Price
$1.49
111
*DISCD*KNOB M6-1 X 35
Item is no longer available
Price
N/A
114
*DISCD*CLAMPING BASE
Item is no longer available
Price
N/A
115
*DISCD*T-NUT M6-1
Item is no longer available
Price
N/A
116
*DISCD*CLAMPING ARBOR
Item is no longer available
Price
N/A
117
FLAT WASHER 8MM
Price
N/A
118
LOCK NUT M8-1.25
Price
N/A
119
*DISCD*SCALE LONG V2
Item is no longer available
Price
N/A
119A
*DISCD*SCALE LONG V1.07.06
Item is no longer available
Price
N/A
120

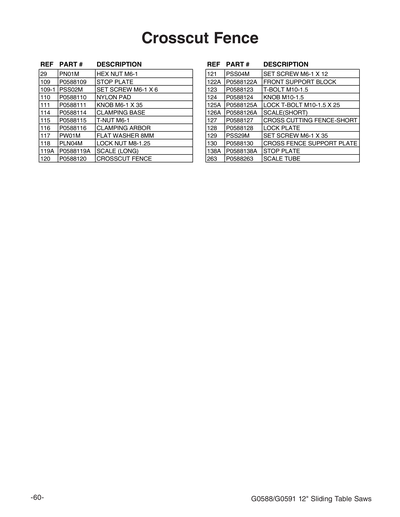

*DISCD*CROSS CUT FENCE
Item is no longer available
Price
N/A
121
SET SCREW M6-1 X 12
Price
N/A
122
*DISCD*SUPPORT BLOCK FRONT V1
Item is no longer available
Price
N/A
122A
*DISCD*SUPPORT BLOCK FRONT V2.07.06
Price
$2.30
123
*DISCD*T-BOLT M10-1.5
Price
$4.05
124
*DISCD*KNOB M10-1.5
Item is no longer available
Price
N/A
125
*DISCD*LOCK PLATE M10-1.5 X 25 V1
Price
$10.10
125A
*DISCD*LOCK T-BOLT M10-1.5 X 25 V2.07.06
Item is no longer available
Price
N/A
126
*DISCD*SCALE SHORT V1
Item is no longer available
Price
N/A
126A
*DISCD*SCALE SHORT V1.07.06
Item is no longer available
Price
N/A
127
*DISCD*CROSS CUTTING FENCE SHORT BASE
Price
$8.65
128
*DISCD*LOCK PLATE
Price
$8.65
129
SET SCREW M6-1 X 35
Price
N/A
130
*DISCD*CROSS FENCE SUPPORT PLATE
Price
$7.80
132

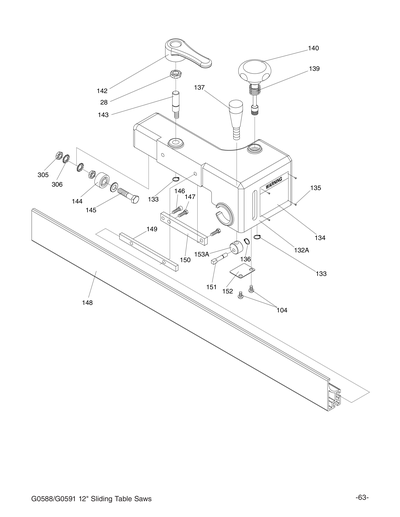

*DISCD*RIP FENCE BASE V1
Item is no longer available
Price
N/A
132A
*DISCD*RIP FENCE BASE V1.08.05
Item is no longer available
Price
N/A
132A-1
*DISCD*HAIRLINE INDICATOR
Item is no longer available
Price
N/A
133
EXT RETAINING RING 16MM
Price
N/A
134
*DISCD*WARNING LABEL PLATE
Price
$1.00
135
RIVET 3 X 6
Price
N/A
136
E-CLIP 7MM
Price
N/A
137
*DISCD*HANDLE
Price
$10.95
138A
*DISCD*STOP PLATE V2.07.06
Price
$14.40
139
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
140
*DISCD*KNOB M14-1.75
Item is no longer available
Price
N/A
142
*DISCD*HANDLE
Price
$14.10
143
*DISCD*ECCENTRIC
Item is no longer available
Price
N/A
144
*DISCD*ROLLER
Price
$10.10
145
HEX BOLT M12-1.75 X 50
Price
N/A
146
CAP SCREW M8-1.25 X 20
Price
N/A
147
HEX BOLT M8-1.25 X 60
Price
N/A
148
*DISCD*RIP FENCE PLATE
Item is no longer available
Price
N/A
149
*DISCD*LOCK BLOCK LONG
Price
$6.05
150
*DISCD*LOCK BLOCK SHORT
Price
$5.20
151
*DISCD*ECCENTRIC SHAFT
Item is no longer available
Price
N/A
152
*DISCD*HOLD PLATE
Item is no longer available
Price
N/A
153
*DISCD*ECCENTRIC V1
Item is no longer available
Price
N/A
153A
*DISCD*ECCENTRIC V2.08.05
Item is no longer available
Price
N/A
154
*DISCD*STEEL CABLE WHEEL
Item is no longer available
Price
N/A
155
*DISCD*TORSION SPRING
Price
$5.20
156
CAP SCREW M8-1.25 X 35
Price
N/A
157
CAP SCREW M10-1.5 X 90
Price
N/A
158
*DISCD*SCALE
Item is no longer available
Price
N/A
159
*DISCD*STEEL CABLE
Price
$2.05
160
*DISCD*HAND WHEEL
Item is no longer available
Price
N/A
161
*DISCD*HAND WHEEL COLLAR
Price
$4.05
162
*DISCD*SHAFT NUT
Item is no longer available
Price
N/A
163
*DISCD*SHAFT NUT BASE
Item is no longer available
Price
N/A
164
*DISCD*TW-NUT
Item is no longer available
Price
N/A
165
*DISCD*LEADSCREW NUT
Item is no longer available
Price
N/A
166
*DISCD*LEADSCREW TW-16 8 TEETH/INCH
Item is no longer available
Price
N/A
167
*DISCD*STEEL CABLE JACKET
Price
$2.05
168
CAP SCREW M10-1.5 X 25
Price
N/A
169
*DISCD*COVER SUPPORT M6-1 X 25
Price
$3.45
170
*DISCD*SET SHAFT
Item is no longer available
Price
N/A
171
*DISCD*BODY ARBOR
Item is no longer available
Price
N/A
172
*DISCD*GATHER PLATE
Item is no longer available
Price
N/A
173
*DISCD*CRANK ARM
Item is no longer available
Price
N/A
174
*DISCD*PULLEY COLLAR
Item is no longer available
Price
N/A
175
CAP SCREW M8-1.25 X 35
Price
N/A
176
*DISCD*GATHER BOLT M8-1.25 X 35
Item is no longer available
Price
N/A
177
LOCK NUT M16-2
Price
N/A
178
*DISCD*WORM
Item is no longer available
Price
N/A
179
*DISCD*WORM GEAR
Item is no longer available
Price
N/A
180
*DISCD*SLEEVE COPPER
Item is no longer available
Price
N/A
181
HEX BOLT M16-2 X 40
Price
N/A
182
*DISCD*GEAR BOX
Item is no longer available
Price
N/A
183
SET SCREW 1/4-20 X 1/4
Price
N/A
184
*DISCD*SLEEVE COPPER
Item is no longer available
Price
N/A
185
SET SCREW M8-1.25 X 14
Price
N/A
186
*DISCD*HAND WHEEL SHAFT
Item is no longer available
Price
N/A
187
*DISCD*HAND WHEEL
Item is no longer available
Price
N/A
188
HEX BOLT M8-1.25 X 100
Price
N/A
189
*DISCD*STOP BLOCK
Price
$21.30
190
*DISCD*FOLDABLE HANDLE HL-80
Item is no longer available
Price
N/A
191
SET SCREW M4-.7 X 8
Price
N/A
192
*DISCD*ARBOR PLATE
Item is no longer available
Price
N/A
193
*DISCD*DUST COVER
Price
$138.90
193-1
*DISCD*DUST HOSE 5" X 30"
Item is no longer available
Price
N/A
193-2
*DISCD*5" HOSE CLAMP
Item is no longer available
Price
N/A
194
CAP SCREW M8-1.25 X 16
Price
N/A
195
FLAT HD SCR M8-1.25 X 15
Price
N/A
196
HEX NUT M16-2 LH
Price
N/A
197
*DISCD*ARBOR FLANGE
Item is no longer available
Price
N/A
198
ROLL PIN 4 X 8
Price
N/A
199
*DISCD*MAG SWITCH 440V-14A
Price
$247.55
199-1
OL RELAY TAI-CYUAN 220V
Price
N/A
199-2
*DISCD*MAGNETIC CONTACTOR TAI-CYUAN 220V
Item is no longer available
Price
N/A
200
*DISCD*BLADE ARBOR
Item is no longer available
Price
N/A
201
BALL BEARING 6004-2RS
Price
N/A
202
*DISCD*DUST SHIELD
Price
$10.65
203
CAP SCREW M4-.7 X 40
Price
N/A
204
HEX NUT M4-.7
Price
N/A
205
*DISCD*LIMIT SWITCH
Item is no longer available
Price
N/A
206
V-BELT 3VX-265
Price
$22.15
207
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
208
EXT RETAINING RING 60MM
Price
N/A
209
SET SCREW M8-1.25 X 10
Price
N/A
210
CAP SCREW M8-1.25 X 16
Price
N/A
211
*DISCD*RIVING KNIFE HOLDER
Item is no longer available
Price
N/A
212
*DISCD*RIVING BRACKET
Price
$29.65
213
CARRIAGE BOLT M12-1.75 X 35
Price
N/A
214
SET SCREW M6-1 X 10
Price
N/A
215
KEY 6 X 6 X 30
Price
N/A
216

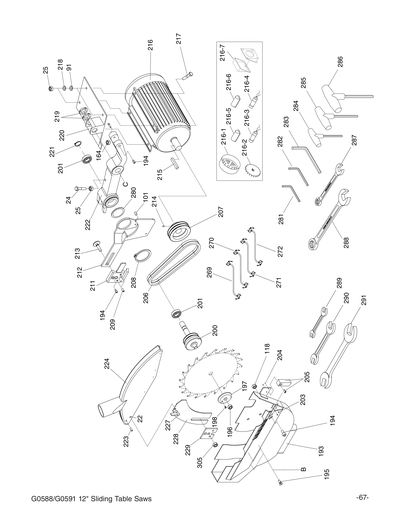

*DISCD*MOTOR 7.5HP 220V/440V 3-PH
Item is no longer available
Price
N/A
216-1
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
216-2
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
216-3
R CAPACITOR 45M 250V
Price
N/A
216-4
S CAPACITOR 600M 125V 1-3/4 X 3-1/2
Price
N/A
216-7
*DISCD*WIRING CONNECT BOX
Item is no longer available
Price
N/A
217
HEX BOLT M10-1.5 X 20
Price
N/A
218
LOCK WASHER 10MM
Price
N/A
219
*DISCD*SPANNER NUT M25-1.5
Item is no longer available
Price
N/A
220
*DISCD*MOTOR PLATE
Item is no longer available
Price
N/A
221
EXT RETAINING RING 20MM
Price
N/A
222
*DISCD*ROTATE HOUSING
Item is no longer available
Price
N/A
223
ROLL PIN 6 X 30
Price
N/A
224
*DISCD*BLADE GUARD
Item is no longer available
Price
N/A
227
*DISCD*ADJUST HANDLE M8-1.25 X 30
Price
$5.75
228
*DISCD*RIVING KNIFE
Item is no longer available
Price
N/A
229
*DISCD*COVER LOCK BLOCK
Item is no longer available
Price
N/A
230
*DISCD*SCORING BLADE WASHER
Price
$5.50
232
*DISCD*SCORING ARBOR
Item is no longer available
Price
N/A
233
KEY 4 X 4 X 15
Price
N/A
234
INT RETAINING RING 32MM
Price
N/A
235
*DISCD*WAVE WASHER 15MM
Item is no longer available
Price
N/A
236
*DISCD*BLADE LINK SHAFT
Item is no longer available
Price
N/A
237
BALL BEARING 6002ZZ
Price
N/A
238
*DISCD*BLADE LINK SHAFT
Item is no longer available
Price
N/A
239
*DISCD*TORSION SPRING
Item is no longer available
Price
N/A
240
SET SCREW M6-1 X 6
Price
N/A
241
*DISCD*SLEEVE
Price
$1.49
242
CAP SCREW M8-1.25 X 40
Price
N/A
243
*DISCD*LINK SHAFT BASE
Price
$37.10
244
*DISCD*ECCENTRIC
Item is no longer available
Price
N/A
245
*DISCD*LINK SHAFT SET SCREW M8-1.25 X 25
Price
$4.05
246
EXT RETAINING RING 15MM
Price
N/A
247
*DISCD*SCORING PULLEY
Price
$6.90
248
HEX NUT M8-1.25 LH
Price
N/A
249
CAP SCREW M10-1.5 X 30
Price
N/A
250
*DISCD*IDLE WHEEL
Price
$11.50
251
BALL BEARING 6000ZZ
Price
N/A
252
INT RETAINING RING 26MM
Price
N/A
253
CAP SCREW M10-1.5 X 16
Price
N/A
254
*DISCD*FLAT BELT PULLEY
Item is no longer available
Price
N/A
255
KEY 6 X 6 X 15
Price
N/A
256
*DISCD*PULLEY SUPPORT
Price
$8.05
257
*DISCD*EXTENSION SPRING
Item is no longer available
Price
N/A
258
*DISCD*FLAT BELT T150-920-T1 V1.05.05
Item is no longer available
Price
N/A
258V2
*DISCD*FLAT BELT 17 X 930 V2.12.08
Item is no longer available
Price
N/A
259
***USE P0588259A***
Item is no longer available
Price
N/A
259A
*DISCD*HOLD DOWN PLATE W/SHAFT
Price
$22.15
260
*DISCD*KNOB M8-1.25 X 20
Price
$1.49
261
*DISCD*HOLD DOWN SHAFT
Price
$12.65
262
BALL BEARING 6204ZZ
Price
N/A
263
*DISCD*SCALE TUBE
Price
$36.80
264
*DISCD*KNOB M10-1.5
Price
$4.05
265
*DISCD*SWING ARM SHAFT
Price
$15.85
266
*DISCD*COVER UPPER
Item is no longer available
Price
N/A
268
SET SCREW M5-.8 X 10
Price
N/A
269
*DISCD*SWITCH CORD 1.0 X 2C X 7.5 METER
Item is no longer available
Price
N/A
270
*DISCD*POWER CORD 1.5 X 4C X 7 METER
Item is no longer available
Price
N/A
271
*DISCD*MOTOR CORD 1.5 X 4C X 7 METER
Item is no longer available
Price
N/A
272
*DISCD*SWITCH CORD 1.0 X 4C X 7 METER
Item is no longer available
Price
N/A
275
*DISCD*ROTATE PART LOCK
Item is no longer available
Price
N/A
276
ROLL PIN 3 X 20
Price
N/A
277
CAP SCREW M8-1.25 X 20
Price
N/A
278
*DISCD*SCALE DUST COVER
Price
$6.65
279
*DISCD*FENCE RAIL PLUG 45 X 33
Item is no longer available
Price
N/A
280
*DISCD*WAVE WASHER 60MM
Price
$3.45
281
HEX WRENCH 2MM
Price
N/A
282
HEX WRENCH 3MM
Price
N/A
283
HEX WRENCH 6MM
Price
N/A
284
*DISCD*WRENCH T-HANDLE HEX 4MM
Price
$7.50
285
*DISCD*WRENCH T-HANDLE HEX 5MM
Price
$7.50
286
*DISCD*WRENCH T-HANDLE HEX 6MM
Price
$7.50
287
*DISCD*WRENCH 13MM COMBO
Price
N/A
288
*DISCD*WRENCH 19MM
Price
$2.60
289
*DISCD*WRENCH 13MM COMBO
Price
N/A
290
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
291
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
292
*DISCD*STOP PIN 2-3/4" LONG
Price
$23.30
302
CAP SCREW M8-1.25 X 20
Price
N/A
304
*DISCD*PUSH HANDLE M14-2 X 16
Item is no longer available
Price
N/A
305
HEX NUT M12-1.75
Price
N/A
306
EXT TOOTH WASHER 12MM
Price
N/A
307
*DISCD*TERMINAL BOX
Item is no longer available
Price
N/A
308
*DISCD*EMERGENCY BUTTON
Price
$41.15
309
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
310
*DISCD*KICKBACK WARNING LABEL
Price
$2.25
311
*DISCD*DISCONNECT POWER LABEL
Price
$1.00
312
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
313
CUTTERHEAD GUARD LABEL 4.1W X 2.2H
Price
N/A
314
*DISCD*RAISING BLADE LABEL
Item is no longer available
Price
N/A
315
*DISCD*TILTING BLADE LABEL
Price
$1.25
316
*DISCD*QUALIFIED PERSONNEL LABEL
Price
$1.00
317
PREWIRED 220V 3.3W X 2.2H
Price
N/A
318
*DISCD*BLADE LOWER GUARD LABEL
Price
$22.00
319
ELECTRICITY 1.4W X 1.2H
Price
N/A
320
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
321
*DISCD*HAIRLINE INDICATOR
Price
$3.45
322
*DISCD*CROSS CUT FENCE ASSY
Item is no longer available
Price
N/A
401
*DISCD*BRACKET
Item is no longer available
Price
N/A
402
FLAT WASHER 6MM
Price
N/A
403
CAP SCREW M6-1 X 22
Price
N/A
404
*DISCD*TORSION SPRING
Item is no longer available
Price
N/A
405
HEX NUT M5-.8
Price
N/A
406
*DISCD*SHAFT LONG
Item is no longer available
Price
N/A
407
*DISCD*SLIDING BASE SCREW M6-1 X 30
Item is no longer available
Price
N/A
408
CAP SCREW M6-1 X 16
Price
N/A
409
*DISCD*L-PLATE
Item is no longer available
Price
N/A
410
CAP SCREW M5-.8 X 16
Price
N/A
411
HEX NUT M6-1
Price
N/A
412
*DISCD*ECCENTRIC SHAFT
Item is no longer available
Price
N/A
413
*DISCD*SLEEVE
Item is no longer available
Price
N/A
414
*DISCD*BRACKET
Item is no longer available
Price
N/A
415
FLAT WASHER 5MM
Price
N/A
416
CAP SCREW M5-.8 X 10
Price
N/A
417
LOCK NUT M8-1.25
Price
N/A
418
*DISCD*LOCK LABEL
Item is no longer available
Price
N/A
501
*DISCD*TABLE STOP RETROFIT KIT
Price
$79.10
BOX2
*DISCD*COMPLETE TABLE ASSY BOX 2
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G0588 11/05
Price
$14.65
