Parts for G0599 - 12" 3 HP Heavy-Duty Bench Grinder

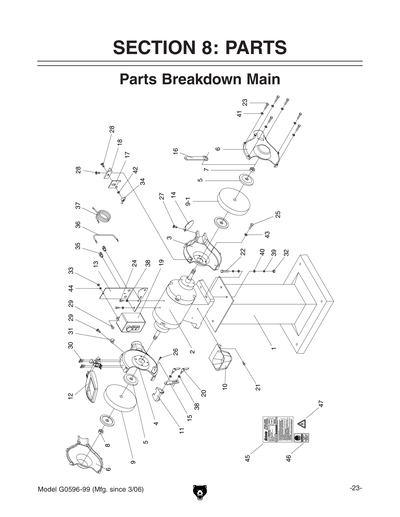

Part Diagram for G0599
Part Diagram for G0599
Part Diagram for G0599
Part Diagram for G0599
Part Diagram for G0599
Part Diagram for G0599

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

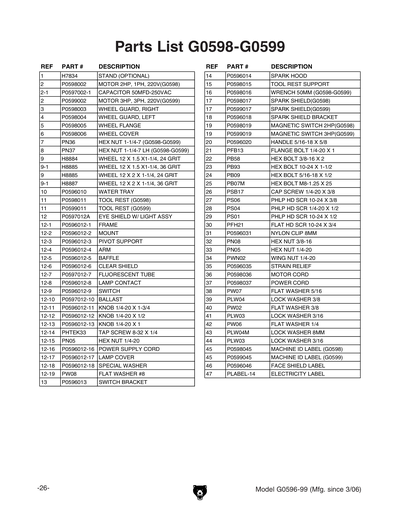

Ref #
Part #
Description
1
Stand For HD Bench Grinder
Price
N/A
2
Price
$402.10
3
RIGHT WHEEL GUARD
Price
N/A
4
LEFT WHEEL GUARD
Price
N/A
5
WHEEL FLANGE
Price
N/A
6
WHEEL COVER
Price
N/A
7
P0599007
Now: PN36
HEX NUT 1-1/4"-7
Price
N/A
8
P0599008
Now: PN37
HEX NUT 1-1/4"-7 LH
Price
N/A
9
A/O 12" x 1-1/2" x 1-1/4" Grinding Wheel, Type 1, 36 Grit
Price
N/A
9-1
A/O 12" x 2" x 1-1/4" Grinding Wheel, Type 1, 36 Grit
Price
N/A
10
WATER TRAY
Price
N/A
11
Price
$13.75
12
EYE SHIELD W/LIGHT ASSY
Price
N/A

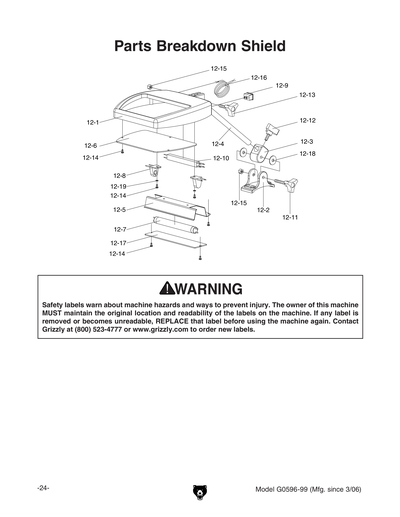

12-1
FRAME
Price
N/A
12-10
BALLAST
Price
N/A
12-11
KNOB 1/4-20 X 1-3/4
Price
N/A
12-12
KNOB 1/4-20 X 1/2
Price
N/A
12-13
KNOB 1/4-20 X 1
Price
N/A
12-14
TAP SCREW #8 X 1/4
Price
N/A
12-15
HEX NUT 1/4-20
Price
N/A
12-16
POWER SUPPLY CORD
Price
N/A
12-17
LAMP COVER
Price
N/A
12-18
PIVOT SUPPORT WASHER
Price
N/A
12-19
FLAT WASHER #8
Price
N/A
12-2
MOUNT
Price
N/A
12-3
PIVOT SUPPORT
Price
N/A
12-5
BAFFLE
Price
N/A
12-6
CLEAR SHIELD
Price
N/A
12-7
FLUORESCENT TUBE
Price
N/A
12-8
LAMP CONTACT
Price
N/A
12-9
SWITCH
Price
N/A
13
SWITCH BRACKET
Price
N/A
14
SPARK HOOD
Price
N/A
15
TOOL REST SUPPORT
Price
N/A
16
WRENCH 50MM
Price
N/A
17
Price
$2.45
18
SPARK SHIELD BRACKET
Price
N/A
19
Price
$132.85
20
HANDLE 5/16-18 X 5/8
Price
N/A
21
FLANGE BOLT 1/4-20 X 1
Price
N/A
22
P0599022
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
23
P0599023
Now: PB93
HEX BOLT 10-24 X 1/2
Price
N/A
24
P0599024
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
25
HEX BOLT M8-1.25 X 25
Price
N/A
26
CAP SCREW 1/4-20 X 3/8
Price
N/A
27
P0599027
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
28
P0599028
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
29
P0599029
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
30
FLAT HD SCR 10-24 X 3/4
Price
N/A
31
NYLON CLIP 8MM
Price
N/A
32
P0599032
Now: PN08
HEX NUT 3/8-16
Price
N/A
33
P0599033
Now: PN05
HEX NUT 1/4-20
Price
N/A
34
WING NUT 1/4-20
Price
N/A
35
STRAIN RELIEF M13.5 TYPE-1 SNAP-IN
Price
N/A
36
MOTOR CORD
Price
N/A
37
POWER CORD
Price
N/A
38
P0599038
Now: PW07
FLAT WASHER 5/16
Price
N/A
39
LOCK WASHER 3/8
Price
N/A
40
P0599040
Now: PW02
FLAT WASHER 3/8
Price
N/A
41
LOCK WASHER #10
Price
N/A
42
P0599042
Now: PW06
FLAT WASHER 1/4
Price
N/A
43
LOCK WASHER 8MM
Price
N/A
44
LOCK WASHER #10
Price
N/A
45
Price
$16.40
46
FACE SHIELD LABEL
Price
N/A
47
ELECTRICITY 1.4W X 1.2H
Price
N/A
MAN
MANUAL FOR G0596-99 MFG 03.06 V1.01.06
Price
N/A
MANV2
MANUAL FOR G0596-99 MFG 03.06 V2.10.09
Price
N/A
