Parts for G0602 10" x 22" Benchtop Metal Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
HEADSTOCK REAR COVER
2
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
3
DEAD CENTER MT#4
4
BALL OILER 7MM PRESS-IN
Price
N/A
5
CAP SCREW M6-1 X 25
Price
N/A
6
Now: PW03M
FLAT WASHER 6MM
Price
N/A
7
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
8
CLAMP
10
CAP SCREW M6-1 X 25
Price
N/A
11

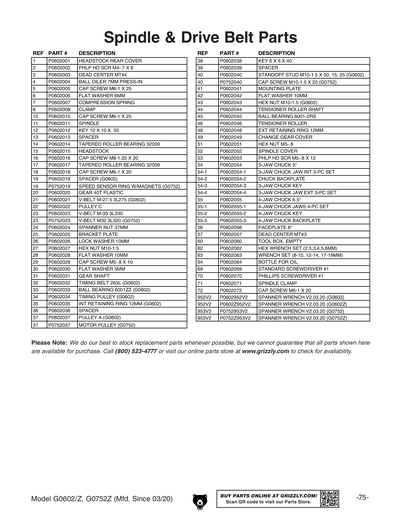

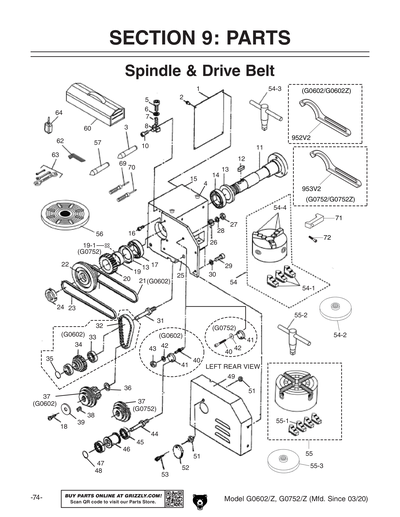

SPINDLE
12
KEY 10 X 10 X 55
Price
N/A
13
SPACER
14
TAPERED ROLLER BEARING 32009
Price
N/A
15
HEADSTOCK
16
CAP SCREW M8-1.25 X 20
Price
N/A
17
TAPERED ROLLER BEARING 32009
Price
N/A
18
CAP SCREW M6-1 X 20
Price
N/A
19
SPACER
20
GEAR 40T PLASTIC
21
V-BELT M27.5 3L275
Price
N/A
22
PULLEY C
23
Now: PVM33
V-BELT M33 3L330
Price
N/A
24
SPANNER NUT 37MM
25
BRACKET PLATE
26
LOCK WASHER 10MM
Price
N/A
27
Now: PN02M
HEX NUT M10-1.5
Price
N/A
28
Now: PW04M
FLAT WASHER 10MM
Price
N/A
29
CAP SCREW M5-.8 X 10
Price
N/A
30
Now: PW02M
FLAT WASHER 5MM
Price
N/A
31
GEAR SHAFT
32
TIMING BELT 263L
33
BALL BEARING 6001ZZ
Price
N/A
34
TIMING PULLEY
35
Now: PR49M
INT RETAINING RING 12MM
Price
N/A
36
SPACER
37
PULLEY A
38
Now: PK11M
KEY 6 X 6 X 40
Price
N/A
39
SPACER
40
STANDOFF STUD M10-1.5 X 50, 15, 25
41
MOUNTING PLATE
42
Now: PW04M
FLAT WASHER 10MM
Price
N/A
43
Now: PN02M
HEX NUT M10-1.5
Price
N/A
44
TENSIONER ROLLER SHAFT
45
BALL BEARING 6001-2RS
Price
N/A
46
TENSIONER ROLLER
47
Now: PR20M
INT RETAINING RING 28MM
Price
N/A
48
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
49
CHANGE GEAR COVER
51
Now: PN06M
HEX NUT M5-.8
Price
N/A
52
SPINDLE COVER
53
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
54
3-JAW CHUCK 5"
54-1
3-JAW CHUCK JAW INT 3-PC SET
54-2
CHUCK BACKPLATE
54-3
LATHE CHUCK KEY 9.75MM STD
54-4
3-JAW CHUCK JAW EXT 3-PC SET
54A
3-JAW CHUCK JAW INT 3-PC SET
Price
N/A
55
4-JAW CHUCK 6.5"
55-1
4-JAW CHUCK JAWS 4-PC SET
55-2
4-JAW CHUCK KEY
55-3
4-JAW CHUCK BACKPLATE
56
FACEPLATE 8"
57
DEAD CENTER MT#3
58

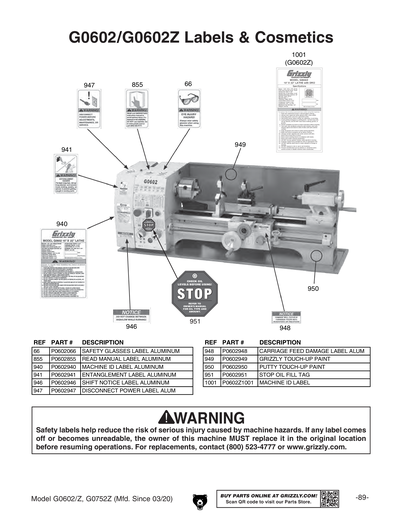

MACHINE ID LABEL
Price
N/A
59
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
60
TOOL BOX, EMPTY
Price
N/A
61
COMPLETE TOOL BOX ASSEMBLY
Price
N/A
62
HEX WRENCH SET (2.5,3,4,5,6MM)
Price
N/A
63
WRENCH SET (8-10, 12-14, 17-19MM)
Price
N/A
64
BOTTLE FOR OIL
Price
N/A
65
READ MANUAL LABEL ALUMINUM
66
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
67
SHIFT NOTICE LABEL
Price
N/A
68
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
69
STANDARD SCREWDRIVER #1
69A
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
70
PHILLIPS SCREWDRIVER #1
71
SPINDLE CLAMP
Price
N/A
72
CAP SCREW M6-1 X 20
Price
N/A
101
ROLL PIN 4 X 14
Price
N/A
102
HALF-NUT 2-PC
103
DOWEL PIN 5 X 12
104
GEAR SHAFT
105
GEAR
106
ROLL PIN 4 X 30
Price
N/A
107

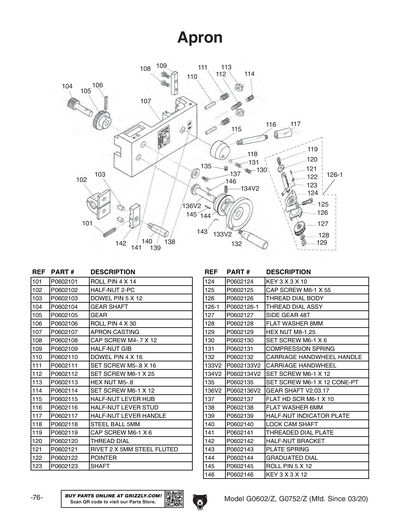

APRON CASTING
108
CAP SCREW M4-.7 X 12
Price
N/A
109
HALF-NUT GIB
110
DOWEL PIN 4 X 16
111
SET SCREW M5-.8 X 16
Price
N/A
112
SET SCREW M6-1 X 25
Price
N/A
113
Now: PN06M
HEX NUT M5-.8
Price
N/A
114
SET SCREW M6-1 X 12
Price
N/A
115
HALF-NUT LEVER HUB
116
HALF-NUT LEVER STUD
117
HALF-NUT LEVER HANDLE
118
STEEL BALL 5MM
Price
N/A
119
CAP SCREW M6-1 X 6
Price
N/A
120
THREAD DIAL
121
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
122
POINTER
123
SHAFT
124
Now: PK39M
KEY 3 X 3 X 10
Price
N/A
125
CAP SCREW M6-1 X 55
Price
N/A
126
THREAD DIAL BODY
126-1
THREAD DIAL ASSY
127
SIDE GEAR 48T
128
Now: PW01M
FLAT WASHER 8MM
Price
N/A
129
Now: PN03M
HEX NUT M8-1.25
Price
N/A
130
SET SCREW M6-1 X 6
Price
N/A
131
COMPRESSION SPRING
132
HANDLE W/OUT SHAFT 10, 21 X 75
132-1
SHOULDER SCR M8-1.25 X 12, 10 X 66
133
CARRIAGE HANDWHEEL V1
133V2
CARRIAGE HANDWHEEL
Price
N/A
134
ROLL PIN 4 X 24
Price
N/A
134V2
SET SCREW M6-1 X 12
Price
N/A
135
SET SCREW M6-1 X 12 CONE-PT
Price
N/A
136
GEAR SHAFT V1
136V2
GEAR SHAFT
Price
N/A
137
FLAT HD SCR M6-1 X 10
Price
N/A
138
Now: PW03M
FLAT WASHER 6MM
Price
N/A
139
HALF-NUT INDICATOR PLATE
140
LOCK CAM SHAFT
141
THREADED DIAL PLATE
142
HALF-NUT BRACKET
143
PLATE SPRING
Price
N/A
144
GRADUATED DIAL
Price
N/A
145
ROLL PIN 5 X 12
Price
N/A
146
KEY 3 X 3 X 12
Price
N/A
201

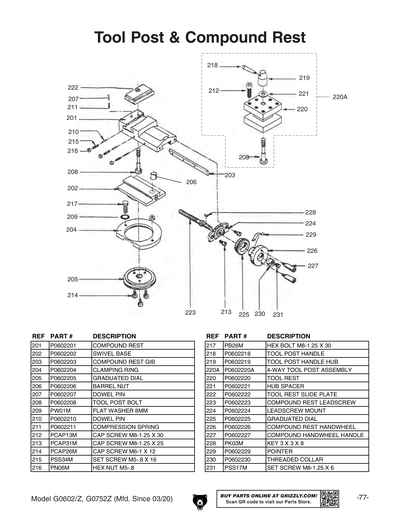

COMPOUND REST
201A
COMPOUND REST ASSEMBLY
202
SWIVEL BASE
203
COMPOUND REST GIB
204
CLAMPING RING
205
GRADUATED DIAL
206
BARREL NUT
207
DOWEL PIN
208
TOOL POST BOLT
209
Now: PW01M
FLAT WASHER 8MM
Price
N/A
210
DOWEL PIN
211
COMPRESSION SPRING
212
BULLNOSE CAP SCR M8-1.25 X 29
213
CAP SCREW M6-1 X 25
Price
N/A
214
CAP SCREW M6-1 X 12
Price
N/A
215
SET SCREW M5-.8 X 16
Price
N/A
216
Now: PN06M
HEX NUT M5-.8
Price
N/A
217
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
217A
SET SCREW M8-1.25 X 30
Price
N/A
217A-1
Now: PN03M
HEX NUT M8-1.25
Price
N/A
218
TOOL POST HANDLE
219
TOOL POST HANDLE HUB
220
TOOL REST
220A
4-WAY TOOL POST ASSEMBLY
221
HUB SPACER
222
TOOL REST SLIDE PLATE
223
COMPOUND REST LEADSCREW
224
LEADSCREW MOUNT
225
GRADUATED DIAL
226
COMPOUND REST HANDWHEEL
227
COMPOUND HANDWHEEL HANDLE
228
Now: PK03M
KEY 3 X 3 X 8
Price
N/A
229
POINTER
230
THREADED COLLAR
231
SET SCREW M8-1.25 X 6
Price
N/A

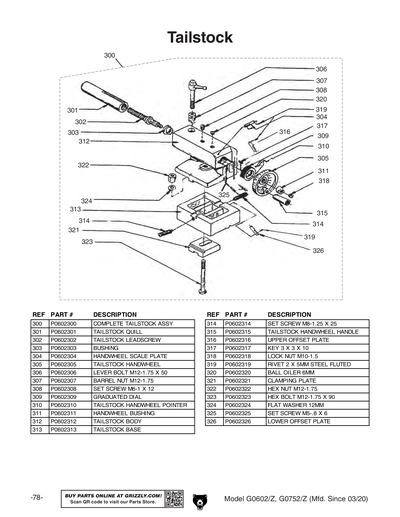

300
COMPLETE TAILSTOCK ASSY
301
TAILSTOCK QUILL
302
TAILSTOCK LEADSCREW
303
BUSHING
304
HANDWHEEL SCALE PLATE
305
TAILSTOCK HANDWHEEL
306
LEVER BOLT M12-1.75 X 50
307
Now: PW06M
FLAT WASHER 12MM
Price
N/A
308
SET SCREW M6-1 X 12
Price
N/A
309
***USE P0602205***
310
TAILSTOCK HANDWHEEL POINTER
311
HANDWHEEL BUSHING
312
TAILSTOCK BODY
313
TAILSTOCK BASE
314
SET SCREW M8-1.25 X 25
Price
N/A
315
HANDLE W/OUT SHAFT 10, 21 X 75
Price
N/A
316
UPPER OFFSET PLATE
317
Now: PK39M
KEY 3 X 3 X 10
Price
N/A
318
***USE PLN05M***
319
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
320
BALL OILER 6MM PRESS-IN
Price
N/A
321
CLAMPING PLATE
322
Now: PN09M
HEX NUT M12-1.75
Price
N/A
323
HEX BOLT M12-1.75 X 90
Price
N/A
324
Now: PW06M
FLAT WASHER 12MM
Price
N/A
325
SET SCREW M5-.8 X 6
Price
N/A
326
LOWER OFFSET PLATE
329
ADJUSTABLE HANDLE ASSEMBLY
Price
N/A
330
ADJUSTABLE HANDLE ASSEMBLY
Price
N/A
331
ADJUSTABLE HANDLE ASSEMBLY
332
SHOULDER SCR M8-1.25 X 12, 10 X 66
Price
N/A
401

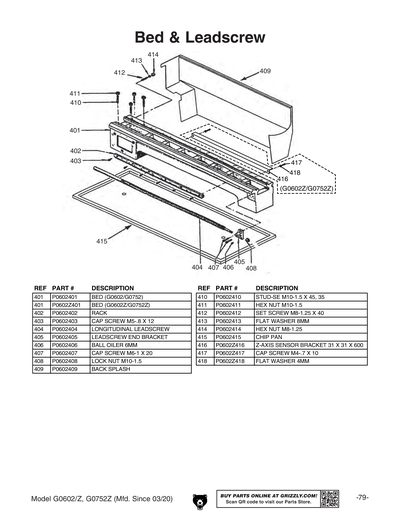

BED
402
RACK V2
Price
N/A
402V2
RACK V2
403
CAP SCREW M5-.8 X 12
Price
N/A
404
LONGITUDINAL LEADSCREW
405
LEADSCREW END BRACKET
406
BALL OILER 6MM PRESS-IN
Price
N/A
407
CAP SCREW M6-1 X 20
Price
N/A
408
LOCK NUT M10-1.5
Price
N/A
409
BACK SPLASH
410
STUD-SE M10-1.5 X 45, 35
411
Now: PN02M
HEX NUT M10-1.5
Price
N/A
412
SET SCREW M8-1.25 X 40
Price
N/A
413
Now: PW01M
FLAT WASHER 8MM
Price
N/A
414
Now: PN03M
HEX NUT M8-1.25
Price
N/A
415
CHIP PAN
501

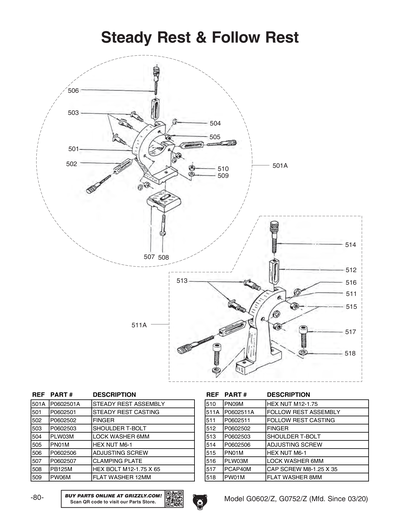

STEADY REST CASTING
501A
STEADY REST ASSEMBLY
502
FINGER
503
SHOULDER T-BOLT
504
LOCK WASHER 6MM
Price
N/A
505
Now: PN01M
HEX NUT M6-1
Price
N/A
506
ADJUSTING SCREW
507
CLAMPING PLATE
508
HEX BOLT M12-1.75 X 65
Price
N/A
509
Now: PW06M
FLAT WASHER 12MM
Price
N/A
510
Now: PN09M
HEX NUT M12-1.75
Price
N/A
511
FOLLOW REST CASTING
511A
FOLLOW REST ASSEMBLY
512
FINGER
Price
N/A
513
SHOULDER T-BOLT
Price
N/A
514
ADJUSTING SCREW
Price
N/A
515
Now: PN01M
HEX NUT M6-1
Price
N/A
516
LOCK WASHER 6MM
Price
N/A
517
CAP SCREW M8-1.25 X 35
Price
N/A
518
Now: PW01M
FLAT WASHER 8MM
Price
N/A

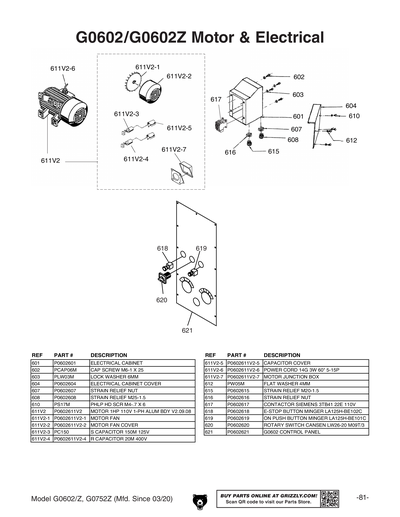

601
ELECTRICAL CABINET
602
CAP SCREW M6-1 X 25
Price
N/A
603
LOCK WASHER 6MM
Price
N/A
604
ELECTRICAL CABINET COVER
607
STRAIN RELIEF TYPE-3 M18-1.5 ST
608
STRAIN RELIEF TYPE-3 M24 - 1.5 ST
610
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
611
*DISCD*MOTOR CAST IRON BODY V1.12.06
Item is no longer available
Price
N/A
611-1
*DISCD*FAN V1.12.06
Item is no longer available
Price
N/A
611-2
*DISCD*FAN COVER V1.12.06
Item is no longer available
Price
N/A
611-3
*DISCD*S CAPACITOR 150M 250V V1.12.06
Item is no longer available
Price
N/A
611-4
*DISCD*R CAPACITOR 20M 400V V1.12.06
Item is no longer available
Price
N/A
611-5
*DISCD*CAPACITOR COVER W/CAP V1.12.06
Item is no longer available
Price
N/A
611-6
*DISCD*POWER CORD V1.12.06
Item is no longer available
Price
N/A
611A
MOTOR 1HP 110V 1-PH ALUM BDY V2.09.08
Price
N/A
611V2
MOTOR 1HP 110V 1-PH ALUM BDY V2.09.08
611V2-1
MOTOR FAN V2.09.08
611V2-2
MOTOR FAN COVER V2.09.08
611V2-3
Now: PC150
S CAPACITOR 150M 125V 1-5/16 X 2-3/4
Price
N/A
611V2-4
Now: PC20C
R CAPACITOR 20M 450V V2.09.08
Price
N/A
611V2-5
*DISCD*CAPACITOR COVER V2.09.08
Item is no longer available
Price
N/A
611V2-6
POWER CORD 14G 3W 60" 5-15P
611V2-7
MOTOR JUNCTION BOX
612
Now: PW05M
FLAT WASHER 4MM
Price
N/A
615
STRAIN RELIEF M20-1.5
616
STRAIN RELIEF NUT
617
CONTACTOR SIEMENS 3TB41 22E 110V V1
618
E-STOP BUTTON MINGER LA125H-BE102C
619
ON PUSH BUTTON MINGER LA125H-BE101C
620
ROTARY SWITCH CANSEN LW26-20 M09T/3
621
CONTROL PANEL
701
SET SCREW M6-1 X 10
Price
N/A
702
BUSHING
Price
N/A

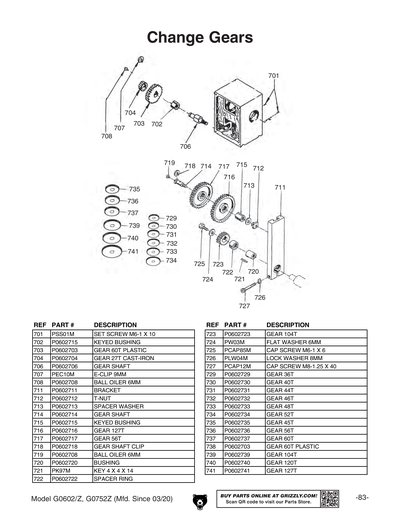

703
GEAR 60T PLASTIC
704
GEAR 27T CAST-IRON
706
GEAR SHAFT
707
E-CLIP 9MM
Price
N/A
708
BALL OILER 6MM PRESS-IN
Price
N/A
711
BRACKET
712
T-NUT
713
SPACER WASHER
714
GEAR SHAFT
715
KEYED BUSHING
716
GEAR 127T
717
GEAR 56T
718
GEAR SHAFT CLIP
719
BALL OILER 6MM PRESS-IN
Price
N/A
720
BUSHING
721
Now: PK97M
KEY 4 X 4 X 14
Price
N/A
722
SPACER RING
723
GEAR 104T
724
Now: PW03M
FLAT WASHER 6MM
Price
N/A
725
CAP SCREW M6-1 X 6
Price
N/A
726
LOCK WASHER 8MM
Price
N/A
727
CAP SCREW M8-1.25 X 40
Price
N/A
728
GEAR 36T
729
GEAR 36T
730
GEAR 40T
731
GEAR 44T
732
GEAR 46T
733
GEAR 48T
734
GEAR 52T
735
GEAR 45T
736
GEAR 56T
737
GEAR 60T
738
GEAR 60T PLASTIC
Price
N/A
739
GEAR 104T
740
GEAR 120T
741
GEAR 127T
Price
N/A

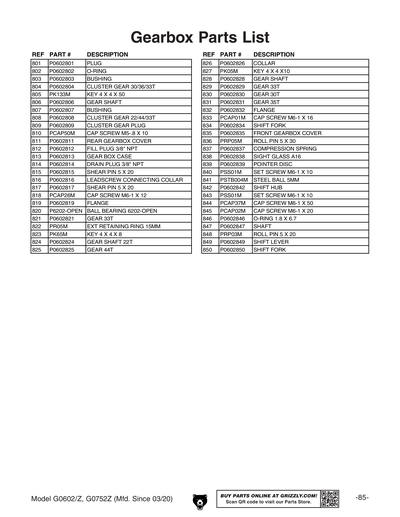

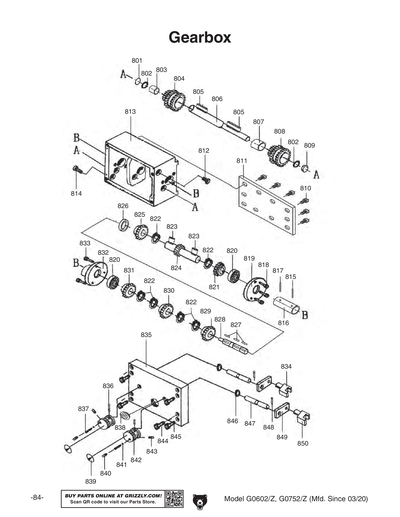

801
PLUG
802
O-RING 1.8 X 6.7
Price
N/A
803
BUSHING
804
CLUSTER GEAR 30/36/33T
805
KEY 4 X 4 X 50
Price
N/A
806
GEAR SHAFT
807
BUSHING
808
CLUSTER GEAR 22/44/33T
809
CLUSTER GEAR PLUG
810
CAP SCREW M5-.8 X 10
Price
N/A
811
REAR GEARBOX COVER
812
FILL PLUG 3/8" NPT
813
GEAR BOX CASE
813A
COMPLETE GEAR BOX
814
DRAIN PLUG 3/8" NPT
815
SHEAR PIN 5 X 20
816
LEADSCREW CONNECTING COLLAR
817
SHEAR PIN 5 X 20
Price
N/A
818
CAP SCREW M6-1 X 12
Price
N/A
819
FLANGE
820
BALL BEARING 6202-OPEN
Price
N/A
821
GEAR 33T
822
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
823
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
824
GEAR SHAFT 22T
825
GEAR 44T
826
COLLAR
827
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
828
GEAR SHAFT
829
GEAR 33T
830
GEAR 30T
831
GEAR 35T
832
FLANGE
833
CAP SCREW M6-1 X 16
Price
N/A
834
SHIFT FORK
835
FRONT GEARBOX COVER
836
ROLL PIN 5 X 30
Price
N/A
837
COMPRESSION SPRING
838
SIGHT GLASS A16
839
POINTER DISC
840
SET SCREW M6-1 X 10
Price
N/A
841
STEEL BALL 5MM
Price
N/A
842
SHIFT HUB
843
SET SCREW M6-1 X 10
Price
N/A
844
CAP SCREW M6-1 X 50
Price
N/A
845
CAP SCREW M6-1 X 20
Price
N/A
846
O-RING 1.8 X 6.7
847
SHAFT
848
ROLL PIN 5 X 20
Price
N/A
849
SHIFT LEVER
850
SHIFT FORK
851
E-STOP BUTTON MINGER LA125H-BE102C
Price
N/A
852
ON PUSH BUTTON MINGER LA125H-BE101C
Price
N/A
853
ROTARY SWITCH CANSEN LW26-20 M09T/3
Price
N/A
854
CONTROL PANEL
Price
N/A
855
READ MANUAL 1.5W X 2.5H
Price
N/A
856
DISCONNECT 110V 1.5W X 2.5H
Price
N/A

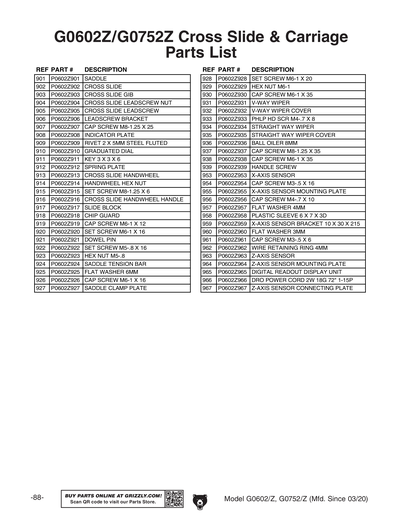

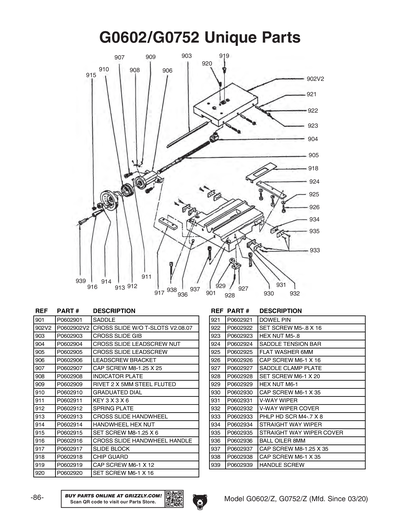

901

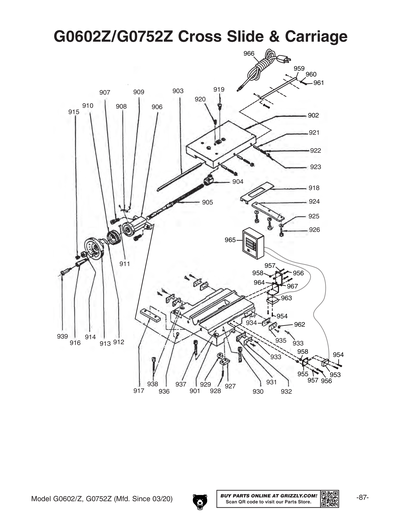

SADDLE
902
*DISCD*CROSS SLIDE W/T-SLOTS V1.12.06
Item is no longer available
Price
N/A
902A
CROSS SLIDE W/O T-SLOTS V2.08.07
902V2
CROSS SLIDE W/O T-SLOTS V2.08.07
Price
N/A
903
CROSS SLIDE GIB
904
CROSS SLIDE LEADSCREW NUT
905
CROSS SLIDE LEADSCREW
906
LEADSCREW BRACKET
907
CAP SCREW M8-1.25 X 25
Price
N/A
908
INDICATOR PLATE
909
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
910
GRADUATED DIAL
911
KEY 3 X 3 X 6
Price
N/A
912
SPRING PLATE
913
CROSS SLIDE HANDWHEEL
914
HANDWHEEL HEX NUT
915
SET SCREW M8-1.25 X 6
Price
N/A
916
CROSS SLIDE HANDWHEEL HANDLE
917
SLIDE BLOCK
918
CHIP GUARD
919
CAP SCREW M6-1 X 12
Price
N/A
920
SET SCREW M6-1 X 16
Price
N/A
921
DOWEL PIN
922
SET SCREW M5-.8 X 16
Price
N/A
923
Now: PN06M
HEX NUT M5-.8
Price
N/A
924
SADDLE TENSION BAR
925
Now: PW03M
FLAT WASHER 6MM
Price
N/A
926
CAP SCREW M6-1 X 16
Price
N/A
927
SADDLE CLAMP PLATE
928
SET SCREW M6-1 X 20
Price
N/A
929
Now: PN01M
HEX NUT M6-1
Price
N/A
930
CAP SCREW M6-1 X 35
Price
N/A
931
V-WAY WIPER
932
V-WAY WIPER COVER
933
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
934
STRAIGHT WAY WIPER
935
STRAIGHT WAY WIPER COVER
936
BALL OILER 8MM
937
CAP SCREW M8-1.25 X 35
Price
N/A
938
CAP SCREW M6-1 X 35
Price
N/A
939
HANDLE SCREW
940
MACHINE ID LABEL
941
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
942
TOOL BOX, EMPTY
942A
COMPLETE TOOL BOX ASSEMBLY
943
HEX WRENCH SET (2.5,3,4,5,6MM)
944
WRENCH SET (8-10, 12-14, 17-19MM)
945
BOTTLE FOR OIL
946
SHIFT NOTICE LABEL
947
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
948
CARRIAGE FEED DAMAGE LABEL
949
N/S GRIZZLY GREEN G1023S
Price
N/A
950
GREY PUTTY REF G0504
Price
N/A
951
STOP OIL FILL TAG
952
*DISCD*SPANNER WRENCH STRAIGTH
Item is no longer available
Price
N/A
952V2
SPANNER WRENCH V2.03.20 (G0602)
MANUAL
MANUAL FOR G0602 MFG 10.06 V1.11.06
Price
N/A
MANV1
MANUAL FOR G0602 MFG 10.06 V1.11.06
MANV10
MANUAL G0602/Z/G0752/Z 05.24+ V10.05.24
MANV2
MANUAL FOR G0602 MFG 10.06 V2.04.07
MANV3
MANUAL FOR G0602 MFG 10.06 V3.03.09
MANV4
MANUAL FOR G0602 MFG 10.06 V4.08.10
MANV5
MANUAL FOR G0602 MFG 09.08 V5.04.11
MANV6
MANUAL FOR G0602 MFG 09.08 V6.05.11
MANV7
MANUAL FOR G0602 MFG 09.08 V7.07.11
MANV8
MANUAL G0602/G0752 MFG 11.12 V8.03.13
MANV9
MANUAL G0602/Z/G0752/Z 03.20-04.24 V9.04
