G0605X1 - 12" 5 HP 220V Extreme Table Saw
 |  |
 |  |
 |  |
 |  |
 |  |
 |
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.

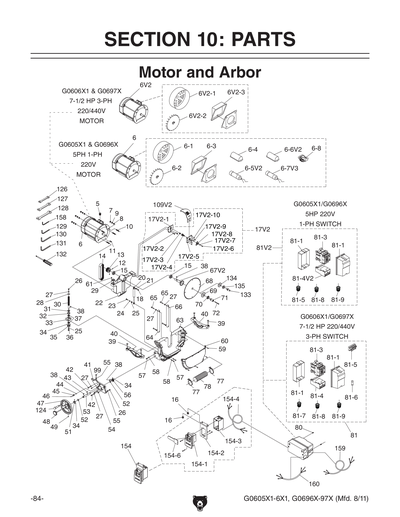

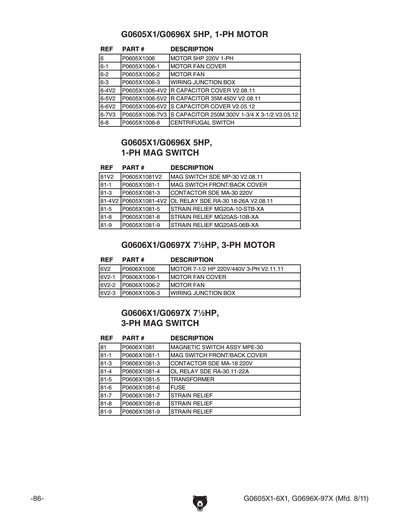

| 006-2 | P0605X1006-2 | MOTOR 5HP 220V 1-PH V2.11.19 | $494.75 |
 |
|
| 006-4 | P0605X1006-4 | MOTOR 5HP 220V 1-PH V2.11.19 | $494.75 |
|
|
| 006-4V2 | P0605X1006-4V2 | MOTOR 5HP 220V 1-PH V2.11.19 | $494.75 |
|
|
| 006-6V2 | P0605X1006-6V2 | S CAPACITOR COBER V2.05.12 | $8.75 |
|
|
| 006-7V2 | P0605X1006-7V2 | S CAPACITOR 250M 250V V2.08.11 | $26.00 |
|
|
| 006-7V3 | P0605X1006-7V3 | S CAPACITOR 250M 300V 1-3/4 X 3-1/2 V3.05.12 | $17.50 |
|
|
| 010 | P0605X1010 | MOTOR BOLT | $2.50 |
|
|
| 013 | P0605X1013 | MOTOR PULLEY | $22.00 |
|
|
| 014 | P0605X1014 | FLAT BELT 220-J12 | $20.75 |
|
|
| 015 | P0605X1015 | BALL BEARING 6005-2RS | $9.50 |
|
|
| 016 | P0605X1016 | FLANGE BOLT M8-1.25 X 12 | $2.25 |
|
|
| 017 | P0605X1017 | *DISCD*SPLITTER MOUNTING BRKT V1.02.09 | $9.25 |
|
|
| 017V2 | P0605X1017V2 | MOUNTING BRACKET V2.01.10 | $23.00 |
|
|
| 017V2-1 | P0605X1017V2-1 | MOUNTING BRACKET BASE V2.01.10 | $9.75 |
|
|
| 017V2-10 | P0605X1017V2-10 | SET SCREW M3-.5 X 10 | $1.00 |
|
|
| 017V2-2 | P0605X1017V2-2 | CAP SCREW M8-1.25 X 20 | $1.25 |
|
|
| 017V2-3 | P0605X1017V2-3 | COMPRESSION SPRING V2.01.10 | $1.50 |
|
|
| 017V2-4 | P0605X1017V2-4 | LOCKING BOLT V2.01.10 | $2.50 |
|
|
| 017V2-5 | P0605X1017V2-5 | MOUNTING BRACKET PLATE V2.01.10 | $9.00 |
|
|
| 017V2-6 | P0605X1017V2-6 | BUTTON HD CAP SCR M5-.8 X 12 | $1.00 |
|
|
| 017V2-7 | P0605X1017V2-7 | LOCK WASHER 5MM | $1.00 |
|
|
| 017V2-8 | P0605X1017V2-8 | HANDLE V2.01.10 | $2.50 |
|
|
| 017V2-9 | P0605X1017V2-9 | BUTTON HD CAP SCR M5-.8 X 16 | $1.00 |
|
|
| 019 | P0605X1019 | *DISCD*MOUNTING BOLT V1.02.09 | $7.00 |
|
|
| 035 | P0605X1035 | LEFT BEVEL GEAR | $16.00 |
|
|
| 040 | P0605X1040 | TRUNNION SLIDE | $29.75 |
|
|
| 043 | P0605X1043 | WOODRUFF KEY 22 X 5 | $1.50 |
|
|
| 048 | P0605X1048 | HANDWHEEL LOCK KNOB | $23.75 |
|
|
| 050 | P0605X1050 | *DISCD*SHIM V1.02.09 | $1.25 |
|
|
| 051 | P0605X1051 | LOCK COLLAR | $2.25 |
|
|
| 052 | P0605X1052 | PLASTIC BUSHING 19MM ID | $1.50 |
|
|
| 053 | P0605X1053 | BLADE HEIGHT HANDWHEEL SHAFT | $14.00 |
|
|
| 054 | P0605X1054 | ALIGNMENT PIN | $1.50 |
|
|
| 056 | P0605X1056 | RIGHT BEVEL GEAR | $16.00 |
|
|
| 063-1 | P0605X1063-1 | DEFLECTOR PLATE | $18.25 |
|
|
| 069 | P0605X1069 | ARBOR FLANGE | $5.25 |
|
|
| 073 | P0605X1073 | ALIGNMENT PIN | $2.25 |
|
|
| 075 | P0605X1075 | RUBBER BUMPER | $1.50 |
|
|
| 076 | P0605X1076 | LOCK KNOB M6-1 X 17 | $1.75 |
|
|
| 077 | P0605X1077 | HOSE CLAMP 60-80MM | $2.50 |
|
|
| 078 | P0605X1078 | DUST CHUTE HOSE 63 X 1000MM | $9.25 |
|
|
| 081V2 | P0605X1081V2 | MAG SWITCH SDE MP-30 V2.08.11 | $138.25 |
|
|
| 088-9 | P0605X1088-9 | PHLP HD SCR M3-.5 X 12 | $1.00 |
|
|
| 091 | P0605X1091 | PLATE | $25.00 |
|
|

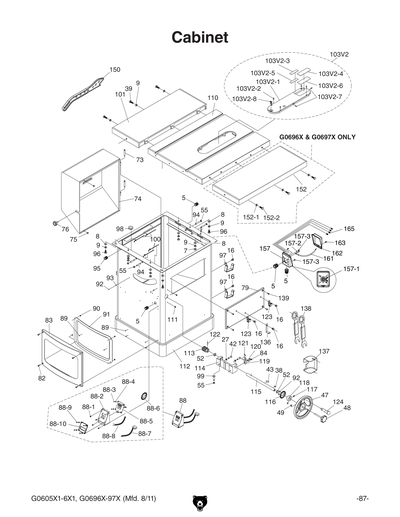

| 101 | P0605X1101 | LEFT EXTENSION WING | $238.50 |
|
|
| 103 | P0605X1103 | *DISCD*TABLE INSERT V1.02.09 | $23.50 |
|
|
| 103V2 | P0605X1103V2 | TABLE INSERT ASSY V2.01.10 | $58.25 |
|
|
| 103V2-1 | P0605X1103V2-1 | PLATE V2.01.10 | $44.75 |
|
|
| 103V2-2 | P0605X1103V2-2 | BOLT V2.01.10 | $1.50 |
|
|
| 103V2-3 | P0605X1103V2-3 | LEFT PLATE W/ TAPE V2.01.10 | $1.50 |
|
|
| 103V2-4 | P0605X1103V2-4 | RIGHT PLATE W/ TAPE 35MM V2.01.10 | $1.50 |
|
|
| 103V2-7 | P0605X1103V2-7 | SET SCREW M6-1 X 12 | $1.00 |
|
|
| 103V2-8 | P0605X1103V2-8 | LOCK KNOB M5-.8 V2.01.10 | $1.50 |
|
|
| 109V2 | P0605X1109V2 | RIVING KNIFE V2.01.10 | $23.75 |
|
|
| 11-9 | P0605X111-9 | CENTRIFUGAL SWITCH COVER | $4.50 |
|
|
| 112-1 | P0605X1112-1 |
TILT SCALE
|
N/A | ||
| 115 | P0605X1115 | BLADE TILT SHAFT | $18.75 |
|
|
| 118 | P0605X1118 | LOCK COLLAR | $5.25 |
|
|
| 124 | P0605X1124 | HANDWHEEL HANDLE | $15.25 |
|
|
| 134 | P0605X1134 | ARBOR FLANGE 5/8" | $7.25 |
|
|
| 135 | P0605X1135 | ARBOR NUT 5/8"-12 | $5.25 |
|
|
| 150 | P0605X1150 | PUSH STICK | $7.75 |
|
|
| 154-1 | P0605X1154-1 | ON/OFF PUSH BUTTON SWITCH | $28.75 |
|
|
| 154-4 | P0605X1154-4 | ON/OFF SWITCH CORD 16AWG X 4C | $18.75 |
|
|
| 154-5 | P0605X1154-5 | SAFETY PIN | $2.50 |
|
|
| 154-6 | P0605X1154-6 | Switch Disabling Lock 3/16" Shackle | $11.95 |
|
|
| 157-1 | P0605X1157-1 |
GROUNDING LABEL
|
N/A | ||
| 157-2 | P0605X1157-2 | EXT TOOTH WASHER 5MM | $1.00 |
|
|
| 157-3 | P0605X1157-3 | PHLP HD SCR M5-.8 X 10 | $1.00 |
|
|
| 160 | P0605X1160 | POWER CORD 12G 3C 600V | $59.00 |
|
|
| 163 | P0605X1163 | PHLP HD SCR 10-24 X 1/4 | $1.00 |
|
|
| 165 | P0605X1165 | WIRE NUT SW-P6H | $1.50 |
|
|

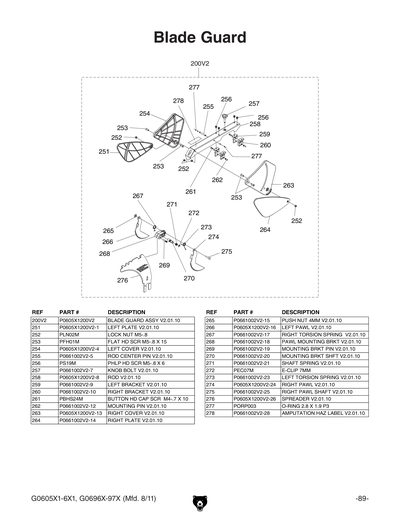

| 200V2 | P0605X1200V2 | BLADE GUARD ASSY V2.01.10 | $167.50 |
|
|
| 200V2-10 | P0605X1200V2-10 | RIGHT BRACKET V2.01.10 | $2.25 |
|
|
| 200V2-11 | P0605X1200V2-11 | BUTTON HD CAP SCR M4-.7 X 10 | $1.00 |
|
|
| 200V2-12 | P0605X1200V2-12 | MOUNTING PIN V2.01.10 | $1.50 |
|
|
| 200V2-14 | P0605X1200V2-14 | RIGHT PLATE V2.01.10 | $6.25 |
|
|
| 200V2-15 | P0605X1200V2-15 | PUSH NUT 4MM V2.01.10 | $1.50 |
|
|
| 200V2-17 | P0605X1200V2-17 | RIGHT TORSN SPRING V2.01.10 | $1.50 |
|
|
| 200V2-18 | P0605X1200V2-18 | PAWL MOUNTING BRKT V2.01.10 | $10.50 |
|
|
| 200V2-19 | P0605X1200V2-19 | MOUNTING BRKT PIN V2.01.10 | $1.50 |
|
|
| 200V2-2 | P0605X1200V2-2 | LOCK NUT M5-.8 | $1.00 |
|
|
| 200V2-20 | P0605X1200V2-20 | MOUNTING BRKT SHFT V2.01.10 | $4.75 |
|
|
| 200V2-21 | P0605X1200V2-21 | SHAFT SPRING V2.01.10 | $1.50 |
|
|
| 200V2-22 | P0605X1200V2-22 | E-CLIP 7MM | $1.00 |
|
|
| 200V2-23 | P0605X1200V2-23 | LEFT TORSION SPRING V2.01.10 | $1.50 |
|
|
| 200V2-24 | P0605X1200V2-24 | RIGHT PAWL V2.01.10 | $4.75 |
|
|
| 200V2-25 | P0605X1200V2-25 | RIGHT PAWL SHAFT V2.01.10 | $1.50 |
|
|
| 200V2-26 | P0605X1200V2-26 | SPREADER V2.01.10 | $29.50 |
|
|
| 200V2-27 | P0605X1200V2-27 | O-RING 2.8 X 1.9 P3 | $1.25 |
|
|

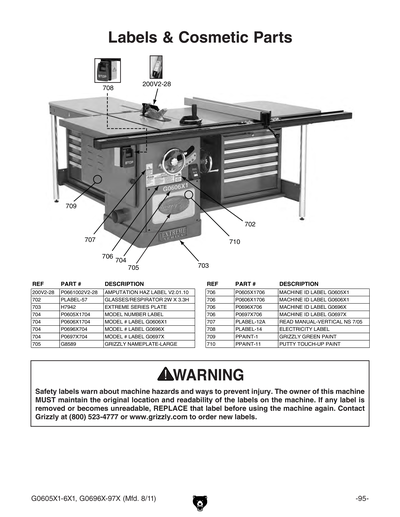

| 200V2-28 | P0605X1200V2-28 | AMPUTATION HAZ LABEL V2.01.10 | $2.50 |
|
|
| 200V2-3 | P0605X1200V2-3 | FLAT HD SCR M5-.8 X 15 | $1.25 |
|
|
| 200V2-5 | P0605X1200V2-5 | ROD CENTER PIN V2.01.10 | $1.50 |
|
|
| 200V2-6 | P0605X1200V2-6 | PHLP HD SCR M5-.8 X 6 | $1.00 |
|
|
| 200V2-7 | P0605X1200V2-7 | KNOB BOLT V2.01.10 | $2.50 |
|
|
| 200V2-9 | P0605X1200V2-9 | LEFT BRACKET V2.01.10 | $2.50 |
|
|
| 200V3 | P0605X1200V3 | COMPLETE BLADE GUARD ASSEMBLY V3.02.19 | $172.75 |
|
|
| 200V3-1 | P0605X1200V3-1 | FLAT HD SCR M4-.7 X 8 | $1.00 |
|
|
| 200V3-10 | P0605X1200V3-10 |
REAR COVER
|
N/A | ||
| 200V3-11 | P0605X1200V3-11 | ROLL PIN 5 X 32 | $1.00 |
|
|
| 200V3-12 | P0605X1200V3-12 | HEX NUT M5-.8 | $1.00 |
|
|
| 200V3-13 | P0605X1200V3-13 | PHLP HD SCR M5-.8 X 6 | $1.00 |
|
|
| 200V3-14 | P0605X1200V3-14 |
KNOB BOLT 3-LOBE, M6-1 X 35
|
N/A | ||
| 200V3-15 | P0605X1200V3-15 |
BLADE GUARD BODY
|
N/A | ||
| 200V3-16 | P0605X1200V3-16 |
MOUNTING BLOCK (LEFT)
|
N/A | ||
| 200V3-17 | P0605X1200V3-17 |
MOUNTING BLOCK (RIGHT)
|
N/A | ||
| 200V3-18 | P0605X1200V3-18 | PHLP HD SCR M4-.7 X 10 | $1.00 |
|
|
| 200V3-19 | P0605X1200V3-19 |
MOUNTING PIN
|
N/A | ||
| 200V3-2 | P0605X1200V3-2 |
UPPER COVER
|
N/A | ||
| 200V3-20 | P0605X1200V3-20 | ROLL PIN 5 X 40 | $3.00 |
|
|
| 200V3-21 | P0605X1200V3-21 | FLAT WASHER 5MM | $1.00 |
|
|
| 200V3-22 | P0605X1200V3-22 |
ANTI-KICKBACK PAWL (LEFT)
|
N/A | ||
| 200V3-23 | P0605X1200V3-23 |
TORSION SPRING (LEFT)
|
N/A | ||
| 200V3-24 | P0605X1200V3-24 |
COMPRESSION SPRING
|
N/A | ||
| 200V3-25 | P0605X1200V3-25 | E-CLIP 7MM | $1.00 |
|
|
| 200V3-26 | P0605X1200V3-26 |
TORSION SPRING (RIGHT)
|
N/A | ||
| 200V3-27 | P0605X1200V3-27 |
ANTI-KICKBACK PAWL (RIGHT)
|
N/A | ||
| 200V3-28 | P0605X1200V3-28 |
PAWL MOUNTING BRACKET
|
N/A | ||
| 200V3-29 | P0605X1200V3-29 |
PIN
|
N/A | ||
| 200V3-3 | P0605X1200V3-3 | HEX NUT M6-1 | $1.00 |
|
|
| 200V3-30 | P0605X1200V3-30 |
SHAFT
|
N/A | ||
| 200V3-31 | P0605X1200V3-31 |
SPREADER
|
N/A | ||
| 200V3-32 | P0605X1200V3-32 | PHLP HD SCR M5-.8 X 30 | $1.00 |
|
|
| 200V3-33 | P0605X1200V3-33 |
BLADE GUARD WARNING LABEL
|
N/A | ||
| 200V3-4 | P0605X1200V3-4 |
BLADE GUARD COVER
|
N/A | ||
| 200V3-5 | P0605X1200V3-5 | FLAT WASHER 6MM | $1.00 |
|
|
| 200V3-6 | P0605X1200V3-6 |
CONNECTING PLATE
|
N/A | ||
| 200V3-7 | P0605X1200V3-7 | FLAT WASHER 6MM | $1.00 |
|
|
| 200V3-8 | P0605X1200V3-8 | FLAT HD SCR M6-1 X 16 | $1.00 |
|
|
| 200V3-9 | P0605X1200V3-9 |
BRACKET
|
N/A | ||
| 251 | P0605X1251 | LEFT PLATE V2.01.10 | $6.25 |
|
|
| 252 | P0605X1252 | LOCK NUT M5-.8 | $1.00 |
|
|
| 253 | P0605X1253 | FLAT HD SCR M5-.8 X 15 | $1.25 |
|
|
| 254 | P0605X1254 | LEFT COVER V2.01.10 | $10.50 |
|
|
| 255 | P0605X1255 | ROD CENTER PIN V2.01.10 | $1.50 |
|
|
| 256 | P0605X1256 | PHLP HD SCR M5-.8 X 6 | $1.00 |
|
|
| 257 | P0605X1257 | KNOB BOLT V2.01.10 | $2.50 |
|
|
| 258 | P0605X1258 | ROD V2.01.10 | $17.50 |
|
|
| 259 | P0605X1259 | LEFT BRACKET V2.01.10 | $2.50 |
|
|
| 260 | P0605X1260 | RIGHT BRACKET V2.01.10 | $2.25 |
|
|
| 261 | P0605X1261 | BUTTON HD CAP SCR M4-.7 X 10 | $1.00 |
|
|
| 262 | P0605X1262 | MOUNTING PIN V2.01.10 | $1.50 |
|
|
| 263 | P0605X1263 | RIGHT COVER V2.01.10 | $10.50 |
|
|
| 264 | P0605X1264 | RIGHT PLATE V2.01.10 | $6.25 |
|
|
| 265 | P0605X1265 | PUSH NUT 4MM V2.01.10 | $1.50 |
|
|
| 266 | P0605X1266 | LEFT PAWL V2.01.10 | $4.75 |
|
|
| 267 | P0605X1267 | RIGHT TORSN SPRING V2.01.10 | $1.50 |
|
|
| 268 | P0605X1268 | PAWL MOUNTING BRKT V2.01.10 | $10.50 |
|
|
| 269 | P0605X1269 | MOUNTING BRKT PIN V2.01.10 | $1.50 |
|
|
| 270 | P0605X1270 | MOUNTING BRKT SHFT V2.01.10 | $4.75 |
|
|
| 271 | P0605X1271 | SHAFT SPRING V2.01.10 | $1.50 |
|
|
| 272 | P0605X1272 | E-CLIP 7MM | $1.00 |
|
|
| 273 | P0605X1273 | LEFT TORSION SPRING V2.01.10 | $1.50 |
|
|
| 274 | P0605X1274 | RIGHT PAWL V2.01.10 | $4.75 |
|
|
| 275 | P0605X1275 | RIGHT PAWL SHAFT V2.01.10 | $1.50 |
|
|
| 276 | P0605X1276 | SPREADER V2.01.10 | $29.50 |
|
|
| 277 | P0605X1277 | O-RING 2.8 X 1.9 P3 | $1.25 |
|
|
| 278 | P0605X1278 | AMPUTATION HAZ LABEL V2.01.10 | $2.50 |
|
|

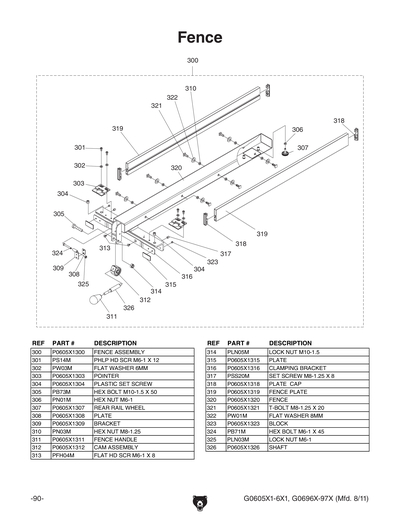

| 303 | P0605X1303 | POINTER | $2.00 |
|
|
| 304 | P0605X1304 | PLASTIC SET SCREW | $1.50 |
|
|
| 307 | P0605X1307 | REAR RAIL WHEEL | $1.50 |
|
|
| 308 | P0605X1308 | PLATE | $1.50 |
|
|
| 311 | P0605X1311 | FENCE HANDLE | $3.75 |
|
|
| 315 | P0605X1315 | PLATE | $1.50 |
|
|
| 316 | P0605X1316 | CLAMPING BRACKET | $5.25 |
|
|
| 318 | P0605X1318 | PLATE CAP | $1.25 |
|
|
| 319 | P0605X1319 | FENCE PLATE | $21.50 |
|
|
| 320 | P0605X1320 | FENCE | $139.00 |
|
|
| 323 | P0605X1323 | BLOCK | $1.50 |
|
|
| 326 | P0605X1326 | SHAFT | $4.75 |
|
|
| 402 | P0605X1402 | POINTER | $2.50 |
|
|
| 404 | P0605X1404 | SHAFT | $5.25 |
|
|
| 408 | P0605X1408 | STEP SCREW 1/4-20 X 1/2 | $1.50 |
|
|
| 410 | P0605X1410 | MITER GAUGE HANDLE | $7.25 |
|
|

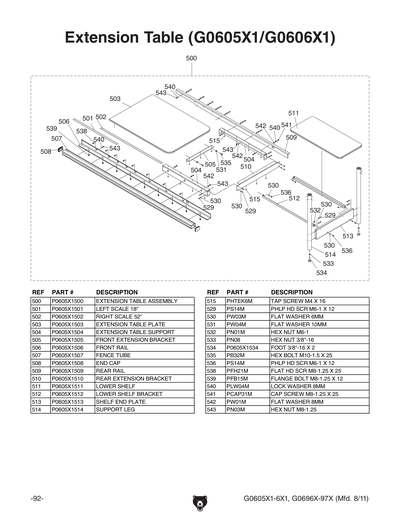

| 501 | P0605X1501 | LEFT SCALE 18" | $9.50 |
|
|
| 502 | P0605X1502 | RIGHT SCALE 52" | $11.75 |
|
|
| 508 | P0605X1508 | END CAP | $1.25 |
|
|
| 511 | P0605X1511 | LOWER EXTENSION TABLE SHELF | $38.50 |
|
|
| 512 | P0605X1512 | LOWER EXTENSION TABLE SHELF BRACKET | $12.50 |
|
|
| 514 | P0605X1514 | SUPPORT LEG | $41.00 |
|
|
| 534 | P0605X1534 | FOOT 3/8-16 X 2 | $1.50 |
|
|
| 54-4 | P0605X154-4 | SWITCH CORD ON/OFF 14AWG X 3C | $10.25 |
|
|

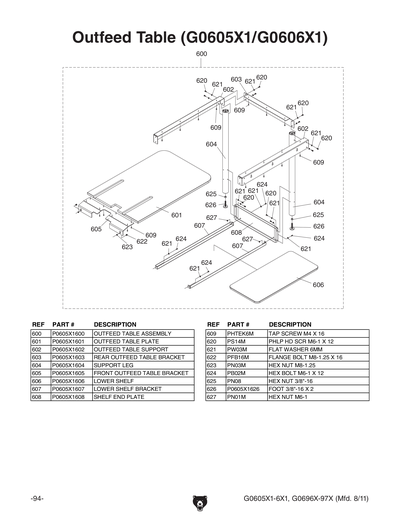

| 601 | P0605X1601 | OUTFEED TABLE PLATE | $57.25 |
|
|
| 602 | P0605X1602 | OUTFEED TABLE SUPPORT | $25.25 |
|
|
| 603 | P0605X1603 | REAR OUTFEED TABLE BRACKET | $16.50 |
|
|
| 604 | P0605X1604 | SUPPORT LEG | $41.00 |
|
|
| 605 | P0605X1605 | FRONT OUTFEED TABLE BRACKET | $10.25 |
|
|
| 606 | P0605X1606 | LOWER OUTFEED TABLE SHELF | $38.50 |
|
|
| 608 | P0605X1608 | SHELF END PLATE | $16.50 |
|
|
| 626 | P0605X1626 | FOOT 3/8-16 X 2 | $1.50 |
|
|
| BAG1 | P0605X1BAG1 | FENCE RAIL HARDWARE BAG | $8.00 |
|
|
| BAG2 | P0605X1BAG2 | EXTENSION TABLE HARDWARE BAG | $9.00 |
|
|
| BAG3 | P0605X1BAG3 | OUTFEED TABLE HARDWARE BAG | $9.25 |
|
|
| BOX2 | P0605X1BOX2 | COMPLETE BOX 2 OF 4 FOR G0605X1 | $280.25 |
|
|
| BOX3 | P0605X1BOX3 | COMPLETE BOX 3 OF 4 FOR G0605X1 | $180.25 |
|
|
| BOX4 | P0605X1BOX4 |
COMPLETE BOX 4 OF 4 FOR G0605X1
|
N/A | ||
| MANV2 | P0605X1MANV2 |
MANUAL G0605X1-97X MFD-08/11 V2.08.11
|
N/A | ||
| Ref # | Part # | Description | Price | Qty |
|---|
