Parts for G0606X1 - 12" 7-1/2 HP 3-Phase Extreme Table Saw

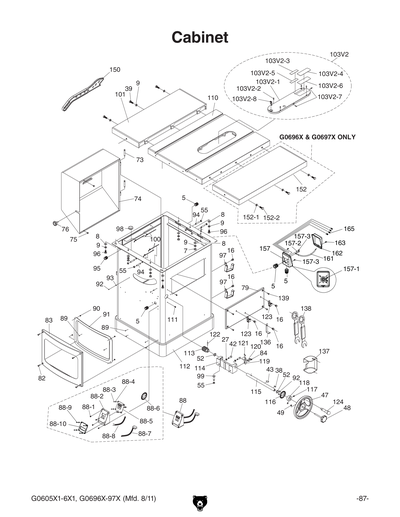

Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1
Part Diagram for G0606X1

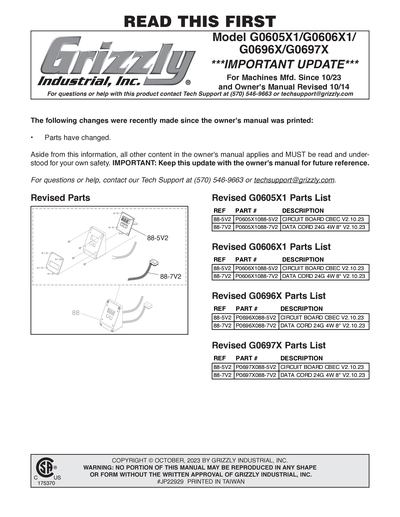

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
5
STRAIN RELIEF PG16 TYPE-6 ST
Price
N/A

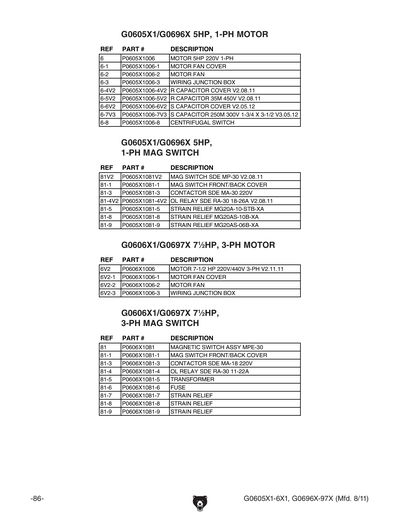

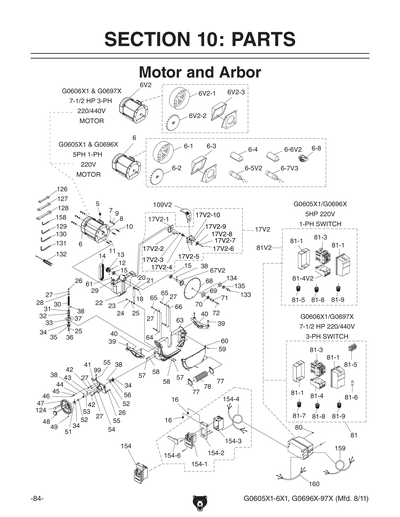

6
MOTOR 7.5HP 220V/440V 3-PH V1
Price
$812.65
6-1
MOTOR FAN COVER
Price
$13.60
6-2
MOTOR FAN
Price
$12.40
6-3
WIRING JUNCTION BOX
Price
$11.20
6V2
MOTOR 7.5HP 220V/440V 3-PH V2.11.11
Price
$694.65
6V2-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
6V2-2
MOTOR FAN
Item is no longer available
Price
N/A
6V2-3
WIRING JUNCTION BOX
Item is no longer available
Price
N/A
7
HEX NUT M10-1.5
Price
N/A
8
FLAT WASHER 10MM
Price
N/A
9
LOCK WASHER 10MM
Price
N/A
10
MOTOR BOLT
Price
N/A
11
KEY 5 X 5 X 40
Price
N/A
12
SET SCREW M6-1 X 8
Price
N/A
13
MOTOR PULLEY
Price
N/A
14
FLAT BELT 220-J12
Price
N/A
15
BALL BEARING 6005-2RS
Price
N/A
16
FLANGE BOLT M8-1.25 X 12
Price
N/A
17
*DISCD*SPLITTER MOUNTING BRKT V1.02.09
Price
N/A
17V2
MOUNTING BRACKET V2.01.10
Price
N/A
17V2-1
MOUNTING BRACKET BASE V2.01.10
Price
N/A
17V2-10
SET SCREW M3-.5 X 10
Price
N/A
17V2-2
CAP SCREW M8-1.25 X 20
Price
N/A
17V2-3
COMPRESSION SPRING V2.01.10
Price
N/A
17V2-4
LOCKING BOLT V2.01.10
Price
N/A
17V2-5
MOUNTING BRACKET PLATE V2.01.10
Price
N/A
17V2-6
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
17V2-7
LOCK WASHER 5MM
Price
N/A
17V2-8
HANDLE V2.01.10
Price
N/A
17V2-9
BUTTON HD CAP SCR M5-.8 X 16
Price
N/A
18
CAP SCREW M8-1.25 X 20
Price
N/A
19
*DISCD*MOUNTING BOLT V1.02.09
Price
N/A
20
STRUT
Price
N/A
21
BUSHING
Price
N/A
22
BRACKET
Price
N/A
23
STRUT SCREW
Price
N/A
24
WAVY WASHER 10MM
Price
N/A
25
FLAT WASHER 10MM
Price
N/A
26
HEX BOLT M8-1.25 X 20
Price
N/A
27
LOCK WASHER 8MM
Price
N/A
28
FLAT WASHER 8MM
Price
N/A
29
BRUSH
Price
N/A
30
LEADSCREW
Price
N/A
31
BUSHING
Price
N/A
32
GASKET
Price
N/A
33
***USE P0651056***
Price
N/A
34
SET SCREW M5-.8 X 5
Price
N/A
35
LEFT BEVEL GEAR
Price
N/A
36
LOCK NUT M10-1.25
Price
N/A
37
THRUST BEARING 51102
Price
N/A
38
KEY 5 X 5 X 18
Price
N/A
39
HEX BOLT M10-1.5 X 35
Price
N/A
40
TRUNNION SLIDE
Price
N/A
41
PLATE
Price
N/A
42
CAP SCREW M8-1.25 X 25
Price
N/A
43
WOODRUFF KEY 22 X 5
Price
N/A
44
EXT TOOTH WASHER 6MM
Price
N/A
45
TILT ARROW POINTER
Price
N/A
46
PHLP HD SCR M6-1 X 12
Price
N/A
47
HANDWHEEL
Price
N/A
48
HANDWHEEL LOCK KNOB
Price
N/A
49
SET SCREW 5/16-18 X 5/16
Price
N/A
50
*DISCD*SHIM V1.02.09
Price
N/A
51
LOCK COLLAR
Price
N/A
52
PLASTIC BUSHING 19MM ID
Price
N/A
53
BLADE HEIGHT HANDWHEEL SHAFT
Price
N/A
54
ALIGNMENT PIN
Price
N/A
55
HEX NUT M8-1.25
Price
N/A
56
RIGHT BEVEL GEAR
Price
N/A
57
CAP SCREW M6-1 X 25
Price
N/A
58
LOCK WASHER 6MM
Price
N/A
59
PHLP HD SCR M5-.8 X 20
Price
N/A
60
BLADE COVER
Price
N/A
61
PHLP HD SCR M5-.8 X 10
Price
N/A
61-1
FLAT WASHER 5MM
Price
N/A
62
DUST CHUTE
Price
N/A
63
TRUNNION
Price
N/A
64
FRONT COLUMN
Price
N/A
65
CAP SCREW M8-1.25 X 40
Price
N/A
66
REAR COLUMN
Price
N/A
67
ARBOR SHAFT 1" V2.01.10
Price
N/A
67V2
ARBOR SHAFT 1" V2.01.10
Price
N/A
68
BLADE
Price
N/A
69
ARBOR FLANGE
Price
N/A
70
ARBOR NUT 1"-10
Price
N/A
71
ARBOR SHAFT 1" V2.01.10
Price
N/A
72
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
73
ALIGNMENT PIN
Price
N/A
74
MOTOR COVER
Price
N/A
75
RUBBER BUMPER
Price
N/A
76
LOCK KNOB M6-1 X 17
Price
N/A
77
HOSE CLAMP 60-80MM
Price
N/A
78
DUST CHUTE HOSE 63 X 1000MM
Price
N/A
79
RIGHT COVER
Price
N/A
80
PHLP HD SCR 10-24 X 1/2
Price
N/A
81
MAGNETIC SWITCH ASSY MPE-30 19.5A
Price
$166.95
81-1
MAG SWITCH FRONT/BACK COVER
Price
$36.55
81-2
MAG SWITCH FRONT/BACK COVER
Price
N/A
81-3
CONTACTOR SDE MA-18 220V
Price
N/A
81-4
OL RELAY SDE RA-30 11-22A
Price
$42.00
81-5
TRANSFORMER
Price
N/A
81-6
FUSE
Price
N/A
81-7
STRAIN RELIEF M20 TYPE-6 ST
Price
N/A
81-8
STRAIN RELIEF M20 TYPE-6 ST
Price
N/A
81-9
STRAIN RELIEF M20 TYPE-6 ST
Price
N/A
82
CAP SCREW M6-1 X 12
Price
N/A
83
COVER
Price
N/A
84
PHLP HD SCR M5-.8 X 8
Price
N/A
88
DIGITAL SENSOR ASSY
Price
N/A
88-1
PHLP HD SCR M5-.8 X 8
Price
N/A
88-10
DIGITAL SENSOR COVER
Item is no longer available
Price
N/A
88-2
DIGITAL READOUT COVER
Price
N/A
88-3
PHLP HD SCR M3-.5 X 8
Price
N/A
88-4
FLAT WASHER 3MM
Price
N/A
88-5
CIRCUIT BOARD V1
Price
N/A
88-5V2
CIRCUIT BOARD CBEC V2.10.23
Price
N/A
88-6
SENSOR PLATE
Price
N/A
88-7
DATA CORD 24 AWG X 450
Price
N/A
88-7V2
DATA CORD 24G 4W 18" V2.10.23
Price
N/A
88-8
DIGITAL READOUT CORD 18 AWG X 2C
Price
N/A
88-9
PHLP HD SCR M3-.5 X 12
Price
N/A
89
PHLP HD SCR M3-.5 X 8
Price
N/A
90
HEX NUT M5-.8
Price
N/A
91
PLATE
Price
N/A
92
PHLP HD SCR M4-.7 X 6
Price
N/A
93
FLAT WASHER 4MM
Price
N/A
94
SET SCREW M8-1.25 X 50
Price
N/A
95
STRAIN RELIEF M15 TYPE-6 ST
Price
N/A
96
HEX BOLT M10-1.5 X 25
Price
N/A
97
FENCE MOUNTING BRACKET
Price
N/A
98
STRAIN RELIEF
Price
N/A
99
HEX BOLT M8-1.25 X 35
Price
N/A
100
CHAIN
Price
N/A
101
EXTENSION WING
Price
N/A
102
FLAT HD SCR M5-.8 X 20
Price
N/A
103
*DISCD*TABLE INSERT V1.02.09
Price
N/A
103V2
TABLE INSERT ASSY V2.01.10
Price
N/A
103V2-1
PLATE V2.01.10
Price
N/A
103V2-2
***USE PSS04M***
Price
N/A
103V2-3
LEFT PLATE W/ TAPE V2.01.10
Price
N/A
103V2-4
RIGHT PLATE W/ TAPE 35MM V2.01.10
Price
N/A
103V2-5
LEFT PLATE W/ TAPE V2.01.10
Price
N/A
103V2-6
RIGHT PLATE W/ TAPE 35MM V2.01.10
Price
N/A
103V2-7
SET SCREW M6-1 X 12
Price
N/A
103V2-8
LOCK KNOB M5-.8 V2.01.10
Price
N/A
104
SET SCREW M6-1 X 12
Price
N/A
105
*DISCD*PLATE L V1.02.09
Price
N/A
106
*DISCD*PLATE R V1.02.09
Price
N/A
107
*DISCD*TAPE L V1.02.09
Price
N/A
108
*DISCD*TAPE R V1.02.09
Price
N/A
109
*DISCD*RIVING KNIFE V1.02.09
Price
N/A
109V2
RIVING KNIFE V2.01.10
Price
N/A
110
TABLE
Price
N/A
111
TAP SCREW M4 X 12
Price
N/A
113
WORM GEAR
Price
N/A
114
BLADE TILT SHAFT BRACKET
Price
N/A
115
BLADE TILT SHAFT
Price
N/A
116
SENSOR PLATE
Price
N/A
117
SET SCREW M8-1.25 X 10
Price
N/A
118
LOCK COLLAR
Price
N/A
119
L-PLATE
Price
N/A
120
FLAT WASHER 5MM
Price
N/A
121
TAP SCREW M3 X 6
Price
N/A
122
ROLL PIN 5 X 28
Price
N/A
123
MITER GAUGE MOUNTING BRACKET
Price
N/A
124
HANDWHEEL HANDLE
Price
N/A
126
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
127
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
128
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
129
HEX WRENCH 4MM
Price
N/A
130
HEX WRENCH 5MM
Price
N/A
131
HEX WRENCH 6MM
Price
N/A
132
SCREWDRIVER PHILLIPS/STANDARD
Price
N/A
133
ARBOR SHAFT 1" V2.01.10
Price
N/A
134
ARBOR FLANGE 5/8"
Price
N/A
135
ARBOR NUT 5/8"-12
Price
N/A
136
WRENCH MOUNTING BRACKET
Price
N/A
137
COVER
Price
N/A
138
ARBOR WRENCH
Price
N/A
139
FLAT HD SCR M6-1 X 20
Price
N/A
150
PUSH STICK
Price
N/A
154
ON/OFF SWITCH ASSY 5HP-1HP
Price
N/A
154-1
ON/OFF PUSH BUTTON SWITCH
Price
N/A
154-2
ON/OFF SWITCH BRACKET
Price
N/A
154-3
ON/OFF SWITCH BOX
Price
N/A
154-4
SWITCH CORD ON/OFF 14AWG X 3C
Price
N/A
154-5
SAFETY PIN
Price
N/A
154-6
Switch Disabling Lock 3/16" Shackle
Price
N/A
157
JUNCTION BOX BASE
Price
N/A
157-1
GROUND LABEL
Price
N/A
157-2
EXT TOOTH WASHER 5MM
Price
N/A
157-3
PHLP HD SCR M5-.8 X 10
Price
N/A
158
HEX WRENCH 3MM
Price
N/A
159
MOTOR CORD 12G 4W ST 600V
Price
$25.10
160
POWER CORD 12G 4W ST 600V
Price
$58.95
161
GROUND WIRE 12G 1C 150MM
Price
N/A
162
JUNCTION BOX COVER
Price
N/A
163
PHLP HD SCR 10-24 X 1/4
Price
N/A
165
WIRE NUT SW-P6H
Price
N/A

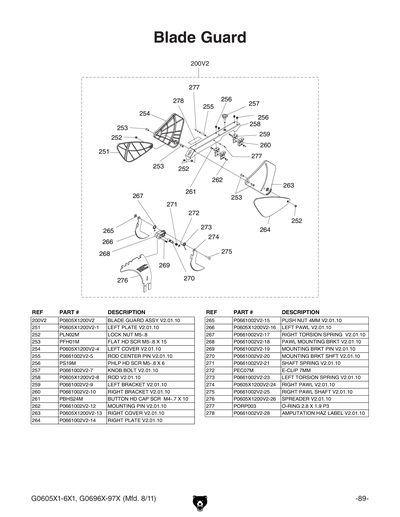

200
BLADE GUARD ASSEMBLY V1
Price
N/A
200V2
BLADE GUARD ASSY V2.01.10
Price
N/A
200V2-1
LEFT PLATE V2.01.10
Price
N/A
200V2-10
RIGHT BRACKET V2.01.10
Price
N/A
200V2-11
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
200V2-12
MOUNTING PIN V2.01.10
Price
N/A
200V2-13
RIGHT COVER V2.01.10
Price
N/A
200V2-14
RIGHT PLATE V2.01.10
Price
N/A
200V2-15
PUSH NUT 4MM V2.01.10
Price
N/A
200V2-16
LEFT PAWL V2.01.10
Price
N/A
200V2-17
RIGHT TORSN SPRING V2.01.10
Price
N/A
200V2-18
PAWL MOUNTING BRKT V2.01.10
Price
N/A
200V2-19
MOUNTING BRKT PIN V2.01.10
Price
N/A
200V2-2
LOCK NUT M5-.8
Price
N/A
200V2-20
***USE P0869318***
Price
N/A
200V2-21
SHAFT SPRING V2.01.10
Price
N/A
200V2-22
E-CLIP 7MM
Price
N/A
200V2-23
LEFT TORSION SPRING V2.01.10
Price
N/A
200V2-24
RIGHT PAWL V2.01.10
Price
N/A
200V2-25
RIGHT PAWL SHAFT V2.01.10
Price
N/A
200V2-26
SPREADER V2.01.10
Price
N/A
200V2-27
O-RING 2.8 X 1.9 P3
Price
N/A
200V2-28
AMPUTATION HAZ LABEL V2.01.10
Price
N/A
200V2-3
FLAT HD SCR M5-.8 X 15
Price
N/A
200V2-4
LEFT COVER V2.01.10
Price
N/A
200V2-5
ROD CENTER PIN V2.01.10
Price
N/A
200V2-6
PHLP HD SCR M5-.8 X 6
Price
N/A
200V2-7
KNOB BOLT V2.01.10
Price
N/A
200V2-8
ROD V2.01.10
Price
N/A
200V2-9
LEFT BRACKET V2.01.10
Price
N/A
200V3
BLADE GUARD ASSY V4.07.21
Price
N/A
200V3-1
FLAT HD SCR M4-.7 X 8
Price
N/A
200V3-10
REAR COVER
Price
N/A
200V3-11
ROLL PIN 5 X 32
Price
N/A
200V3-12
HEX NUT M5-.8
Price
N/A
200V3-13
PHLP HD SCR M5-.8 X 6
Price
N/A
200V3-14
KNOB BOLT V2.01.10
Price
N/A
200V3-15
***SEE EXT DESC***
Price
N/A
200V3-16
LEFT BRACKET V2.01.10
Price
N/A
200V3-17
MOUNTING BLOCK (RIGHT)
Price
N/A
200V3-18
PHLP HD SCR M4-.7 X 10
Price
N/A
200V3-19
MOUNTING PIN V2.01.10
Price
N/A
200V3-2
UPPER COVER
Price
N/A
200V3-20
ROLL PIN 5 X 40
Price
N/A
200V3-21
FLAT WASHER 5MM
Price
N/A
200V3-22
LEFT PAWL V2.01.10
Price
N/A
200V3-23
RIGHT TORSN SPRING V2.01.10
Price
N/A
200V3-24
SHAFT SPRING V2.01.10
Price
N/A
200V3-25
E-CLIP 7MM
Price
N/A
200V3-26
LEFT TORSION SPRING V2.01.10
Price
N/A
200V3-27
RIGHT PAWL V2.01.10
Price
N/A
200V3-28
PAWL MOUNTING BRKT V2.01.10
Price
N/A
200V3-29
LOCATING PIN 5.25 X 10, 5 X 16
Price
N/A
200V3-3
HEX NUT M6-1
Price
N/A
200V3-30
ANTI-KICKBACK PAWL RELEASE PIN
Price
N/A
200V3-31
SPREADER V2.01.10
Price
N/A
200V3-32
PHLP HD SCR M5-.8 X 30
Price
N/A
200V3-33
BLADE GUARD WARNING LABEL
Price
N/A
200V3-4
***SEE EXT DESC***
Price
N/A
200V3-5
FLAT WASHER 6MM
Price
N/A
200V3-6
***SEE EXT DESC***
Price
N/A
200V3-7
FLAT WASHER 6MM
Price
N/A
200V3-8
FLAT HD SCR M6-1 X 16
Price
N/A
200V3-9
BRACKET
Price
N/A
200V4
BLADE GUARD ASSY V4.07.21
Price
N/A
200V4-1
FLAT HD SCR M4-.7 X 8
Price
N/A
200V4-10
REAR COVER
Price
N/A
200V4-12
HEX NUT M5-.8
Price
N/A
200V4-13
PHLP HD SCR M5-.8 X 6
Price
N/A
200V4-14
KNOB BOLT V2.01.10
Price
N/A
200V4-15
BLADE GUARD BODY
Price
N/A
200V4-16
LEFT BRACKET V2.01.10
Price
N/A
200V4-17
MOUNTING BLOCK (RIGHT)
Price
N/A
200V4-18
PHLP HD SCR M4-.7 X 10
Price
N/A
200V4-19
MOUNTING PIN V2.01.10
Price
N/A
200V4-2
UPPER COVER
Price
N/A
200V4-20
ROLL PIN 5 X 45
Price
N/A
200V4-21
FLAT WASHER 5MM
Price
N/A
200V4-22
LEFT PAWL V2.01.10
Price
N/A
200V4-23
RIGHT TORSN SPRING V2.01.10
Price
N/A
200V4-24
SHAFT SPRING V2.01.10
Price
N/A
200V4-25
E-CLIP 7MM
Price
N/A
200V4-26
LEFT TORSION SPRING V2.01.10
Price
N/A
200V4-27
RIGHT PAWL V2.01.10
Price
N/A
200V4-28
PAWL MOUNTING BRKT V2.01.10
Price
N/A
200V4-29
LOCATING PIN 5.25 X 10, 5 X 16
Price
N/A
200V4-3
HEX NUT M6-1
Price
N/A
200V4-30
ANTI-KICKBACK PAWL RELEASE PIN
Price
N/A
200V4-31
SPREADER V2.01.10
Price
N/A
200V4-32
PHLP HD SCR M5-.8 X 30
Price
N/A
200V4-33
BLADE GUARD WARNING LABEL
Price
N/A
200V4-34
BLADE GUARD COVER (LEFT)
Price
N/A
200V4-4
BLADE GUARD COVER (RIGHT)
Price
N/A
200V4-5
FLAT WASHER 6MM
Price
N/A
200V4-6
CONNECTING PLATE
Price
N/A
200V4-7
FLAT WASHER 6MM
Price
N/A
200V4-8
FLAT HD SCR M6-1 X 16
Price
N/A
200V4-9
BRACKET
Price
N/A
201
BLADE GUARD ASSY V2.01.10
Price
N/A
202
BLADE GUARD ASSY V2.01.10
Price
N/A
203
BLADE GUARD ASSY V2.01.10
Price
N/A
204
BLADE GUARD ASSY V2.01.10
Price
N/A
205
BLADE GUARD ASSY V2.01.10
Price
N/A
206
BLADE GUARD ASSY V2.01.10
Price
N/A
207
BLADE GUARD ASSY V2.01.10
Price
N/A
208
BLADE GUARD ASSY V2.01.10
Price
N/A
209
BLADE GUARD ASSY V2.01.10
Price
N/A
210
BLADE GUARD ASSY V2.01.10
Price
N/A
211
BLADE GUARD ASSY V2.01.10
Price
N/A
212
BLADE GUARD ASSY V2.01.10
Price
N/A
213
BLADE GUARD ASSY V2.01.10
Price
N/A
214
BLADE GUARD ASSY V2.01.10
Price
N/A
215
BLADE GUARD ASSY V2.01.10
Price
N/A
216
FLAT HD SCR M6-1 X 10
Price
N/A
217
FLAT HD SCR M5-.8 X 20
Price
N/A
218
PHLP HD SCR M5-.8 X 25
Price
N/A
219
ROLL PIN 8 X 55
Price
N/A
220
ROLL PIN 5 X 32
Price
N/A
221
ROLL PIN 6 X 20
Price
N/A
222
PHLP HD SCR M4-.7 X 8
Price
N/A
223
LOCK NUT M5-.8
Price
N/A
224
FLAT WASHER 5MM
Price
N/A
225
BLADE GUARD ASSY V2.01.10
Price
N/A
251
LEFT PLATE V2.01.10
Price
N/A
252
LOCK NUT M5-.8
Price
N/A
253
FLAT HD SCR M5-.8 X 15
Price
N/A
254
LEFT COVER V2.01.10
Price
N/A
255
ROD CENTER PIN V2.01.10
Price
N/A
256
PHLP HD SCR M5-.8 X 6
Price
N/A
257
KNOB BOLT V2.01.10
Price
N/A
258
ROD V2.01.10
Price
N/A
259
LEFT BRACKET V2.01.10
Price
N/A
260
RIGHT BRACKET V2.01.10
Price
N/A
261
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
262
MOUNTING PIN V2.01.10
Price
N/A
263
RIGHT COVER V2.01.10
Price
N/A
264
RIGHT PLATE V2.01.10
Price
N/A
265
PUSH NUT 4MM V2.01.10
Price
N/A
266
LEFT PAWL V2.01.10
Price
N/A
267
RIGHT TORSN SPRING V2.01.10
Price
N/A
268
PAWL MOUNTING BRKT V2.01.10
Price
N/A
269
MOUNTING BRKT PIN V2.01.10
Price
N/A
270
***USE P0869318***
Price
N/A
271
SHAFT SPRING V2.01.10
Price
N/A
272
E-CLIP 7MM
Price
N/A
273
LEFT TORSION SPRING V2.01.10
Price
N/A
274
RIGHT PAWL V2.01.10
Price
N/A
275
RIGHT PAWL SHAFT V2.01.10
Price
N/A
276
SPREADER V2.01.10
Price
N/A
277
O-RING 2.8 X 1.9 P3
Price
N/A
278
AMPUTATION HAZ LABEL V2.01.10
Price
N/A
280
GUARD CONVERSION KIT
Price
N/A

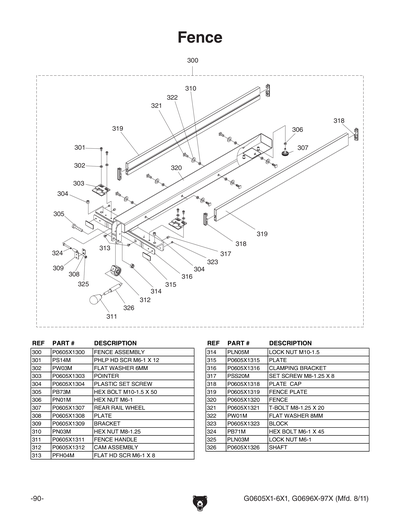

300
FENCE ASSY
Price
N/A
301
PHLP HD SCR M6-1 X 12
Price
N/A
302
FLAT WASHER 6MM
Price
N/A
303
POINTER
Price
N/A
304
PLASTIC SET SCREW
Price
N/A
305
HEX BOLT M10-1.5 X 50
Price
N/A
306
HEX NUT M6-1
Price
N/A
307
REAR RAIL WHEEL
Price
N/A
308
PLATE
Price
N/A
309
BRACKET
Price
N/A
310
HEX NUT M8-1.25
Price
N/A
311
***USE P0495X155***
Price
N/A
312
CAM
Price
N/A
313
FLAT HD SCR M6-1 X 8
Price
N/A
314
LOCK NUT M10-1.5
Price
N/A
315
PLATE
Price
N/A
316
RAIL CLAMPING BRACKET
Price
N/A
317
SET SCREW M8-1.25 X 8
Price
N/A
318
PLATE CAP
Price
N/A
319
FENCE PLATE
Price
N/A
320
FENCE
Price
N/A
321
T-BOLT M8-1.25 X 20
Price
N/A
322
FLAT WASHER 8MM
Price
N/A
323
BLOCK
Price
N/A
324
HEX BOLT M6-1 X 45
Price
N/A
325
LOCK NUT M6-1
Price
N/A
326
SHAFT
Price
N/A

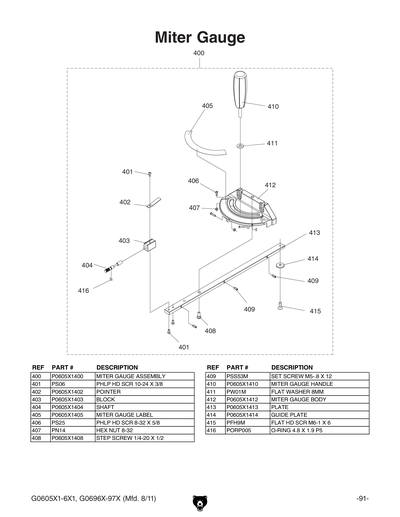

400
MITER GAUGE ASSEMBLY
Price
N/A
401
PHLP HD SCR 10-24 X 3/8
Price
N/A
402
POINTER
Price
N/A
403
BLOCK
Price
N/A
404
SHAFT
Price
N/A
405
MITER GAUGE LABEL
Price
N/A
406
PHLP HD SCR 8-32 X 5/8
Price
N/A
407
HEX NUT 8-32
Price
N/A
408
STEP SCREW 1/4-20 X 1/2
Price
N/A
409
SET SCREW M5-.8 X 12
Price
N/A
410
MITER GAUGE HANDLE
Price
N/A
411
FLAT WASHER 8MM
Price
N/A
412
MITER GAUGE BODY
Price
N/A
413
PLATE
Price
N/A
414
GUIDE PLATE
Price
N/A
415
FLAT HD SCR M6-1 X 6
Price
N/A
416
O-RING 4.8 X 1.9 P5
Price
N/A

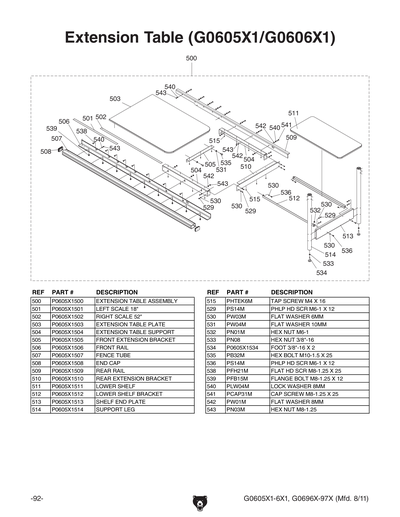

500
EXTENSION TABLE ASSEMBLY
Price
N/A
501
LEFT SCALE 18"
Price
N/A
502
RIGHT SCALE 52"
Price
N/A
503
EXTENSION TABLE PLATE
Price
N/A
504
EXTENSION TABLE SUPPORT
Price
N/A
505
FRONT EXTENSION BRACKET
Price
N/A
506
FRONT RAIL 91-3/8" LONG
Price
N/A
507
FENCE TUBE 91-3/8" LONG
Price
N/A
508
END CAP
Price
N/A
509
REAR RAIL 79" LONG
Price
N/A
510
REAR EXTENSION BRACKET
Price
N/A
511
LOWER EXTENSION TABLE SHELF
Price
N/A
512
LOWER EXTENSION TABLE SHELF BRACKET
Price
N/A
513
SHELF END PLATE
Price
N/A
514
SUPPORT LEG
Price
N/A
515
TAP SCREW M4 X 16
Price
N/A
529
PHLP HD SCR M6-1 X 12
Price
N/A
530
FLAT WASHER 6MM
Price
N/A
531
FLAT WASHER 10MM
Price
N/A
532
HEX NUT M6-1
Price
N/A
533
HEX NUT 3/8-16
Price
N/A
534
FOOT 3/8-16 X 2
Price
N/A
535
HEX BOLT M10-1.5 X 25
Price
N/A
536
PHLP HD SCR M6-1 X 12
Price
N/A
538
FLAT HD SCR M8-1.25 X 25
Price
N/A
539
FLANGE BOLT M8-1.25 X 12
Price
N/A
540
LOCK WASHER 8MM
Price
N/A
541
CAP SCREW M8-1.25 X 25
Price
N/A
542
FLAT WASHER 8MM
Price
N/A
544
G0606X1 BOX 2 OF 4 RAILS
Price
$507.50
545
FENCE ASSY
Price
N/A
546
G0606X1 BOX 4 OF 4 EXTENSION TABLE
Price
$1,207.80

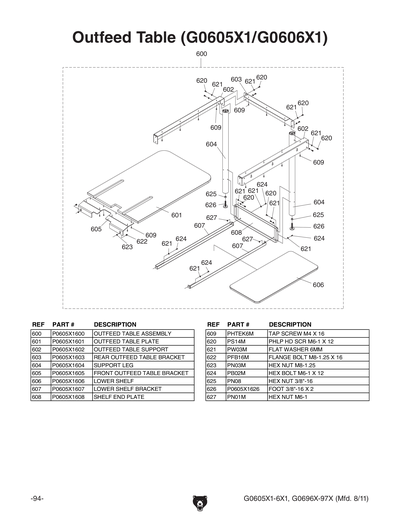

600
OUTFEED TABLE ASSEMBLY
Price
N/A
601
OUTFEED TABLE PLATE
Price
N/A
602
OUTFEED TABLE SUPPORT
Price
N/A
603
REAR OUTFEED TABLE BRACKET
Price
N/A
604
SUPPORT LEG
Price
N/A
605
FRONT OUTFEED TABLE BRACKET
Price
N/A
606
SHELF LOWER
Price
N/A
607
LOWER OUTFEED TABLE SHELF BRACKET
Price
N/A
608
SHELF END PLATE
Price
N/A
609
TAP SCREW M4 X 16
Price
N/A
620
PHLP HD SCR M6-1 X 12
Price
N/A
621
FLAT WASHER 6MM
Price
N/A
622
FLANGE BOLT M8-1.25 X 16
Price
N/A
623
HEX NUT M8-1.25
Price
N/A
624
HEX BOLT M6-1 X 12
Price
N/A
625
HEX NUT 3/8-16
Price
N/A
626
FOOT 3/8-16 X 2
Price
N/A
627
HEX NUT M6-1
Price
N/A
700
GUARD AND ANTI-KICKBACK LABEL
Price
N/A
701
DISCONNECT POWER-BLADE CHANGE LABEL
Price
N/A
702
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
703
Extreme Series Nameplate
Price
N/A
704
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
705
Nameplate - Large
Price
N/A
706
MACHINE ID LABEL
Item is no longer available
Price
N/A
707
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
708
ELECTRICITY 1.4W X 1.2H
Price
N/A
709
N/S GRIZZLY GREEN G1023S
Price
N/A
710
GREY PUTTY REF G0504
Price
N/A
MAN
MANUAL G0605X1-97X MFD-2/9-8/11 V1.02.09
Price
N/A
P
FLAT HD SCR M5-.8 X 15
Price
$1.60
