Parts for G0608X - 7-1/2 HP 3-Phase Extreme Series Tilting Arbor Shaper

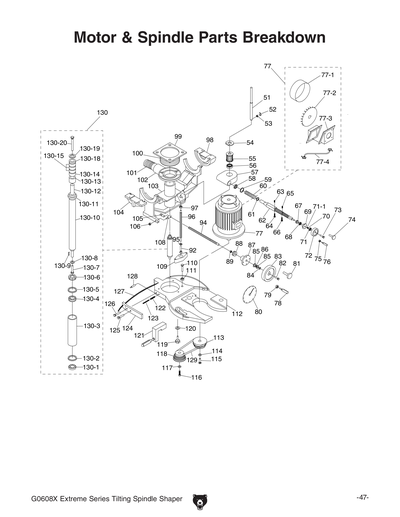

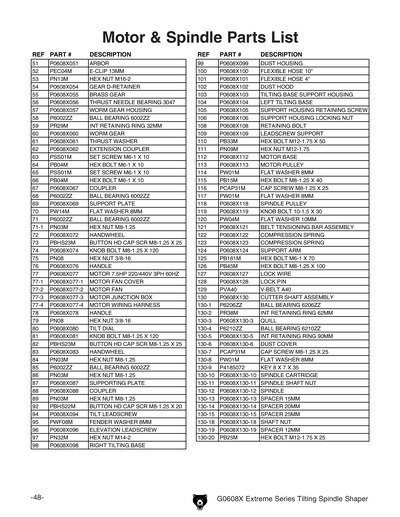

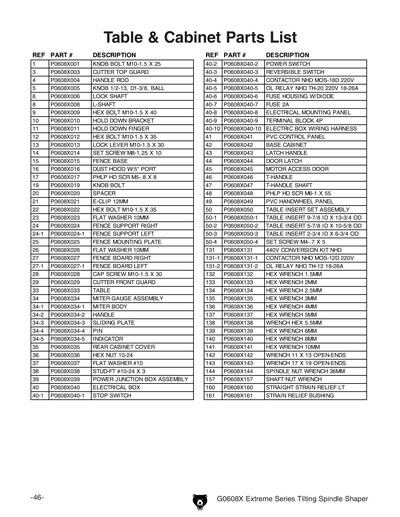

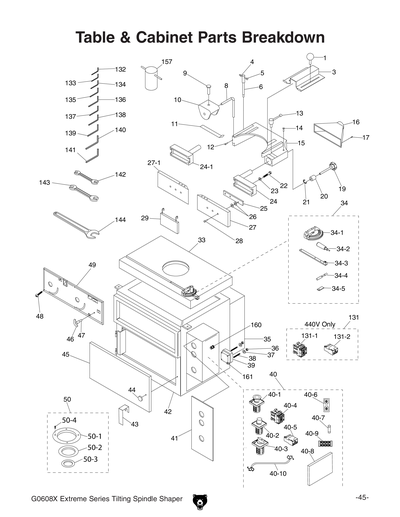

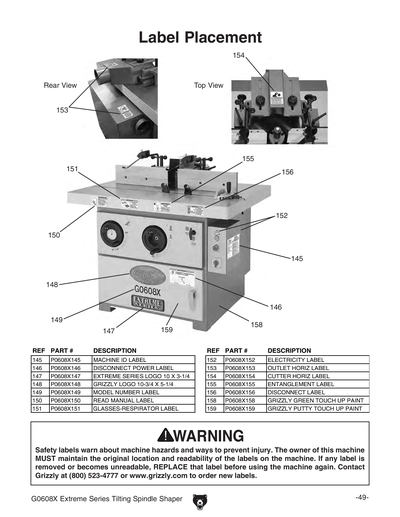

Part Diagram for G0608X
Part Diagram for G0608X
Part Diagram for G0608X
Part Diagram for G0608X
Part Diagram for G0608X
Part Diagram for G0608X
Part Diagram for G0608X
Part Diagram for G0608X
Part Diagram for G0608X
Part Diagram for G0608X

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
KNOB BOLT M10-1.5 X 25
Price
$24.50
3
CUTTER TOP GUARD
Price
$242.65
4
HANDLE ROD
Price
$21.75
5
HANDLE 1/2-13, D1-3/8, BALL
Price
$36.25
6
LOCK SHAFT
Price
$61.20
8
L-SHAFT
Price
$37.40
9
HEX BOLT M10-1.5 X 40
Price
N/A
10
HOLD DOWN BRACKET
Price
$16.70
11
HOLD DOWN FINGER
Price
$11.25
12
HEX BOLT M10-1.5 X 35
Price
N/A
13
LOCK LEVER M10-1.5 X 30
Price
$71.60
14
SET SCREW M8-1.25 X 10
Price
N/A
15
FENCE BASE
Price
$1,135.05
16
DUST HOOD W/5" PORT
Price
$48.90
17
PHLP HD SCR M5-.8 X 8
Price
N/A
19
KNOB BOLT
Price
$67.95
20
SPACER
Price
$90.60
21
E-CLIP 12MM
Price
N/A
22
HEX BOLT M10-1.5 X 35
Price
N/A
23
FLAT WASHER 10MM
Price
N/A
24
FENCE SUPPORT RIGHT
Price
$256.95
24-1
FENCE SUPPORT LEFT
Price
$256.95
25
FENCE MOUNTING PLATE
Price
$43.50
26
FLAT WASHER 10MM
Price
N/A
27
FENCE BOARD RIGHT
Item is no longer available
Price
N/A
27-1
FENCE BOARD LEFT
Item is no longer available
Price
N/A
28
CAP SCREW M10-1.5 X 30
Price
N/A
29
CUTTER FRONT GUARD
Price
$137.15
30
HEX BOLT M10-1.5 X 60
Price
N/A
31
FLAT WASHER 10MM
Price
N/A
32
HOLD DOWN FINGER
Price
N/A
33
TABLE
Item is no longer available
Price
N/A
34
MITER GAUGE ASSEMBLY
Item is no longer available
Price
N/A
34-1
MITER BODY
Item is no longer available
Price
N/A
34-2
HANDLE
Item is no longer available
Price
N/A
34-3
SLIDING PLATE
Item is no longer available
Price
N/A
34-4
PIN
Item is no longer available
Price
N/A
34-5
INDICATOR
Item is no longer available
Price
N/A
35
REAR CABINET COVER
Item is no longer available
Price
N/A
36
HEX NUT 10-24
Price
N/A
37
FLAT WASHER #10
Price
N/A
38
STUD-FT #10-24 X 3
Item is no longer available
Price
N/A
39
POWER JUNCTION BOX ASSEMBLY
Item is no longer available
Price
N/A
40
ELECTRICAL BOX
Item is no longer available
Price
N/A
40-1
STOP SWITCH
Item is no longer available
Price
N/A
40-10
ELECTRIC BOX WIRING HARNESS
Item is no longer available
Price
N/A
40-2
POWER SWITCH
Price
$84.85
40-3
REVERSIBLE SWITCH
Price
$114.15
40-4
CONTACTOR NHD MOS-18D 220V
Price
$168.55
40-5
OL RELAY NHD TH-20 220V 18-26A
Price
$39.60
40-6
FUSE HOUSING W/DIODE
Price
$19.00
40-7
FUSE 2A
Price
$6.35
40-8
ELECTRICAL MOUNTING PANEL
Item is no longer available
Price
N/A
40-9
TERMINAL BLOCK 4P
Item is no longer available
Price
N/A
41
PVC CONTROL PANEL
Item is no longer available
Price
N/A
42
BASE CABINET
Item is no longer available
Price
N/A
43
LATCH HANDLE
Item is no longer available
Price
N/A
44
DOOR LATCH
Item is no longer available
Price
N/A
45
MOTOR ACCESS DOOR
Item is no longer available
Price
N/A
46
T-HANDLE
Item is no longer available
Price
N/A
47
T-HANDLE SHAFT
Item is no longer available
Price
N/A
48
PHLP HD SCR M6-1 X 55
Price
N/A
49
PVC HANDWHEEL PANEL
Item is no longer available
Price
N/A
50
TABLE INSERT SET ASSEMBLY
Price
$591.70
50-1
TABLE INSERT SET ASSEMBLY
Price
N/A
50-2
TABLE INSERT SET ASSEMBLY
Price
N/A
50-3
TABLE INSERT SET ASSEMBLY
Price
N/A
50-4
SET SCREW M4-.7 X 5
Price
N/A
51
ARBOR
Item is no longer available
Price
N/A
52
E-CLIP 13MM
Price
N/A
53
HEX NUT M16-2
Price
N/A
54
*SEE EXTENDED DESCRIPTION*
Item is no longer available
Price
N/A
55
BRASS GEAR
Price
$231.60
56
THRUST NEEDLE BEARING 3047
Price
$16.05
57
WORM GEAR HOUSING
Price
$49.20
58
BALL BEARING 6002ZZ
Price
N/A
59
INT RETAINING RING 32MM
Price
N/A
60
WORM GEAR
Price
$102.10
61
*DISCD*THRUST WASHER
Item is no longer available
Price
N/A
62
EXTENSION COUPLER
Item is no longer available
Price
N/A
62A
COMPLETE EXTENSION COUPLER
Item is no longer available
Price
N/A
63
SET SCREW M6-1 X 10
Price
N/A
64
HEX BOLT M6-1 X 10
Price
N/A
65
SET SCREW M6-1 X 10
Price
N/A
66
HEX BOLT M6-1 X 10
Price
N/A
67
COUPLER
Item is no longer available
Price
N/A
68
BALL BEARING 6002ZZ
Price
N/A
69
SUPPORT PLATE
Item is no longer available
Price
N/A
70
FLAT WASHER 14MM
Price
N/A
71
BALL BEARING 6002ZZ
Price
N/A
71-1
HEX NUT M8-1.25
Price
N/A
72
HANDWHEEL
Item is no longer available
Price
N/A
73
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
74
KNOB BOLT M8-1.25 X 120
Item is no longer available
Price
N/A
75
HEX NUT 3/8-16
Price
N/A
76
HANDLE
Item is no longer available
Price
N/A
77
MOTOR 7.5HP 220V/440V 3-PH
Price
$1,541.40
77-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
77-2
MOTOR FAN
Item is no longer available
Price
N/A
77-3
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
77-4
MOTOR WIRING HARNESS
Item is no longer available
Price
N/A
78
HANDLE
Price
$25.60
79
HEX NUT 3/8-16
Price
N/A
80
TILT DIAL
Price
$896.60
81
KNOB BOLT M8-1.25 X 120
Price
N/A
82
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
83
HANDWHEEL
Item is no longer available
Price
N/A
84
HEX NUT M8-1.25
Price
N/A
85
BALL BEARING 6002ZZ
Price
N/A
86
HEX NUT M8-1.25
Price
N/A
87
SUPPORTING PLATE
Item is no longer available
Price
N/A
88
COUPLER
Item is no longer available
Price
N/A
89
HEX NUT M8-1.25
Price
N/A
92
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
94
TILT LEADSCREW
Item is no longer available
Price
N/A
95
FENDER WASHER 8MM
Price
N/A
96
ELEVATION LEADSCREW
Item is no longer available
Price
N/A
97
HEX NUT M14-2
Price
N/A
98
RIGHT TILTING BASE
Item is no longer available
Price
N/A
99
DUST HOUSING
Price
$85.20
100
FLEXIBLE HOSE 10"
Price
$81.85
101
FLEXIBLE HOSE 4"
Item is no longer available
Price
N/A
102
DUST HOOD
Price
$77.35
103
TILTING BASE SUPPORT HOUSING
Item is no longer available
Price
N/A
104
LEFT TILTING BASE
Item is no longer available
Price
N/A
105
SUPPORT HOUSING RETAINING SCREW
Item is no longer available
Price
N/A
106
SUPPORT HOUSING LOCKING NUT
Item is no longer available
Price
N/A
108
RETAINING BOLT
Item is no longer available
Price
N/A
109
LEADSCREW SUPPORT
Price
$116.55
110
HEX BOLT M12-1.75 X 50
Price
N/A
111
HEX NUT M12-1.75
Price
N/A
112
MOTOR BASE
Item is no longer available
Price
N/A
113
MOTOR PULLEY
Price
$161.90
114
FLAT WASHER 8MM
Price
N/A
115
HEX BOLT M8-1.25 X 40
Price
N/A
116
CAP SCREW M8-1.25 X 25
Price
N/A
117
FLAT WASHER 8MM
Price
N/A
118
SPINDLE PULLEY
Item is no longer available
Price
N/A
119
KNOB BOLT 10-1.5 X 30
Price
$10.95
120
FLAT WASHER 10MM
Price
N/A
121
BELT TENSIONING BAR ASSEMBLY
Price
$18.70
122
COMPRESSION SPRING 22.12 X 86.13MM
Item is no longer available
Price
N/A
123
COMPRESSION SPRING 13.32 X 58.48MM
Item is no longer available
Price
N/A
124
SUPPORT ARM
Item is no longer available
Price
N/A
125
HEX BOLT M6-1 X 70
Price
N/A
126
HEX BOLT M8-1.25 X 100
Price
N/A
127
LOCK WIRE
Item is no longer available
Price
N/A
128
LOCK PIN
Price
$11.50
129
V-BELT A40
Price
N/A
130
CUTTER SHAFT ASSEMBLY
Price
$2,037.70
130-1
BALL BEARING 6206ZZ
Price
N/A
130-10
SPINDLE CARTRIDGE
Price
$666.55
130-11
SPINDLE SHAFT NUT
Price
$54.10
130-12
SPINDLE
Price
$288.95
130-13
SPACER 15MM
Item is no longer available
Price
N/A
130-14
SPACER 20MM
Price
$22.75
130-15
SPACER 25MM
Item is no longer available
Price
N/A
130-16
*DISCD*SPACER 30MM
Item is no longer available
Price
N/A
130-17
*DISCD*SPACER 35MM
Item is no longer available
Price
N/A
130-18
SHAFT NUT
Price
$30.85
130-19
SPACER 12MM
Price
$1.60
130-2
INT RETAINING RING 62MM
Price
N/A
130-20
HEX BOLT M12-1.75 X 25
Price
N/A
130-3
QUILL
Item is no longer available
Price
N/A
130-4
BALL BEARING 6210ZZ
Price
N/A
130-5
INT RETAINING RING 90MM
Price
$68.15
130-6
DUST COVER
Price
$244.20
130-7
CAP SCREW M8-1.25 X 25
Price
N/A
130-8
FLAT WASHER 8MM
Price
N/A
130-9
KEY 8 X 7 X 35
Price
N/A
131
440V CONVERSION KIT NHD
Price
$114.45
131-1
CONTACTOR NHD MOS-12D 220V
Item is no longer available
Price
N/A
131-2
OL RELAY NHD TH-12 18-26A
Item is no longer available
Price
N/A
132
HEX WRENCH 1.5MM
Price
N/A
133
HEX WRENCH 2MM
Price
N/A
134
HEX WRENCH 2.5MM
Price
N/A
135
HEX WRENCH 3MM
Price
N/A
136
HEX WRENCH 4MM
Price
N/A
137
HEX WRENCH 5MM
Price
N/A
138
HEX WRENCH 5.5MM
Price
N/A
139
HEX WRENCH 6MM
Price
N/A
140
HEX WRENCH 8MM
Price
N/A
141
HEX WRENCH 10MM
Price
N/A
142
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
143
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
144
SPINDLE NUT WRENCH 36MM
Price
$10.90
145
MACHINE ID LABEL
Item is no longer available
Price
N/A
146
DISCONNECT POWER LABEL
Item is no longer available
Price
N/A
147
Extreme Series Nameplate
Price
N/A
148
Nameplate - Large
Price
N/A
149
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
150
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
151
GLASSES/RESPIRATOR 3.8 X 2H
Price
N/A
152
ELECTRICITY 1.4W X 1.2H
Price
N/A
153
OUTLET HORIZ LABEL
Item is no longer available
Price
N/A
154
CUTTER HORIZ LABEL
Item is no longer available
Price
N/A
155
ENTANGLEMENT HAZARD 3.8W X 2H
Price
N/A
156
DISCONNECT HARDWIRED POWER 3.7W X 2H
Price
N/A
157
*DISCD*SHAFT NUT WRENCH
Item is no longer available
Price
N/A
158
N/S GRIZZLY GREEN G1023S
Price
N/A
159
GREY PUTTY REF G0504
Price
N/A
160
STRAIN RELIEF 3/4" TYPE-6 ST
Item is no longer available
Price
N/A
161
STRAIN RELIEF 7/8" TYPE-6 ST
Item is no longer available
Price
N/A
MAN
MANUAL G0608X MFG 01/07 07/07
Item is no longer available
Price
N/A
