Parts for G0610 11-1/4" Dovetail Machine

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

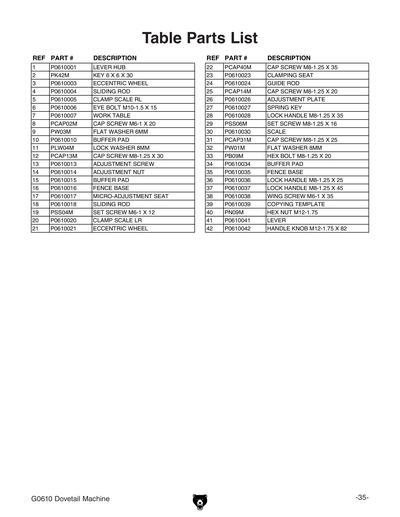

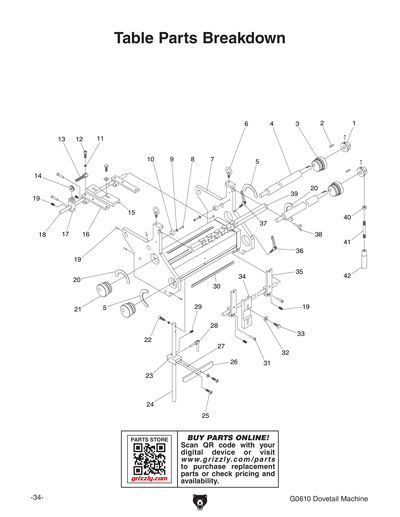

1
LEVER HUB
2
Now: PK42M
KEY 6 X 6 X 30
Price
N/A
3
ECCENTRIC WHEEL
4
SLIDING ROD
5
CLAMP SCALE RL
6
EYE BOLT M10-1.5 X 15
Price
N/A
7
WORK TABLE
8
CAP SCREW M6-1 X 20
Price
N/A
9
Now: PW03M
FLAT WASHER 6MM
Price
N/A
10
BUFFER PAD
11
LOCK WASHER 8MM
Price
N/A
12
CAP SCREW M8-1.25 X 30
Price
N/A
13
ADJUSTMENT SCREW
14
ADJUSTMENT NUT
15
BUFFER PAD
16
FENCE BASE
17
MIRCO-ADJUSTMENT SEAT
17A
MIRCO ADJUSTMENT ASSY
18
SLIDING ROD
19
SET SCREW M6-1 X 12
Price
N/A
20
CLAMP SCALE LR
21
ECCENTRIC WHEEL
22
CAP SCREW M8-1.25 X 35
Price
N/A
23
CLAMPING SEAT
24
GUIDE ROD
25
CAP SCREW M8-1.25 X 20
Price
N/A
26
ADJUSTMENT PLATE
27
SPRING KEY
28
LOCK HANDLE M8-1.25 X 35
29
SET SCREW M8-1.25 X 16
Price
N/A
30
SCALE
31
CAP SCREW M8-1.25 X 25
Price
N/A
32
Now: PW01M
FLAT WASHER 8MM
Price
N/A
33
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
34
BUFFER PAD
35
FENCE BASE
36
LOCK HANDLE M8-1.25 X 25
37
LOCK HANDLE M8-1.25 X 45
38
WING SCREW M6-1 X 35
39
COPYING TEMPLATE
40
Now: PN09M
HEX NUT M12-1.75
Price
N/A
41
LEVER M12-1.75 X 82
42
HANDLE KNOB M12-1.75

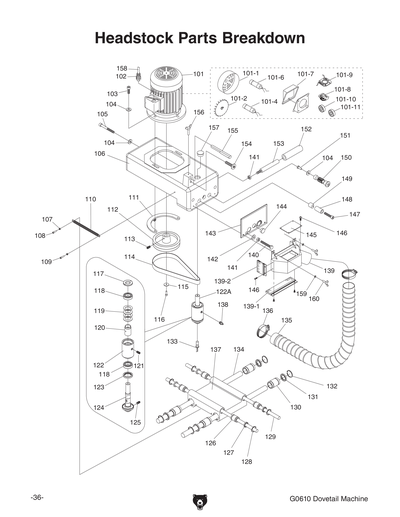

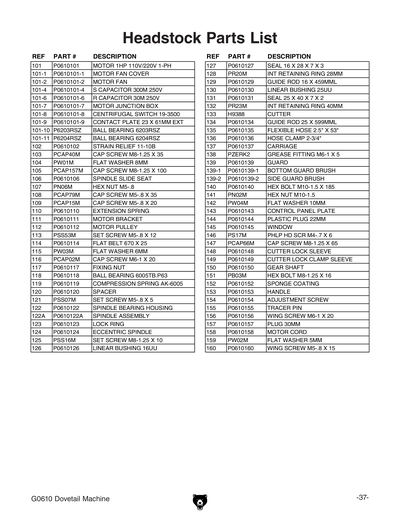

101
MOTOR 1HP 110V/220V 1-PH
101-1
MOTOR FAN COVER
101-10
BALL BEARING 6203RSZ
Price
N/A
101-11
BALL BEARING 6204RSZ
Price
N/A
101-2
MOTOR FAN
101-3
CAPACITOR COVER
101-4
S CAPACITOR 300M 250V 1-9/16 X 2-3/8
Price
N/A
101-5
CAPACITOR COVER
Price
N/A
101-6
Now: PC30
R CAPACITOR 30M 250V 1-3/8 X 2-1/2
Price
N/A
101-7
MOTOR JUNCTION BOX
101-8
CENTRIFUGAL SWITCH 19-2500
101-9
CONTACT PLATE 23 X 61MM EXT
102
STRAIN RELIEF PG11 TYPE-6 ST
Price
N/A
103
CAP SCREW M8-1.25 X 35
Price
N/A
104
Now: PW01M
FLAT WASHER 8MM
Price
N/A
105
CAP SCREW M8-1.25 X 100
Price
N/A
106
HEADSTOCK CASTING
107
Now: PN06M
HEX NUT M5-.8
Price
N/A
108
CAP SCREW M5-.8 X 35
Price
N/A
109
CAP SCREW M5-.8 X 20
Price
N/A
110
EXTENSION SPRING
111
MOTOR BRACKET
112
MOTOR PULLEY
113
SET SCREW M5-.8 X 12
Price
N/A
114
FLAT BELT 670 X 25
115
Now: PW03M
FLAT WASHER 6MM
Price
N/A
116
CAP SCREW M6-1 X 20
Price
N/A
117
SPANNER NUT
118
BALL BEARING 6005TB.P63
Price
N/A
119
COMPRESSION SPRING AK-6005
120
SPINDLE BEARING HOUSING W/ SPACER
Price
N/A
121
SET SCREW M5-.8 X 5
Price
N/A
122
SPINDLE BEARING HOUSING W/ SPACER
122A
SPINDLE ASSEMBLY
123
LOCK RING
124
SPINDLE ASSEMBLY
Price
N/A
125
SET SCREW M8-1.25 X 10
Price
N/A
126
LINEAR BUSHING 16UU
127
SEAL 16 X 28 X 7 X 3
128
Now: PR20M
INT RETAINING RING 28MM
Price
N/A
129
GUIDE ROD 16 X 459MML
130
LINEAR BUSHING 25UU
131
SEAL 25 X 40 X 7 X 2
132
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
133
Now: H9388
Dovetail Bit for G0610 & G0611X
Price
N/A
134
GUIDE ROD 25 X 599MML
135
FLEXIBLE HOSE 2.5" X 53"
136
HOSE CLAMP 2-3/4"
137
CARRIAGE
138
GREASE FITTING M6-1 X 5
Price
N/A
139
GUARD
139-1
BOTTOM GUARD BRUSH
139-2
SIDE GUARD BRUSH
140
HEX BOLT M10-1.5 X 185
141
Now: PN02M
HEX NUT M10-1.5
Price
N/A
142
Now: PW04M
FLAT WASHER 10MM
Price
N/A
143
PANEL
144
PLASTIC PLUG 22MM
145
WINDOW
146
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
147
CAP SCREW M8-1.25 X 65
Price
N/A
148
CUTTER LOCK SLEEVE
149
CUTTER LOCK CLAMP SLEEVE
150
GEAR SHAFT
151
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
152
SPONGE COATING
153
HANDLE
154
ADJUSTMENT SCREW
155
TRACER PIN
156
WING SCREW M6-1 X 20
157
PLUG 30MM
158
MOTOR CORD
159
Now: PW02M
FLAT WASHER 5MM
Price
N/A
160
WING SCREW M5-.8 X 15

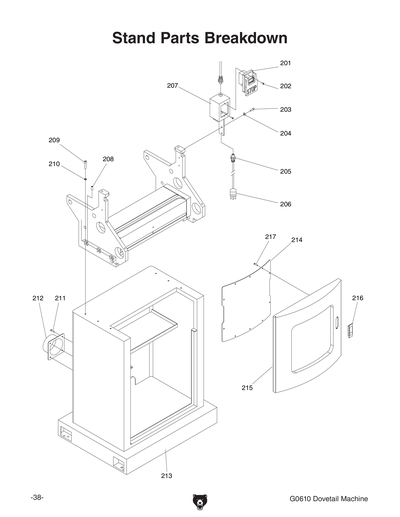

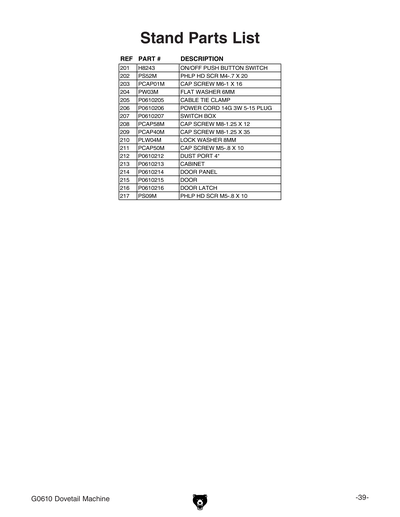

201
Now: D4151
Paddle Switch 120/230V
Price
N/A
202
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
203
CAP SCREW M6-1 X 16
Price
N/A
204
Now: PW03M
FLAT WASHER 6MM
Price
N/A
205
CABLE TIE CLAMP
206
POWER CORD 14G 3W 5-15 PLUG
207
SWITCH BOX
208
CAP SCREW M8-1.25 X 12
Price
N/A
209
CAP SCREW M8-1.25 X 35
Price
N/A
210
LOCK WASHER 8MM
Price
N/A
211
CAP SCREW M5-.8 X 10
Price
N/A
212
DUST PORT 4"
213
CABINET
214
DOOR PANEL
215
DOOR
216
DOOR LATCH
217
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A

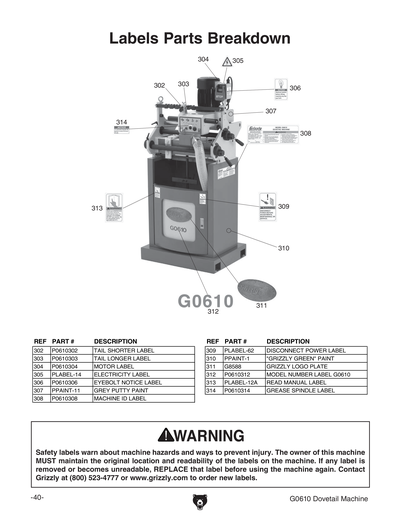

301
PANEL
Price
N/A
302
TAIL SHORTER LABEL
303
TAIL LONGER LABEL
304
MOTOR LABEL
305
ELECTRICITY 1.4W X 1.2H
Price
N/A
306
EYE BOLT NOTICE LABEL
307
GREY PUTTY REF G0504
Price
N/A
308
MACHINE ID LABEL
309
DISCONNECT 110V 2W X 3.3H
Price
N/A
310
N/S GRIZZLY GREEN G1023S
Price
N/A
311
Now: G8588
Nameplate - Small
Price
N/A
312
MODEL NUMBER LABEL
313
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
314
GREASE SPINDLE LABEL
MAN
MANUAL FOR G0610 09/07
