Parts for G0614 - 6" x 9-1/2" 1-1/2 HP Swivel Metal-Cutting Bandsaw

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

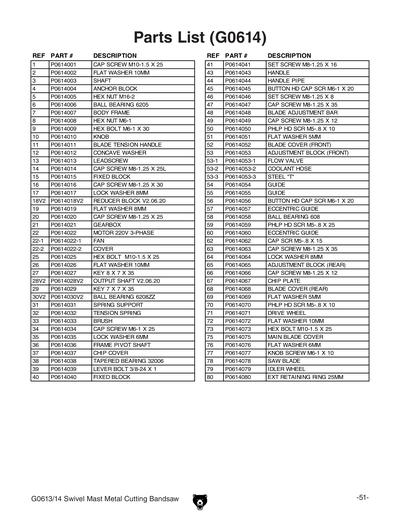

Ref # Part # Description Price Qty

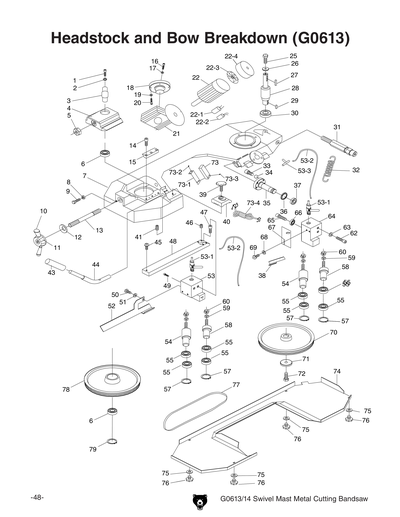

1 P0614001
Replaced By PCAP64M
CAP SCREW M10-1.5 X 25
 N/A View Replacement
2 P0614002
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
3 P0614003
SHAFT
 N/A
4 P0614004
ANCHOR BLOCK
 N/A
5 P0614005
Replaced By PN13M
HEX NUT M16-2
 N/A View Replacement
6 P0614006
Replaced By P6205ZZ
BALL BEARING 6205ZZ
 N/A View Replacement
7 P0614007
BODY FRAME V1
 N/A
7V2 P0614007V2
BODY FRAME V2.06.08
 N/A
8 P0614008
Replaced By PN01M
HEX NUT M6-1
 N/A View Replacement
9 P0614009
Replaced By PB29M
HEX BOLT M6-1 X 30
 N/A View Replacement
10 P0614010 KNOB $14.75
11 P0614011 BLADE TENSION HANDLE $41.50
12 P0614012
Replaced By P0613012
BELLVILLE WASHER 10MM
 N/A View Replacement
13 P0614013 LEADSCREW $7.50
14 P0614014
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
 N/A View Replacement
15 P0614015
FIXED BLOCK
 N/A
16 P0614016
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
 N/A View Replacement
17 P0614017
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
18 P0614018
REDUCER BLOCK
 N/A
19 P0614019
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
20 P0614020
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
 N/A View Replacement

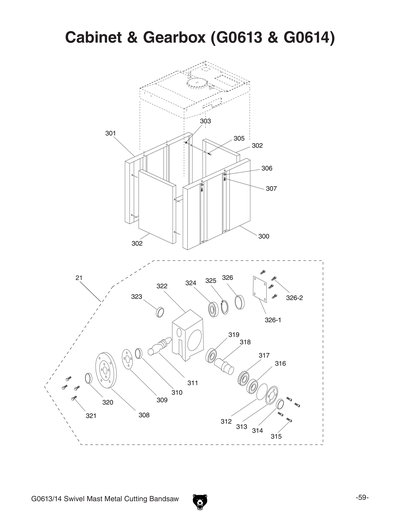

21 P0614021 GEARBOX $474.25
22 P0614022 MOTOR 1.5HP 220V 3-PH $264.75
22-1 P0614022-1 FAN $4.50
22-2 P0614022-2 COVER $8.25
22-3 P0614022-3 TERMINAL BLOCK $8.50
25 P0614025
Replaced By PB32M
HEX BOLT M10-1.5 X 25
 N/A View Replacement
26 P0614026
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
27 P0614027
Replaced By P4185072
KEY 8 X 7 X 35
 N/A View Replacement
28 P0614028 OUTPUT SHAFT $31.00
29 P0614029
Replaced By PK109M
KEY 7 X 7 X 35
 N/A View Replacement
30 P0614030
Replaced By P6206ZZ
BALL BEARING 6206ZZ
 N/A View Replacement
31 P0614031
SPRING SUPPORT
 N/A
32 P0614032 TENSION SPRING $8.00
33 P0614033 BRUSH $9.25
34 P0614034
Replaced By PCAP06M
CAP SCREW M6-1 X 25
 N/A View Replacement
35 P0614035
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
36 P0614036
FRAME PIVOT SHAFT
 N/A
37 P0614037 CHIP COVER $2.50
38 P0614038
Replaced By P30206
TAPERED ROLLER BEARING 30206
 N/A View Replacement
39 P0614039
LEVER BOLT 3/8-24 X 1 V1
 N/A
39V2 P0614039V2
Replaced By PCAP90M
CAP SCREW M10-1.5 X 55
 N/A View Replacement
40 P0614040
FIXED BLOCK V1
 N/A
40V2 P0614040V2
BLADE GUIDE LOCK PLATE V2.06.08
 N/A
41 P0614041
Replaced By PSS06M
SET SCREW M8-1.25 X 16
 N/A View Replacement
43 P0614043
HANDLE
 N/A
44 P0614044
HANDLE PIPE
 N/A
45 P0614045
Replaced By PBHS05M
BUTTON HD CAP SCR M6-1 X 20
 N/A View Replacement
46 P0614046
Replaced By PSS20M
SET SCREW M8-1.25 X 8
 N/A View Replacement
47 P0614047
Replaced By PCAP40M
CAP SCREW M8-1.25 X 35
 N/A View Replacement
48 P0614048
BLADE ADJUSTMENT BAR
 N/A
49 P0614049
Replaced By PCAP58M
CAP SCREW M8-1.25 X 12
 N/A View Replacement
50 P0614050
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
 N/A View Replacement
51 P0614051
Replaced By PW02M
FLAT WASHER 5MM
 N/A View Replacement
52 P0614052
BLADE COVER FRONT
 N/A
53 P0614053
*DISCD*ADJUSTMENT BLOCK FRONT V1
Item is no longer available
 N/A
53-1 P0614053-1 FLOW VALVE V1 $19.25
53-1V2 P0614053-1V2 FLOW VALVE 6MM V2.05.11 $21.00
53-2 P0614053-2
Replaced By P0613053-2
*DISCD*COOLANT HOSE V1
 N/A View Replacement
53-2V2 P0614053-2V2 COOLANT HOSE 6MM ID V2.05.11 $1.00
53-3 P0614053-3
Replaced By P0613053-3
STEEL T-CONNECTOR 8MM V1
 N/A View Replacement
53-3V2 P0614053-3V2
Replaced By P0613053-3V2
STEEL T-CONNECTOR 6MM V2.05.11
 N/A View Replacement
53V2 P0614053V2 ADJUSTMENT BLOCK FRONT V2.05.11 $35.75
54 P0614054
Replaced By P0614084
BLADE GUIDE BRACKET
 N/A View Replacement
55 P0614055
Replaced By P0614085
BLADE GUIDE
 N/A View Replacement
56 P0614056
Replaced By PBHS05M
BUTTON HD CAP SCR M6-1 X 20
 N/A View Replacement
57 P0614057 ECCENTRIC GUIDE $3.00
58 P0614058
Replaced By P608Z
BALL BEARING 608Z
 N/A View Replacement
59 P0614059
Replaced By PS22M
PHLP HD SCR M5-.8 X 25
 N/A View Replacement
60 P0614060 ECCENTRIC GUIDE $3.25
62 P0614062
Replaced By PCAP10M
CAP SCREW M5-.8 X 15
 N/A View Replacement
63 P0614063
Replaced By PCAP40M
CAP SCREW M8-1.25 X 35
 N/A View Replacement
64 P0614064
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
65 P0614065
ADJUSTMENT BLOCK REAR V1
 N/A
65V2 P0614065V2 ADJUSTMENT BLOCK REAR V2.05.11 $20.75
66 P0614066
Replaced By PCAP58M
CAP SCREW M8-1.25 X 12
 N/A View Replacement
67 P0614067
CHIP PLATE
 N/A
68 P0614068 BLADE COVER REAR $9.50
69 P0614069
Replaced By PW02M
FLAT WASHER 5MM
 N/A View Replacement
70 P0614070
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
 N/A View Replacement
71 P0614071 DRIVE WHEEL $63.00
72 P0614072
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
73 P0614073
Replaced By PB32M
HEX BOLT M10-1.5 X 25
 N/A View Replacement
75 P0614075 MAIN BLADE COVER $108.50
76 P0614076
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
77 P0614077 KNOB SCREW M6-1 X 10 $1.00
78 P0614078 SAW BLADE $126.50
79 P0614079 IDLER WHEEL $76.25
80 P0614080
Replaced By PR11M
EXT RETAINING RING 25MM
 N/A View Replacement
83 P0614083 WHEEL $12.75
84 P0614084 BLADE GUIDE BRACKET $29.75
85 P0614085 BLADE GUIDE $8.50
86 P0614086
Replaced By PCAP23M
CAP SCREW M4-.7 X 12
 N/A View Replacement

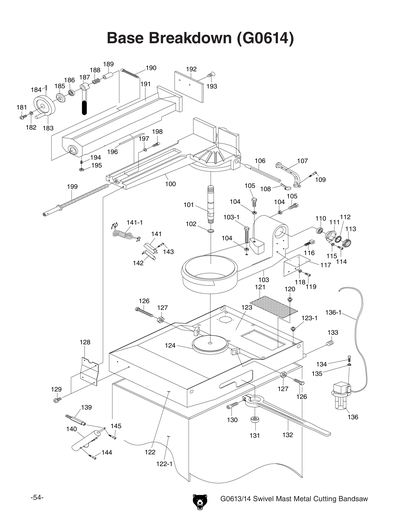

100 P0614100 VISE JAW BRACKET REAR $213.00
101 P0614101
VISE JAW ADJUSTABLE ROD
 N/A
102 P0614102
RETAINER
 N/A
103 P0614103 SWIVEL ARM $142.00
103-1 P0614103-1
Replaced By PB14M
HEX BOLT M10-1.5 X 35
 N/A View Replacement
103-2 P0614103-2 DEGREE SCALE $1.25
103-3 P0614103-3
POINTER
 N/A
103-4 P0614103-4
***USE PRIV024M***
 N/A
104 P0614104
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
105 P0614105
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
106 P0614106 DISTANCE SET ROD $9.50
107 P0614107 BRACKET $8.50
108 P0614108 LEVER $2.75
109 P0614109
Replaced By PS26M
PHLP HD SCR M6-1 X 20
 N/A View Replacement
110 P0614110
BALL BEARING 32006
 N/A
111 P0614111
BUSHING
 N/A
112 P0614112
BEARING COVER
 N/A
113 P0614113
Replaced By P0602024
SPANNER NUT 37MM
 N/A View Replacement
114 P0614114
Replaced By PCAP01M
CAP SCREW M6-1 X 16
 N/A View Replacement
115 P0614115
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
116 P0614116
SPRING ANCHOR
 N/A
117 P0614117 L-BRACKET V1 $29.25
118 P0614118
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
119 P0614119
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
 N/A View Replacement
120 P0614120
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
 N/A View Replacement
121 P0614121 SCREEN $7.00
122 P0614122
BASE
 N/A
122-1 P0614122-1
BASE CABINET
 N/A
123 P0614123
COVER
 N/A
123-1 P0614123-1
Replaced By PS14M
PHLP HD SCR M6-1 X 12
 N/A View Replacement
124 P0614124
SWIVEL PLATE
 N/A
126 P0614126
Replaced By PB01M
HEX BOLT M10-1.5 X 30
 N/A View Replacement
127 P0614127
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
128 P0614128
FIXED PLATE
 N/A
129 P0614129
Replaced By PCAP115M
BUTTON HD CAP SCR M6-1 X 16
 N/A View Replacement
130 P0614130
Replaced By PCAP84M
CAP SCREW M10-1.5 X 35
 N/A View Replacement
131 P0614131 NUT $8.00
132 P0614132 ADJUSTABLE HANDLE $26.00
133 P0614133
HEX PLUG 3/8PT
 N/A
134 P0614134
Replaced By PCAP01M
CAP SCREW M6-1 X 16
 N/A View Replacement
135 P0614135
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
136 P0614136
*DISCD*PUMP 220V 3PH V1
Item is no longer available
 N/A
136-1 P0614136-1
COOLANT HOSE V1
 N/A
136-1V2 P0614136-1V2
COOLANT HOSE 8MM ID V2.05.11
 N/A
136-2 P0614136-2
FLOW VALVE
 N/A
136-2V2 P0614136-2V2
FLOW VALVE V2.07.07
 N/A
136-3 P0614136-3
*DISCD*PUMP JUNCTION BOX V1
Item is no longer available
 N/A
136-3V2 P0614136-3V2
PUMP JUNCTION BOX V2.07.07
 N/A
136V2 P0614136V2 PUMP 1/8HP 220V 3-PH V2.07.07 $128.00
140 P0614140 CYLINDER $138.25
141 P0614141 WATERPROOF LIMIT SWITCH $28.50
141-1 P0614141-1
WATERPROOF POWER CORD
 N/A
142 P0614142
SWITCH PLATE
 N/A
143 P0614143
Replaced By PS75M
PHLP HD SCR M5-.8 X 35
 N/A View Replacement
144 P0614144
Replaced By PCAP124M
CAP SCREW M12-1.75 X 80
 N/A View Replacement
145 P0614145
Replaced By PCAP90M
CAP SCREW M10-1.5 X 55
 N/A View Replacement
181 P0614181
Replaced By PBHS22M
BUTTON HD CAP SCR M8-1.25 X 20
 N/A View Replacement
182 P0614182
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
183 P0614183
Replaced By P0613182
HANDWHEEL
 N/A View Replacement
184 P0614184
Replaced By PSS20M
SET SCREW M8-1.25 X 8
 N/A View Replacement
185 P0614185
Replaced By P0613184
BEARING COVER
 N/A View Replacement
186 P0614186
Replaced By P51106
THRUST BEARING 51106
 N/A View Replacement
187 P0614187
Replaced By P0613198-1
LEADSCREW LOCK LEVER
 N/A View Replacement
188 P0614188
Replaced By P0613187
TENSION SPRING
 N/A View Replacement
189 P0614189
Replaced By P0613188
BUSHING
 N/A View Replacement
190 P0614190
Replaced By PCAP06M
CAP SCREW M6-1 X 25
 N/A View Replacement
191 P0614191 VISE JAW BRACKET FRONT $124.25
192 P0614192
Replaced By P0613191
VISE PLATE
 N/A View Replacement
193 P0614193
Replaced By PFH23M
FLAT HD SCR M8-1.25 X 16
 N/A View Replacement
194 P0614194
Replaced By PSS09M
SET SCREW M8-1.25 X 20
 N/A View Replacement
195 P0614195
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
196 P0614196
Replaced By P0613199-1
GIB
 N/A View Replacement
197 P0614197
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
198 P0614198
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
 N/A View Replacement
199 P0614199
Replaced By P0613198
LEADSCREW A
 N/A View Replacement

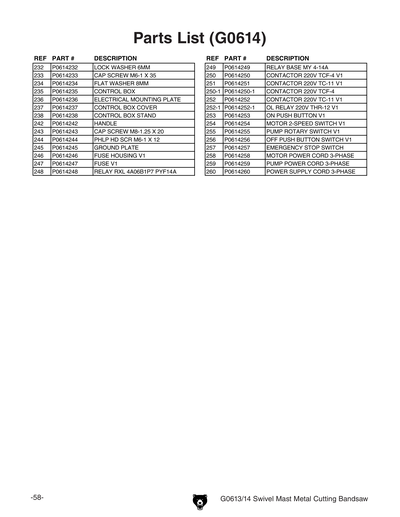

232 P0614232
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
233 P0614233
Replaced By PCAP48M
CAP SCREW M6-1 X 35
 N/A View Replacement
234 P0614234
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement

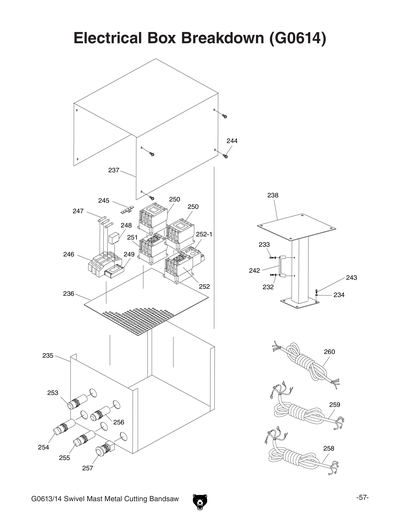

235 P0614235 CONTROL BOX $28.00
235A P0614235A
COMPLETE CONTROL BOX
 N/A
236 P0614236 ELECTRICAL MOUNTING PLATE $19.50
237 P0614237 CONTROL BOX COVER $19.50
238 P0614238 CONTROL BOX STAND V1 $23.50
238V2 P0614238V2
CONTROL BOX STAND V2.06.08
 N/A
242 P0614242
HANDLE
 N/A
243 P0614243
Replaced By PB07M
HEX BOLT M8-1.25 X 25
 N/A View Replacement
244 P0614244
Replaced By PS14M
PHLP HD SCR M6-1 X 12
 N/A View Replacement
245 P0614245
GROUND PLATE
 N/A
246 P0614246
FUSE HOUSING V1
 N/A
246V2 P0614246V2
FUSE HOUSING GIKO KA FSB102-1-2 V2.01.10
 N/A
247 P0614247
*DISCD*FUSE 1A 500V 50KA V1.12.06
Item is no longer available
 N/A
247V2 P0614247V2 FUSE 7X 30MM 1A V2.01.10 $4.25
248 P0614248 RELAY RXL 4A06B1P7 PYF14A $13.25
249 P0614249 RELAY BASE MY 4-14A $12.25
250 P0614250 CONTACTOR 220V TCF-4 V1.12.06 $27.75
250V2 P0614250V2 CONTACTOR AP4-40 SHENDIAN V2.01.09 $23.50
250V3 P0614250V3 CONTACTOR CAI D404A V3.03.15 $38.00
251 P0614251 CONTACTOR 220V TC-11 V1.12.06 $37.00
251V2 P0614251V2 CONTACTOR 220V MA-09 V2.01.09 $30.75
251V3 P0614251V3 CONTACTOR CO9D10G7 V3.03.15 $41.75
252 P0614252
Replaced By P0614251
CONTACTOR 220V TC-11 V1.12.06
 N/A View Replacement
252-1 P0614252-1 THERMAL OVERLOAD RELAY THR-12 220V V1 $27.75
252-1V2 P0614252-1V2 THERMAL OVERLOAD RELAY 220V V2.01.09 $27.75
252V2 P0614252V2
Replaced By P0614251V2
CONTACTOR 220V MA-09 V2.01.09
 N/A View Replacement
252V3 P0614252V3
CONTACTOR CO9D10G7 V3.03.15
 N/A
252V3-1 P0614252V3-1 OL RELAY NTH 4.5-6A V3.03.15 $37.00
253 P0614253
Replaced By P0614253V2
ON BUTTON AP-PBF-22-1/0G V2.07.06
 N/A View Replacement
253V2 P0614253V2 ON BUTTON AP-PBF-22-1/0G V2.07.06 $21.50
254 P0614254 MOTOR 2-SPEED SWITCH V1 $15.25
254V2 P0614254V2
SPEED SWITCH AP-ASS-223-2AW V2.07.06
 N/A
255 P0614255 PUMP ROTARY SWITCH V1 $15.25
255V2 P0614255V2
ROTARY SWITCH AP-ASS-222-1AW V2.07.06
 N/A
256 P0614256 OFF PUSH BUTTON SWITCH V1 $21.50
256V2 P0614256V2
OFF BUTTON AP-PBF-22-1-BR V2.07.06
 N/A
257 P0614257
EMERGENCY STOP SWITCH V1
 N/A
257V2 P0614257V2 E-STOP BUTTON AP ALEPBC-22-1BR V2.07.06 $37.50
258 P0614258
MOTOR POWER CORD 3PH
 N/A
259 P0614259
PUMP POWER CORD 3PH
 N/A
260 P0614260
POWER SUPPLY CORD 3PH
 N/A

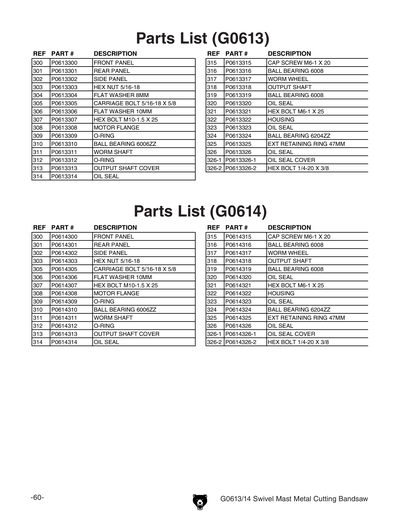

300 P0614300
PANEL FRONT
 N/A
300A P0614300A COMPLETE STAND ASSY BOX 2 $445.25
301 P0614301
PANEL REAR
 N/A
302 P0614302 SIDE PANEL $112.50
303 P0614303
Replaced By PN02
HEX NUT 5/16-18
 N/A View Replacement
304 P0614304
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
305 P0614305
Replaced By PCB01
CARRIAGE BOLT 5/16-18 X 5/8
 N/A View Replacement
306 P0614306
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
307 P0614307
Replaced By PB14M
HEX BOLT M10-1.5 X 35
 N/A View Replacement
308 P0614308
MOTOR FLANGE
 N/A
309 P0614309
O-RING
 N/A
310 P0614310
Replaced By P6006ZZ
BALL BEARING 6006ZZ
 N/A View Replacement
311 P0614311 WORM SHAFT $54.00
312 P0614312 O-RING $2.50
313 P0614313
OUTPUT SHAFT COVER
 N/A
314 P0614314 OIL SEAL $3.75
315 P0614315
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
316 P0614316
Replaced By P6008ZZ
BALL BEARING 6008ZZ
 N/A View Replacement
317 P0614317 WORM WHEEL $94.75
318 P0614318 OUTPUT SHAFT $37.75
319 P0614319
Replaced By P6008ZZ
BALL BEARING 6008ZZ
 N/A View Replacement
320 P0614320 OIL SEAL $5.50
321 P0614321
Replaced By PB10M
HEX BOLT M6-1 X 25
 N/A View Replacement
322 P0614322
HOUSING
 N/A
323 P0614323 OIL SEAL $3.25
324 P0614324
Replaced By P6204ZZ
BALL BEARING 6204ZZ
 N/A View Replacement
325 P0614325
Replaced By PR79M
INT RETAINING RING 19MM
 N/A View Replacement
326 P0614326
OIL SEAL
 N/A
326-1 P0614326-1
OIL SEAL COVER
 N/A
326-2 P0614326-2
Replaced By PB51
HEX BOLT 1/4-20 X 3/8
 N/A View Replacement
330 P0614330
Replaced By P0614021
GEARBOX
 N/A View Replacement

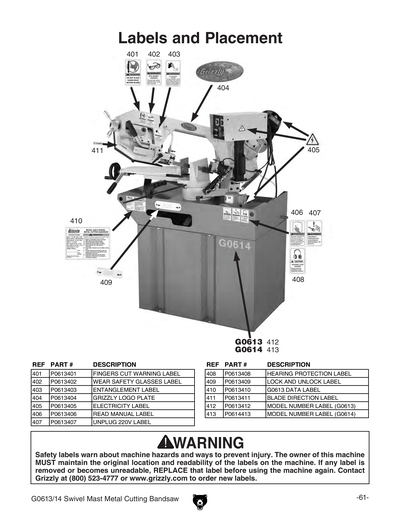

401 P0614401
Replaced By P0613401
FINGERS CUT WARNING LABEL
 N/A View Replacement
402 P0614402
Replaced By PLABEL-11
SAFETY GLASSES 2W X 3.3H V1
 N/A View Replacement
403 P0614403
Replaced By P0613403
ENTANGLEMENT LABEL
 N/A View Replacement
404 P0614404
Replaced By P0613404
GRIZZLY LOGO PLATE
 N/A View Replacement
405 P0614405
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
 N/A View Replacement
406 P0614406
Replaced By PLABEL-12A
READ MANUAL 2W X 3.3H V2.07.05
 N/A View Replacement
407 P0614407
Replaced By PLABEL-36
DISCONNECT POWER-DOOR 2W X 3.3H
 N/A View Replacement
408 P0614408
Replaced By PLABEL-15
EAR PROTECTION 2W X 3.3H V1
 N/A View Replacement
409 P0614409
Replaced By P0613409
LOCK & UNLOCK LABEL
 N/A View Replacement
410 P0614410 DATA LABEL $22.00
411 P0614411
Replaced By P0613411
BLADE DIRECTION LABEL
 N/A View Replacement
413 P0614413
MODEL NUMBER LABEL
 N/A
MAN P0614MAN
MANUAL FOR G0614 11/06
 N/A
X217 P0614X217
*DISCD*GROUND WIRE GREEN 4-3/4"
Item is no longer available
 N/A
