Parts for G0621 Vertical Wood/Metal Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

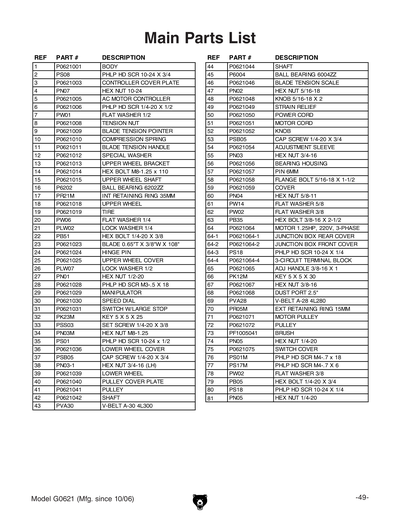

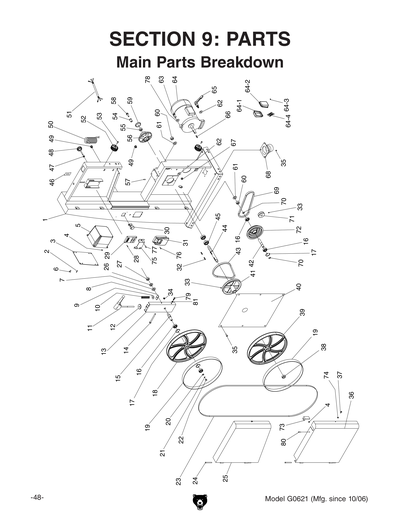

1
BODY
Item is no longer available
Price
N/A
2
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
3
CONTROLLER COVER PLATE
Item is no longer available
Price
N/A
4
Now: PN07
HEX NUT 10-24
Price
N/A
5
*DISCD*A/C MOTOR CONTROLLER
Item is no longer available
Price
N/A
5-1
MOTOR CONTROLLER KIT
6
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
7
Now: PW01
FLAT WASHER 1/2
Price
N/A
8
TENSION NUT
9
BLADE TENSION POINTER
10
COMPRESSION SPRING
11
BLADE TENSION HANDLE
12
BLADE TENSION HANDLE WASHER
Item is no longer available
Price
N/A
13
WHEEL BRACKET UPPER
Item is no longer available
Price
N/A
14
HEX BOLT M8-1.25 X 110
15
WHEEL SHAFT UPPER
16
BALL BEARING 6202ZZ
Price
N/A
17
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
18
WHEEL UPPER
19
TIRE RUBBER
Price
N/A
20
Now: PW06
FLAT WASHER 1/4
Price
N/A
21
Now: PLW02
LOCK WASHER 1/4
Price
N/A
22
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
23
SAW BLADE 108" X 3/8" 6-TPI HOOK
24
HINGE PIN
25
WHEEL COVER UPPER
26
Now: PLW07
LOCK WASHER 1/2
Price
N/A
27
Now: PN01
HEX NUT 1/2-20
Price
N/A
28
PHLP HD SCR M3-.5 X 18
Price
N/A
29
***SEE EXT DESCRIPTION***
Price
N/A
30
POTENTIOMETER COSMOS RV24YN B102
31
SWITCH W/LARGE STOP
32
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
33
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
34
Now: PN03M
HEX NUT M8-1.25
Price
N/A
35
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
36
WHEEL COVER LOWER
37
CAP SCREW 1/4-20 X 3/4
Price
N/A
38
HEX NUT 3/4-16 LH
Price
N/A
39
WHEEL LOWER
Item is no longer available
Price
N/A
40
PULLEY COVER PLATE
Item is no longer available
Price
N/A
41
PULLEY
42
SHAFT
43
Now: PVA30
V-BELT A30
Price
N/A
44
SHAFT
45
BALL BEARING 6004ZZ
Price
N/A
46
BLADE TENSION SCALE
Item is no longer available
Price
N/A
47
Now: PN02
HEX NUT 5/16-18
Price
N/A
48
KNOB 5/16-18 X 2
Item is no longer available
Price
N/A
49
STRAIN RELIEF M15 TYPE-1 SNAP-IN
50
POWER CORD
51
MOTOR CORD
52
KNOB
53
CAP SCREW 1/4-20 X 3/4
Price
N/A
54
ADJUSTMENT SLEEVE
55
Now: PN03
HEX NUT 3/4-16
Price
N/A
56
BEARING HOUSING
57
PIN 6MM
Item is no longer available
Price
N/A
58
Now: PFB14
FLANGE BOLT 5/16-18 X 1-1/2
Price
N/A
59
COVER
60
Now: PN04
HEX NUT 5/8-11
Price
N/A
61
Now: PW14
FLAT WASHER 5/8
Price
N/A
62
Now: PW02
FLAT WASHER 3/8
Price
N/A
63
Now: PB35
HEX BOLT 3/8-16 X 2-1/2
Price
N/A
64
MOTOR 1.25HP 220V 3-PH
64-1
JUNCTION BOX REAR COVER
Item is no longer available
Price
N/A
64-2
JUNCTION BOX FRONT COVER
Item is no longer available
Price
N/A
64-3
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
64-4
TERMINAL 3 CIRCUIT
Item is no longer available
Price
N/A
65
ADJ HANDLE 3/8-16 X 1
Item is no longer available
Price
N/A
66
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
67
Now: PN08
HEX NUT 3/8-16
Price
N/A
68
DUST PORT 2.5"
69
Now: PVA28
V-BELT A28
Price
N/A
70
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
71
MOTOR PULLEY
72
PULLEY
73
***USE PF1005041***
Price
N/A
74
Now: PN05
HEX NUT 1/4-20
Price
N/A
75
SWITCH COVER
Item is no longer available
Price
N/A
76
Now: PS01M
PHLP HD SCR M4-.7 X 18
Price
N/A
77
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
78
Now: PW02
FLAT WASHER 3/8
Price
N/A
79
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
80
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
81
Now: PN05
HEX NUT 1/4-20
Price
N/A

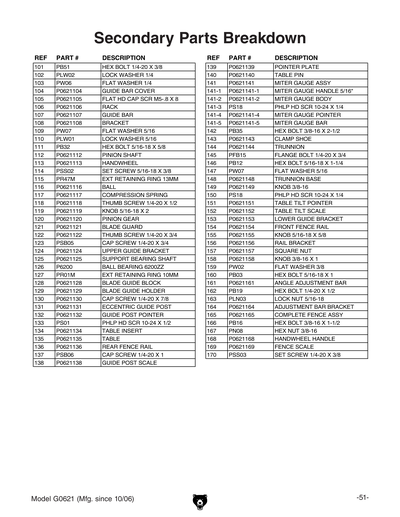

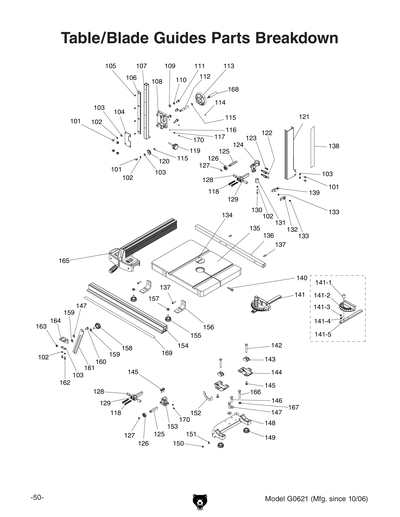

101
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
102
Now: PLW02
LOCK WASHER 1/4
Price
N/A
103
Now: PW06
FLAT WASHER 1/4
Price
N/A
104
GUIDE BAR COVER
105
FLAT HD CAP SCR M5-.8 X 8
Price
N/A
106
RACK
107
GUIDE BAR
108
BRACKET
109
Now: PW07
FLAT WASHER 5/16
Price
N/A
110
Now: PLW01
LOCK WASHER 5/16
Price
N/A
111
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
112
PINION SHAFT
Item is no longer available
Price
N/A
113
HANDWHEEL
114
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
115
Now: PR47M
EXT RETAINING RING 13MM
Price
N/A
116
BALL
117
COMPRESSION SPRING
118
THUMB SCREW 1/4-20 X 1/2
119
KNOB 5/16-18 X 2
120
PINION GEAR
121
BLADE GUARD
122
THUMB SCREW 1/4-20 X 3/4
123
CAP SCREW 1/4-20 X 3/4
Price
N/A
124
SUPPORT BRACKET CAST IRON 7/8"ID V2.12.1
Price
N/A
125
HEX SHAFT V2.10.09
Price
N/A
126
BALL BEARING 6200ZZ
Price
N/A
127
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
128
BLADE GUIDE BLOCK ROUND
Price
N/A
129
BLADE GUIDE HOLDER
130
CAP SCREW 1/4-20 X 7/8
Item is no longer available
Price
N/A
131
ECCENTRIC GUIDE POST
132
GUIDE POST POINTER
133
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
134
Table Insert for G0621X
Price
N/A
135
TABLE
136
FENCE RAIL REAR
136-1
BLACK PLASTIC CAP
137
CAP SCREW 1/4-20 X 1
Price
N/A
138
GUIDE POST SCALE
139
POINTER PLATE
140
TABLE PIN
141
MITER GAUGE ASSY
141-1
MITER GAUGE HANDLE 5/16"
Item is no longer available
Price
N/A
141-2
MITER GAUGE BODY
Item is no longer available
Price
N/A
141-3
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
141-4
MITER GAUGE POINTER
Item is no longer available
Price
N/A
141-5
MITER GAUGE BAR
142
Now: PB35
HEX BOLT 3/8-16 X 2-1/2
Price
N/A
143
CLAMP SHOE
144
TRUNNION
145
Now: PFB15
FLANGE BOLT 1/4-20 X 3/4
Price
N/A
146
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
147
Now: PW07
FLAT WASHER 5/16
Price
N/A
148
TABLE BRACKET
Price
N/A
149
KNOB 3/8-16
150
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
151
TABLE TILT POINTER
152
TABLE TILT SCALE
153
SUPPORT BRACKET LOWER
Price
N/A
154
FENCE RAIL FRONT
155
KNOB 5/16-18 X 5/8
156
RAIL BRACKET
157
SQUARE NUT
158
KNOB 3/8-16 X 1
159
Now: PW02
FLAT WASHER 3/8
Price
N/A
160
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
161
ANGLE ADJUSTMENT BAR
162
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
163
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
164
ADJUSTMENT BAR BRACKET
165
COMPLETE FENCE ASSY V2.12.16
Price
N/A
165V2
COMPLETE FENCE ASSY V2.12.16
166
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
167
Now: PN08
HEX NUT 3/8-16
Price
N/A
168
HANDWHEEL HANDLE
169
FENCE SCALE
170
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A

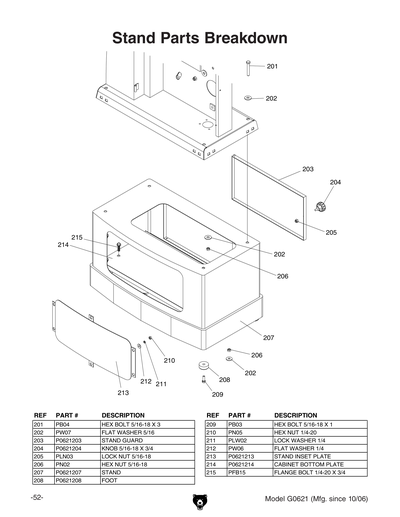

201
Now: PB04
HEX BOLT 5/16-18 X 3
Price
N/A
202
Now: PW07
FLAT WASHER 5/16
Price
N/A
203
STAND GUARD
204
KNOB 5/16-18 X 3/4
205
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
206
Now: PN02
HEX NUT 5/16-18
Price
N/A
207
STAND
207A
COMPLETE STAND ASSY BOX 2
208
FOOT
209
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
210
Now: PN05
HEX NUT 1/4-20
Price
N/A
211
Now: PLW02
LOCK WASHER 1/4
Price
N/A
212
Now: PW06
FLAT WASHER 1/4
Price
N/A
213
STAND INSET PLATE
214
CABINET BOTTOM PLATE
215
Now: PFB15
FLANGE BOLT 1/4-20 X 3/4
Price
N/A

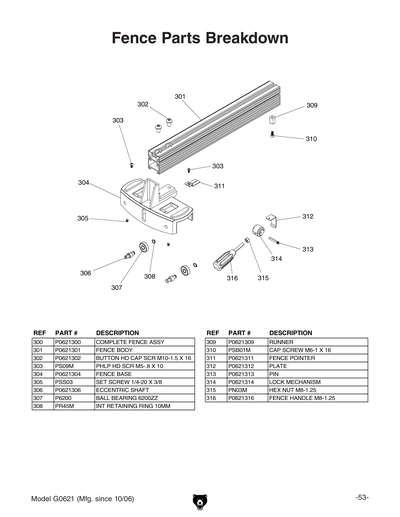

300
COMPLETE FENCE ASSY V2.12.16
Price
N/A
301
FENCE BODY
302
BUTTON HD CAP SCR M10-1.5 X 16
Item is no longer available
Price
N/A
303
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
304
FENCE BASE
305
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
306
ECCENTRIC SHAFT
307
BALL BEARING 6200ZZ
Price
N/A
308
Now: PR45M
INT RETAINING RING 10MM
Price
N/A
309
RUNNER
310
CAP SCREW M6-1 X 16
Price
N/A
311
GUIDE POST POINTER
Price
N/A
312
PLATE
313
PIN
314
LOCK MECHANISM
315
Now: PN03M
HEX NUT M8-1.25
Price
N/A
316
FENCE HANDLE M8-1.25

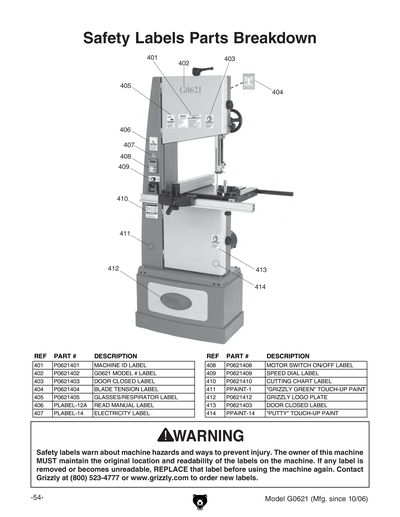

401
MACHINE ID LABEL
Item is no longer available
Price
N/A
402
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
403
DOOR CLOSED LABEL
Item is no longer available
Price
N/A
404
BLADE TENSION LABEL
Item is no longer available
Price
N/A
405
GLASSES/RESPIRATOR LABEL
Item is no longer available
Price
N/A
406
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
407
ELECTRICITY 1.4W X 1.2H
Price
N/A
408
MOTOR SWITCH ON/OFF LABEL
Item is no longer available
Price
N/A
409
SPEED DIAL LABEL
Item is no longer available
Price
N/A
410
CUTTING CHART LABEL
Item is no longer available
Price
N/A
411
N/S GRIZZLY GREEN G1023S
Price
N/A
412
Now: G8589
Nameplate - Large
Price
N/A
413
DOOR CLOSED LABEL
Price
N/A
414
BEIGE REF G0555
Price
N/A
MANUAL
MANUAL FOR G0621 02/07
