Parts for G0621X 13-1/2" 1-1/4 HP Vertical Wood/Metal Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

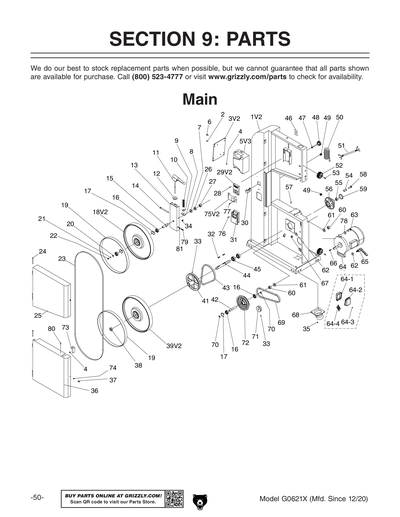

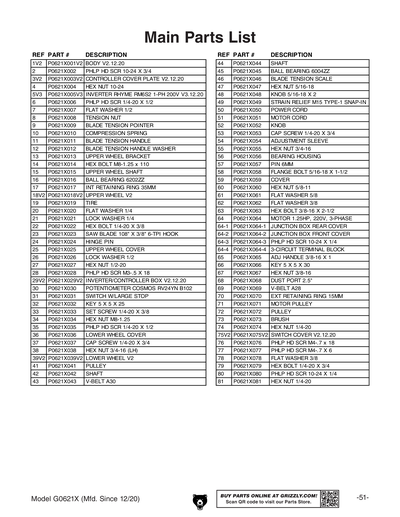

1
BODY V1
1V2
BODY V2.12.20
2
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
3
CONTROLLER COVER PLATE
Price
N/A
3V2
CONTROLLER COVER PLATE V2.12.20
4
Now: PN07
HEX NUT 10-24
Price
N/A
5
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
5V2
***SEE EXT. DESCRIPTION***
5V3
INVERTER RHYME RM6S2 1-PH 200V V3.12.20
6
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
7
Now: PW01
FLAT WASHER 1/2
Price
N/A
8
TENSION NUT
Price
N/A
9
BLADE TENSION POINTER
Price
N/A
10
COMPRESSION SPRING
Price
N/A
11
BLADE TENSION HANDLE
Price
N/A
12
BLADE TENSION HANDLE WASHER
Price
N/A
13
WHEEL BRACKET UPPER
Price
N/A
14
HEX BOLT M8-1.25 X 110
Price
N/A
15
WHEEL SHAFT UPPER
Price
N/A
16
BALL BEARING 6202ZZ
Price
N/A
17
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
18
***SEE EXT DESCRIPTION***
Item is no longer available
Price
N/A
18V2
UPPER WHEEL V2
19
TIRE RUBBER
Price
N/A
20
Now: PW06
FLAT WASHER 1/4
Price
N/A
21
Now: PLW02
LOCK WASHER 1/4
Price
N/A
22
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
23
SAW BLADE 108" X 3/8" 6-TPI HOOK
Price
N/A
24
HINGE PIN
Price
N/A
25
WHEEL COVER UPPER
Price
N/A
25-1
FOAM STRIP 1/4" X 18"
Price
N/A
26
Now: PLW07
LOCK WASHER 1/2
Price
N/A
27
Now: PN01
HEX NUT 1/2-20
Price
N/A
28
PHLP HD SCR M3-.5 X 18
Price
N/A
29
*DISCD*INVERTER/CONTROLLER BOX V1
Item is no longer available
Price
N/A
29V2
INVERTER/CONTROLLER BOX V2.12.20
30
POTENTIOMETER COSMOS RV24YN B102
Price
N/A
31
SWITCH W/LARGE STOP
Price
N/A
32
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
33
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
34
Now: PN03M
HEX NUT M8-1.25
Price
N/A
35
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
36
WHEEL COVER LOWER
Price
N/A
36-1
FOAM STRIP 1/4" X 18"
37
CAP SCREW 1/4-20 X 3/4
Price
N/A
38
HEX NUT 3/4-16 LH
Price
N/A
39
LOWER WHEEL V2
Price
N/A
39V2
LOWER WHEEL V2
41
PULLEY
Price
N/A
42
SHAFT
Price
N/A
43
Now: PVA30
V-BELT A30
Price
N/A
44
SHAFT
Price
N/A
45
BALL BEARING 6004ZZ
Price
N/A
46
BLADE TENSION SCALE
Price
N/A
47
Now: PN02
HEX NUT 5/16-18
Price
N/A
48
KNOB 5/16-18 X 2
Price
N/A
49
STRAIN RELIEF M15 TYPE-1 SNAP-IN
Price
N/A
50
POWER CORD
Price
N/A
51
MOTOR CORD
Price
N/A
52
KNOB
Price
N/A
53
CAP SCREW 1/4-20 X 3/4
Price
N/A
54
ADJUSTMENT SLEEVE
Price
N/A
55
Now: PN03
HEX NUT 3/4-16
Price
N/A
56
BEARING HOUSING
Price
N/A
57
PIN 6MM
Price
N/A
58
Now: PFB14
FLANGE BOLT 5/16-18 X 1-1/2
Price
N/A
59
COVER
Price
N/A
60
Now: PN04
HEX NUT 5/8-11
Price
N/A
61
Now: PW14
FLAT WASHER 5/8
Price
N/A
62
Now: PW02
FLAT WASHER 3/8
Price
N/A
63
Now: PB35
HEX BOLT 3/8-16 X 2-1/2
Price
N/A
64
MOTOR 1.25HP 220V 3-PH
Price
N/A
64-1
JUNCTION BOX REAR COVER
Price
N/A
64-2
JUNCTION BOX FRONT COVER
Price
N/A
64-3
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
64-4
TERMINAL 3 CIRCUIT
Price
N/A
65
ADJ HANDLE 3/8-16 X 1
Price
N/A
66
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
67
Now: PN08
HEX NUT 3/8-16
Price
N/A
68
DUST PORT 2.5"
Price
N/A
69
Now: PVA28
V-BELT A28
Price
N/A
70
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
71
MOTOR PULLEY
Price
N/A
72
PULLEY
Price
N/A
73
***USE PF1005041***
Price
N/A
74
Now: PN05
HEX NUT 1/4-20
Price
N/A
75
SWITCH COVER
Price
N/A
75V2
SWITCH COVER V2.12.20
76
Now: PS01M
PHLP HD SCR M4-.7 X 18
Price
N/A
77
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
78
Now: PW02
FLAT WASHER 3/8
Price
N/A
79
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
80
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
81
Now: PN05
HEX NUT 1/4-20
Price
N/A

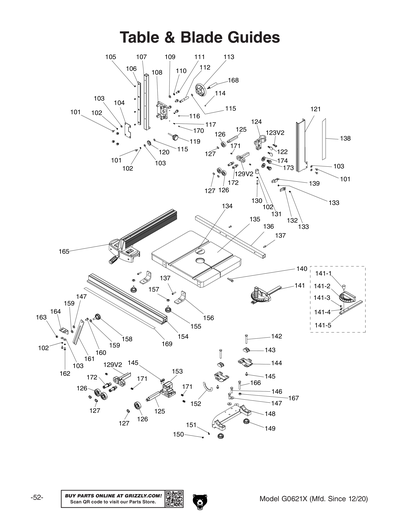

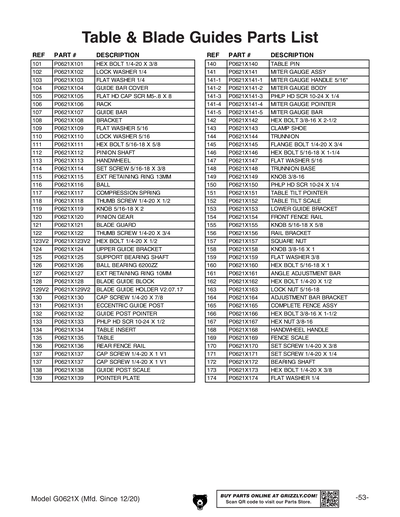

101
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
102
Now: PLW02
LOCK WASHER 1/4
Price
N/A
103
Now: PW06
FLAT WASHER 1/4
Price
N/A
104
GUIDE BAR COVER
Price
N/A
105
FLAT HD CAP SCR M5-.8 X 8
Price
N/A
106
RACK
Price
N/A
107
GUIDE BAR
Price
N/A
108
BRACKET
Price
N/A
109
Now: PW07
FLAT WASHER 5/16
Price
N/A
110
Now: PLW01
LOCK WASHER 5/16
Price
N/A
111
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
112
PINION SHAFT
Price
N/A
113
HANDWHEEL
Price
N/A
114
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
115
Now: PR47M
EXT RETAINING RING 13MM
Price
N/A
116
BALL
Price
N/A
117
COMPRESSION SPRING
Price
N/A
118
THUMB SCREW 1/4-20 X 1/2
Price
N/A
119
KNOB 5/16-18 X 2
Price
N/A
120
PINION GEAR
Price
N/A
121
BLADE GUARD
Price
N/A
122
THUMB SCREW 1/4-20 X 3/4
Price
N/A
123
CAP SCREW 1/4-20 X 3/4
Price
N/A
123V2
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
124
SUPPORT BRACKET CAST IRON 7/8"ID V2.12.1
Price
N/A
124V2
UPPER GUIDE BRACKET V2.07.17
125
SUPPORT BEARING SHAFT
Price
N/A
126
BALL BEARING 6200ZZ
Price
N/A
127
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
128
BLADE GUIDE BLOCK ROUND
Price
N/A
129
BLADE GUIDE HOLDER
Price
N/A
129V2
BLADE GUIDE HOLDER V2.07.17
130
CAP SCREW 1/4-20 X 7/8
Price
N/A
131
ECCENTRIC GUIDE POST
Price
N/A
132
GUIDE POST POINTER
Price
N/A
133
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
134
Table Insert for G0621X
Price
N/A
135
TABLE
Price
N/A
136
FENCE RAIL REAR
Price
N/A
137
CAP SCREW 1/4-20 X 5/8
Price
N/A
138
GUIDE POST SCALE
Price
N/A
139
POINTER PLATE
Price
N/A
140
TABLE PIN
Price
N/A
141
MITER GAUGE ASSY
Price
N/A
141-1
MITER GAUGE HANDLE 5/16"
Price
N/A
141-2
MITER GAUGE BODY
Price
N/A
141-3
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
141-4
MITER GAUGE POINTER
Price
N/A
141-5
MITER GAUGE BAR
Price
N/A
142
Now: PB35
HEX BOLT 3/8-16 X 2-1/2
Price
N/A
143
CLAMP SHOE
Price
N/A
144
TRUNNION
Price
N/A
145
Now: PFB15
FLANGE BOLT 1/4-20 X 3/4
Price
N/A
146
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
147
Now: PW07
FLAT WASHER 5/16
Price
N/A
148
TABLE BRACKET
Price
N/A
149
KNOB 3/8-16
Price
N/A
150
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
151
TABLE TILT POINTER
Price
N/A
152
TABLE TILT SCALE
Price
N/A
153
SUPPORT BRACKET LOWER
Price
N/A
153V2
LOWER GUIDE BRACKET V2.07.17
154
FENCE RAIL FRONT
Price
N/A
155
KNOB 5/16-18 X 5/8
Price
N/A
156
RAIL BRACKET
Price
N/A
157
SQUARE NUT
Price
N/A
158
KNOB 3/8-16 X 1
Price
N/A
159
Now: PW02
FLAT WASHER 3/8
Price
N/A
160
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
161
ANGLE ADJUSTMENT BAR
Price
N/A
162
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
163
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
164
ADJUSTMENT BAR BRACKET
Price
N/A
165
COMPLETE FENCE ASSY V2.12.16
Price
N/A
166
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
167
Now: PN08
HEX NUT 3/8-16
Price
N/A
168
HANDWHEEL HANDLE
Price
N/A
169
FENCE SCALE
Price
N/A
170
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
171
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
172
BEARING SHAFT
173
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
174
Now: PW06
FLAT WASHER 1/4
Price
N/A

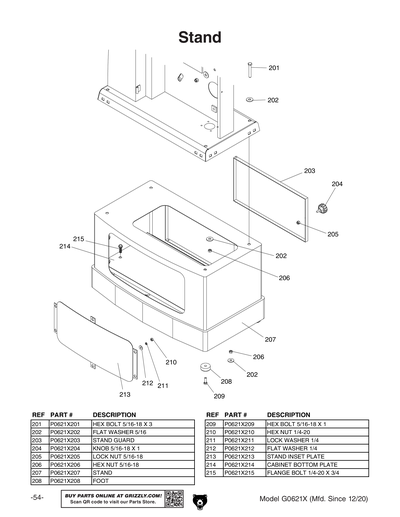

201
Now: PB04
HEX BOLT 5/16-18 X 3
Price
N/A
202
Now: PW07
FLAT WASHER 5/16
Price
N/A
203
STAND GUARD
Price
N/A
204
KNOB 5/16-18 X 3/4
Price
N/A
205
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
206
Now: PN02
HEX NUT 5/16-18
Price
N/A
207
STAND
Price
N/A
208
FOOT
Price
N/A
209
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
210
Now: PN05
HEX NUT 1/4-20
Price
N/A
211
Now: PLW02
LOCK WASHER 1/4
Price
N/A
212
Now: PW06
FLAT WASHER 1/4
Price
N/A
213
STAND INSET PLATE
Price
N/A
214
CABINET BOTTOM PLATE
Price
N/A
215
Now: PFB15
FLANGE BOLT 1/4-20 X 3/4
Price
N/A

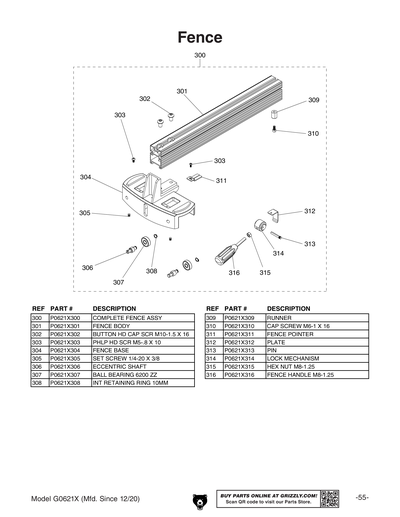

300
COMPLETE FENCE ASSY V2.12.16
Price
N/A
301
FENCE BODY
Price
N/A
302
BUTTON HD CAP SCR M10-1.5 X 16
Price
N/A
303
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
304
FENCE BASE
Price
N/A
305
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
306
ECCENTRIC SHAFT
Price
N/A
307
BALL BEARING 6200ZZ
Price
N/A
308
Now: PR45M
INT RETAINING RING 10MM
Price
N/A
309
RUNNER
Price
N/A
310
CAP SCREW M6-1 X 16
Price
N/A
311
GUIDE POST POINTER
Price
N/A
312
PLATE
Price
N/A
313
PIN
Price
N/A
314
LOCK MECHANISM
Price
N/A
315
Now: PN03M
HEX NUT M8-1.25
Price
N/A
316
FENCE HANDLE M8-1.25
Price
N/A

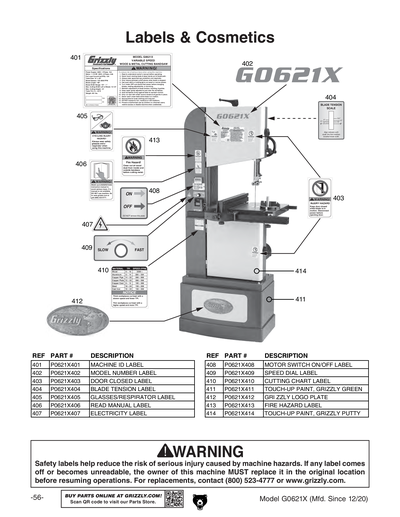

401
MACHINE ID LABEL
402
MODEL NUMBER LABEL
403
DONT OPEN 2W X 3.3H
Price
N/A
404
BLADE TENSION LABEL
Price
N/A
405
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
406
READ MANUAL 1.5W X 2.5H
Price
N/A
407
ELECTRICITY 0.7W X 0.6H
Price
N/A
408
MOTOR SWITCH ON/OFF LABEL
Price
N/A
409
SPEED DIAL LABEL
Price
N/A
410
CUTTING CHART LABEL
Price
N/A
411
N/S GRIZZLY GREEN G1023S
Price
N/A
412
Now: G8589
Nameplate - Large
Price
N/A
413
FIRE HAZARD LABEL
414
BEIGE REF G0555
Price
N/A
BOX2
COMPLETE BOX 2 OF 2 FOR G0621X
MAN
MANUAL G0621X MFD-08.09-06.17 V1.08.09
MANV2
MANUAL G0621X MFD-07.17+ V2.09.18
MANV3
MANUAL G0621X MFD-12.20+ V3.01.21
