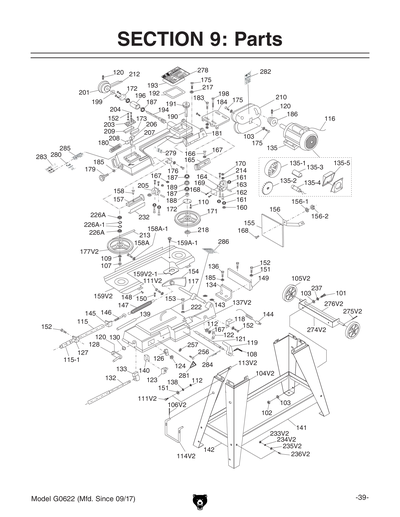

Parts for G0622 - 4" x 6" 3/4 HP Metal-Cutting Bandsaw
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.

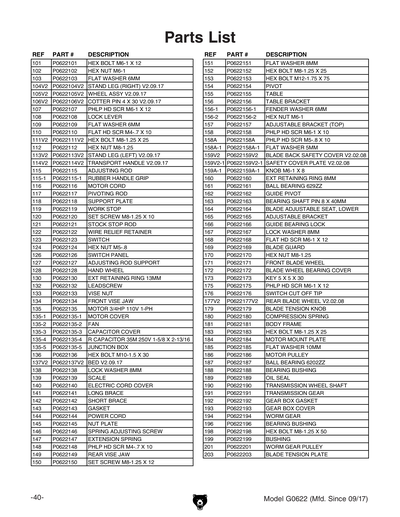

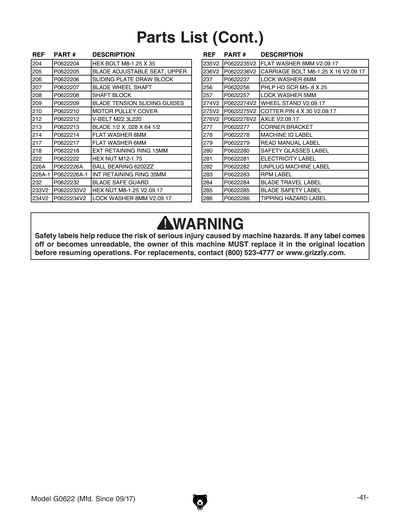

| Ref # | Part # | Description | Price | Qty | |
|---|---|---|---|---|---|
| 101 | P0622101 |
***USE PB02M***
Item is no longer available
P0622101 Replaced By PB02M
|
N/A | View Replacement | |
| 102 | P0622102 |
***USE PN01M***
Item is no longer available
P0622102 Replaced By PN01M
|
N/A | View Replacement | |
| 103 | P0622103 |
***USE PW03M***
Item is no longer available
P0622103 Replaced By PW03M
|
N/A | View Replacement | |
| 104 | P0622104 | STAND LEG (RIGHT) V1 | $45.62 | ||
| 104V2 | P0622104V2 | STAND LEG (RIGHT) V2.09.17 | $16.50 | ||
| 105 | P0622105 | WHEEL ASSY V1 | $4.38 | ||
| 105V2 | P0622105V2 | WHEEL ASSY V2.09.17 | $10.00 | ||
| 106 | P0622106 | COTTER PIN 4 X 40 HAIRPIN V1 | $1.25 | ||
| 106V2 | P0622106V2 |
COTTER PIN 4 X 30 HAIRPIN V2.09.17
|
N/A | ||
| 107 | P0622107 |
***USE PS14M***
Item is no longer available
P0622107 Replaced By PS14M
|
N/A | View Replacement | |
| 108 | P0622108 | LOCK LEVER | $3.12 | ||
| 109 | P0622109 |
***USE PW03M***
Item is no longer available
P0622109 Replaced By PW03M
|
N/A | View Replacement | |
| 110 | P0622110 |
***USE PFH19M***
Item is no longer available
P0622110 Replaced By PFH19M
|
N/A | View Replacement | |
| 111 | P0622111 |
***USE PB20M***
Item is no longer available
P0622111 Replaced By PB20M
|
N/A | View Replacement | |
| 111V2 | P0622111V2 |
***USE PB07M***
Item is no longer available
P0622111V2 Replaced By PB07M
|
N/A | View Replacement | |
| 112 | P0622112 |
***USE PN03M***
Item is no longer available
P0622112 Replaced By PN03M
|
N/A | View Replacement | |
| 113 | P0622113 | STAND LEG (LEFT) V1 | $41.25 | ||
| 113V2 | P0622113V2 | STAND LEG (LEFT) V2.09.17 | $16.50 | ||
| 114 | P0622114 | TRANSPORT HANDLE V1 | $5.62 | ||
| 114V2 | P0622114V2 |
TRANSPORT HANDLE V2.09.17
|
N/A | ||
| 115 | P0622115 | ADJUSTING ROD | $9.00 | ||
| 115-1 | P0622115-1 |
RUBBER HANDLE GRIP
|
N/A | ||
| 116 | P0622116 | MOTOR CORD | $8.80 | ||
| 117 | P0622117 |
PIVOTING ROD
|
N/A | ||
| 118 | P0622118 |
SUPPORT PLATE
|
N/A | ||
| 118-1 | P0622118-1 | SAFETY BRACKET CHAIN W/PIN | $3.00 | ||
| 118-2 | P0622118-2 | HEAD LOCKING CHAIN W/PIN | $5.00 | ||
| 119 | P0622119 | WORK STOP | $6.25 | ||
| 120 | P0622120 |
***USE PSS16M***
Item is no longer available
P0622120 Replaced By PSS16M
|
N/A | View Replacement | |
| 121 | P0622121 | STOCK STOP ROD | $4.69 | ||
| 122 | P0622122 | WIRE RELIEF RETAINER | $2.75 | ||
| 123 | P0622123 | SWITCH | $8.12 | ||
| 124 | P0622124 |
***USE PN06M***
Item is no longer available
P0622124 Replaced By PN06M
|
N/A | View Replacement | |
| 126 | P0622126 | SWITCH PANEL | $3.44 | ||
| 127 | P0622127 | ADJUSTING ROD SUPPORT | $4.25 | ||
| 128 | P0622128 | HAND WHEEL | $4.50 | ||
| 130 | P0622130 |
***USE PR47M***
Item is no longer available
P0622130 Replaced By PR47M
|
N/A | View Replacement | |
| 132 | P0622132 | LEADSCREW | $12.00 | ||
| 133 | P0622133 | VISE NUT | $8.25 | ||
| 134 | P0622134 | VISE JAW FRONT | $16.56 | ||
| 135 | P0622135 | MOTOR 3/4HP 110V 1-PH | $155.20 | ||
| 135-1 | P0622135-1 | MOTOR COVER | $11.00 | ||
| 135-2 | P0622135-2 | FAN | $2.50 | ||
| 135-3 | P0622135-3 | CAPACITOR COVER | $4.00 | ||
| 135-4 | P0622135-4 | R CAPACITOR 35M 250V 1-5/8 X 2-13/16 | $11.50 | ||
| 135-5 | P0622135-5 |
*DISCD*JUNCTION BOX
Item is no longer available
|
N/A | ||
| 136 | P0622136 |
***USE PB01M***
Item is no longer available
P0622136 Replaced By PB01M
|
N/A | View Replacement | |
| 137 | P0622137 |
BED V1
|
N/A | ||
| 137V2 | P0622137V2 |
BED V2.09.17
|
N/A | ||
| 138 | P0622138 |
***USE PLW04M***
Item is no longer available
P0622138 Replaced By PLW04M
|
N/A | View Replacement | |
| 139 | P0622139 | SCALE | $1.50 | ||
| 140 | P0622140 | ELECTRIC CORD COVER | $7.19 | ||
| 141 | P0622141 |
LONG BRACE
|
N/A | ||
| 142 | P0622142 |
SHORT BRACE
|
N/A | ||
| 143 | P0622143 |
GASKET
|
N/A | ||
| 144 | P0622144 |
POWER CORD
|
N/A | ||
| 145 | P0622145 | NUT PLATE | $2.00 | ||
| 146 | P0622146 | SPRING ADJUSTING SCREW | $1.00 | ||
| 147 | P0622147 | EXTENSION SPRING | $9.00 | ||
| 148 | P0622148 |
***USE PS38M***
Item is no longer available
P0622148 Replaced By PS38M
|
N/A | View Replacement | |
| 149 | P0622149 | VISE JAW REAR | $17.50 | ||
| 150 | P0622150 |
***USE PSS14M***
Item is no longer available
P0622150 Replaced By PSS14M
|
N/A | View Replacement | |
| 151 | P0622151 |
***USE PW01M***
Item is no longer available
P0622151 Replaced By PW01M
|
N/A | View Replacement | |
| 152 | P0622152 |
***USE PB07M***
Item is no longer available
P0622152 Replaced By PB07M
|
N/A | View Replacement | |
| 153 | P0622153 |
***USE PB43M***
Item is no longer available
P0622153 Replaced By PB43M
|
N/A | View Replacement | |
| 154 | P0622154 | PIVOT | $13.50 | ||
| 155 | P0622155 | TABLE | $11.25 | ||
| 156 | P0622156 | TABLE BRACKET | $2.81 | ||
| 156-1 | P0622156-1 |
***USE PWF06M***
Item is no longer available
P0622156-1 Replaced By PWF06M
|
N/A | View Replacement | |
| 156-2 | P0622156-2 |
***USE PN01M***
Item is no longer available
P0622156-2 Replaced By PN01M
|
N/A | View Replacement | |
| 157 | P0622157 | ADJUSTABLE BRACKET (TOP) | $9.06 | ||
| 158 | P0622158 |
***USE PS68M***
Item is no longer available
|
N/A | ||
| 158A | P0622158A |
***USE PS09M***
Item is no longer available
P0622158A Replaced By PS09M
|
N/A | View Replacement | |
| 158A-1 | P0622158A-1 |
***USE PW02M***
Item is no longer available
P0622158A-1 Replaced By PW02M
|
N/A | View Replacement | |
| 159 | P0622159 | BLADE BACK SAFETY COVER V1.09.06 | $18.12 | ||
| 159A | P0622159A |
***USE P0622159V2***
Item is no longer available
P0622159A Replaced By P0622159V2
|
N/A | View Replacement | |
| 159A-1 | P0622159A-1 |
***USE P0622159V2***
Item is no longer available
P0622159A-1 Replaced By P0622159V2
|
N/A | View Replacement | |
| 159V2 | P0622159V2 | BLADE BACK SAFETY COVER ASSY | $35.50 | ||
| 159V2-1 | P0622159V2-1 |
***USE P0622159V2***
Item is no longer available
P0622159V2-1 Replaced By P0622159V2
|
N/A | View Replacement | |
| 160 | P0622160 |
***USE PR39M***
Item is no longer available
P0622160 Replaced By PR39M
|
N/A | View Replacement | |
| 161 | P0622161 |
***USE P629ZZ***
Item is no longer available
P0622161 Replaced By P629ZZ
|
N/A | View Replacement | |
| 162 | P0622162 | GUIDE PIVOT | $2.00 | ||
| 163 | P0622163 | BEARING SHAFT PIN 8 X 40MM | $1.75 | ||
| 164 | P0622164 | BLADE ADJUSTABLE SEAT (LOWER) | $8.75 | ||
| 165 | P0622165 | ADJUSTABLE BRACKET | $6.88 | ||
| 166 | P0622166 | GUIDE BEARING LOCK | $1.56 | ||
| 167 | P0622167 |
***USE PLW04M***
Item is no longer available
P0622167 Replaced By PLW04M
|
N/A | View Replacement | |
| 168 | P0622168 |
***USE PFH02M***
Item is no longer available
P0622168 Replaced By PFH02M
|
N/A | View Replacement | |
| 169 | P0622169 | BLADE GUARD | $2.50 | ||
| 170 | P0622170 |
***USE PN03M***
Item is no longer available
P0622170 Replaced By PN03M
|
N/A | View Replacement | |
| 171 | P0622171 | FRONT BLADE WHEEL | $20.00 | ||
| 172 | P0622172 | BLADE WHEEL BEARING COVER | $2.75 | ||
| 173 | P0622173 |
***USE PK12M***
Item is no longer available
P0622173 Replaced By PK12M
|
N/A | View Replacement | |
| 175 | P0622175 |
***USE PS14M***
Item is no longer available
P0622175 Replaced By PS14M
|
N/A | View Replacement | |
| 176 | P0622176 | SWITCH CUT OFF TIP | $1.25 | ||
| 177 | P0622177 |
*SEE EXTENDED DESCRIPTION
Item is no longer available
|
N/A | ||
| 177V2 | P0622177V2 | REAR BLADE WHEEL V2.02.08 | $23.75 | ||
| 179 | P0622179 | BLADE TENSION KNOB | $6.50 | ||
| 180 | P0622180 | COMPRESSION SPRING | $1.50 | ||
| 181 | P0622181 | BODY FRAME | $131.25 | ||
| 183 | P0622183 |
***USE PB07M***
Item is no longer available
P0622183 Replaced By PB07M
|
N/A | View Replacement | |
| 184 | P0622184 | MOTOR MOUNT PLATE | $6.88 | ||
| 185 | P0622185 |
***USE PW04M***
Item is no longer available
P0622185 Replaced By PW04M
|
N/A | View Replacement | |
| 186 | P0622186 | MOTOR PULLEY | $10.50 | ||
| 187 | P0622187 | BALL BEARING 15 X 35 X 11 | $4.25 | ||
| 188 | P0622188 | BUSHING 28ID X 35OD X 10L | $1.93 | ||
| 189 | P0622189 | OIL SEAL | $2.00 | ||
| 190 | P0622190 | TRANSMISSION WHEEL SHAFT | $6.00 | ||
| 191 | P0622191 | TRANSMISSION GEAR | $49.50 | ||
| 192 | P0622192 | GEAR BOX GASKET | $1.93 | ||
| 193 | P0622193 | GEAR BOX COVER | $4.25 | ||
| 194 | P0622194 | WORM GEAR | $25.00 | ||
| 196 | P0622196 | BEARING BUSHING | $4.68 | ||
| 198 | P0622198 |
***USE PB22M***
Item is no longer available
P0622198 Replaced By PB22M
|
N/A | View Replacement | |
| 199 | P0622199 | BUSHING | $3.03 | ||
| 201 | P0622201 | WORM GEAR PULLEY | $10.00 | ||
| 203 | P0622203 | BLADE TENSION PLATE | $9.00 | ||
| 204 | P0622204 |
***USE PB20M***
Item is no longer available
P0622204 Replaced By PB20M
|
N/A | View Replacement | |
| 205 | P0622205 | BLADE ADJUSTABLE SEAT, UPPER | $9.00 | ||
| 206 | P0622206 | SLIDING PLATE DRAW BLOCK | $7.50 | ||
| 207 | P0622207 | BLADE WHEEL SHAFT | $4.50 | ||
| 208 | P0622208 | SHAFT BLOCK | $2.75 | ||
| 209 | P0622209 |
BLADE TENSION SLIDING GUIDES
|
N/A | ||
| 210 | P0622210 | MOTOR PULLEY COVER | $16.56 | ||
| 212 | P0622212 |
V-BELT M22 3L220
Item is no longer available
P0622212 Replaced By PVM22
|
N/A | View Replacement | |
| 213 | P0622213 | BLADE 1/2 X .028 X 64 1/2 | $36.00 | ||
| 214 | P0622214 |
***USE PW01M***
Item is no longer available
P0622214 Replaced By PW01M
|
N/A | View Replacement | |
| 217 | P0622217 |
***USE PW03M***
Item is no longer available
P0622217 Replaced By PW03M
|
N/A | View Replacement | |
| 218 | P0622218 |
***USE PR05M***
Item is no longer available
P0622218 Replaced By PR05M
|
N/A | View Replacement | |
| 220 | P0622220 |
***USE P6202ZZ***
Item is no longer available
P0622220 Replaced By P6202ZZ
|
N/A | View Replacement | |
| 222 | P0622222 |
***USE PN09M***
Item is no longer available
P0622222 Replaced By PN09M
|
N/A | View Replacement | |
| 226 | P0622226 | BUSHING V1.09.06 | $4.50 | ||
| 226A | P0622226A |
***USE P6202ZZ***
Item is no longer available
P0622226A Replaced By P6202ZZ
|
N/A | View Replacement | |
| 226A-1 | P0622226A-1 |
***USE PR21M***
Item is no longer available
P0622226A-1 Replaced By PR21M
|
N/A | View Replacement | |
| 232 | P0622232 | BLADE SAFE GUARD | $4.00 | ||
| 233 | P0622233 |
***USE PN01M***
Item is no longer available
P0622233 Replaced By PN01M
|
N/A | View Replacement | |
| 233V2 | P0622233V2 |
***USE PN03M***
Item is no longer available
P0622233V2 Replaced By PN03M
|
N/A | View Replacement | |
| 234 | P0622234 |
***USE PLW03M***
Item is no longer available
P0622234 Replaced By PLW03M
|
N/A | View Replacement | |
| 234V2 | P0622234V2 |
***USE PLW04M***
Item is no longer available
P0622234V2 Replaced By PLW04M
|
N/A | View Replacement | |
| 235 | P0622235 |
***USE PW03M***
Item is no longer available
P0622235 Replaced By PW03M
|
N/A | View Replacement | |
| 235V2 | P0622235V2 |
***USE PW01M***
Item is no longer available
P0622235V2 Replaced By PW01M
|
N/A | View Replacement | |
| 236 | P0622236 |
***USE PCB22M***
Item is no longer available
P0622236 Replaced By PCB22M
|
N/A | View Replacement | |
| 236V2 | P0622236V2 |
***USE PCB06M***
Item is no longer available
P0622236V2 Replaced By PCB06M
|
N/A | View Replacement | |
| 237 | P0622237 |
***USE PLW03M***
Item is no longer available
P0622237 Replaced By PLW03M
|
N/A | View Replacement | |
| 256 | P0622256 |
***USE PS22M***
Item is no longer available
P0622256 Replaced By PS22M
|
N/A | View Replacement | |
| 257 | P0622257 |
***USE PLW01M***
Item is no longer available
P0622257 Replaced By PLW01M
|
N/A | View Replacement | |
| 270 | P0622270 | TOOL PLATE | $11.00 | ||
| 272 | P0622272 |
***USE PN01M***
Item is no longer available
P0622272 Replaced By PN01M
|
N/A | View Replacement | |
| 273 | P0622273 |
***USE PW03M***
Item is no longer available
P0622273 Replaced By PW03M
|
N/A | View Replacement | |
| 274 | P0622274 | WHEEL STAND V1 | $4.38 | ||
| 274V2 | P0622274V2 |
WHEEL STAND V2.09.17
|
N/A | ||
| 275 | P0622275 |
COTTER PIN 4 X 40 V1
|
N/A | ||
| 275V2 | P0622275V2 |
COTTER PIN 4 X 30 V2.09.17
|
N/A | ||
| 276 | P0622276 | AXLE V1 | $5.00 | ||
| 276V2 | P0622276V2 |
AXLE V2.09.17
|
N/A | ||
| 277 | P0622277 | CORNER BRACKET | $5.75 | ||
| 278 | P0622278 |
MACHINE ID LABEL
|
N/A | ||
| 279 | P0622279 |
READ MANUAL LABEL
|
N/A | ||
| 280 | P0622280 |
SAFETY GLASSES LABEL
|
N/A | ||
| 281 | P0622281 |
***USE PLABEL-14***
Item is no longer available
P0622281 Replaced By PLABEL-14
|
N/A | View Replacement | |
| 282 | P0622282 | UNPLUG MACHINE LABEL | $1.00 | ||
| 283 | P0622283 | RPM LABEL | $1.00 | ||
| 284 | P0622284 | BLADE TRAVEL LABEL | $1.00 | ||
| 285 | P0622285 |
BLADE SAFETY LABEL
|
N/A | ||
| 289 | P0622289 |
TIPPING HAZARD LABEL
|
N/A | ||
| MAN | P0622MAN | MANUAL FOR G0622 02/08 | $11.75 |
