Parts for G0623X - 10" 5 HP Sliding Table Saw

Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X
Part Diagram for G0623X

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

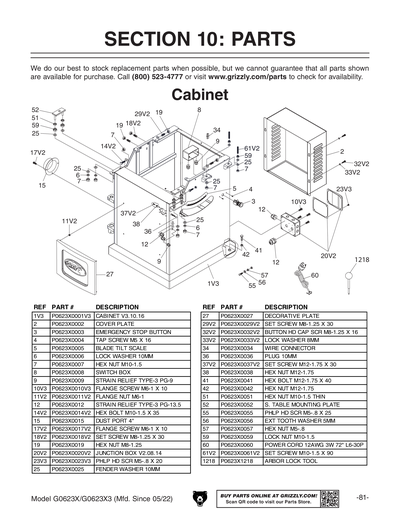

1
CABINET V1
Price
$940.65
1V2
CABINET V2.07.16
Price
$888.15
1V3
CABINET V3.10.16
Price
$861.90
2
COVER PLATE
Price
$112.30
3
EMERGENCY STOP BUTTON
Price
$30.55
4
TAP SCREW M5 X 16
Price
N/A
5
BLADE TILT SCALE
Price
$9.10
6
LOCK WASHER 10MM
Price
N/A
7
HEX NUT M10-1.5
Price
N/A
8
SWITCH BOX
Price
$3.65
9
STRAIN RELIEF TYPE-3 PG-9
Price
$4.60
10
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
10V2
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
10V3
FLANGE SCREW M6-1 X 10
Price
N/A
11
HEX NUT M6-1
Price
N/A
11V2
FLANGE NUT M6-1
Price
N/A
12
STRAIN RELIEF M20 TYPE-6 ST
Price
N/A
13
HEX NUT M10-1.5
Price
N/A
14
SET SCREW M10-1.5 X 30
Price
N/A
14V2
HEX BOLT M10-1.5 X 35
Price
N/A
15
DUST PORT 4"
Price
$13.60
16
LOCK WASHER 6MM
Price
N/A
17
PHLP HD SCR M6-1 X 16
Price
N/A
17V2
FLANGE SCREW M6-1 X 10
Price
N/A
18
SET SCREW M8-1.25 X 25
Price
N/A
18V2
SET SCREW M8-1.25 X 30
Price
N/A
19
HEX NUT M8-1.25
Price
N/A
20
JUNCTION BOX ASSEMBLY
Price
N/A
20V2
JUNCTION BOX V2.08.14
Price
$30.80
21
TERMINAL
Price
$11.50
22
PHLP HD SCR M5-.8 X 8
Price
N/A
23
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
23V2
BUTTON HD CAP SCR M5-.8 X 35
Price
N/A
23V3
PHLP HD SCR M5-.8 X 20
Price
N/A
24
HEX BOLT M10-1.5 X 30
Price
N/A
25
FENDER WASHER 10MM
Price
N/A
26
LOCK WASHER 10MM
Price
N/A
27
DECORATIVE PLATE
Price
$105.70
28
PLATE SUPPORT
Price
$48.65
29
SET SCREW M8-1.25 X 35
Price
N/A
29V2
SET SCREW M8-1.25 X 30
Price
N/A
30
HEX NUT M8-1.25
Price
N/A
31
HEX NUT M6-1
Price
N/A
32
CAP SCREW M8-1.25 X 16
Price
N/A
32V2
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
33
FLAT WASHER 8MM
Price
N/A
33V2
LOCK WASHER 8MM
Price
N/A
34
WIRE CONNECTOR
Price
$8.20
35
WIRE NUT 12AWG X 2
Price
$1.60
36
PLUG 10MM
Price
$1.60
37
SET SCREW M12-1.75 X 35
Price
N/A
37V2
SET SCREW M12-1.75 X 30
Price
N/A
38
HEX NUT M12-1.75
Price
N/A
39
SET SCREW M6-1 X 10
Price
N/A
41
HEX BOLT M12-1.75 X 40
Price
N/A
42
HEX NUT M12-1.75
Price
N/A
51
HEX NUT M10-1.5 THIN
Price
N/A
52
S. TABLE MOUNTING PLATE
Price
$17.55
55
PHLP HD SCR M5-.8 X 25
Price
N/A
56
EXT TOOTH WASHER 5MM
Price
N/A
57
HEX NUT M5-.8
Price
N/A
59
LOCK NUT M10-1.5
Price
N/A
60
POWER CORD 12AWG 3W L6-30
Price
$105.70
61
SET SCREW M10-1.5 X 80
Price
$9.40
61V2
SET SCREW M10-1.5 X 90
Price
N/A
101

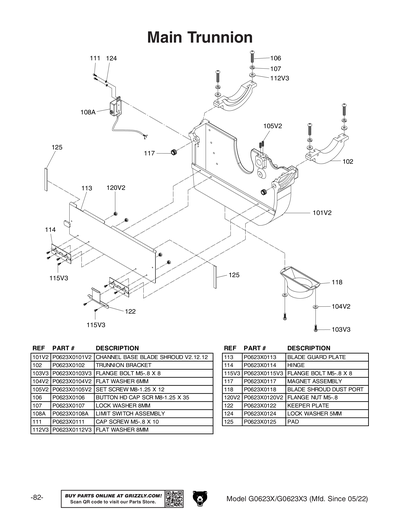

CHANNEL BASE BLADE SHROUD V1
Price
$219.80
101V2
CHANNEL BASE BLADE SHROUD V2.12.12
Price
$330.90
102
TRUNNION BRACKET
Price
$43.80
103
CAP SCREW M6-1 X 10
Price
N/A
103V2
FLANGE SCREW M5-.8 X 8
Price
N/A
103V3
FLANGE BOLT M5-.8 X 8
Price
$1.60
104
LOCK WASHER 6MM
Price
N/A
104V2
FLAT WASHER 6MM
Price
N/A
105
CAP SCREW M8-1.25 X 16
Price
N/A
105V2
SET SCREW M8-1.25 X 12
Price
N/A
106
BUTTON HD CAP SCR M8-1.25 X 35
Price
N/A
107
LOCK WASHER 8MM
Price
N/A
108
LIMIT SWITCH ASSEMBLY
Price
N/A
108A
LIMIT SWITCH ASSEMBLY
Price
$59.85
109
LIMIT SWITCH AND COVER
Price
$18.70
110
LIMIT SWITCH ASSEMBLY
Price
N/A
111
CAP SCREW M5-.8 X 10
Price
N/A
112
LOCK WASHER 8MM
Price
N/A
112V2
FLAT WASHER 5MM
Price
N/A
112V3
FLAT WASHER 8MM
Price
N/A
113
BLADE GUARD PLATE
Price
$48.05
114
HINGE
Price
$7.00
115
PHLP HD SCR M5-.8 X 10
Price
N/A
115V2
PHLP HD SCR M5-.8 X 8
Price
N/A
115V3
FLANGE BOLT M5-.8 X 8
Price
$1.60
116
SAW BLADE 10" 40T
Price
$155.20
117
MAGNET ASSEMBLY
Price
$20.55
118
BLADE SHROUD DUST PORT
Price
$14.95
119
PHLP HD SCR M5-.8 X 25
Price
N/A
119V2
PHLP HD SCR M5-.8 X 8
Price
N/A
119V3
FLANGE BOLT M5-.8 X 8
Price
$1.60
120
LOCK NUT M5-.8
Price
N/A
120V2
FLANGE NUT M5-.8
Price
N/A
121
LOCK WASHER 5MM
Price
N/A
122
KEEPER PLATE
Price
$11.50
123
LIMIT SWITCH ASSEMBLY
Price
N/A
124
LOCK WASHER 5MM
Price
N/A
125
PAD
Price
$2.20
201
*DISCD*BLADE GUARD
Price
N/A
201V2
BLADE GUARD ASSY V2.02.12
Price
N/A
201V2A
BLADE GUARD ASSY V2.02.12
Price
$50.95
202
FENDER WASHER 8MM
Price
N/A
202V2
LOCK NUT M10-1.5
Price
N/A
203
BUTTON HD CAP SCR M8-1.25 X 40
Price
N/A
203V2
CAP SCREW M10-1.5 X 25
Price
N/A
204
RIVING KNIFE MOUNTING BLOCK V1
Price
$84.30
204V2A
MOUNTING BLOCK ASSY. V2.04.12
Price
$80.25
205
KEY 5 X 5 X 20
Price
N/A
206
LOCATING BLOCK V1
Price
$56.20
206V2
LOCATING BOLOCK V2.08.10
Price
$56.20
207
HEX NUT M12-1.75
Price
N/A
208
LINK PLATE
Price
$9.70
209
BALL BEARING 6004LLB
Price
N/A
210
WAVE WASHER 26 X 34MM
Price
$2.45
211
*DISCD*COLLAR V1
Item is no longer available
Price
N/A
211V2
HEX NUT M10-1.5
Price
N/A
212
GIB PLATE
Price
$56.80
213
BUTTON HD CAP SCR M10-1.5 X 35
Price
N/A
213V2
SET SCREW M10-1.5 X 45
Price
N/A
213V3
BUTTON HD CAP SCR M10-1.5 X 45
Price
N/A
214
SET SCREW M6-1 X 8
Price
N/A
214V2
SET SCREW M5-.8 X 10
Price
N/A
215
MOTOR PULLEY (TYPE-M20) V2.01.08
Price
N/A
215V2
ARBOR PULLEY (FLAT) V2.01.08
Price
$59.80
216
FLAT WASHER 12MM
Price
N/A
216V2
DOCK WASHER 8 X 30 X 3MM
Price
$1.49
217
LOCK WASHER 8MM
Price
N/A
218
V-BELT M20 3L200
Price
N/A
219
CAP SCREW M8-1.25 X 20
Price
N/A
220
SET SCREW M6-1 X 6
Price
N/A
220V2
SET SCREW M8-1.25 X 8
Price
N/A
220V3
SET SCREW M8-1.25 X 16
Price
N/A
221
MOTOR PULLEY (TYPE-M) V1
Price
$63.00
221V2
MOTOR PULLEY (TYPE-M20) V2.01.08
Price
$76.90
222
HEX SHAFT M12-1.75 LONG
Price
$20.55
223
MOTOR MOUNT PLATE V1
Price
$131.95
223V2
MOTOR MOUNT PLATE V2.06.12
Price
$131.95
224
FLAT WASHER 12MM
Price
N/A
224V2
DOCK WASHER 12 X 24 X 3MM
Price
$1.60
225
LOCK WASHER 12MM
Price
N/A
226
HEX BOLT M12-1.75 X 25
Price
N/A
226V2
HEX BOLT M12-1.75 X 30
Price
N/A
227
KEY 7 X 7 X 29
Price
N/A
228

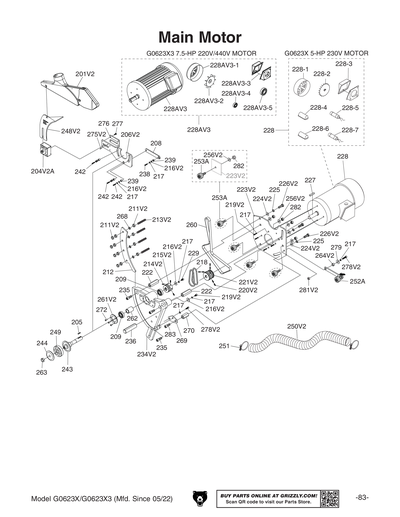

MOTOR 5HP 230V 1-PH
Price
$895.45
228-1
MOTOR FAN COVER
Price
$16.35
228-2
MOTOR FAN
Price
$10.90
228-3
JUNCTION BOX
Price
$15.70
228-4
CAPACITOR COVER
Price
$4.30
228-5
S CAPACITOR 400M 250V 1-3/4 X 3-1/2
Price
N/A
228-6
CAPACITOR COVER
Price
$5.80
228-7
R CAPACITOR 30M 500V 2 X 4-1/2
Price
N/A
229
CAP SCREW M8-1.25 X 20
Price
N/A
230
LOCK WASHER 8MM
Price
N/A
231
CAP SCREW M8-1.25 X 20
Price
N/A
232
LOCK WASHER 8MM
Price
N/A
233
FENDER WASHER 8MM
Price
N/A
234
ROTATE PLATE V1
Price
$144.90
234V2
ROTATE PLATE V2.12.12
Price
$175.75
235
CAP SCREW M12-1.75 X 30
Price
N/A
236
SHAFT
Price
$21.50
237
BUSHING
Price
$1.60
238
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
239
BUSHING
Price
$1.60
240
FENDER WASHER 8MM
Price
N/A
241
LOCK WASHER 8MM
Price
N/A
242
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
243
MAIN ARBOR CSA
Price
$92.75
244
ARBOR FLANGE CSA
Price
$3.50
245
LOCATING PIN
Price
$3.05
246
HEX BOLT M10-1.5 X 50
Price
N/A
247
RIVING KNIFE WASHER 10MM
Price
$1.60
248
RIVING KNIFE V1
Price
$35.65
248V2
RIVING KNIFE V2.05.12
Price
$61.15
249
ARBOR WASHER
Price
$38.25
250
HOSE 3" X 24" V1
Price
$19.85
250V2
HOSE 3" X 37" V2.10.16
Price
$20.85
251
HOSE CLAMP 3-1/4"
Price
$4.30
252
CAP SCREW M12-1.75 X 55
Price
N/A
252A
ROTATING ARM IDLER ASSY
Price
$68.45
252V2
CAP SCREW M12-1.75 X 45
Price
N/A
253
IDLER PULLEY
Price
$14.65
253A
IDLER PULLEY ASSY
Price
$46.55
255
HEX NUT M12-1.75
Price
N/A
256
HEX NUT M12-1.75
Price
N/A
256V2
FLAT WASHER 12MM
Price
N/A
257
ROTATE PLATE
Price
$9.70
258
INT RETAINING RING 28MM
Price
N/A
259
BUSHING
Price
$1.60
260
BELT 15 X 1140MM
Price
$44.60
261
PLATE V1
Price
$16.95
261V2
PLATE V2.08.14
Price
$16.95
262
BUSHING
Price
$15.50
263
ARBOR NUT 5/8-12 LH
Price
N/A
264
BUSHING 5.5MM V1
Price
$1.60
264V2
BUSHING 6.1MM V2.10.16
Price
$1.60
265
LOCK WASHER 12MM
Price
N/A
266
BALL BEARING 6001ZZ
Price
N/A
267
EXTENSION SPRING
Price
$3.95
268
LOCK WASHER 10MM
Price
N/A
269
MOUNTING PLATE
Price
$20.55
270
HEX SHAFT M12-1.75 SHORT
Price
$20.55
272
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
275
ROLL PIN 3 X 12
Price
N/A
275V2
ROLL PIN 4 X 10
Price
N/A
276
SECONDARY BLOCK
Price
$29.30
277
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
278
CAP SCREW M8-1.25 X 25
Price
N/A
278V2
CAP SCREW M8-1.25 X 20
Price
N/A
279
FLAT WASHER 8MM
Price
N/A
281
LOCK NUT M8-1.25
Price
N/A
281V2
HEX NUT M8-1.25
Price
N/A
282
LOCK NUT M12-1.75
Price
N/A
283
CAP SCREW M12-1.75 X 45
Price
N/A
301

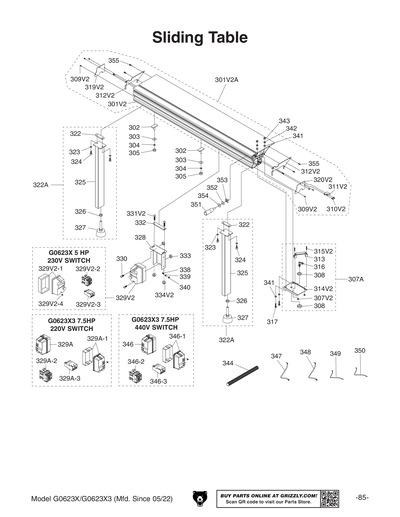

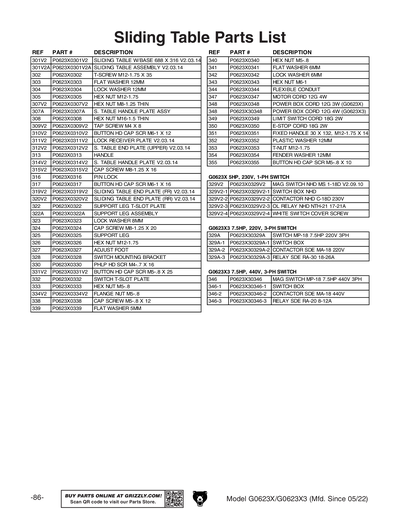

*DISCD*SLIDING TABLE 688 X 316 V1
Item is no longer available
Price
N/A
301V2
SLIDING TABLE ASSEMBLY V2.03.14
Price
N/A
301V2A
SLIDING TABLE ASSEMBLY V2.03.14
Price
$2,698.80
301V2A-1
SLIDING TABLE WAY STEEL ROD
Price
$16.95
302
T-SCREW M12-1.75 X 35
Price
$8.40
303
FLAT WASHER 12MM
Price
N/A
304
LOCK WASHER 12MM
Price
N/A
305
HEX NUT M12-1.75
Price
N/A
306
LOCK WASHER 6MM
Price
N/A
307
HEX NUT M6-1
Price
N/A
307A
SLIDING TABLE HANDLE PLATE ASSY
Price
$96.95
307V2
HEX NUT M8-1.25 THIN
Price
N/A
308
HEX NUT M16-1.5 THIN
Price
N/A
309
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
309V2
TAP SCREW M4 X 8
Price
N/A
310
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
310V2
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
311
LOCATE PLATE V1
Price
$11.20
311V2
LOCATE PLATE V2.03.14
Price
$12.00
312
SLIDING TABLE END PLATE (UPPER) V1
Price
$17.80
312V2
SLIDING TABLE END PLATE (UPPER) V2.03.14
Price
$12.40
313
HANDLE
Price
$3.95
314
SLIDING TABLE HANDLE PLATE V1
Price
$48.65
314V2
SLIDING TABLE HANDLE PLATE V2.03.14
Price
$22.95
315
CAP SCREW M6-1 X 16
Price
N/A
315V2
CAP SCREW M8-1.25 X 16
Price
N/A
316
PIN LOCK
Price
N/A
317
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
318
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
319
SLIDING TABLE END PLATE (FR) V1
Price
$16.05
319V2
SLIDING TABLE END PLATE (FR) V2.03.14
Price
$8.50
320
SLIDING TABLE END PLATE (RR) V1
Price
$28.75
320V2
SLIDING TABLE END PLATE (RR) V2.03.14
Price
$15.55
321
S. TABLE MOUNTING PLATE
Price
N/A
322
SUPPORT LEG T-SLOT PLATE
Price
$24.30
322A
SUPPORT LEG ASSEMBLY
Price
$97.55
323
LOCK WASHER 8MM
Price
N/A
324
CAP SCREW M8-1.25 X 20
Price
N/A
325
SUPPORT LEG
Price
$100.15
326
HEX NUT M12-1.75
Price
N/A
327
ADJUST FOOT
Price
$5.20
328
SWITCH MOUNTING BRACKET
Price
$39.00
329
MAG SWITCH SDE MP-18 5HP 220V 1PH V1
Price
$312.20
329-1
SWITCH BOX SDE
Price
$79.35
329-2
CONTACTOR SDE MA-18 220V
Price
$105.70
329-3
RELAY SDE RA-30 22-34 25A
Price
$92.75
329V2
MAG SWITCH NHD MS 1-18D V2.09.10
Price
$283.00
329V2-1
SWITCH BOX NHD
Price
$125.10
329V2-2
CONTACTOR NHD C-18D 230V
Price
$115.05
329V2-3
OL RELAY NHD NTH-21 17-21A
Price
$79.45
329V2-4
WHITE SWITCH COVER SCREW V1.12.95
Price
N/A
330
PHLP HD SCR M4-.7 X 16
Price
N/A
331
CAP SCREW M5-.8 X 12
Price
N/A
331V2
BUTTON HD CAP SCR M5-.8 X 25
Price
N/A
332
LOCATE PLATE
Price
$35.95
333
HEX NUT M5-.8
Price
N/A
334
FLAT WASHER 5MM
Price
N/A
334V2
FLANGE NUT M5-.8
Price
N/A
335
LOCK NUT M10-1.5
Price
N/A
336
FENDER WASHER 10MM
Price
N/A
337
FLANGE NUT M6-1
Price
N/A
338
CAP SCREW M5-.8 X 12
Price
N/A
339
FLAT WASHER 5MM
Price
N/A
340
HEX NUT M5-.8
Price
N/A
341
FLAT WASHER 6MM
Price
N/A
342
LOCK WASHER 6MM
Price
N/A
343
HEX NUT M6-1
Price
N/A
344
FLEXIBLE CONDUIT
Price
$7.00
345
LOCATE PLATE (FR) V1
Price
$19.95
345V2
SLIDING TABLE END PLATE (UPPER) V2.03.14
Price
N/A
347
MOTOR CORD 12G 4W
Price
$52.25
348
PWR BOX CORD 12G 3W
Price
$32.35
349
LIMIT SWITCH CORD 18G 2W
Price
$9.10
350
E-STOP CORD 18G 2W
Price
$13.30
351
FIXED HANDLE 30 X 132, M12-1.75 X 14
Price
$34.45
352
PLASTIC WASHER 12MM
Price
$1.60
353
T-NUT M12-1.75
Price
$6.40
354
FENDER WASHER 12MM
Price
N/A
355
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
356
SLIDING TABLE STOP
Price
$20.30
401

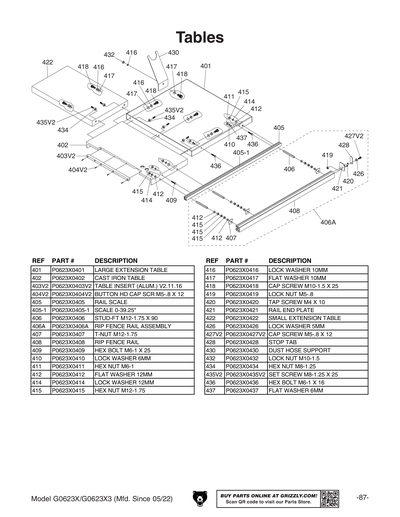

LARGE EXTENSION TABLE
Price
$301.15
402
CAST IRON TABLE
Price
$611.00
403
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
403V2
TABLE INSERT (ALUM.) V2.11.16
Price
$30.30
404
CAP SCREW M5-.8 X 20
Price
N/A
404V2
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
405
SCALE RAIL
Price
$40.20
405-1
SCALE 0~39.25"
Price
$58.05
406
STUD-FT M12-1.75 X 90
Price
$17.50
406A
RIP FENCE RAIL ASSEMBLY
Price
$155.15
407
T-NUT M12-1.75
Price
$5.20
408
RIP FENCE RAIL
Price
$108.35
409
HEX BOLT M6-1 X 25
Price
N/A
410
LOCK WASHER 6MM
Price
N/A
411
HEX NUT M6-1
Price
N/A
412
FLAT WASHER 12MM
Price
N/A
413
FLAT WASHER 12MM
Price
N/A
414
LOCK WASHER 12MM
Price
N/A
415
HEX NUT M12-1.75
Price
N/A
416
LOCK WASHER 10MM
Price
N/A
417
FLAT WASHER 10MM
Price
N/A
418
CAP SCREW M10-1.5 X 25
Price
N/A
419
LOCK NUT M5-.8
Price
N/A
420
TAP SCREW M4 X 10
Price
N/A
421
RAIL END PLATE
Price
$9.40
422
SMALL EXTENSION TABLE
Price
$104.80
423
FLAT WASHER 10MM
Price
N/A
424
LOCK WASHER 10MM
Price
N/A
425
CAP SCREW M10-1.5 X 25
Price
N/A
426
LOCK WASHER 5MM
Price
N/A
427
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
427V2
CAP SCREW M5-.8 X 12
Price
N/A
428
STOP TAB
Price
$4.00
429
CAP SCREW M10-1.5 X 25
Price
N/A
430
DUST HOSE SUPPORT
Price
$37.75
431
LOCK WASHER 10MM
Price
N/A
432
LOCK NUT M10-1.5
Price
N/A
433
FLAT WASHER 10MM
Price
N/A
434
HEX NUT M8-1.25
Price
N/A
435
CAP SCREW M8-1.25 X 25
Price
N/A
435V2
SET SCREW M8-1.25 X 25
Price
N/A
436
HEX BOLT M6-1 X 16
Price
N/A
437
FLAT WASHER 6MM
Price
N/A
501

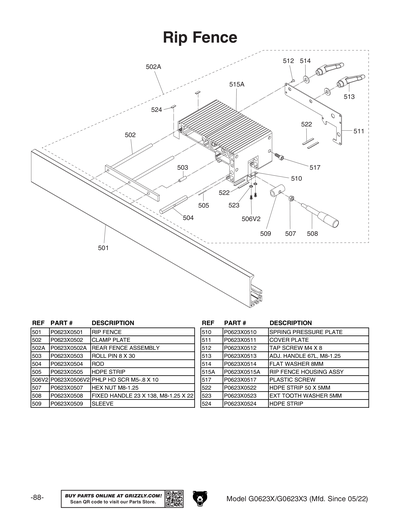

RIP FENCE
Price
$121.95
502
CLAMP PLATE
Price
$25.40
502A
REAR FENCE ASSEMBLY
Price
$266.00
503
STEEL PIN 6MM
Price
$1.60
504
ROD
Price
$13.05
505
HDPE STRIP
Price
$2.80
506
FLANGE SCREW M5-.8 X 10
Price
N/A
506V2
PHLP HD SCR M5-.8 X 10
Price
N/A
507
HEX NUT M8-1.25
Price
N/A
508
FIXED HANDLE 23 X 138, M8-1.25 X 22
Price
$27.55
509
SLEEVE
Price
$14.80
510
SPRING PRESSURE PLATE
Price
$4.30
511
COVER PLATE
Price
$23.90
512
TAP SCREW
Price
$1.60
513
ADJ. HANDLE 67L, M8-1.25
Price
$9.95
514
FLAT WASHER 8MM
Price
N/A
515
RIP FENCE HOUSING ASSEMBLY
Price
N/A
515A
RIP FENCE HOUSING ASSEMBLY
Price
$175.25
516
RIP FENCE HOUSING ASSEMBLY
Price
N/A
517
PLASTIC SCREW
Price
$1.60
518
LOCK WASHER 8MM
Price
N/A
519
CAP SCREW M8-1.25 X 20
Price
N/A
520
FLAT HD SCR M6-1 X 12
Price
N/A
521
WAVY WASHER 12MM
Price
$1.60
522
HDPE STRIP 50 X 5MM
Price
$1.60
523
EXT TOOTH WASHER 5MM
Price
N/A
524
HDPE STRIP 1-1/4" X 3/8"
Price
$1.49
601

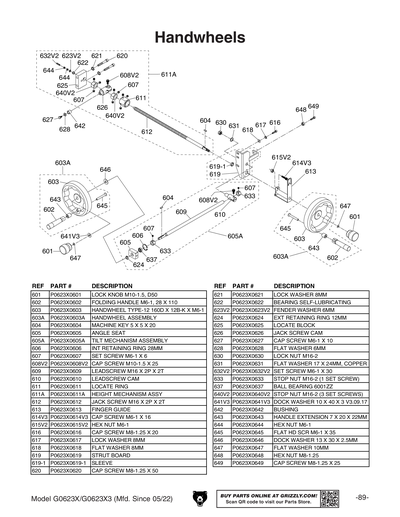

LOCK KNOB M10-1.5, D50
Price
$49.95
602
HANDWHEEL HANDLE AND EXTENSION
Price
N/A
602A
HANDWHEEL HANDLE AND EXTENSION
Price
$58.00
603
HANDWHEEL TYPE-12 160D X 12B-K X M6-1
Price
$117.80
603A
HANDWHEEL ASSEMBLY
Price
$130.20
604
KEY 5 X 5 X 20
Price
N/A
605
ANGLE SEAT
Price
$38.10
605A
TILT MECHANISM ASSEMBLY
Price
$102.40
606
INT RETAINING RING 28MM
Price
N/A
607
SET SCREW M6-1 X 6
Price
N/A
608
CAP SCREW M10-1.5 X 20
Price
N/A
608V2
CAP SCREW M10-1.5 X 25
Price
N/A
609
LEADSCREW M16 X 2P X 2T
Price
$44.30
610
LEADSCREW CAM
Price
$102.80
611
LOCATE RING
Price
$16.65
611A
HEIGHT MECHANISM ASSY
Price
$119.70
612
JACK SCREW M16 X 2P X 2T
Price
$42.90
613
FINGER GUIDE
Price
$37.75
614
CAP SCREW M6-1 X 10
Price
N/A
614V2
CAP SCREW M6-1 X 20
Price
N/A
614V3
CAP SCREW M6-1 X 16
Price
N/A
615
LOCK WASHER 6MM
Price
N/A
615V2
HEX NUT M6-1
Price
N/A
616
CAP SCREW M8-1.25 X 20
Price
N/A
617
LOCK WASHER 8MM
Price
N/A
618
FLAT WASHER 8MM
Price
N/A
619
STRUT BOARD
Price
$71.60
619-1
SLEEVE
Price
$2.45
620
CAP SCREW M8-1.25 X 50
Price
N/A
621
LOCK WASHER 8MM
Price
N/A
622
BEARING SELF LUBRICATING
Price
$1.60
623
FLAT WASHER 6MM
Price
N/A
623V2
FENDER WASHER 6MM
Price
N/A
624
EXT RETAINING RING 12MM
Price
N/A
625
LOCATE BLOCK
Price
$40.00
626
JACK SCREW CAM
Price
$34.55
627
CAP SCREW M6-1 X 10
Price
N/A
628
FLAT WASHER 6MM
Price
N/A
629
SLEEVE
Price
N/A
630
LOCK NUT M16-2 DOUBLE THREAD
Price
$3.05
631
FLAT WASHER 17 X 24MM, COPPER
Price
$1.60
632
CAP SCREW M6-1 X 12
Price
N/A
632V2
SET SCREW M6-1 X 30
Price
N/A
633
STOP NUT M16-2 (1 SET SCREW)
Price
$13.95
634
HEX NUT M12-1.75
Price
N/A
636
KEY 5 X 5 X 20
Price
N/A
637
BEARING
Price
$11.85
638
SET SCREW M12-1.75 X 35
Price
N/A
639
SET SCREW M6-1 X 6
Price
N/A
640
*DISCD*STOP NUT
Item is no longer available
Price
N/A
640V2
STOP NUT M16-2 V2 (3 SET SCREWS)
Price
$13.60
641
HANDWHEEL FLAT WASHER 10 X 20 V1
Price
$1.85
641V2
DOCK WASHER 10 X 40 X 3 V3.09.17
Price
N/A
641V3
DOCK WASHER 10 X 40 X 3 V3.09.17
Price
$1.49
642
BUSHING
Price
$9.40
643
HANDWHEEL HANDLE AND EXTENSION
Price
N/A
644
HEX NUT M6-1
Price
N/A
645
FLAT HD SCR M6-1 X 35
Price
N/A
646
DOCK WASHER 13 X 30 X 2.5MM
Price
$1.60
647
FLAT WASHER 10MM
Price
N/A
648
HEX NUT M8-1.25
Price
N/A
649
CAP SCREW M8-1.25 X 25
Price
N/A

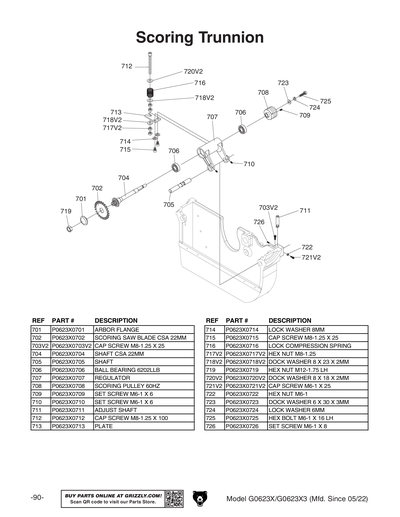

701
ARBOR FLANGE
Price
$13.60
702
Replacement Scoring Blade for G0623 Series
Price
N/A
703
CAP SCREW M8-1.25 X 20
Price
N/A
703V2
CAP SCREW M8-1.25 X 25
Price
N/A
704
SHAFT CSA 22MM
Price
$62.10
705
SHAFT
Price
$18.15
706
BALL BEARING 6202LLB
Price
N/A
707
REGULATOR
Price
$48.30
708
SCORING PULLEY 60HZ
Price
$21.20
709
SET SCREW M6-1 X 6
Price
N/A
710
SET SCREW M6-1 X 6
Price
N/A
711
ADJUST SHAFT
Price
$8.80
712
ADJUST SCREW M8-1.25 X 100
Price
$13.30
713
PLATE
Price
$21.50
714
LOCK WASHER 8MM
Price
N/A
715
CAP SCREW M8-1.25 X 25
Price
N/A
716
LOCK COMPRESSION SPRING
Price
$4.85
717
LOCK NUT M8-1.25
Price
N/A
717V2
HEX NUT M8-1.25
Price
N/A
718
FLAT WASHER 10MM
Price
N/A
718V2
DOCK WASHER 8 X 23 X 2MM
Price
$1.60
719
HEX NUT M12-1.75
Price
N/A
720
FLAT WASHER 10MM
Price
N/A
720V2
DOCK WASHER 8 X 18 X 2MM
Price
$1.60
721
CAP SCREW M6-1 X 20
Price
N/A
721V2
CAP SCREW M6-1 X 25
Price
N/A
722
HEX NUT M6-1
Price
N/A
723
DOCK WASHER 6 X 30 X 3MM
Price
$3.65
724
LOCK WASHER 6MM
Price
N/A
725
HEX BOLT M6-1 X 16 LH
Price
$1.60
726
SET SCREW M6-1 X 8
Price
N/A

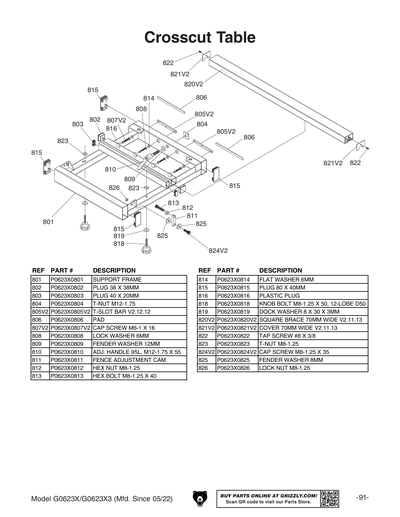

801
SUPPORT FRAME
Price
$156.10
801-1
ANGLE SCALE SET (LH/RH)
Price
$12.75
801-2
ANGLE SCALE SET (LH/RH)
Price
N/A
802
PLUG 38 X 38MM
Price
$1.60
803
PLUG 40 X 20MM
Price
$1.60
804
T-NUT M12-1.75
Price
$5.40
805
T-SLOT BAR V1
Price
$21.20
805V2
T-SLOT BAR V2.12.12
Price
$25.90
806
PAD
Price
$8.50
807
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
807V2
CAP SCREW M6-1 X 16
Price
N/A
808
LOCK WASHER 6MM
Price
N/A
809
FENDER WASHER 12MM
Price
N/A
810
ADJ. HANDLE 95L, M12-1.75 X 55
Price
$29.00
811
FENCE ADJUSTMENT CAM
Price
$9.40
812
HEX NUT M8-1.25
Price
N/A
813
HEX BOLT M8-1.25 X 40
Price
N/A
814
FLAT WASHER 6MM
Price
N/A
815
PLUG 80 X 40MM
Price
$2.20
816
PLUG
Price
$1.60
817
PIN 3 X 14
Price
$1.60
818
KNOB BOLT M8-1.25 X 50
Price
N/A
819
DOCK WASHER 8 X 30 X 3MM
Price
N/A
820
SQUARE BRACE 60MM WIDE V1
Price
$80.05
820V2
SQUARE BRACE 70MM WIDE V2.11.13
Price
$75.85
821
COVER 60MM WIDE V1
Price
$6.05
821V2
COVER 70MM WIDE V2.11.13
Price
$6.10
822
TAP SCREW #8 X 3/8
Price
N/A
823
T-NUT M8-1.25
Price
$4.35
824
CAP SCREW M8-1.25 X 30
Price
N/A
824V2
CAP SCREW M8-1.25 X 35
Price
N/A
825
FENDER WASHER 8MM
Price
N/A
826
LOCK NUT M8-1.25
Price
N/A

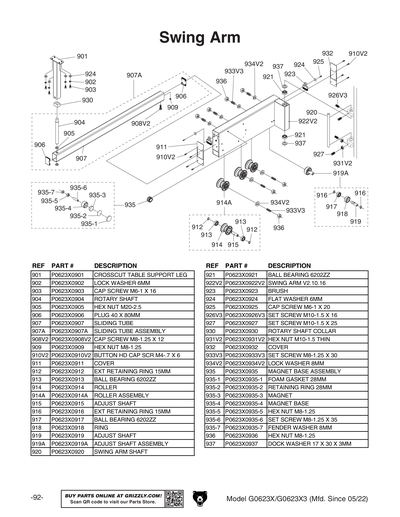

901
CROSSCUT TABLE SUPPORT LEG
Price
$34.30
902
LOCK WASHER 6MM
Price
N/A
903
CAP SCREW M6-1 X 16
Price
N/A
904
ROTARY SHAFT
Price
$28.50
905
HEX NUT M20-2.5
Price
N/A
906
PLUG 40 X 80MM
Price
$2.45
907
SLIDING TUBE
Price
$94.50
907A
SLIDING TUBE ASSEMBLY
Price
$92.10
908
HEX BOLT M8-1.25 X 30
Price
N/A
908V2
CAP SCREW M8-1.25 X 12
Price
N/A
909
HEX NUT M8-1.25
Price
N/A
910
TAP SCREW M4 X 10
Price
N/A
910V2
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
911
COVER
Price
$20.30
912
EXT RETAINING RING 15MM
Price
N/A
913
BALL BEARING 6202ZZ
Price
N/A
914
ROLLER
Price
$30.20
914A
ROLLER ASSEMBLY
Price
$50.35
915
ADJUST SHAFT
Price
$29.95
916
EXT RETAINING RING 15MM
Price
N/A
917
BALL BEARING 6202ZZ
Price
N/A
918
RING
Price
$17.55
919
ADJUST SHAFT
Price
$29.95
919A
ADJUST SHAFT ASSEMBLY
Price
$39.60
920
SWING ARM SHAFT
Price
$13.30
921
BALL BEARING 6202ZZ
Price
N/A
922
SWING ARM V1
Price
$147.65
922V2
SWING ARM V2.10.16
Price
$176.90
923
BRUSH
Price
$4.85
924
FLAT WASHER 6MM
Price
N/A
925
CAP SCREW M6-1 X 20
Price
N/A
926
SET SCREW M6-1 X 10
Price
N/A
926V2
SET SCREW M10-1.5 X 10
Price
N/A
926V3
SET SCREW M10-1.5 X 16
Price
N/A
927
SET SCREW M10-1.5 X 25
Price
N/A
927V2
SET SCREW M10-1.5 X 20
Price
N/A
927V3
SET SCREW M10-1.5 X 25
Price
N/A
929
HEX BOLT M10-1.5 X 35
Price
N/A
930
ROTARY SHAFT COLLAR
Price
$2.40
931
HEX NUT M10-1.5
Price
N/A
931V2
HEX NUT M10-1.5 THIN
Price
N/A
932
COVER
Price
$19.65
933
HEX BOLT M8-1.25 X 20
Price
N/A
933V2
SET SCREW M8-1.25 X 20
Price
N/A
933V3
SET SCREW M8-1.25 X 30
Price
N/A
934
FLAT WASHER 8MM
Price
N/A
934V2
LOCK WASHER 8MM
Price
N/A
935
MAGNETIC BASE ASSEMBLY
Price
$50.75
935-1
FOAM GASKET 28MM
Price
$1.60
935-2
RETAINING RING 28MM
Price
$1.60
935-3
MAGNET
Price
$35.65
935-4
MAGNET BASE
Price
$6.40
935-5
HEX NUT M8-1.25
Price
N/A
935-6
SET SCREW M8-1.25 X 35
Price
N/A
935-7
FENDER WASHER 8MM
Price
N/A
936
HEX NUT M8-1.25
Price
N/A
937
DOCK WASHER 17 X 30 X 3MM
Price
$1.60

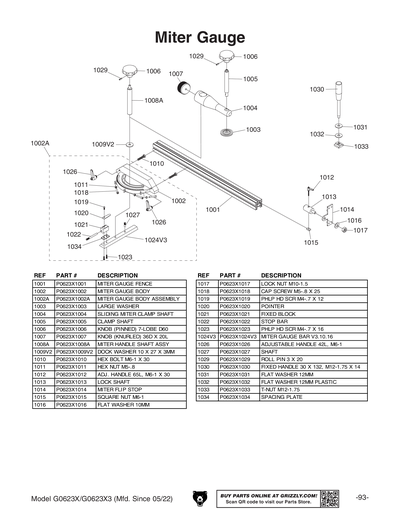

1001
MITER GAUGE FENCE
Price
$41.70
1001A
MITER GAUGE ASSEMBLY
Price
$248.25
1002
MITER GAUGE BODY
Price
$138.30
1002A
MITER GAUGE BODY ASSEMBLY
Price
$120.10
1003
LARGE WASHER
Price
$1.60
1004
SLIDING MITER CLAMP SHAFT
Price
$45.35
1005
CLAMP SHAFT
Price
$7.00
1006
KNOB 10MM
Price
N/A
1007
KNOB (KNURLED) 36D X 20L
Price
$11.95
1008
MITER HANDLE SHAFT ASSY
Price
N/A
1008A
MITER HANDLE SHAFT ASSY
Price
$10.65
1009
FLAT WASHER 8MM
Price
N/A
1009V2
DOCK WASHER 10 X 40 X 3 V3.09.17
Price
N/A
1010
HEX BOLT M6-1 X 30
Price
N/A
1011
HEX NUT M5-.8
Price
N/A
1012
ADJ. HANDLE 65L, M6-1 X 30
Price
$7.60
1013
LOCK SHAFT
Price
$9.40
1014
STOP PLATE
Price
$6.05
1015
SQUARE NUT M6-1
Price
N/A
1016
FLAT WASHER 10MM
Price
N/A
1017
LOCK NUT M10-1.5
Price
N/A
1018
CAP SCREW M5-.8 X 25
Price
N/A
1019
PHLP HD SCR M4-.7 X 12
Price
N/A
1020
POINTER
Price
$4.60
1021
FIXED BLOCK
Price
$6.35
1022
STOP BAR
Price
$4.90
1023
PHLP HD SCR M4-.7 X 16
Price
N/A
1024
*DISCD*FIXED BASE 5.5MMH V1
Item is no longer available
Price
N/A
1024V2
*DISCD*MITER GUIDE BAR V2.03.14
Item is no longer available
Price
N/A
1024V3
MITER GAUGE BAR V3.10.16
Price
$29.35
1025
SET SCREW M4-.7 X 10
Price
N/A
1026
ADJUSTABLE HANDLE 42L, M6-1
Price
$6.40
1027
SHAFT
Price
$3.05
1028
SET SCREW M8-1.25 X 45
Price
N/A
1029
ROLL PIN 3 X 20
Price
N/A
1030
FIXED HANDLE 30 X 132, M12-1.75 X 14
Price
N/A
1031
FLAT WASHER 12MM
Price
N/A
1032
FLAT WASHER 12MM PLASTIC
Price
$1.49
1033
PUSH HANDLE T-NUT M12-1.75
Price
$5.20
1034
SPACING PLATE
Price
$8.95

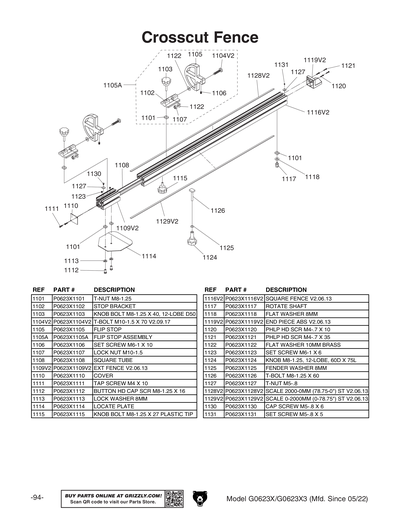

1100
COMPLETE CROSSCUT FENCE ASSEMBLY
Price
$791.20
1101
T-NUT M8-1.25
Price
$1.49
1102
STOP BRACKET
Price
$35.05
1103
KNOB BOLT M8-1.25 X 40, 12-LOBE D50
Price
$15.55
1104
SCREW V1
Price
$4.85
1104V2
T-BOLT M10-1.5 X 70 V2.09.17
Price
$1.60
1105
FLIP STOP
Price
N/A
1105A
FLIP STOP ASSEMBLY
Price
N/A
1106
SET SCREW M6-1 X 10
Price
N/A
1107
LOCK NUT M10-1.5
Price
N/A
1108
SQUARE TUBE
Price
$42.00
1108-1
CROSSCUT FENCE SCALE
Price
$52.65
1109
EXT FENCE V1
Price
$24.15
1109V2
EXT FENCE V2.06.13
Price
$33.55
1110
COVER
Price
$5.50
1111
TAP SCREW M4 X 10
Price
N/A
1112
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
1113
LOCK WASHER 8MM
Price
N/A
1114
LOCATE PLATE
Price
$26.35
1115
KNOB BOLT M8-1.25 X 27 PLASTIC TIP
Price
$14.00
1116
*DISCD*SQUARE FENCE V1
Item is no longer available
Price
N/A
1116V2
SQUARE FENCE V2.06.13
Price
$259.05
1117
PIVOT SHAFT
Price
N/A
1118
FLAT WASHER 8MM
Price
N/A
1119
END PIECE ABS V2.06.13
Price
N/A
1119V2
END PIECE ABS V2.06.13
Price
$4.95
1120
PHLP HD SCR M4-.7 X 10
Price
N/A
1121
PHLP HD SCR M4-.7 X 35
Price
N/A
1122
FLAT WASHER 10MM BRASS
Price
$1.60
1123
SET SCREW M6-1 X 6
Price
N/A
1124
KNOB M8-1.25, 12-LOBE, 60D X 75L
Price
$11.80
1125
FENDER WASHER 8MM
Price
N/A
1126
T-BOLT M8-1.25 X 60 V1
Price
N/A
1127
T-NUT M5-.8
Price
$4.30
1128
SCALE 1380-40MM (54.5-1.5") STEEL V1
Price
$55.30
1128V2
SCALE 2000-0MM (78.75-0") STEEL V2.06.13
Price
$55.30
1129
SCALE 1260-2000MM (49.5-78.75") STEEL V1
Price
$55.30
1129V2
SCALE 0-2000MM (0-78.75") STEEL V2.06.13
Price
$52.65
1130
CAP SCREW M5-.8 X 6
Price
N/A
1131
SET SCREW M5-.8 X 5
Price
N/A
1201

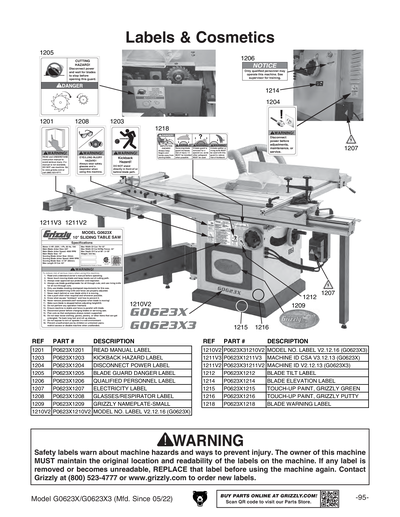

READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
1202
*DISCD*TABLE SAW BLADE GUARD LABEL
Item is no longer available
Price
N/A
1203
KICKBACK HAZARD LABEL
Price
$1.35
1204
UNPLUG 220V/BLADES 2W X 3.3H
Price
N/A
1205
BLADE GUARD DANGER LABEL
Price
$1.85
1206
QUALIFIED PERSONNEL LABEL
Price
$1.35
1207
ELECTRICITY 1.4W X 1.2H
Price
N/A
1208
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
1209
Nameplate - Small
Price
N/A
1210
MODEL NUMBER LABEL V1 (G0623X)
Price
$1.35
1210V2
MODEL NUMBER LABEL V2.12.16 (G0623X)
Price
$8.75
1211
MACHINE ID LABEL V1
Price
$16.40
1211V2
MACHINE ID LABEL CSA V2.05.12
Price
$16.40
1211V3
MACHINE ID LABEL CSA V3.12.13 (G0623X)
Price
$16.40
1212
BLADE TILT LABEL
Price
$2.10
1213
BLADE TILT SCALE
Price
$13.60
1214
BLADE ELEVATION LABEL
Price
$1.35
1215
N/S GRIZZLY GREEN G1023S
Price
N/A
1216
GREY PUTTY REF G0504
Price
N/A
1217
ARBOR LOCK TOOL
Price
N/A
1218
ARBOR LOCK TOOL
Price
$27.95
31109V2
EXT FENCE V2.06.13
Price
N/A
31116V2
SQUARE FENCE V2.06.13
Price
N/A
31119V2
END PIECE ABS V2.06.13
Price
N/A
31127
T-NUT M5-.8
Price
N/A
31128
SCALE 1380-40MM (54.5-1.5") STEEL V1
Price
N/A
31128V2
SCALE 2000-0MM (78.75-0") STEEL V2.06.13
Price
N/A
31129
SCALE 1260-2000MM (49.5-78.75") STEEL V1
Price
N/A
31129V2
SCALE 0-2000MM (0-78.75") STEEL V2.06.13
Price
N/A
31130
CAP SCREW M5-.8 X 6
Price
N/A
31131
SET SCREW M5-.8 X 5
Price
N/A
BOX2
COMPLETE SLIDING TABLE & FENCE
Price
$3,955.80
MAN
MANUAL G0623X MFG 08.07-04.12 V1.11.07
Price
$14.65
MANV2
MANUAL G0623X MFD-05.12-10.13 V2.02.13
Price
$14.25
MANV3
MANUAL G0623X MFD-11.13-07.14 V3.02.14
Price
$14.65
MANV4
MANUAL G0623X MFD-08.14-08.17 V4.08.14
Price
$21.50
MANV5
MANUAL G0623X MFD-02.07-08.17 V5.11.17
Price
$22.50
MANV6
MANUAL G0623X MFD-09.17+ V6.02.18
Price
$22.50
