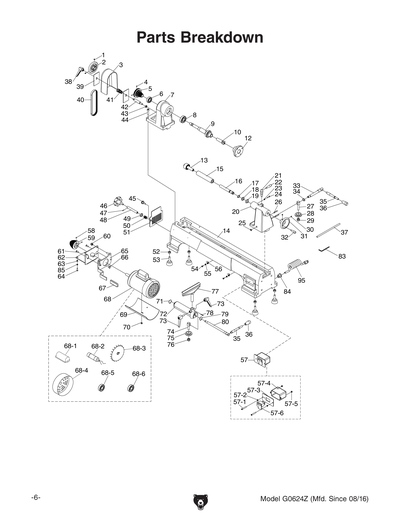

Parts for G0624Z - 10" x 16" Benchtop Wood Lathe

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

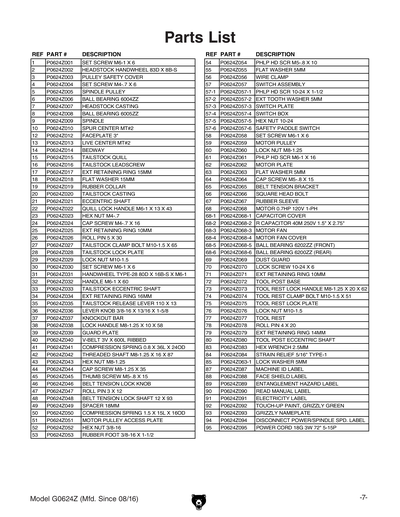

Ref # Part # Description Price Qty
1 P0624Z001
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
2 P0624Z002
Replaced By P0624002
HEADSTOCK HANDWHEEL 83D X 8B-S
N/A View Replacement
3 P0624Z003
Replaced By P0624003
PULLEY SAFETY COVER
N/A View Replacement
4 P0624Z004
Replaced By PSS79M
SET SCREW M4-.7 X 6
N/A View Replacement
5 P0624Z005
Replaced By P0624005
SPINDLE PULLEY
N/A View Replacement
6 P0624Z006
Replaced By P6004ZZ
BALL BEARING 6004ZZ
N/A View Replacement
7 P0624Z007
Replaced By P0624007
HEADSTOCK CASTING
N/A View Replacement
8 P0624Z008
Replaced By P6005ZZ
BALL BEARING 6005ZZ
N/A View Replacement
9 P0624Z009
Replaced By P0624009
SPINDLE
N/A View Replacement
10 P0624Z010 SPUR CENTER MT#2 $6.25
12 P0624Z012
Replaced By P0624012
FACEPLATE 3"
N/A View Replacement
13 P0624Z013 LIVE CENTER MT#2 $16.75
13-1 P0624Z013-1 INDEXED SPINDLE 12-17MM TAPER $1.00
14 P0624Z014
Replaced By P0624014
BEDWAY
N/A View Replacement
15 P0624Z015
Replaced By P0624015
TAILSTOCK QUILL
N/A View Replacement
16 P0624Z016
Replaced By P0624016
TAILSTOCK LEADSCREW
N/A View Replacement
17 P0624Z017
Replaced By PR05M
EXT RETAINING RING 15MM
N/A View Replacement
18 P0624Z018
Replaced By PW14M
FLAT WASHER 14MM
N/A View Replacement
19 P0624Z019
Replaced By P0624019
WAVY WASHER
N/A View Replacement
20 P0624Z020
Replaced By P0624020
TAILSTOCK CASTING
N/A View Replacement
21 P0624Z021
Replaced By P0624021
ECCENTRIC SHAFT
N/A View Replacement
22 P0624Z022
Replaced By P0624022
QUILL LOCK HANDLE M6-1 X 13 X 43
N/A View Replacement
23 P0624Z023
Replaced By PN04M
HEX NUT M4-.7
N/A View Replacement
24 P0624Z024
Replaced By PCAP16M
CAP SCREW M4-.7 X 16
N/A View Replacement
25 P0624Z025
Replaced By PR01M
EXT RETAINING RING 10MM
N/A View Replacement
26 P0624Z026
Replaced By PRP05M
ROLL PIN 5 X 30
N/A View Replacement
27 P0624Z027
Replaced By P0624027
TAILSTOCK CLAMP BOLT M10-1.5 X 65
N/A View Replacement
28 P0624Z028
Replaced By P0624028
TAILSTOCK LOCK PLATE
N/A View Replacement
29 P0624Z029
Replaced By PLN05M
LOCK NUT M10-1.5
N/A View Replacement
30 P0624Z030
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
31 P0624Z031
HANDWHEEL TYPE-28 80D X 16B-S X M6-1
N/A
32 P0624Z032
HANDLE M6-1 X 60
N/A
33 P0624Z033
Replaced By P0624033
TAILSTOCK ECCENTRIC SHAFT
N/A View Replacement
34 P0624Z034
Replaced By PR06M
EXT RETAINING RING 16MM
N/A View Replacement
35 P0624Z035
Replaced By P0624035
TAILSTOCK RELEASE LEVER 110 X 13
N/A View Replacement
36 P0624Z036
Replaced By P0624036
LEVER KNOB 3/8-16 X 13/16 X 1-5/8
N/A View Replacement
37 P0624Z037
Replaced By P0624037
KNOCKOUT BAR
N/A View Replacement
38 P0624Z038
Replaced By P0624038
LOCK HANDLE M8-1.25 X 10 X 58
N/A View Replacement
39 P0624Z039
Replaced By P0624039
GUARD PLATE
N/A View Replacement
40 P0624Z040
Replaced By P0624040
V-BELT 3V X 600L RIBBED
N/A View Replacement
41 P0624Z041
Replaced By P0624041
COMPRESSION SPRING 0.8 X 36 X 24
N/A View Replacement
42 P0624Z042
Replaced By P0624042
THREADED SHAFT M8-1.25 X 16 X 87
N/A View Replacement
43 P0624Z043
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
44 P0624Z044
Replaced By PCAP40M
CAP SCREW M8-1.25 X 35
N/A View Replacement
45 P0624Z045
Replaced By P0624045
THUMB SCREW M5-.8 X 15
N/A View Replacement
46 P0624Z046
Replaced By P0624046
BELT TENSION LOCK KNOB
N/A View Replacement
47 P0624Z047
Replaced By PRP61M
ROLL PIN 3 X 12
N/A View Replacement
48 P0624Z048
Replaced By P0624048
BELT TENSION LOCK SHAFT 12 X 93
N/A View Replacement
49 P0624Z049
Replaced By P0624049
SPACER 18MM
N/A View Replacement
50 P0624Z050
Replaced By P0624050
COMPRESSION SPRING 1.5 X 15 X 16
N/A View Replacement
51 P0624Z051
Replaced By P0624051
MOTOR PULLEY ACCESS PLATE
N/A View Replacement
52 P0624Z052
Replaced By PN08
HEX NUT 3/8-16
N/A View Replacement
53 P0624Z053
Replaced By P0624053
RUBBER FOOT 3/8-16 X 1-1/2
N/A View Replacement
54 P0624Z054
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
55 P0624Z055
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
56 P0624Z056
Replaced By P0624056
WIRE CLAMP
N/A View Replacement
57 P0624Z057
Replaced By P0624057
***USE G8988***
N/A View Replacement
57-1 P0624Z057-1
Replaced By PS10
PHLP HD SCR 10-24 X 1-1/2
N/A View Replacement
57-2 P0624Z057-2
Replaced By PTLW02M
EXT TOOTH WASHER 5MM
N/A View Replacement
57-3 P0624Z057-3
Replaced By P0624057-3
SWITCH PLATE
N/A View Replacement
57-4 P0624Z057-4
Replaced By P0624057-4
SWITCH BOX
N/A View Replacement
57-5 P0624Z057-5
Replaced By PN07
HEX NUT 10-24
N/A View Replacement
57-6 P0624Z057-6
Replaced By G8988
Safety Paddle Switch
N/A View Replacement
58 P0624Z058
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
59 P0624Z059
Replaced By P0624059
MOTOR PULLEY
N/A View Replacement
60 P0624Z060
Replaced By PLN04M
LOCK NUT M8-1.25
N/A View Replacement
61 P0624Z061
Replaced By PS11M
PHLP HD SCR M6-1 X 16
N/A View Replacement
62 P0624Z062
Replaced By P0624062
MOTOR PLATE
N/A View Replacement
63 P0624Z063
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
64 P0624Z064
Replaced By PCAP10M
CAP SCREW M5-.8 X 15
N/A View Replacement
65 P0624Z065
Replaced By P0624065
BELT TENSION BRACKET
N/A View Replacement
66 P0624Z066
Replaced By P0624066
SQUARE HEAD BOLT
N/A View Replacement
67 P0624Z067
Replaced By P0624067
RUBBER SLEEVE
N/A View Replacement
68 P0624Z068 MOTOR 0.7HP 120V 1-PH $102.00
68-1 P0624Z068-1
CAPACITOR COVER
N/A
68-2 P0624Z068-2 R CAPACITOR 25M 250V 1-1/2 X 2-3/4 $4.50
68-3 P0624Z068-3
MOTOR FAN
N/A
68-4 P0624Z068-4
MOTOR FAN COVER
N/A
68-5 P0624Z068-5
Replaced By P6202ZZ
BALL BEARING 6202ZZ
N/A View Replacement
68-6 P0624Z068-6
Replaced By P6200ZZ
BALL BEARING 6200ZZ
N/A View Replacement
69 P0624Z069
Replaced By P0624069
DUST GUARD
N/A View Replacement
70 P0624Z070
Replaced By P0624070
LOCK SCREW 10-24 X 6
N/A View Replacement
71 P0624Z071
Replaced By PR01M
EXT RETAINING RING 10MM
N/A View Replacement
72 P0624Z072
TOOL POST BASE
N/A
73 P0624Z073 TOOL REST LOCK HANDLE M8-1.25 X 20 X 62 $3.00
74 P0624Z074
Replaced By P0624074
TOOL REST CLAMP BOLT M10-1.5 X 51
N/A View Replacement
75 P0624Z075
Replaced By P0624075
TOOL REST LOCK PLATE
N/A View Replacement
76 P0624Z076
Replaced By PLN05M
LOCK NUT M10-1.5
N/A View Replacement
77 P0624Z077
Replaced By P0624077
TOOL REST
N/A View Replacement
78 P0624Z078
Replaced By PRP39M
ROLL PIN 4 X 20
N/A View Replacement
79 P0624Z079
Replaced By PR02M
EXT RETAINING RING 14MM
N/A View Replacement
80 P0624Z080
Replaced By P0624080
TOOL POST ECCENTRIC SHAFT
N/A View Replacement
83 P0624Z083
Replaced By PAW02.5M
N/A View Replacement
84 P0624Z084
STRAIN RELIEF 5/16 TYPE-1
N/A
85 P0624Z085
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement

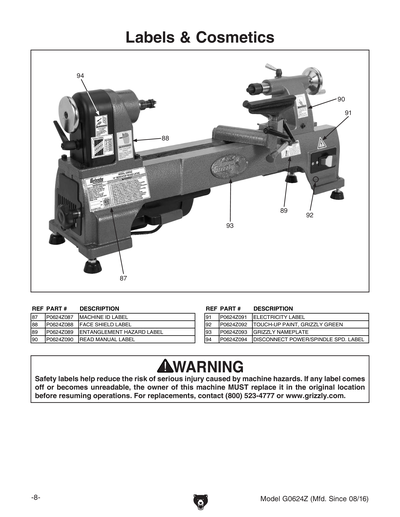

87 P0624Z087
MACHINE ID LABEL
N/A
88 P0624Z088
Replaced By PLABEL-54A
FACE SHIELD 1.5W X 2.5H
N/A View Replacement
89 P0624Z089
Replaced By PLABEL-55C
ENTANGLEMENT HAZARD 2.8W X 1.5H
N/A View Replacement
90 P0624Z090
Replaced By PLABEL-12C
READ MANUAL 1.5W X 2.5H
N/A View Replacement
91 P0624Z091
Replaced By PLABEL-14A
ELECTRICITY 0.7W X 0.6H
N/A View Replacement
92 P0624Z092
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
93 P0624Z093
Replaced By G9987
Name Plates - Mini
N/A View Replacement
94 P0624Z094
Replaced By P0624094
COMBO DISCONNECT W/SPEED CHART LABEL
N/A View Replacement
95 P0624Z095
Replaced By P0624095
POWER CORD 18G 3W 72" 5-15
N/A View Replacement
MAN P0624ZMAN
MANUAL INSERT G0624Z MFD-09.16 V1.10.16
N/A
