Parts for G0626 - 25" x 15" Downdraft Table w/ Stand

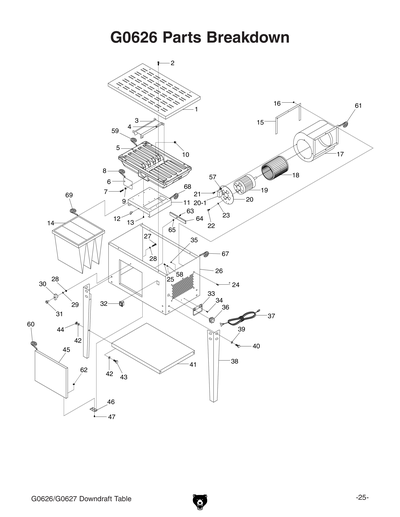

Part Diagram for G0626
Part Diagram for G0626
Part Diagram for G0626
Part Diagram for G0626
Part Diagram for G0626
Part Diagram for G0626

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

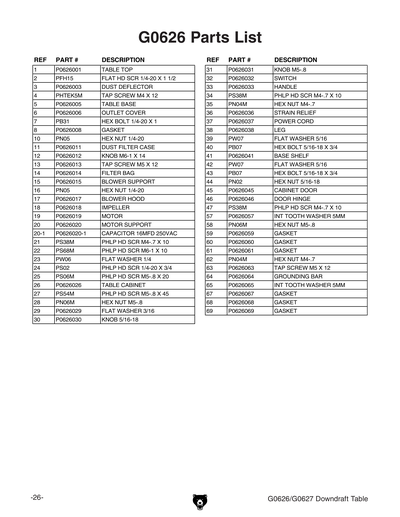

Ref #
Part #
Description
1
TABLE TOP
Item is no longer available
Price
N/A
2
FLAT HD SCR 1/4-20 X 1-1/2
Price
N/A
3
DUST DEFLECTOR
Item is no longer available
Price
N/A
4
TAP SCREW M4 X 12
Price
N/A
5
TABLE BASE
Item is no longer available
Price
N/A
6
OUTLET COVER
Item is no longer available
Price
N/A
7
P0626007
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
8
GASKET
Item is no longer available
Price
N/A
9
P0626009
Now: PW06
FLAT WASHER 1/4
Price
N/A
10
P0626010
Now: PN05
HEX NUT 1/4-20
Price
N/A
11
DUST FILTER CASE
Item is no longer available
Price
N/A
12
KNOB M6-1 X 14
Item is no longer available
Price
N/A
13
TAP SCREW 1/4 X 1
Price
N/A
14
Price
$69.20
15
BLOWER SUPPORT
Item is no longer available
Price
N/A
16
P0626016
Now: PN05
HEX NUT 1/4-20
Price
N/A
17
BLOWER HOOD
Item is no longer available
Price
N/A
18
Price
$37.10
19
MOTOR 1/8HP 110V 1-PH
Item is no longer available
Price
N/A
20
Price
$12.10
20-1
R CAPACITOR 16M 250V 2 X 1-1/4
Price
$10.90
21
PHLP HD SCR M4-.7 X 10
Price
N/A
22
PHLP HD SCR M6-1 X 10
Price
N/A
23
P0626023
Now: PW06
FLAT WASHER 1/4
Price
N/A
24
P0626024
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
25
P0626025
Now: PS03
PHLP HD SCR 10-24 X 1
Price
N/A
26
TABLE CABINET
Item is no longer available
Price
N/A
27
P0626027
Now: PS31
PHLP HD SCR 10-24 X 1-3/4
Price
N/A
28
P0626028
Now: PW03
FLAT WASHER #10
Price
N/A
29
FENDER WASHER 8MM
Price
N/A
30
Price
$6.20
31
*DISCD*KNOB M5-.8
Price
N/A
32
Price
$5.50
33
HANDLE
Item is no longer available
Price
N/A
34
PHLP HD SCR M4-.7 X 10
Price
N/A
35
HEX NUT M3-.5
Price
N/A
36
STRAIN RELIEF TYPE-6 ST
Item is no longer available
Price
N/A
37
POWER CORD
Item is no longer available
Price
N/A
38
LEG
Item is no longer available
Price
N/A
39
P0626039
Now: PW07
FLAT WASHER 5/16
Price
N/A
40
P0626040
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
41
Price
$64.40
42
P0626042
Now: PW07
FLAT WASHER 5/16
Price
N/A
43
P0626043
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
44
P0626044
Now: PN02
HEX NUT 5/16-18
Price
N/A
45
CABINET DOOR
Item is no longer available
Price
N/A
46
DOOR HINGE
Item is no longer available
Price
N/A
47
TAP SCREW 1/4 X 1
Price
N/A
48
MACHINE ID LABEL
Item is no longer available
Price
N/A

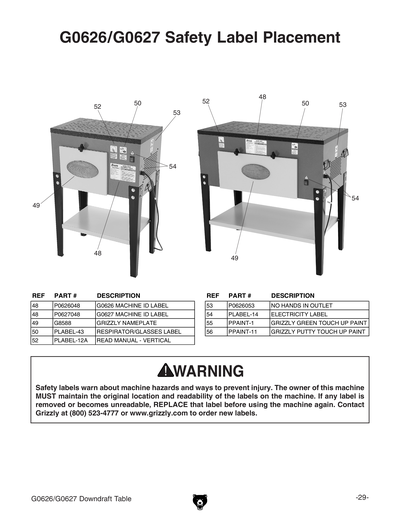

49
Nameplate - Small
Price
N/A
50
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
51
DUST MASK 2W X 3.3H V2.05.06
Price
N/A
52
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
53
NO HANDS IN OUTLET
Item is no longer available
Price
N/A
54
ELECTRICITY 1.4W X 1.2H
Price
N/A
55
N/S GRIZZLY GREEN G1023S
Price
N/A
56
GREY PUTTY REF G0504
Price
N/A
57
INT TOOTH WASHER 5MM
Price
N/A
58
HEX NUT M5-.8
Price
N/A
59
GASKET
Item is no longer available
Price
N/A
60
GASKET
Item is no longer available
Price
N/A
61
GASKET
Item is no longer available
Price
N/A
62
HEX NUT M4-.7
Price
N/A
63
TAP SCREW M5 X 12
Price
N/A
64
GROUNDING BAR
Item is no longer available
Price
N/A
65
INT TOOTH WASHER 5MM
Price
N/A
67
GASKET
Item is no longer available
Price
N/A
68
GASKET
Item is no longer available
Price
N/A
69
GASKET
Item is no longer available
Price
N/A
MAN
Price
$12.00
