Parts for G0631 - 28" x 79" Extra-Long Downdraft Table

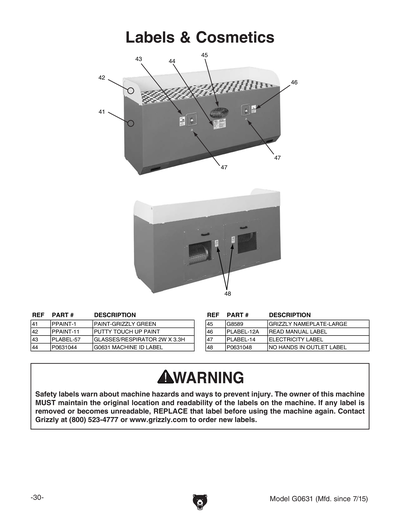

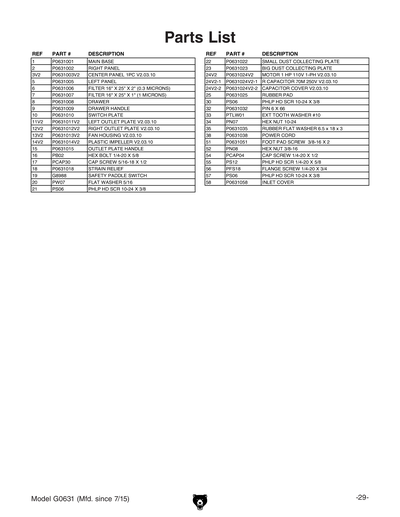

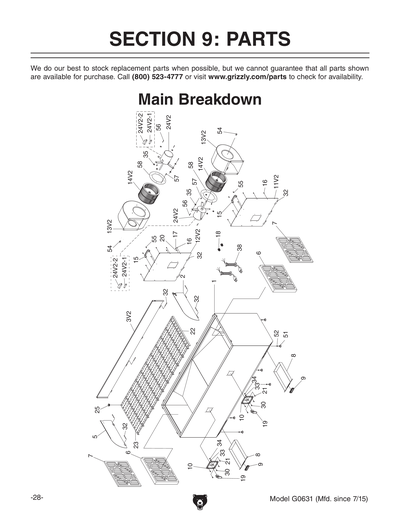

Part Diagram for G0631
Part Diagram for G0631
Part Diagram for G0631
Part Diagram for G0631
Part Diagram for G0631
Part Diagram for G0631

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
MAIN BASE
Price
$1,415.85
2
RIGHT PANEL
Price
$31.75
3
CENTER PANEL 2PC V1.03.07
Price
$45.35
3V2
CENTER PANEL 1PC V2.03.10
Price
$45.35
4
CENTER PANEL 2PC V1.03.07
Price
N/A
5
LEFT PANEL
Price
$31.75
6
FILTER 16 X 25 X 2" 0.3MICRON
Price
$63.45
7
FILTER 16 X 25 X 1" 1MICRON
Price
$30.20
8
DRAWER
Price
$78.50
9
DRAWER HANDLE
Price
$2.45
10
SWITCH PLATE
Price
$6.40
11
LEFT OUTLET PLATE LARGE V1.03.07
Price
$120.50
11V2
LEFT OUTLET PLATE SMALL V2.03.10
Price
$120.50
12
RIGHT OUTLET PLATE LARGE V1.03.07
Price
$120.50
12V2
RIGHT OUTLET PLATE SMALL V2.03.10
Price
$120.50
13
FAN HOUSING V1.03.07
Price
$168.50
13AV2
COMPLETE BLOWER ASSEMBLY
Price
$724.50
13V2
FAN HOUSING V2.03.10
Price
$160.85
14
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
14V2
IMPELLER PLASTIC 9-1/4 X 6-1/4" V2.03.10
Price
$176.70
15
OUTLET PLATE HANDLE
Price
$2.60
16
P0631016
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
17
CAP SCREW 5/16-18 X 1/2
Price
N/A
18
STRAIN RELIEF M16 TYPE-1 SNAP-IN
Price
$5.50
19
Safety Paddle Switch
Price
N/A
20
P0631020
Now: PW07
FLAT WASHER 5/16
Price
N/A
21
P0631021
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
22
SMALL DUST COLLECTING PLATE
Price
$14.50
23
BIG DUST COLLECTING PLATE
Price
$21.75
24
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
24-1
R CAPACITOR 45M 250V 1-3/4 X 2-1/2 V1
Price
$19.10
24-2
CAPACITOR COVER V1.03.07
Price
$6.70
24V2
MOTOR 1HP 110V 1-PH V2.03.10
Price
$301.75
24V2-1
R CAPACITOR 70M 250V V2.03.10
Price
$22.15
24V2-2
CAPACITOR COVER V1.03.07
Price
N/A
25
RUBBER PAD
Price
$1.49
30
P0631030
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
32
PIN 6 X 66
Price
$1.85
33
EXT TOOTH WASHER #10
Price
N/A
34
P0631034
Now: PN07
HEX NUT 10-24
Price
N/A
35
RUBBER FLAT WASHER 6.5 X 18 X 3
Price
$1.60
36
P0631036
Now: PW06
FLAT WASHER 1/4
Price
N/A
37
LOCK NUT 1/4-20
Price
N/A
38
POWER CORD
Price
$32.35
39
HEX BOLT M8-1.25 X 20
Price
N/A
40
HEX NUT M8-1.25
Price
N/A
41
N/S GRIZZLY GREEN G1023S
Price
N/A
42
GREY PUTTY REF G0504
Price
N/A
43
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
44
MACHINE ID LABEL
Price
$16.40
45
Nameplate - Large
Price
N/A
46
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
47
ELECTRICITY 1.4W X 1.2H
Price
N/A
48
NO HANDS IN OUTLET LABEL
Price
$1.35
49
P0631049
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
50
HEX NUT M6-1
Price
N/A
51
FOOT PAD SCREW 3/8-16 X 2
Price
$1.60
52
P0631052
Now: PN08
HEX NUT 3/8-16
Price
N/A
54
CAP SCREW 1/4-20 X 1/2
Price
N/A
55
P0631055
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
56
FLANGE SCREW M4-.7 X 16
Price
N/A
57
P0631057
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
58
INLET COVER
Price
$18.05
MAN
MANUAL FOR G0631 03/10
Price
$11.75
