Parts for G0632 - 16" x 42" Variable-Speed Wood Lathe

1/5

IMPORTANT: Parts may have multiple versions. This will be indicated by V1, V2, or V3 on the part number and/or description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID Label to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

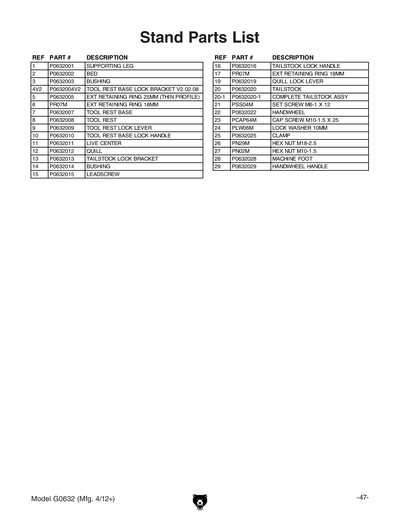

Ref #
Part #
Description

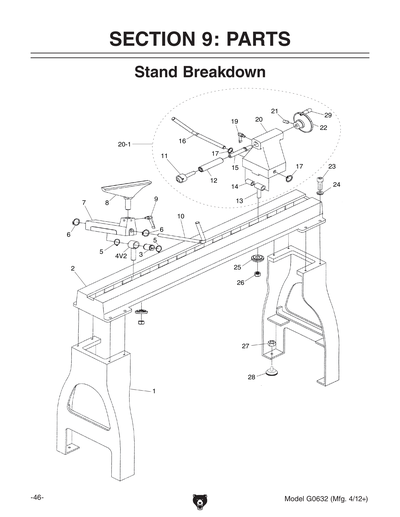

1
SUPPORTING LEG
Price
$395.35
2
BED
Price
$345.90
3
BUSHING
Price
$8.65
4
TOOL REST BASE LOCK BRACKET V1.04.07
Price
$11.50
4V2
TOOL REST BASE LOCK BRACKET V2.02.08
Price
$8.95
5
EXT RETAINING RING 25MM (THIN PROFILE)
Price
$1.49
6
EXT RETAINING RING 18MM
Price
N/A
7
TOOL REST BASE
Price
$31.05
8
TOOL REST
Price
$26.20
9
ADJUSTABLE HANDLE 78L, M10-.8 X 1.5 X 25
Price
$7.80
10
TOOL REST BASE LOCK HANDLE
Price
$28.05
11
LIVE CENTER
Price
$19.55
12
QUILL
Price
$24.45
13
TAILSTOCK LOCK BRACKET
Price
$7.80
14
BUSHING
Price
$7.80
15
LEADSCREW
Price
$15.25
16
TAILSTOCK LOCK HANDLE
Price
$17.25
17
EXT RETAINING RING 18MM
Price
N/A
18
*DISCD*LOCK PIN
Item is no longer available
Price
N/A
19
QUILL LOCK LEVER
Price
$3.45
20
TAILSTOCK
Price
$86.25
20-1
COMPLETE TAILSTOCK ASSY
Price
$146.35
21
SET SCREW M8-1.25 X 12
Price
N/A
22
HANDWHEEL 132D X 18B-S X M8-1.25
Price
$13.25
23
CAP SCREW M10-1.5 X 25
Price
N/A
24
LOCK WASHER 10MM
Price
N/A
25
CLAMP
Price
$7.55
26
HEX NUT M18-2.5
Price
N/A
27
HEX NUT M10-1.5
Price
N/A
28
MACHINE FOOT M10-1.5 X 60
Price
$34.80
29
HANDWHEEL HANDLE
Price
$6.05
30

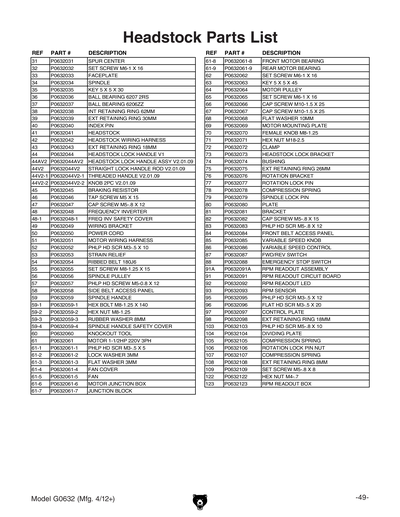

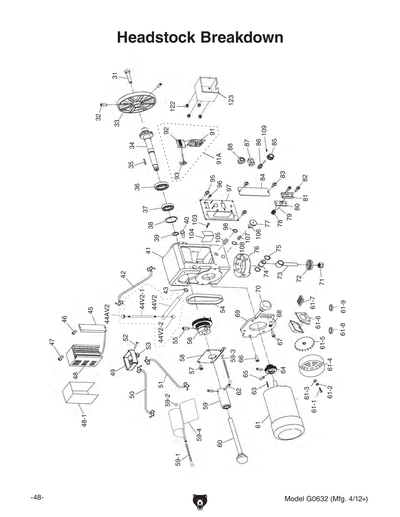

COMPLETE HEADSTOCK ASSY
Price
$1,259.00
31
SPUR CENTER
Price
$31.65
32
SET SCREW M6-1 X 16
Price
N/A
33
FACEPLATE
Price
$41.40
34
SPINDLE
Price
$196.65
35
KEY 5 X 5 X 30
Price
N/A
36
BALL BEARING 6207-2RS
Price
N/A
37
BALL BEARING 6206ZZ
Price
N/A
38
INT RETAINING RING 62MM
Price
N/A
39
EXT RETAINING RING 30MM
Price
N/A
40
INDEX PIN
Price
$4.90
41
HEADSTOCK
Price
$267.40
42
HEADSTOCK POWER CORD 4W 16G 12"
Price
$21.60
43
EXT RETAINING RING 18MM
Price
N/A
44
HEADSTOCK LOCK HANDLE V1
Price
$30.20
44AV2
HEADSTOCK LOCK HANDLE ASSY V2.01.09
Price
$28.05
44V2
STRAIGHT LOCK HANDLE ROD V2.01.09
Price
$11.25
44V2-1
SHOULDER STUD DE M10-1.5 X 8, 12 X 170 V
Price
$4.45
44V2-2
BALL KNOB M10-1.5 D20 L18 STEEL
Price
$3.75
45
BRAKING RESISTOR
Price
$77.35
46
TAP SCREW M5 X 15
Price
N/A
47
CAP SCREW M5-.8 X 12
Price
N/A
48
INVERTER S1
Price
$870.00
48-1
FREQ INV SAFETY COVER
Price
$15.55
49
WIRING BRACKET
Price
$11.25
50
POWER CORD 3W 16G 72" 6-15P
Price
$14.70
51
MOTOR POWER CORD 4W 16G 12"
Price
$19.85
52
PHLP HD SCR M3-.5 X 10
Price
N/A
53
STRAIN RELIEF TYPE-3 M20-1.5
Price
$6.05
54
RIBBED BELT 180J6 V1
Price
$18.15
55
SET SCREW M8-1.25 X 15
Price
N/A
56
*DISCD*SPINDLE PULLEY V1
Item is no longer available
Price
N/A
57
PHLP HD SCR M5-.8 X 12
Price
N/A
58
SIDE BELT ACCESS PANEL
Price
$11.25
59
SPINDLE HANDLE
Price
$37.70
59-1
HEX BOLT M8-1.25 X 140
Price
$2.60
59-2
HEX NUT M8-1.25
Price
N/A
59-3
FLAT WASHER 8MM RUBBER
Price
$1.49
59-4
SPINDLE HANDLE SAFETY COVER
Price
$14.70
60
KNOCKOUT TOOL
Price
$10.35
61
MOTOR 1.5HP 220V 3-PH
Price
$384.70
61-1
PHLP HD SCR M3-.5 X 5
Price
N/A
61-2
LOCK WASHER 3MM
Price
N/A
61-3
FLAT WASHER 3MM
Price
N/A
61-4
FAN COVER
Price
$12.95
61-5
FAN
Price
$4.90
61-6
MOTOR JUNCTION BOX
Price
$6.65
61-7
JUNCTION BLOCK
Price
$4.35
61-8
BALL BEARING 6304Z
Price
N/A
61-9
BALL BEARING 6204Z
Price
N/A
62
SET SCREW M6-1 X 16
Price
N/A
63
KEY 5 X 5 X 45
Price
N/A
64
MOTOR PULLEY V1
Price
$14.40
65
SET SCREW M6-1 X 16
Price
N/A
66
CAP SCREW M10-1.5 X 25
Price
N/A
67
CAP SCREW M10-1.5 X 25
Price
N/A
68
FLAT WASHER 10MM
Price
N/A
69
MOTOR MOUNTING PLATE
Price
$19.05
70
KNOB M8-1.25
Price
$11.25
71
HEX NUT M18-2.5
Price
N/A
72
CLAMP BLOCK
Price
$5.75
73
HEADSTOCK LOCK BRACKET
Price
$10.35
74
BUSHING
Price
$6.90
75
EXT RETAINING RING 26MM
Price
N/A
76
ROTATION BRACKET
Price
$73.35
77
ROTATION LOCK PIN
Price
$34.50
78
COMPRESSION SPRING 1.5 X 20 X 24
Price
$3.45
79
SPINDLE LOCK PIN
Price
$4.35
80
PLATE
Price
$3.45
81
BRACKET
Price
$6.05
82
CAP SCREW M5-.8 X 15
Price
N/A
83
PHLP HD SCR M5-.8 X 12
Price
N/A
84
FRONT BELT ACCESS PANEL
Price
$6.50
85
VARIABLE SPEED KNOB
Price
$3.45
86
POTENTIOMETER B103J
Price
$9.50
87
FWD/REV SWITCH KEDU HY60B
Price
$16.10
88
E-STOP BUTTON KEDU HY57B
Price
$27.70
90
FLAT HD SCR M3-.5 X 30
Price
$1.49
91
RPM READOUT ASSEMBLY
Price
N/A
91A
RPM READOUT ASSEMBLY
Price
$59.55
92
RPM READOUT ASSEMBLY
Price
N/A
93
RPM READOUT ASSEMBLY
Price
N/A
94
HEX NUT M3-.5
Price
N/A
95
PHLP HD SCR M3-.5 X 12
Price
N/A
96
FLAT HD CAP SCR M4-.7 X 8
Price
N/A
97
CONTROL PLATE
Price
$19.85
98
EXT RETAINING RING 18MM
Price
N/A
101
STUD-FT M3-.5 X 25
Price
$1.49
102
HEX NUT M3-.5
Price
N/A
103
PHLP HD SCR M5-.8 X 10
Price
N/A
104
DIVIDING PLATE
Price
$3.45
105
COMPRESSION SPRING 4 X 25 X 40
Price
$3.45
106
ROTATION LOCK PIN NUT
Price
$4.35
107
COMPRESSION SPRING
Price
$1.49
108
EXT RETAINING RING 8MM
Price
N/A
109
SET SCREW M5-.8 X 8
Price
N/A
110

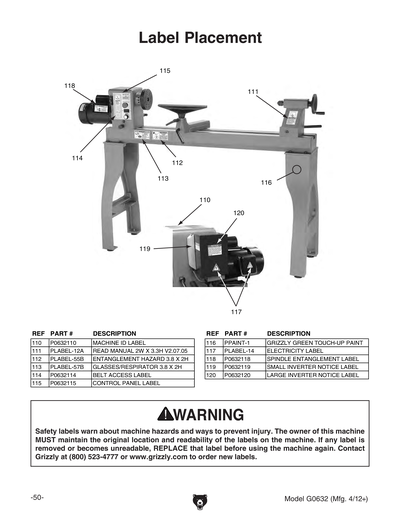

MACHINE ID LABEL
Price
$9.50
111
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
112
ENTANGLEMENT HAZARD 3.8W X 2H
Price
N/A
113
GLASSES/RESPIRATOR 3.8 X 2H
Price
N/A
114
BELT ACCESS LABEL
Price
$2.75
115
CONTROL PANEL LABEL
Price
$24.20
116
N/S GRIZZLY GREEN G1023S
Price
N/A
117
ELECTRICITY 1.4W X 1.2H
Price
N/A
118
SPINDLE ENTANGLEMENT LABEL
Price
$3.00
119
SMALL INVERTER NOTICE LABEL
Price
$2.25
120
LARGE INVERTER NOTICE LABEL
Price
$17.25
121
TOOL REST BASE LOCK BRACKET GUIDE
Price
$11.80
122
HEX NUT M3-.5
Price
N/A
123
RPM CIRCUIT BOARD COVER
Price
$5.50
MAN
MANUAL FOR G0632 04/07
Price
$13.00
