Parts for G0632Z 16" x 42" Variable-Speed Wood Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1

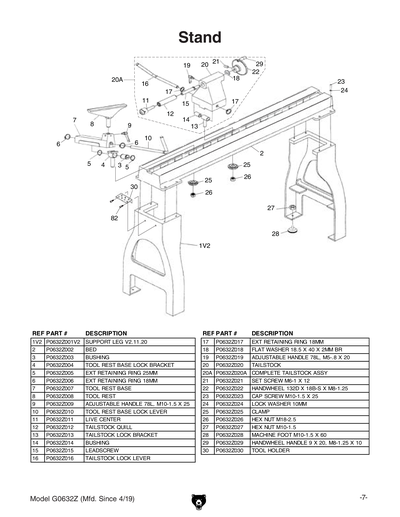

SUPPORT LEG V2.11.20
Price
N/A
1V2
SUPPORT LEG V2.11.20
2
BED
Price
N/A
3
BUSHING
Price
N/A
4
TOOL REST BASE LOCK BRACKET V2.02.08
Price
N/A
5
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
6
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
7
TOOL REST BASE 25MM
Price
N/A
7V2
TOOL REST BASE V2.07.23
8
TOOL REST
Price
N/A
8V2
TOOL REST V2.07.23
9
ADJUSTABLE HANDLE 78L, M10-1.5 X 25
Price
N/A
10
TOOL REST BASE LOCK HANDLE
Price
N/A
11
LIVE CENTER
Price
N/A
12
QUILL
Price
N/A
13
TAILSTOCK LOCK BRACKET
Price
N/A
14
BUSHING
Price
N/A
15
LEADSCREW
Price
N/A
16
TAILSTOCK LOCK HANDLE
Price
N/A
17
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
18
FLAT WASHER 18.5 X 40 X 2MM BR
19
ADJUSTABLE HANDLE 78L, M10-1.5 X 25
Price
N/A
20
TAILSTOCK
Price
N/A
20A
COMPLETE TAILSTOCK ASSY
Price
N/A
21
SET SCREW M6-1 X 12
Price
N/A
22
HANDWHEEL 132D X 18B-S X M8-1.25
Price
N/A
23
CAP SCREW M10-1.5 X 25
Price
N/A
24
LOCK WASHER 10MM
Price
N/A
25
CLAMP
Price
N/A
26
Now: PN29M
HEX NUT M18-2.5
Price
N/A
27
Now: PN02M
HEX NUT M10-1.5
Price
N/A
28
MACHINE FOOT M10-1.5 X 60
Price
N/A
29
HANDWHEEL HANDLE
Price
N/A
30
TOOL HOLDER
31

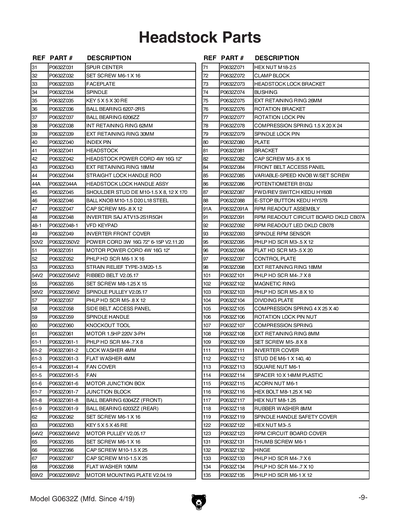

SPUR CENTER
Price
N/A
32
SET SCREW M6-1 X 16
Price
N/A
33
FACEPLATE
Price
N/A
34

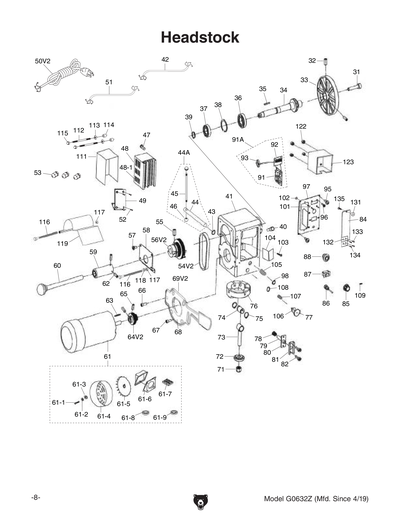

SPINDLE
Price
N/A
35
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
36
BALL BEARING 6207-2RS
Price
N/A
37
BALL BEARING 6206ZZ
Price
N/A
38
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
39
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
40
INDEX PIN
Price
N/A
41
HEADSTOCK
Price
N/A
41-2
STUD-FT M5-.8 X 35
41A
HEADSTOCK ASSEMBLY
42
HEADSTOCK POWER CORD 4W 16G 12"
Price
N/A
43
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
44
STRAIGHT LOCK HANDLE ROD V2.01.09
Price
N/A
44A
HEADSTOCK LOCK HANDLE ASSY V2.01.09
Price
N/A
45
SHOULDER STUD DE M10-1.5 X 8, 12 X 170 V
Price
N/A
46
BALL KNOB M10-1.5 D20 L18 STEEL
Price
N/A
47
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
48
INVERTER SAJ ATV13-2S1R5GH V1
48-1
VFD KEY PAD
48V2
INVERTER SAJ VM600G-2S1R5 V2.11.23
49
INVERTER FRONT COVER
50
POWER CORD 3W 16G 72" 6-15P V2.11.20
Price
N/A
50V2
POWER CORD 3W 16G 72" 6-15P V2.11.20
51
MOTOR POWER CORD 4W 16G 12"
Price
N/A
52
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
53
STRAIN RELIEF TYPE-3 M20-1.5
54
RIBBED BELT 180J6 V1
Price
N/A
54V2
RIBBED BELT V2.05.17
55
SET SCREW M8-1.25 X 15
Price
N/A
56
*DISCD*SPINDLE PULLEY V1
Price
N/A
56V2
SPINDLE PULLEY V2.05.17
57
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
58
SIDE BELT ACCESS PANEL
Price
N/A
59
SPINDLE HANDLE
Price
N/A
60
KNOCKOUT TOOL
Price
N/A
61
MOTOR 2HP 220V 3-PH
61-1
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
61-2
LOCK WASHER 4MM
Price
N/A
61-3
Now: PW05M
FLAT WASHER 4MM
Price
N/A
61-4
FAN COVER
Price
N/A
61-5
FAN
Price
N/A
61-6
MOTOR JUNCTION BOX
Price
N/A
61-7
JUNCTION BLOCK
Price
N/A
61-8
BALL BEARING 6304ZZ
Price
N/A
61-9
BALL BEARING 6203ZZ
Price
N/A
62
SET SCREW M6-1 X 16
Price
N/A
63
Now: PK33M
KEY 5 X 5 X 45
Price
N/A
64
MOTOR PULLEY V1
Price
N/A
64V2
MOTOR PULLEY V2.05.17
65
SET SCREW M6-1 X 16
Price
N/A
66
CAP SCREW M10-1.5 X 25
Price
N/A
67
CAP SCREW M10-1.5 X 25
Price
N/A
68
Now: PW04M
FLAT WASHER 10MM
Price
N/A
69
MOTOR MOUNTING PLATE V2.04.19
Price
N/A
69V2
MOTOR MOUNTING PLATE V2.04.19
70
MOTOR MOUNTING PLATE V2.04.19
Price
N/A
71
Now: PN29M
HEX NUT M18-2.5
Price
N/A
72
CLAMP BLOCK
Price
N/A
73
HEADSTOCK LOCK BRACKET
Price
N/A
74
BUSHING
Price
N/A
75
Now: PR17M
EXT RETAINING RING 26MM
Price
N/A
76
ROTATION BRACKET
Price
N/A
77
ROTATION LOCK PIN
Price
N/A
78
COMPRESSION SPRING 1.5 X 20 X 24
Price
N/A
79
SPINDLE LOCK PIN
Price
N/A
80
PLATE
Price
N/A
81
BRACKET
Price
N/A
82
CAP SCREW M5-.8 X 16
Price
N/A
84
FRONT BELT ACCESS PANEL
85
VARIABLE SPEED KNOB
Price
N/A
86
POTENTIOMETER B103J
Price
N/A
87
FWD/REV SWITCH KEDU HY60B
Price
N/A
88
E-STOP BUTTON KEDU HY57B
Price
N/A
89
MOUNTING PLATE
91
RPM READOUT ASSEMBLY
Price
N/A
91A
RPM READOUT ASSEMBLY
Price
N/A
92
RPM READOUT ASSEMBLY
Price
N/A
93
RPM READOUT ASSEMBLY
Price
N/A
95
Now: PS50M
PHLP HD SCR M3-.5 X 12
Price
N/A
96
FLAT HD SCR M3-.5 X 20
97
CONTROL PLATE
Price
N/A
98
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
101
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
102
MAGNETIC RING
103
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
104
DIVIDING PLATE
Price
N/A
105
COMPRESSION SPRING 4 X 25 X 40
Price
N/A
106
ROTATION LOCK PIN NUT
Price
N/A
107
COMPRESSION SPRING
Price
N/A
108
Now: PR39M
EXT RETAINING RING 8MM
Price
N/A
109
SET SCREW M5-.8 X 8
Price
N/A
111
INVERTER COVER
112
STUD DE M6-1 X 140, 40
113
SQUARE NUT M6-1
Price
N/A
114
SPACER 10 X 14MM PLASTIC
115
Now: PN35M
ACORN NUT M6-1
Price
N/A
116
HEX BOLT M12-1.75 X 150
Price
N/A
117
Now: PN03M
HEX NUT M8-1.25
Price
N/A
118
RUBBER WASHER 8MM
119
SPINDLE HANDLE SAFETY COVER
122
Now: PN07M
HEX NUT M3-.5
Price
N/A
123
RPM CIRCUIT BOARD COVER
Price
N/A
131
THUMB SCREW M6-1
132
HINGE
133
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
134
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
135
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
201

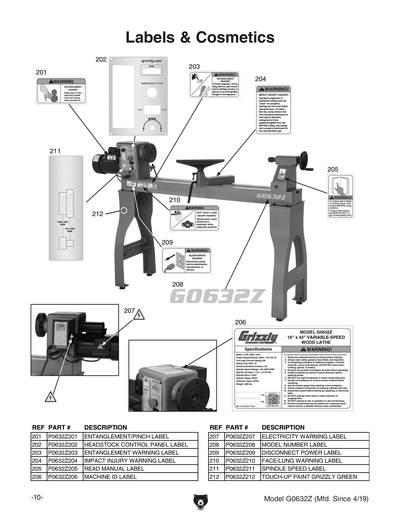

ENTANGLEMENT/PINCH LABEL
202
CONTROL PANEL LABEL
Price
N/A
203
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
204
IMPACT INJURY WARNING LABEL
205
READ MANUAL 1.5W X 2.5H
Price
N/A
206
MACHINE ID LABEL
207
ELECTRICITY 0.7W X 0.6H
Price
N/A
208
MODEL NUMBER LABEL
209
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
210
FACE SHIELD/RESPIRATOR 2.8W X 1.5H
Price
N/A
211
SPINDLE SPEED LABEL
212
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
G0632Z MANUAL MFD-11.16 V1.04.17
