Parts for G0634X - 12" 5 HP Planer/Jointer with V-Helical Cutterhead

Part Diagram for G0634X
Part Diagram for G0634X
Part Diagram for G0634X
Part Diagram for G0634X
Part Diagram for G0634X
Part Diagram for G0634X
Part Diagram for G0634X
Part Diagram for G0634X
Part Diagram for G0634X
Part Diagram for G0634X
Part Diagram for G0634X
Part Diagram for G0634X
Part Diagram for G0634X
Part Diagram for G0634X
Part Diagram for G0634X
Part Diagram for G0634X
Part Diagram for G0634X
Part Diagram for G0634X

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

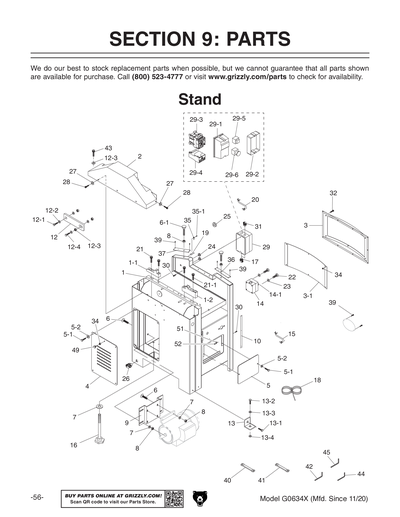

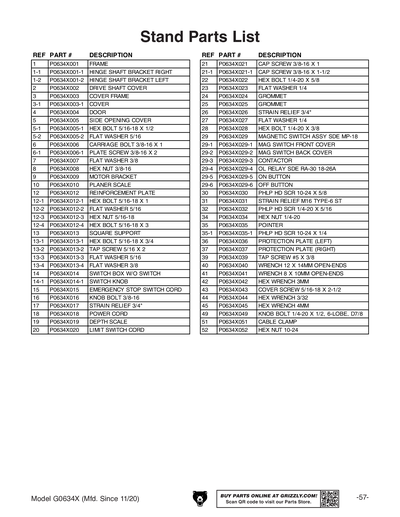

1
FRAME
Price
N/A
1-1
HINGE SHAFT BRACKET RIGHT
Price
N/A
1-2
HINGE SHAFT BRACKET LEFT
Price
N/A
2
DRIVE SHAFT COVER
Price
N/A
3
COVER FRAME
Price
N/A
3-1
COVER
Price
N/A
4
DOOR
Price
N/A
5
SIDE OPENING COVER
Price
N/A
5-1
HEX BOLT 5/16-18 X 1/2
Price
N/A
5-2
FLAT WASHER 5/16
Price
N/A
6
CARRIAGE BOLT 3/8-16 X 1
Price
N/A
6-1
PLATE SCREW 3/8-16 X 2
Price
N/A
7
FLAT WASHER 3/8
Price
N/A
8
HEX NUT 3/8-16
Price
N/A
9
MOTOR BRACKET
Price
N/A
10
PLANER SCALE
Price
N/A
12
REINFORCEMENT PLATE
Price
N/A
12-1
HEX BOLT 5/16-18 X 1
Price
N/A
12-2
FLAT WASHER 5/16
Price
N/A
12-3
HEX NUT 5/16-18
Price
N/A
12-4
HEX BOLT 5/16-18 X 3
Price
N/A
13
SQUARE SUPPORT
Price
N/A
13-1
HEX BOLT 5/16-18 X 3/4
Price
N/A
13-2
TAP SCREW 5/16 X 2
Price
N/A
13-3
FLAT WASHER 5/16
Price
N/A
13-4
FLAT WASHER 3/8
Price
N/A
14
SWITCH BOX W/O SWITCH
Price
N/A
14-1
SWITCH KNOB
Price
N/A
15
EMERGENCY STOP SWITCH CORD
Price
N/A
16
KNOB BOLT 3/8-16
Price
N/A
17
STRAIN RELIEF 3/4"
Price
N/A
18
POWER CORD
Price
N/A
19
DEPTH SCALE
Price
N/A
20
LIMIT SWITCH CORD
Price
N/A
21
CAP SCREW 3/8-16 X 1
Price
N/A
21-1
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
22
HEX BOLT 1/4-20 X 5/8
Price
N/A
23
FLAT WASHER 1/4
Price
N/A
24
GROMMET
Price
N/A
25
GROMMET
Price
N/A
26
STRAIN RELIEF 3/4"
Price
N/A
27
FLAT WASHER 1/4
Price
N/A
28
HEX BOLT 1/4-20 X 3/8
Price
N/A
29
MAGNETIC SWITCH ASSY SDE MP-18
Price
N/A
29-1
MAG SWITCH FRONT COVER
Price
N/A
29-2
MAG SWITCH BACK COVER
Price
N/A
29-3
CONTACTOR
Price
N/A
29-4
OL RELAY SDE RA-30 18-26A
Price
N/A
29-5
ON BUTTON
Price
N/A
29-6
OFF BUTTON
Price
N/A
30
PHLP HD SCR 10-24 X 5/8
Price
N/A
31
STRAIN RELIEF M16 TYPE-6 ST
Price
N/A
32
PHLP HD SCR 1/4-20 X 5/16
Price
N/A
34
HEX NUT 1/4-20
Price
N/A
35
POINTER
Price
N/A
35-1
PHLP HD SCR 10-24 X 1/4
Price
N/A
36
PROTECTION PLATE LEFT
Price
N/A
37
PROTECTION PLATE RIGHT
Price
N/A
39
TAP SCREW #5 X 3/8
Price
N/A
40
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
41
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
42
HEX WRENCH 3MM
Price
N/A
43
COVER SCREW 5/16-18 X 2-1/2
Price
$3.65
44
HEX WRENCH 2.5MM
Price
N/A
45
HEX WRENCH 4MM
Price
N/A
49
KNOB BOLT 1/4-20 X 1/2, 6-LOBE, D7/8
Price
$1.60
51
CABLE CLAMP
Price
N/A
52
HEX NUT 10-24
Price
N/A

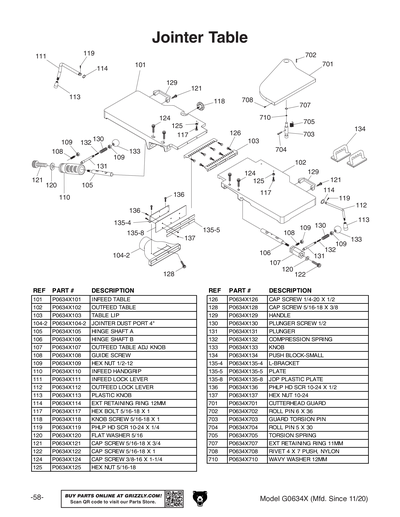

101
INFEED TABLE
Price
N/A
102
OUTFEED TABLE
Price
N/A
103
TABLE LIP
Price
N/A
104-2
JOINTER DUST PORT 4"
Price
N/A
105
HINGE SHAFT A
Price
N/A
106
HINGE SHAFT B
Price
N/A
107
OUTFEED TABLE ADJ KNOB
Price
N/A
108
GUIDE SCREW
Price
N/A
109
HEX NUT 1/2-12
Price
N/A
110
INFEED HANDGRIP
Price
N/A
111
INFEED LOCK LEVER
Price
N/A
112
OUTFEED LOCK LEVER
Price
N/A
113
PLASTIC KNOB
Price
N/A
114
EXT RETAINING RING 12MM
Price
N/A
117
HEX BOLT 5/16-18 X 1
Price
N/A
118
KNOB SCREW 5/16-18 X 1
Price
$3.65
119
PHLP HD SCR 10-24 X 1/4
Price
N/A
120
FLAT WASHER 5/16
Price
N/A
121
CAP SCREW 5/16-18 X 3/4
Price
N/A
122
CAP SCREW 5/16-18 X 1
Price
N/A
124
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
125
HEX NUT 5/16-18
Price
N/A
126
CAP SCREW 1/4-20 X 1/2
Price
N/A
128
CAP SCREW 5/16-18 X 3/8
Price
N/A
129
HANDLE
Price
N/A
130
PLUNGER SCREW 1/2
Price
N/A
131
PLUNGER
Price
N/A
132
COMPRESSION SPRING
Price
N/A
133
KNOB
Price
N/A
134
Safety Push Block - Small
Price
N/A
135-4
L BRACKET
Price
N/A
135-5
PLATE
Price
N/A
135-8
JDP PLASTIC PLATE
Price
N/A
136
PHLP HD SCR 10-24 X 1/2
Price
N/A
137
HEX NUT 10-24
Price
N/A
138
JOINTER DUST PORT 4"
Price
N/A
139
L BRACKET
Price
N/A
140
PLATE
Price
N/A
141
JDP PLASTIC PLATE
Price
N/A

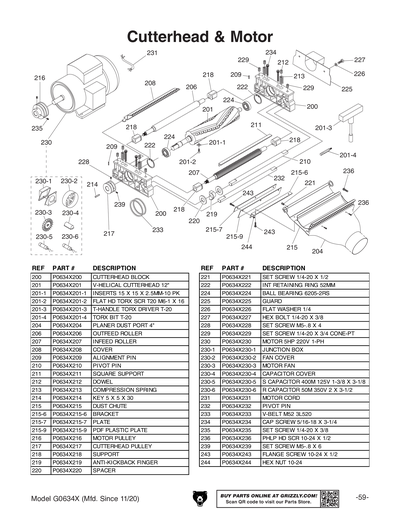

200
CUTTERHEAD BLOCK
Price
N/A
201
V-HELICAL CUTTERHEAD 12"
Price
$1,575.80
201-1
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
201-2
FLAT HD TORX SCR T20 M6-1 X 16
Price
N/A
201-3
T-HANDLE TORX DRIVE T-20
Price
N/A
201-4
TORX BIT T-20
Price
N/A
204
PLANER DUST PORT
Price
N/A
206
OUTFEED ROLLER V2.01.20
Price
N/A
207
INFEED ROLLER
Price
N/A
208
COVER V2.04.16
Price
N/A
209
ALIGNMENT PIN
Price
N/A
210
PIVOT PIN
Price
N/A
211
SQUARE SUPPORT
Price
N/A
212
DOWEL
Price
N/A
213
COMPRESSION SPRING
Price
N/A
214
KEY 5 X 5 X 30
Price
N/A
215
DUST CHUTE
Price
N/A
215-6
BRACKET
Price
N/A
215-7
PLATE
Price
N/A
215-9
PDF PLASTIC PLATE
Price
N/A
216
MOTOR PULLEY
Price
N/A
217
PULLEY METRIC V2.01.08
Price
N/A
218
SUPPORT
Price
N/A
219
ANTI KICKBACK FINGER
Price
N/A
220
SPACER
Price
N/A
221
SET SCREW 1/4-20 X 1/2
Price
N/A
222
INT RETAINING RING 52MM
Price
N/A
224
BALL BEARING 6205-2RS
Price
N/A
225
GUARD
Price
N/A
226
FLAT WASHER 1/4
Price
N/A
227
HEX BOLT 1/4-20 X 3/8
Price
N/A
228
SET SCREW M5-.8 X 4
Price
N/A
229
SET SCREW 1/4-20 X 3/4 CONE-PT
Price
N/A
230
MOTOR 5HP 220V 1-PH
Price
N/A
230-1
JUNCTION BOX
Price
N/A
230-2
FAN COVER
Price
N/A
230-3
MOTOR FAN
Price
N/A
230-4
CAPACITOR COVER
Price
N/A
230-5
S CAPACITOR 400M 125V 1-3/8 X 3-1/8
Price
N/A
230-6
R CAPACITOR 50M 350V 2 X 3-1/2
Price
N/A
231
MOTOR CORD
Price
N/A
232
PIVOT PIN
Price
N/A
233
V-BELT M52 3L520
Price
N/A
234
CAP SCREW 5/16-18 X 3-1/4
Price
N/A
235
SET SCREW 1/4-20 X 3/8
Price
N/A
236
PHLP HD SCR 10-24 X 1/2
Price
N/A
239
SET SCREW M5-.8 X 6
Price
N/A
243
FLANGE SCREW 10-24 X 1/2
Price
N/A
244
HEX NUT 10-24
Price
N/A

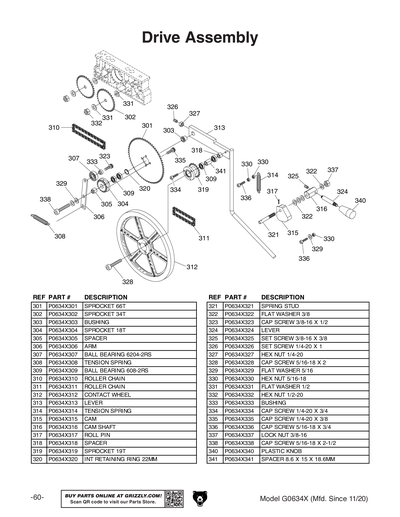

301
SPROCKET 66T
Price
N/A
302
SPROCKET 34T
Price
N/A
303
BUSHING
Price
N/A
304
SPROCKET 18T
Price
N/A
305
SPACER
Price
N/A
306
ARM
Price
N/A
307
BALL BEARING 6204-2RS
Price
N/A
308
TENSION SPRING
Price
N/A
309
BALL BEARING 608-2RS
Price
N/A
310
ROLLER CHAIN
Price
N/A
311
ROLLER CHAIN
Price
N/A
312
CONTACT WHEEL
Price
N/A
313
LEVER
Price
N/A
314
TENSION SPRING
Price
N/A
315
CAM
Price
N/A
316
CAM SHAFT
Price
N/A
317
ROLL PIN
Price
N/A
318
SPACER
Price
$3.35
319
SPROCKET 19T
Price
N/A
320
INT RETAINING RING 22MM
Price
N/A
321
SPRING STUD
Price
N/A
322
FLAT WASHER 3/8
Price
N/A
323
CAP SCREW 3/8-16 X 1/2
Price
N/A
324
LEVER
Price
N/A
325
SET SCREW 3/8-16 X 3/8
Price
N/A
326
SET SCREW 1/4-20 X 1
Price
N/A
327
HEX NUT 1/4-20
Price
N/A
328
CAP SCREW 5/16-18 X 2
Price
N/A
329
FLAT WASHER 5/16
Price
N/A
330
HEX NUT 5/16-18
Price
N/A
331
FLAT WASHER 1/2
Price
N/A
332
HEX NUT 1/2-12
Price
N/A
333
BUSHING
Price
N/A
334
CAP SCREW 1/4-20 X 3/4
Price
N/A
335
CAP SCREW 1/4-20 X 3/8
Price
N/A
336
CAP SCREW 5/16-18 X 3/4
Price
N/A
337
LOCK NUT 3/8-16
Price
N/A
338
CAP SCREW 5/16-18 X 2-1/2
Price
N/A
340
PLASTIC KNOB
Price
N/A
341
SPACER 8.6 X 15 X 18.6MM
Price
$2.75

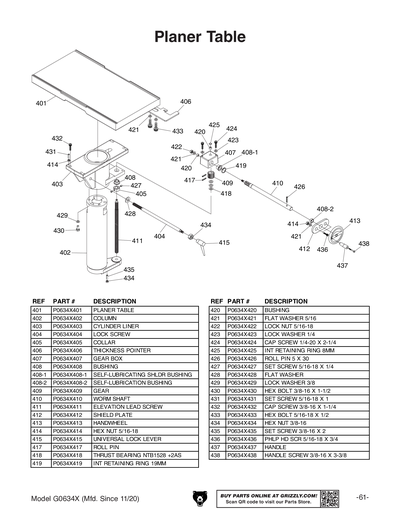

401
PLANER TABLE
Price
N/A
402
COLUMN
Price
N/A
403
CYLINDER LINER
Price
N/A
404
LOCK SCREW
Price
N/A
405
COLLAR
Price
N/A
406
THICKNESS POINTER
Price
N/A
407
GEAR BOX
Price
N/A
408
BUSHING
Price
N/A
408-1
SELF LUBRICATING SHLDR BUSHING
Price
N/A
408-2
SELF LUBRICATION BUSHING
Price
N/A
409
GEAR
Price
N/A
410
WORM SHAFT
Price
N/A
411
ELEVATION LEAD SCREW
Price
N/A
412
SHIELD PLATE
Price
N/A
413
HANDWHEEL
Price
N/A
414
HEX NUT 5/16-18
Price
N/A
415
UNIVERSAL LOCK LEVER
Price
N/A
417
ROLL PIN
Price
N/A
418
THRUST BEARING NTB1528 +2AS
Price
N/A
419
INT RETAINING RING 19MM
Price
N/A
420
BUSHING
Price
N/A
421
FLAT WASHER 5/16
Price
N/A
422
LOCK NUT 5/16-18
Price
N/A
423
LOCK WASHER 1/4
Price
N/A
424
CAP SCREW 1/4-20 X 2-1/4
Price
N/A
425
INT RETAINING RING 8MM
Price
N/A
426
ROLL PIN 5 X 30
Price
N/A
427
SET SCREW 5/16-18 X 1/4
Price
N/A
428
FLAT WASHER
Price
N/A
429
LOCK WASHER 3/8
Price
N/A
430
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
431
SET SCREW 5/16-18 X 1
Price
N/A
432
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
433
HEX BOLT 5/16-18 X 1/2
Price
N/A
434
HEX NUT 3/8-16
Price
N/A
435
SET SCREW 3/8-16 X 2
Price
N/A
436
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
437
HANDLE
Price
N/A
438
HANDLE SCREW 3/8-16 X 3-3/8
Price
N/A

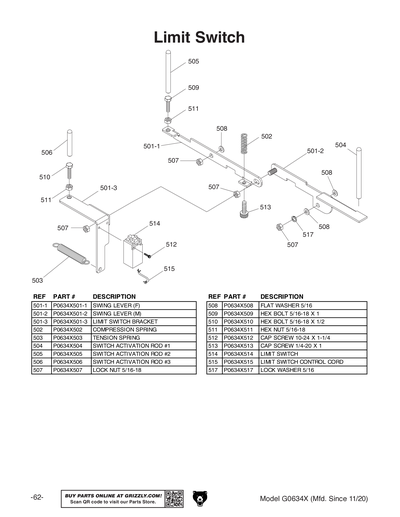

501-1
SWING LEVER F
Price
N/A
501-2
SWING LEVER M
Price
N/A
501-3
LIMIT SWITCH BRACKET
Price
N/A
502
COMPRESSION SPRING
Price
N/A
503
TENSION SPRING
Price
N/A
504
SWITCH ACTIVATION ROD #1
Price
N/A
505
SWITCH ACTIVATION ROD #2
Price
N/A
506
SWITCH ACTIVATION ROD #3
Price
N/A
507
LOCK NUT 5/16-18
Price
N/A
508
FLAT WASHER 5/16
Price
N/A
509
HEX BOLT 5/16-18 X 1
Price
N/A
510
HEX BOLT 5/16-18 X 1/2
Price
N/A
511
HEX NUT 5/16-18
Price
N/A
512
CAP SCREW 10-24 X 1-1/4
Price
N/A
513
CAP SCREW 1/4-20 X 1
Price
N/A
514
*DISCD*LIMIT SWITCH
Price
N/A
514V2
LIMIT SWITCH AUSPICIOUS AZ-9111 V2.04.23
Price
$57.40
515
LIMIT SWITCH CONTROL CORD
Price
N/A
517
LOCK WASHER 5/16
Price
N/A

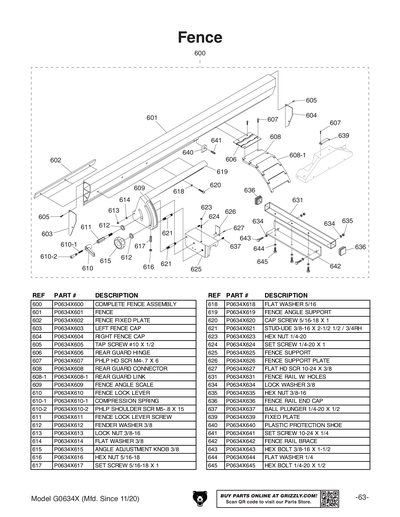

600
COMPLETE FENCE ASSEMBLY
Price
N/A
601
FENCE
Price
N/A
602
FENCE FIXED PLATE
Price
N/A
603
LEFT FENCE CAP
Price
N/A
604
RIGHT FENCE CAP
Price
N/A
605
TAP SCREW #10 X 1/2
Price
N/A
606
REAR GUARD HINGE
Price
N/A
607
PHLP HD SCR M4-.7 X 6
Price
N/A
608
REAR GUARD CONNECTOR
Price
N/A
608-1
REAR GUARD LINK
Price
N/A
609
FENCE ANGLE SCALE
Price
N/A
610
FENCE LOCK LEVER
Price
N/A
610-1
COMPRESSION SPRING
Price
N/A
610-2
PHLP SHOULDER SCR M5-.8 X 15
Price
N/A
611
FENCE LOCK LEVER SCREW
Price
N/A
612
FENDER WASHER 3/8
Price
N/A
613
LOCK NUT 3/8-16
Price
N/A
614
FLAT WASHER 3/8
Price
N/A
615
ANGLE ADJUSTMENT KNOB 3/8
Price
N/A
616
HEX NUT 5/16-18
Price
N/A
617
SET SCREW 5/16-18 X 1
Price
N/A
618
FLAT WASHER 5/16
Price
N/A
619
FENCE ANGLE SUPPORT
Price
N/A
620
CAP SCREW 5/16-18 X 1
Price
N/A
621
STUD-UDE 3/8-16 X 2-1/2 1/2 / 3/4RH
Price
N/A
623
HEX NUT 1/4-20
Price
N/A
624
SET SCREW 1/4-20 X 1
Price
N/A
625
FENCE SUPPORT
Price
N/A
626
FENCE SUPPORT PLATE
Price
N/A
627
FLAT HD SCR 10-24 X 3/8
Price
N/A
631
FENCE RAIL W/ HOLES V2.04.11
Price
N/A
634
LOCK WASHER 3/8
Price
N/A
635
HEX NUT 3/8-16
Price
N/A
636
FENCE RAIL END CAP
Price
N/A
637
BALL PLUNGER 1/4-20 X 1/2
Price
$1.60
639
FIXED PLATE
Price
N/A
640
PLASTIC PROTECTION SHOE
Price
N/A
641
SET SCREW 10-24 X 1/4
Price
N/A
642
FENCE RAIL BRACE
Price
N/A
643
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
644
FLAT WASHER 1/4
Price
N/A
645
HEX BOLT 1/4-20 X 1/2
Price
N/A
701
CUTTERHEAD GUARD
Price
N/A
702
ROLL PIN 6 X 36
Price
N/A
703
GUARD TORSION PIN
Price
N/A
704
ROLL PIN 5 X 30
Price
N/A
705
TORSION SPRING
Price
N/A
707
EXT RETAINING RING 11MM
Price
N/A
708
RIVET 4 X 7 PUSH, NYLON
Price
$1.60
710
WAVY WASHER 12MM
Price
N/A

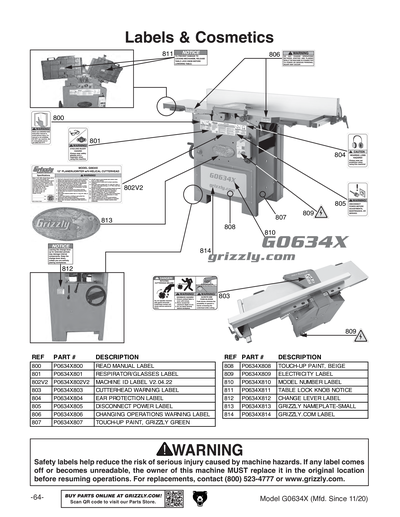

800
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
801
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
802
MACHINE ID LABEL V2.04.22
Price
N/A
802V2
MACHINE ID LABEL V2.04.22
Price
$14.25
802V3
MACHINE ID LABEL V3.06.24
Price
$16.40
803
CUTTERHEAD WARNING 6W X 3.2H
Price
N/A
804
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
805
DISCONNECT 220V 2W X 3.3H
Price
N/A
806
CHANGING OPERATIONS WARNING LABEL
Price
N/A
807
N/S GRIZZLY GREEN G1023S
Price
N/A
808
BEIGE REF G0555
Price
N/A
809
ELECTRICITY 1.4W X 1.2H
Price
N/A
810
MODEL NUMBER LABEL
Price
$5.25
811
TABLE LOCK KNOB NOTICE
Price
N/A
812
CHANGE LEVER NOTICE LABEL
Price
N/A
813
Nameplate - Small
Price
N/A
814
GRIZZLY.COM LABEL 12",GREEN
Price
N/A
MAN
MANUAL G0634X MFD-11.20-03.23 V5.04.22
Price
$19.50
MANV2
MANUAL G0634X MFD-04.23+ V6.06.24
Price
$22.80
