Parts for G0636XB - 17" 5 HP 220V Extreme-Series Bandsaw with Brake

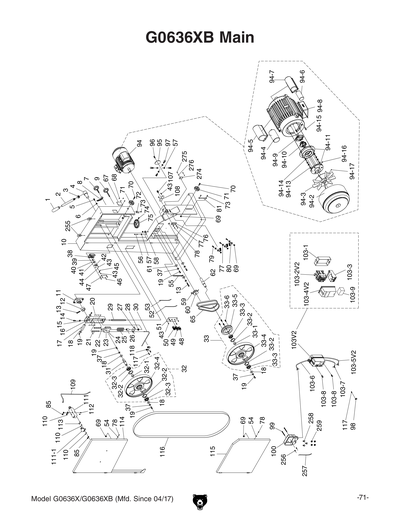

Part Diagram for G0636XB

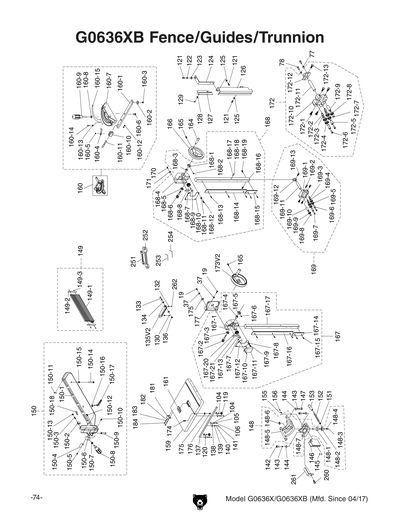

Part Diagram for G0636XB
Part Diagram for G0636XB
Part Diagram for G0636XB
Part Diagram for G0636XB
Part Diagram for G0636XB
Part Diagram for G0636XB
Part Diagram for G0636XB
Part Diagram for G0636XB
Part Diagram for G0636XB
Part Diagram for G0636XB
Part Diagram for G0636XB
Part Diagram for G0636XB
Part Diagram for G0636XB

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

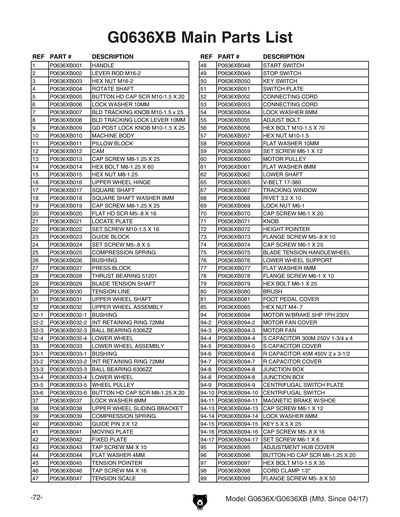

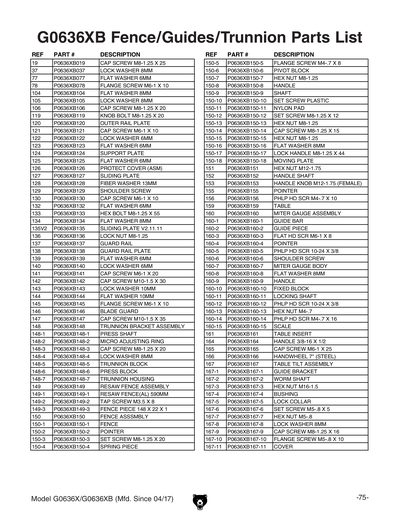

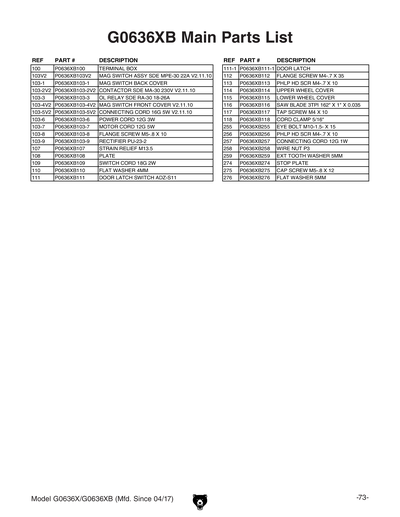

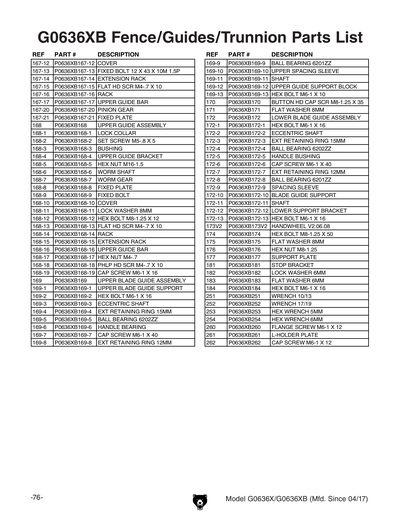

Ref #
Part #
Description
1
HANDLE
Price
N/A
2
LEVER ROD M16-2
Price
N/A
3
HEX NUT M16-2
Price
N/A
4
ROTATE SHAFT
Price
N/A
5
BUTTON HD CAP SCR M10-1.5 X 20
Price
N/A
6
LOCK WASHER 10MM
Price
N/A
7
BLADE TRACKING KNOB M10-1.5 X 25
Price
N/A
8
LOCK LEVER M10-1.5
Price
N/A
9
GUIDE POST LOCK KNOB M10-1.5 X 25
Price
N/A
10
*DISCD*MACHINE BODY
Price
N/A
11
PILLOW BLOCK
Price
N/A
12
CAM
Price
N/A
13
CAP SCREW M8-1.25 X 25
Price
N/A
14
HEX BOLT M8-1.25 X 60
Price
N/A
15
HEX NUT M8-1.25
Price
N/A
16
UPPER WHEEL HINGE
Price
N/A
17
SQUARE SHAFT
Price
N/A
18
SQUARE SHAFT WASHER 8MM
Price
N/A
19
CAP SCREW M8-1.25 X 25
Price
N/A
20
FLAT HD SCR M5-.8 X 16
Price
N/A
21
LOCATE PLATE
Price
N/A
22
SET SCREW M10-1.5 X 16
Price
N/A
23
GUIDE BLOCK
Price
N/A
24
SET SCREW M5-.8 X 5
Price
N/A
25
COMPRESSION SPRING
Price
N/A
26
BUSHING
Price
N/A
27
PRESS BLOCK
Price
N/A
28
THRUST BEARING 51201
Price
N/A
29
SHAFT
Price
N/A
30
TENSION LINE
Price
N/A
31
UPPER WHEEL SHAFT
Price
N/A
32
UPPER WHEEL
Price
N/A
32-1
BUSHING
Price
N/A
32-2
INT RETAINING RING 72MM
Price
N/A
32-3
BALL BEARING 6306ZZ
Price
N/A
32-4
LOWER WHEEL
Price
N/A
33
LOWER WHEEL ASSEMBLY
Item is no longer available
Price
N/A
33-1
BUSHING
Price
N/A
33-2
INT RETAINING RING 72MM
Price
N/A
33-3
BALL BEARING 6306ZZ
Price
N/A
33-4
LOWER WHEEL
Price
N/A
33-5
WHEEL PULLEY
Item is no longer available
Price
N/A
33-6
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
37
LOCK WASHER 8MM
Price
N/A
38
UPPER WHEEL SLIDING BRACKET
Price
N/A
39
COMPRESSION SPRING
Price
N/A
40
GUIDE PIN 3 X 12
Price
N/A
41
MOVING PLATE
Price
N/A
42
FIXED PLATE
Price
N/A
43
TAP SCREW M4 X 10
Price
N/A
44
FLAT WASHER 4MM
Price
N/A
45
TENSION POINTER
Price
N/A
46
TAP SCREW M4 X 16
Price
N/A
47
TENSION SCALE
Price
N/A
48
START SWITCH
Price
N/A
49
E-STOP BUTTON 250V 10A
Price
N/A
50
KEYED POWER SWITCH
Price
N/A
51
SWITCH PLATE
Price
N/A
52
CORD CONNECTOR 224-201
Price
N/A
53
CONNECTING CORD
Price
N/A
54
LOCK WASHER 6MM
Price
N/A
55
ADJUST BOLT
Price
N/A
56
HEX BOLT M10-1.5 X 70
Price
N/A
57
HEX NUT M10-1.5
Price
N/A
58
FLAT WASHER 10MM
Price
N/A
59
SET SCREW M6-1 X 12
Price
N/A
60
MOTOR PULLEY
Price
N/A
61
FLAT WASHER 8MM
Price
N/A
62
LOWER WHEEL SHAFT
Price
N/A
65
V-BELT A36
Price
N/A
67
CLEAR WINDOW
Price
N/A
68
RIVET 3.2 X 10
Price
N/A
69
LOCK NUT M6-1
Price
N/A
70
CAP SCREW M6-1 X 20
Price
N/A
71
KNOB
Price
N/A
72
HEIGHT POINTER
Price
N/A
73
FLANGE SCREW M5-.8 X 10
Price
N/A
74
CAP SCREW M6-1 X 25
Price
N/A
75
BLADE TENSION HANDWHEEL
Price
N/A
76
LOWER WHEEL SUPPORT
Price
N/A
77
FLAT WASHER 6MM
Price
N/A
78
FLANGE SCREW M6-1 X 10
Price
N/A
79
HEX BOLT M6-1 X 25
Price
N/A
80
BRUSH
Price
N/A
81
FOOT PEDAL COVER
Item is no longer available
Price
N/A
85
HEX NUT M4-.7
Price
N/A
94
MOTOR W/BRAKE 5HP 1PH 230V
Price
$1,305.05
94-10
MOTOR 3HP 230V 1-PH W/BRAKE
Price
N/A
94-11
MAGNETIC BRAKE W/SHOE
Price
N/A
94-12
MAGNETIC BRAKE W/SHOE
Price
N/A
94-13
CAP SCREW M6-1 X 12
Price
N/A
94-14
LOCK WASHER 6MM
Price
N/A
94-15
KEY 5 X 5 X 25
Price
N/A
94-16
CAP SCREW M5-.8 X 16
Price
N/A
94-17
SET SCREW M6-1 X 6
Price
N/A
94-2
MOTOR FAN COVER
Item is no longer available
Price
N/A
94-3
MOTOR FAN
Price
N/A
94-4
S CAP 300M 250V 1-3/4 X 4 V2.06.08
Price
N/A
94-5
CAPACITOR COVER
Price
N/A
94-6
R CAP 45M 450V 2 X 3-1/2 V2.06.08
Price
N/A
94-7
R CAPACITOR COVER
Item is no longer available
Price
N/A
94-8
JUNCTION BOX
Price
N/A
94-9
MOTOR 3HP 230V 1-PH W/BRAKE
Price
N/A
95
ADJUSTMENT HUB COVER
Price
N/A
96
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
97
HEX BOLT M10-1.5 X 35
Price
N/A
98
CORD CLAMP 1/2"
Price
N/A
99
FLANGE SCREW M5-.8 X 50
Price
N/A
100
TERMINAL BOX
Item is no longer available
Price
N/A
101
PHLP HD SCR M4-.7 X 20
Price
N/A
102
TERMINAL BLOCK
Price
N/A
103
MAG SWITCH ASSY SDE MPE-30 22A V2.11.10
Price
N/A
103-1
MAG SWITCH ASSY SDE MPE-30 22A V2.11.10
Price
N/A
103-2
CONTACTOR SDE MA-18 220V V1
Item is no longer available
Price
N/A
103-2V2
CONTACTOR SDE MA-30 230V V2.11.10
Item is no longer available
Price
N/A
103-3
MAG SWITCH ASSY SDE MPE-30 22A V2.11.10
Price
N/A
103-4
MAG SWITCH ASSY SDE MPE-30 22A V2.11.10
Price
N/A
103-4V2
MAG SWITCH FRONT COVER V2.11.10
Item is no longer available
Price
N/A
103-5
MAG SWITCH ASSY SDE MPE-30 22A V2.11.10
Price
N/A
103-5V2
CONNECTING CORD 16G 5W V2.11.10
Item is no longer available
Price
N/A
103-6
POWER CORD 12G 3W 14" V2.11.10
Price
N/A
103-7
MAG SWITCH ASSY SDE MPE-30 22A V2.11.10
Price
N/A
103-8
FLANGE SCREW M5-.8 X 10
Price
N/A
103-9
RECTIFIER PU-23-2
Price
N/A
103V2
MAG SWITCH ASSY SDE MPE-30 22A V2.11.10
Price
$321.15
103V2-1
MAG SWITCH ASSY SDE MPE-30 22A V2.11.10
Price
N/A
103V2-2
CONTACTOR SDE MA-30 230V V2.11.10
Price
N/A
103V2-3
MAG SWITCH ASSY SDE MPE-30 22A V2.11.10
Price
N/A
103V2-4
MAG SWITCH FRONT COVER V2.11.10
Price
N/A
103V2-5
CONNECTING CORD 16G 5W V2.11.10
Price
N/A
103V2-6
POWER CORD 12G 3W 14" V2.11.10
Price
N/A
104
FENDER WASHER 8MM
Price
N/A
105
LOCK WASHER 8MM
Price
N/A
106
CAP SCREW M8-1.25 X 20
Price
N/A
107
STRAIN RELIEF M20 TYPE-6 ST
Price
N/A
108
PLATE
Price
N/A
109
SWITCH CORD 18G 2W
Price
N/A
110
FLAT WASHER 4MM
Price
N/A
111
DOOR LATCH SWITCH ADZ-S11
Price
N/A
111-1
DOOR LATCH SWITCH ADZ-S11
Price
N/A
112
FLANGE SCREW M4-.7 X 35
Price
N/A
113
PHLP HD SCR M4-.7 X 10
Price
N/A
114
UPPER WHEEL COVER V1.05.07
Price
N/A
115
LOWER WHEEL COVER
Price
N/A
116
SAW BLADE 3TPI 162" X 1" X 0.035
Price
N/A
117
TAP SCREW M4 X 10
Price
N/A
118
CORD CLAMP 5/16"
Price
N/A
119
KNOB BOLT M8-1.25 X 20
Item is no longer available
Price
N/A
120
OUTER RAIL PLATE
Item is no longer available
Price
N/A
121
CAP SCREW M6-1 X 10
Price
N/A
122
LOCK WASHER 6MM
Price
N/A
123
FLAT WASHER 6MM
Price
N/A
124
SUPPORT PLATE
Price
N/A
125
FLAT WASHER 6MM
Price
N/A
126
PROTECT COVER ASM
Price
N/A
127
SLIDING PLATE
Price
N/A
128
FIBER WASHER 13MM
Price
N/A
129
SHOULDER SCREW
Price
N/A
130
CAP SCREW M6-1 X 10
Price
N/A
131
LOCK WASHER 6MM
Price
N/A
132
FLAT WASHER 6MM
Price
N/A
133
HEX BOLT M8-1.25 X 55
Price
N/A
134
FLAT WASHER 8MM
Price
N/A
135
SLIDING PLATE 220MM 3 HOLE V1
Price
N/A
135V2
SLIDING PLATE 300MM 2 HOLE V2.06.08
Price
N/A
136
LOCK NUT M8-1.25
Price
N/A
137
GUARD RAIL ROUND V1
Price
N/A
138
FENCE RAIL MOUNTING PLATE
Price
N/A
139
FLAT WASHER 6MM
Price
N/A
140
LOCK WASHER 6MM
Price
N/A
141
CAP SCREW M8-1.25 X 20
Price
N/A
142
CAP SCREW M10-1.5 X 30
Price
N/A
143
LOCK WASHER 10MM
Price
N/A
144
FLAT WASHER 10MM
Price
N/A
145
FLANGE SCREW M6-1 X 10
Price
N/A
146
BLADE GUARD
Price
N/A
147
CAP SCREW M10-1.5 X 35
Price
N/A
148
TRUNNION BRACKET ASSY
Item is no longer available
Price
N/A
148-1
PRESS SHAFT
Price
N/A
148-2
MICRO ADJUSTING RING
Price
N/A
148-3
CAP SCREW M8-1.25 X 20
Price
N/A
148-4
LOCK WASHER 8MM
Price
N/A
148-5
TRUNNION BLOCK
Price
N/A
148-6
PRESS BLOCK
Price
N/A
148-7
TRUNNION HOUSING
Price
N/A
149
RESAW FENCE ASSEMBLY
Price
N/A
149-1
ALUMINUM RESAW FENCE 590MM
Price
N/A
149-2
TAP SCREW M3.5 X 8
Price
N/A
149-3
FENCE END PLATE 148 X 22 X 1
Price
N/A
150
FENCE ASSEMBLY
Price
N/A
150-1
FENCE
Price
N/A
150-10
PLASTIC SET SCREW M7-1 X 10
Price
N/A
150-11
NYLON PAD
Price
N/A
150-12
SET SCREW M8-1.25 X 12
Price
N/A
150-13
HEX NUT M8-1.25
Price
N/A
150-14
CAP SCREW M8-1.25 X 15
Price
N/A
150-15
HEX NUT M8-1.25
Price
N/A
150-16
FLAT WASHER 8MM
Price
N/A
150-17
LOCK HANDLE M8-1.25 X 44 V1
Price
N/A
150-18
MOVING PLATE
Price
N/A
150-2
POINTER
Price
N/A
150-3
SET SCREW M8-1.25 X 20
Price
N/A
150-4
SPRING PIECE
Price
N/A
150-5
FLANGE SCREW M4-.7 X 8
Price
N/A
150-6
PIVOT BLOCK
Price
N/A
150-7
HEX NUT M8-1.25
Price
N/A
150-8
FENCE LOCK HANDLE
Price
N/A
150-9
SHAFT
Price
N/A
151
HEX NUT M12-1.75
Price
N/A
152
HANDLE SHAFT
Price
N/A
153
HANDLE KNOB M12-1.75 FEMALE
Price
N/A
155
POINTER
Price
N/A
156
PHLP HD SCR M4-.7 X 10
Price
N/A
159
TABLE
Price
N/A
160
MITER GAUGE ASSY
Price
$65.00
160-1
MITER GAUGE ASSY
Price
N/A
160-10
MITER GAUGE ASSY
Price
N/A
160-11
MITER GAUGE ASSY
Price
N/A
160-12
PHLP HD SCR 10-24 X 3/8
Price
N/A
160-13
HEX NUT M4-.7
Price
N/A
160-14
PHLP HD SCR M4-.7 X 16
Price
N/A
160-15
***USE P0513X152***
Price
N/A
160-2
***USE P0513X152***
Price
N/A
160-3
FLAT HD SCR M6-1 X 8
Price
N/A
160-4
MITER GAUGE ASSY
Price
N/A
160-5
PHLP HD SCR 10-24 X 3/8
Price
N/A
160-6
***USE P0513X152***
Price
N/A
160-7
MITER GAUGE ASSY
Price
N/A
160-8
FLAT WASHER 8MM
Price
N/A
160-9
MITER GAUGE ASSY
Price
N/A
161
Bandsaw Table Insert
Price
N/A
164
HANDLE 3/8-16 X 1/2
Price
N/A
165
CAP SCREW M6-1 X 25
Price
N/A
166
HANDWHEEL
Price
N/A
167
TILT TABLE ASSEMBLY
Item is no longer available
Price
N/A
167-1
***USE P0513164V2***
Price
N/A
167-10
FLANGE SCREW M5-.8 X 10
Price
N/A
167-11
COVER
Price
N/A
167-12
COVER
Price
N/A
167-13
FIXED BOLT 12 X 43 X 10M 1.5P
Item is no longer available
Price
N/A
167-14
RACK EXTENSION
Price
N/A
167-15
FLAT HD SCR M4-.7 X 10
Price
N/A
167-16
RACK
Price
N/A
167-17
UPPER GUIDE SUPPORT BLOCK
Price
N/A
167-2
WORM SHAFT
Price
N/A
167-20
PINION GEAR
Price
N/A
167-21
FIXED PLATE
Price
N/A
167-3
HEX NUT M16-1.5
Price
N/A
167-4
BUSHING
Price
N/A
167-5
LOCK COLLAR
Price
N/A
167-6
SET SCREW M5-.8 X 5
Price
N/A
167-7
HEX NUT M5-.8
Price
N/A
167-8
LOCK WASHER 8MM
Price
N/A
167-9
CAP SCREW M8-1.25 X 16
Price
N/A
168
UPPER GUIDE ASSY
Item is no longer available
Price
N/A
168-1
LOCK COLLAR
Price
N/A
168-10
UPPER GUIDE BRACKET COVER
Price
N/A
168-11
LOCK WASHER 8MM
Price
N/A
168-12
HEX BOLT M8-1.25 X 12
Price
N/A
168-13
FLAT HD SCR M4-.7 X 10
Price
N/A
168-14
RACK
Price
N/A
168-15
EXTENSION RACK
Price
N/A
168-16
UPPER GUIDE BAR
Price
N/A
168-17
HEX NUT M4-.7
Price
N/A
168-18
PHLP HD SCR M4-.7 X 10
Price
N/A
168-19
CAP SCREW M6-1 X 16
Price
N/A
168-2
SET SCREW M5-.8 X 5
Price
N/A
168-3
BUSHING
Price
N/A
168-4
UPPER GUIDE BRACKET
Price
N/A
168-5
HEX NUT M16-1.5
Price
N/A
168-6
WORM SHAFT
Price
N/A
168-7
WORM GEAR
Price
N/A
168-8
FIXED PLATE
Price
N/A
168-9
FIXED BOLT
Price
N/A
169
UPPER BLADE GUIDE ASSY
Item is no longer available
Price
N/A
169-1
BLADE GUIDE SUPPORT ROUND V2.12.05
Price
N/A
169-10
SPACING SLEEVE
Price
N/A
169-11
ADJUST BAR (ROUND) V2.10.05
Price
N/A
169-12
UPPER GUIDE SUPPORT BLOCK
Price
N/A
169-13
HEX BOLT M6-1 X 10
Price
N/A
169-2
HEX BOLT M6-1 X 16
Price
N/A
169-3
ECCENTRIC SHAFT
Price
N/A
169-4
EXT RETAINING RING 15MM
Price
N/A
169-5
BALL BEARING 6202ZZ
Price
N/A
169-6
BEARING BUSHING
Price
N/A
169-7
CAP SCREW M6-1 X 40
Price
N/A
169-8
EXT RETAINING RING 12MM
Price
N/A
169-9
BALL BEARING 6201ZZ
Price
N/A
170
BUTTON HD CAP SCR M8-1.25 X 35
Price
N/A
171
FLAT WASHER 8MM
Price
N/A
172
BLADE LOWER GUIDE ASSY
Item is no longer available
Price
N/A
172-1
HEX BOLT M6-1 X 16
Price
N/A
172-10
BLADE GUIDE SUPPORT ROUND V2.12.05
Price
N/A
172-11
ADJUSTING SHAFT V2.10.04
Price
N/A
172-12
LOWER SUPPORT BRACKET
Price
N/A
172-13
HEX BOLT M6-1 X 16
Price
N/A
172-2
ECCENTRIC SHAFT
Price
N/A
172-3
EXT RETAINING RING 15MM
Price
N/A
172-4
BALL BEARING 6202ZZ
Price
N/A
172-5
BEARING BUSHING
Price
N/A
172-6
CAP SCREW M6-1 X 40
Price
N/A
172-7
EXT RETAINING RING 12MM
Price
N/A
172-8
BALL BEARING 6201ZZ
Price
N/A
172-9
SPACING SLEEVE
Price
N/A
173
HANDWHEEL PLASTIC 6-12" V1
Item is no longer available
Price
N/A
173V2
HANDWHEEL V2.06.08
Item is no longer available
Price
N/A
174
HEX BOLT M8-1.25 X 50
Price
N/A
175
FLAT WASHER 8MM
Price
N/A
176
HEX NUT M8-1.25
Price
N/A
177
SUPPORT PLATE
Item is no longer available
Price
N/A
181
STOP BRACKET
Price
N/A
182
LOCK WASHER 6MM
Price
N/A
183
FLAT WASHER 6MM
Price
N/A
184
HEX BOLT M6-1 X 16
Price
N/A
251
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
252
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
253
HEX WRENCH 5MM
Price
N/A
254
HEX WRENCH 6MM
Price
N/A
255
EYE BOLT M10-1.5 X 15
Price
N/A
256
PHLP HD SCR M4-.7 X 10
Price
N/A
257
CONNECTING CORD 12G 1W
Item is no longer available
Price
N/A
258
WIRE NUT P3
Item is no longer available
Price
N/A
259
EXT TOOTH WASHER 5MM
Price
N/A
260
FLANGE SCREW M6-1 X 12
Price
N/A
261
L HOLDER PLATE
Price
N/A
262
CAP SCREW M6-1 X 12
Price
N/A
274
STOP PLATE
Price
N/A
275
CAP SCREW M5-.8 X 12
Price
N/A
276
FLAT WASHER 5MM
Price
N/A

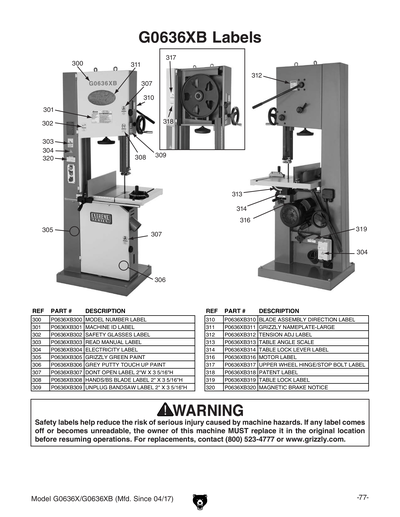

300
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
301
MACHINE ID LABEL
Item is no longer available
Price
N/A
301V2
MACHINE ID LABEL V2.07.19
Item is no longer available
Price
N/A
302
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
303
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
304
ELECTRICITY 1.4W X 1.2H
Price
N/A
305
N/S GRIZZLY GREEN G1023S
Price
N/A
306
GREY PUTTY REF G0504
Price
N/A
307
DONT OPEN 2W X 3.3H
Price
N/A
308
BANDSAW BLADE 2W X 3.3H V1.07.02
Price
N/A
309
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
310
BLADE ASSEMBLY DIRECTION LABEL
Price
N/A
311
Nameplate - Large
Price
N/A
312
TENSION ADJ LABEL
Price
N/A
313
TABLE ANGLE SCALE
Price
N/A
314
TABLE LOCK LEVER LABEL
Price
N/A
315
TABLE TILT HANDWHEEL WARNING LABEL
Price
N/A
316
MOTOR LABEL
Price
N/A
317
WHEEL HINGE UPPER W/STOP BOLT LABEL
Price
N/A
318
PATENT LABEL
Price
N/A
319
TABLE LOCK LABEL
Price
N/A
320
MAGNETIC BRAKE NOTICE
Price
$2.20
321
LOCK LEVER LABEL
Price
N/A
322
***USE PGZCOM-32A***
Price
N/A
323
Extreme Series Nameplate
Price
N/A
MAN
MANUAL FOR G0636XB MFG 06.08 V1.06.08
Price
$14.00
MANV2
MANUAL FOR G0636X MFG 11.11 V3.11.11
Price
N/A
