Parts for G0637 - 7-1/2 HP 3-Phase Cyclone Dust Collector

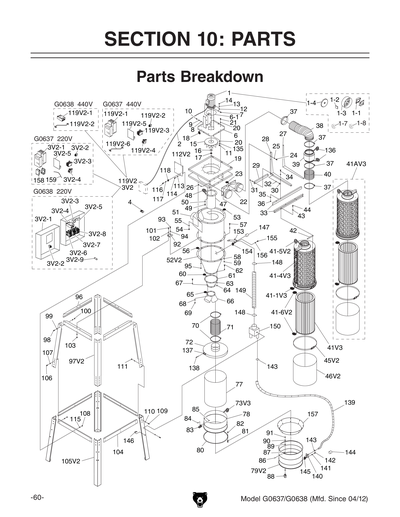

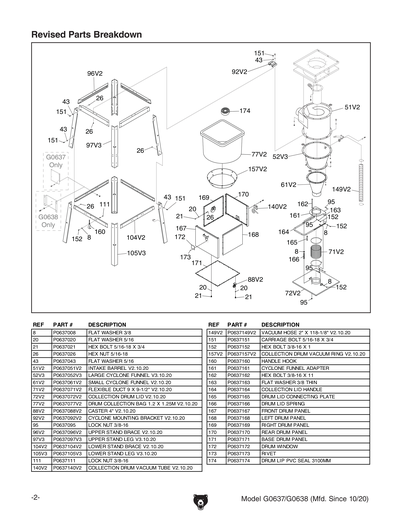

Part Diagram for G0637
Part Diagram for G0637
Part Diagram for G0637
Part Diagram for G0637
Part Diagram for G0637
Part Diagram for G0637
Part Diagram for G0637
Part Diagram for G0637
Part Diagram for G0637
Part Diagram for G0637

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
MOTOR 7.5HP 220V/440V 3-PH
Price
$1,509.60
1-1
MOTOR JUNCTION BOX
Price
$16.35
1-2
MOTOR JUNCTION BLOCK
Price
$10.65
1-3
MOTOR FAN COVER
Price
$23.60
1-4
MOTOR FAN
Price
$33.25
2
MOTOR CORD 10AWG
Price
$63.45
3
CONTROL BOX
Price
$165.45
3-1
CONTROL BOX CABINET W/IC BOARD
Price
$116.25
3-2
POWER SWITCH
Price
$4.85
3-3
CONTACTOR 220V
Price
$86.95
3-4
OL RELAY 220V
Price
$58.00
3V2
MAG SWITCH ASSY V2.01.12
Price
$257.20
3V2-1
MAGNETIC SWITCH COVER
Price
$58.00
3V2-2
POWER SWITCH
Price
$8.80
3V2-3
CONTACTOR NHD C-35D 220V
Price
$137.70
3V2-4
OL RELAY NHD NTH-28 24-28A
Price
$74.30
3V2-5
CIRCUIT BOARD W/ TRANSFORMER
Price
$101.45
4
REMOTE CONTROLLER
Price
N/A
5
POWER CORD 10AWG X 4C
Price
$82.45
6
MOTOR BASE
Price
$181.15
6-1
MOTOR GASKET
Price
$8.50
7
P0637007
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
8
P0637008
Now: PW02
FLAT WASHER 3/8
Price
N/A
9
LOCK WASHER 3/8
Price
N/A
10
P0637010
Now: PN08
HEX NUT 3/8-16
Price
N/A
11
P0637011
Now: PB55
HEX BOLT 1/2-13 X 1-1/2
Price
N/A
12
FENDER WASHER 1/2
Price
N/A
13
LOCK WASHER 1/2
Price
N/A
14
P0637014
Now: PN06
HEX NUT 1/2-12
Price
N/A
15
IMPELLER 18"
Price
$398.50
16
P0637016
Now: PW13
FLAT WASHER 3/4
Price
N/A
17
P0637017
Now: PN42
HEX NUT 3/4-10 (LH)
Price
N/A
18
GASKET 3 X 6 X 1700MM
Price
$3.65
19
BLOWER
Price
$869.40
20
P0637020
Now: PW07
FLAT WASHER 5/16
Price
N/A
21
P0637021
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
22
OUTLET PORT
Price
$244.90
23
FOAM TAPE 3 X 15 X 700MM
Price
$10.90
24
P0637024
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
25
P0637025
Now: PW07
FLAT WASHER 5/16
Price
N/A
26
P0637026
Now: PN02
HEX NUT 5/16-18
Price
N/A
27
RIGHT FILTER L-BRACE
Price
$79.70
28
LEFT FILTER L-BRACE
Price
$79.70
29
SHORT FILTER BRACE SUPPORT
Price
$39.85
30
P0637030
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
31
P0637031
Now: PN08
HEX NUT 3/8-16
Price
N/A
32
P0637032
Now: PW02
FLAT WASHER 3/8
Price
N/A
33
FILTER CROSS BRACE
Price
N/A
34
P0637034
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
35
P0637035
Now: PW02
FLAT WASHER 3/8
Price
N/A
36
P0637036
Now: PN08
HEX NUT 3/8-16
Price
N/A
37
8" Wire Hose Clamp
Price
N/A
38
FLEXIBLE DUCT 8 X 31-1/2"
Price
$72.45
39
NOISE MUFFLER 8"
Price
$152.15
40
FLEXIBLE DUCT 8 X 4-3/4"
Price
$21.75
41
CANISTER FILTER 510 X 1200MM V1.11.06
Price
$483.00
41-1
GASKET 3 X 25 X 1300MM V1.11.06
Price
$8.20
41-1V2
GASKET 3 X 25 X 1700MM V2.11.09
Price
$16.35
41-2
CANISTER PULLEY V1.11.06
Price
$14.50
41-3
CANISTER CLEANING BRUSH V1.11.06
Price
$65.25
41-4V2
GREEN CANISTER CAGE ASSY V2.11.09
Price
$786.10
41-4V3
BEIGE CANISTER CAGE ASSY V3.07.12
Price
$796.95
41-5V2
FOAM TAPE 3 X 25 X 700MM V2.11.09
Price
$17.45
41-6V2
GASKET 35 X 38 X 1570MM V2.11.09
Price
$18.15
41-7V2
CANISTER CABLES 4.7M
Price
$10.90
41AV2
Canister Assembly for G0637
Price
N/A
41AV3
BEIGE CANISTER ASSEMBLY V3.07.12
Price
$1,125.95
41V2
Filter for G0637 (486mm X 1195mm) with Foam Tape
Price
N/A
42
RUBBER BRACE GASKET
Price
$1.60
43
P0637043
Now: PW07
FLAT WASHER 5/16
Price
N/A
44
P0637044
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
45
FILTER BAG CLAMP 510MM V1.11.06
Price
$30.70
45V2
FILTER BAG CLAMP 545MM V2.11.09
Price
$32.65
46
Collection Bag 510 x 600mm
Price
N/A
46V2
Collection Bag 570 x 600mm
Price
N/A
47
INTAKE CYLINDER
Price
$195.40
48
GASKET 3 X 6 X 1800MM
Price
$6.70
49
P0637049
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
50
P0637050
Now: PW07
FLAT WASHER 5/16
Price
N/A
51
INTAKE BARREL V2.10.20
Price
N/A
51V2
INTAKE BARREL V2.10.20
Price
$710.05
52
LARGE CYCLONE FUNNEL V1.11.06
Price
$796.95
52V2
LARGE CYCLONE FUNNEL V2.08.10
Price
$724.50
52V3
LARGE CYCLONE FUNNEL V3.10.20
Price
$659.30
53
GASKET 3 X 6 X 2500MM
Price
N/A
54
P0637054
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
55
P0637055
Now: PW07
FLAT WASHER 5/16
Price
N/A
56
GASKET 3 X 6 X 2500MM
Price
$19.10
57
P0637057
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
58
P0637058
Now: PW07
FLAT WASHER 5/16
Price
N/A
59
P0637059
Now: PN02
HEX NUT 5/16-18
Price
N/A
60
GASKET 3 X 6 X 2200MM
Price
$6.70
61
SMALL CYCLONE FUNNEL V1
Price
$724.50
61V2
SMALL CYCLONE FUNNEL V2.10.20
Price
$499.95
62
P0637062
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
63
P0637063
Now: PW07
FLAT WASHER 5/16
Price
N/A
64
P0637064
Now: PN02
HEX NUT 5/16-18
Price
N/A
65
GASKET 3 X 6 X 735MM
Price
$9.00
66
FUNNEL PORT
Price
$275.35
67
P0637067
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
68
P0637068
Now: PW07
FLAT WASHER 5/16
Price
N/A
69
P0637069
Now: PN02
HEX NUT 5/16-18
Price
N/A
70
HOSE CLAMP 9"
Price
N/A
71
FLEXIBLE DUCT 9 X 25-1/2" V1
Price
$86.95
71V2
FLEXIBLE DUCT 9 X 9-1/2" V2.10.20
Price
$61.60
72
COLLECTION DRUM LID V1
Price
$134.05
72V2
COLLECTION DRUM LID V2.10.20
Price
$282.60
73
GASKET 10 X 50 X 2000MM V1.11.06
Price
$27.20
73V2
*DISCD*DRUM SEAL TYPE-T 2M V2.11.09
Price
N/A
73V3
***USE P0441051V3***
Item is no longer available
Price
N/A
74
BAG HOLDER
Price
$217.35
74-1
RUBBER HANDLE
Price
$1.60
74-2
HEX BOLT 1/4-20 X 5/8
Price
N/A
74-3
FLAT WASHER 1/4
Price
N/A
74-4
HEX NUT 1/4-20
Price
N/A
75
P0637075
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
76
P0637076
Now: PN07
HEX NUT 10-24
Price
N/A
77
DRUM COLLECTION BAG 640 X 1200MM
Price
N/A
77V2
DRUM COLLECTION BAG 1.2 X 1.25M V2.10.20
Price
$32.65
78
UPPER DRUM 25GAL V1
Price
N/A
79
LOWER COLLECTION DRUM V1.11.06
Price
$192.00
79V2
LOWER COLLECTION DRUM V2.08.10
Price
$271.70
80
DRUM CLAMP
Price
N/A
81
P0637081
Now: PB04
HEX BOLT 5/16-18 X 3
Price
N/A
82
P0637082
Now: PN02
HEX NUT 5/16-18
Price
N/A
83
COLLECTION DRUM LID LATCH
Price
$28.80
84
P0637084
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
85
P0637085
Now: PN07
HEX NUT 10-24
Price
N/A
86
P0637086
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
87
P0637087
Now: PN07
HEX NUT 10-24
Price
N/A
88
CASTER 2" V1
Price
$13.80
88V2
CASTER 4" V2.10.20
Price
$27.75
89
P0637089
Now: PW02
FLAT WASHER 3/8
Price
N/A
90
LOCK WASHER 3/8
Price
N/A
91
P0637091
Now: PN08
HEX NUT 3/8-16
Price
N/A
92
CYCLONE MOUNTING BRACKET V1
Price
$29.00
92V2
CYCLONE MOUNTING BRACKET V2.10.20
Price
$24.50
93
P0637093
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
94
P0637094
Now: PW02
FLAT WASHER 3/8
Price
N/A
95
LOCK NUT 3/8-16
Price
N/A
96
UPPER STAND BRACE V1
Price
$46.20
96V2
UPPER STAND BRACE V2.10.20
Price
$58.00
97
UPPER STAND LEG V1
Price
$60.35
97V2
UPPER STAND LEG V2.08.10
Price
$83.35
97V3
UPPER STAND LEG V3.10.20
Price
$50.75
98
P0637098
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
99
P0637099
Now: PW02
FLAT WASHER 3/8
Price
N/A
100
LOCK NUT 3/8-16
Price
N/A
101
P0637101
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
102
P0637102
Now: PW02
FLAT WASHER 3/8
Price
N/A
103
LOCK NUT 3/8-16
Price
N/A
104
LOWER STAND BRACE V1
Price
$43.50
104V2
LOWER STAND BRACE V2.10.20
Price
$50.75
105
LOWER STAND LEG V1.11.06
Price
$91.80
105V2
LOWER STAND LEG V2.08.10
Price
$117.85
105V3
LOWER STAND LEG V3.10.20
Price
$72.45
106
P0637106
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
107
P0637107
Now: PW02
FLAT WASHER 3/8
Price
N/A
108
LOCK NUT 3/8-16
Price
N/A
109
P0637109
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
110
P0637110
Now: PW02
FLAT WASHER 3/8
Price
N/A
111
LOCK NUT 3/8-16
Price
N/A
112
CONTROL BOX BRACKET
Price
$20.55
112V2
CONTROL BOX BRACKET CSA V2.01.12
Price
$25.40
113
P0637113
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
114
P0637114
Now: PW02
FLAT WASHER 3/8
Price
N/A
115
P0637115
Now: PN08
HEX NUT 3/8-16
Price
N/A
116
P0637116
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
117
P0637117
Now: PW03
FLAT WASHER #10
Price
N/A
118
P0637118
Now: PN07
HEX NUT 10-24
Price
N/A
119
*DISCD*CONVERSION KIT 440V V1
Item is no longer available
Price
N/A
119V2
CONVERSION KIT 440V V2.03.12
Price
$478.20
119V2-1
MAGNETIC SWITCH COVER V2.01.12
Price
$58.00
119V2-2
POWER SWITCH V2.01.12
Price
$7.25
119V2-3
CONTACTOR MSN35-18D V2.01.12
Price
$61.60
119V2-4
OL RELAY NHD NTH-15 10-15A
Price
N/A
119V2-5
CIRCUIT BOARD W/TRANSFORMER V2.01.12
Price
$99.65
119V2-6
MOTOR CORD 12G 4W 600V V2.01.12
Price
$16.60
119V2-7
TRANSFORMER SWITCH 30VA 440/460-220/230V
Price
$61.60
120

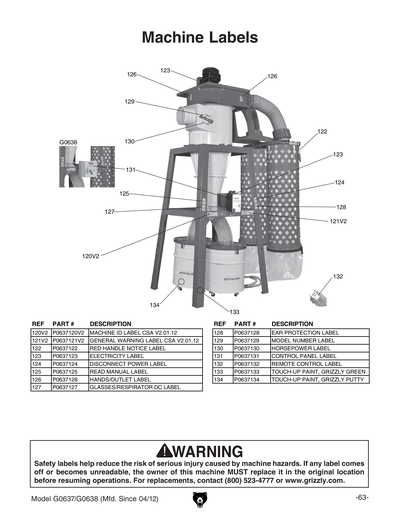

MACHINE ID LABEL V1
Price
$16.40
120V2
MACHINE ID LABEL CSA V2.01.12
Price
$16.40
121
GENERAL WARNING LABEL V1
Price
$23.10
121V2
GENERAL WARNING LABEL CSA V2.01.12
Price
$1.05
122
RED HANDLE NOTICE LABEL
Price
$1.05
123
ELECTRICITY 1.4W X 1.2H
Price
N/A
124
DISCONNECT HARDWIRED POWER 2W X 3.3H
Price
N/A
125
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
126
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
127
GLASSES/RESPIRATOR DC 2W X 3.3H
Price
N/A
128
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
129
MODEL NUMBER LABEL
Price
$2.90
130
HORSEPOWER LABEL
Price
$1.05
131
CONTROL PANEL LABEL
Price
$6.30
132
REMOTE CONTROL LABEL
Price
$17.45
133
N/S GRIZZLY GREEN G1023S
Price
N/A
134
GREY PUTTY REF G0504
Price
N/A
135
EXT TOOTH WASHER 1/2
Price
N/A
136
FOAM TAPE 3 X 15 X 700MM
Price
N/A
137
DRUM LID HOOK
Price
$21.75
138
RIVET 4 X 7MM BLIND, STEEL
Price
$1.60
139
VACUUM HOSE 1-1/4" X 79"
Price
$26.35
140
COLLECTION DRUM VACUUM TUBE
Price
N/A
140V2
COLLECTION DRUM VACUUM TUBE V2.10.20
Price
$39.85
141
P0637141
Now: PW07
FLAT WASHER 5/16
Price
N/A
142
P0637142
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
143
HOSE CLAMP 1-1/4"
Price
N/A
144
TUBE PLUG 1-1/4"
Price
N/A
145
FOAM TAPE 3 X 6 X 300MM
Price
N/A
146
VACUUM HOSE CLIP 2-1/2"
Price
N/A
147
PORT PLUG 2"
Price
$1.60
148
HOSE CLAMP 2"
Price
$7.85
149
VACUUM HOSE 2" X 39" V1
Price
$48.15
149V2
VACUUM HOSE 2" X 118-1/8" V2.10.20
Price
$29.00
150
VACUUM MANIFOLD
Price
$94.20
151
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
152
P0637152
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
153
CYCLONE VACUUM PORT
Price
$61.80
154
FOAM TAPE 3 X 6 X 300MM
Price
N/A
155
P0637155
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
156
P0637156
Now: PW07
FLAT WASHER 5/16
Price
N/A
157
COLLECTION DRUM VACUUM RING
Price
N/A
157V2
COLLECTION DRUM VACUUM RING V2.10.20
Price
$101.45
158
JUNCTION BOX
Price
$18.15
159
GREEN GROUNDING WIRE 10G 6"
Price
$4.30
160
HANDLE HOOK
Price
$18.15
161
CYCLONE FUNNEL ADAPTER
Price
N/A
162
HEX BOLT 3/8-16 X 11
Price
N/A
163
FLAT WASHER 3/8 THIN
Price
N/A
164
COLLECTION LID HANDLE
Price
$61.60
165
DRUM LID CONNECTING PLATE
Price
N/A
166
DRUM LID SPRING
Price
$6.75
167
FRONT DRUM PANEL
Price
$217.35
168
LEFT DRUM PANEL
Price
$148.55
169
RIGHT DRUM PANEL
Price
$188.40
170
REAR DRUM PANEL
Price
$206.50
171
BASE DRUM PANEL
Price
$192.00
172
DRUM WINDOW
Price
$7.90
173
RIVET
Price
N/A
174
DRUM LIP PVC SEAL 3100MM
Price
$69.65
MAN
MANUAL G0637-38 MFD-11/09-7/10 V1.03.10
Price
$13.75
MANV2
MANUAL G0637-38 MFD-8/10-12/11 V2.08.10
Price
$21.00
MANV3
MANUAL G0637-38 MFD-1/12+ V3.10.13
Price
$22.25
