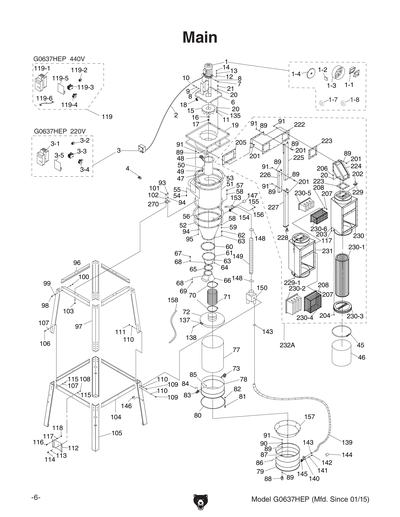

Parts for G0637HEP 7-1/2 HP 3-Phase Dual-Filtration HEPA Cyclone Dust Collector

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

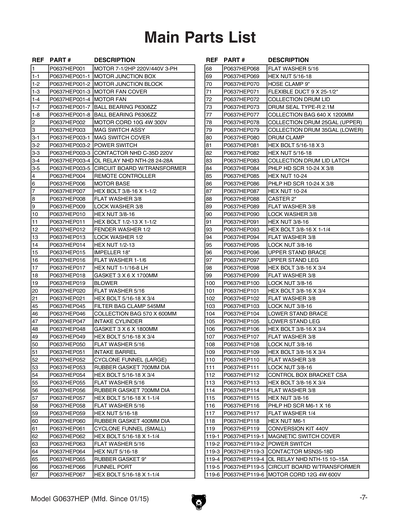

1
MOTOR 7.5HP 220V/440V 3-PH
Price
N/A
1-1
MOTOR JUNCTION BOX
Price
N/A
1-2
MOTOR JUNCTION BLOCK
Price
N/A
1-3
MOTOR FAN COVER
Price
N/A
1-4
MOTOR FAN
Price
N/A
1-7
BALL BEARING 6308ZZ
Price
N/A
1-8
BALL BEARING 6306ZZ
Price
N/A
2
MOTOR CORD 10AWG
Price
N/A
3
MAG SWITCH ASSY V2.01.12
Price
N/A
3-1
MAGNETIC SWITCH COVER
Price
N/A
3-2
POWER SWITCH
Price
N/A
3-3
CONTACTOR NHD C-35D 220V
Price
N/A
3-4
OL RELAY NHD NTH-28 24-28A
Price
N/A
3-5
CIRCUIT BOARD W/ TRANSFORMER
Price
N/A
4
REMOTE CONTROLLER
Price
N/A
6
MOTOR BASE
Price
N/A
7
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
8
Now: PW02
FLAT WASHER 3/8
Price
N/A
9
Now: PLW04
LOCK WASHER 3/8
Price
N/A
10
Now: PN08
HEX NUT 3/8-16
Price
N/A
11
Now: PB55
HEX BOLT 1/2-13 X 1-1/2
Price
N/A
12
Now: PWF04
FENDER WASHER 1/2
Price
N/A
13
Now: PLW07
LOCK WASHER 1/2
Price
N/A
14
Now: PN13
HEX NUT 1/2-13
Price
N/A
15
IMPELLER 18"
Price
N/A
16
Now: PW19
FLAT WASHER 20MM
Price
N/A
17
Now: PN44
HEX NUT 1-1/16 - 8 LH
Price
N/A
18
GASKET 3 X 6 X 1700MM
Price
N/A
19
BLOWER
Price
N/A
20
Now: PW07
FLAT WASHER 5/16
Price
N/A
21
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
45
FILTER BAG CLAMP 545MM V2.11.09
Price
N/A
46
Collection Bag for G0441, 510mm x 600mm
Price
N/A
47
INTAKE CYLINDER
Price
N/A
48
GASKET 3 X 6 X 1800MM
Price
N/A
49
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
50
Now: PW07
FLAT WASHER 5/16
Price
N/A
51
INTAKE BARREL V2.10.20
Price
N/A
52
LARGE CYCLONE FUNNEL V2.08.10
Price
N/A
53
RUBBER GASKET 700MM DIA
Item is no longer available
Price
N/A
54
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
55
Now: PW07
FLAT WASHER 5/16
Price
N/A
56
RUBBER GASKET 700MM DIA
Item is no longer available
Price
N/A
57
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
58
Now: PW07
FLAT WASHER 5/16
Price
N/A
59
Now: PN02
HEX NUT 5/16-18
Price
N/A
60
RUBBER GASKET 400MM DIA
Item is no longer available
Price
N/A
61
SMALL CYCLONE FUNNEL V1
Price
N/A
62
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
63
Now: PW07
FLAT WASHER 5/16
Price
N/A
64
Now: PN02
HEX NUT 5/16-18
Price
N/A
65
RUBBER GASKET 9"
Item is no longer available
Price
N/A
66
FUNNEL PORT
Price
N/A
67
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
68
Now: PW07
FLAT WASHER 5/16
Price
N/A
69
Now: PN02
HEX NUT 5/16-18
Price
N/A
70
***USE P0441048***
Price
N/A
71
FLEXIBLE DUCT 9 X 25-1/2" V1
Price
N/A
72
COLLECTION DRUM LID V1
Price
N/A
73
DRUM SEAL TYPE-R 2M V3.01.12
Price
N/A
77
DRUM COLLECTION BAG 640 X 1200MM
Price
N/A
78
UPPER DRUM 25GAL V1
Price
N/A
79
COLLECTION DRUM 35GAL V2.08.10
Price
N/A
80
DRUM CLAMP
Price
N/A
81
Now: PB04
HEX BOLT 5/16-18 X 3
Price
N/A
82
Now: PN02
HEX NUT 5/16-18
Price
N/A
83
COLLECTION DRUM LID LATCH
Price
N/A
84
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
85
Now: PN07
HEX NUT 10-24
Price
N/A
86
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
87
Now: PN07
HEX NUT 10-24
Price
N/A
88
CASTER 2" V1
Price
N/A
89
Now: PW02
FLAT WASHER 3/8
Price
N/A
90
Now: PLW04
LOCK WASHER 3/8
Price
N/A
91
Now: PN08
HEX NUT 3/8-16
Price
N/A
93
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
94
Now: PW02
FLAT WASHER 3/8
Price
N/A
95
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
96
UPPER STAND BRACE V1
Price
N/A
97
UPPER STAND LEG V2.08.10
Price
N/A
98
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
99
Now: PW02
FLAT WASHER 3/8
Price
N/A
100
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
101
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
102
Now: PW02
FLAT WASHER 3/8
Price
N/A
103
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
104
LOWER STAND BRACE V1
Price
N/A
105
LOWER STAND LEG V2.08.10
Price
N/A
106
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
107
Now: PW02
FLAT WASHER 3/8
Price
N/A
108
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
109
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
110
Now: PW02
FLAT WASHER 3/8
Price
N/A
111
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
112
CONTROL BOX BRACKET CSA V2.01.12
Price
N/A
113
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
114
Now: PW02
FLAT WASHER 3/8
Price
N/A
115
Now: PN08
HEX NUT 3/8-16
Price
N/A
116
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
117
Now: PW06
FLAT WASHER 1/4
Price
N/A
118
Now: PN01M
HEX NUT M6-1
Price
N/A
119
CONVERSION KIT 440V V2.03.12
Price
N/A
119-1
MAGNETIC SWITCH COVER V2.01.12
Price
N/A
119-2
POWER SWITCH V2.01.12
Price
N/A
119-3
CONTACTOR MSN35-18D V2.01.12
Price
N/A
119-4
OL RELAY NHD NTH-15 10-15A
Price
N/A
119-5
CIRCUIT BOARD W/ TRANSFORMER
Price
N/A
119-6
MOTOR CORD 12G 4W 600V V2.01.12
Price
N/A

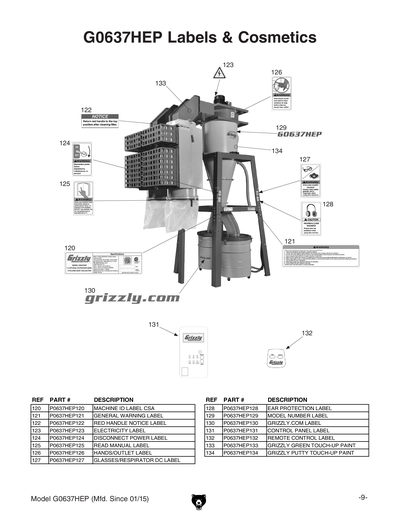

120
MACHINE ID LABEL CSA
Item is no longer available
Price
N/A
121
GENERAL WARNING LABEL CSA V2.01.12
Price
N/A
122
RED HANDLE NOTICE LABEL
Price
N/A
123
ELECTRICITY 1.4W X 1.2H
Price
N/A
124
DISCONNECT HARDWIRED POWER 2W X 3.3H
Price
N/A
125
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
126
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
127
GLASSES/RESPIRATOR DC 2W X 3.3H
Price
N/A
128
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
129
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
130
GRIZZLY.COM LABEL
Item is no longer available
Price
N/A
131
CONTROL PANEL LABEL
Price
N/A
132
REMOTE CONTROL LABEL
Price
N/A
133
N/S GRIZZLY GREEN G1023S
Price
N/A
134
GREY PUTTY REF G0504
Price
N/A

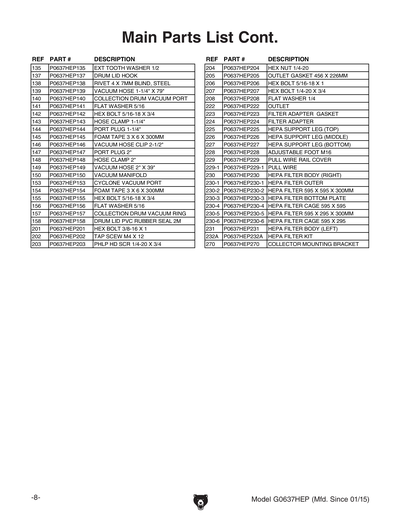

135
EXT TOOTH WASHER 1/2
Price
N/A
137
DRUM LID HOOK
Price
N/A
138
RIVET 4 X 7MM BLIND, STEEL
Price
N/A
139
VACUUM HOSE 1-1/4" X 79"
Price
N/A
140
COLLECTION DRUM VACUUM TUBE
Price
N/A
141
Now: PW07
FLAT WASHER 5/16
Price
N/A
142
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
143
HOSE CLAMP 1-1/4"
Price
N/A
144
TUBE PLUG 1-1/4"
Price
N/A
145
FOAM TAPE 3 X 6 X 300MM
Price
N/A
146
VACUUM HOSE CLIP 2-1/2"
Price
N/A
147
PORT PLUG 2"
Price
N/A
148
HOSE CLAMP 2"
Price
N/A
149
VACUUM HOSE 2" X 39" V1
Price
N/A
150
VACUUM MANIFOLD
Price
N/A
153
CYCLONE VACUUM PORT
Price
N/A
154
FOAM TAPE 3 X 6 X 300MM
Price
N/A
155
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
156
Now: PW07
FLAT WASHER 5/16
Price
N/A
157
COLLECTION DRUM VACUUM RING
Price
N/A
158
DRUM LID PVC RUBBER SEAL 2M
Item is no longer available
Price
N/A
201
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
202
TAP SCREW M4 X 12
Price
N/A
203
Now: PS02
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
204
Now: PN05
HEX NUT 1/4-20
Price
N/A
205
OUTLET GASKET 456 X 226MM
Item is no longer available
Price
N/A
206
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
207
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
208
Now: PW06
FLAT WASHER 1/4
Price
N/A
222
OUTLET
Item is no longer available
Price
N/A
223
FILTER ADAPTER GASKET
Item is no longer available
Price
N/A
224
FILTER ADAPTER
Item is no longer available
Price
N/A
225
HEPA SUPPORT LEG (TOP)
Item is no longer available
Price
N/A
226
HEPA SUPPORT LEG (MIDDLE)
Item is no longer available
Price
N/A
227
HEPA SUPPORT LEG (BOTTOM)
Item is no longer available
Price
N/A
228
ADJUSTABLE FOOT M16
Item is no longer available
Price
N/A
229
PULL WIRE RAIL COVER
Item is no longer available
Price
N/A
229-1
PULL WIRE
230
HEPA FILTER BODY (RIGHT)
Item is no longer available
Price
N/A
230-1
HEPA FILTER OUTER
230-2
HEPA Filter for G0441
Price
N/A
230-3
HEPA FILTER BOTTOM PLATE
Item is no longer available
Price
N/A
230-4
HEPA FILTER CAGE 595 X 595
Item is no longer available
Price
N/A
230-5
HEPA Filter for G0703/P, G0443, G0440
Price
N/A
230-6
HEPA FILTER CAGE 595 X 295
Item is no longer available
Price
N/A
231
HEPA FILTER BODY (LEFT)
Item is no longer available
Price
N/A
232A
HEPA Filter Kit for G0638 Dust Collector
Price
N/A
270
COLLECTOR MOUNTING BRACKET
Item is no longer available
Price
N/A
