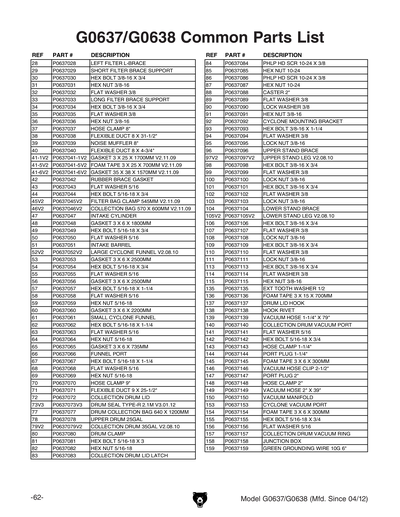

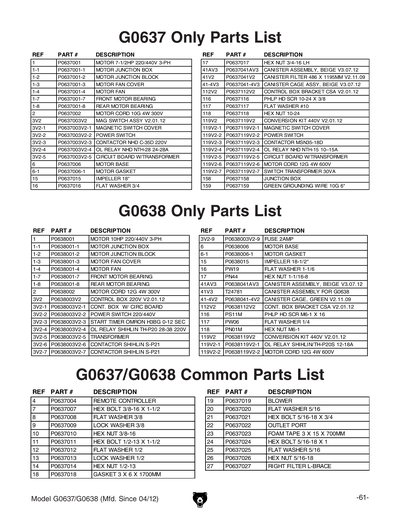

Parts for G0638 - 10 HP 3-Phase Cyclone Dust Collector

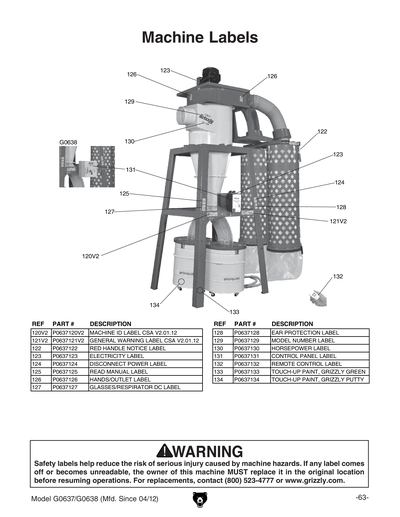

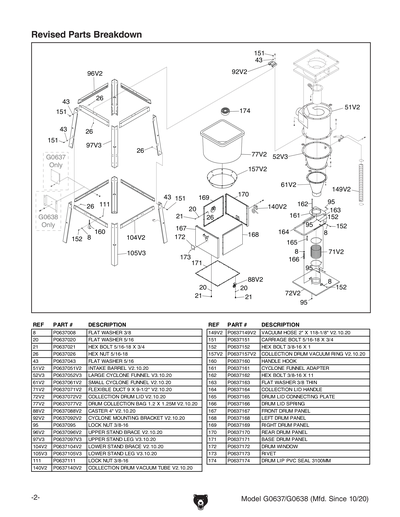

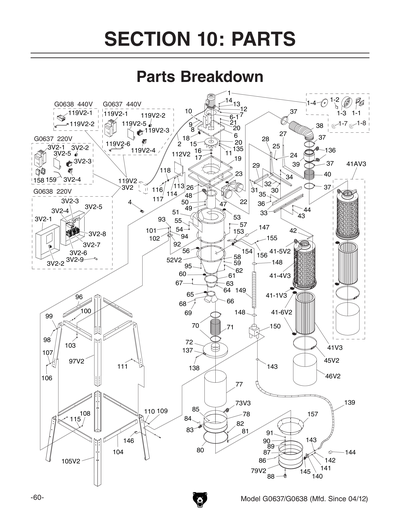

Part Diagram for G0638
Part Diagram for G0638
Part Diagram for G0638
Part Diagram for G0638
Part Diagram for G0638
Part Diagram for G0638
Part Diagram for G0638
Part Diagram for G0638
Part Diagram for G0638
Part Diagram for G0638

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
MOTOR 10HP 220V/440V 3-PH
Price
$2,253.50
1-1
MOTOR JUNCTION BOX
Price
$6.05
1-2
MOTOR JUNCTION BLOCK
Price
$4.30
1-3
MOTOR FAN COVER
Price
$26.90
1-4
MOTOR FAN
Price
$18.15
1-7
BALL BEARING 6308ZZ
Price
N/A
1-8
BALL BEARING 6306ZZ
Price
N/A
2
MOTOR CORD 12G 4W 300V
Price
$206.25
3
CONTROL BOX 220V V1
Price
$978.10
3-1
CONTROL BOX CABINET W/IC BOARD
Price
$333.30
3-2
POWER SWITCH
Price
$8.80
3-3
START TIMER OMRON H3BG 0-12 SEC
Price
$97.85
3-4
OL RELAY SHIHLIN TH-P20 28-38A
Price
$72.20
3-5
TRANSFORMER 70VA 440-480V-110/220/230V
Price
$109.55
3-6
CONTACTOR SHIHLIN S-P21
Price
$79.70
3-7
CONTACTOR SHIHLIN S-P21
Price
N/A
3-8
CONTACTOR SHIHLIN S-P16
Price
$68.85
3-9
FUSE 2AMP
Price
$34.45
3V2
CONTROL BOX 220V V2.01.12
Price
$1,021.55
3V2-1
CONTROL BOX CABINET W/CIRCUIT BOARD
Price
$362.25
3V2-10
I.C. CIRCUIT BOARD
Price
$94.20
3V2-11
CONTROL BOX CABINET W/O IC CIRCUIT BOARD
Price
$186.00
3V2-2
POWER SWITCH 220/440V
Price
$8.20
3V2-3
START TIMER OMRON H3BG 0-12 SEC
Price
$170.30
3V2-4
OL RELAY SHIHLIN TH-P20 28-38A
Price
N/A
3V2-5
TRANSFORMER 70VA 440-480V-110/220/230V
Price
$90.60
3V2-6
CONTACTOR SHIHLIN S-P21
Price
$79.70
3V2-7
*DISCD*CONTACTOR SHIHLIN S-P21
Item is no longer available
Price
N/A
3V2-8
CONTACTOR SHIHLIN S-P16
Price
$65.25
3V2-9
FUSE 2AMP
Price
$34.45
4
REMOTE CONTROLLER
Price
N/A
5
POWER CORD 12AWG X 4C
Price
$170.90
6
MOTOR BASE
Price
$217.35
6-1
MOTOR GASKET
Price
$7.25
7
P0638007
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
8
P0638008
Now: PW02
FLAT WASHER 3/8
Price
N/A
9
LOCK WASHER 3/8
Price
N/A
10
P0638010
Now: PN08
HEX NUT 3/8-16
Price
N/A
11
P0638011
Now: PB55
HEX BOLT 1/2-13 X 1-1/2
Price
N/A
12
FENDER WASHER 1/2
Price
N/A
13
LOCK WASHER 1/2
Price
N/A
14
P0638014
Now: PN06
HEX NUT 1/2-12
Price
N/A
15
IMPELLER 18-1/2"
Price
$365.90
16
P0638016
Now: PW19
FLAT WASHER 20MM
Price
N/A
17
P0638017
Now: PN44
HEX NUT 1-1/16 - 8 LH
Price
N/A
18
GASKET 3 X 6 X 1700MM
Price
N/A
19
BLOWER
Price
N/A
20
P0638020
Now: PW07
FLAT WASHER 5/16
Price
N/A
21
P0638021
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
22
OUTLET PORT
Price
N/A
23
FOAM TAPE 3 X 15 X 700MM
Price
N/A
24
P0638024
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
25
P0638025
Now: PW07
FLAT WASHER 5/16
Price
N/A
26
P0638026
Now: PN02
HEX NUT 5/16-18
Price
N/A
27
RIGHT FILTER L-BRACE
Price
N/A
28
LEFT FILTER L-BRACE
Price
N/A
29
SHORT FILTER BRACE SUPPORT
Price
N/A
30
P0638030
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
31
P0638031
Now: PN08
HEX NUT 3/8-16
Price
N/A
32
P0638032
Now: PW02
FLAT WASHER 3/8
Price
N/A
33
FILTER CROSS BRACE
Price
N/A
34
P0638034
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
35
P0638035
Now: PW02
FLAT WASHER 3/8
Price
N/A
36
P0638036
Now: PN08
HEX NUT 3/8-16
Price
N/A
37
8" Wire Hose Clamp
Price
N/A
38
FLEXIBLE DUCT 8 X 31-1/2"
Price
N/A
39
NOISE MUFFLER 8"
Price
N/A
40
FLEXIBLE DUCT 8 X 4-3/4"
Price
N/A
41
Canister Assembly for G0638(510mm X 1500mm) with Foam Tape
Price
N/A
41-1
GASKET 3 X 25 X 1300MM V1.11.06
Price
N/A
41-1V2
GASKET 3 X 25 X 1700MM V2.11.09
Price
N/A
41-4V2
GREEN CANISTER CAGE ASSY V2.11.09
Price
$422.65
41-4V3
BEIGE CANISTER CAGE ASSY V3.07.12
Price
$789.75
41-5V2
FOAM TAPE 3 X 25 X 700MM V2.11.09
Price
N/A
41-6V2
GASKET 35 X 38 X 1570MM V2.11.09
Price
N/A
41-7V2
CANISTER CABLES 5.6M
Price
$17.10
41-8
CANISTER FILTER BRUSH
Price
$75.40
41A
Canister Assembly for G0638(510mm X 1500mm) with Foam Tape
Price
N/A
41AV2
BEIGE CANISTER ASSEMBLY V3.07.12
Price
N/A
41AV3
BEIGE CANISTER ASSEMBLY V3.07.12
Price
$1,503.35
41V2
CANISTER FILTER 486 X 1495MM V2.11.09
Price
$557.90
41V3
Replacement Filter for G0638
Price
N/A
42
RUBBER BRACE GASKET
Price
N/A
43
P0638043
Now: PW07
FLAT WASHER 5/16
Price
N/A
44
P0638044
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
45
FILTER BAG CLAMP 510MM V1.11.06
Price
N/A
45V2
FILTER BAG CLAMP 545MM V2.11.09
Price
N/A
46
Collection Bag 510 x 600mm
Price
N/A
46V2
Collection Bag 570 x 600mm
Price
N/A
47
INTAKE CYLINDER
Price
N/A
48
GASKET 3 X 6 X 1800MM
Price
N/A
49
P0638049
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
50
P0638050
Now: PW07
FLAT WASHER 5/16
Price
N/A
51
INTAKE BARREL V2.10.20
Price
N/A
51V2
INTAKE BARREL V2.10.20
Price
N/A
52
LARGE CYCLONE FUNNEL V1.11.06
Price
N/A
52V2
LARGE CYCLONE FUNNEL V2.08.10
Price
N/A
52V3
LARGE CYCLONE FUNNEL V3.10.20
Price
N/A
53
GASKET 3 X 6 X 2500MM
Price
N/A
54
P0638054
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
55
P0638055
Now: PW07
FLAT WASHER 5/16
Price
N/A
56
GASKET 3 X 6 X 2500MM
Price
N/A
57
P0638057
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
58
P0638058
Now: PW07
FLAT WASHER 5/16
Price
N/A
59
P0638059
Now: PN02
HEX NUT 5/16-18
Price
N/A
60
GASKET 3 X 6 X 2200MM
Price
N/A
61
SMALL CYCLONE FUNNEL V1
Price
N/A
61V2
SMALL CYCLONE FUNNEL V2.10.20
Price
N/A
62
P0638062
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
63
P0638063
Now: PW07
FLAT WASHER 5/16
Price
N/A
64
P0638064
Now: PN02
HEX NUT 5/16-18
Price
N/A
65
GASKET 3 X 6 X 735MM
Price
N/A
66
FUNNEL PORT
Price
N/A
67
P0638067
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
68
P0638068
Now: PW07
FLAT WASHER 5/16
Price
N/A
69
P0638069
Now: PN02
HEX NUT 5/16-18
Price
N/A
70
HOSE CLAMP 9"
Price
N/A
71
FLEXIBLE DUCT 9 X 25-1/2" V1
Price
N/A
71V2
FLEXIBLE DUCT 9 X 9-1/2" V2.10.20
Price
N/A
72
COLLECTION DRUM LID V1
Price
N/A
72V2
COLLECTION DRUM LID V2.10.20
Price
N/A
73
GASKET 10 X 50 X 2000MM V1.11.06
Price
N/A
73V2
*DISCD*DRUM SEAL TYPE-T 2M V2.11.09
Price
N/A
73V3
DRUM SEAL TYPE-R 2M V3.01.12
Price
N/A
74
BAG HOLDER
Price
N/A
74-1
RUBBER HANDLE
Price
N/A
74-2
HEX BOLT 1/4-20 X 5/8
Price
N/A
74-3
FLAT WASHER 1/4
Price
N/A
74-4
HEX NUT 1/4-20
Price
N/A
75
P0638075
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
76
P0638076
Now: PN07
HEX NUT 10-24
Price
N/A
77
DRUM COLLECTION BAG 640 X 1200MM
Price
N/A
77V2
DRUM COLLECTION BAG 1.2 X 1.25M V2.10.20
Price
N/A
78
UPPER DRUM 25GAL V1
Price
N/A
79
LOWER COLLECTION DRUM V1.11.06
Price
N/A
79V3
COLLECTION DRUM 35GAL V2.08.10
Price
N/A
80
DRUM CLAMP
Price
N/A
81
P0638081
Now: PB04
HEX BOLT 5/16-18 X 3
Price
N/A
82
P0638082
Now: PN02
HEX NUT 5/16-18
Price
N/A
83
COLLECTION DRUM LID LATCH
Price
N/A
84
P0638084
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
85
P0638085
Now: PN07
HEX NUT 10-24
Price
N/A
86
P0638086
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
87
P0638087
Now: PN07
HEX NUT 10-24
Price
N/A
88
CASTER 2" V1
Price
N/A
88V2
CASTER 4" V2.10.20
Price
N/A
89
P0638089
Now: PW02
FLAT WASHER 3/8
Price
N/A
90
LOCK WASHER 3/8
Price
N/A
91
P0638091
Now: PN08
HEX NUT 3/8-16
Price
N/A
92
CYCLONE MOUNTING BRACKET V1
Price
N/A
92V2
CYCLONE MOUNTING BRACKET V2.10.20
Price
N/A
93
P0638093
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
94
P0638094
Now: PW02
FLAT WASHER 3/8
Price
N/A
95
LOCK NUT 3/8-16
Price
N/A
96
UPPER STAND BRACE V1
Price
N/A
96V2
UPPER STAND BRACE V2.10.20
Price
N/A
97
UPPER STAND LEG V1
Price
N/A
97V2
UPPER STAND LEG V2.08.10
Price
N/A
97V3
UPPER STAND LEG V3.10.20
Price
N/A
98
P0638098
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
99
P0638099
Now: PW02
FLAT WASHER 3/8
Price
N/A
100
LOCK NUT 3/8-16
Price
N/A
101
P0638101
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
102
P0638102
Now: PW02
FLAT WASHER 3/8
Price
N/A
103
LOCK NUT 3/8-16
Price
N/A
104
LOWER STAND BRACE V1
Price
N/A
104V2
LOWER STAND BRACE V2.10.20
Price
N/A
105
LOWER STAND LEG V1.11.06
Price
N/A
105V2
LOWER STAND LEG V2.08.10
Price
N/A
105V3
LOWER STAND LEG V3.10.20
Price
N/A
106
P0638106
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
107
P0638107
Now: PW02
FLAT WASHER 3/8
Price
N/A
108
LOCK NUT 3/8-16
Price
N/A
109
P0638109
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
110
P0638110
Now: PW02
FLAT WASHER 3/8
Price
N/A
111
LOCK NUT 3/8-16
Price
N/A
112
CONTROL BOX BRACKET
Price
$25.40
113
P0638113
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
114
P0638114
Now: PW02
FLAT WASHER 3/8
Price
N/A
115
P0638115
Now: PN08
HEX NUT 3/8-16
Price
N/A
116
P0638116
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
117
P0638117
Now: PW03
FLAT WASHER #10
Price
N/A
118
HEX NUT M6-1
Price
N/A
119
CONVERSION KIT 440V V1
Price
$56.20
119V2
CONVERSION KIT 440V V2.01.12
Price
$269.05
119V2-1
OL RELAY SHI HLIN/TH-P20S 12-18A
Price
$63.80
119V2-2
MOTOR CORD 12G 4W 600V
Price
$253.60
120
MACHINE ID LABEL V1
Price
$16.40
120V2
MACHINE ID LABEL CSA V2.01.12
Price
$16.40
121
GENERAL WARNING LABEL V1
Price
N/A
121V2
GENERAL WARNING LABEL CSA V2.01.12
Price
N/A
122
RED HANDLE NOTICE LABEL
Price
N/A
123
ELECTRICITY 1.4W X 1.2H
Price
N/A
124
DISCONNECT HARDWIRED POWER 2W X 3.3H
Price
N/A
125
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
126
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
127
GLASSES/RESPIRATOR DC 2W X 3.3H
Price
N/A
128
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
129
MODEL NUMBER LABEL
Price
$1.05
130
HORSEPOWER LABEL
Price
$1.05
131
CONTROL PANEL LABEL
Price
N/A
132
REMOTE CONTROL LABEL
Price
N/A
133
N/S GRIZZLY GREEN G1023S
Price
N/A
134
GREY PUTTY REF G0504
Price
N/A
135
EXT TOOTH WASHER 1/2
Price
N/A
136
FOAM TAPE 3 X 15 X 700MM
Price
N/A
137
DRUM LID HOOK
Price
N/A
138
RIVET 4 X 7MM BLIND, STEEL
Price
N/A
139
VACUUM HOSE 1-1/4" X 79"
Price
N/A
140
COLLECTION DRUM VACUUM TUBE
Price
N/A
140V2
COLLECTION DRUM VACUUM TUBE V2.10.20
Price
N/A
141
P0638141
Now: PW07
FLAT WASHER 5/16
Price
N/A
142
P0638142
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
143
HOSE CLAMP 1-1/4"
Price
N/A
144
TUBE PLUG 1-1/4"
Price
N/A
145
FOAM TAPE 3 X 6 X 300MM
Price
N/A
146
VACUUM HOSE CLIP 2-1/2"
Price
N/A
147
PORT PLUG 2"
Price
N/A
148
HOSE CLAMP 2"
Price
N/A
149
VACUUM HOSE 2" X 39" V1
Price
N/A
149V2
VACUUM HOSE 2" X 118-1/8" V2.10.20
Price
N/A
150
VACUUM MANIFOLD
Price
N/A
151
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
152
P0638152
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
153
CYCLONE VACUUM PORT
Price
N/A
154
FOAM TAPE 3 X 6 X 300MM
Price
N/A
155
P0638155
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
156
P0638156
Now: PW07
FLAT WASHER 5/16
Price
N/A
157
COLLECTION DRUM VACUUM RING
Price
N/A
157V2
COLLECTION DRUM VACUUM RING V2.10.20
Price
N/A
160
HANDLE HOOK
Price
N/A
161
CYCLONE FUNNEL ADAPTER
Price
N/A
162
HEX BOLT 3/8-16 X 11
Price
N/A
163
FLAT WASHER 3/8 THIN
Price
N/A
164
COLLECTION LID HANDLE
Price
N/A
165
DRUM LID CONNECTING PLATE
Price
N/A
166
DRUM LID SPRING
Price
N/A
167
FRONT DRUM PANEL
Price
N/A
168
LEFT DRUM PANEL
Price
N/A
169
RIGHT DRUM PANEL
Price
N/A
170
REAR DRUM PANEL
Price
N/A
171
BASE DRUM PANEL
Price
N/A
172
DRUM WINDOW
Price
N/A
173
RIVET
Price
N/A
174
DRUM LIP PVC SEAL 3100MM
Price
N/A
MAN
MANUAL G0637-38 MFD-11/09-7/10 V1.03.10
Price
N/A
MANV2
MANUAL G0637-38 MFD-8/10-12/11 V2.08.10
Price
N/A
MANV3
MANUAL G0637-38 MFD-1/12+ V3.10.13
Price
N/A
