Parts for G0638HEP - 10 HP 3-Phase Dual-Filtration HEPA Cyclone Dust Collector

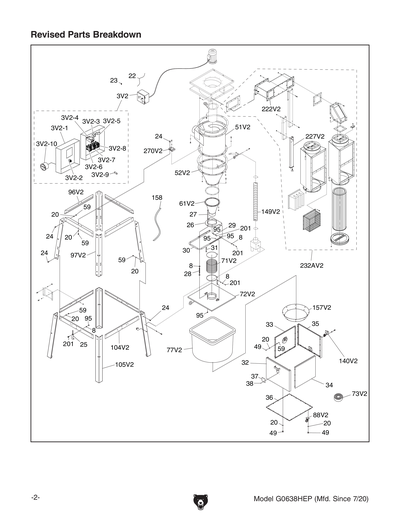

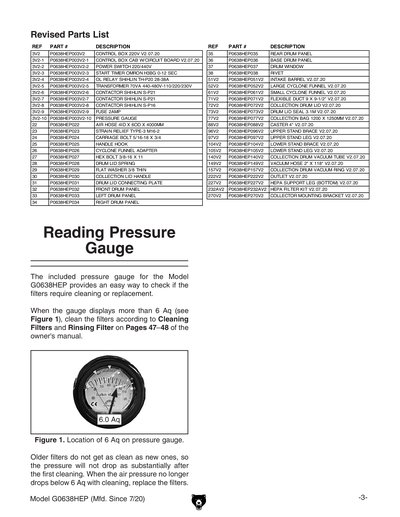

Part Diagram for G0638HEP

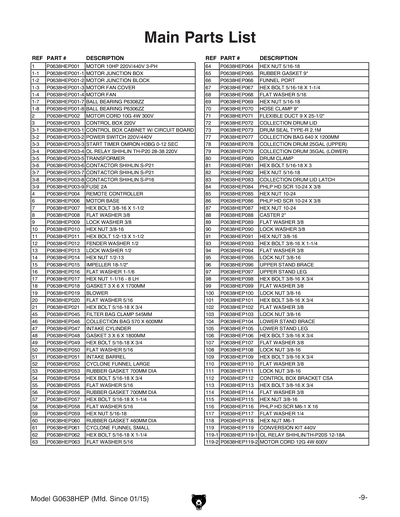

Part Diagram for G0638HEP

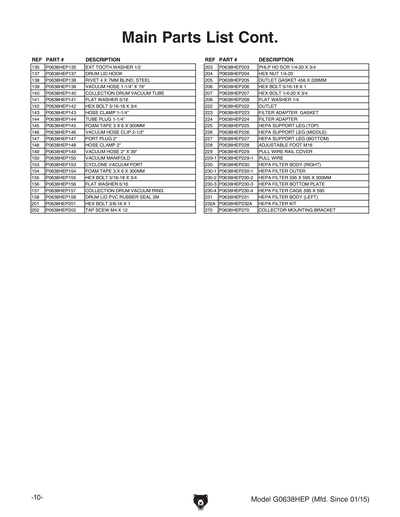

Part Diagram for G0638HEP

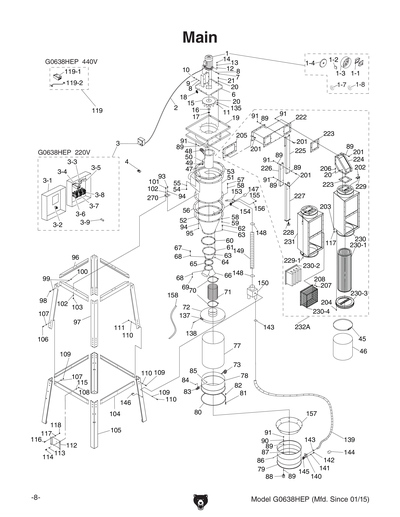

Part Diagram for G0638HEP

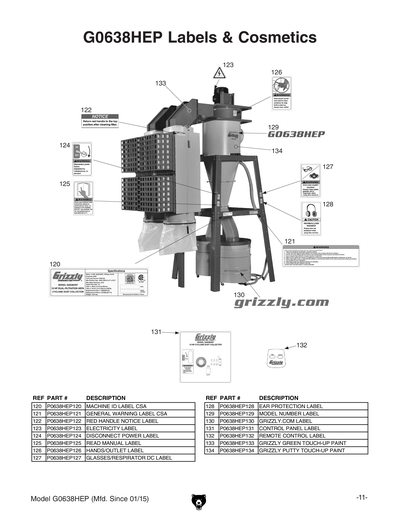

Part Diagram for G0638HEP
Part Diagram for G0638HEP
Part Diagram for G0638HEP
Part Diagram for G0638HEP
Part Diagram for G0638HEP
Part Diagram for G0638HEP
Part Diagram for G0638HEP
Part Diagram for G0638HEP

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
MOTOR 10HP 220V/440V 3-PH
Price
N/A
1-1
MOTOR JUNCTION BOX
Price
N/A
1-2
MOTOR JUNCTION BLOCK
Price
N/A
1-3
MOTOR FAN COVER
Price
N/A
1-4
MOTOR FAN
Price
N/A
1-7
BALL BEARING 6308ZZ
Price
N/A
1-8
BALL BEARING 6306ZZ
Price
N/A
2
MOTOR CORD 10G 4W 300V
Price
$58.00
3
CONTROL BOX 220V V2.01.12
Price
N/A
3-1
CONTROL BOX CABINET W/CIRCUIT BOARD
Price
N/A
3-2
POWER SWITCH 220/440V
Price
N/A
3-3
START TIMER OMRON H3BG 0-12 SEC
Price
N/A
3-4
OL RELAY SHIHLIN TH-P20 28-38A
Price
N/A
3-5
TRANSFORMER 70VA 440-480V-110/220/230V
Price
N/A
3-6
CONTACTOR SHIHLIN S-P21
Price
N/A
3-7
*DISCD*CONTACTOR SHIHLIN S-P21
Price
N/A
3-8
CONTACTOR SHIHLIN S-P16
Price
N/A
3-9
FUSE 2AMP
Price
N/A
3V2
CONTROL BOX 220V V2.07.20
Price
$1,050.55
3V2-1
CONTROL BOX CAB W/CIRCUIT BOARD V2.07.20
Price
N/A
4
REMOTE CONTROLLER
Price
N/A
6
MOTOR BASE
Price
N/A
7
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
8
FLAT WASHER 3/8
Price
N/A
9
LOCK WASHER 3/8
Price
N/A
10
HEX NUT 3/8-16
Price
N/A
11
HEX BOLT 1/2-13 X 1-1/2
Price
N/A
12
FENDER WASHER 1/2
Price
N/A
13
LOCK WASHER 1/2
Price
N/A
14
HEX NUT 1/2-13
Price
N/A
15
IMPELLER 18-1/2"
Price
N/A
16
FLAT WASHER 20MM
Price
N/A
17
HEX NUT 1-1/16 - 8 LH
Price
N/A
18
GASKET 3 X 6 X 1700MM
Price
N/A
19
BLOWER
Price
N/A
20
FLAT WASHER 5/16
Price
N/A
21
HEX BOLT 5/16-18 X 3/4
Price
N/A
22
AIR HOSE 4ID X 6OD X 4000MM
Price
$20.85
23
STRAIN RELIEF TYPE-3 M16-2
Price
N/A
24
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
25
HANDLE HOOK
Price
N/A
26
CYCLONE FUNNEL ADAPTER
Price
N/A
27
HEX BOLT 3/8-16 X 11
Price
N/A
28
DRUM LID SPRING
Price
N/A
29
FLAT WASHER 3/8 THIN
Price
N/A
30
COLLECTION LID HANDLE
Price
$58.00
31
DRUM LID CONNECTING PLATE
Price
N/A
32
FRONT DRUM PANEL
Price
N/A
33
LEFT DRUM PANEL
Price
$123.20
34
RIGHT DRUM PANEL
Price
$86.95
35
REAR DRUM PANEL
Price
N/A
36
BASE DRUM PANEL
Price
N/A
37
DRUM WINDOW
Price
N/A
38
RIVET
Price
N/A
3V2-1
CONTROL BOX CAB W/CIRCUIT BOARD V2.07.20
Price
$355.05
3V2-10
PRESSURE GAUGE
Price
$130.45
3V2-2
POWER SWITCH 220/440V
Price
N/A
3V2-3
START TIMER OMRON H3BG 0-12 SEC
Price
N/A
3V2-4
OL RELAY SHIHLIN TH-P20 28-38A
Price
N/A
3V2-5
TRANSFORMER 70VA 440-480V-110/220/230V
Price
N/A
3V2-6
CONTACTOR SHIHLIN S-P21
Price
N/A
3V2-7
CONTACTOR SHIHLIN S-P21
Price
N/A
3V2-8
CONTACTOR SHIHLIN S-P16
Price
N/A
3V2-9
FUSE 2AMP
Price
N/A
45
FILTER BAG CLAMP 545MM V2.11.09
Price
N/A
46
Collection Bag 570 x 600mm
Price
N/A
47
INTAKE CYLINDER
Price
N/A
48
GASKET 3 X 6 X 1800MM
Price
N/A
49
HEX BOLT 5/16-18 X 3/4
Price
N/A
50
FLAT WASHER 5/16
Price
N/A
51
INTAKE BARREL V2.10.20
Price
N/A
51V2
INTAKE BARREL V2.07.20
Price
$731.75
52
LARGE CYCLONE FUNNEL V2.08.10
Price
N/A
52V2
LARGE CYCLONE FUNNEL V2.07.20
Price
$608.60
53
RUBBER GASKET 700MM DIA
Price
N/A
54
HEX BOLT 5/16-18 X 3/4
Price
N/A
55
FLAT WASHER 5/16
Price
N/A
56
RUBBER GASKET 700MM DIA
Price
$14.50
57
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
58
FLAT WASHER 5/16
Price
N/A
59
HEX NUT 5/16-18
Price
N/A
60
RUBBER GASKET 460MM DIA
Price
$10.90
61
SMALL CYCLONE FUNNEL V1
Price
N/A
61V2
SMALL CYCLONE FUNNEL V2.07.20
Price
$499.95
62
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
63
FLAT WASHER 5/16
Price
N/A
64
HEX NUT 5/16-18
Price
N/A
65
RUBBER GASKET 9"
Price
$3.65
66
FUNNEL PORT
Price
N/A
67
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
68
FLAT WASHER 5/16
Price
N/A
69
HEX NUT 5/16-18
Price
N/A
70
***USE P0441048***
Price
N/A
71
FLEXIBLE DUCT 9 X 25-1/2" V1
Price
N/A
71V2
FLEXIBLE DUCT 9 X 9-1/2" V2.07.20
Price
$54.35
72
COLLECTION DRUM LID V1
Price
N/A
72V2
COLLECTION DRUM LID V2.07.20
Price
$206.50
73
DRUM SEAL TYPE-R 2M V3.01.12
Price
N/A
73V2
DRUM LIP PVC SEAL 3100MM
Price
N/A
77
Collection Bag for G0441, 510mm x 600mm
Price
N/A
77V2
DRUM COLLECTION BAG 1.2 X 1.25M V2.10.20
Price
N/A
78
UPPER DRUM 25GAL V1
Price
N/A
79
COLLECTION DRUM 35GAL V2.08.10
Price
N/A
80
DRUM CLAMP
Price
N/A
81
HEX BOLT 5/16-18 X 3
Price
N/A
82
HEX NUT 5/16-18
Price
N/A
83
COLLECTION DRUM LID LATCH
Price
N/A
84
PHLP HD SCR 10-24 X 3/8
Price
N/A
85
HEX NUT 10-24
Price
N/A
86
PHLP HD SCR 10-24 X 3/8
Price
N/A
87
HEX NUT 10-24
Price
N/A
88
CASTER 2" V1
Price
N/A
88V2
CASTER 4" V2.07.20
Price
$25.40
89
FLAT WASHER 3/8
Price
N/A
90
LOCK WASHER 3/8
Price
N/A
91
HEX NUT 3/8-16
Price
N/A
93
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
94
FLAT WASHER 3/8
Price
N/A
95
LOCK NUT 3/8-16
Price
N/A
96
UPPER STAND BRACE V1
Price
N/A
96V2
UPPER STAND BRACE V2.10.20
Price
N/A
97
UPPER STAND LEG V2.08.10
Price
N/A
97V2
UPPER STAND LEG V2.07.20
Price
$50.75
98
HEX BOLT 3/8-16 X 3/4
Price
N/A
99
FLAT WASHER 3/8
Price
N/A
100
LOCK NUT 3/8-16
Price
N/A
101
HEX BOLT 3/8-16 X 3/4
Price
N/A
102
FLAT WASHER 3/8
Price
N/A
103
LOCK NUT 3/8-16
Price
N/A
104
LOWER STAND BRACE V1
Price
N/A
104V2
LOWER STAND BRACE V2.07.20
Price
$50.75
105
LOWER STAND LEG V2.08.10
Price
N/A
105V2
LOWER STAND LEG V2.07.20
Price
$72.45
106
HEX BOLT 3/8-16 X 3/4
Price
N/A
107
FLAT WASHER 3/8
Price
N/A
108
LOCK NUT 3/8-16
Price
N/A
109
HEX BOLT 3/8-16 X 3/4
Price
N/A
110
FLAT WASHER 3/8
Price
N/A
111
LOCK NUT 3/8-16
Price
N/A
112
CONTROL BOX BRACKET
Price
N/A
113
HEX BOLT 3/8-16 X 3/4
Price
N/A
114
FLAT WASHER 3/8
Price
N/A
115
HEX NUT 3/8-16
Price
N/A
116
PHLP HD SCR M6-1 X 16
Price
N/A
117
FLAT WASHER 1/4
Price
N/A
118
HEX NUT M6-1
Price
N/A
119
CONVERSION KIT 440V V2.01.12
Price
N/A
119-1
OL RELAY SHI HLIN/TH-P20S 12-18A
Price
N/A
119-2
MOTOR CORD 12G 4W 600V
Price
$68.85
120
MACHINE ID LABEL CSA
Price
$16.40
121
GENERAL WARNING LABEL CSA V2.01.12
Price
N/A
122
RED HANDLE NOTICE LABEL
Price
N/A
123
ELECTRICITY 1.4W X 1.2H
Price
N/A
124
DISCONNECT HARDWIRED POWER 2W X 3.3H
Price
N/A
125
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
126
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
127
GLASSES/RESPIRATOR DC 2W X 3.3H
Price
N/A
128
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
129
MODEL NUMBER LABEL
Price
$4.20
130
GRIZZLY.COM LABEL
Price
$1.35
131
CONTROL PANEL LABEL
Price
N/A
132
REMOTE CONTROL LABEL
Price
N/A
133
N/S GRIZZLY GREEN G1023S
Price
N/A
134
GREY PUTTY REF G0504
Price
N/A
135
EXT TOOTH WASHER 1/2
Price
N/A
137
DRUM LID HOOK
Price
N/A
138
RIVET 4 X 7MM BLIND, STEEL
Price
N/A
139
VACUUM HOSE 1-1/4" X 79"
Price
N/A
140
COLLECTION DRUM VACUUM TUBE
Price
N/A
140V2
COLLECTION DRUM VACUUM TUBE V2.10.20
Price
N/A
141
FLAT WASHER 5/16
Price
N/A
142
HEX BOLT 5/16-18 X 3/4
Price
N/A
143
HOSE CLAMP 1-1/4"
Price
N/A
144
TUBE PLUG 1-1/4"
Price
N/A
145
FOAM TAPE 3 X 6 X 300MM
Price
N/A
146
VACUUM HOSE CLIP 2-1/2"
Price
N/A
147
PORT PLUG 2"
Price
N/A
148
HOSE CLAMP 2"
Price
N/A
149
VACUUM HOSE 2" X 39" V1
Price
N/A
149V2
VACUUM HOSE 2" X 118" V2.07.20
Price
$29.00
150
VACUUM MANIFOLD
Price
N/A
153
CYCLONE VACUUM PORT
Price
N/A
154
FOAM TAPE 3 X 6 X 300MM
Price
N/A
155
HEX BOLT 5/16-18 X 3/4
Price
N/A
156
FLAT WASHER 5/16
Price
N/A
157
COLLECTION DRUM VACUUM RING
Price
N/A
157V2
COLLECTION DRUM VACUUM RING V2.10.20
Price
N/A
158
DRUM LID PVC RUBBER SEAL 2M
Price
$18.15
201
HEX BOLT 3/8-16 X 1
Price
N/A
202
TAP SCREW M4 X 12
Price
N/A
203
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
204
HEX NUT 1/4-20
Price
N/A
205
OUTLET GASKET 456 X 270MM
Price
$14.50
206
HEX BOLT 5/16-18 X 1
Price
N/A
207
HEX BOLT 1/4-20 X 3/4
Price
N/A
208
FLAT WASHER 1/4
Price
N/A
222
OUTLET V1
Price
$326.05
222V2
OUTLET V2.07.20
Price
$489.05
223
FILTER ADAPTER GASKET
Price
N/A
224
FILTER ADAPTER
Price
$507.15
225
HEPA SUPPORT LEG (TOP)
Price
N/A
226
HEPA SUPPORT LEG (MIDDLE)
Price
$96.60
227
HEPA SUPPORT LEG (BOTTOM) V1
Price
$135.25
227V2
HEPA SUPPORT LEG (BOTTOM) V2.07.20
Price
$58.00
228
ADJUSTABLE FOOT M16
Price
N/A
229
PULL WIRE RAIL COVER
Price
$94.20
229-1
PULL WIRE
Price
$60.55
230
HEPA FILTER BODY (RIGHT)
Price
$1,141.10
230-1
HEPA FILTER OUTER
Price
$499.95
230-2
HEPA Filter for G0441
Price
N/A
230-3
HEPA FILTER BOTTOM PLATE
Price
$101.45
230-4
HEPA FILTER CAGE 595 X 595
Price
N/A
231
HEPA FILTER BODY (LEFT)
Price
$1,141.10
232A
HEPA Filter Kit for G0638 Dust Collector
Price
N/A
232AV2
HEPA FILTER KIT V2.07.20
Price
$5,808.10
270
COLLECTOR MOUNTING BRACKET V1
Price
$12.75
270V2
COLLECTOR MOUNTING BRACKET V2.07.20
Price
$23.60
BOX3
COMPLETE BOX 3 OF 4 FOR G0638HEP
Price
$2,221.80
