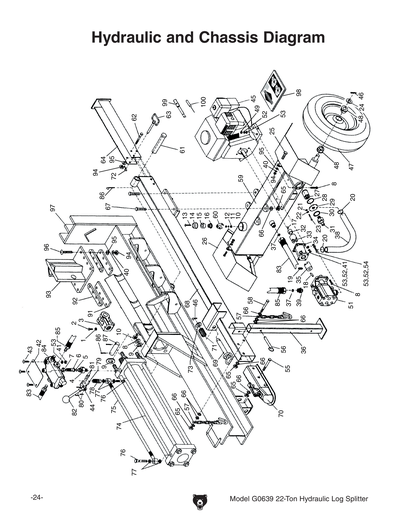

Parts for G0639 22 TON HYDRAULIC LOG SPLITTER

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: PN03M
HEX NUT M8-1.25
Price
N/A
2
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
3
*DISCD*PISTON ROD CONNECTOR
4
*DISCD*FRONT COVER CONNECTOR
Item is no longer available
Price
N/A
5
O-RING 14.8 X 2.4 P15
Price
N/A
6
*DISCD*VALVE JOINT
Item is no longer available
Price
N/A
7
*DISCD*FITTING NUT
Item is no longer available
Price
N/A
8
HEX BOLT M8-1.25 X 45
Price
N/A
9
*DISCD*ADJUSTMENT WASHER
Item is no longer available
Price
N/A
10
LOCK WASHER 4MM
Price
N/A
11
Now: PW05M
FLAT WASHER 4MM
Price
N/A
12
Now: PN04M
HEX NUT M4-.7
Price
N/A
13
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
14
*DISCD*OIL CAP
Item is no longer available
Price
N/A
15
*DISCD*SPONGE
Item is no longer available
Price
N/A
16
*DISCD*OIL CAP BUSHING
Item is no longer available
Price
N/A
17
*DISCD*FLAT KEY
Item is no longer available
Price
N/A
18
*DISCD*WOODRUFF KEY
Item is no longer available
Price
N/A
19
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
20
*DISCD*HOSE CLAMP 2"
21
Now: PW03M
FLAT WASHER 6MM
Price
N/A
22
LOCK WASHER 6MM
Price
N/A
24
Now: PW13M
FLAT WASHER 20MM
Price
N/A
25
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
26
*DISCD*FENDER
Item is no longer available
Price
N/A
27
*DISCD*FILTER
Item is no longer available
Price
N/A
28
*DISCD*GASKET
Item is no longer available
Price
N/A
29
*DISCD*HUB CAP
Item is no longer available
Price
N/A
30
*DISCD*COMBINATION WASHER 33MM
Item is no longer available
Price
N/A
31
*DISCD*CONNECTOR
Item is no longer available
Price
N/A
32
*DISCD*BUSHING
Item is no longer available
Price
N/A
33
*DISCD*DRIVE HUB A
Item is no longer available
Price
N/A
34
*DISCD*HOUSING
Item is no longer available
Price
N/A
35
*DISCD*DRIVEN HUB B
Item is no longer available
Price
N/A
36
*DISCD*SUPPORT LEG
Item is no longer available
Price
N/A
37
O-RING 11 X 2.4 P11.2
Price
N/A
38
*DISCD*SUCTION HOSE
Item is no longer available
Price
N/A
39
*DISCD*OUTLET CONNECTOR
Item is no longer available
Price
N/A
40
LOCK WASHER 10MM
Price
N/A
41
LOCK NUT M8-1.25
Price
N/A
42
*DISCD*PLATE
Item is no longer available
Price
N/A
43
*DISCD*DOME HD SCR M8-1.25 X 45
Item is no longer available
Price
N/A
44
*DISCD*VALVE HANDLE CONNECTOR
Item is no longer available
Price
N/A
45
*DISCD*BRIGGS & STRATTON ENGINE 6.5HP
Item is no longer available
Price
N/A
46
*DISCD*HAIRPIN COTTER PIN 4 X 40
Item is no longer available
Price
N/A
47
*DISCD*WHEEL W/TIRE 4.80/4.00-8
Item is no longer available
Price
N/A
48
*DISCD*AXLE BUSHING
Item is no longer available
Price
N/A
49
Now: PN03M
HEX NUT M8-1.25
Price
N/A
50
HEX BOLT M8-1.25 X 45
Price
N/A
51
*DISCD*HYDRAULIC PUMP
52
LOCK WASHER 8MM
Price
N/A
53
Now: PW01M
FLAT WASHER 8MM
Price
N/A
54
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
55
HEX BOLT M12-1.75 X 80
Price
N/A
56
*DISCD*LOCK PIN
Item is no longer available
Price
N/A
57
*DISCD*SAFETY CHAIN W/HOOK
Item is no longer available
Price
N/A
58
HEX BOLT M12-1.75 X 90
Price
N/A
59
*DISCD*SUB FRAME
Item is no longer available
Price
N/A
60
*DISCD*BREATHER CAP CLIP
Item is no longer available
Price
N/A
61
*DISCD*HINGE PIN
Item is no longer available
Price
N/A
62
Now: PB44M
HEX BOLT M10-1.5 X 75
Price
N/A
63
*DISCD*HITCH PIN
Item is no longer available
Price
N/A
64
*DISCD*REAR SUPPORT LEG
Item is no longer available
Price
N/A
65
LOCK NUT M12-1.75
Price
N/A
66
*DISCD*FLAT WASHER M12
Item is no longer available
Price
N/A
67
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
68
*DISCD*TOW BAR
Item is no longer available
Price
N/A
69
*DISCD*HITCH PIN
Item is no longer available
Price
N/A
70
*DISCD*BALL RECEIVER 2"
Item is no longer available
Price
N/A
71
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
72
*DISCD*HAIRPIN COTTER PIN 3 X 55
Item is no longer available
Price
N/A
73
Now: PW13M
FLAT WASHER 20MM
Price
N/A
74
*DISCD*HYDRAULIC CYLINDER ASSY
Item is no longer available
Price
N/A
74-1
*DISCD*COMPLETE SEAL AND O-RING KIT
75
*DISCD*TRANSFER TUBE
Item is no longer available
Price
N/A
76
*DISCD*BOLT CONNECTOR
Item is no longer available
Price
N/A
77
*DISCD*SEALWASHER
Item is no longer available
Price
N/A
78
*DISCD*VALVE JOINER
Item is no longer available
Price
N/A
79
*DISCD*CLEVIS PIN 5 X 18
Item is no longer available
Price
N/A
80
*DISCD*ROLL PIN 2 X 10
Item is no longer available
Price
N/A
81
*DISCD*CLEVIS PIN 5 X 28
Item is no longer available
Price
N/A
82
*DISCD*VALVE HANDLE
83
*DISCD*RETURN HOSE
Item is no longer available
Price
N/A
84
*DISCD*CONTROL VALVE ASSY
Item is no longer available
Price
N/A
85
*DISCD*PRESSURE HOSE
Item is no longer available
Price
N/A
86
*DISCD*HAIRPIN COTTER PIN 4 X 40
Price
N/A
87
*DISCD*WEDGE PIN
Item is no longer available
Price
N/A
88
Now: PN29M
HEX NUT M18-2.5
Price
N/A
89
Now: PW18M
FLAT WASHER 18MM
Price
N/A
90
LOCK WASHER 18MM
Price
N/A
91
*DISCD*KEEPER PLATE
Item is no longer available
Price
N/A
92
*DISCD*KEEPER SPACER
Item is no longer available
Price
N/A
93
*DISCD*WEDGE SLIDE
94
*DISCD*HIGH NUT M10-1.5
Item is no longer available
Price
N/A
95
Now: PW06M
FLAT WASHER 12MM
Price
N/A
96
*DISCD*DOME HEAD BOLT M12-1.5 X 55
97
*DISCD*BEAM W/FOOT
Item is no longer available
Price
N/A
97-1
*DISCD*SAFETY CHAIN
Item is no longer available
Price
N/A
98
*DISCD*ENGINE OWNERS MANUAL
Item is no longer available
Price
N/A
99
*DISCD*SPARK PLUG SOCKET WRENCH
Item is no longer available
Price
N/A
100
*DISCD*SOCKET WRENCH HANDLE
Item is no longer available
Price
N/A

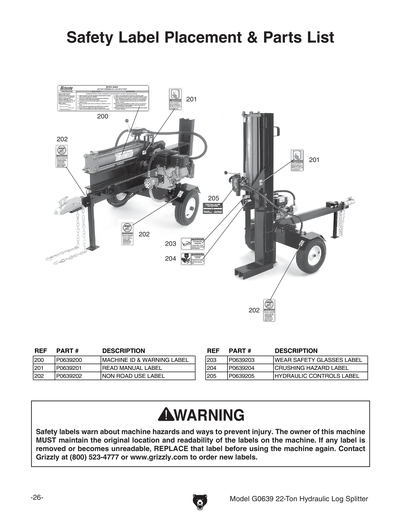

200
*DISCD*MACHINE ID & WARNING LABEL
Item is no longer available
Price
N/A
201
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
202
*DISCD*NON ROAD USE LABEL
Item is no longer available
Price
N/A
203
SAFETY GLASSES 2.8W X 1.5H
Price
N/A
204
*DISCD*CRUSHING HAZARD LABEL
Item is no longer available
Price
N/A
205
*DISCD*HYDRAULIC CONTROLS LABEL
Item is no longer available
Price
N/A
MAN
*DISCD*MANUAL FOR G0639 10/07
Item is no longer available
Price
N/A
