Parts for G0643 - 21 Bit Line Boring Machine

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty

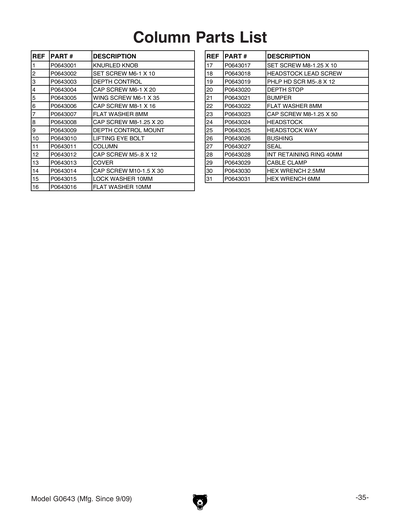

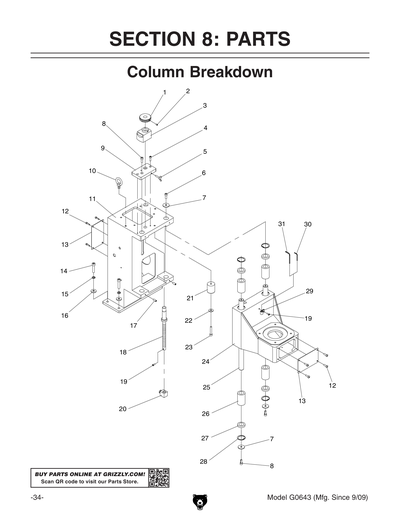

1 P0643001 KNURLED KNOB $11.00
2 P0643002
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
3 P0643003 DEPTH CONTROL $85.75
4 P0643004
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
5 P0643005 WING SCREW M6-1 X 35 $1.00
6 P0643006
Replaced By PCAP11M
CAP SCREW M8-1.25 X 16
N/A View Replacement
7 P0643007
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
8 P0643008
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
9 P0643009 DEPTH CONTROL MOUNT $53.50
10 P0643010 LIFTING EYE BOLT $1.75
11 P0643011 COLUMN $486.50
12 P0643012
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
13 P0643013 COVER $8.00
14 P0643014
Replaced By PCAP72M
CAP SCREW M10-1.5 X 30
N/A View Replacement
15 P0643015
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
16 P0643016
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
17 P0643017
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
18 P0643018 HEADSTOCK LEADSCREW $30.00
19 P0643019
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
20 P0643020 DEPTH STOP $15.00
21 P0643021 BUMPER $5.75
22 P0643022
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
23 P0643023
Replaced By PCAP05M
CAP SCREW M8-1.25 X 50
N/A View Replacement
24 P0643024 HEADSTOCK $678.00
25 P0643025 HEADSTOCK WAY $62.75
26 P0643026 BUSHING $16.75
27 P0643027 SEAL $1.00
28 P0643028
Replaced By PR23M
INT RETAINING RING 40MM
N/A View Replacement
29 P0643029 CABLE CLAMP $1.00
30 P0643030
Replaced By PAW02.5M
N/A View Replacement
31 P0643031
Replaced By PAW06M
HEX WRENCH 6MM
N/A View Replacement

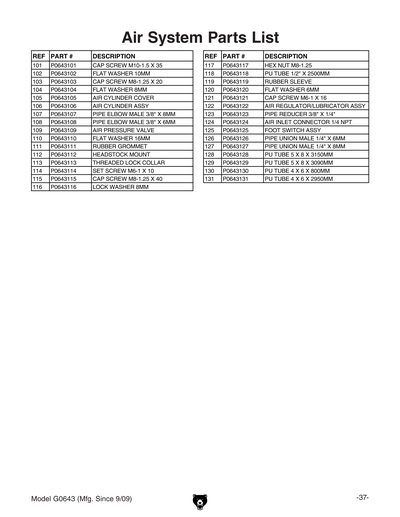

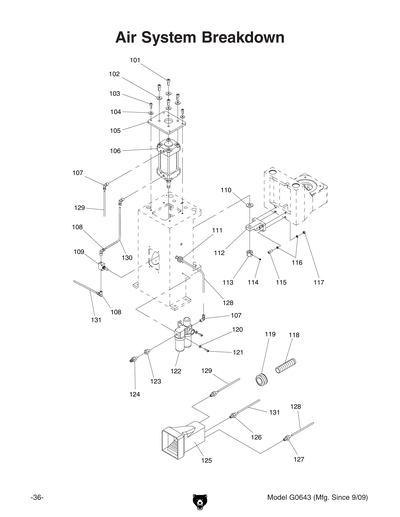

101 P0643101
Replaced By PCAP84M
CAP SCREW M10-1.5 X 35
N/A View Replacement
102 P0643102
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
103 P0643103
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
104 P0643104
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
105 P0643105 AIR CYLINDER COVER $40.75
106 P0643106 AIR CYLINDER ASSY $385.75
107 P0643107 PIPE ELBOW MALE 3/8" X 8MM $4.25
108 P0643108 PIPE ELBOW MALE 3/8" X 6MM $3.25
109 P0643109 AIR PRESSURE VALVE $14.25
110 P0643110
Replaced By PW08M
FLAT WASHER 16MM
N/A View Replacement
111 P0643111 RUBBER GROMMET $1.00
112 P0643112 HEADSTOCK MOUNT $88.50
113 P0643113 THREADED LOCK COLLAR $8.75
114 P0643114
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
115 P0643115
Replaced By PCAP12M
CAP SCREW M8-1.25 X 40
N/A View Replacement
116 P0643116
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
117 P0643117
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
118 P0643118 PU TUBE 1/2" X 2500MM $16.75
119 P0643119 RUBBER SLEEVE $1.00
120 P0643120
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
121 P0643121
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
122 P0643122 AIR REGULATOR/LUBRICATOR ASSY $121.25
123 P0643123 PIPE REDUCER 3/8 X 1/4" $3.00
124 P0643124 AIR INLET CONNECTOR 1/4 NPT $3.00
125 P0643125 FOOT SWITCH ASSY $130.00
126 P0643126 PIPE UNION MALE 1/4" X 6MM $3.00
127 P0643127 PIPE UNION MALE 1/4" X 8MM $3.50
128 P0643128 PU TUBE 5 X 8 X 3150MM $3.75
129 P0643129 PU TUBE 5 X 8 X 3090MM $3.75
130 P0643130 PU TUBE 4 X 6 X 800MM $1.00
131 P0643131 PU TUBE 4 X 6 X 2950MM $2.75

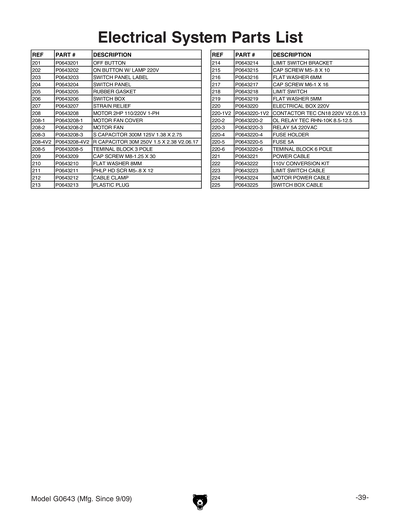

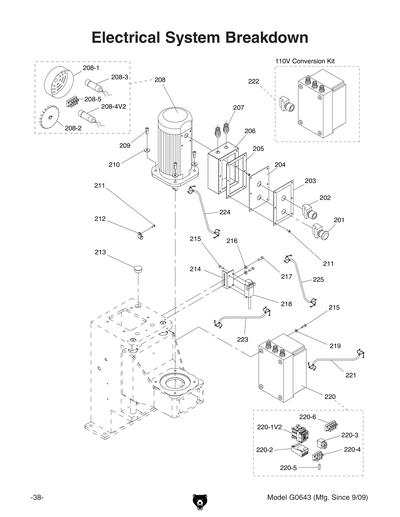

201 P0643201 OFF BUTTON $22.75
202 P0643202 ON BUTTON W/LAMP 220V $25.00
203 P0643203 SWITCH PANEL LABEL $1.00
204 P0643204 SWITCH PANEL $15.00
205 P0643205 RUBBER GASKET $1.00
206 P0643206 SWITCH BOX $51.75
207 P0643207
Replaced By P0642033
STRAIN RELIEF PG11 TYPE-6 ST
N/A View Replacement
208 P0643208 MOTOR 2HP 110V/220V 1-PH $449.00
208-1 P0643208-1 MOTOR FAN COVER $15.00
208-2 P0643208-2 MOTOR FAN $7.50
208-3 P0643208-3
Replaced By P0642035-1
S CAPACITOR 300M 125V 1-3/8 X 2-5/8
N/A View Replacement
208-4 P0643208-4
Replaced By PC050D
R CAPACITOR 50M 250V 1-1/2 X 2-3/8
N/A View Replacement
208-5 P0643208-5 TEMINAL BLOCK 3 POLE $3.50
209 P0643209
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
N/A View Replacement
210 P0643210
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
211 P0643211
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
212 P0643212 CABLE CLAMP $1.00
213 P0643213 PLUG PLASTIC $1.00
214 P0643214 LIMIT SWITCH BRACKET $17.75
215 P0643215
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
216 P0643216
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
217 P0643217
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
218 P0643218 LIMIT SWITCH $104.00
219 P0643219
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
220 P0643220 ELECTRICAL BOX 220V $372.00
220-1 P0643220-1
Replaced By P4668003V2
CONTACTOR TECO CU-18 220V V2.05.08
N/A View Replacement
220-2 P0643220-2
Replaced By P4668003V2
CONTACTOR TECO CU-18 220V V2.05.08
N/A View Replacement
220-3 P0643220-3 RELAY 220V 5A $36.00
220-4 P0643220-4 FUSE HOLDER $3.50
220-5 P0643220-5 FUSE 5A $1.00
220-6 P0643220-6 TEMINAL BLOCK 6 POLE $5.25
221 P0643221 POWER CABLE $17.25
222 P0643222
Replaced By T25512
110V Conversion Kit for G0643
N/A View Replacement
223 P0643223 LIMIT SWITCH CABLE $1.00
224 P0643224 MOTOR POWER CABLE $14.25
225 P0643225 SWITCH BOX CABLE $17.25

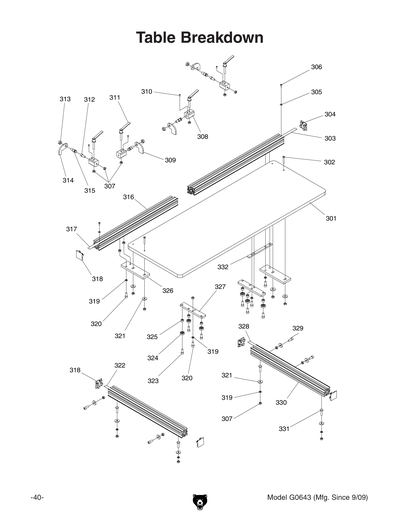

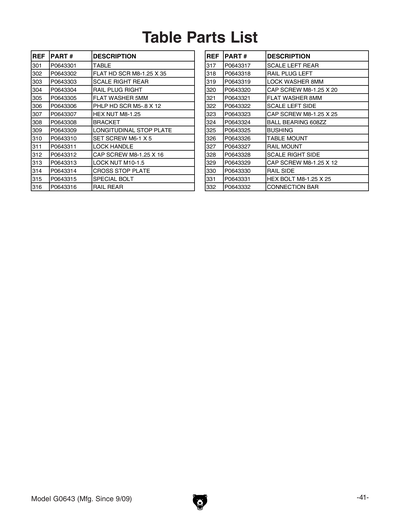

301 P0643301 TABLE $118.25
302 P0643302
Replaced By PFH36M
FLAT HD SCR M8-1.25 X 35
N/A View Replacement
303 P0643303 SCALE RIGHT REAR $9.75
304 P0643304 RAIL PLUG RIGHT $10.25
305 P0643305
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
306 P0643306
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
307 P0643307
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
308 P0643308 BRACKET $74.75
309 P0643309 LONGITUDINAL STOP PLATE $10.25
310 P0643310
Replaced By PSS99M
SET SCREW M6-1 X 5
N/A View Replacement
311 P0643311 LOCK HANDLE $8.50
312 P0643312
Replaced By PCAP11M
CAP SCREW M8-1.25 X 16
N/A View Replacement
313 P0643313
Replaced By PLN05M
LOCK NUT M10-1.5
N/A View Replacement
314 P0643314 CROSS STOP PLATE $8.75
315 P0643315 CROSS STOP PLATE BOLT $8.75
316 P0643316 RAIL REAR $185.25
317 P0643317 SCALE LEFT REAR $11.00
318 P0643318 RAIL PLUG LEFT $10.25
319 P0643319
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
320 P0643320
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
321 P0643321
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
322 P0643322 SCALE LEFT SIDE $6.25
323 P0643323
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
324 P0643324
Replaced By G3845
Bearing - 22mm x 8mm
N/A View Replacement
325 P0643325 BUSHING $4.00
326 P0643326 TABLE MOUNT $51.75
327 P0643327 RAIL MOUNT $14.25
328 P0643328 SCALE RIGHT SIDE $9.75
329 P0643329
Replaced By PCAP58M
CAP SCREW M8-1.25 X 12
N/A View Replacement
330 P0643330 RAIL SIDE $53.50
331 P0643331
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
332 P0643332 CONNECTION BAR $17.25

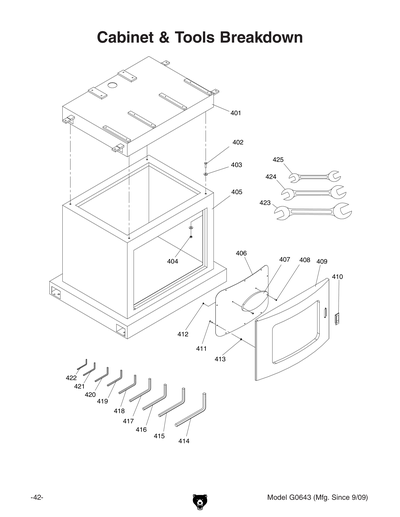

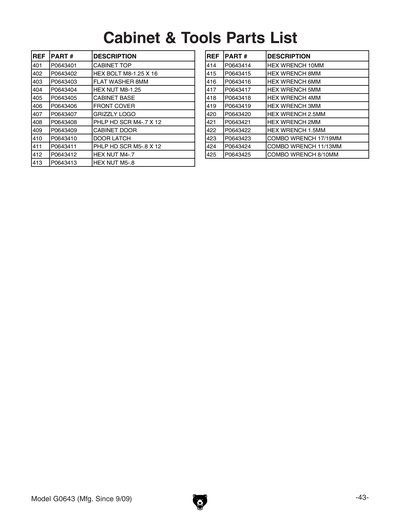

401 P0643401 CABINET TOP $620.50
402 P0643402
Replaced By PB03M
HEX BOLT M8-1.25 X 16
N/A View Replacement
403 P0643403
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
404 P0643404
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
405 P0643405 CABINET BASE $754.50
406 P0643406 COVER FRONT $54.50
407 P0643407 GRIZZLY LOGO $2.50
408 P0643408
Replaced By PS02M
PHLP HD SCR M4-.7 X 12
N/A View Replacement
409 P0643409 CABINET DOOR $316.75
410 P0643410 DOOR LATCH $6.25
411 P0643411
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
412 P0643412
Replaced By PN04M
HEX NUT M4-.7
N/A View Replacement
413 P0643413
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
414 P0643414
Replaced By PAW10M
HEX WRENCH 10MM
N/A View Replacement
415 P0643415
Replaced By PAW08M
HEX WRENCH 8MM
N/A View Replacement
416 P0643416
Replaced By PAW06M
HEX WRENCH 6MM
N/A View Replacement
417 P0643417
Replaced By PAW05M
HEX WRENCH 5MM
N/A View Replacement
418 P0643418
Replaced By PAW04M
HEX WRENCH 4MM
N/A View Replacement
419 P0643419
Replaced By PAW03M
HEX WRENCH 3MM
N/A View Replacement
420 P0643420
Replaced By PAW02.5M
N/A View Replacement
421 P0643421
Replaced By PAW02M
HEX WRENCH 2MM
N/A View Replacement
422 P0643422
Replaced By PAW01.5M
N/A View Replacement
423 P0643423
Replaced By PWR1719
WRENCH 17 X 19MM OPEN-ENDS
N/A View Replacement
424 P0643424
Replaced By PWR1214
WRENCH 12 X 14MM OPEN-ENDS
N/A View Replacement
425 P0643425
Replaced By PWR810
WRENCH 8 X 10MM OPEN-ENDS
N/A View Replacement

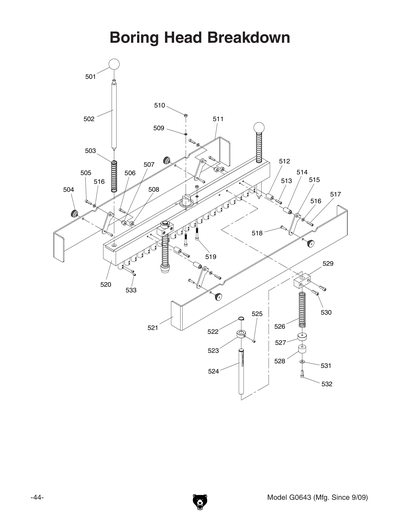

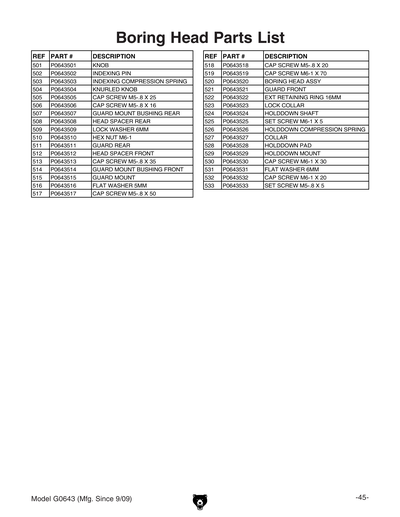

501 P0643501 KNOB $1.00
502 P0643502 INDEXING PIN $12.25
503 P0643503 INDEXING COMPRESSION SPRING $3.50
504 P0643504 KNURLED KNOB $12.00
505 P0643505
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
N/A View Replacement
506 P0643506
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
N/A View Replacement
507 P0643507 GUARD MOUNT BUSHING REAR $3.50
508 P0643508 HEAD SPACER REAR $3.00
509 P0643509
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
510 P0643510
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
511 P0643511 GUARD REAR $44.75
512 P0643512 HEAD SPACER FRONT $3.50
513 P0643513
Replaced By PCAP79M
CAP SCREW M5-.8 X 35
N/A View Replacement
514 P0643514 GUARD MOUNT BUSHING FRONT $5.75
515 P0643515 GUARD MOUNT $9.25
516 P0643516
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
517 P0643517
Replaced By PCAP109M
CAP SCREW M5-.8 X 50
N/A View Replacement
518 P0643518
Replaced By PCAP15M
CAP SCREW M5-.8 X 20
N/A View Replacement
519 P0643519
Replaced By PCAP167M
CAP SCREW M6-1 X 70
N/A View Replacement
520 P0643520 BORING HEAD ASSY $1,987.00
521 P0643521 GUARD FRONT $44.75
522 P0643522
Replaced By PR06M
EXT RETAINING RING 16MM
N/A View Replacement
523 P0643523 LOCK COLLAR $6.25
524 P0643524 HOLD DOWN SHAFT $8.00
525 P0643525
Replaced By PSS99M
SET SCREW M6-1 X 5
N/A View Replacement
526 P0643526 HOLD DOWN COMPRESSION SPRING $4.50
527 P0643527 COLLAR $6.25
528 P0643528 HOLD DOWN PAD $2.25
529 P0643529 HOLD DOWN MOUNT $16.75
530 P0643530
Replaced By PCAP07M
CAP SCREW M6-1 X 30
N/A View Replacement
531 P0643531
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
532 P0643532
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
533 P0643533
Replaced By PSS07M
SET SCREW M5-.8 X 5
N/A View Replacement

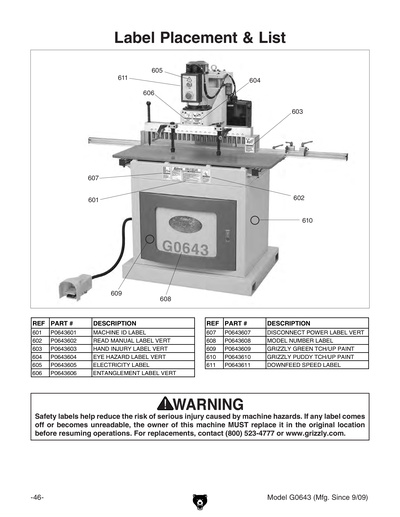

601 P0643601 MACHINE ID LABEL $9.50
602 P0643602
Replaced By PLABEL-12
***USE PLABEL-12A***
N/A View Replacement
603 P0643603 HAND INJURY LABEL VERT $1.00
604 P0643604
Replaced By PLABEL-11
SAFETY GLASSES 2W X 3.3H V1
N/A View Replacement
605 P0643605
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
606 P0643606 ENTANGLEMENT VERT LABEL $1.00
607 P0643607 DISCONNECT POWER LABEL VERT $1.00
608 P0643608 MODEL NUMBER LABEL $1.00
609 P0643609
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
610 P0643610
Replaced By PPAINT-11
GREY PUTTY REF G0504
N/A View Replacement
611 P0643611 DOWNFEED SPEED LABEL $1.00
MAN P0643MAN MANUAL FOR G0643 11/07 $12.50
