Parts for G0645 - 1/2 HP Benchtop Mortising Machine

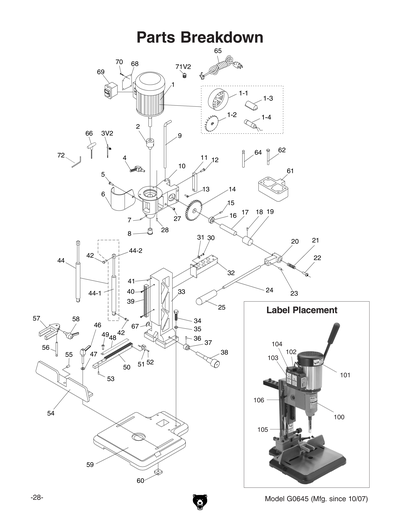

Part Diagram for G0645
Part Diagram for G0645
Part Diagram for G0645
Part Diagram for G0645

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

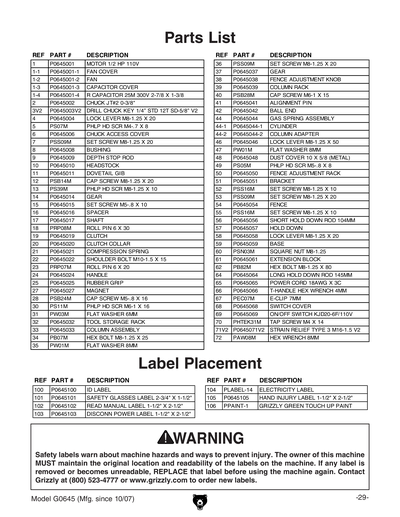

Ref #
Part #
Description
1
***SEE EXT. DESCRIPTION
Price
$90.50
1-1
*DISCD*FAN COVER
Item is no longer available
Price
N/A
1-2
FAN
Price
$2.90
1-3
CAPACITOR COVER
Price
$2.90
1-4
R CAPACITOR 30M 250V 1-3/8 X 2-7/8
Price
$14.10
1V2
MOTOR 1/2HP 110V 1-PH V2.03.17
Price
$268.15
1V2-1
FAN COVER
Price
$6.50
1V2-2
FAN
Price
$2.90
1V2-3
R CAPACITOR 45M 300V 1-3/8 X 2-7/8
Price
$14.10
1V2-4
BALL BEARING 6202ZZ
Price
N/A
1V2-5
BALL BEARING 6203ZZ
Price
N/A
2
CHUCK JT#2 3/8"
Price
$23.40
3
CHUCK KEY/HEX WRENCH 4MM V1
Price
$3.65
3V2
DRILL CHUCK KEY 1/4 STD 12T SD-5/8" V2
Price
$2.90
4
LOCK LEVER M8-1.25 X 20
Price
$6.65
5
PHLP HD SCR M4-.7 X 8
Price
N/A
6
CHUCK ACCESS COVER
Price
$11.50
7
SET SCREW M8-1.25 X 20
Price
N/A
8
BUSHING
Price
$6.15
9
DEPTH STOP ROD
Price
$5.75
10
HEADSTOCK
Price
$89.15
11
DOVETAIL GIB
Price
$14.40
12
CAP SCREW M8-1.25 X 20
Price
N/A
13
PHLP HD SCR M8-1.25 X 10
Price
N/A
14
GEAR
Price
$17.25
15
SET SCREW M5-.8 X 10
Price
$1.90
16
SPACER
Price
$2.90
17
SHAFT
Price
$10.45
18
ROLL PIN 6 X 30
Price
N/A
19
CLUTCH
Price
$8.65
20
CLUTCH COLLAR
Price
$15.85
21
COMPRESSION SPRING
Price
$2.25
22
SHOULDER BOLT M10-1.5 X 15
Price
$3.25
23
ROLL PIN 6 X 20
Price
N/A
24
HANDLE
Price
$10.45
25
RUBBER GRIP
Price
$4.35
27
MAGNET
Price
$5.45
28
CAP SCREW M5-.8 X 16
Price
N/A
30
PHLP HD SCR M6-1 X 16
Price
N/A
32
TOOL STORAGE RACK
Price
$3.65
33
COLUMN ASSEMBLY
Price
$94.90
34
HEX BOLT M8-1.25 X 25
Price
N/A
35
FLAT WASHER 8MM
Price
N/A
36
SET SCREW M8-1.25 X 20
Price
N/A
37
GEAR
Price
$5.45
38
FENCE ADJUSTMENT KNOB
Price
$3.65
39
COLUMN RACK
Price
$17.25
40
CAP SCREW M6-1 X 15
Price
N/A
41
ROLL PIN 6 X 25
Price
N/A
42
BALL END
Price
$1.90
44
GAS SPRING ASSY
Price
$24.85
44-1
CYLINDER
Price
$17.90
44-2
COLUMN ADAPTER
Price
$2.25
46
LOCK LEVER M8-1.25 X 50
Price
$4.35
47
FLAT WASHER 8MM
Price
N/A
48
DUST COVER 10 X 5/8 (METAL)
Price
$2.60
49
PHLP HD SCR M5-.8 X 8
Price
N/A
50
FENCE ADJUSTMENT RACK
Price
$10.85
51
BRACKET
Price
$5.45
52
SET SCREW M8-1.25 X 10
Price
N/A
53
SET SCREW M8-1.25 X 20
Price
N/A
54
FENCE
Price
$40.25
55
SET SCREW M8-1.25 X 10
Price
N/A
56
SHORT HOLD DOWN ROD 104MM
Price
$2.90
57
HOLD DOWN
Price
$10.45
58
LOCK LEVER M8-1.25 X 20
Price
$4.35
59
BASE
Price
$160.70
61
EXTENSION BLOCK
Price
$37.75
62
HEX BOLT M8-1.25 X 80
Price
N/A
64
LONG HOLD DOWN ROD 145MM
Price
$8.65
65
POWER CORD 18AWG X 3C
Price
$14.75
66
WRENCH T-HANDLE HEX 4MM
Price
$4.35
67
E-CLIP 7MM
Price
N/A
68
SWITCH COVER
Price
$1.90
69
ON/OFF SWITCH KJD6-6F/2 110V
Price
$11.20
70
TAP SCREW M4 X 14
Price
N/A
71
STRAIN RELIEF V1
Price
$1.90
71V2
STRAIN RELIEF TYPE 3 M16-1.5 V2
Price
$1.90
100
ID LABEL
Price
$1.25
101
SAFETY GLASSES 2.75W X 1.5H
Price
$1.49
102
READ MANUAL LABEL 1-1/2 X 2-1/2"
Price
$6.25
103
DISCONNECT POWER LABEL 1-1/2" X 2-1/2"
Price
$1.25
104
ELECTRICITY 1.4W X 1.2H
Price
N/A
105
HAND INJURY LABEL 1-1/2 X 2-1/2"
Price
$1.25
106
N/S GRIZZLY GREEN G1023S
Price
N/A
200
COMPLETE CHISEL & DRILL BIT SET
Price
$86.25
201
CHISEL 1/4" W/ 5/8" SHANK
Price
$8.65
202
CHISEL 5/16" W/5/8" SHANK
Price
$14.40
203
CHISEL 3/8" W/5/8" SHANK
Price
$11.50
204
CHISEL 1/2" W/5/8" SHANK
Price
$19.10
205
DRILL BIT 1/4"
Price
$8.65
206
DRILL BIT 5/16"
Price
$8.65
207
DRILL BIT 3/8"
Price
$11.50
208
DRILL BIT 1/2"
Price
$14.40
MANUAL
MANUAL FOR G0645 11/07
Price
$11.50
