Parts for G0654 - 6" x 46" Jointer

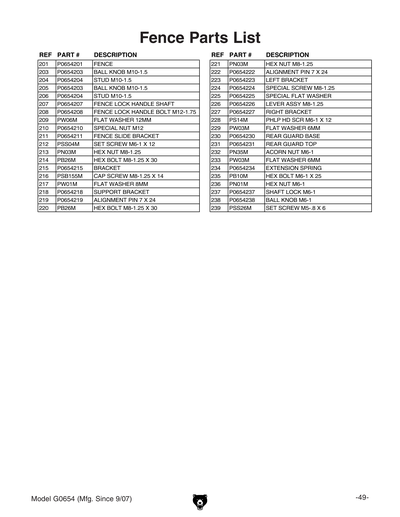

Part Diagram for G0654

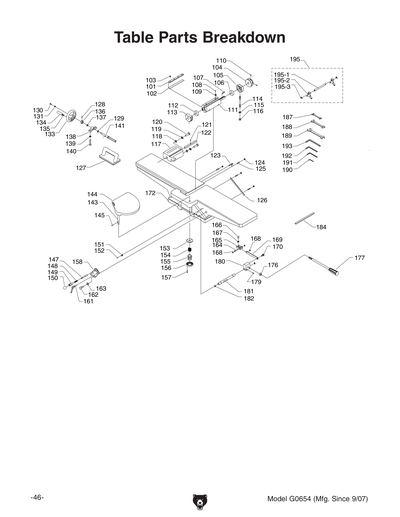

Part Diagram for G0654

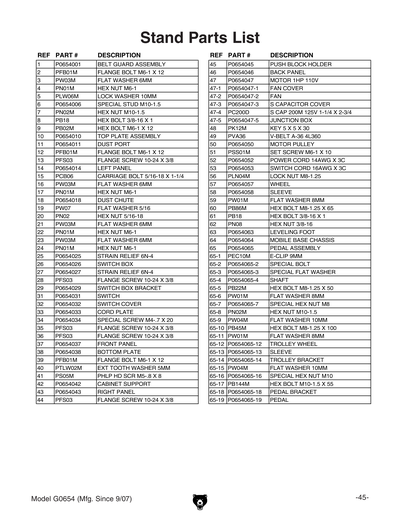

Part Diagram for G0654

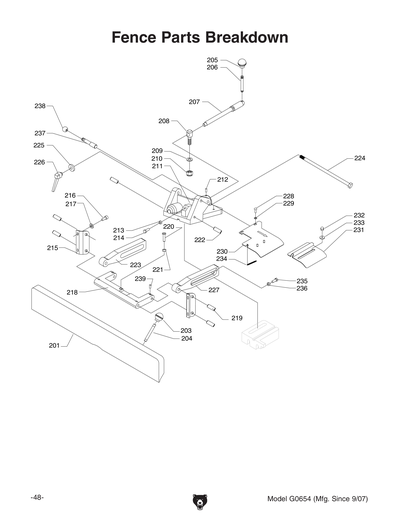

Part Diagram for G0654

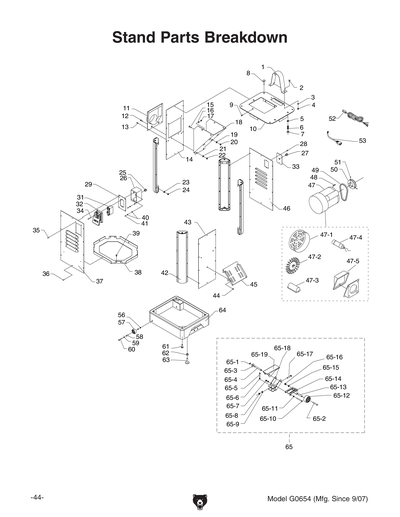

Part Diagram for G0654

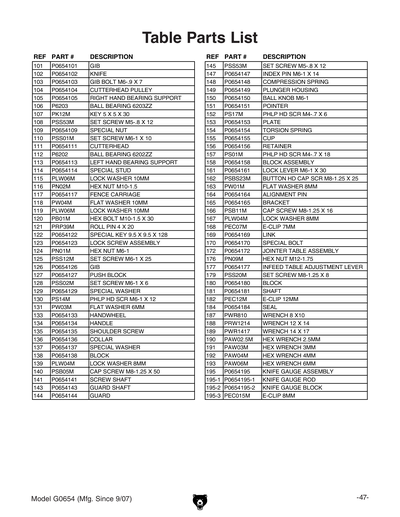

Part Diagram for G0654

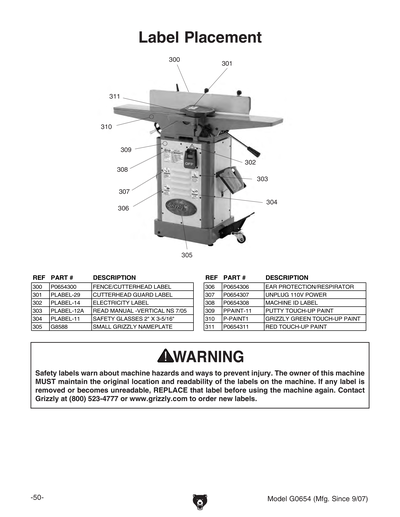

Part Diagram for G0654
Part Diagram for G0654
Part Diagram for G0654
Part Diagram for G0654
Part Diagram for G0654
Part Diagram for G0654
Part Diagram for G0654
Part Diagram for G0654

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BELT GUARD ASSEMBLY
Price
$6.50
2
FLANGE BOLT M6-1 X 12
Price
N/A
3
FLAT WASHER 6MM
Price
N/A
4
HEX NUT M6-1
Price
N/A
5
LOCK WASHER 10MM
Price
N/A
6
STUD-FT M10-1.5 X 40
Price
$1.49
7
HEX NUT M10-1.5
Price
N/A
8
P0654008
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
9
HEX BOLT M6-1 X 12
Price
N/A
10
PLATE TOP ASSY
Price
$33.45
11
DUST PORT
Price
$9.40
12
FLANGE BOLT M6-1 X 12
Price
N/A
13
FLANGE SCREW 10-24 X 3/8
Price
N/A
14
PANEL LEFT
Price
$11.50
15
CARRIAGE BOLT 5/16-18 X 1-1/4
Price
N/A
16
FLAT WASHER 6MM
Price
N/A
17
HEX NUT M6-1
Price
N/A
18
*DISCD*DUST CHUTE
Item is no longer available
Price
N/A
19
P0654019
Now: PW07
FLAT WASHER 5/16
Price
N/A
20
P0654020
Now: PN02
HEX NUT 5/16-18
Price
N/A
21
FLAT WASHER 6MM
Price
N/A
22
HEX NUT M6-1
Price
N/A
23
FLAT WASHER 6MM
Price
N/A
24
HEX NUT M6-1
Price
N/A
25
STRAIN RELIEF M13 TYPE-1 SNAP-IN
Price
$1.90
26
SWITCH BOX
Price
$7.60
27
STRAIN RELIEF M13.5 TYPE-1 SNAP-IN
Price
N/A
28
FLANGE SCREW 10-24 X 3/8
Price
N/A
29
*DISCD*SWITCH BOX BRACKET
Item is no longer available
Price
N/A
30
SWITCH COVER SCREW M4-.7 X 20
Price
N/A
31
SWITCH
Price
$23.90
31A
Paddle Switch 120/230V
Price
N/A
32
SWITCH COVER
Price
$16.20
33
CORD PLATE
Price
$2.90
34
SWITCH COVER SCREW M4-.7 X 20
Price
$1.75
35
FLANGE SCREW 10-24 X 3/8
Price
N/A
36
FLANGE SCREW 10-24 X 3/8
Price
N/A
37
PANEL FRONT
Price
$24.45
38
BOTTOM PLATE
Price
$24.45
39
FLANGE BOLT M6-1 X 12
Price
N/A
40
EXT TOOTH WASHER 5MM
Price
N/A
41
PHLP HD SCR M5-.8 X 8
Price
N/A
42
CABINET SUPPORT
Price
$19.00
43
PANEL RIGHT
Item is no longer available
Price
N/A
44
FLANGE SCREW 10-24 X 3/8
Price
N/A
45
PUSH BLOCK HOLDER
Price
$6.50
46
BACK PANEL
Price
$30.60
47
MOTOR 1HP 120V 1-PH
Item is no longer available
Price
N/A
47-1
FAN COVER
Price
$5.20
47-2
*DISCD*FAN
Item is no longer available
Price
N/A
47-3
S CAPACITOR COVER
Price
$1.49
47-4
Price
N/A
47-5
JUNCTION BOX
Item is no longer available
Price
N/A
48
KEY 5 X 5 X 30
Price
N/A
49
V-BELT A36
Price
N/A
50
MOTOR PULLEY
Price
N/A
51
SET SCREW M6-1 X 10
Price
N/A
52
*DISCD*POWER CORD 14AWG X 3C
Item is no longer available
Price
N/A
53
SWITCH CORD 16AWG X 3C
Price
$6.90
56
LOCK NUT M8-1.25
Price
N/A
57
WHEEL
Price
$9.00
58
SLEEVE
Price
$1.90
59
FLAT WASHER 8MM
Price
N/A
60
HEX BOLT M8-1.25 X 65
Price
N/A
61
P0654061
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
62
P0654062
Now: PN08
HEX NUT 3/8-16
Price
N/A
63
*DISCD*LEVELING FOOT
Price
$2.60
64
MOBILE BASE CHASSIS
Item is no longer available
Price
N/A
65
PEDAL ASSEMBLY
Price
N/A
65-1
E-CLIP 9MM
Price
N/A
65-10
HEX BOLT M8-1.25 X 100
Price
N/A
65-11
FLAT WASHER 8MM
Price
N/A
65-12
TROLLEY WHEEL
Item is no longer available
Price
N/A
65-13
SLEEVE
Item is no longer available
Price
N/A
65-14
TROLLEY BRACKET
Item is no longer available
Price
N/A
65-15
FLAT WASHER 10MM
Price
N/A
65-16
PEDAL HEX NUT M10
Item is no longer available
Price
N/A
65-17
HEX BOLT M10-1.5 X 55
Price
N/A
65-18
BRACKET
Price
N/A
65-19
PEDAL
Item is no longer available
Price
N/A
65-2
PEDAL BOLT M10-1.5 X 68
Item is no longer available
Price
N/A
65-3
PEDAL FLAT WASHER 13 X 30 X 3
Item is no longer available
Price
N/A
65-4
SHAFT 12.7 X 100
Item is no longer available
Price
N/A
65-5
HEX BOLT M8-1.25 X 50
Price
N/A
65-6
FLAT WASHER 8MM
Price
N/A
65-7
PEDAL HEX NUT M8-1.25
Item is no longer available
Price
N/A
65-8
HEX NUT M10-1.5
Price
N/A
65-9
FLAT WASHER 10MM
Price
N/A
101
GIB
Price
$2.60
102
KNIFE
Price
$11.20
103
GIB BOLT M6-.9 X 7
Price
N/A
104
*DISCD*CUTTERHEAD PULLEY
Item is no longer available
Price
N/A
105
BEARING SUPPORT RH
Price
$4.70
106
BALL BEARING 6203ZZ
Price
N/A
107
KEY 5 X 5 X 30
Price
N/A
108
SET SCREW M5-.8 X 12
Price
N/A
109
CUTTERHEAD NUT M5-0.8
Price
$2.70
110
SET SCREW M6-1 X 10
Price
N/A
111
CUTTERHEAD 6" 3-KNIFE
Price
N/A
112
BALL BEARING 6202ZZ
Price
N/A
113
BEARING SUPPORT LH
Price
$5.75
114
STUD-DE M10-1.5 X 100 25
Price
$1.90
115
LOCK WASHER 10MM
Price
N/A
116
HEX NUT M10-1.5
Price
N/A
117
FENCE CARRIAGE
Price
$25.20
118
FLAT WASHER 10MM
Price
N/A
119
LOCK WASHER 10MM
Price
N/A
120
HEX BOLT M10-1.5 X 30
Price
N/A
121
ROLL PIN 4 X 20
Price
N/A
122
FENCE CARRIAGE KEY 9.5 X 9.5 X 128
Item is no longer available
Price
N/A
123
LOCK SCREW ASSY
Item is no longer available
Price
N/A
124
HEX NUT M6-1
Price
N/A
125
SET SCREW M6-1 X 25
Price
N/A
126
GIB
Item is no longer available
Price
N/A
127
Safety Push Block - Small
Price
N/A
128
SET SCREW M6-1 X 6
Price
N/A
129
SCREW SHAFT WASHER
Price
$1.90
130
PHLP HD SCR M6-1 X 12
Price
N/A
131
FLAT WASHER 6MM
Price
N/A
133
HANDWHEEL
Price
$12.65
134
HANDLE
Price
$2.90
135
SHOULDER SCREW
Price
$6.15
136
COLLAR 11 X 22 X 12
Price
N/A
137
HANDWHEEL WASHER
Price
$1.90
138
LEADSCREW BRACKET
Price
N/A
139
LOCK WASHER 8MM
Price
N/A
140
CAP SCREW M8-1.25 X 50
Price
N/A
141
SCREW SHAFT
Price
N/A
143
POST W/SLOT
Price
N/A
144
GUARD
Price
$30.60
145
SET SCREW M5-.8 X 12
Price
N/A
147
INDEX PIN M6-1 X 14
Price
$1.90
148
COMPRESSION SPRING
Item is no longer available
Price
N/A
149
PLUNGER HOUSING
Price
$1.90
150
BALL KNOB M6-1
Price
$1.90
151
POINTER
Item is no longer available
Price
N/A
152
PHLP HD SCR M4-.7 X 6
Price
N/A
153
PLATE
Price
$1.90
154
TORSION SPRING 22.2 X 24.4 X 1.6
Price
N/A
155
CUP
Price
$3.25
156
RETAINER
Price
N/A
157
PHLP HD SCR M4-.7 X 18
Price
N/A
158
BLOCK ASSEMBLY
Price
$2.60
158-1
*DISCD*RIVET 2 X 4MM
Item is no longer available
Price
N/A
158-2
*DISCD*DEPTH SCALE
Item is no longer available
Price
N/A
161
LOCK LEVER M6-1 X 30
Price
$3.25
162
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
163
FLAT WASHER 8MM
Price
N/A
164
ALIGNMENT PIN
Item is no longer available
Price
N/A
165
BRACKET
Item is no longer available
Price
N/A
166
CAP SCREW M8-1.25 X 16
Price
N/A
167
LOCK WASHER 8MM
Price
N/A
168
E-CLIP 7MM
Price
N/A
169
LINK
Price
$3.25
170
LINK BOLT
Item is no longer available
Price
N/A
172
*DISCD*JOINTER TABLE ASSY
Item is no longer available
Price
N/A
176
HEX NUT M12-1.75
Price
N/A
177
*DISCD*INFEED TABLE ADJUSTMENT LEVER
Item is no longer available
Price
N/A
179
SET SCREW M8-1.25 X 8
Price
N/A
180
BLOCK
Price
$2.60
181
SHAFT
Price
$2.60
182
E-CLIP 12MM
Price
N/A
184
SEAL
Item is no longer available
Price
N/A
185
CHIP DEFLECTOR
Item is no longer available
Price
N/A
187
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
188
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
189
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
190
HEX WRENCH 2.5MM
Price
N/A
191
HEX WRENCH 3MM
Price
N/A
192
HEX WRENCH 4MM
Price
N/A
193
HEX WRENCH 6MM
Price
N/A
195
KNIFE GAUGE ASSY
Price
$5.75
195-1
KNIFE GAUGE ROD
Price
$4.70
195-2
KNIFE GAUGE BLOCK
Price
$2.20
195-3
E-CLIP 8MM
Price
N/A
201
FENCE
Price
$94.60
203
BALL KNOB M10-1.5
Price
N/A
204
STUD-UDE M10-1.5 X 81 10RH / 15RH
Price
$1.90
205
BALL KNOB M10-1.5
Price
N/A
206
STUD-UDE M10-1.5 X 81 10RH / 15RH
Price
N/A
207
*DISCD*FENCE LOCK HANDLE SHAFT
Item is no longer available
Price
N/A
208
*DISCD*FENCE LOCK HANDLE BOLT M12-1.75
Item is no longer available
Price
N/A
209
FLAT WASHER 12MM
Price
N/A
210
*DISCD*LOCK HANDLE SHAFT NUT M12
Item is no longer available
Price
N/A
211
FENCE SLIDE BRACKET
Price
$39.95
212
SET SCREW M6-1 X 12
Price
N/A
213
HEX NUT M8-1.25
Price
N/A
214
HEX BOLT M8-1.25 X 30
Price
N/A
215
BRACKET
Item is no longer available
Price
N/A
216
CAP SCREW M8-1.25 X 14
Price
N/A
217
FLAT WASHER 8MM
Price
N/A
218
SUPPORT BRACKET
Item is no longer available
Price
N/A
219
ALIGNMENT PIN 7 X 24
Price
$1.90
220
HEX BOLT M8-1.25 X 30
Price
N/A
221
HEX NUT M8-1.25
Price
N/A
222
ALIGNMENT PIN 7 X 24
Price
N/A
223
BRACKET LEFT
Item is no longer available
Price
N/A
224
LEVER SCREW M8-1.25
Price
$2.60
225
LEVER FLAT WASHER
Price
$5.10
226
LEVER ASSY M8-1.25
Price
$5.10
227
BRACKET RIGHT
Price
$8.65
228
PHLP HD SCR M6-1 X 12
Price
N/A
229
FLAT WASHER 6MM
Price
N/A
230
REAR AND TOP GUARD BASE W/SPRING
Price
N/A
230A
REAR AND TOP GUARD BASE W/SPRING
Price
$10.45
231
REAR AND TOP GUARD BASE W/SPRING
Price
N/A
232
ACORN NUT M6-1
Price
N/A
233
FLAT WASHER 6MM
Price
N/A
234
REAR AND TOP GUARD BASE W/SPRING
Price
N/A
235
HEX BOLT M6-1 X 25
Price
N/A
236
HEX NUT M6-1
Price
N/A
237
SHAFT LOCK M6-1
Price
$3.25
238
BALL KNOB M6-1
Price
$1.90
239
SET SCREW M5-.8 X 6
Price
N/A
300
FENCE/CUTTERHEAD LABEL
Item is no longer available
Price
N/A
301
CUTTERHEAD GUARD LABEL 4.1W X 2.2H
Price
N/A
302
ELECTRICITY 1.4W X 1.2H
Price
N/A
303
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
304
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
305
Nameplate - Small
Price
N/A
306
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
307
DISCONNECT 110V 2W X 3.3H
Price
N/A
308
MACHINE ID LABEL
Item is no longer available
Price
N/A
309
GREY PUTTY REF G0504
Price
N/A
310
N/S GRIZZLY GREEN G1023S
Price
N/A
311
RED REF TOOL BOXES
Price
N/A
MAN
MANUAL FOR G0654 01/08
Price
$14.65
