Parts for G0672 - 5 HP Industrial Dust Collector

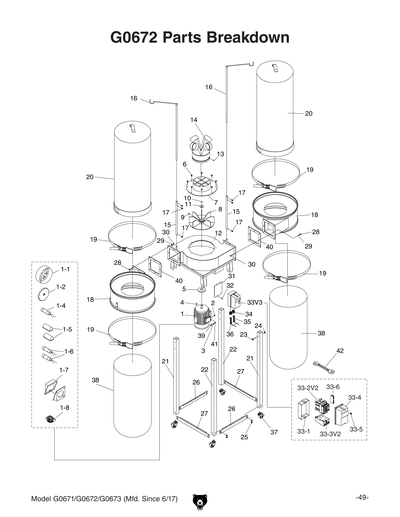

Part Diagram for G0672
Part Diagram for G0672
Part Diagram for G0672
Part Diagram for G0672
Part Diagram for G0672
Part Diagram for G0672

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

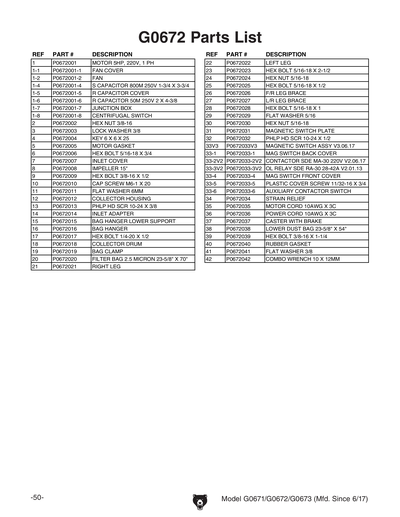

Ref #
Part #
Description
1
MOTOR 5HP 1PH 220V
Price
$878.00
1-1
FAN COVER
Price
$62.55
1-2
FAN
Price
N/A
1-3
DUAL CAPACITOR COVER
Price
N/A
1-4
S CAPACITOR 800M 250V 2 X 4
Price
N/A
1-5
DUAL CAPACITOR COVER
Price
$15.70
1-6
R CAPACITOR 50M 250V 2 X 4-3/8
Price
$45.75
1-7
JUNCTION BOX
Price
$29.00
1-8
CENTRIFUGAL SWITCH
Price
$18.45
2
P0672002
Now: PN08
HEX NUT 3/8-16
Price
N/A
3
LOCK WASHER 3/8
Price
N/A
4
KEY 6 X 6 X 25
Price
N/A
5
MOTOR GASKET
Price
N/A
6
P0672006
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
7
INLET COVER
Price
N/A
8
IMPELLER 15" V2.09.12
Price
N/A
8V2
IMPELLER 15" V2.09.12
Price
$457.00
9
P0672009
Now: PB34
HEX BOLT 3/8-16 X 1/2
Price
N/A
10
CAP SCREW M6-1 X 20
Price
N/A
11
FLAT WASHER 6MM
Price
N/A
12
COLLECTOR HOUSING
Price
N/A
13
P0672013
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
14
INLET ADAPTER
Price
N/A
15
BAG HANGER LOWER SUPPORT
Price
$23.55
16
BAG HANGER
Price
$22.95
17
P0672017
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
18
COLLECTOR BODY
Price
N/A
19
BAG CLAMP
Price
N/A
20
24" X 70" 2.5-Micron Polyester Filter Bag
Price
N/A
21
LEG RIGHT
Price
N/A
22
LEG LEFT
Price
N/A
23
P0672023
Now: PB23
HEX BOLT 5/16-18 X 2-1/2
Price
N/A
24
P0672024
Now: PN02
HEX NUT 5/16-18
Price
N/A
25
P0672025
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
26
LEG BRACE FR
Price
N/A
27
LEG BRACE L&R
Price
N/A
28
P0672028
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
29
P0672029
Now: PW07
FLAT WASHER 5/16
Price
N/A
30
P0672030
Now: PN02
HEX NUT 5/16-18
Price
N/A
31
MAG SWITCH PLATE
Price
N/A
32
P0672032
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
33
MAGNETIC SWITCH ASSY V1
Price
$165.40
33-1
MAG SWITCH BACK COVER
Price
N/A
33-2
CONTACTOR 220V MA-30 SHERN DIAN
Price
N/A
33-2V2
***USE P5954013-2***
Price
$54.05
33-3
OL RELAY SDE RA-30 21-35A
Price
N/A
33-3V2
OL RELAY SDE RA-30 28-42A V2.01.13
Price
$53.15
33-4
MAG SWITCH FRONT COVER
Price
N/A
33-5
COVER SCREW 11/32-16 X 3/4 PLASTIC
Price
N/A
33-6
AUXILIARY CONTACTOR SWITCH
Price
N/A
33V2
MAGNETIC SWITCH ASSY V3.06.17
Price
N/A
33V3
MAGNETIC SWITCH ASSY V3.06.17
Price
$149.70
34
STRAIN RELIEF
Price
$3.40
35
MOTOR CORD 10AWG X 3C
Price
$66.75
36
POWER CORD 10AWG X 3C
Price
$71.00
37
CASTER W/BRAKE
Price
N/A
38
6-mil Plastic Lower Bag
Price
N/A
39
P0672039
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
40
RUBBER GASKET
Price
N/A
41
P0672041
Now: PW02
FLAT WASHER 3/8
Price
N/A
42
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A

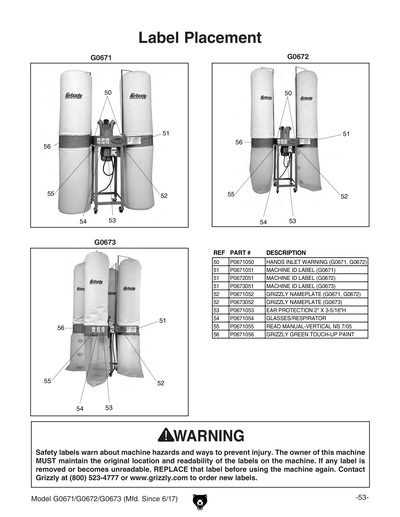

50
HANDS INLET WARNING
Price
N/A
51
MACHINE ID LABEL
Price
$16.40
52
Nameplate - Small
Price
N/A
53
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
54
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
55
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
56
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0671-73 MFG-05.08
Price
N/A
MANV2
MANUAL G0671-73 MFG-01.10 V2.11.10
Price
N/A
MANV3
MANUAL G0671-73 MFG-07.15 V3.07.15
Price
N/A
MANV4
MANUAL G0671-73 MFG-06.17 V4.11.17
Price
N/A
