Parts for G0675 10" 2-1/2 HP Jointer/Planer Combo

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

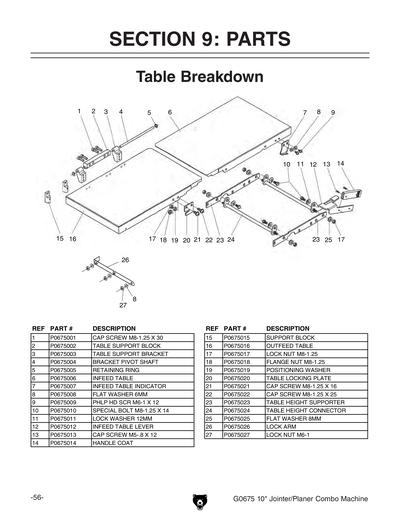

1
CAP SCREW M8-1.25 X 30
Price
N/A
2
*DISCD*TABLE SUPPORT BLOCK
Item is no longer available
Price
N/A
3
*DISCD*TABLE SUPPORT BRACKET
Item is no longer available
Price
N/A
4
*DISCD*BRACKET PIVOT SHAFT
5
*DISCD*RETAINING RING
Item is no longer available
Price
N/A
6
*DISCD*INFEED TABLE
Item is no longer available
Price
N/A
7
*DISCD*INFEED TABLE INDICATOR
Item is no longer available
Price
N/A
8
Now: PW03M
FLAT WASHER 6MM
Price
N/A
9
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
10
*DISCD*INFEED TABLE LEVER BOLT M8-1.25 X
Item is no longer available
Price
N/A
11
LOCK WASHER 12MM
Price
N/A
12
*DISCD*INFEED TABLE LEVER
13
CAP SCREW M5-.8 X 12
Price
N/A
14
*DISCD*HANDLE COAT
Item is no longer available
Price
N/A
15
*DISCD*SUPPORT BLOCK
15-1
*DISCD*OUTER SUPPORT BLOCK
Item is no longer available
Price
N/A
15-2
CAP SCREW M6-1 X 12
Price
N/A
15-3
CAP SCREW M6-1 X 20
Price
N/A
16
*DISCD*OUTFEED TABLE
17
LOCK NUT M8-1.25
Price
N/A
18
FLANGE NUT M8-1.25
Price
N/A
19
*DISCD*DOCK WASHER 6MM
Item is no longer available
Price
N/A
20
*DISCD*TABLE LOCKING PLATE
Item is no longer available
Price
N/A
21
CAP SCREW M8-1.25 X 16
Price
N/A
22
CAP SCREW M8-1.25 X 25
Price
N/A
23
*DISCD*TABLE HEIGHT SUPPORTER
Item is no longer available
Price
N/A
24
*DISCD*TABLE HEIGHT CONNECTOR
Item is no longer available
Price
N/A
25
Now: PW01M
FLAT WASHER 8MM
Price
N/A
26
*DISCD*LOCK ARM
Item is no longer available
Price
N/A
27
LOCK NUT M6-1
Price
N/A

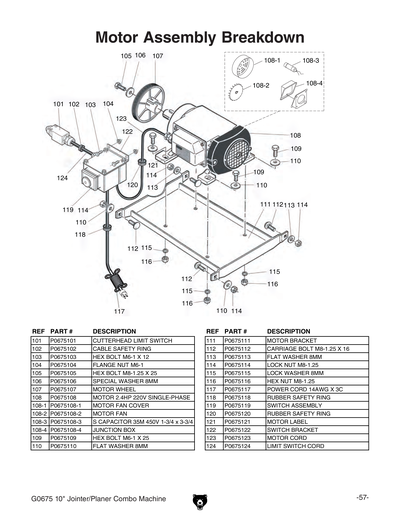

101
*DISCD*CUTTERHEAD LIMIT SWITCH
102
*DISCD*CABLE SAFETY RING
Item is no longer available
Price
N/A
103
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
104
FLANGE NUT M6-1
Price
N/A
105
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
106
Now: PW01M
FLAT WASHER 8MM
Price
N/A
107
*DISCD*MOTOR WHEEL
Item is no longer available
Price
N/A
108
*DISCD*MOTOR 2.5HP 220V 1-PH
108-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
108-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
108-3
*DISCD*S CAPACITOR 35M 450V 1-3/4 X 3-3/
Item is no longer available
Price
N/A
108-4
*DISCD*JUNCTION BOX
Item is no longer available
Price
N/A
109
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
110
Now: PW01M
FLAT WASHER 8MM
Price
N/A
111
*DISCD*MOTOR BRACKET
Item is no longer available
Price
N/A
112
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
113
Now: PW01M
FLAT WASHER 8MM
Price
N/A
114
LOCK NUT M8-1.25
Price
N/A
115
LOCK WASHER 8MM
Price
N/A
116
Now: PN03M
HEX NUT M8-1.25
Price
N/A
117
*DISCD*POWER CORD 14AWG X 3C
Item is no longer available
Price
N/A
118
*DISCD*RUBBER SAFETY RING
Item is no longer available
Price
N/A
119
*DISCD*SWITCH ASSY
Item is no longer available
Price
N/A
120
*DISCD*RUBBER SAFETY RING
Item is no longer available
Price
N/A
121
*DISCD*MOTOR LABEL
Item is no longer available
Price
N/A
122
*DISCD*SWITCH BRACKET
Item is no longer available
Price
N/A
123
*DISCD*SWITCH ASSY
Price
N/A
124
*DISCD*SWITCH ASSY
Price
N/A

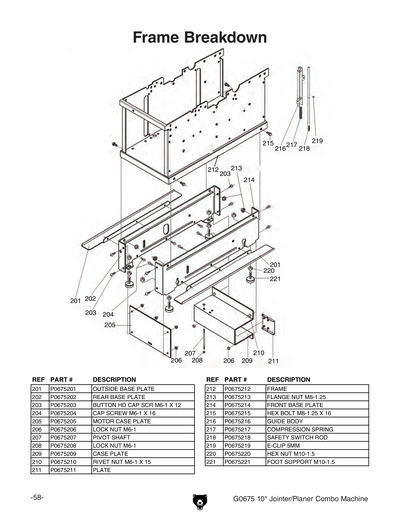

201
*DISCD*OUTSIDE BASE PLATE
Item is no longer available
Price
N/A
202
*DISCD*BASE PLATE REAR
Item is no longer available
Price
N/A
203
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
204
CAP SCREW M6-1 X 16
Price
N/A
205
*DISCD*MOTOR CASE PLATE
Item is no longer available
Price
N/A
206
LOCK NUT M6-1
Price
N/A
207
*DISCD*PIVOT SHAFT
Item is no longer available
Price
N/A
208
LOCK NUT M6-1
Price
N/A
209
*DISCD*CASE PLATE
Item is no longer available
Price
N/A
210
*DISCD*RIVET NUT M6-1 X 15
Item is no longer available
Price
N/A
211
*DISCD*PLATE
Item is no longer available
Price
N/A
212
*DISCD*FRAME
Item is no longer available
Price
N/A
213
FLANGE NUT M8-1.25
Price
N/A
214
*DISCD*BASE PLATE FRONT
Item is no longer available
Price
N/A
215
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
216
*DISCD*GUIDE BODY
Item is no longer available
Price
N/A
217
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
218
*DISCD*SAFETY SWITCH ROD
Item is no longer available
Price
N/A
219
E-CLIP 5MM
Price
N/A
220
Now: PN02M
HEX NUT M10-1.5
Price
N/A
221
*DISCD*FOOT SUPPORT M10-1.5
Item is no longer available
Price
N/A

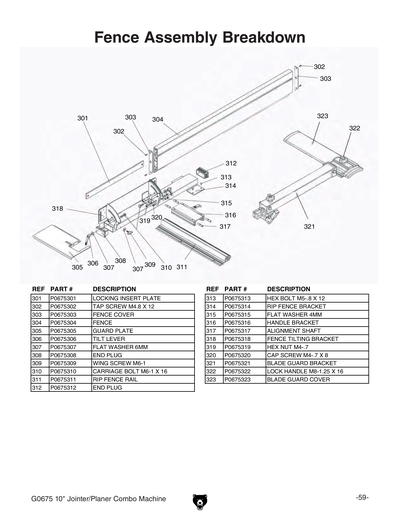

301
*DISCD*LOCKING INSERT PLATE
302
*DISCD*TAP SCREW M4.8 X 12
303
*DISCD*FENCE COVER
304
*DISCD*FENCE
305
*DISCD*GUARD PLATE
Item is no longer available
Price
N/A
306
*DISCD*TILT LEVER
Item is no longer available
Price
N/A
307
Now: PW03M
FLAT WASHER 6MM
Price
N/A
308
*DISCD*END PLUG
309
*DISCD*WING SCREW M6-1
310
CARRIAGE BOLT M6-1 X 16
Price
N/A
311
*DISCD*RIP FENCE RAIL
Item is no longer available
Price
N/A
312
*DISCD*END PLUG
313
HEX BOLT M5-.8 X 12
Price
N/A
314
*DISCD*RIP FENCE BRACKET
315
Now: PW05M
FLAT WASHER 4MM
Price
N/A
316
*DISCD*HANDLE BRACKET
317
*DISCD*ALIGNMENT SHAFT
Item is no longer available
Price
N/A
318
*DISCD*FENCE TILTING BRACKET
319
Now: PN04M
HEX NUT M4-.7
Price
N/A
320
CAP SCREW M4-.7 X 8
Price
N/A
321
*DISCD*BLADE GUARD BRACKET
Item is no longer available
Price
N/A
322
*DISCD*LOCK HANDLE M8-1.25 X 16
Item is no longer available
Price
N/A
323
*DISCD*BLADE GUARD COVER

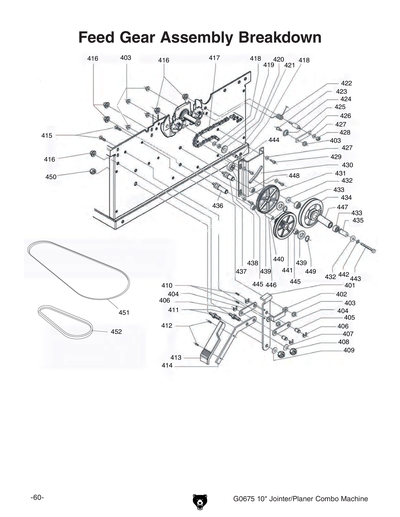

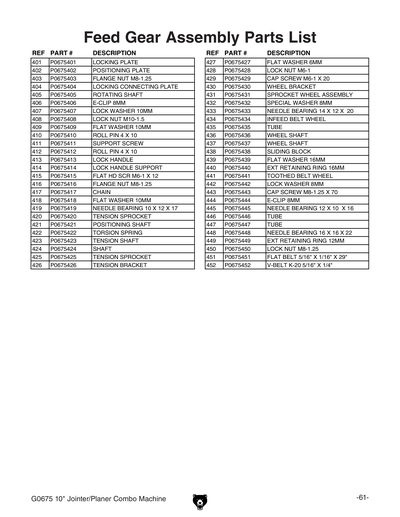

401
*DISCD*LOCK PLATE
Item is no longer available
Price
N/A
402
*DISCD*POSITIONING PLATE
Item is no longer available
Price
N/A
403
FLANGE NUT M8-1.25
Price
N/A
404
*DISCD*LOCKING CONNECTING PLATE
Item is no longer available
Price
N/A
405
*DISCD*ROTATING SHAFT
Item is no longer available
Price
N/A
406
E-CLIP 8MM
Price
N/A
407
LOCK WASHER 10MM
Price
N/A
408
LOCK NUT M10-1.5
Price
N/A
409
Now: PW04M
FLAT WASHER 10MM
Price
N/A
410
ROLL PIN 4 X 10
Price
N/A
411
*DISCD*SUPPORT SCREW
Item is no longer available
Price
N/A
412
ROLL PIN 4 X 10
Price
N/A
413
*DISCD*LOCK HANDLE
Item is no longer available
Price
N/A
414
*DISCD*LOCK HANDLE SUPPORT
Item is no longer available
Price
N/A
415
FLAT HD SCR M6-1 X 12
Price
N/A
416
FLANGE NUT M8-1.25
Price
N/A
417
*DISCD*CHAIN
Item is no longer available
Price
N/A
418
Now: PW04M
FLAT WASHER 10MM
Price
N/A
419
*DISCD*NEEDLE BEARING 10 X 12 X 17
Item is no longer available
Price
N/A
420
*DISCD*TENSION SPROCKET
421
*DISCD*POSITIONING SHAFT
422
*DISCD*TORSION SPRING
Item is no longer available
Price
N/A
423
*DISCD*TENSION SHAFT
424
*DISCD*SHAFT
Item is no longer available
Price
N/A
425
*DISCD*TENSION SPROCKET
426
*DISCD*TENSION BRACKET
Item is no longer available
Price
N/A
427
Now: PW03M
FLAT WASHER 6MM
Price
N/A
428
LOCK NUT M6-1
Price
N/A
429
CAP SCREW M6-1 X 20
Price
N/A
430
*DISCD*WHEEL BRACKET
Item is no longer available
Price
N/A
431
*DISCD*SPROCKET WHEEL ASSEMBLY
Item is no longer available
Price
N/A
432
*DISCD*INFEED BELT WHEEL WASHER 8MM
433
*DISCD*NEEDLE BEARING 14 X 12 X 20
434
*DISCD*INFEED BELT WHEEL
Item is no longer available
Price
N/A
435
*DISCD*TUBE
436
*DISCD*WHEEL SHAFT
Item is no longer available
Price
N/A
437
*DISCD*WHEEL SHAFT
438
*DISCD*SLIDING BLOCK
Item is no longer available
Price
N/A
439
Now: PW08M
FLAT WASHER 16MM
Price
N/A
440
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
441
*DISCD*TOOTHED BELT WHEEL
Item is no longer available
Price
N/A
442
LOCK WASHER 8MM
Price
N/A
443
CAP SCREW M8-1.25 X 70
Price
N/A
444
E-CLIP 8MM
Price
N/A
445
*DISCD*NEEDLE BEARING 12 X 10 X 16
446
*DISCD*TOOTHED BELT WHEEL
Price
N/A
447
*DISCD*TUBE
Item is no longer available
Price
N/A
448
*DISCD*NEEDLE BEARING 16 X 16 X 22
Item is no longer available
Price
N/A
449
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
450
LOCK NUT M8-1.25
Price
N/A
451
*DISCD*FLAT BELT 5/16 X 1/16 X 29"
Item is no longer available
Price
N/A
452
*DISCD*V-BELT K-20 5/16 X 1/4"
Item is no longer available
Price
N/A
501

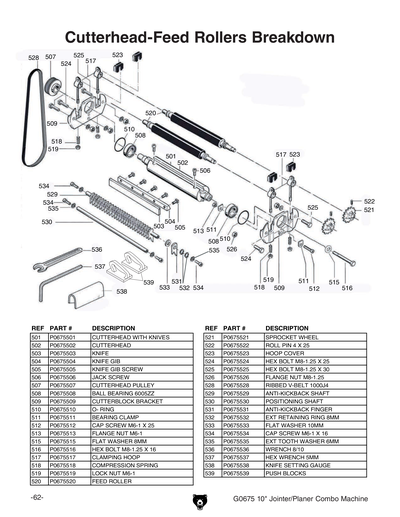

*DISCD*CUTTERHEAD W/KNIVES
Item is no longer available
Price
N/A
502
*DISCD*CUTTERHEAD
Item is no longer available
Price
N/A
503
*DISCD*KNIFE
Item is no longer available
Price
N/A
504
*DISCD*KNIFE GIB
Item is no longer available
Price
N/A
505
*DISCD*KNIFE GIB SCREW
Item is no longer available
Price
N/A
506
*DISCD*JACK SCREW
Item is no longer available
Price
N/A
507
*DISCD*CUTTERHEAD PULLEY
Item is no longer available
Price
N/A
508
BALL BEARING 6005ZZ
Price
N/A
509
*DISCD*CUTTERBLOCK BRACKET
510
*DISCD*O-RING
511
*DISCD*BEARING CLAMP
Item is no longer available
Price
N/A
512
CAP SCREW M6-1 X 25
Price
N/A
513
FLANGE NUT M6-1
Price
N/A
515
Now: PW01M
FLAT WASHER 8MM
Price
N/A
516
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
517
*DISCD*CLAMPING HOOP
518
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
519
LOCK NUT M6-1
Price
N/A
520
*DISCD*FEED ROLLER
Item is no longer available
Price
N/A
521
*DISCD*SPROCKET WHEEL
Item is no longer available
Price
N/A
522
ROLL PIN 4 X 25
Price
N/A
523
*DISCD*HOOP COVER
524
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
525
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
526
FLANGE NUT M8-1.25
Price
N/A
528
*DISCD*RIBBED V-BELT 1000J4
Item is no longer available
Price
N/A
529
*DISCD*ANTI KICKBACK SHAFT
Item is no longer available
Price
N/A
530
*DISCD*POSITIONING SHAFT
Item is no longer available
Price
N/A
531
*DISCD*ANTI KICKBACK FINGER
Item is no longer available
Price
N/A
532
Now: PR39M
EXT RETAINING RING 8MM
Price
N/A
533
Now: PW04M
FLAT WASHER 10MM
Price
N/A
534
CAP SCREW M6-1 X 16
Price
N/A
535
EXT TOOTH WASHER 6MM
Price
N/A
536
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
537
HEX WRENCH 5MM
Price
N/A
538
*DISCD*KNIFE SETTING GAUGE
Item is no longer available
Price
N/A
539
Now: W1400
Safety Push Block - Small
Price
N/A

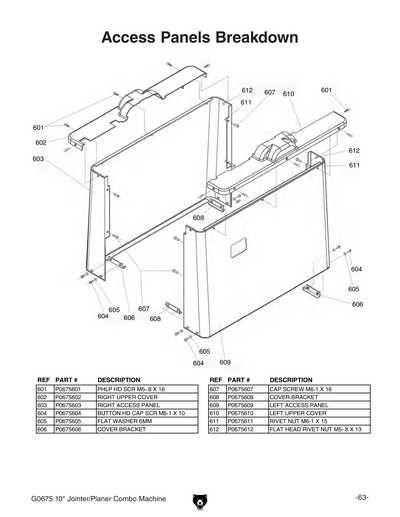

601
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
602
*DISCD*COVER RIGHT UPPER
Item is no longer available
Price
N/A
603
*DISCD*ACCESS PANEL RIGHT
604
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
605
Now: PW03M
FLAT WASHER 6MM
Price
N/A
606
*DISCD*COVER BRACKET
Item is no longer available
Price
N/A
607
CAP SCREW M6-1 X 16
Price
N/A
608
*DISCD*COVER BRACKET
Item is no longer available
Price
N/A
609
*DISCD*ACCESS PANEL LEFT
610
*DISCD*COVER UPPER LEFT
Item is no longer available
Price
N/A
611
*DISCD*RIVET NUT M6-1 X 15
612
*DISCD*FLAT HEAD RIVET NUT M5-.8 X 13
Item is no longer available
Price
N/A

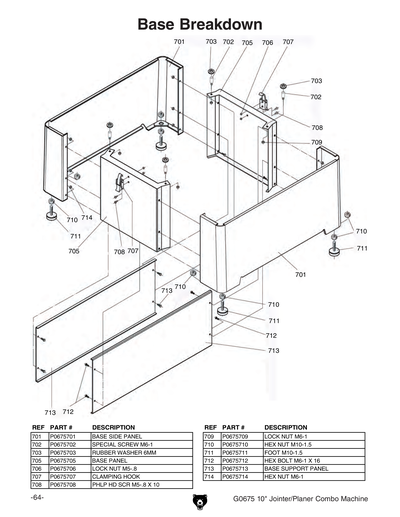

701
*DISCD*BASE SIDE PANEL
Item is no longer available
Price
N/A
702
*DISCD*BASE PANEL SCREW M6-1
703
*DISCD*FLAT WASHER 8MM RUBBER
705
*DISCD*BASE PANEL
706
LOCK NUT M5-.8
Price
N/A
707
*DISCD*CLAMPING HOOK
Item is no longer available
Price
N/A
708
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
709
LOCK NUT M6-1
Price
N/A
710
Now: PN02M
HEX NUT M10-1.5
Price
N/A
711
*DISCD*FOOT M10-1.5
712
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
713
*DISCD*BASE SUPPORT PANEL
714
Now: PN01M
HEX NUT M6-1
Price
N/A

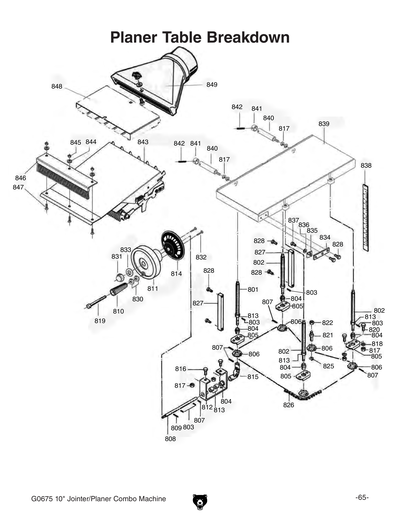

801
*DISCD*ELEVATION LEADSCREW RL
Item is no longer available
Price
N/A
802
*DISCD*ELEVATION LEADSCREW
Item is no longer available
Price
N/A
803
*DISCD*ROLL PIN 4 X 6
804
*DISCD*TUBE COPPER
Item is no longer available
Price
N/A
805
*DISCD*SUPPORT BRACKET
Item is no longer available
Price
N/A
806
*DISCD*LEADSCREW SPROCKET
Item is no longer available
Price
N/A
807
ROLL PIN 4 X 18
Price
N/A
808
*DISCD*HANDWHEEL SHAFT
Item is no longer available
Price
N/A
809
ROLL PIN 4 X 20
Price
N/A
810
*DISCD*HANDLE PLASTIC
Item is no longer available
Price
N/A
811
*DISCD*HANDWHEEL
Item is no longer available
Price
N/A
812
*DISCD*SADDLE BRACKET
Item is no longer available
Price
N/A
813
*DISCD*THREAD ROD TUBE
Item is no longer available
Price
N/A
814
*DISCD*HANDWHEEL SCALE
Item is no longer available
Price
N/A
815
*DISCD*LINKAGE
Item is no longer available
Price
N/A
816
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
817
FLANGE NUT M8-1.25
Price
N/A
818
Now: PW01M
FLAT WASHER 8MM
Price
N/A
819
*DISCD*HANDLE BOLT M10 X 1.5 X 98
Item is no longer available
Price
N/A
820
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
821
*DISCD*ADJUSTING ROD
Item is no longer available
Price
N/A
822
LOCK NUT M8-1.25
Price
N/A
825
E-CLIP 10MM
Price
N/A
826
*DISCD*TABLE ELEVATION CHAIN
Item is no longer available
Price
N/A
827
*DISCD*PLANER TABLE GUIDE BLOCK
Item is no longer available
Price
N/A
828
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
830
Now: PN02M
HEX NUT M10-1.5
Price
N/A
831
Now: PN43M
ACORN NUT M10-1.5
Price
N/A
832
TAP SCREW M3.5 X 13
Price
N/A
833
Now: PW04M
FLAT WASHER 10MM
Price
N/A
834
*DISCD*INDICATOR BRACKET
Item is no longer available
Price
N/A
835
*DISCD*DEPTH SCALE INDICATOR
Item is no longer available
Price
N/A
836
Now: PW03M
FLAT WASHER 6MM
Price
N/A
837
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
838
*DISCD*DEPTH SCALE
Item is no longer available
Price
N/A
839
*DISCD*THICKNESSING TABLE
Item is no longer available
Price
N/A
840
*DISCD*GUIDE AXLE
Item is no longer available
Price
N/A
841
*DISCD*BUSHING
Item is no longer available
Price
N/A
842
*DISCD*SPIRAL SPRING DOWEL SLEEVE
Item is no longer available
Price
N/A
843
*DISCD*DUST COLLECTOR ASSY
844
Now: PW03M
FLAT WASHER 6MM
Price
N/A
845
LOCK NUT M6-1
Price
N/A
846
*DISCD*BRUSH ASSEMBLY
Item is no longer available
Price
N/A
847
*DISCD*FLAT HD SCR M6-1 X 14
Item is no longer available
Price
N/A
848
*DISCD*DUST PORT BRACKET
Item is no longer available
Price
N/A
848-1
*DISCD*DUST PORT BRACKET KNOB & SCREW
Item is no longer available
Price
N/A
849
*DISCD*DUST PORT
Item is no longer available
Price
N/A
849-2
CARRIAGE BOLT M6-1 X 12
Price
N/A
849-3
Now: PW03M
FLAT WASHER 6MM
Price
N/A

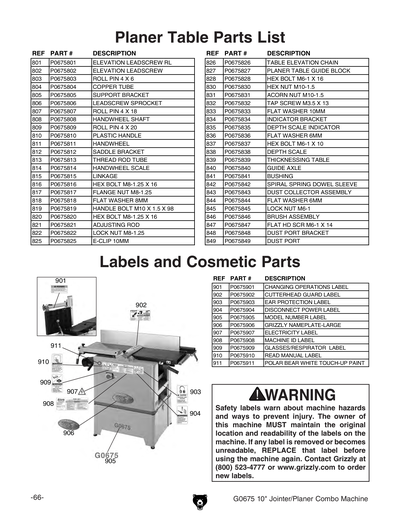

901
*DISCD*CHANGING OPERATIONS LABEL
Item is no longer available
Price
N/A
902
CUTTERHEAD GUARD LABEL 4.1W X 2.2H
Price
N/A
903
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
904
DISCONNECT 220V 2W X 3.3H
Price
N/A
905
*DISCD*MODEL NUMBER LABEL
Item is no longer available
Price
N/A
906
Now: G8589
Nameplate - Large
Price
N/A
907
ELECTRICITY 1.4W X 1.2H
Price
N/A
908
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
909
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
910
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
911
POLAR BEAR WHITE TOUCH-UP PAINT
Price
N/A
MAN
MANUAL FOR G0675 MFD-11/08 V1.09.13
P0695117V2
DOWNFEED HANDLE COARSE M10-1.5
Price
N/A
