Parts for G0678 - 8" x 30" 1-1/2 HP Variable-Speed Vertical Mill

Part Diagram for G0678
Part Diagram for G0678
Part Diagram for G0678
Part Diagram for G0678
Part Diagram for G0678
Part Diagram for G0678
Part Diagram for G0678
Part Diagram for G0678
Part Diagram for G0678
Part Diagram for G0678
Part Diagram for G0678
Part Diagram for G0678
Part Diagram for G0678
Part Diagram for G0678

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

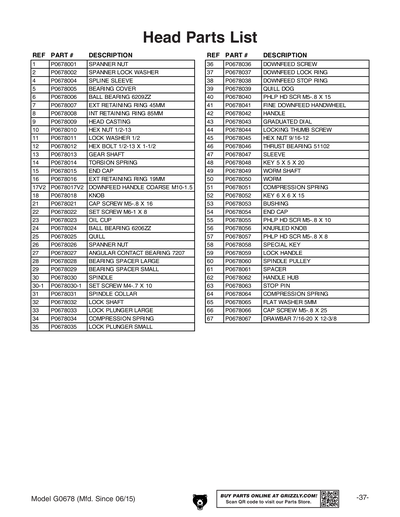

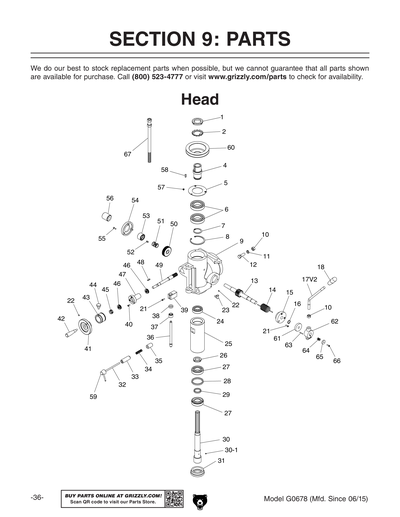

Ref #
Part #
Description
1
SPANNER NUT M45 X 1.5P
Price
$27.05
2
SPANNER LOCK WASHER S45
Price
$11.85
4
SPLINE SLEEVE
Price
$192.95
5
BEARING COVER
Price
$17.85
6
BALL BEARING 6209ZZ
Price
N/A
7
EXT RETAINING RING 45MM
Price
N/A
8
INT RETAINING RING 85MM
Price
N/A
9
HEAD CASING
Price
$1,364.50
9A
HEADSTOCK ASSEMBLY
Price
$3,887.30
10
P0678010
Now: PN06
HEX NUT 1/2-12
Price
N/A
11
LOCK WASHER 1/2
Price
N/A
12
P0678012
Now: PB55
HEX BOLT 1/2-13 X 1-1/2
Price
N/A
13
GEAR SHAFT
Price
$121.70
14
TORSION SPRING
Price
N/A
15
END CAP
Price
$86.70
16
EXT RETAINING RING 19MM
Price
N/A
17
DOWNFEED HANDLE ASSEMBLY
Price
$90.35
17V2
DOWNFEED HANDLE COARSE M10-1.5
Price
$88.65
18
KNOB
Price
$10.35
21
CAP SCREW M5-.8 X 16
Price
N/A
22
SET SCREW M6-1 X 8
Price
N/A
23
OIL CUP 1/8" NPT X 8MM X 24MM ELBOW
Price
$8.50
24
BALL BEARING 6206ZZ
Price
N/A
25
QUILL
Price
$1,063.55
26
SPANNER NUT 35MM X 1.5P
Price
$33.65
27
ANGULAR CONTACT BEARING 7207
Price
N/A
28
BEARING SPACER LARGE
Price
$25.40
29
SMALL BEARING SPACER
Price
$11.50
30
SPINDLE
Price
$298.00
30-1
SET SCREW M4-.7 X 10
Price
N/A
31
SPINDLE COLLAR
Price
$32.35
32
LOCK SHAFT
Price
$33.55
33
LOCK PLUNGER LARGE
Price
$25.10
34
COMPRESSION SPRING 12 X 50
Price
$8.50
35
LOCK PLUNGER SMALL
Price
$17.85
36
DOWNFEED SCREW 12MMX1.0X190MM
Price
$32.35
37
DOWNFEED LOCK RING 12MM X P1.0
Price
$9.70
38
DOWNFEED STOP RING 12MM X P1.0
Price
$9.70
39
QUILL DOG
Price
$22.05
40
PHLP HD SCR M5-.8 X 15
Price
N/A
41
FINE DOWNFEED HANDWHEEL
Price
$123.20
42
HANDLE
Price
$86.70
43
GRADUATED DIAL
Price
$99.05
44
LOCK THUMB SCREW M5 X 12
Price
$6.30
45
P0678045
Now: PN15
HEX NUT 9/16-12
Price
N/A
46
THRUST BEARING 51102
Price
N/A
47
SLEEVE
Price
$85.50
48
KEY 5 X 5 X 20
Price
N/A
49
WORM SHAFT
Price
$57.30
50
WORM
Price
$81.10
51
COMPRESSION SPRING
Price
N/A
52
KEY 6 X 6 X 15
Price
N/A
53
BUSHING
Price
$74.00
54
END CAP
Price
$55.30
55
PHLP HD SCR M5-.8 X 10
Price
N/A
56
KNURLED KNOB
Price
$34.80
57
PHLP HD SCR M5-.8 X 8
Price
N/A
58
HEAD CASTING KEY
Price
$5.50
59
LOCK HANDLE
Price
N/A
60
SPINDLE PULLEY
Price
$238.20
61
DOWNFEED HANDLE ASSEMBLY
Price
N/A
62
DOWNFEED HANDLE ASSEMBLY
Price
N/A
63
DOWNFEED HANDLE ASSEMBLY
Price
N/A
64
DOWNFEED HANDLE ASSEMBLY
Price
N/A
65
FLAT WASHER 5MM
Price
N/A
66
CAP SCREW M5-.8 X 25
Price
N/A
67
DRAWBAR 7/16-20 X 12-3/8
Price
$17.85
101
KEY 5 X 5 X 40
Price
N/A
103
SET SCREW M6-1 X 8
Price
N/A
105
CAP SCREW M8-1.25 X 20
Price
N/A
106
FLAT WASHER 8MM
Price
N/A

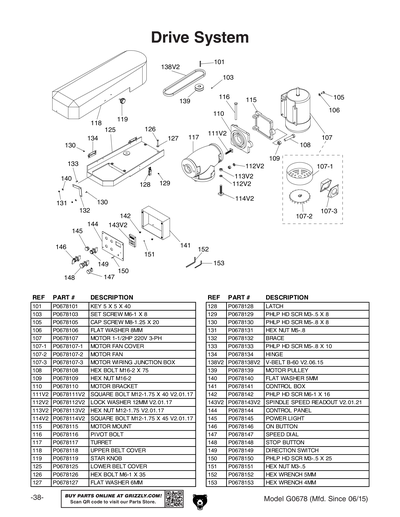

107
MOTOR 1.5HP 220V 3-PH
Price
$550.15
107-1
MOTOR FAN COVER
Price
$15.45
107-2
MOTOR FAN
Price
$13.60
107-3
MOTOR WIRING JUNCTION BOX
Price
$10.00
108
HEX BOLT M16-2 X 80
Price
N/A
109
HEX NUT M16-2
Price
N/A
110
MOTOR BRACKET
Price
$101.75
111
*SEE EXTENDED DESCRIPTION
Item is no longer available
Price
N/A
111V2
SQUARE BOLT M12-1.75 X 40 V2.01.17
Price
$8.50
112
*SEE EXTENDED DESCRIPTION
Item is no longer available
Price
N/A
112V2
LOCK WASHER 12MM
Price
N/A
113
*SEE EXTENDED DESCRIPTION
Item is no longer available
Price
N/A
113V2
HEX NUT M12-1.75
Price
N/A
114
*SEE EXTENDED DESCRIPTION
Item is no longer available
Price
N/A
114V2
SQUARE BOLT M12-1.75 X 45 V2.01.17
Price
$8.50
115
MOTOR MOUNT
Price
$129.25
116
PIVOT BOLT 1/2 X 140
Price
$12.10
117
TURRET
Price
$767.75
117-1
TURRET SCALEAND ZERO INDICATOR SET
Price
$7.90
117-2
TURRET SCALEAND ZERO INDICATOR SET
Price
N/A
118
UPPER BELT COVER
Price
$607.40
119
STAR KNOB
Price
$5.50
125
BELT COVER LOWER
Price
$405.50
126
HEX BOLT M6-1 X 35
Price
N/A
127
FLAT WASHER 6MM
Price
N/A
128
LATCH
Price
$4.60
129
PHLP HD SCR M3-.5 X 8
Price
N/A
130
PHLP HD SCR M5-.8 X 8
Price
N/A
131
HEX NUT M5-.8
Price
N/A
132
BRACE
Price
$26.35
133
PHLP HD SCR M5-.8 X 10
Price
N/A
134
HINGE
Price
$9.70
138
V-BELT B59
Price
N/A
138V2
V-BELT B60
Price
N/A
139
MOTOR PULLEY
Price
$177.25
141
CONTROL BOX
Price
$82.45
142
PHLP HD SCR M6-1 X 16
Price
N/A
143
SPINDLE SPEED READOUT V1
Price
$209.55
143V2
SPINDLE SPEED READOUT UNIT V2.01.21
Price
N/A
144
CONTROL PANEL
Price
$68.60
145
POWER INDICATOR LIGHT 22MM WHT
Price
N/A
146
ON BUTTON
Price
$43.80
147
***USE P0694144-1***
Item is no longer available
Price
N/A
148
STOP BUTTON
Price
$43.25
149
DIRECTION SWITCH
Price
$86.70
150
P0678150
Now: PS34
PHLP HD SCR M3-.5 X 25
Price
N/A
151
HEX NUT M3-.5
Price
N/A
152
HEX WRENCH 5MM
Price
N/A
153
HEX WRENCH 4MM
Price
N/A

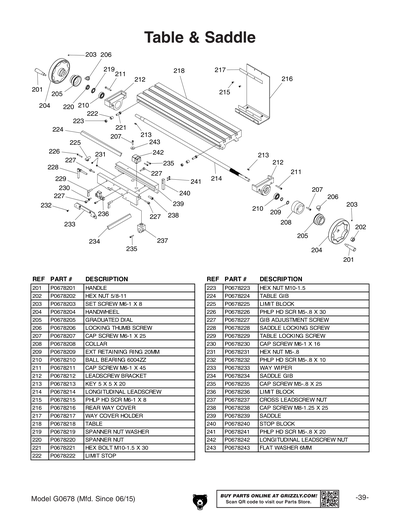

201
HANDLE
Price
$40.85
202
P0678202
Now: PN04
HEX NUT 5/8-11
Price
N/A
203
SET SCREW M6-1 X 8
Price
N/A
204
HANDWHEEL
Price
$137.75
205
GRADUATED DIAL
Price
$73.00
206
LOCK THUMB SCREW M5 X 12
Price
N/A
207
CAP SCREW M6-1 X 25
Price
N/A
208
COLLAR
Price
$24.80
209
EXT RETAINING RING 20MM
Price
N/A
210
BALL BEARING 6004ZZ
Price
N/A
211
CAP SCREW M6-1 X 45
Price
N/A
212
LEADSCREW BRACKET
Price
$133.50
213
KEY 5 X 5 X 20
Price
N/A
214
LONGITUDINAL LEADSCREW
Price
$477.25
215
PHLP HD SCR M6-1 X 8
Price
N/A
216
WAY COVER REAR
Price
$37.20
217
WAY COVER HOLDER
Price
$25.70
218
TABLE
Price
$917.70
219
SPANNER NUT WASHER 20MM
Price
$5.50
220
SPANNER NUT 20MM
Price
N/A
221
HEX BOLT M10-1.5 X 30
Price
N/A
222
LIMIT STOP
Price
$8.50
223
HEX NUT M10-1.5
Price
N/A
224
TABLE GIB
Price
$98.15
225
LIMIT BLOCK
Price
$17.85
226
PHLP HD SCR M5-.8 X 30
Price
N/A
227
GIB ADJUSTING SCR M6 X 12
Price
$12.05
228
SADDLE LOCKING SCREW 3/8 X 1-3/4"
Price
$23.60
229
TABLE LOCKING SCREW 3/8 X 1"
Price
$7.60
230
CAP SCREW M6-1 X 16
Price
N/A
231
HEX NUT M5-.8
Price
N/A
232
PHLP HD SCR M6-1 X 70
Price
N/A
233
WAY WIPER
Price
$19.40
234
CROSS GIB
Price
N/A
235
CAP SCREW M5-.8 X 25
Price
N/A
236
LIMIT BLOCK
Price
$17.05
237
CROSS FEED NUT
Price
$103.50
238
CAP SCREW M8-1.25 X 25
Price
N/A
239
SADDLE
Price
$501.15
240
STOP BLOCK
Price
$13.60
241
PHLP HD SCR M5-.8 X 20
Price
N/A
242
LONGITUDINAL LEADSCREW NUT
Price
$122.15
243
FLAT WASHER 6MM
Price
N/A

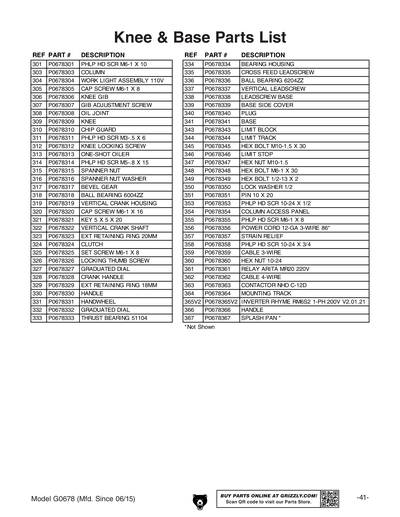

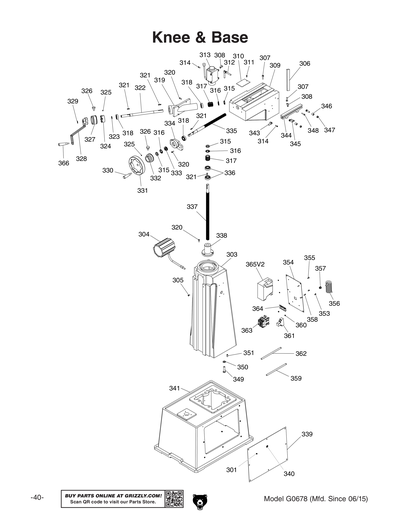

301
PHLP HD SCR M6-1 X 10
Price
N/A
303
COLUMN
Price
$973.25
304
WORK LIGHT ASSEMBLY 110V
Price
$124.15
305
CAP SCREW M6-1 X 8
Price
N/A
306
KNEE GIB
Price
$28.45
307
GIB ADJUSTING SCR 6 X 25
Price
$7.00
308
OIL JOINT
Price
$16.95
309
KNEE
Price
$740.85
310
CHIP GUARD
Price
$6.40
311
PHLP HD SCR M3-.5 X 6
Price
N/A
312
KNEE LOCKING SCREW 3/8"
Price
$24.15
313
ONE SHOT OILER
Price
$388.60
314
PHLP HD SCR M5-.8 X 15
Price
N/A
315
SPANNER NUT AN04
Price
$10.30
316
SPANNER LOCK WASHER 20MM
Price
N/A
317
BEVEL GEAR
Price
$98.15
318
BALL BEARING 6004ZZ
Price
N/A
319
VERTICAL CRANK HOUSING
Price
$301.30
320
CAP SCREW M6-1 X 16
Price
N/A
321
KEY 5 X 5 X 20
Price
N/A
322
VERTICAL CRANK SHAFT
Price
$102.40
323
EXT RETAINING RING 20MM
Price
N/A
324
CLUTCH
Price
$96.95
325
SET SCREW M6-1 X 8
Price
N/A
326
LOCK THUMB SCREW M5 X 12
Price
N/A
327
GRADUATED DIAL
Price
$119.00
328
CRANK HANDLE
Price
$46.90
329
EXT RETAINING RING 18MM
Price
N/A
330
CAP SCREW M6-1 X 16
Price
N/A
331
HANDWHEEL
Price
N/A
332
GRADUATED DIAL
Price
$56.50
333
THRUST BEARING 51104
Price
N/A
334
BEARING HOUSING
Price
$183.55
335
CROSS FEED LEADSCREW 7/8" X 425
Price
$166.10
336
BALL BEARING 6204ZZ
Price
N/A
337
VERTICAL LEADSCREW 1" X 580
Price
$283.50
338
LEADSCREW BASE
Price
$173.00
339
BASE SIDE COVER
Price
$102.40
340
PLUG
Price
$5.50
341
BASE
Price
$938.55
343
LIMIT BLOCK
Price
$6.70
344
LIMIT TRACK
Price
$130.45
345
HEX BOLT M10-1.5 X 30
Price
N/A
346
LIMIT STOP
Price
$6.40
347
HEX NUT M10-1.5
Price
N/A
348
HEX BOLT M6-1 X 30
Price
N/A
349
P0678349
Now: PB72
HEX BOLT 1/2-13 X 2
Price
N/A
350
LOCK WASHER 1/2
Price
N/A
351
PIN 10 X 20
Price
$5.50
353
P0678353
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
354
COLUMN ACCESS PANEL
Price
$62.80
355
PHLP HD SCR M6-1 X 8
Price
N/A
356
POWER CORD 12G X 3W 86"L
Price
N/A
357
Price
N/A
358
P0678358
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
359
CABLE 3-WIRE
Price
$24.15
360
P0678360
Now: PN07
HEX NUT 10-24
Price
N/A
361
RELAY ARITA MR20 220V
Price
$70.35
362
CABLE 4-WIRE
Price
$45.90
363
CONTACTOR NHD C-12D
Price
$53.45
364
MOUNTING TRACK
Price
$9.70
365
***SEE EXTENDED DESCRIPTION***
Item is no longer available
Price
N/A
365V2
INVERTER RHYME RM6S2 1-PH 200V V2.01.21
Price
$718.70
366
HANDLE
Price
N/A
367
SPLASH PAN
Price
$119.90

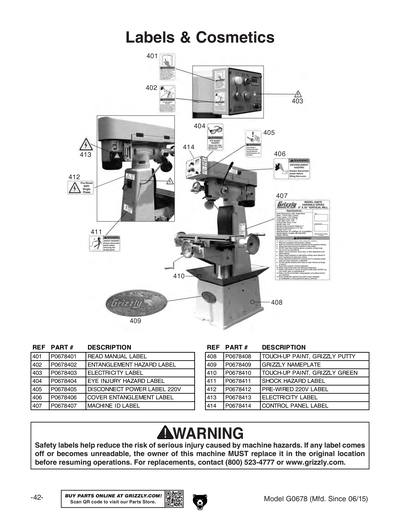

401
READ MANUAL 1.5W X 2.5H
Price
N/A
402
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
403
ELECTRICITY 0.7W X 0.6H
Price
N/A
404
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
405
DISCONNECT 220V 1.5W X 2.5H
Price
N/A
406
COVER ENTANGLEMENT LABEL
Price
$2.10
407
MACHINE ID LABEL
Price
$16.40
408
GREY PUTTY REF G0504
Price
N/A
409
Nameplate - Small
Price
N/A
410
N/S GRIZZLY GREEN G1023S
Price
N/A
411
SHOCK HAZARD LABEL
Price
$24.15
412
PREWIRED 220V LABEL
Price
$24.15
413
ELECTRICITY 1.4W X 1.2H
Price
N/A
414
CONTROL PANEL
Price
N/A
8140
FLAT WASHER 5MM
Price
N/A
MAN
MANUAL G0678 MFD-07.08-05.15 V1.09.08
Price
$21.95
MANV2
MANUAL G0678 MFD-06.15+ V2.01.21
Price
$18.50
PART
MISC PART FOR G0678
Price
$0.00
