Parts for G0679 6" x 186" Horizontal/Vertical Stroke Sander w/Brake

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

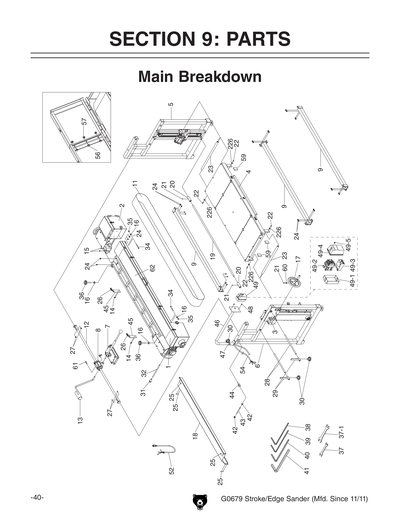

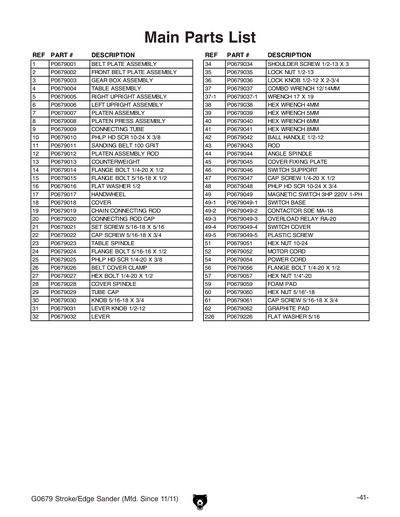

1
BELT PLATE ASSEMBLY
2
BELT PLATE FRONT ASSY
3
GEAR BOX
Price
N/A
4
TABLE ASSEMBLY
5
UPRIGHT ASSY RIGHT
6
UPRIGHT ASSY LEFT
7
PLATEN ASSY
8
PLATEN PRESS ASSY
9
CONNECTING TUBE
10
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
11
SANDING BELT #100
12
PLATEN ASSY ROD
13
COUNTERWEIGHT
14
Now: PFB03
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
15
Now: PFB01
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
16
Now: PW01
FLAT WASHER 1/2
Price
N/A
17
HANDWHEEL
18
COVER
19
CHAIN CONNECTING ROD
20
CONNECTING ROD CAP
21
Now: PSS17
SET SCREW 5/16-18 X 5/16
Price
N/A
22
CAP SCREW 5/16-18 X 3/4
Price
N/A
23
TABLE SPINDLE
24
Now: PFB01
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
25
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
26
BELT COVER CLAMP
27
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
28
COVER SPINDLE
29
TUBE CAP
30
KNOB
Price
N/A
31
LEVER KNOB 1/2-12
32
LEVER
34
SHOULDER SCREW 1/2-13 X 3
35
Now: PLN06
LOCK NUT 1/2-13
Price
N/A
36
LOCK KNOB 1/2-12 X 2-3/4
37
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
37-1
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
38
HEX WRENCH 4MM
Price
N/A
39
HEX WRENCH 5MM
Price
N/A
40
HEX WRENCH 6MM
Price
N/A
41
HEX WRENCH 8MM
Price
N/A
42
BALL HANDLE
Price
N/A
43
BAR
Price
N/A
44
ANGLE SPINDLE
45
COVER FIXING PLATE
46
SWITCH SUPPORT
47
CAP SCREW 1/4-20 X 1/2
Price
N/A
48
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
49
MAGNETIC SWITCH SDE 3HP 220V 1-PH
49-1
SWITCH BASE
49-2
CONTACTOR SDE MA-18
49-3
OL RELAY RA-20
49-4
SWITCH COVER
49-5
COVER SCREW 11/32-16 X 3/4 PLASTIC
Price
N/A
50
SWITCH PLATE
51
Now: PN07
HEX NUT 10-24
Price
N/A
52
MOTOR CORD
53
SWITCH JUNCTION BOX
54
POWER CORD
56
Now: PFB03
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
57
Now: PN05
HEX NUT 1/4-20
Price
N/A
59
FOAM PAD
60
Now: PN02
HEX NUT 5/16-18
Price
N/A
61
CAP SCREW 5/16-18 X 3/4
Price
N/A
62
GRAPHITE PAD

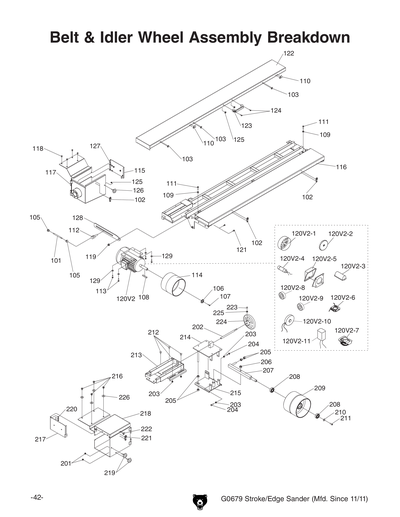

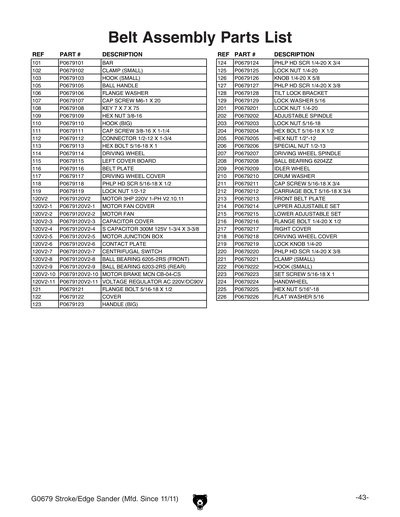

101
BAR
102
CLAMP SMALL
103
HOOK SMALL
105
BALL HANDLE
106
FLANGE WASHER
107
CAP SCREW M6-1 X 20
Price
N/A
108
KEY 7 X 7 X 75
109
Now: PN08
HEX NUT 3/8-16
Price
N/A
110
HOOK BIG
111
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
112
ANGLE SPINDLE
Price
N/A
113
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
114
DRIVING WHEEL
115
COVER LEFT BOARD
116
BELT PLATE
117
DRIVING WHEEL COVER
118
Now: PS38
PHLP HD SCR 5/16-18 X 1/2
Price
N/A
119
Now: PLN06
LOCK NUT 1/2-13
Price
N/A
120
MOTOR 3HP 220V 1-PH V1
120-1
MOTOR FAN COVER
120-2
MOTOR FAN
Price
N/A
120-3
CAPACITOR COVER
120-4
S CAPACITOR 600M 125V
120-5
MOTOR WIRING JUNCTION BOX
Price
N/A
120-6
CONTACT PLATE
120-7
CENTRIFUGAL SWITCH
120-8
R CAPACITOR 50M 350V
120-9
MOTOR BRAKE CHIU HO CB-04
120V2
MOTOR 3HP 220V 1-PH V2.10.11
120V2-1
MOTOR FAN COVER
120V2-10
MOTOR BRAKE MCN CB-04-CS
120V2-11
VOLTAGE REGULATOR AC 220V/DC90V
120V2-2
MOTOR FAN
120V2-3
CAPACITOR COVER
Price
N/A
120V2-4
S CAPACITOR 300M 125V 1-3/4 X 3-3/8
Price
N/A
120V2-5
MOTOR WIRING JUNCTION BOX
Price
N/A
120V2-6
CONTACT PLATE
120V2-7
CENTRIFUGAL SWITCH
120V2-8
BALL BEARING 6205-2RS
Price
N/A
120V2-9
BALL BEARING 6203-2RS
Price
N/A
121
Now: PFB01
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
122
COVER
123
HANDLE BIG
124
Now: PS02
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
125
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
126
KNOB 1/4-20 X 5/8
127
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
128
TILT LOCK BRACKET
129
Now: PLW01
LOCK WASHER 5/16
Price
N/A
201
Now: PW02
FLAT WASHER 3/8
Price
N/A
202
ADJUSTABLE SPINDLE
203
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
204
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
205
Now: PN06
HEX NUT 1/2-12
Price
N/A
206
DRIVING WHEEL SPINDLE NUT 1/2-13
207
DRIVING WHEEL SPINDLE
208
BALL BEARING 6204ZZ
Price
N/A
209
IDLER WHEEL
210
DRUM WASHER
211
CAP SCREW 5/16-18 X 3/4
Price
N/A
212
Now: PCB05
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
213
BELT PLATE FRONT
214
UPPER ADJUSTABLE SET
215
ADJUST LOWER SET
216
Now: PFB03
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
217
COVER RIGHT
218
DRIVING WHEEL COVER
219
KNOB 1/4-20 X 5/8
Price
N/A
220
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
221
CLAMP SMALL
222
HOOK SMALL
Price
N/A
223
Now: PSS01
SET SCREW 5/16-18 X 1
Price
N/A
224
HANDWHEEL
Price
N/A
225
Now: PN02
HEX NUT 5/16-18
Price
N/A
226
Now: PW07
FLAT WASHER 5/16
Price
N/A

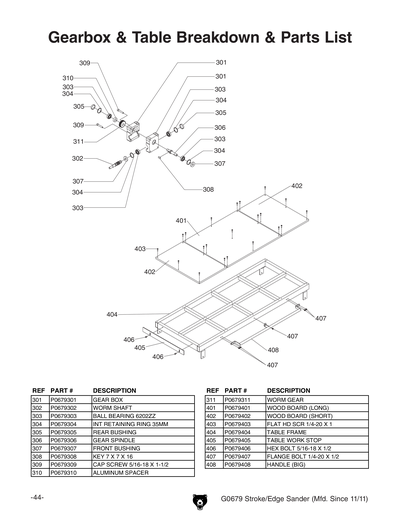

301
GEAR BOX
Price
N/A
302
WORM SHAFT
303
BALL BEARING 6202ZZ
Price
N/A
304
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
305
BUSHING REAR
306
DRIVE SHAFT
Price
N/A
307
BUSHING FRONT
308
KEY 7 X 7 X 16
Price
N/A
309
CAP SCREW 5/16-18 X 1-1/2
Price
N/A
310
ALUMINUM SPACER
311
WORM GEAR
Price
N/A
401
WOOD BOARD LONG
402
WOOD BOARD SHORT
403
Now: PFH12
FLAT HD SCR 1/4-20 X 1
Price
N/A
404
TABLE FRAME
405
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
406
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
407
Now: PFB03
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
408
HANDLE BIG

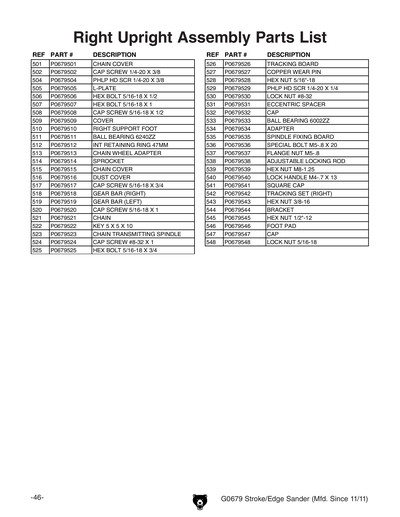

501
CHAIN COVER
502
CAP SCREW 1/4-20 X 3/8
Price
N/A
503
CHAIN FIXING BOARD
504
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
505
L-PLATE
506
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
507
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
508
CAP SCREW 5/16-18 X 1/2
Price
N/A
509
COVER
510
SUPPORT FOOT RIGHT
511
BALL BEARING 6240ZZ
512
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
513
CHAIN WHEEL ADAPTER
514
CHAIN WHEEL
Price
N/A
515
CHAIN COVER
516
DUST COVER
517
CAP SCREW 5/16-18 X 3/4
Price
N/A
518
GEAR BAR RIGHT
519
GEAR BAR LEFT
520
CAP SCREW 5/16-18 X 1
Price
N/A
521
CHAIN
522
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
523
CHAIN TRANSMITTING SPINDLE
524
CAP SCREW 8-32 X 1
525
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
526
TRACKING BOARD
527
WEAR PIN COPPER
528
Now: PN02
HEX NUT 5/16-18
Price
N/A
529
Now: PS09
PHLP HD SCR 1/4-20 X 1/4
Price
N/A
530
Now: PLN14
LOCK NUT 8-32
Price
N/A
531
ECCENTRIC SPACER
532
SPACER
Price
N/A
533
BALL BEARING 6002ZZ
Price
N/A
534
ADAPTER
535
SPINDLE FIXING BOARD
Price
N/A
536
TRACKING SET BOLT M5-.8 X 20
537
FLANGE NUT M5-.8
Price
N/A
538
ADJUSTABLE BAR
Price
N/A
539
Now: PN03M
HEX NUT M8-1.25
Price
N/A
540
LOCK HANDLE M4-.7 X 13
541
SQUARE CAP
542
TRACKING SET RIGHT
543
Now: PN08
HEX NUT 3/8-16
Price
N/A
544
BRACKET
545
Now: PN06
HEX NUT 1/2-12
Price
N/A
546
FOOT PAD
547
CAP
548
Now: PLN03
LOCK NUT 5/16-18
Price
N/A

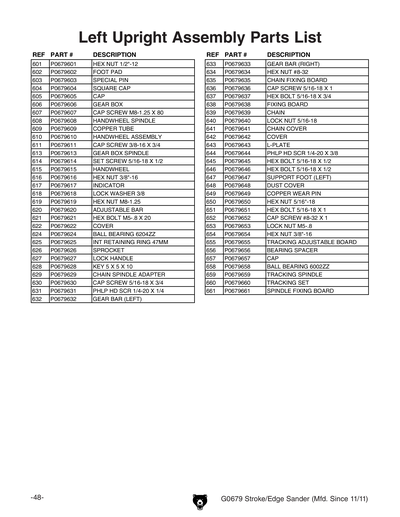

601
Now: PN06
HEX NUT 1/2-12
Price
N/A
602
FOOT PAD
Price
N/A
603
PIN
Price
N/A
604
SQUARE CAP
Price
N/A
605
CAP
Price
N/A
606
GEAR BOX
Price
N/A
607
CAP SCREW M8-1.25 X 80
Price
N/A
608
HANDWHEEL SPINDLE
609
TUBE COPPER
610
HANDWHEEL ASSY
611
CAP SCREW 3/8-16 X 3/4
Price
N/A
613
GEAR BOX SPINDLE
614
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
615
HANDWHEEL
Price
N/A
616
Now: PN08
HEX NUT 3/8-16
Price
N/A
617
INDICATOR
618
Now: PLW04
LOCK WASHER 3/8
Price
N/A
619
Now: PN03M
HEX NUT M8-1.25
Price
N/A
620
ADJUSTABLE BAR
621
Now: PB42M
HEX BOLT M5-.8 X 20
Price
N/A
622
CHAIN COVER
Price
N/A
624
BALL BEARING 6204ZZ
Price
N/A
625
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
626
CHAIN WHEEL
Price
N/A
627
LOCK HANDLE M4-.7 X 13
Price
N/A
628
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
629
CHAIN TRANSMITTING SPINDLE
Price
N/A
630
CAP SCREW 5/16-18 X 3/4
Price
N/A
631
Now: PS09
PHLP HD SCR 1/4-20 X 1/4
Price
N/A
632
GEAR BAR LEFT
Price
N/A
633
GEAR BAR RIGHT
Price
N/A
634
Now: PN14
HEX NUT 8-32
Price
N/A
635
CHAIN FIXING BOARD
636
CAP SCREW 5/16-18 X 1
Price
N/A
637
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
638
TRACKING BOARD
Price
N/A
639
CHAIN
Price
N/A
640
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
641
CHAIN COVER
Price
N/A
642
COVER
Price
N/A
643
L-PLATE
Price
N/A
644
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
645
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
646
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
647
SUPPORT FOOT LEFT
648
DUST COVER
Price
N/A
649
WEAR PIN COPPER
Price
N/A
650
Now: PN02
HEX NUT 5/16-18
Price
N/A
651
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
652
CAP SCREW 8-32 X 1
Price
N/A
653
LOCK NUT M5-.8
Price
N/A
654
Now: PN08
HEX NUT 3/8-16
Price
N/A
655
TRACKING ADJUSTABLE BOARD
656
BEARING SPACER
657
SPACER
Price
N/A
658
BALL BEARING 6002ZZ
Price
N/A
659
ADAPTER
Price
N/A
660
TRACKING SET
661
SPINDLE FIXING BOARD

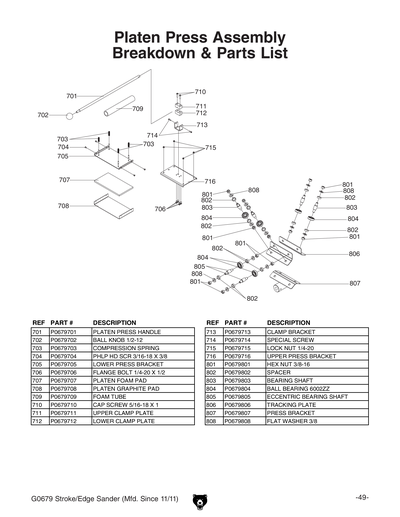

701
PLATEN PRESS HANDLE
702
BALL HANDLE
Price
N/A
703
COMPRESSION SPRING
704
PHLP HD SCR 3/16-18 X 3/8
705
PRESS BRACKET LOWER
706
Now: PFB03
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
707
PLATEN FOAM PAD
708
GRAPHITE PAD 307 X 151MM
709
FOAM TUBE
710
CAP SCREW 5/16-18 X 1
Price
N/A
711
UPPER CLAMP PLATE
712
CLAMP PLATE LOWER
713
CLAMP BRACKET
714
SHOULDER SCREW 1/2-13 X 3
Price
N/A
715
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
716
PRESS BRACKET UPPER
801
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
802
SPACER
803
ADAPTER
Price
N/A
804
BALL BEARING 6002ZZ
Price
N/A
805
ECCENTRIC SPACER
Price
N/A
806
BRACKET
Price
N/A
807
PRESS BRACKET
808
Now: PW02
FLAT WASHER 3/8
Price
N/A

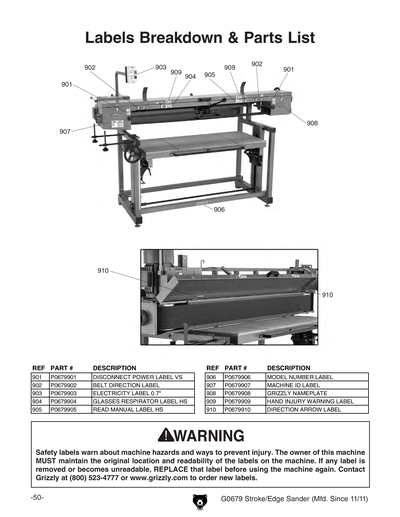

901
DISCONNECT 220V 1.5W X 2.5H
Price
N/A
902
BELT DIRECTION LABEL
903
ELECTRICITY 0.7W X 0.6H
Price
N/A
904
GLASSES/RESPIRATOR 2.8W X 1.5H
Price
N/A
905
READ MANUAL 2.8W X 1.5H
Price
N/A
906
MODEL NUMBER LABEL
907
MACHINE ID LABEL
908
Now: G9987
Nameplate - Mini
Price
N/A
909
HAND ABRASION WARNING
Price
N/A
910
DIRECTION ARROW LABEL
911
HANDWHEEL UP/DOWN LABEL
912
HANDWHEEL LOOSE/TIGHT LABEL
MAN
MANUAL FOR G0679 10/08
