Parts for G0686 Large Drill Bit Grinder

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1

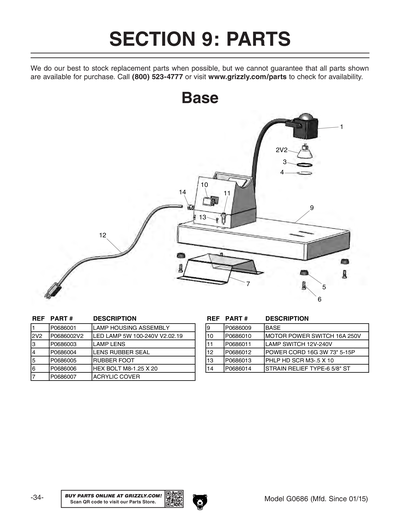

LAMP HOUSING ASSY
2
QUARTZ LAMP 12VDC 20W V1
2V2
LED LAMP 5W 100-240V V2.02.19
3
LAMP LENS
4
LENSE RUBBER SEAL
5
RUBBER FOOT
6
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
7
ACRYLIC COVER
8
TRANSFORMER 20W AC120V 50/60HZ AC-12V 50
9
BASE
10
MOTOR POWER SWITCH 16A 250V
11
LAMP SWITCH 12VDC
12
POWER CORD 16G X 3W 73"L
Price
N/A
13
Now: PS55M
PHLP HD SCR M3-.5 X 10
Price
N/A
14
STRAIN RELIEF 5/8" TYPE-6 ST
15

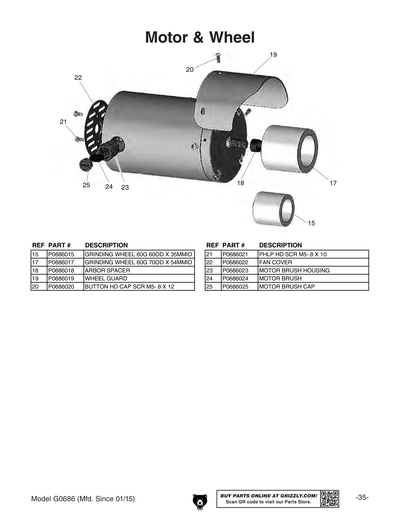

GRINDING WHEEL 60G 60MM OD X 35MM ID
16
70mm OD x 45mm ID Grinding Wheel, A80 Grit
Price
N/A
17
GRINDING WHEEL 60G 70MM OD X 54MM ID
18
ARBOR SPACER
19
WHEEL GUARD
20
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
21
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
22
FAN COVER
23
MOTOR BRUSH HOUSING
24
MOTOR BRUSH
25
MOTOR BRUSH CAP
26

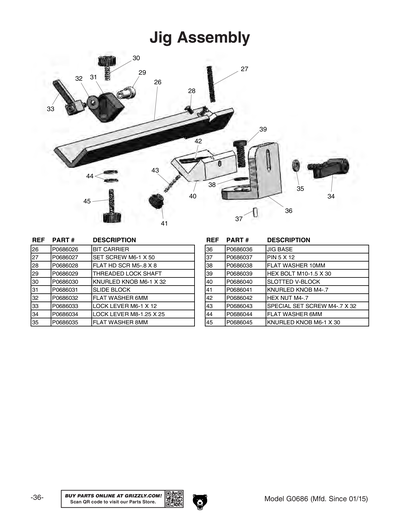

BIT CARRIER
27
SET SCREW M6-1 X 50
28
FLAT HD SCR M5-.8 X 8
Price
N/A
29
THREADED LOCK SHAFT
30
KNURLED KNOB M6-1 X 32
31
SLIDE BLOCK
32
Now: PW03M
FLAT WASHER 6MM
Price
N/A
33
LOCK LEVER M6-1 X 12
34
LOCK LEVER M8-1.25 X 25
35
Now: PW01M
FLAT WASHER 8MM
Price
N/A
36
JIG BASE
37
PIN 5 X 12
38
Now: PW04M
FLAT WASHER 10MM
Price
N/A
39
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
40
SLOTTED V-BLOCK
41
KNURLED KNOB M4-0.7
Price
N/A
42
Now: PN04M
HEX NUT M4-.7
Price
N/A
43
V-BLOCK SET SCREW M4-.7 X 32
44
Now: PW03M
FLAT WASHER 6MM
Price
N/A
45
KNURLED KNOB M6-1 X 30
46

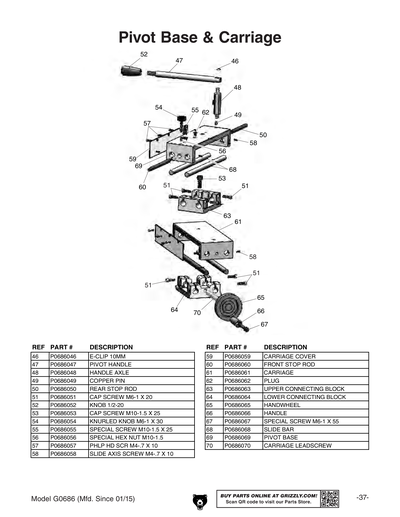

E-CLIP 10MM
Price
N/A
47
PIVOT HANDLE
48
HANDLE AXLE
49
PIN COPPER
50
STOP ROD REAR
51
CAP SCREW M6-1 X 20
Price
N/A
52
KNOB 1/2-20
53
CAP SCREW M10-1.5 X 25
Price
N/A
54
KNURLED KNOB M6-1 X 30
Price
N/A
55
PIVOT BASE SCREW M10-1.5 X 25
56
PIVOT BASE HEX NUT M10-1.5
57
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
58
SLIDE AXIS SCREW M4-.7 X 10
59
CARRIAGE COVER
60
STOP ROD FRONT
61
CARRIAGE
62
PLUG
63
UPPER CONNECTING BLOCK
64
CONNECTING BLOCK LOWER
65
HANDWHEEL
66
HANDLE
67
HANDWHEEL SCREW M6-1 X 55
68
SLIDE BAR
69
PIVOT BASE
70
CARRIAGE LEADSCREW
71

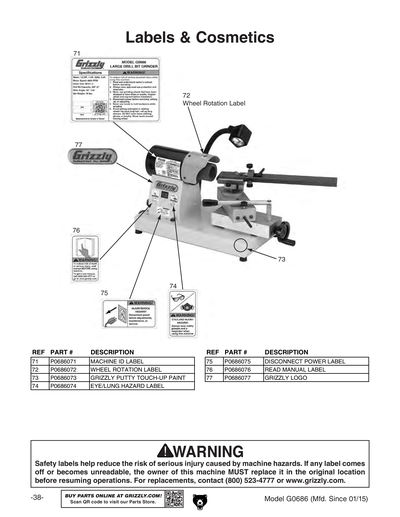

MACHINE ID LABEL
72
WHEEL ROTATION LABEL
73
GREY PUTTY REF G0504
Price
N/A
74
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
75
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
76
READ MANUAL 1.5W X 2.5H
Price
N/A
77
GRIZZLY LABEL OVAL PLASTIC 3.6W X 1H
Price
N/A
78
MOTOR
MAN
MANUAL G0686 MFD-06.08-12.14 V1.05.09
MANV2
MANUAL G0686 MFD-01.15+ V2.03.19
