Parts for G0694 20" x 43" Heavy-Duty Variable-Speed Wood Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

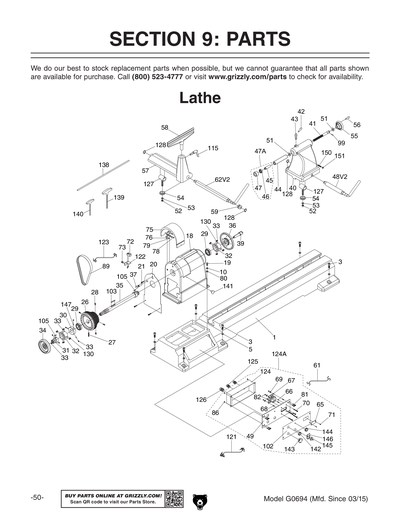

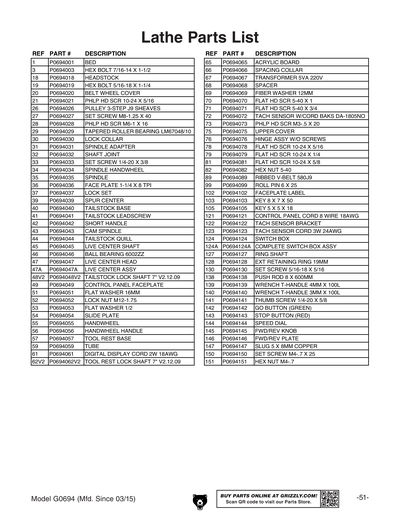

1
BED
2

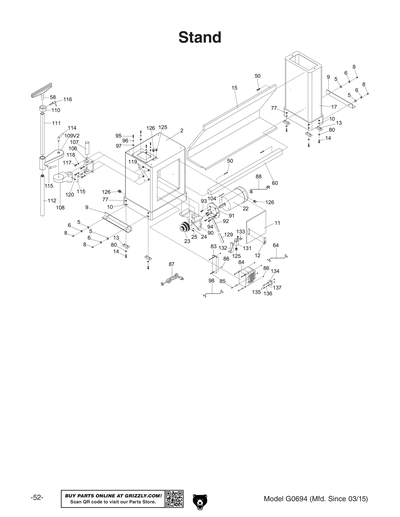

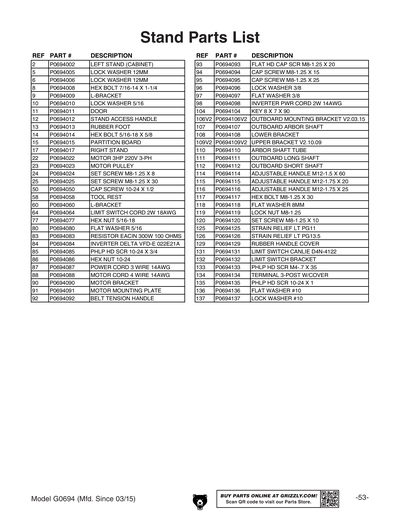

STAND/CABINET LEFT
3
Now: PB101
HEX BOLT 7/16-14 X 1-1/2
Price
N/A
5
LOCK WASHER 12MM
Price
N/A
6
LOCK WASHER 12MM
Price
N/A
8
Now: PB90
HEX BOLT 7/16-14 X 1-1/4
Price
N/A
9
L-BRACKET
10
Now: PLW01
LOCK WASHER 5/16
Price
N/A
11
DOOR
12
STAND ACCESS HANDLE
13
PAD
Price
N/A
14
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
15
PARTITION BOARD
17
STAND RIGHT
18
HEADSTOCK
18A
COMPLETE HEADSTOCK ASSY
18V2
HEADSTOCK V2.04.25
19
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
20
BELT WHEEL COVER
21
PHLP HD SCR 10-24 X 5/16
Price
N/A
22
MOTOR 3HP 220V 3-PH
23
MOTOR PULLEY
24
SET SCREW M8-1.25 X 8
Price
N/A
25
SET SCREW M8-1.25 X 30
Price
N/A
26
PULLEY 3-STEP J9 SHEAVES
27
SET SCREW M8-1.25 X 40
Price
N/A
28
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
29
TAPERED ROLLER BEARING LM67048/10
30
LOCK COLLAR
31
SPINDLE ADAPTER
32
SHAFT JOINT
33
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
34
SPINDLE HANDWHEEL
35
SPINDLE
36
FACE PLATE 1-1/4 X 8 TPI
37
LOCK SET
39
SPUR CENTER
40
TAILSTOCK BASE
41
TAILSTOCK LEADSCREW
42
SHORT HANDLE
43
CAM SPINDLE
44
TAILSTOCK QUILL
45
LIVE CENTER ASSY
Price
N/A
46
BALL BEARING 6002ZZ
Price
N/A
47
LIVE CENTER ASSY
Price
N/A
47A
LIVE CENTER ASSY
48
TAILSTOCK LOCK SHAFT 4" V1.01.09
48V2
TAILSTOCK LOCK SHAFT 7" V2.12.09
49
CONTROL PANEL FACEPLATE
50
CAP SCREW 10-24 X 1/2
Price
N/A
51
Now: PW08M
FLAT WASHER 16MM
Price
N/A
52
LOCK NUT M12-1.75
Price
N/A
53
Now: PW01
FLAT WASHER 1/2
Price
N/A
54
SLIDE PLATE
55
HANDWHEEL
56
HANDWHEEL HANDLE
57
TOOL REST BASE
58
TOOL REST
58A
OUTBOARD TOOL REST ASSEMBLY
59
TUBE
60
L-BRACKET
61
DIGITAL DISPLAY CORD 2W 18AWG
61V2
DIGITAL DISPLAY CORD 2W 16G V2.01.10
62
TOOL REST LOCK SHAFT 4" V1.01.09
62V2
TOOL REST LOCK SHAFT 7" V2.12.09
64
LIMIT SWITCH CORD 2W 18AWG
64V2
LIMIT SWITCH CORD 3W 14G V2.01.10
65
ACRYLIC BOARD
66
SPACING COLLAR
67
RPM DRO LEC RPM101-2-UZ01
68
SPACER
69
FIBER WASHER 12MM
70
Now: PFH34
FLAT HD SCR 5-40 X 1
Price
N/A
71
Now: PFH33
FLAT HD SCR 5-40 X 3/4
Price
N/A
71V2
FLAT HD SCR M3-.5 X 15 V2.12.11
72
TACH SENSOR W/CORD BAKS DA-1805NO
73
Now: PS13M
PHLP HD SCR M3-.5 X 20
Price
N/A
75
UPPER COVER
75V2
UPPER COVER V2.04.25
76
HINGE ASSY W/O SCREWS
77
Now: PN02
HEX NUT 5/16-18
Price
N/A
78
Now: PFH35
FLAT HD SCR 10-24 X 5/16
Price
N/A
79
Now: PFH26
FLAT HD SCR 10-24 X 1/4
Price
N/A
80
Now: PW07
FLAT WASHER 5/16
Price
N/A
81
Now: PFH36
FLAT HD SCR 10-24 X 5/8
Price
N/A
82
Now: PN28
HEX NUT 5-40
Price
N/A
83
RESISTOR EACIN 300W 100 OHMS
84
INVERTER DELTA VFD-E 022E21A
85
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
86
Now: PN07
HEX NUT 10-24
Price
N/A
87
POWER CORD 3 WIRE 14AWG
88
MOTOR CORD 4 WIRE 14AWG
89
RIBBED V-BELT 580J9
90
MOTOR BRACKET
91
MOTOR MOUNTING PLATE
92
BELT TENSION HANDLE
93
FLAT HD CAP SCR M8-1.25 X 20
Price
N/A
94
CAP SCREW M8-1.25 X 15
Price
N/A
95
CAP SCREW M8-1.25 X 25
Price
N/A
96
Now: PLW04
LOCK WASHER 3/8
Price
N/A
97
Now: PW02
FLAT WASHER 3/8
Price
N/A
98
INVERTER PWR CORD 2W 14AWG
102
FACEPLATE LABEL
103
KEY 8 X 7 X 50
Price
N/A
104
KEY 8 X 7 X 100
105
Now: PK14M
KEY 5 X 5 X 18
Price
N/A
106
OUTBOARD MOUNTING BRACKET V2.03.15
Price
N/A
106V2
OUTBOARD MOUNTING BRACKET V2.03.15
107
OUTBOARD ARBOR SHAFT
108
LOWER BRACKET
109
UPPER BRACKET V1
109V2
UPPER BRACKET V2.10.09
110
ARBOR SHAFT TUBE
111
OUTBOARD LONG SHAFT
112
OUTBOARD SHORT SHAFT
113
*DISCD*ADJUST HANDLE M10-1.5 X 20 V1
Item is no longer available
Price
N/A
113V2
ADJUSTABLE HANDLE M12-1.75 X 20
Price
N/A
114
ADJUSTABLE HANDLE M12-1.5 X 60
114V2
ADJ. HANDLE M12-1.5 X 70 V2.12.20
115
ADJUSTABLE HANDLE M12-1.75 X 20
115V2
ADJ. HANDLE M12-1.75 X 30 V2.01.19
116
ADJUSTABLE HANDLE M12-1.50 X 30
117
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
118
Now: PW01M
FLAT WASHER 8MM
Price
N/A
119
LOCK NUT M8-1.25
Price
N/A
120
SET SCREW M8-1.25 X 10
Price
N/A
121
CONTROL PANEL CORD 8 WIRE 18AWG
122
TACH SENSOR BRACKET
123
TACH SENSOR W/CORD BAKS DA-1805NO
Price
N/A
124
SWITCH BOX
124A
COMPLETE SWITCH BOX ASSY
125
STRAIN RELIEF LT PG11
126
STRAIN RELIEF LT PG13.5
127
RING SHAFT
128
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
129
RUBBER HANDLE COVER
130
Now: PSS17
SET SCREW 5/16-18 X 5/16
Price
N/A
131
LIMIT SWITCH
132
LIMIT SWITCH BRACKET
133
Now: PS25M
PHLP HD SCR M4-.7 X 35
Price
N/A
134
TERMINAL 3-POST W/COVER
135
Now: PS03
PHLP HD SCR 10-24 X 1
Price
N/A
136
Now: PW03
FLAT WASHER #10
Price
N/A
137
Now: PLW03
LOCK WASHER #10
Price
N/A
138
PUSH ROD 8 X 600MM
139
WRENCH T-HANDLE 4MM X 100L
140
WRENCH T-HANDLE 3MM X 100L
141
THUMB SCREW 1/4-20 X 5/8
142
ON BUTTON NHD NPB22-F 22MM GREEN
143
EMERGENCY STOP BUTTON NPB22-H 22MM RED
144
SPEED DIAL
144-1
POTENTIOMETER TOCOS RV24YN20S B102
145
FWD/REV SWITCH NSS22-S 22MM
146
FWD/REV PLATE
147
SLUG 5 X 8MM COPPER
148
LOCK SHAFT EXTENSION
149
SET SCREW M5-.8 X 5
Price
N/A
150
SET SCREW M4-.7 X 25
Price
N/A
151
Now: PN04M
HEX NUT M4-.7
Price
N/A
152
CHASSIS GROUND BAR
153
FLAT WASHER 5 X 12 X 1MM
157
LOCK HANDLE M10-1.5
164
HINGE
165
HINGE PLATE
167
SIGHT GLASS

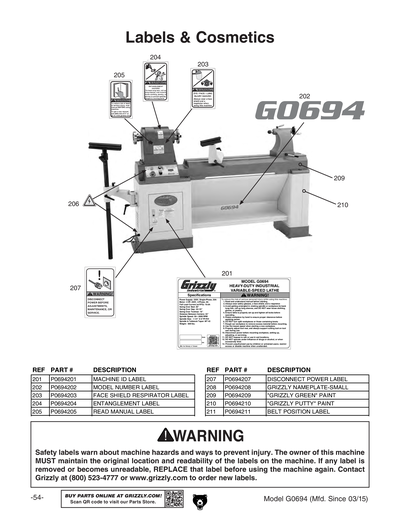

201
MACHINE ID LABEL
202
MODEL NUMBER LABEL
203
FACE SHIELD/RESPIRATOR 2W X 3.3H
Price
N/A
204
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
205
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
206
ELECTRICITY 0.7W X 0.6H
Price
N/A
207
DISCONNECT 220V 2W X 3.3H
Price
N/A
208
Now: G8588
Nameplate - Small
Price
N/A
209
N/S GRIZZLY GREEN G1023S
Price
N/A
210
GREY PUTTY REF G0504
Price
N/A
211
BELT POSITION LABEL
212
CRUSHING HAZARD LABEL
MAN
MANUAL G0694 07/09
