Parts for G0695 - 8" x 30" 1-1/2 HP Variable-Speed Knee Mill w/ Ram Head

Part Diagram for G0695
Part Diagram for G0695
Part Diagram for G0695
Part Diagram for G0695
Part Diagram for G0695
Part Diagram for G0695
Part Diagram for G0695
Part Diagram for G0695
Part Diagram for G0695
Part Diagram for G0695
Part Diagram for G0695
Part Diagram for G0695
Part Diagram for G0695
Part Diagram for G0695
Part Diagram for G0695
Part Diagram for G0695

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

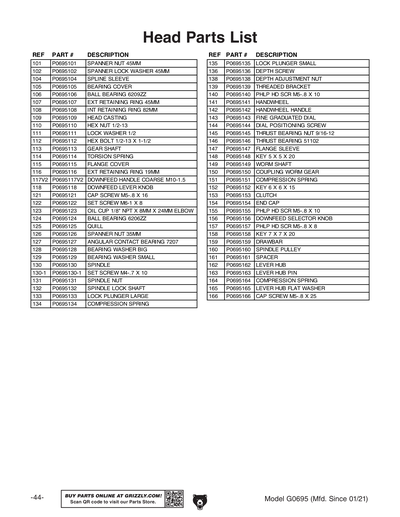

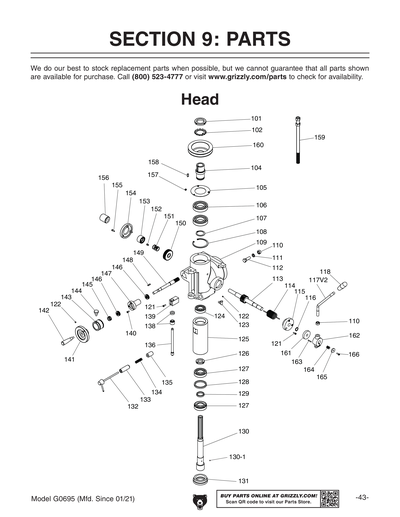

101
SPANNER NUT 45MM
Price
$14.25
102
SPANNER LOCK WASHER 45MM
Price
$7.25
104
SPLINE SLEEVE
Price
$107.50
105
BEARING COVER
Price
$8.50
106
BALL BEARING 6209ZZ
Price
N/A
107
EXT RETAINING RING 45MM
Price
N/A
108
INT RETAINING RING 82MM
Price
$6.70
109
HEAD CASTING
Price
$455.55
110
P0695110
Now: PN13
HEX NUT 1/2-13
Price
N/A
111
LOCK WASHER 1/2
Price
N/A
112
P0695112
Now: PB55
HEX BOLT 1/2-13 X 1-1/2
Price
N/A
113
GEAR SHAFT
Price
$143.30
114
TORSION SPRING
Price
N/A
115
FLANGE COVER
Price
$29.65
116
EXT RETAINING RING 19MM
Price
N/A
117
DOWNFEED HANDLE COARSE 1/2-12
Price
$18.15
118
DOWNFEED LEVER KNOB
Price
$3.40
121
CAP SCREW M5-.8 X 16
Price
N/A
122
SET SCREW M6-1 X 8
Price
N/A
123
OIL CUP 1/8" NPT X 8MM X 24MM ELBOW
Price
N/A
124
BALL BEARING 6206ZZ
Price
N/A
125
QUILL
Price
$583.55
126
SPANNER NUT 35MM X 1.5P
Price
N/A
127
ANGULAR CONTACT BEARING 7207
Price
N/A
128
BEARING WASHER BIG
Price
$24.15
129
BEARING WASHER SMALL
Price
$15.55
130
SPINDLE
Price
N/A
130-1
SET SCREW M4-.7 X 10
Price
N/A
131
SPINDLE COLLAR
Price
N/A
132
SPINDLE LOCK SHAFT
Price
$31.20
133
LOCK PLUNGER LARGE
Price
$9.10
134
COMPRESSION SPRING
Price
$3.65
135
LOCK PLUNGER SMALL
Price
$6.70
136
DEPTH SCREW
Price
$24.75
137
DEPTH ADJUSTMENT NUT
Price
N/A
138
DEPTH ADJUSTMENT NUT
Price
$3.95
139
THREADED BRACKET
Price
$9.10
140
PHLP HD SCR M5-.8 X 10
Price
N/A
141
HANDWHEEL
Price
$42.00
142
HANDLE 3/8-16 X 1/2
Price
N/A
143
FINE GRADUATED DIAL
Price
$29.95
144
DIAL POSITIONING SCREW
Price
$2.45
145
THRUST BEARING NUT 9/16-12
Price
$2.45
146
THRUST BEARING 51102
Price
N/A
147
FLANGE SLEEVE
Price
$29.30
148
KEY 5 X 5 X 20
Price
N/A
149
WORM SHAFT
Price
N/A
150
COUPLING WORM GEAR
Price
N/A
151
COMPRESSION SPRING
Price
$8.25
152
KEY 6 X 6 X 15
Price
N/A
153
CLUTCH
Price
$70.55
154
END CAP
Price
$19.35
155
PHLP HD SCR M5-.8 X 10
Price
N/A
156
DOWNFEED SELECTOR KNOB
Price
$42.15
157
PHLP HD SCR M5-.8 X 8
Price
N/A
158
KEY 7 X 7 X 20
Price
$2.45
159
DRAWBAR
Price
$56.20
160
SPINDLE PULLEY
Price
$165.75
161
SPACER
Price
$32.35
162
LEVER HUB
Price
$26.00
163
LEVER HUB PIN
Price
$3.95
164
COMPRESSION SPRING
Price
$3.40
165
LEVER HUB FLAT WASHER
Price
$2.45
166
CAP SCREW M5-.8 X 25
Price
N/A

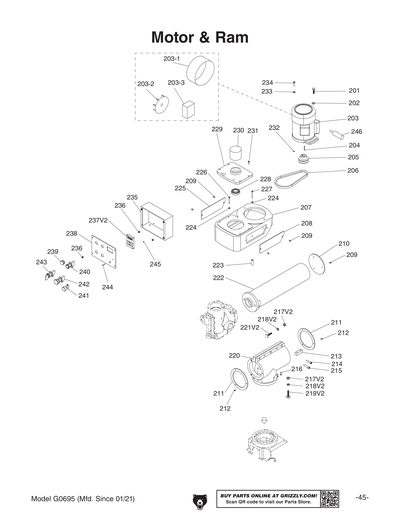

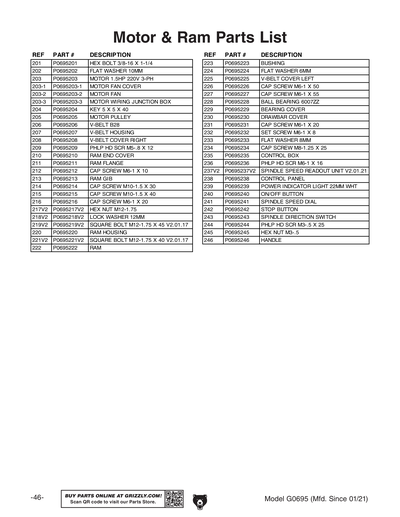

201
P0695201
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
202
FLAT WASHER 10MM
Price
N/A
203
MOTOR 1.5HP 220V 3-PH
Price
$453.80
203-1
MOTOR FAN COVER
Price
$16.95
203-2
MOTOR FAN
Price
$6.40
203-3
MOTOR WIRING JUNCTION BOX
Price
$9.10
204
KEY 5 X 5 X 40
Price
N/A
205
MOTOR PULLEY
Price
$59.80
206
V-BELT B28
Price
N/A
207
V-BELT HOUSING
Price
$301.30
208
V-BELT COVER RIGHT
Price
$22.05
209
PHLP HD SCR M5-.8 X 12
Price
N/A
210
RAM END COVER
Price
$9.10
211
RAM FLANGE
Price
$7.90
212
CAP SCREW M6-1 X 10
Price
N/A
213
RAM GIB
Price
$13.60
214
CAP SCREW M10-1.5 X 30
Price
N/A
215
CAP SCREW M10-1.5 X 40
Price
N/A
216
CAP SCREW M6-1 X 20
Price
N/A
217
P0695217
Now: PN13
HEX NUT 1/2-13
Price
N/A
217V2
HEX NUT M12-1.75
Price
N/A
218
LOCK WASHER 1/2
Price
N/A
218V2
LOCK WASHER 12MM
Price
N/A
219
P0695219
Now: PB56
HEX BOLT 1/2-13 X 1-3/4
Price
N/A
219V2
SQUARE BOLT M12-1.75 X 45 V2.01.17
Price
N/A
220
RAM HOUSING
Price
$870.35
221
P0695221
Now: PB55
HEX BOLT 1/2-13 X 1-1/2
Price
N/A
221V2
SQUARE BOLT M12-1.75 X 40 V2.01.17
Price
N/A
222
RAM
Price
$802.10
223
BUSHING
Price
$9.10
224
FLAT WASHER 6MM
Price
N/A
225
V-BELT COVER LEFT
Price
$22.05
226
CAP SCREW M6-1 X 50
Price
N/A
227
CAP SCREW M6-1 X 55
Price
N/A
228
BALL BEARING 6007ZZ
Price
N/A
229
BEARING COVER
Price
$40.80
230
DRAWBAR COVER
Price
$22.40
231
CAP SCREW M6-1 X 20
Price
N/A
232
SET SCREW M6-1 X 8
Price
N/A
233
FLAT WASHER 8MM
Price
N/A
234
CAP SCREW M8-1.25 X 25
Price
N/A
235
CONTROL BOX
Price
$66.45
236
PHLP HD SCR M6-1 X 16
Price
N/A
237
SPINDLE SPEED READOUT V1
Price
N/A
237V2
SPINDLE SPEED READOUT UNIT V2.01.21
Price
$185.80
238
CONTROL PANEL
Price
$68.60
239
POWER INDICATOR LIGHT 22MM WHT
Price
N/A
240
ON/OFF BUTTON
Price
$15.45
241
SPINDLE SPEED DIAL
Price
$47.10
242
STOP BUTTON
Price
$38.10
243
SPINDLE DIRECTION SWITCH
Price
$29.65
244
P0695244
Now: PS34
PHLP HD SCR M3-.5 X 25
Price
N/A
245
HEX NUT M3-.5
Price
N/A
246
HANDLE
Price
$5.50

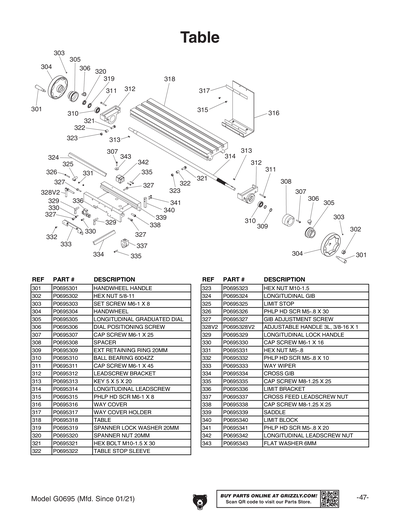

301
HANDWHEEL HANDLE
Price
$54.35
302
P0695302
Now: PN04
HEX NUT 5/8-11
Price
N/A
303
SET SCREW M6-1 X 8
Price
N/A
304
HANDWHEEL
Price
$151.60
305
LONGITUDINAL GRADUATED DIAL
Price
$62.25
306
DIAL POSITIONING SCREW
Price
N/A
307
CAP SCREW M6-1 X 25
Price
N/A
308
SPACER
Price
$24.80
309
EXT RETAINING RING 20MM
Price
N/A
310
BALL BEARING 6004ZZ
Price
N/A
311
CAP SCREW M6-1 X 45
Price
N/A
312
LEADSCREW BRACKET
Price
$45.35
313
KEY 5 X 5 X 20
Price
N/A
314
LONGITUDINAL LEADSCREW
Price
N/A
315
PHLP HD SCR M6-1 X 8
Price
N/A
316
WAY COVER
Price
$31.95
317
WAY COVER HOLDER
Price
$21.20
318
TABLE
Price
$917.70
319
SPANNER LOCK WASHER 20MM
Price
$3.65
320
SPANNER NUT 20MM
Price
$8.50
321
HEX BOLT M10-1.5 X 30
Price
N/A
322
TABLE STOP SLEEVE
Price
$11.45
323
HEX NUT M10-1.5
Price
N/A
324
TABLE GIB
Price
N/A
325
LIMIT BLOCK
Price
N/A
326
PHLP HD SCR M5-.8 X 30
Price
N/A
327
GIB ADJUSTING SCR
Price
$12.05
328
CROSS FEED LOCK HANDLE
Price
$10.35
328V2
ADJUSTABLE HANDLE 3L, 3/8-16 X 1
Price
$33.20
329
LONGITUDINAL LOCK HANDLE
Price
$3.40
330
CAP SCREW M6-1 X 16
Price
N/A
331
HEX NUT M5-.8
Price
N/A
332
PHLP HD SCR M5-.8 X 10
Price
N/A
333
WAY WIPER
Price
$14.25
334
CROSS GIB
Price
$27.20
335
CAP SCREW M8-1.25 X 25
Price
N/A
336
LIMIT BRACKET
Price
$17.05
337
CROSS FEED LEADSCREW NUT
Price
$73.70
338
CAP SCREW M8-1.25 X 25
Price
N/A
339
SADDLE
Price
$555.80
340
LIMIT BLOCK
Price
$10.65
341
PHLP HD SCR M5-.8 X 20
Price
N/A
342
LONGITUDINAL LEADSCREW NUT
Price
N/A
343
FLAT WASHER 6MM
Price
N/A

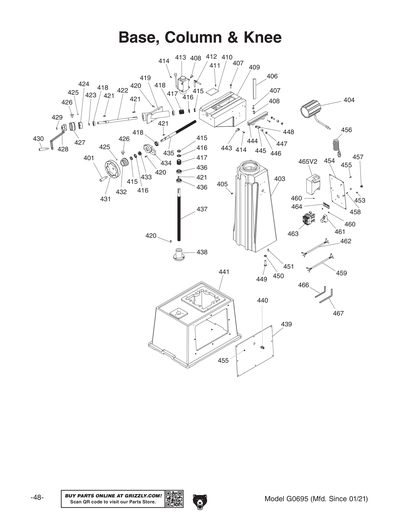

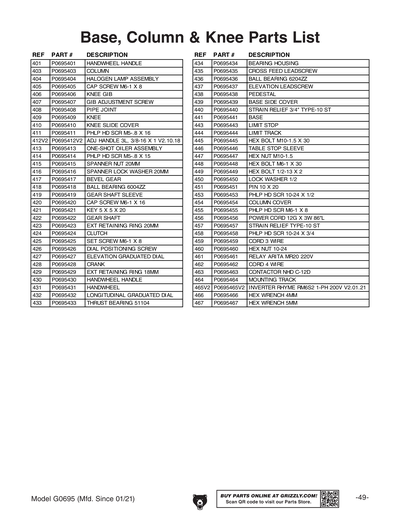

401
HANDWHEEL HANDLE
Price
N/A
403
COLUMN
Price
$1,167.70
404
HALOGEN LAMP ASSY
Price
$42.30
405
CAP SCREW M6-1 X 8
Price
N/A
406
KNEE GIB
Price
$21.75
407
GIB ADJUSTING SCR
Price
$3.40
408
PIPE JOINT
Price
$11.20
409
KNEE
Price
$1,133.30
410
KNEE SLIDE COVER
Price
$2.75
411
PHLP HD SCR M5-.8 X 16
Price
N/A
412
ADJUSTABLE HANDLE 3L, 3/8-16 X 1
Price
N/A
412V2
ADJUSTABLE HANDLE 3L, 3/8-16 X 1
Price
N/A
413
ONE SHOT OILER ASSY
Price
$130.45
414
PHLP HD SCR M5-.8 X 15
Price
N/A
415
SPANNER NUT 20MM
Price
N/A
416
SPANNER LOCK WASHER 20MM
Price
$5.15
417
BEVEL GEAR
Price
$33.55
418
BALL BEARING 6004ZZ
Price
N/A
419
GEAR SHAFT SLEEVE
Price
$101.20
420
CAP SCREW M6-1 X 16
Price
N/A
421
KEY 5 X 5 X 20
Price
N/A
422
GEAR SHAFT
Price
$35.05
423
EXT RETAINING RING 20MM
Price
N/A
424
CLUTCH
Price
$33.25
425
SET SCREW M6-1 X 8
Price
N/A
426
DIAL POSITIONING SCREW
Price
N/A
427
ELEVATION GRADUATED DIAL
Price
$40.50
428
CRANK
Price
$46.55
429
EXT RETAINING RING 18MM
Price
N/A
430
HANDLE 3/8-16 X 1/2
Price
N/A
431
HANDWHEEL
Price
N/A
432
LONGITUDINAL GRADUATED DIAL
Price
N/A
433
THRUST BEARING 51104
Price
N/A
434
BEARING HOUSING
Price
$61.90
435
CROSS FEED LEADSCREW 7/8" X 425
Price
N/A
436
BALL BEARING 6204ZZ
Price
N/A
437
ELEVATION LEADSCREW
Price
$164.25
438
PEDESTAL
Price
$66.45
439
BASE SIDE COVER
Price
$35.05
440
STRAIN RELIEF 3/4" TYPE-10 ST
Price
$2.45
441
BASE
Price
$938.55
442
*DISCD*DRAIN SCREEN
Item is no longer available
Price
N/A
443
LIMIT BLOCK
Price
N/A
444
LIMIT TRACK
Price
$44.45
445
HEX BOLT M10-1.5 X 30
Price
N/A
446
TABLE STOP SLEEVE
Price
N/A
447
HEX NUT M10-1.5
Price
N/A
448
HEX BOLT M6-1 X 30
Price
N/A
449
P0695449
Now: PB72
HEX BOLT 1/2-13 X 2
Price
N/A
450
LOCK WASHER 1/2
Price
N/A
451
PIN 10 X 20
Price
$2.45
453
P0695453
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
454
COLUMN COVER
Price
$21.75
455
PHLP HD SCR M6-1 X 8
Price
N/A
456
POWER CORD 12G X 3W 86"L
Price
N/A
457
STRAIN RELIEF TYPE-10 ST
Price
$2.45
458
P0695458
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
459
CORD 3 WIRE
Price
$8.80
460
P0695460
Now: PN07
HEX NUT 10-24
Price
N/A
461
RELAY ARITA MR20 220V
Price
N/A
462
CORD 4 WIRE
Price
$16.05
463
CONTACTOR NHD C-12D
Price
N/A
464
MOUNTING TRACK
Price
$3.95
465
***SEE EXTENDED DESCRIPTION***
Item is no longer available
Price
N/A
465V2
INVERTER RHYME RM6S2 1-PH 200V V3.12.20
Price
N/A
466
HEX WRENCH 4MM
Price
N/A
467
HEX WRENCH 5MM
Price
N/A

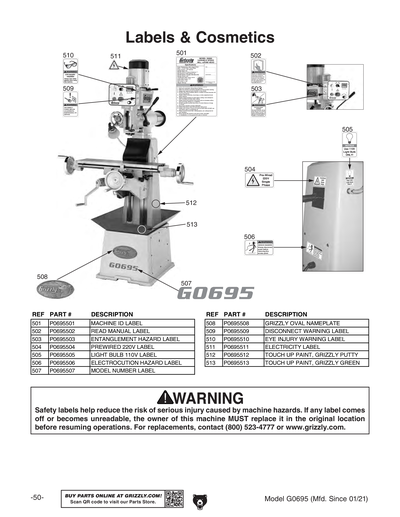

501
MACHINE ID LABEL
Price
$16.40
502
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
503
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
504
PREWIRED 220V LABEL
Price
$3.15
505
LIGHT BULB 110V LABEL
Price
$3.15
506
SHOCK HAZARD 3.8W X 2H
Price
N/A
507
MODEL NUMBER LABEL
Price
$3.45
508
Nameplate - Small
Price
N/A
509
DISCONNECT 220V 2W X 3.3H
Price
N/A
510
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
511
ELECTRICITY 0.7W X 0.6H
Price
N/A
512
GREY PUTTY REF G0504
Price
N/A
513
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MAN FOR G0695 MFD 04.09-08.10 V1.07.09
Price
$12.75
MANV2
MANUAL G0695 MFD 09.10-12.16 V2.10.10
Price
$19.25
MANV3
MANUAL G0695 MFD-01.17-12.20 V3.09.19
Price
$19.00
MANV4
MANUAL G0695 MFD-01.21+ V4.01.21
Price
$19.00
