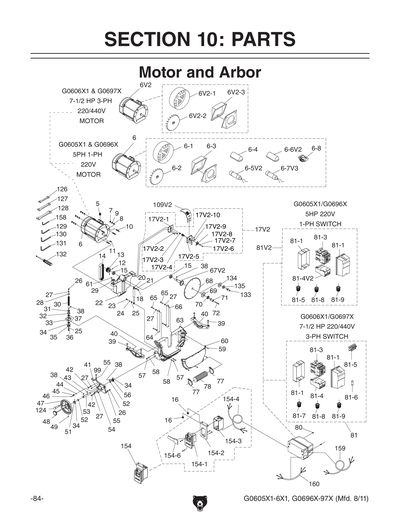

Parts for G0697X - 12" 7-1/2 HP 3-Phase Extreme Series® Table Saw

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

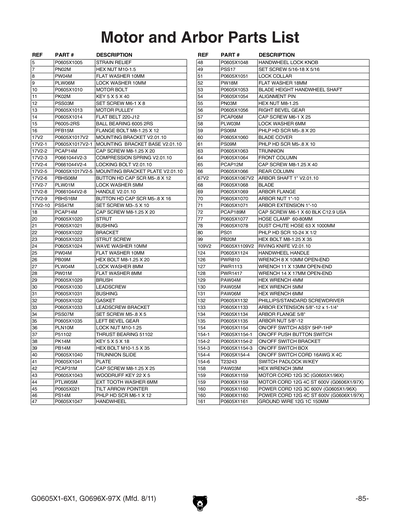

Ref # Part # Description Price Qty

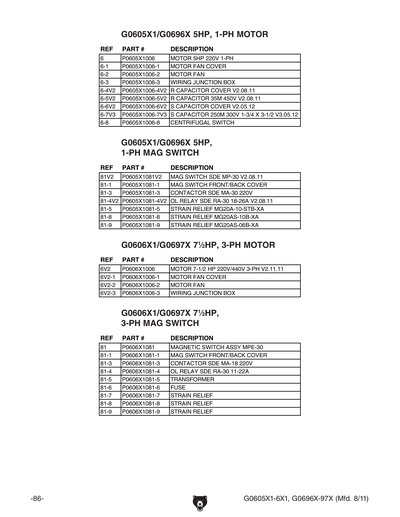

5 P0697X005
Replaced By P0651020
STRAIN RELIEF PG16 TYPE-6 ST
N/A View Replacement
6 P0697X006
Replaced By P0606X1006
MOTOR 7.5HP 220V/440V 3-PH V1
N/A View Replacement
6-1 P0697X006-1
Replaced By P0606X1006-1
MOTOR FAN COVER
N/A View Replacement
6-2 P0697X006-2
Replaced By P0606X1006-2
MOTOR FAN
N/A View Replacement
6-3 P0697X006-3
Replaced By P0606X1006-3
WIRING JUNCTION BOX
N/A View Replacement
7 P0697X007
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
8 P0697X008
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
9 P0697X009
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
10 P0697X010
Replaced By P0605X1010
MOTOR BOLT
N/A View Replacement
11 P0697X011
Replaced By PK02M
KEY 5 X 5 X 40
N/A View Replacement
12 P0697X012
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
13 P0697X013
Replaced By P0605X1013
MOTOR PULLEY
N/A View Replacement
14 P0697X014
Replaced By P0605X1014
FLAT BELT 220-J12
N/A View Replacement
15 P0697X015
Replaced By P6005-2RS
BALL BEARING 6005-2RS
N/A View Replacement
16 P0697X016
Replaced By PFB15M
FLANGE BOLT M8-1.25 X 12
N/A View Replacement
17 P0697X017
Replaced By P0605X1017
*DISCD*SPLITTER MOUNTING BRKT V1.02.09
N/A View Replacement
17V2 P0697X017V2
Replaced By P0605X1017V2
MOUNTING BRACKET V2.01.10
N/A View Replacement
17V2-1 P0697X017V2-1
Replaced By P0605X1017V2-1
MOUNTING BRACKET BASE V2.01.10
N/A View Replacement
17V2-10 P0697X017V2-10
Replaced By PSS47M
SET SCREW M3-.5 X 10
N/A View Replacement
17V2-2 P0697X017V2-2
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
17V2-3 P0697X017V2-3
Replaced By P0661044V2-3
COMPRESSION SPRING V2.01.10
N/A View Replacement
17V2-4 P0697X017V2-4
Replaced By P0661044V2-4
LOCKING BOLT V2.01.10
N/A View Replacement
17V2-5 P0697X017V2-5
Replaced By P0605X1017V2-5
MOUNTING BRACKET PLATE V2.01.10
N/A View Replacement
17V2-6 P0697X017V2-6
Replaced By PBHS06M
BUTTON HD CAP SCR M5-.8 X 12
N/A View Replacement
17V2-7 P0697X017V2-7
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement
17V2-8 P0697X017V2-8
Replaced By P0661044V2-8
HANDLE V2.01.10
N/A View Replacement
17V2-9 P0697X017V2-9
Replaced By PBHS16M
BUTTON HD CAP SCR M5-.8 X 16
N/A View Replacement
18 P0697X018
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
19 P0697X019
Replaced By P0605X1019
*DISCD*MOUNTING BOLT V1.02.09
N/A View Replacement
20 P0697X020
Replaced By P0605X1020
STRUT
N/A View Replacement
21 P0697X021
Replaced By P0605X1021
BUSHING
N/A View Replacement
22 P0697X022
Replaced By P0605X1022
BRACKET
N/A View Replacement
23 P0697X023
Replaced By P0605X1023
STRUT SCREW
N/A View Replacement
24 P0697X024
Replaced By PH2801069
WAVY WASHER 10MM
N/A View Replacement
25 P0697X025
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
26 P0697X026
Replaced By PB09M
HEX BOLT M8-1.25 X 20
N/A View Replacement
27 P0697X027
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
28 P0697X028
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
29 P0697X029
Replaced By P0605X1029
BRUSH
N/A View Replacement
30 P0697X030
Replaced By P0605X1030
LEADSCREW
N/A View Replacement
31 P0697X031
Replaced By P0605X1031
BUSHING
N/A View Replacement
32 P0697X032
Replaced By P0605X1032
GASKET
N/A View Replacement
33 P0697X033
Replaced By P0605X1033
LEADSCREW BRACKET
N/A View Replacement
34 P0697X034
Replaced By PSS07M
SET SCREW M5-.8 X 5
N/A View Replacement
35 P0697X035
Replaced By P0605X1035
LEFT BEVEL GEAR
N/A View Replacement
36 P0697X036
Replaced By PLN10M
LOCK NUT M10-1.25
N/A View Replacement
37 P0697X037
Replaced By P51102
THRUST BEARING 51102
N/A View Replacement
38 P0697X038
Replaced By PK14M
KEY 5 X 5 X 18
N/A View Replacement
39 P0697X039
Replaced By PB14M
HEX BOLT M10-1.5 X 35
N/A View Replacement
40 P0697X040
Replaced By P0605X1040
TRUNNION SLIDE
N/A View Replacement
41 P0697X041
Replaced By P0605X1041
PLATE
N/A View Replacement
42 P0697X042
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
43 P0697X043
Replaced By P0605X1043
WOODRUFF KEY 22 X 5
N/A View Replacement
44 P0697X044
Replaced By PTLW05M
EXT TOOTH WASHER 6MM
N/A View Replacement
45 P0697X045
Replaced By P0605X021
TILT ARROW POINTER
N/A View Replacement
46 P0697X046
Replaced By PS14M
PHLP HD SCR M6-1 X 12
N/A View Replacement
47 P0697X047
Replaced By P0605X1047
HANDWHEEL
N/A View Replacement
48 P0697X048
Replaced By P0605X1048
HANDWHEEL LOCK KNOB
N/A View Replacement
49 P0697X049
Replaced By PSS17
SET SCREW 5/16-18 X 5/16
N/A View Replacement
50 P0697X050
Replaced By P0605X1050
*DISCD*SHIM V1.02.09
N/A View Replacement
51 P0697X051
Replaced By P0605X1051
LOCK COLLAR
N/A View Replacement
52 P0697X052
Replaced By P0605X1052
PLASTIC BUSHING 19MM ID
N/A View Replacement
53 P0697X053
Replaced By P0605X1053
BLADE HEIGHT HANDWHEEL SHAFT
N/A View Replacement
54 P0697X054
Replaced By P0605X1054
ALIGNMENT PIN
N/A View Replacement
55 P0697X055
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
56 P0697X056
Replaced By P0605X1056
RIGHT BEVEL GEAR
N/A View Replacement
57 P0697X057
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
58 P0697X058
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
59 P0697X059
Replaced By PS06M
PHLP HD SCR M5-.8 X 20
N/A View Replacement
60 P0697X060
Replaced By P0605X1060
BLADE COVER
N/A View Replacement
61 P0697X061
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
61-1 P0697X061-1
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
62 P0697X062
Replaced By P0605X1062
DUST CHUTE
N/A View Replacement
63 P0697X063
Replaced By P0605X1063
TRUNNION
N/A View Replacement
64 P0697X064
Replaced By P0605X1064
FRONT COLUMN
N/A View Replacement
65 P0697X065
Replaced By PCAP12M
CAP SCREW M8-1.25 X 40
N/A View Replacement
66 P0697X066
Replaced By P0605X1066
REAR COLUMN
N/A View Replacement
67 P0697X067
Replaced By P0605X1067V2
ARBOR SHAFT 1" V2.01.10
N/A View Replacement
67V2 P0697X067V2
Replaced By P0605X1067V2
ARBOR SHAFT 1" V2.01.10
N/A View Replacement
68 P0697X068
Replaced By P0605X1068
BLADE
N/A View Replacement
69 P0697X069
Replaced By P0605X1069
ARBOR FLANGE
N/A View Replacement
70 P0697X070
Replaced By P0605X1070
ARBOR NUT 1"-10
N/A View Replacement
71 P0697X071
Replaced By P0605X1067V2
ARBOR SHAFT 1" V2.01.10
N/A View Replacement
72 P0697X072
Replaced By PCAP189M
CAP SCREW M6-1 X 60 BLK C12.9 USA
N/A View Replacement
73 P0697X073
Replaced By P0605X1073
ALIGNMENT PIN
N/A View Replacement
74 P0697X074
Replaced By P0605X1074
MOTOR COVER
N/A View Replacement
75 P0697X075
Replaced By P0605X1075
RUBBER BUMPER
N/A View Replacement
76 P0697X076
Replaced By P0605X1076
LOCK KNOB M6-1 X 17
N/A View Replacement
77 P0697X077
Replaced By P0605X1077
HOSE CLAMP 60-80MM
N/A View Replacement
78 P0697X078
Replaced By P0605X1078
DUST CHUTE HOSE 63 X 1000MM
N/A View Replacement
79 P0697X079
Replaced By P0605X1079
RIGHT COVER
N/A View Replacement
80 P0697X080
Replaced By PS01
PHLP HD SCR 10-24 X 1/2
N/A View Replacement
81 P0697X081
Replaced By P0606X075
MAG SWITCH 220V 3PH 19A
N/A View Replacement
81-1 P0697X081-1
Replaced By P0606X075-1
MAG SWITCH FRONT COVER
N/A View Replacement
81-2 P0697X081-2
Replaced By P0606X075-2
MAG SWITCH BACK COVER
N/A View Replacement
81-3 P0697X081-3
Replaced By P0606X075-3
CONTACTOR SDE MA-18 220V
N/A View Replacement
81-4 P0697X081-4
Replaced By P0606X075-4
OL RELAY RA-30 11-18A
N/A View Replacement
81-5 P0697X081-5
Replaced By P0606X075-7
TRANSFORMER 30VA 220V/440V-220V/440V
N/A View Replacement
81-6 P0697X081-6
Replaced By P0606X075-8
FUSE
N/A View Replacement
81-7 P0697X081-7
Replaced By P0658057
STRAIN RELIEF M20 TYPE-6 ST
N/A View Replacement
81-8 P0697X081-8
Replaced By P0605X1081-8
STRAIN RELIEF M20 TYPE-6 ST
N/A View Replacement
81-9 P0697X081-9
Replaced By P0605X1081-9
STRAIN RELIEF M20 TYPE-6 ST
N/A View Replacement
82 P0697X082
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
83 P0697X083
Replaced By P0605X1083
COVER
N/A View Replacement
84 P0697X084
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
88 P0697X088
Replaced By P0651083
DIGITAL SENSOR ASSY
N/A View Replacement
88-1 P0697X088-1
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
88-10 P0697X088-10
Replaced By P0605X1088-10
DIGITAL SENSOR COVER
N/A View Replacement
88-2 P0697X088-2
Replaced By P0651083-2
DIGITAL READOUT COVER
N/A View Replacement
88-3 P0697X088-3
Replaced By PS79M
PHLP HD SCR M3-.5 X 8
N/A View Replacement
88-4 P0697X088-4
Replaced By PW07M
FLAT WASHER 3MM
N/A View Replacement
88-5 P0697X088-5
Replaced By P0651083-5
CIRCUIT BOARD
N/A View Replacement
88-6 P0697X088-6
Replaced By P0651083-6
SENSOR PLATE
N/A View Replacement
88-7 P0697X088-7
Replaced By P0651083-7
DATA CORD 24 AWG X 450
N/A View Replacement
88-8 P0697X088-8
Replaced By P0651083-8
DIGITAL READOUT CORD 18 AWG X 2C
N/A View Replacement
88-9 P0697X088-9
Replaced By PS50M
PHLP HD SCR M3-.5 X 12
N/A View Replacement
89 P0697X089
Replaced By PS79M
PHLP HD SCR M3-.5 X 8
N/A View Replacement
90 P0697X090
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
91 P0697X091
Replaced By P0605X1091
PLATE
N/A View Replacement
92 P0697X092
Replaced By PS17M
PHLP HD SCR M4-.7 X 6
N/A View Replacement
93 P0697X093
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
94 P0697X094
Replaced By PSS42M
SET SCREW M8-1.25 X 50
N/A View Replacement
95 P0697X095
Replaced By P0603X321
STRAIN RELIEF PG13.5 TYPE-6 ST
N/A View Replacement
96 P0697X096
Replaced By PB32M
HEX BOLT M10-1.5 X 25
N/A View Replacement
97 P0697X097
Replaced By P0651097
FENCE MOUNTING BRACKET
N/A View Replacement
98 P0697X098
Replaced By P0605X088
STRAIN RELIEF
N/A View Replacement
99 P0697X099
Replaced By PB20M
HEX BOLT M8-1.25 X 35
N/A View Replacement
100 P0697X100
Replaced By P0605X1100
CHAIN
N/A View Replacement
1006V2 P0697X1006V2
Replaced By P0606X1006V2
MOTOR 7.5HP 220V/440V 3-PH V2.11.11
N/A View Replacement
1006V2-1 P0697X1006V2-1
Replaced By P0606X1006V2-1
MOTOR FAN COVER
N/A View Replacement
1006V2-2 P0697X1006V2-2
Replaced By P0606X1006V2-2
MOTOR FAN
N/A View Replacement
1006V2-3 P0697X1006V2-3
Replaced By P0606X1006V2-3
WIRING JUNCTION BOX
N/A View Replacement

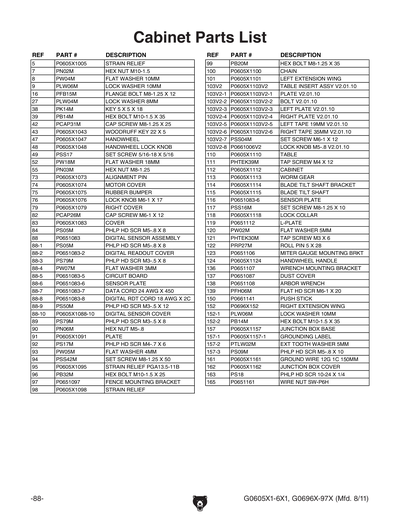

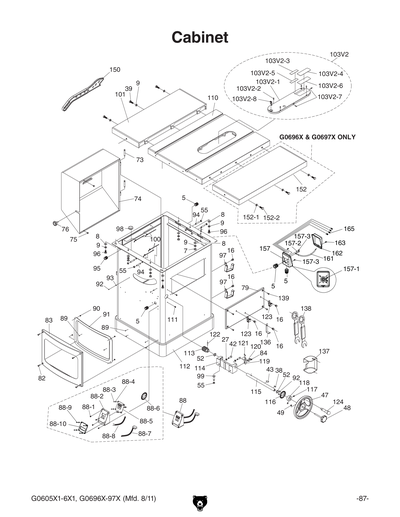

101 P0697X101
Replaced By P0605X1101
LEFT EXTENSION WING
N/A View Replacement
102 P0697X102
Replaced By PFH54M
FLAT HD SCR M5-.8 X 20
N/A View Replacement
103 P0697X103
Replaced By P0605X1103
*DISCD*TABLE INSERT V1.02.09
N/A View Replacement
103V2 P0697X103V2
Replaced By P0605X1103V2
TABLE INSERT ASSY V2.01.10
N/A View Replacement
103V2-1 P0697X103V2-1
Replaced By P0605X1103V2-1
PLATE V2.01.10
N/A View Replacement
103V2-2 P0697X103V2-2
Replaced By P0605X1103V2-2
BOLT V2.01.10
N/A View Replacement
103V2-3 P0697X103V2-3
Replaced By P0605X1103V2-3
LEFT PLATE W/ TAPE V2.01.10
N/A View Replacement
103V2-4 P0697X103V2-4
Replaced By P0605X1103V2-4
RIGHT PLATE W/ TAPE 35MM V2.01.10
N/A View Replacement
103V2-5 P0697X103V2-5
Replaced By P0605X1103V2-3
LEFT PLATE W/ TAPE V2.01.10
N/A View Replacement
103V2-6 P0697X103V2-6
Replaced By P0605X1103V2-4
RIGHT PLATE W/ TAPE 35MM V2.01.10
N/A View Replacement
103V2-7 P0697X103V2-7
Replaced By PSS04M
SET SCREW M6-1 X 12
N/A View Replacement
103V2-8 P0697X103V2-8
Replaced By P0661006V2
LOCK KNOB M5-.8 V2.01.10
N/A View Replacement
104 P0697X104
Replaced By PSS04M
SET SCREW M6-1 X 12
N/A View Replacement
105 P0697X105
Replaced By P0605X1105
*DISCD*PLATE L V1.02.09
N/A View Replacement
106 P0697X106
Replaced By P0605X1106
*DISCD*PLATE R V1.02.09
N/A View Replacement
107 P0697X107
Replaced By P0605X1107
*DISCD*TAPE L V1.02.09
N/A View Replacement
108 P0697X108
Replaced By P0605X1108
*DISCD*TAPE R V1.02.09
N/A View Replacement
109 P0697X109
Replaced By P0605X1109
*DISCD*RIVING KNIFE V1.02.09
N/A View Replacement
109V2 P0697X109V2
Replaced By P0605X1109V2
RIVING KNIFE V2.01.10
N/A View Replacement
110 P0697X110
Replaced By P0605X1110
TABLE
N/A View Replacement
111 P0697X111
Replaced By PHTEK39M
TAP SCREW M4 X 12
N/A View Replacement
112 P0697X112
Replaced By P0605X1112
CABINET
N/A View Replacement
113 P0697X113
Replaced By P0605X1113
WORM GEAR
N/A View Replacement
114 P0697X114
Replaced By P0605X1114
BLADE TILT SHAFT BRACKET
N/A View Replacement
115 P0697X115
Replaced By P0605X1115
BLADE TILT SHAFT
N/A View Replacement
116 P0697X116
Replaced By P0651083-6
SENSOR PLATE
N/A View Replacement
117 P0697X117
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
118 P0697X118
Replaced By P0605X1118
LOCK COLLAR
N/A View Replacement
119 P0697X119
Replaced By P0651112
L-PLATE
N/A View Replacement
120 P0697X120
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
121 P0697X121
Replaced By PHTEK30M
TAP SCREW M3 X 6
N/A View Replacement
122 P0697X122
Replaced By PRP27M
ROLL PIN 5 X 28
N/A View Replacement
123 P0697X123
Replaced By P0651106
MITER GAUGE MOUNTING BRACKET
N/A View Replacement
124 P0697X124
Replaced By P0605X1124
HANDWHEEL HANDLE
N/A View Replacement
126 P0697X126
Replaced By PWR810
WRENCH 8 X 10MM OPEN-ENDS
N/A View Replacement
127 P0697X127
Replaced By PWR1113
WRENCH 11 X 13MM OPEN-ENDS
N/A View Replacement
128 P0697X128
Replaced By PWR1417
WRENCH 14 X 17MM OPEN-ENDS
N/A View Replacement
129 P0697X129
Replaced By PAW04M
HEX WRENCH 4MM
N/A View Replacement
130 P0697X130
Replaced By PAW05M
HEX WRENCH 5MM
N/A View Replacement
131 P0697X131
Replaced By PAW06M
HEX WRENCH 6MM
N/A View Replacement
132 P0697X132
Replaced By P0605X1132
SCREWDRIVER PHILLIPS/STANDARD
N/A View Replacement
133 P0697X133
Replaced By P0605X1067V2
ARBOR SHAFT 1" V2.01.10
N/A View Replacement
134 P0697X134
Replaced By P0605X1134
ARBOR FLANGE 5/8"
N/A View Replacement
135 P0697X135
Replaced By P0605X1135
ARBOR NUT 5/8"-12
N/A View Replacement
136 P0697X136
Replaced By P0651107
WRENCH MOUNTING BRACKET
N/A View Replacement
137 P0697X137
Replaced By P0651087
COVER
N/A View Replacement
138 P0697X138
Replaced By P0651108
ARBOR WRENCH
N/A View Replacement
139 P0697X139
Replaced By PFH06M
FLAT HD SCR M6-1 X 20
N/A View Replacement
150 P0697X150
Replaced By P0661141
PUSH STICK
N/A View Replacement
152 P0697X152
Replaced By P0696X152
RIGHT EXTENSION WING
N/A View Replacement
152-1 P0697X152-1
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
152-2 P0697X152-2
Replaced By PB14M
HEX BOLT M10-1.5 X 35
N/A View Replacement
154 P0697X154
Replaced By P0605X1154
ON/OFF SWITCH ASSY 5HP-1HP
N/A View Replacement
154-1 P0697X154-1
Replaced By P0605X1154-1
ON/OFF PUSH BUTTON SWITCH
N/A View Replacement
154-2 P0697X154-2
Replaced By P0605X1154-2
ON/OFF SWITCH BRACKET
N/A View Replacement
154-3 P0697X154-3
Replaced By P0605X1154-3
ON/OFF SWITCH BOX
N/A View Replacement
154-4 P0697X154-4
Replaced By P0605X154-4
SWITCH CORD ON/OFF 14AWG X 3C
N/A View Replacement
154-5 P0697X154-5
Replaced By P0605X1154-5
SAFETY PIN
N/A View Replacement
154-6 P0697X154-6
Replaced By T23243
Switch Disabling Lock 3/16" Shackle
N/A View Replacement
157 P0697X157
Replaced By P0605X1157
JUNCTION BOX BASE
N/A View Replacement
157-1 P0697X157-1
Replaced By P0605X1157-1
GROUNDING LABEL
N/A View Replacement
157-2 P0697X157-2
Replaced By PTLW02M
EXT TOOTH WASHER 5MM
N/A View Replacement
157-3 P0697X157-3
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
158 P0697X158
Replaced By PAW03M
HEX WRENCH 3MM
N/A View Replacement
159 P0697X159
Replaced By P0606X1159
MOTOR CORD 12G 4W ST 600V
N/A View Replacement
160 P0697X160
Replaced By P0606X1160
POWER CORD 12G 4W ST 600V
N/A View Replacement
161 P0697X161
Replaced By P0605X1161
GROUND WIRE 12G 1C 150MM
N/A View Replacement
162 P0697X162
Replaced By P0605X1162
JUNCTION BOX COVER
N/A View Replacement
163 P0697X163
Replaced By PS18
PHLP HD SCR 10-24 X 1/4
N/A View Replacement
165 P0697X165
Replaced By P0651161
WIRE NUT SW-P6H
N/A View Replacement
200 P0697X200
Replaced By P0605X200
BLADE GUARD ASSEMBLY V1
N/A View Replacement

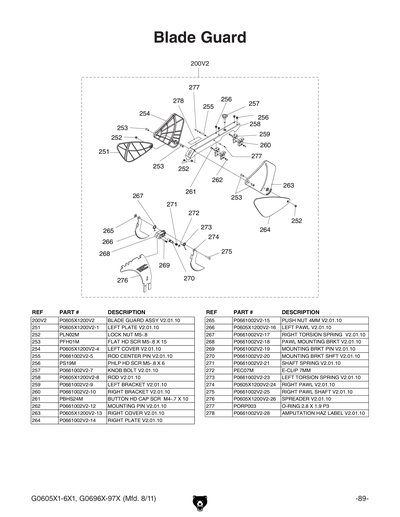

200V2 P0697X200V2
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
200V2-1 P0697X200V2-1
Replaced By P0605X1200V2-1
LEFT PLATE V2.01.10
N/A View Replacement
200V2-10 P0697X200V2-10
Replaced By P0661002V2-10
RIGHT BRACKET V2.01.10
N/A View Replacement
200V2-11 P0697X200V2-11
Replaced By PBHS24M
BUTTON HD CAP SCR M4-.7 X 10
N/A View Replacement
200V2-12 P0697X200V2-12
Replaced By P0661002V2-12
MOUNTING PIN V2.01.10
N/A View Replacement
200V2-13 P0697X200V2-13
Replaced By P0605X1200V2-13
RIGHT COVER V2.01.10
N/A View Replacement
200V2-14 P0697X200V2-14
Replaced By P0661002V2-14
RIGHT PLATE V2.01.10
N/A View Replacement
200V2-15 P0697X200V2-15
Replaced By P0661002V2-15
PUSH NUT 4MM V2.01.10
N/A View Replacement
200V2-16 P0697X200V2-16
Replaced By P0605X1200V2-16
LEFT PAWL V2.01.10
N/A View Replacement
200V2-17 P0697X200V2-17
Replaced By P0661002V2-17
RIGHT TORSN SPRING V2.01.10
N/A View Replacement
200V2-18 P0697X200V2-18
Replaced By P0661002V2-18
PAWL MOUNTING BRKT V2.01.10
N/A View Replacement
200V2-19 P0697X200V2-19
Replaced By P0661002V2-19
MOUNTING BRKT PIN V2.01.10
N/A View Replacement
200V2-2 P0697X200V2-2
Replaced By PLN02M
LOCK NUT M5-.8
N/A View Replacement
200V2-20 P0697X200V2-20
Replaced By P0661002V2-20
MOUNTING BRKT SHFT V2.01.10
N/A View Replacement
200V2-21 P0697X200V2-21
Replaced By P0661002V2-21
SHAFT SPRING V2.01.10
N/A View Replacement
200V2-22 P0697X200V2-22
Replaced By PEC07M
E-CLIP 7MM
N/A View Replacement
200V2-23 P0697X200V2-23
Replaced By P0661002V2-23
LEFT TORSION SPRING V2.01.10
N/A View Replacement
200V2-24 P0697X200V2-24
Replaced By P0605X1200V2-24
RIGHT PAWL V2.01.10
N/A View Replacement
200V2-25 P0697X200V2-25
Replaced By P0661002V2-25
RIGHT PAWL SHAFT V2.01.10
N/A View Replacement
200V2-26 P0697X200V2-26
Replaced By P0605X1200V2-26
SPREADER V2.01.10
N/A View Replacement
200V2-27 P0697X200V2-27
Replaced By PORP003
O-RING 2.8 X 1.9 P3
N/A View Replacement
200V2-28 P0697X200V2-28
Replaced By P0661002V2-28
AMPUTATION HAZ LABEL V2.01.10
N/A View Replacement
200V2-3 P0697X200V2-3
Replaced By PFH01M
FLAT HD SCR M5-.8 X 15
N/A View Replacement
200V2-4 P0697X200V2-4
Replaced By P0605X1200V2-4
LEFT COVER V2.01.10
N/A View Replacement
200V2-5 P0697X200V2-5
Replaced By P0661002V2-5
ROD CENTER PIN V2.01.10
N/A View Replacement
200V2-6 P0697X200V2-6
Replaced By PS19M
PHLP HD SCR M5-.8 X 6
N/A View Replacement
200V2-7 P0697X200V2-7
Replaced By P0661002V2-7
KNOB BOLT V2.01.10
N/A View Replacement
200V2-8 P0697X200V2-8
Replaced By P0605X1200V2-8
ROD V2.01.10
N/A View Replacement
200V2-9 P0697X200V2-9
Replaced By P0661002V2-9
LEFT BRACKET V2.01.10
N/A View Replacement
200V3 P0697X200V3
Replaced By P0605X1200V4
BLADE GUARD ASSY V4.07.21
N/A View Replacement
200V3-1 P0697X200V3-1
Replaced By PFH31M
FLAT HD SCR M4-.7 X 8
N/A View Replacement
200V3-10 P0697X200V3-10
Replaced By P0605X1200V3-10
REAR COVER
N/A View Replacement
200V3-11 P0697X200V3-11
Replaced By PRP45M
ROLL PIN 5 X 32
N/A View Replacement
200V3-12 P0697X200V3-12
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
200V3-13 P0697X200V3-13
Replaced By PS19M
PHLP HD SCR M5-.8 X 6
N/A View Replacement
200V3-14 P0697X200V3-14
Replaced By P0605X1200V3-14
KNOB BOLT 3-LOBE, M6-1 X 35
N/A View Replacement
200V3-15 P0697X200V3-15
Replaced By P0605X1200V3-15
***SEE EXT DESC***
N/A View Replacement
200V3-16 P0697X200V3-16
Replaced By P0605X1200V3-16
MOUNTING BLOCK (LEFT)
N/A View Replacement
200V3-17 P0697X200V3-17
Replaced By P0605X1200V3-17
MOUNTING BLOCK (RIGHT)
N/A View Replacement
200V3-18 P0697X200V3-18
Replaced By PS38M
PHLP HD SCR M4-.7 X 10
N/A View Replacement
200V3-19 P0697X200V3-19
Replaced By P0605X1200V3-19
MOUNTING PIN
N/A View Replacement
200V3-2 P0697X200V3-2
Replaced By P0605X1200V3-2
UPPER COVER
N/A View Replacement
200V3-20 P0697X200V3-20
Replaced By PRP28M
ROLL PIN 5 X 40
N/A View Replacement
200V3-21 P0697X200V3-21
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
200V3-22 P0697X200V3-22
Replaced By P0605X1200V3-22
ANTI-KICKBACK PAWL (LEFT)
N/A View Replacement
200V3-23 P0697X200V3-23
Replaced By P0605X1200V3-23
TORSION SPRING (LEFT)
N/A View Replacement
200V3-24 P0697X200V3-24
Replaced By P0605X1200V3-24
COMPRESSION SPRING
N/A View Replacement
200V3-25 P0697X200V3-25
Replaced By PEC07M
E-CLIP 7MM
N/A View Replacement
200V3-26 P0697X200V3-26
Replaced By P0605X1200V3-26
TORSION SPRING (RIGHT)
N/A View Replacement
200V3-27 P0697X200V3-27
Replaced By P0605X1200V3-27
ANTI-KICKBACK PAWL (RIGHT)
N/A View Replacement
200V3-28 P0697X200V3-28
Replaced By P0605X1200V3-28
PAWL MOUNTING BRACKET
N/A View Replacement
200V3-29 P0697X200V3-29
Replaced By P0605X1200V3-29
PIN
N/A View Replacement
200V3-3 P0697X200V3-3
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
200V3-30 P0697X200V3-30
Replaced By P0605X1200V3-30
SHAFT
N/A View Replacement
200V3-31 P0697X200V3-31
Replaced By P0605X1200V3-31
SPREADER
N/A View Replacement
200V3-32 P0697X200V3-32
Replaced By PS60M
PHLP HD SCR M5-.8 X 30
N/A View Replacement
200V3-33 P0697X200V3-33
Replaced By P0605X1200V3-33
BLADE GUARD WARNING LABEL
N/A View Replacement
200V3-4 P0697X200V3-4
Replaced By P0605X1200V3-4
***SEE EXT DESC***
N/A View Replacement
200V3-5 P0697X200V3-5
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
200V3-6 P0697X200V3-6
Replaced By P0605X1200V3-6
***SEE EXT DESC***
N/A View Replacement
200V3-7 P0697X200V3-7
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
200V3-8 P0697X200V3-8
Replaced By PFH38M
FLAT HD SCR M6-1 X 16
N/A View Replacement
200V3-9 P0697X200V3-9
Replaced By P0605X1200V3-9
BRACKET
N/A View Replacement
200V4 P0697X200V4
Replaced By P0605X1200V4
BLADE GUARD ASSY V4.07.21
N/A View Replacement
201 P0697X201
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
202 P0697X202
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
203 P0697X203
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
204 P0697X204
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
205 P0697X205
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
206 P0697X206
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
207 P0697X207
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
208 P0697X208
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
209 P0697X209
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
210 P0697X210
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
211 P0697X211
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
212 P0697X212
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
213 P0697X213
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
214 P0697X214
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
215 P0697X215
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
216 P0697X216
Replaced By PFH29M
FLAT HD SCR M6-1 X 10
N/A View Replacement
217 P0697X217
Replaced By PFH54M
FLAT HD SCR M5-.8 X 20
N/A View Replacement
218 P0697X218
Replaced By PS22M
PHLP HD SCR M5-.8 X 25
N/A View Replacement
219 P0697X219
Replaced By PRP95M
ROLL PIN 8 X 55
N/A View Replacement
220 P0697X220
Replaced By PRP45M
ROLL PIN 5 X 32
N/A View Replacement
221 P0697X221
Replaced By PRP07M
ROLL PIN 6 X 20
N/A View Replacement
222 P0697X222
Replaced By PS07M
PHLP HD SCR M4-.7 X 8
N/A View Replacement
223 P0697X223
Replaced By PLN02M
LOCK NUT M5-.8
N/A View Replacement
224 P0697X224
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
225 P0697X225
Replaced By P0605X1200V2
BLADE GUARD ASSY V2.01.10
N/A View Replacement
251 P0697X251
Replaced By P0605X1200V2-1
LEFT PLATE V2.01.10
N/A View Replacement
252 P0697X252
Replaced By PLN02M
LOCK NUT M5-.8
N/A View Replacement
253 P0697X253
Replaced By PFH01M
FLAT HD SCR M5-.8 X 15
N/A View Replacement
254 P0697X254
Replaced By P0605X1200V2-4
LEFT COVER V2.01.10
N/A View Replacement
255 P0697X255
Replaced By P0661002V2-5
ROD CENTER PIN V2.01.10
N/A View Replacement
256 P0697X256
Replaced By PS19M
PHLP HD SCR M5-.8 X 6
N/A View Replacement
257 P0697X257
Replaced By P0661002V2-7
KNOB BOLT V2.01.10
N/A View Replacement
258 P0697X258
Replaced By P0605X1200V2-8
ROD V2.01.10
N/A View Replacement
259 P0697X259
Replaced By P0661002V2-9
LEFT BRACKET V2.01.10
N/A View Replacement
260 P0697X260
Replaced By P0661002V2-10
RIGHT BRACKET V2.01.10
N/A View Replacement
261 P0697X261
Replaced By PBHS24M
BUTTON HD CAP SCR M4-.7 X 10
N/A View Replacement
262 P0697X262
Replaced By P0661002V2-12
MOUNTING PIN V2.01.10
N/A View Replacement
263 P0697X263
Replaced By P0605X1200V2-13
RIGHT COVER V2.01.10
N/A View Replacement
264 P0697X264
Replaced By P0661002V2-14
RIGHT PLATE V2.01.10
N/A View Replacement
265 P0697X265
Replaced By P0661002V2-15
PUSH NUT 4MM V2.01.10
N/A View Replacement
266 P0697X266
Replaced By P0605X1200V2-16
LEFT PAWL V2.01.10
N/A View Replacement
267 P0697X267
Replaced By P0661002V2-17
RIGHT TORSN SPRING V2.01.10
N/A View Replacement
268 P0697X268
Replaced By P0661002V2-18
PAWL MOUNTING BRKT V2.01.10
N/A View Replacement
269 P0697X269
Replaced By P0661002V2-19
MOUNTING BRKT PIN V2.01.10
N/A View Replacement
270 P0697X270
Replaced By P0661002V2-20
MOUNTING BRKT SHFT V2.01.10
N/A View Replacement
271 P0697X271
Replaced By P0661002V2-21
SHAFT SPRING V2.01.10
N/A View Replacement
272 P0697X272
Replaced By PEC07M
E-CLIP 7MM
N/A View Replacement
273 P0697X273
Replaced By P0661002V2-23
LEFT TORSION SPRING V2.01.10
N/A View Replacement
274 P0697X274
Replaced By P0605X1200V2-24
RIGHT PAWL V2.01.10
N/A View Replacement
275 P0697X275
Replaced By P0661002V2-25
RIGHT PAWL SHAFT V2.01.10
N/A View Replacement
276 P0697X276
Replaced By P0605X1200V2-26
SPREADER V2.01.10
N/A View Replacement
277 P0697X277
Replaced By PORP003
O-RING 2.8 X 1.9 P3
N/A View Replacement
278 P0697X278
Replaced By P0661002V2-28
AMPUTATION HAZ LABEL V2.01.10
N/A View Replacement
280 P0697X280
Replaced By P0605X1280
GUARD CONVERSION KIT
N/A View Replacement

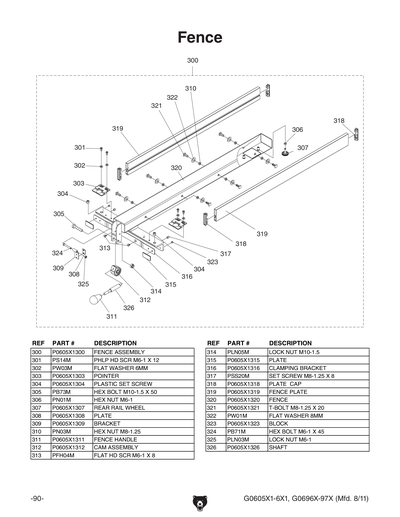

300 P0697X300
Replaced By P0605X1300
FENCE ASSEMBLY
N/A View Replacement
301 P0697X301
Replaced By PS14M
PHLP HD SCR M6-1 X 12
N/A View Replacement
302 P0697X302
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
303 P0697X303
Replaced By P0605X1303
POINTER
N/A View Replacement
304 P0697X304
Replaced By P0605X1304
PLASTIC SET SCREW
N/A View Replacement
305 P0697X305
Replaced By PB73M
HEX BOLT M10-1.5 X 50
N/A View Replacement
306 P0697X306
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
307 P0697X307
Replaced By P0605X1307
REAR RAIL WHEEL
N/A View Replacement
308 P0697X308
Replaced By P0605X1308
PLATE
N/A View Replacement
309 P0697X309
Replaced By P0605X1309
BRACKET
N/A View Replacement
310 P0697X310
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
311 P0697X311
Replaced By P0605X1311
FENCE HANDLE
N/A View Replacement
312 P0697X312
Replaced By P0605X1312
CAM ASSEMBLY
N/A View Replacement
313 P0697X313
Replaced By PFH04M
FLAT HD SCR M6-1 X 8
N/A View Replacement
314 P0697X314
Replaced By PLN05M
LOCK NUT M10-1.5
N/A View Replacement
315 P0697X315
Replaced By P0605X1315
PLATE
N/A View Replacement
316 P0697X316
Replaced By P0605X1316
CLAMPING BRACKET
N/A View Replacement
317 P0697X317
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
318 P0697X318
Replaced By P0605X1318
PLATE CAP
N/A View Replacement
319 P0697X319
Replaced By P0605X1319
FENCE PLATE
N/A View Replacement
320 P0697X320
Replaced By P0605X1320
FENCE
N/A View Replacement
321 P0697X321
Replaced By P0732056
T-BOLT M8-1.25 X 20
N/A View Replacement
322 P0697X322
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
323 P0697X323
Replaced By P0605X1323
BLOCK
N/A View Replacement
324 P0697X324
Replaced By PB71M
HEX BOLT M6-1 X 45
N/A View Replacement
325 P0697X325
Replaced By PLN03M
LOCK NUT M6-1
N/A View Replacement
326 P0697X326
Replaced By P0605X1326
SHAFT
N/A View Replacement

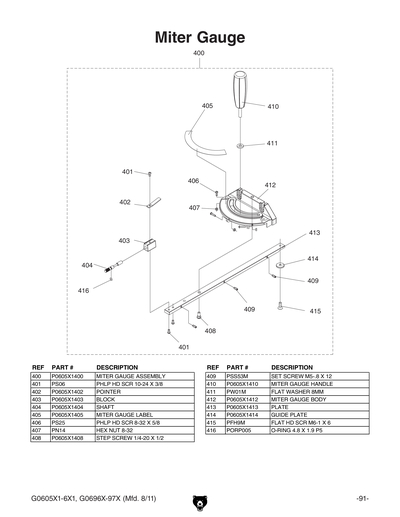

400 P0697X400
Replaced By P0605X1400
MITER GAUGE ASSEMBLY
N/A View Replacement
401 P0697X401
Replaced By PS06
PHLP HD SCR 10-24 X 3/8
N/A View Replacement
402 P0697X402
Replaced By P0605X1402
POINTER
N/A View Replacement
403 P0697X403
Replaced By P0605X1403
BLOCK
N/A View Replacement
404 P0697X404
Replaced By P0605X1404
SHAFT
N/A View Replacement
405 P0697X405
Replaced By P0605X1405
MITER GAUGE LABEL
N/A View Replacement
406 P0697X406
Replaced By PS25
PHLP HD SCR 8-32 X 5/8
N/A View Replacement
407 P0697X407
Replaced By PN14
HEX NUT 8-32
N/A View Replacement
408 P0697X408
Replaced By P0605X1408
STEP SCREW 1/4-20 X 1/2
N/A View Replacement
409 P0697X409
Replaced By PSS53M
SET SCREW M5-.8 X 12
N/A View Replacement
410 P0697X410
Replaced By P0605X1410
MITER GAUGE HANDLE
N/A View Replacement
411 P0697X411
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
412 P0697X412
Replaced By P0605X1412
MITER GAUGE BODY
N/A View Replacement
413 P0697X413
Replaced By P0605X1413
PLATE
N/A View Replacement
414 P0697X414
Replaced By P0605X1414
GUIDE PLATE
N/A View Replacement
415 P0697X415
Replaced By PFH9M
FLAT HD SCR M6-1 X 6
N/A View Replacement
416 P0697X416
Replaced By PORP005
O-RING 4.8 X 1.9 P5
N/A View Replacement

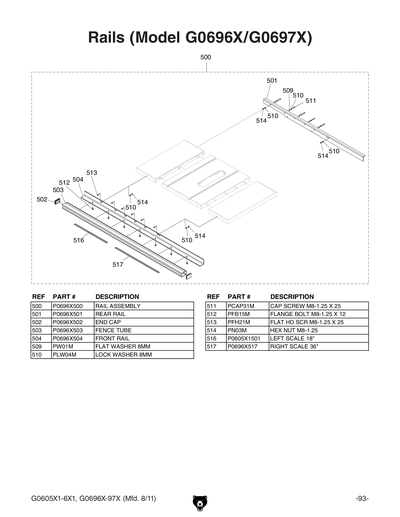

500 P0697X500
Replaced By P0696X500
RAIL ASSEMBLY
N/A View Replacement
501 P0697X501
Replaced By P0696X501
REAR RAIL
N/A View Replacement
502 P0697X502
Replaced By P0696X502
END CAP
N/A View Replacement
503 P0697X503
Replaced By P0696X503
FENCE TUBE
N/A View Replacement
504 P0697X504
Replaced By P0696X504
FRONT RAIL
N/A View Replacement
509 P0697X509
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
510 P0697X510
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
511 P0697X511
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
512 P0697X512
Replaced By PFB15M
FLANGE BOLT M8-1.25 X 12
N/A View Replacement
513 P0697X513
Replaced By PFH21M
FLAT HD SCR M8-1.25 X 25
N/A View Replacement
514 P0697X514
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
516 P0697X516
Replaced By P0605X1501
LEFT SCALE 18"
N/A View Replacement
517 P0697X517
Replaced By P0696X517
RIGHT SCALE 36"
N/A View Replacement

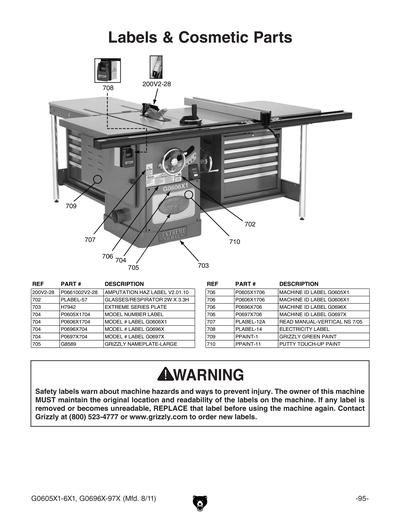

700 P0697X700
Replaced By P0605X1700
GUARD AND ANTI-KICKBACK LABEL
N/A View Replacement
701 P0697X701
Replaced By P0605X1701
DISCONNECT POWER-BLADE CHANGE LABEL
N/A View Replacement
702 P0697X702
Replaced By PLABEL-57
GLASSES/RESPIRATOR 2W X 3.3H
N/A View Replacement
703 P0697X703
Replaced By H7942
Extreme Series Nameplate
N/A View Replacement
704 P0697X704 MODEL NUMBER LABEL $2.25
705 P0697X705
Replaced By G8589
Name Plates - Large
N/A View Replacement
706 P0697X706 MACHINE ID LABEL $9.50
707 P0697X707
Replaced By PLABEL-12A
READ MANUAL 2W X 3.3H V2.07.05
N/A View Replacement
708 P0697X708
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
709 P0697X709
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
710 P0697X710
Replaced By PPAINT-11
GREY PUTTY REF G0504
N/A View Replacement
MAN P0697XMAN
Replaced By P0605X1MAN
MANUAL G0605X1-97X MFD-2/9-8/11 V1.02.09
N/A View Replacement
P06967200V4-1 P06967200V4-1
Replaced By PFH31M
FLAT HD SCR M4-.7 X 8
N/A View Replacement
P06967200V4-10 P06967200V4-10
Replaced By P0605X1200V3-10
REAR COVER
N/A View Replacement
P06967200V4-12 P06967200V4-12
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
P06967200V4-13 P06967200V4-13
Replaced By PS19M
PHLP HD SCR M5-.8 X 6
N/A View Replacement
P06967200V4-14 P06967200V4-14
Replaced By P0605X1200V3-14
KNOB BOLT 3-LOBE, M6-1 X 35
N/A View Replacement
P06967200V4-15 P06967200V4-15
Replaced By P0605X1200V4-15
BLADE GUARD BODY
N/A View Replacement
P06967200V4-16 P06967200V4-16
Replaced By P0605X1200V3-16
MOUNTING BLOCK (LEFT)
N/A View Replacement
P06967200V4-17 P06967200V4-17
Replaced By P0605X1200V3-17
MOUNTING BLOCK (RIGHT)
N/A View Replacement
P06967200V4-18 P06967200V4-18
Replaced By PS38M
PHLP HD SCR M4-.7 X 10
N/A View Replacement
P06967200V4-19 P06967200V4-19
Replaced By P0605X1200V3-19
MOUNTING PIN
N/A View Replacement
P06967200V4-2 P06967200V4-2
Replaced By P0605X1200V3-2
UPPER COVER
N/A View Replacement
P06967200V4-20 P06967200V4-20
Replaced By PRP28M
ROLL PIN 5 X 40
N/A View Replacement
P06967200V4-21 P06967200V4-21
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
P06967200V4-22 P06967200V4-22
Replaced By P0605X1200V3-22
ANTI-KICKBACK PAWL (LEFT)
N/A View Replacement
P06967200V4-23 P06967200V4-23
Replaced By P0605X1200V3-23
TORSION SPRING (LEFT)
N/A View Replacement
P06967200V4-24 P06967200V4-24
Replaced By P0605X1200V3-24
COMPRESSION SPRING
N/A View Replacement
P06967200V4-25 P06967200V4-25
Replaced By PEC07M
E-CLIP 7MM
N/A View Replacement
P06967200V4-26 P06967200V4-26
Replaced By P0605X1200V3-26
TORSION SPRING (RIGHT)
N/A View Replacement
P06967200V4-27 P06967200V4-27
Replaced By P0605X1200V3-27
ANTI-KICKBACK PAWL (RIGHT)
N/A View Replacement
P06967200V4-28 P06967200V4-28
Replaced By P0605X1200V3-28
PAWL MOUNTING BRACKET
N/A View Replacement
P06967200V4-29 P06967200V4-29
Replaced By P0605X1200V3-29
PIN
N/A View Replacement
P06967200V4-3 P06967200V4-3
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
P06967200V4-30 P06967200V4-30
Replaced By P0605X1200V3-30
SHAFT
N/A View Replacement
P06967200V4-31 P06967200V4-31
Replaced By P0605X1200V3-31
SPREADER
N/A View Replacement
P06967200V4-32 P06967200V4-32
Replaced By PS60M
PHLP HD SCR M5-.8 X 30
N/A View Replacement
P06967200V4-33 P06967200V4-33
Replaced By P0605X1200V3-33
BLADE GUARD WARNING LABEL
N/A View Replacement
P06967200V4-34 P06967200V4-34
Replaced By P0605X1200V4-34
BLADE GUARD COVER (LEFT)
N/A View Replacement
P06967200V4-4 P06967200V4-4
Replaced By P0605X1200V4-4
BLADE GUARD COVER (RIGHT)
N/A View Replacement
P06967200V4-5 P06967200V4-5
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
P06967200V4-6 P06967200V4-6
Replaced By P0605X1200V4-6
CONNECTING PLATE
N/A View Replacement
P06967200V4-7 P06967200V4-7
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
P06967200V4-8 P06967200V4-8
Replaced By PFH38M
FLAT HD SCR M6-1 X 16
N/A View Replacement
P06967200V4-9 P06967200V4-9
Replaced By P0605X1200V3-9
BRACKET
N/A View Replacement
