Parts for G0699 12" 7-1/2 HP 3-Phase Sliding Table Saw with Scoring

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

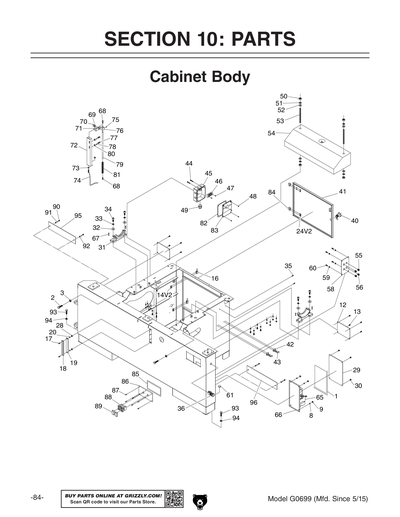

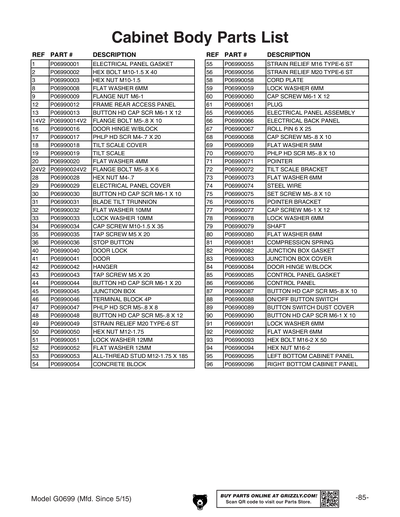

1
ELECTRICAL PANEL GASKET
2
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
3
Now: PN02M
HEX NUT M10-1.5
Price
N/A
4
*DISCD*MACHINE FRAME
Item is no longer available
Price
N/A
5
TABLE SIDE MOUNTING PLATE
6
CAP SCREW M6-1 X 12
Price
N/A
7
LOCK WASHER 6MM
Price
N/A
8
Now: PW03M
FLAT WASHER 6MM
Price
N/A
9
FLANGE NUT M6-1
Price
N/A
10
SET SCREW M6-1 X 20
Price
N/A
11
Now: PN01M
HEX NUT M6-1
Price
N/A
12
FRAME REAR ACCESS PANEL
13
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
14
CAP SCREW M5-.8 X 12
Price
N/A
14V2
FLANGE BOLT M5-.8 X 10
Price
N/A
15
LOCK WASHER 5MM
Price
N/A
16
DOOR HINGE W/BLOCK
17
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
18
TILT SCALE COVER
19
TILT SCALE
20
Now: PW05M
FLAT WASHER 4MM
Price
N/A
21
CAP SCREW M5-.8 X 8
Price
N/A
22
LOCK WASHER 6MM
Price
N/A
23
Now: PW03M
FLAT WASHER 6MM
Price
N/A
24
CAP SCREW M5-.8 X 8
Price
N/A
24V2
FLANGE BOLT M5-.8 X 6
25
LOCK WASHER 5MM
Price
N/A
26
TABLE MIDDLE MOUNTING PLATE
27
SUPPORT BRACE
28
Now: PN04M
HEX NUT M4-.7
Price
N/A
29
ELECTRICAL PANEL COVER
30
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
31
BLADE TILT TRUNNION
32
Now: PW04M
FLAT WASHER 10MM
Price
N/A
33
LOCK WASHER 10MM
Price
N/A
34
CAP SCREW M10-1.5 X 35
Price
N/A
35
TAP SCREW M5 X 20
Price
N/A
36
STOP BUTTON
37
SWITCH BOX GASKET
38
SWITCH BOX
39
STRAIN RELIEF M17 TYPE-6 ST
Price
N/A
40
DOOR LOCK
41
DOOR
42
HANGER
43
TAP SCREW M5 X 20
Price
N/A
44
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
45
JUNCTION BOX
46
TERMINAL BLOCK 4P
47
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
48
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
49
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
50
Now: PN09M
HEX NUT M12-1.75
Price
N/A
51
LOCK WASHER 12MM
Price
N/A
52
Now: PW06M
FLAT WASHER 12MM
Price
N/A
53
ALL-THREAD STUD M12-1.75 X 185
54
CONCRETE BLOCK
55
STRAIN RELIEF M16 TYPE-6 ST
56
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
57
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
58
CORD PLATE
59
LOCK WASHER 6MM
Price
N/A
60
CAP SCREW M6-1 X 12
Price
N/A
61
PLUG
62
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
63
LOCK WASHER 12MM
Price
N/A
64
*DISCD*BLOCK
Item is no longer available
Price
N/A
65
ELECTRICAL PANEL ASSEMBLY
66
ELECTRICAL BACK PANEL
67
ROLL PIN 6 X 25
Price
N/A
68
CAP SCREW M5-.8 X 10
Price
N/A
69
Now: PW02M
FLAT WASHER 5MM
Price
N/A
70
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
71
POINTER
72
TILT SCALE BRACKET
73
Now: PW03M
FLAT WASHER 6MM
Price
N/A
74
STEEL WIRE
75
SET SCREW M5-.8 X 10
Price
N/A
76
POINTER BRACKET
77
CAP SCREW M6-1 X 12
Price
N/A
78
LOCK WASHER 6MM
Price
N/A
79
SHAFT
80
Now: PW03M
FLAT WASHER 6MM
Price
N/A
81
COMPRESSION SPRING
82
JUNCTION BOX
Price
N/A
83
JUNCTION BOX
Price
N/A
84
DOOR HINGE W/BLOCK
Price
N/A
85
CONTROL PANEL GASKET
86
CONTROL PANEL
87
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
88
ON/OFF BUTTON SWITCH
89
BUTTON SWITCH DUST COVER
90
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
91
LOCK WASHER 6MM
Price
N/A
92
Now: PW03M
FLAT WASHER 6MM
Price
N/A
93
Now: PB51M
HEX BOLT M16-2 X 50
Price
N/A
94
Now: PN13M
HEX NUT M16-2
Price
N/A
95
LEFT BOTTOM CABINET PANEL
96
RIGHT BOTTOM CABINET PANEL
101

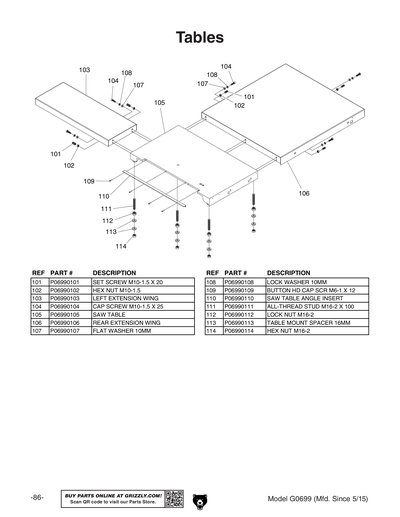

SET SCREW M10-1.5 X 20
Price
N/A
102
Now: PN02M
HEX NUT M10-1.5
Price
N/A
103
LEFT EXTENSION WING
104
CAP SCREW M10-1.5 X 25
Price
N/A
105
SAW TABLE
106
REAR EXTENSION WING
107
Now: PW04M
FLAT WASHER 10MM
Price
N/A
108
LOCK WASHER 10MM
Price
N/A
109
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
110
SAW TABLE ANGLE INSERT
111
ALL-THREAD STUD M16-2 X 100
112
LOCK NUT M16-2
Price
N/A
113
TABLE MOUNT SPACER 16MM
114
Now: PN13M
HEX NUT M16-2
Price
N/A

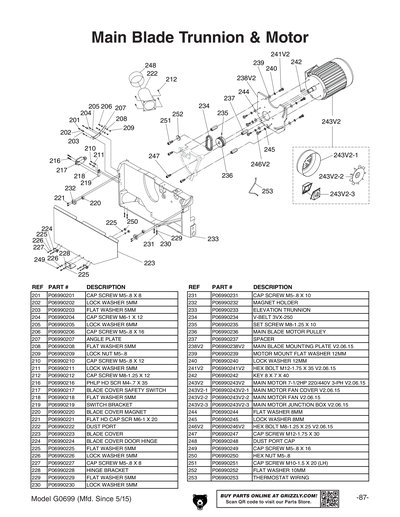

201
CAP SCREW M5-.8 X 8
Price
N/A
202
LOCK WASHER 5MM
Price
N/A
203
Now: PW02M
FLAT WASHER 5MM
Price
N/A
204
CAP SCREW M6-1 X 12
Price
N/A
205
LOCK WASHER 6MM
Price
N/A
206
CAP SCREW M5-.8 X 16
Price
N/A
207
ANGLE PLATE
208
Now: PW02M
FLAT WASHER 5MM
Price
N/A
209
LOCK NUT M5-.8
Price
N/A
210
CAP SCREW M5-.8 X 12
Price
N/A
211
LOCK WASHER 5MM
Price
N/A
212
CAP SCREW M8-1.25 X 12
Price
N/A
213
LOCK WASHER 8MM
Price
N/A
214
Now: PW01M
FLAT WASHER 8MM
Price
N/A
215
CUSHION STRIP
216
Now: PS25M
PHLP HD SCR M4-.7 X 35
Price
N/A
217
BLADE COVER SAFETY SWITCH
218
Now: PW02M
FLAT WASHER 5MM
Price
N/A
219
SWITCH BRACKET
220
BLADE COVER MAGNET
221
FLAT HD CAP SCR M6-1 X 20
Price
N/A
222
DUST PORT
223
BLADE COVER
224
BLADE COVER DOOR HINGE
225
Now: PW02M
FLAT WASHER 5MM
Price
N/A
226
LOCK WASHER 5MM
Price
N/A
227
CAP SCREW M5-.8 X 8
Price
N/A
228
HINGE BRACKET
229
Now: PW02M
FLAT WASHER 5MM
Price
N/A
230
LOCK WASHER 5MM
Price
N/A
231
CAP SCREW M5-.8 X 10
Price
N/A
232
MAGNET HOLDER
233
ELEVATION TRUNNION
234
V-BELT 3VX-250
235
SET SCREW M8-1.25 X 10
Price
N/A
236
MAIN BLADE MOTOR PULLEY
237
SPACER
238
MAIN BLADE MOUNTING PLATE V2A.03.16
Price
N/A
238V2
*DISCD*MAIN BLADE MOUNT PLATE V2.06.15
238V2A
MAIN BLADE MOUNTING PLATE V2A.03.16
239
MOTOR MOUNT FLAT WASHER 12MM
240
LOCK WASHER 12MM
Price
N/A
241
Now: PB75M
HEX BOLT M12-1.75 X 35
Price
N/A
241V2
Now: PB75M
HEX BOLT M12-1.75 X 35
Price
N/A
241V2A
Now: PB75M
HEX BOLT M12-1.75 X 35
Price
N/A
242
KEY 8 X 7 X 40
Price
N/A
243
MAIN MOTR 7-1/2HP 220/440V 3-PH V2.03.16
Price
N/A
243-1
MAIN MOTOR FAN COVER
243-2
MAIN MOTOR FAN V2A.03.16
Price
N/A
243-3
MAIN MOTOR JUNCTION BOX
243V2
MAIN MOTR 7-1/2HP 220/440V 3-PH V2.06.15
243V2-1
MAIN MOTOR FAN COVER V2.06.15
243V2-2
MAIN MOTOR FAN V2.06.15
243V2-3
MAIN MOTOR JUNCTION BOX V2.06.15
243V2A
MAIN MOTR 7-1/2HP 220/440V 3-PH V2.03.16
243V2A-1
MAIN MOTOR FAN COVER V2A.03.16
243V2A-2
MAIN MOTOR FAN V2A.03.16
243V2A-3
MAIN MOTOR JUNCTION BOX V2A.03.16
244
Now: PW01M
FLAT WASHER 8MM
Price
N/A
245
LOCK WASHER 8MM
Price
N/A
246
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
246V2
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
246V2A
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
247
CAP SCREW M12-1.75 X 30
Price
N/A
248
DUST PORT CAP
249
CAP SCREW M5-.8 X 16
Price
N/A
250
Now: PN06M
HEX NUT M5-.8
Price
N/A
251
CAP SCREW M10-1.5 X 50
Price
N/A
252
Now: PW04M
FLAT WASHER 10MM
Price
N/A
253
THERMOSTAT WIRING

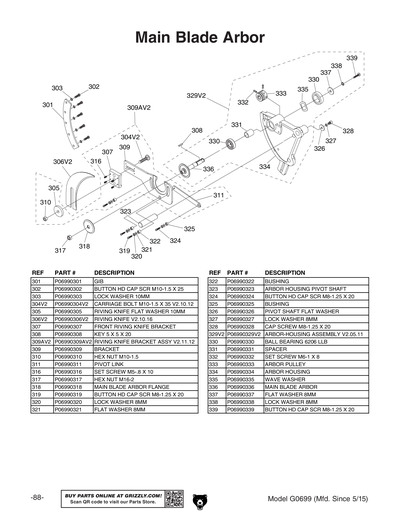

301
GIB
302
BUTTON HD CAP SCR M10-1.5 X 25
Price
N/A
303
LOCK WASHER 10MM
Price
N/A
304
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
304V2
CARRIAGE BOLT M10-1.5 X 35
Price
N/A
305
RIVING KNIFE FLAT WASHER 10MM
306
*DISCD*RIVING KNIFE V1
306V2
RIVING KNIFE V2.10.16
307
*DISCD*FRONT RIVING KNIFE BRACKET
308
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
309
*DISCD*BRACKET
309A
*DISCD*RIVING KNIFE BRACKET ASSEMBLY V1
Item is no longer available
Price
N/A
309AV2
RIVING KNIFE BRACKET ASSY V2.11.12
310
Now: PN02M
HEX NUT M10-1.5
Price
N/A
311
PIVOT LINK
312
REAR RIVING KNIFE BRACKET
313
LOCK WASHER 5MM
Price
N/A
314
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
315
ALIGNMENT PIN
316
SET SCREW M5-.8 X 10
Price
N/A
317
ARBOR NUT M16-2 LH
318
MAIN BLADE ARBOR FLANGE
319
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
320
LOCK WASHER 8MM
Price
N/A
321
Now: PW01M
FLAT WASHER 8MM
Price
N/A
322
BUSHING
323
ARBOR HOUSING PIVOT SHAFT
324
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
325
BUSHING
326
PIVOT SHAFT FLAT WASHER
327
LOCK WASHER 8MM
Price
N/A
328
CAP SCREW M8-1.25 X 20
Price
N/A
329
*DISCD*ARBOR-HOUSING ASSEMBLY V1
Item is no longer available
Price
N/A
329V2
ARBOR-HOUSING ASSEMBLY V2.05.11
330
BALL BEARING 6206LLB
Price
N/A
331
SPACER
332
SET SCREW M6-1 X 8
Price
N/A
333
ARBOR PULLEY
334
*DISCD*ARBOR HOUSING
335
WAVE WASHER
336
MAIN BLADE ARBOR
337
Now: PW01M
FLAT WASHER 8MM
Price
N/A
338
LOCK WASHER 8MM
Price
N/A
339
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
401

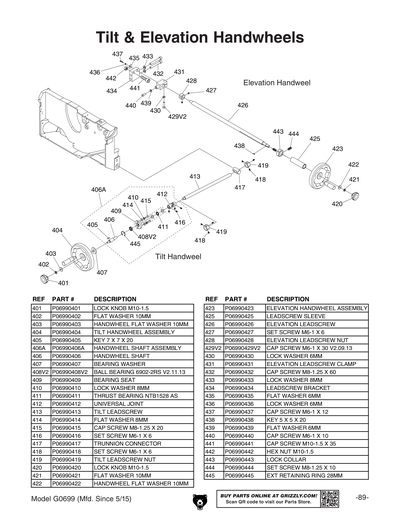

LOCK KNOB M10-1.5
402
Now: PW04M
FLAT WASHER 10MM
Price
N/A
403
HANDWHEEL FLAT WASHER 10MM
404
TILT HANDWHEEL ASSEMBLY
405
Now: PK25M
KEY 7 X 7 X 20
Price
N/A
406
*DISCD*HANDWHEEL SHAFT
Item is no longer available
Price
N/A
406A
HANDWHEEL SHAFT ASSEMBLY
407
BEARING WASHER
408
BALL BEARING 6902ZZ
Price
N/A
408V2
BALL BEARING 6902-2RS
Price
N/A
409
BEARING SEAT
410
LOCK WASHER 8MM
Price
N/A
411
THRUST BEARING NTB1528 AS
412
UNIVERSAL JOINT
413
TILT LEADSCREW
414
Now: PW01M
FLAT WASHER 8MM
Price
N/A
415
CAP SCREW M8-1.25 X 20
Price
N/A
416
SET SCREW M6-1 X 6
Price
N/A
417
TRUNNION CONNECTOR
418
SET SCREW M6-1 X 6
Price
N/A
419
TILT LEADSCREW NUT
420
LOCK KNOB M10-1.5
Price
N/A
421
Now: PW04M
FLAT WASHER 10MM
Price
N/A
422
HANDWHEEL FLAT WASHER 10MM
Price
N/A
423
HANDWHEEL ASSY
Price
N/A
424
BEARING WASHER
425
LEADSCREW SLEEVE
426
CONNECTING SHAFT
Price
N/A
427
SET SCREW M6-1 X 6
Price
N/A
428
ELEVATION LEADSCREW NUT
429
CAP SCREW M6-1 X 25
Price
N/A
429V2
CAP SCREW M6-1 X 30
Price
N/A
430
LOCK WASHER 6MM
Price
N/A
431
ELEVATION LEADSCREW CLAMP
432
CAP SCREW M8-1.25 X 60
Price
N/A
433
LOCK WASHER 8MM
Price
N/A
434
LEADSCREW BRACKET
435
Now: PW03M
FLAT WASHER 6MM
Price
N/A
436
LOCK WASHER 6MM
Price
N/A
437
CAP SCREW M6-1 X 12
Price
N/A
438
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
439
Now: PW03M
FLAT WASHER 6MM
Price
N/A
440
CAP SCREW M6-1 X 10
Price
N/A
441
CAP SCREW M10-1.5 X 35
Price
N/A
442
Now: PN02M
HEX NUT M10-1.5
Price
N/A
443
LOCK COLLAR
444
SET SCREW M8-1.25 X 10
Price
N/A
445
Now: PR19M
EXT RETAINING RING 28MM
Price
N/A

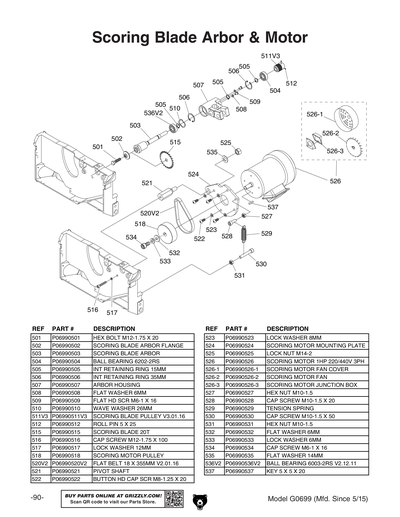

500
G0699 BOX 2 OF 2 SLIDING TABLE
501
Now: PB49M
HEX BOLT M12-1.75 X 20
Price
N/A
502
SCORING BLADE ARBOR FLANGE
503
SCORING BLADE ARBOR
504
BALL BEARING 6202-2RS
Price
N/A
505
Now: PR54M
INT RETAINING RING 15MM
Price
N/A
506
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
507
ARBOR HOUSING
508
Now: PW03M
FLAT WASHER 6MM
Price
N/A
509
FLAT HD SCR M6-1 X 16
Price
N/A
510
WAVE WASHER 26MM
511
*DISCD*SCORING BLADE PULLEY V1
511V2
SCORING BLADE PULLEY V2.03.15
511V3
SCORING BLADE PULLEY V3.01.16
512
ROLL PIN 5 X 25
Price
N/A
513
PULLEY FLAT WASHER 6MM
514
HEX BOLT M6-1 X 16 LH
515
Scoring Blade 4-3/4 (120mm) x 20mm for G0699 and G0764Z
Price
N/A
516
CAP SCREW M12-1.75 X 100
Price
N/A
517
LOCK WASHER 12MM
Price
N/A
518
SCORING MOTOR PULLEY
519
SET SCREW M6-1 X 20
Price
N/A
520
RIBBED FLAT BELT 140J7 V1
520V2
FLAT BELT 18 X 355MM V2.01.16
521
PIVOT SHAFT
522
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
523
LOCK WASHER 8MM
Price
N/A
524
SCORING MOTOR MOUNTING PLATE
525
LOCK NUT M14-2
Price
N/A
526
SCORING MOTOR 1HP 220V/440V 3-PH
526-1
SCORING MOTOR FAN COVER
526-2
SCORING MOTOR FAN
526-3
SCORING MOTOR JUNCTION BOX
527
Now: PN02M
HEX NUT M10-1.5
Price
N/A
528
CAP SCREW M10-1.5 X 20
Price
N/A
529
TENSION SPRING
530
CAP SCREW M10-1.5 X 50
Price
N/A
531
Now: PN02M
HEX NUT M10-1.5
Price
N/A
532
Now: PW03M
FLAT WASHER 6MM
Price
N/A
533
LOCK WASHER 6MM
Price
N/A
534
CAP SCREW M6-1 X 16
Price
N/A
535
Now: PW10M
FLAT WASHER 14MM
Price
N/A
536
BALL BEARING 6202-2RS
Price
N/A
536V2
BALL BEARING 6003-2RS
Price
N/A
601
CAP SCREW M8-1.25 X 20
Price
N/A
601V2
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
602
Now: PW01M
FLAT WASHER 8MM
Price
N/A

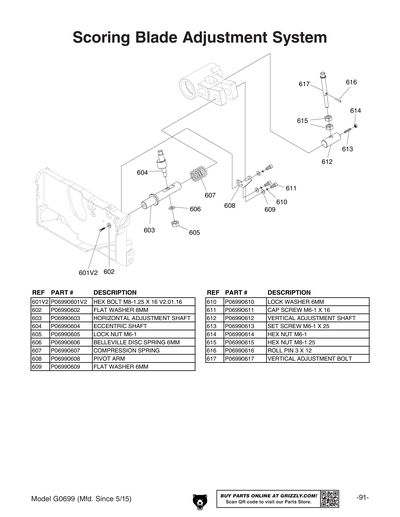

603
HORIZONTAL ADJUSTMENT SHAFT
604
ECCENTRIC SHAFT
605
LOCK NUT M6-1
Price
N/A
606
BELLEVILLE DISC SPRING 6MM
607
COMPRESSION SPRING
608
PIVOT ARM
609
Now: PW03M
FLAT WASHER 6MM
Price
N/A
610
LOCK WASHER 6MM
Price
N/A
611
CAP SCREW M6-1 X 16
Price
N/A
612
VERTICAL ADJUSTMENT SHAFT
613
SET SCREW M6-1 X 25
Price
N/A
614
Now: PN01M
HEX NUT M6-1
Price
N/A
615
Now: PN03M
HEX NUT M8-1.25
Price
N/A
616
ROLL PIN 3 X 12
Price
N/A
617
VERTICAL ADJUSTMENT BOLT

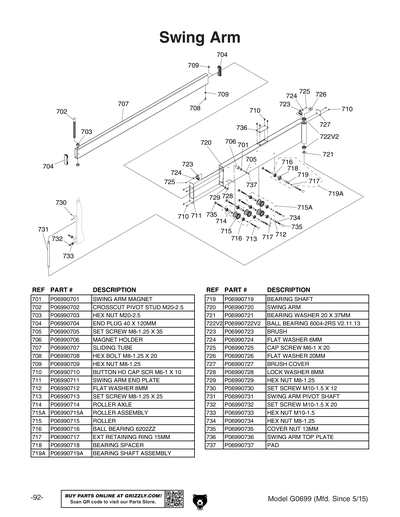

701
SWING ARM MAGNET
702
CROSSCUT PIVOT STUD M20-2.5
703
Now: PN28M
HEX NUT M20-2.5
Price
N/A
704
END PLUG 40 X 120MM
705
SET SCREW M8-1.25 X 35
Price
N/A
706
MAGNET HOLDER
707
SLIDING TUBE
708
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
709
Now: PN03M
HEX NUT M8-1.25
Price
N/A
710
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
711
SWING ARM END PLATE
712
Now: PW01M
FLAT WASHER 8MM
Price
N/A
713
SET SCREW M8-1.25 X 25
Price
N/A
714
ROLLER AXLE
715
ROLLER
715A
ROLLER
Price
N/A
716
BALL BEARING 6202ZZ
Price
N/A
717
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
718
BEARING SPACER
719
BEARING SHAFT
719A
BEARING SHAFT ASSEMBLY
720
SWING ARM
721
BEARING WASHER 20 X 37MM
722
BALL BEARING 6004ZZ
Price
N/A
722V2
BALL BEARING 6004-2RS
Price
N/A
723
BRUSH
724
Now: PW03M
FLAT WASHER 6MM
Price
N/A
725
CAP SCREW M6-1 X 20
Price
N/A
726
Now: PW13M
FLAT WASHER 20MM
Price
N/A
727
BRUSH COVER
728
LOCK WASHER 8MM
Price
N/A
729
Now: PN03M
HEX NUT M8-1.25
Price
N/A
730
SET SCREW M10-1.5 X 12
Price
N/A
731
SWING ARM PIVOT SHAFT
732
SET SCREW M10-1.5 X 20
Price
N/A
733
Now: PN02M
HEX NUT M10-1.5
Price
N/A
734
Now: PN03M
HEX NUT M8-1.25
Price
N/A
735
COVER NUT 13MM
736
SWING ARM TOP PLATE
737
PAD

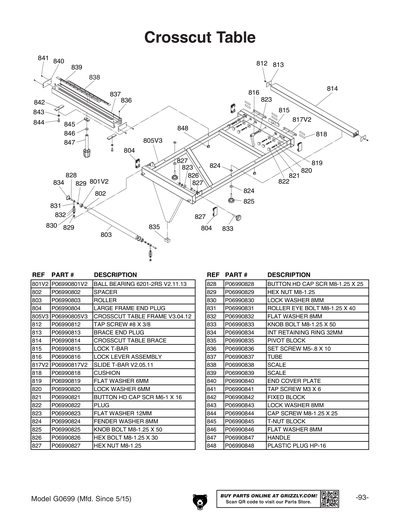

801
BALL BEARING 6201ZZ
Price
N/A
801V2
BALL BEARING 6201-2RS
Price
N/A
802
SPACER
803
ROLLER
804
LARGE FRAME END PLUG
805
*DISCD*CROSSCUT TABLE FRAME V1
Item is no longer available
Price
N/A
805V2
*DISCD*CROSSCUT TABLE FRAME V2.05.11
Item is no longer available
Price
N/A
805V3
CROSSCUT TABLE FRAME V3.04.12
806
T-NUT M8-1.25
Price
N/A
807
KNOB BOLT M8-1.25 X 25
808
FENDER WASHER 8MM
Price
N/A
809
MEDIUM FRAME END PLUG
810
SMALL FRAME END PLUG
811
ANGLE SCALE ASSEMBLY
812
TAP SCREW #8 X 3/8
Price
N/A
813
COVER 70MM WIDE V2.11.13
Price
N/A
814
SQUARE BRACE 70MM WIDE V2.11.13
Price
N/A
815
FRAME T-SLOT CLAMP BLOCK
Price
N/A
816
ADJUSTMENT HANDLE M12-1.75 X 55
Price
N/A
817
*DISCD*SLIDE T-BAR V1
Item is no longer available
Price
N/A
817V2
SLIDE T-BAR V2.05.11
818
CUSHION
819
Now: PW03M
FLAT WASHER 6MM
Price
N/A
820
LOCK WASHER 6MM
Price
N/A
821
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
822
PLUG
823
Now: PW06M
FLAT WASHER 12MM
Price
N/A
824
FENDER WASHER 8MM
Price
N/A
825
KNOB BOLT M8-1.25 X 50
826
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
827
Now: PN03M
HEX NUT M8-1.25
Price
N/A
828
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
829
Now: PN03M
HEX NUT M8-1.25
Price
N/A
830
LOCK WASHER 8MM
Price
N/A
831
ROLLER EYE BOLT M8-1.25 X 40
832
Now: PW01M
FLAT WASHER 8MM
Price
N/A
833
KNOB BOLT M8-1.25 X 50
Price
N/A
834
Now: PR29M
INT RETAINING RING 32MM
Price
N/A
835
PIVOT BLOCK
836
SET SCREW M5-.8 X 10
Price
N/A
837
FRAME SHORT BRACE
Price
N/A
838
SCALE
839
SCALE
840
END COVER PLATE
841
TAP SCREW M3 X 6
Price
N/A
842
FIXED BLOCK
843
LOCK WASHER 8MM
Price
N/A
844
CAP SCREW M8-1.25 X 25
Price
N/A
845
T-NUT BLOCK
846
Now: PW01M
FLAT WASHER 8MM
Price
N/A
847
HANDLE
848
PLASTIC PLUG HP-16

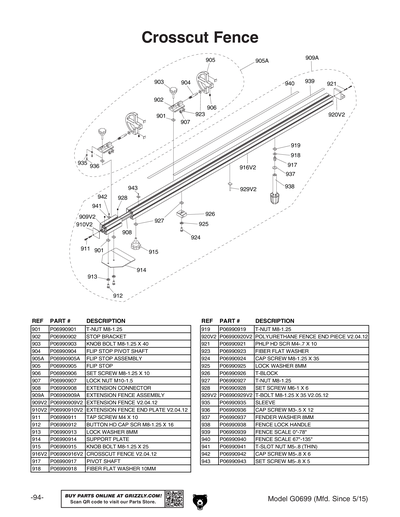

901
T-NUT M8-1.25
Price
N/A
902
STOP BRACKET
903
KNOB BOLT M8-1.25 X 40
904
STUD-FT M10-1.5 X 70 V1
Price
N/A
905
FLIP STOP
905A
FLIP STOP ASSEMBLY
906
SET SCREW M8-1.25 X 10
Price
N/A
907
LOCK NUT M10-1.5
Price
N/A
908
EXTENSION FENCE CONNECTOR ROD
Price
N/A
909
*DISCD*EXTENSION FENCE V1
Item is no longer available
Price
N/A
909A
EXTENSION FENCE ASSEMBLY
909V2
EXTENSION FENCE V2.04.12
910
*DISCD*EXTENSION FENCE END PLATE V1
Item is no longer available
Price
N/A
910V2
EXTENSION FENCE END PLATE V2.04.12
911
TAP SCREW M4 X 10
Price
N/A
912
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
913
LOCK WASHER 8MM
Price
N/A
914
STOCK SUPPORT PLATE
Price
N/A
915
KNOB BOLT M8-1.25 X 25
Price
N/A
916
*DISCD*CROSSCUT FENCE V1
916V2
CROSSCUT FENCE W/EXT. FENCE V2.04.12
917
PIVOT SHAFT
918
FIBER FLAT WASHER 10MM
919
T-NUT M8-1.25
Price
N/A
920
*DISCD*POLYURETHANE FENCE END PIECE V1
Item is no longer available
Price
N/A
920V2
POLYURETHANE FENCE END PIECE V2.04.12
921
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
922
NYLON PAD
923
FIBER FLAT WASHER
924
CAP SCREW M8-1.25 X 35
Price
N/A
925
LOCK WASHER 8MM
Price
N/A
926
FLIP STOP CLAMP BLOCK
Price
N/A
927
T-NUT M8-1.25
Price
N/A
928
SET SCREW M6-1 X 6
Price
N/A
929
T-BOLT M8-1.25 X 60 V1
929V2
T-BOLT M8-1.25 X 35 V2.05.12
930
RULER 0-2000MM
931
RULER 1720-3420MM
932
T-NUT M5-.8
Price
N/A
933
SET SCREW M5-.8 X 6
Price
N/A
934
KNURLED CUP SET SCREW M5-.8 X 5
935
SLEEVE
936
CAP SCREW M3-.5 X 12
Price
N/A
937
FENDER WASHER 8MM
Price
N/A
938
FENCE LOCK HANDLE
939
SCALE 2000-0MM (78.75-0") STEEL V2.06.13
Price
N/A
940
FENCE SCALE 67"-135"
941
T-SLOT NUT M5-.8 (THIN)
942
CAP SCREW M5-.8 X 6
Price
N/A
943
SET SCREW M5-.8 X 5
Price
N/A

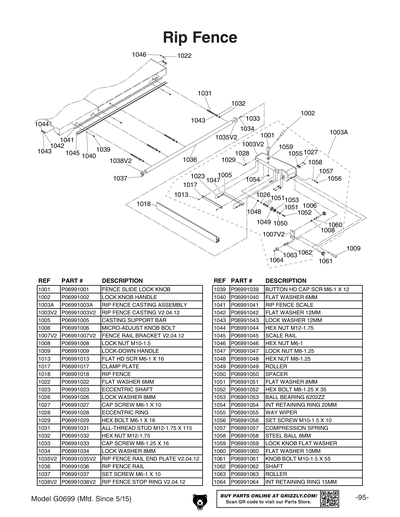

1001
FENCE SLIDE LOCK KNOB
1002
LOCK KNOB HANDLE
1003
*DISCD*RIP FENCE CASTING V1
Item is no longer available
Price
N/A
1003A
RIP FENCE CASTING ASSEMBLY
1003V2
RIP FENCE CASTING V2.04.12
1004
*DISCD*KNOB BOLT M10-1.25 X 70
Item is no longer available
Price
N/A
1005
CASTING SUPPORT BAR
1006
MICRO-ADJUST KNOB BOLT
1007
*DISCD*FENCE RAIL BRACKET V1
Item is no longer available
Price
N/A
1007V2
FENCE RAIL BRACKET V2.04.12
1008
LOCK NUT M10-1.5
Price
N/A
1009
LOCK-DOWN HANDLE
1010
*DISCD*SHAFT BUSHING
Item is no longer available
Price
N/A
1011
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
1012
CASTING PLUG
1013
FLAT HD SCR M6-1 X 16
Price
N/A
1014
*DISCD*CLAMP LOCK CAM
Item is no longer available
Price
N/A
1015
CAP SCREW M8-1.25 X 16
Price
N/A
1016
SET SCREW M5-.8 X 10
Price
N/A
1017
CLAMP PLATE
1018
RIP FENCE
1019
NYLON PIECE
Price
N/A
1020
*DISCD*ECCENTRIC HEX HEAD SHAFT
Item is no longer available
Price
N/A
1021
NYLON ROLLER
1022
Now: PW03M
FLAT WASHER 6MM
Price
N/A
1023
ECCENTRIC SHAFT
1024
*DISCD*LOCK-DOWN SHAFT
Item is no longer available
Price
N/A
1025
FLAT HD SCR M5-.8 X 8
Price
N/A
1026
LOCK WASHER 8MM
Price
N/A
1027
CAP SCREW M6-1 X 10
Price
N/A
1028
ECCENTRIC RING
Price
N/A
1029
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
1030
WAVE WASHER 26 X 34MM
Price
N/A
1031
STUD-FT M12-1.75 X 115
1032
Now: PN09M
HEX NUT M12-1.75
Price
N/A
1033
CAP SCREW M8-1.25 X 16
Price
N/A
1034
LOCK WASHER 8MM
Price
N/A
1035
*DISCD*RIP FENCE RAIL END PLATE V1
Item is no longer available
Price
N/A
1035V2
RIP FENCE RAIL END PLATE V2.04.12
1036
RIP FENCE RAIL
1037
SET SCREW M6-1 X 10
Price
N/A
1038
*DISCD*RIP FENCE STOP RING V1
Item is no longer available
Price
N/A
1038V2
RAIL STOP RING
Price
N/A
1039
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
1040
Now: PW03M
FLAT WASHER 6MM
Price
N/A
1041
RIP FENCE SCALE
1042
Now: PW06M
FLAT WASHER 12MM
Price
N/A
1043
LOCK WASHER 12MM
Price
N/A
1044
Now: PN09M
HEX NUT M12-1.75
Price
N/A
1045
SCALE RAIL
1046
Now: PN01M
HEX NUT M6-1
Price
N/A
1047
LOCK NUT M8-1.25
Price
N/A
1048
Now: PN03M
HEX NUT M8-1.25
Price
N/A
1049
ROLLER
1050
SPACER
1051
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1052
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
1053
BALL BEARING 6202ZZ
Price
N/A
1054
Now: PR83M
INT RETAINING RING 20MM
Price
N/A
1055
WAY WIPER
1056
SET SCREW M10-1.5 X 10
Price
N/A
1057
COMPRESSION SPRING
1058
STEEL BALL 8MM
Price
N/A
1059
LOCK KNOB FLAT WASHER
1060
Now: PW04M
FLAT WASHER 10MM
Price
N/A
1061
KNOB BOLT M10-1.5 X 55
Price
N/A
1062
SHAFT
1063
ROLLER
1064
Now: PR54M
INT RETAINING RING 15MM
Price
N/A
1121
Now: PN09M
HEX NUT M12-1.75
Price
N/A
1122
LOCK WASHER 12MM
Price
N/A
1123
Now: PW06M
FLAT WASHER 12MM
Price
N/A
1124
T-BOLT M12-1.75 X 40

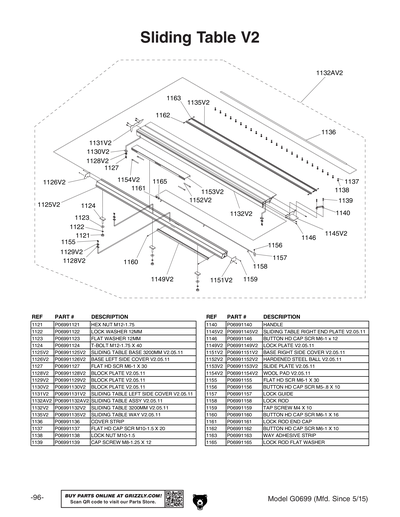

1125
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1125V2
SLIDING TABLE W/BASE 3200MM V2.05.11
Price
N/A
1126
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1126V2
BASE LEFT SIDE COVER V2.05.11
1127
FLAT HD SCR M6-1 X 30
Price
N/A
1128
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1128V2
BLOCK PLATE V2.05.11
Price
N/A
1129
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1129V2
BLOCK PLATE V2.05.11
Price
N/A
1130
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1130V2
BLOCK PLATE V2.05.11
1131
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1131V2
SLIDING TABLE LEFT SIDE COVER V2.05.11
1132
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1132-1
HANDLE M12-1.75 X 20
1132-2
T-SLOT NUT M12-1.75
1132-3
FLAT WASHER 12MM (COPPER)
1132-4
FLAT WASHER 12MM
1132AV2
SLIDING TABLE ASSY V2.05.11
1132V2
SLIDING TABLE W/BASE 3200MM V2.05.11
Price
N/A
1132V2A
SLIDING TABLE W/BASE 3200MM V2.05.11
1133
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1134
FLAT HD SCR M6-1 X 10
Price
N/A
1135
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1135V2
SLIDING TABLE WAY V2.05.11
1136
COVER STRIP
1137
FLAT HD CAP SCR M10-1.5 X 20
Price
N/A
1138
LOCK NUT M10-1.5
Price
N/A
1139
CAP SCREW M8-1.25 X 12
Price
N/A
1140
HANDLE
1141
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1142
SET SCREW M5-.8 X 8
Price
N/A
1143
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1144
CAP SCREW M8-1.25 X 16
Price
N/A
1145
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1145V2
SLIDING TABLE RIGHT END PLATE V2.05.11
1146
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
1147
CAP SCREW M6-1 X 10
Price
N/A
1148
Now: PW03M
FLAT WASHER 6MM
Price
N/A
1149
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1149V2
LOCK PLATE V2.05.11
1150
TAP SCREW M5 X 16
Price
N/A
1151
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1151V2
BASE RIGHT SIDE COVER V2.05.11
1152
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1152V2
STEEL BALL BEARING 16.7MM V2.05.11
1153
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1153V2
SLIDE PLATE V2.05.11
1154
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1154V2
WOOL PAD V2.05.11
1155
FLAT HD SCR M6-1 X 30
Price
N/A
1156
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
1157
LOCK GUIDE
1158
LOCK ROD
1159
TAP SCREW M4 X 10
Price
N/A
1160
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
1161
LOCK ROD END CAP
1162
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
1163
WAY ADHESIVE STRIP
1164
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
1165
LOCK ROD FLAT WASHER
1201
CAP SCREW M10-1.5 X 25
Price
N/A

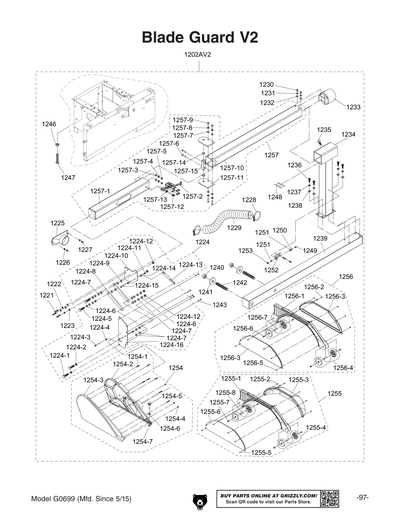

1202
MAIN BLADE GUARD 2-PC
1202A
BLADE GUARD ASSEMBLY
1202AV2
BLADE GUARD ASSY V2.10.16
Price
N/A
1203
LOCK NUT M10-1.5
Price
N/A
1204
TAP SCREW M3 X 16
Price
N/A
1206
PIVOT SCREW M5-.8 X 10
1207
PIVOT SLEEVE
1208
SCORING BLADE GUARD 2-PC
1209
HOSE CLAMP 2-1/2"
1210
CAP SCREW M10-1.5 X 25
Price
N/A
1211
LOCK WASHER 10MM
Price
N/A
1212
DUST HOSE SUPPORT PLATE
1213
Now: PW04M
FLAT WASHER 10MM
Price
N/A
1214
LOCK NUT M10-1.5
Price
N/A
1215
LOCK NUT M5-.8
Price
N/A

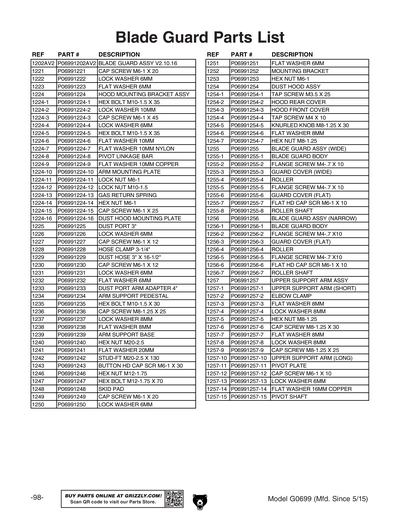

1221
CAP SCREW M6-1 X 20
Price
N/A
1222
LOCK WASHER 6MM
Price
N/A
1223
Now: PW03M
FLAT WASHER 6MM
Price
N/A
1224
HOOD MOUNTING BRACKET ASSY
Price
N/A
1224-1
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
1224-10
ARM MOUNTING PLATE
Price
N/A
1224-11
LOCK NUT M6-1
Price
N/A
1224-12
LOCK NUT M10-1.5
Price
N/A
1224-13
GAS RETURN SPRING
Price
N/A
1224-14
Now: PN01M
HEX NUT M6-1
Price
N/A
1224-15
CAP SCREW M6-1 X 25
Price
N/A
1224-16
DUST HOOD MOUNTING PLATE
Price
N/A
1224-2
LOCK WASHER 10MM
Price
N/A
1224-3
CAP SCREW M6-1 X 45
Price
N/A
1224-4
LOCK WASHER 6MM
Price
N/A
1224-5
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
1224-6
Now: PW04M
FLAT WASHER 10MM
Price
N/A
1224-7
FLAT WASHER 10MM NYLON
Price
N/A
1224-8
PIVOT LINKAGE BAR
Price
N/A
1224-9
FLAT WASHER 10MM COPPER
Price
N/A
1225
BLADE SHROUD DUST PORT
Price
N/A
1226
LOCK WASHER 6MM
Price
N/A
1227
CAP SCREW M6-1 X 12
Price
N/A
1228
HOSE CLAMP 3-1/4"
Price
N/A
1229
DUST HOSE 3" X 16-1/2"
Price
N/A
1230
CAP SCREW M6-1 X 12
Price
N/A
1231
LOCK WASHER 6MM
Price
N/A
1232
Now: PW03M
FLAT WASHER 6MM
Price
N/A
1233
DUST PORT ARM ADAPTER 4"
Price
N/A
1234
ARM SUPPORT PEDESTAL
Price
N/A
1235
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
1236
CAP SCREW M8-1.25 X 25
Price
N/A
1237
LOCK WASHER 8MM
Price
N/A
1238
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1239
ARM SUPPORT BASE
Price
N/A
1240
Now: PN28M
HEX NUT M20-2.5
Price
N/A
1241
Now: PW13M
FLAT WASHER 20MM
Price
N/A
1242
STUD-FT M20-2.5 X 130
Price
N/A
1243
BUTTON HD CAP SCR M6-1 X 30
Price
N/A
1246
Now: PN09M
HEX NUT M12-1.75
Price
N/A
1247
HEX BOLT M12-1.75 X 70
Price
N/A
1248
SKID PAD
Price
N/A
1249
CAP SCREW M6-1 X 20
Price
N/A
1250
LOCK WASHER 6MM
Price
N/A
1251
Now: PW03M
FLAT WASHER 6MM
Price
N/A
1252
MOUNTING BRACKET
Price
N/A
1253
Now: PN01M
HEX NUT M6-1
Price
N/A
1254
DUST HOOD ASSY
Price
N/A
1254-1
TAP SCREW M3.5 X 25
Price
N/A
1254-2
HOOD REAR COVER
Price
N/A
1254-3
HOOD FRONT COVER
Price
N/A
1254-4
TAP SCREW M4 X 10
Price
N/A
1254-5
KNURLED KNOB M8-1.25 X 30
Price
N/A
1254-6
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1254-7
Now: PN03M
HEX NUT M8-1.25
Price
N/A
1255
BLADE GUARD ASSY (WIDE)
Price
N/A
1255-1
BLADE GUARD BODY
Price
N/A
1255-2
FLANGE SCREW M4-.7 X 10
Price
N/A
1255-3
RIGHT BLADE COVER V2.03.10
Price
N/A
1255-4
ROLLER
Price
N/A
1255-5
FLANGE SCREW M4-.7 X 10
Price
N/A
1255-6
LEFT BLADE COVER V2.03.10
Price
N/A
1255-7
FLAT HD CAP SCR M6-1 X 10
Price
N/A
1255-8
ROLLER SHAFT
Price
N/A
1256
BLADE GUARD ASSY (NARROW)
Price
N/A
1256-1
BLADE GUARD BODY
Price
N/A
1256-2
FLANGE SCREW M4-.7 X 10
Price
N/A
1256-3
LEFT BLADE COVER V2.03.10
Price
N/A
1256-4
ROLLER
Price
N/A
1256-5
FLANGE SCREW M4-.7 X 10
Price
N/A
1256-6
FLAT HD CAP SCR M6-1 X 10
Price
N/A
1256-7
ROLLER SHAFT
Price
N/A
1257
UPPER SUPPORT ARM ASSY
Price
N/A
1257-1
UPPER SUPPORT ARM (SHORT)
Price
N/A
1257-10
UPPER SUPPORT ARM (LONG)
Price
N/A
1257-11
PIVOT PLATE
Price
N/A
1257-12
CAP SCREW M6-1 X 10
Price
N/A
1257-13
LOCK WASHER 6MM
Price
N/A
1257-14
FLAT WASHER 16MM COPPER
Price
N/A
1257-15
PIVOT SHAFT
Price
N/A
1257-2
ELBOW CLAMP
Price
N/A
1257-3
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1257-4
LOCK WASHER 8MM
Price
N/A
1257-5
Now: PN03M
HEX NUT M8-1.25
Price
N/A
1257-6
CAP SCREW M8-1.25 X 30
Price
N/A
1257-7
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1257-8
LOCK WASHER 8MM
Price
N/A
1257-9
CAP SCREW M8-1.25 X 25
Price
N/A

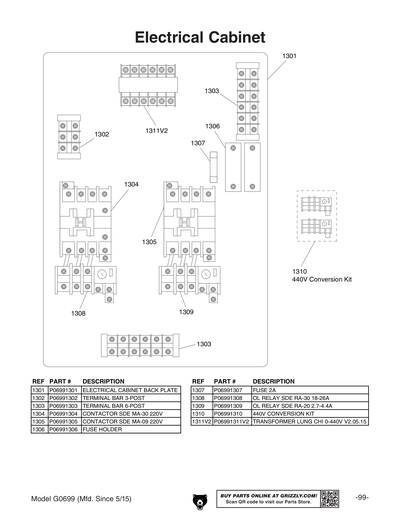

1301
ELECTRICAL CABINET BACK PLATE
1302
TERMINAL BAR 3-POST
1303
TERMINAL BAR 6-POST
1304
CONTACTOR SDE MA-30 220V
1305
CONTACTOR SDE MA-09 220V
1306
FUSE HOLDER
1307
FUSE 2A
1308
OL RELAY SDE RA-30 18-26A
1309
OL RELAY SDE RA-20 2.7-4.4A
1310
440V CONVERSION KIT
1311
TRANSFORMER LUNG CHI 0-440V V2.05.15
Price
N/A
1311V2
TRANSFORMER LUNG CHI 0-440V V2.05.15

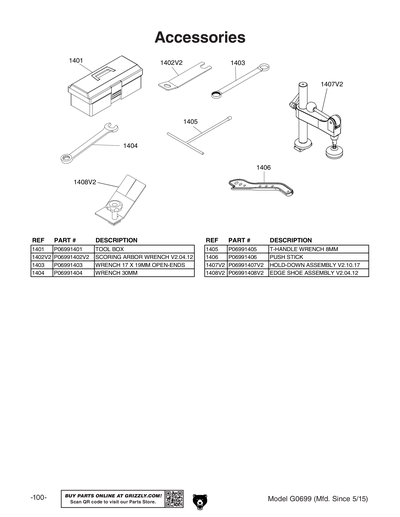

1401
TOOL BOX
1402
*DISCD*SCORING ARBOR WRENCH V1
Item is no longer available
Price
N/A
1402V2
SCORING ARBOR WRENCH V2.04.12
1403
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
1404
WRENCH 30MM
1405
T-HANDLE WRENCH 8MM
1406
PUSH STICK
1407
HOLD-DOWN ASSY (NON-SWIVEL PAD) V2.10.17
Price
N/A
1407V2
HOLD-DOWN ASSY (NON-SWIVEL PAD) V2.10.17
1408
EDGE SHOE ASSEMBLY V1
1408V2
EDGE SHOE ASSEMBLY V2.04.12

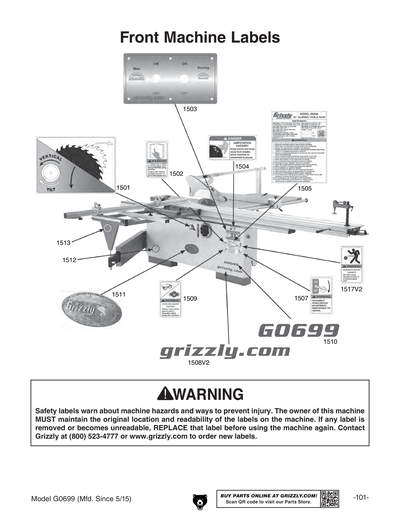

1501
SAW BLADE TILT LABEL
1502
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
1503
CONTROL PANEL LABEL
1504
MOVING BLADE/AMPUTATION 3.8W X 2H
Price
N/A
1505
MACHINE ID LABEL
1506
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
1507
DISCONNECT 220V 2W X 3.3H
Price
N/A
1508
GRIZZLY LABEL V1
1508V2
GRIZZLY.COM LABEL 13",GREEN
Price
N/A
1509
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
1510
MODEL NUMBER LABEL
1511
Now: G8589
Nameplate - Large
Price
N/A
1512
GREY PUTTY REF G0504
Price
N/A
1513
N/S GRIZZLY GREEN G1023S
Price
N/A
1514

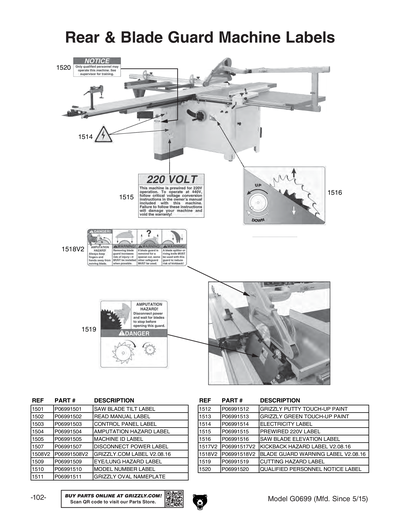

ELECTRICITY 1.4W X 1.2H
Price
N/A
1515
PREWIRED 220V 4.3W X 2.9H
Price
N/A
1516
SAW BLADE ELEVATION LABEL
1517
KICKBACK HAZARD LABEL V1
1517V2
KICKBACK HAZARD LABEL V2.08.16
1518
BLADE GUARD WARNING LABEL V1
1518V2
BLADE GUARD WARNING LABEL V2.08.16
1519
CUTTING HAZARD LABEL
MAN
MAN FOR G0699 MFD-06.09-04.11 V1.05.10
MANV2
MANUAL G0699 MFD-05.11-11.11 V2.11.11
MANV3
MANUAL G0699 MFD-04.12-05.12 V3.05.12
MANV4
MANUAL G0699 MFD-05.12-07.16 V4.11.15
MANV5
MANUAL G0699 MFD-09.16+ V5.08.17
