Parts for G0701 - 19" 5 HP Ultimate Bandsaw
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.
| Ref # | Part # | Description | Price | Qty | |
|---|---|---|---|---|---|
| 1 |
P0701001
Replaced By PHTEK4M
|
TAP SCREW M4 X 8
|
N/A | View Replacement | |
| 2 | P0701002 | TENSION SCALE PLATE | $17.50 | ||
| 3 |
P0701003
Replaced By PHTEK15M
|
TAP SCREW M4 X 10
|
N/A | View Replacement | |
| 4 | P0701004 | TENSION POINTER | $5.75 | ||
| 5 |
P0701005
Replaced By PW05M
|
FLAT WASHER 4MM
|
N/A | View Replacement | |
| 6 | P0701006 | TENSION SCALE BRACKET | $1.25 | ||
| 7 |
P0701007
Replaced By PRP61M
|
ROLL PIN 3 X 12
|
N/A | View Replacement | |
| 8 | P0701008 | TENSION POINTER BRACKET | $2.00 | ||
| 9 | P0701009 | TORSION SPRING | $1.25 | ||
| 10 | P0701010 | TENSION SCALE BOX | $3.50 | ||
| 11 | P0701011 |
*DISCD*FRAME
Item is no longer available
|
N/A | ||
| 12 | P0701012 | LIFTING EYE BOLT M12-1.75 X 20 | $14.75 | ||
| 13 | P0701013 | SHOULDER SCREW M4-.7 X 6 | $1.25 | ||
| 14 | P0701014 | PLASTIC FLAT WASHER 13 X 6 X 1.5 | $1.25 | ||
| 15 | P0701015 | GUIDE POST TOP CAP | $38.75 | ||
| 16 |
P0701016
Replaced By P0636X001
|
HANDLE
|
N/A | View Replacement | |
| 17 |
P0701017
Replaced By P0636X002
|
LEVER ROD M16-2
|
N/A | View Replacement | |
| 18 |
P0701018
Replaced By PN13M
|
HEX NUT M16-2
|
N/A | View Replacement | |
| 19 |
P0701019
Replaced By P0636X004
|
ROTATE SHAFT
|
N/A | View Replacement | |
| 20 |
P0701020
Replaced By PCAP56M
|
CAP SCREW M3-.5 X 10
|
N/A | View Replacement | |
| 21 |
P0701021
Replaced By PLW06M
|
LOCK WASHER 10MM
|
N/A | View Replacement | |
| 22 |
P0701022
Replaced By P0513067
|
STAR KNOB BOLT M10-1.5 X 55
|
N/A | View Replacement | |
| 23 |
P0701023
Replaced By P0636X008
|
BLADE TRACKING LOCK LEVER 10MM
|
N/A | View Replacement | |
| 24 |
P0701024
Replaced By PW04M
|
FLAT WASHER 10MM
|
N/A | View Replacement | |
| 25 |
P0701025
Replaced By P0636X067
|
TRACKING WINDOW
|
N/A | View Replacement | |
| 26 |
P0701026
Replaced By P0636X068
|
RIVET 3.2 X 10
|
N/A | View Replacement | |
| 27 |
P0701027
Replaced By PCAP02M
|
CAP SCREW M6-1 X 20
|
N/A | View Replacement | |
| 28 |
P0701028
Replaced By P0636X071
|
KNOB
|
N/A | View Replacement | |
| 29 |
P0701029
Replaced By P0636X072
|
HEIGHT POINTER
|
N/A | View Replacement | |
| 30 |
P0701030
Replaced By PFS07M
|
FLANGE SCREW M5-.8 X 10
|
N/A | View Replacement | |
| 31 |
P0701031
Replaced By PLN03M
|
LOCK NUT M6-1
|
N/A | View Replacement | |
| 32 |
P0701032
Replaced By PCAP06M
|
CAP SCREW M6-1 X 25
|
N/A | View Replacement | |
| 33 |
P0701033
Replaced By P0636X075
|
BLADE TENSION HANDWHEEL
|
N/A | View Replacement | |
| 34 |
P0701034
Replaced By PB127M
|
HEX BOLT M10-1.5 X 110
|
N/A | View Replacement | |
| 35 |
P0701035
Replaced By PN02M
|
HEX NUT M10-1.5
|
N/A | View Replacement | |
| 36 |
P0701036
Replaced By PW04M
|
FLAT WASHER 10MM
|
N/A | View Replacement | |
| 37 |
P0701037
Replaced By P07640055
|
STRAIN RELIEF M20 TYPE-6 ST
|
N/A | View Replacement | |
| 38 |
P0701038
Replaced By P0636X108
|
PLATE
|
N/A | View Replacement | |
| 39 |
P0701039
Replaced By PS56M
|
PHLP HD SCR M4-.7 X 16
|
N/A | View Replacement | |
| 40 | P0701040 | CORD CLAMP 5/8" | $1.25 | ||
| 41 |
P0701041
Replaced By PN04M
|
HEX NUT M4-.7
|
N/A | View Replacement | |
| 42 | P0701042 | FLEXIBLE TUBE 1/2" X 43-1/2" | $10.25 | ||
| 43 |
P0701043
Replaced By P0514X2115
|
GROMMET M13 TYPE-1 PUSH-IN
|
N/A | View Replacement | |
| 44 |
P0701044
Replaced By PCAP31M
|
CAP SCREW M8-1.25 X 25
|
N/A | View Replacement | |
| 45 | P0701045 | MOTOR 5HP 220V 1-PH V1 | $813.25 | ||
| 45-1 | P0701045-1 | MOTOR FAN COVER | $32.25 | ||
| 45-2 | P0701045-2 | MOTOR FAN | $14.75 | ||
| 45-3 |
P0701045-3
Replaced By P0701045V2-3
|
CAPACITOR COVER
|
N/A | View Replacement | |
| 45-4 | P0701045-4 | S CAPACITOR 400M 250V 1-3/4 X 3-1/2 | $48.75 | ||
| 45-5 | P0701045-5 | R CAPACITOR 45M 350V 1-3/4 X 4 | $35.50 | ||
| 45-6 |
P0701045-6
Replaced By P0701045V2-6
|
MOTOR WIRING JUNCTION BOX
|
N/A | View Replacement | |
| 45V2 | P0701045V2 | MOTOR 5HP 220V 1-PH V2.03.12 | $922.00 | ||
| 45V2-1 | P0701045V2-1 | MOTOR FAN COVER | $23.50 | ||
| 45V2-10 |
P0701045V2-10
Replaced By P6204ZZ
|
BALL BEARING 6204ZZ
|
N/A | View Replacement | |
| 45V2-2 | P0701045V2-2 | MOTOR FAN | $15.25 | ||
| 45V2-3 | P0701045V2-3 | CAPACITOR COVER | $15.25 | ||
| 45V2-4 |
P0701045V2-4
Replaced By P0531B023-7
|
S CAPACITOR 300M 250V 2 X 4 LAI
|
N/A | View Replacement | |
| 45V2-5 | P0701045V2-5 | R CAPACITOR 45M 450V 2 X 3-1/2 | $53.75 | ||
| 45V2-6 | P0701045V2-6 | MOTOR WIRING JUNCTION BOX | $11.25 | ||
| 45V2-7 | P0701045V2-7 | CONTACT PLATE W/CENTRIFUGAL SWITCH 1720 | $22.25 | ||
| 45V2-8 |
P0701045V2-8
Replaced By P0701045V2-7
|
CONTACT PLATE W/CENTRIFUGAL SWITCH 1720
|
N/A | View Replacement | |
| 45V2-9 |
P0701045V2-9
Replaced By P6206-2RS
|
BALL BEARING 6206-2RS
|
N/A | View Replacement | |
| 46 |
P0701046
Replaced By P0636X095
|
ADJUSTMENT HUB COVER
|
N/A | View Replacement | |
| 47 |
P0701047
Replaced By PB14M
|
HEX BOLT M10-1.5 X 35
|
N/A | View Replacement | |
| 48 |
P0701048
Replaced By P0636X102
|
TERMINAL BLOCK
|
N/A | View Replacement | |
| 49 |
P0701049
Replaced By PS52M
|
PHLP HD SCR M4-.7 X 20
|
N/A | View Replacement | |
| 50 |
P0701050
Replaced By P0636X100
|
TERMINAL BOX
|
N/A | View Replacement | |
| 51 |
P0701051
Replaced By PFS09M
|
FLANGE SCREW M5-.8 X 50
|
N/A | View Replacement | |
| 52 | P0701052 | MAGNETIC SWITCH ASSY V1 | $146.00 | ||
| 52V2 |
P0701052V2
Replaced By P0636X105V2
|
MAGNETIC SWITCH MP-30E V2.11.10
|
N/A | View Replacement | |
| 52V2-1 |
P0701052V2-1
Replaced By P0636X105V2
|
MAGNETIC SWITCH MP-30E V2.11.10
|
N/A | View Replacement | |
| 52V2-2 |
P0701052V2-2
Replaced By P0636X105V2
|
MAGNETIC SWITCH MP-30E V2.11.10
|
N/A | View Replacement | |
| 52V2-3 |
P0701052V2-3
Replaced By P0636X105-3V2
|
OL RELAY SDE RA-30 18-26A V2.11.10
|
N/A | View Replacement | |
| 53 | P0701053 | CORD CLAMP 1/2" | $1.25 | ||
| 54 |
P0701054
Replaced By P0636X084
|
BRAKE STEP PLATE
|
N/A | View Replacement | |
| 55 |
P0701055
Replaced By PLW03M
|
LOCK WASHER 6MM
|
N/A | View Replacement | |
| 56 |
P0701056
Replaced By PCAP01M
|
CAP SCREW M6-1 X 16
|
N/A | View Replacement | |
| 57 | P0701057 | LOCKING SET SCREW M7-1 X 10 | $1.25 | ||
| 58 |
P0701058
Replaced By P0636X079
|
BUSHING
|
N/A | View Replacement | |
| 59 |
P0701059
Replaced By P0636X036
|
BRAKE PAD
|
N/A | View Replacement | |
| 60 |
P0701060
Replaced By PCAP06M
|
CAP SCREW M6-1 X 25
|
N/A | View Replacement | |
| 61 |
P0701061
Replaced By PCAP13M
|
CAP SCREW M8-1.25 X 30
|
N/A | View Replacement | |
| 62 |
P0701062
Replaced By PLW04M
|
LOCK WASHER 8MM
|
N/A | View Replacement | |
| 63 |
P0701063
Replaced By PW01M
|
FLAT WASHER 8MM
|
N/A | View Replacement | |
| 64 |
P0701064
Replaced By P0636X121
|
BUSHING
|
N/A | View Replacement | |
| 65 | P0701065 | BRAKE LEVER | $40.25 | ||
| 66 |
P0701066
Replaced By PN01M
|
HEX NUT M6-1
|
N/A | View Replacement | |
| 67 |
P0701067
Replaced By P0636X083
|
EXTENSION SPRING
|
N/A | View Replacement | |
| 68 |
P0701068
Replaced By PS51M
|
PHLP HD SCR M4-.7 X 30
|
N/A | View Replacement | |
| 69 |
P0701069
Replaced By PW05M
|
FLAT WASHER 4MM
|
N/A | View Replacement | |
| 70 |
P0701070
Replaced By P0636X086
|
LIMIT SWITCH KL7141
|
N/A | View Replacement | |
| 71 |
P0701071
Replaced By P0636X090
|
BRAKE LEVER CORD
|
N/A | View Replacement | |
| 72 |
P0701072
Replaced By PHTEK4M
|
TAP SCREW M4 X 8
|
N/A | View Replacement | |
| 73 |
P0701073
Replaced By P0636X092
|
PROTECT TUBE 1/2" X 43-5/16"
|
N/A | View Replacement | |
| 74 |
P0701074
Replaced By PB10M
|
HEX BOLT M6-1 X 25
|
N/A | View Replacement | |
| 75 |
P0701075
Replaced By PW03M
|
FLAT WASHER 6MM
|
N/A | View Replacement | |
| 76 |
P0701076
Replaced By PLN03M
|
LOCK NUT M6-1
|
N/A | View Replacement | |
| 77 |
P0701077
Replaced By P0636X093
|
BRUSH
|
N/A | View Replacement | |
| 78 |
P0701078
Replaced By P0636X076
|
LOWER WHEEL SUPPORT
|
N/A | View Replacement | |
| 79 |
P0701079
Replaced By PW03M
|
FLAT WASHER 6MM
|
N/A | View Replacement | |
| 80 |
P0701080
Replaced By PCAP01M
|
CAP SCREW M6-1 X 16
|
N/A | View Replacement | |
| 81 |
P0701081
Replaced By P0636X062
|
LOWER WHEEL SHAFT
|
N/A | View Replacement | |
| 82 |
P0701082
Replaced By PVA32
|
V-BELT A32
|
N/A | View Replacement | |
| 83 |
P0701083
Replaced By P0636X064
|
WHEEL PULLEY
|
N/A | View Replacement | |
| 84 |
P0701084
Replaced By PSS04M
|
SET SCREW M6-1 X 12
|
N/A | View Replacement | |
| 85 |
P0701085
Replaced By PCAP31M
|
CAP SCREW M8-1.25 X 25
|
N/A | View Replacement | |
| 86 |
P0701086
Replaced By P0636X055
|
ADJUST BOLT
|
N/A | View Replacement | |
| 87 |
P0701087
Replaced By P0636X048
|
START SWITCH
|
N/A | View Replacement | |
| 88 |
P0701088
Replaced By P0636X049
|
E-STOP BUTTON 250V 10A
|
N/A | View Replacement | |
| 89 |
P0701089
Replaced By P0636X050
|
KEY SWITCH
|
N/A | View Replacement | |
| 90 |
P0701090
Replaced By PS09M
|
PHLP HD SCR M5-.8 X 10
|
N/A | View Replacement | |
| 91 |
P0701091
Replaced By P0636X051
|
SWITCH PLATE
|
N/A | View Replacement | |
| 92 |
P0701092
Replaced By P0636X052
|
CONNECTING BLOCK
|
N/A | View Replacement | |
| 93 |
P0701093
Replaced By P0636X053
|
CONNECTING CORD
|
N/A | View Replacement | |
| 94 | P0701094 | GUIDE POST ELEVATION SWITCH | $140.75 | ||
| 100 | P0701100 | DOOR SAFETY SWITCH CORD | $7.00 | ||
| 101 |
P0701101
Replaced By P0636X111
|
DOOR LATCH SWITCH ADZ-S11
|
N/A | View Replacement | |
| 102 |
P0701102
Replaced By PFS10M
|
FLANGE SCREW M4-.7 X 35
|
N/A | View Replacement | |
| 103 |
P0701103
Replaced By PN04M
|
HEX NUT M4-.7
|
N/A | View Replacement | |
| 104 |
P0701104
Replaced By PW05M
|
FLAT WASHER 4MM
|
N/A | View Replacement | |
| 105 |
P0701105
Replaced By PS38M
|
PHLP HD SCR M4-.7 X 10
|
N/A | View Replacement | |
| 106 |
P0701106
Replaced By P0636X111
|
DOOR LATCH SWITCH ADZ-S11
|
N/A | View Replacement | |
| 107 | P0701107 | WHEEL DOOR UPPER | $111.00 | ||
| 107A | P0701107A | UPPER WHEEL COVER W/LABELS | $132.00 | ||
| 108 |
P0701108
Replaced By PFN04M
|
FLANGE NUT M5-.8
|
N/A | View Replacement | |
| 109 | P0701109 | DOOR HINGE | $34.75 | ||
| 110 |
P0701110
Replaced By PCAP33M
|
CAP SCREW M5-.8 X 12
|
N/A | View Replacement | |
| 111 | P0701111 | DOOR HANDLE | $27.75 | ||
| 112 |
P0701112
Replaced By PCAP01M
|
CAP SCREW M6-1 X 16
|
N/A | View Replacement | |
| 113 |
P0701113
Replaced By PLW03M
|
LOCK WASHER 6MM
|
N/A | View Replacement | |
| 114 |
P0701114
Replaced By PLN03M
|
LOCK NUT M6-1
|
N/A | View Replacement | |

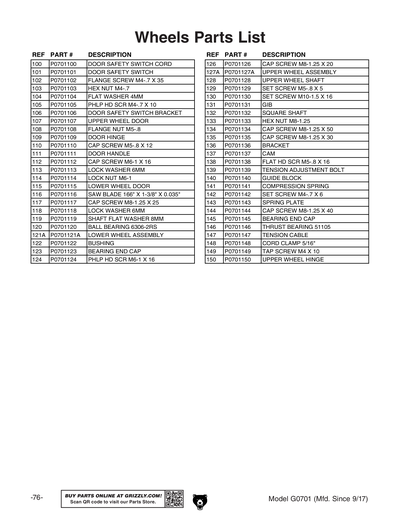

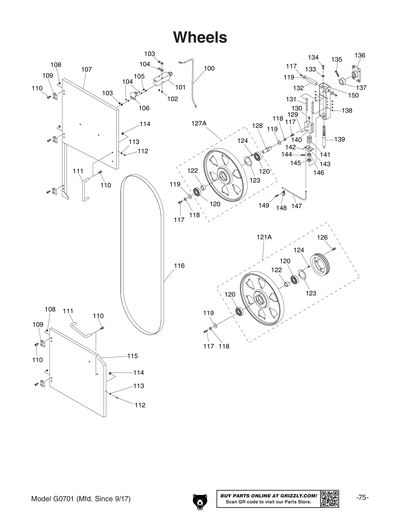

| 115 | P0701115 | WHEEL DOOR LOWER | $102.75 | ||
| 115A | P0701115A | LOWER WHEEL COVER W/LABELS | $111.00 | ||
| 116 | P0701116 | SAW BLADE 166" X 1-3/8" X 0.035" | $67.50 | ||
| 117 |
P0701117
Replaced By PCAP31M
|
CAP SCREW M8-1.25 X 25
|
N/A | View Replacement | |
| 118 |
P0701118
Replaced By PLW03M
|
LOCK WASHER 6MM
|
N/A | View Replacement | |
| 119 |
P0701119
Replaced By P0636X018
|
SQUARE SHAFT WASHER 8MM
|
N/A | View Replacement | |
| 120 |
P0701120
Replaced By P6306-2RS
|
BALL BEARING 6306-2RS
|
N/A | View Replacement | |
| 121 |
P0701121
Replaced By P0701121A
|
LOWER WHEEL ASSEMBLY
|
N/A | View Replacement | |
| 121A | P0701121A | LOWER WHEEL ASSEMBLY | $425.25 | ||
| 122 |
P0701122
Replaced By P0701121A
|
LOWER WHEEL ASSEMBLY
|
N/A | View Replacement | |
| 123 |
P0701123
Replaced By P0701121A
|
LOWER WHEEL ASSEMBLY
|
N/A | View Replacement | |
| 124 |
P0701124
Replaced By PS11M
|
PHLP HD SCR M6-1 X 16
|
N/A | View Replacement | |
| 125 |
P0701125
Replaced By P0701121A
|
LOWER WHEEL ASSEMBLY
|
N/A | View Replacement | |
| 126 |
P0701126
Replaced By PCAP14M
|
CAP SCREW M8-1.25 X 20
|
N/A | View Replacement | |
| 127 |
P0701127
Replaced By P0701127A
|
UPPER WHEEL ASSEMBLY
|
N/A | View Replacement | |
| 127A | P0701127A | UPPER WHEEL ASSEMBLY | $370.00 | ||
| 128 |
P0701128
Replaced By P0636X031
|
WHEEL SHAFT UPPER
|
N/A | View Replacement | |
| 129 |
P0701129
Replaced By PSS07M
|
SET SCREW M5-.8 X 5
|
N/A | View Replacement | |
| 130 |
P0701130
Replaced By PSS75M
|
SET SCREW M10-1.5 X 16
|
N/A | View Replacement | |
| 131 |
P0701131
Replaced By P0636X021
|
LOCATE PLATE
|
N/A | View Replacement | |
| 132 |
P0701132
Replaced By P0636X017
|
SQUARE SHAFT
|
N/A | View Replacement | |
| 133 |
P0701133
Replaced By PN03M
|
HEX NUT M8-1.25
|
N/A | View Replacement | |
| 134 |
P0701134
Replaced By PCAP05M
|
CAP SCREW M8-1.25 X 50
|
N/A | View Replacement | |
| 135 |
P0701135
Replaced By PCAP13M
|
CAP SCREW M8-1.25 X 30
|
N/A | View Replacement | |
| 136 |
P0701136
Replaced By P0636X011
|
PILLOW BLOCK
|
N/A | View Replacement | |
| 137 |
P0701137
Replaced By P0636X012
|
CAM
|
N/A | View Replacement | |
| 138 |
P0701138
Replaced By PFH39M
|
FLAT HD SCR M5-.8 X 16
|
N/A | View Replacement | |
| 139 | P0701139 | TENSION ADJUSTMENT BOLT | $12.00 | ||
| 140 |
P0701140
Replaced By P0636X023
|
GUIDE BLOCK
|
N/A | View Replacement | |
| 141 |
P0701141
Replaced By P0636X025
|
COMPRESSION SPRING
|
N/A | View Replacement | |
| 142 |
P0701142
Replaced By PSS79M
|
SET SCREW M4-.7 X 6
|
N/A | View Replacement | |
| 143 | P0701143 | SPRING PLATE | $43.00 | ||
| 144 |
P0701144
Replaced By PCAP12M
|
CAP SCREW M8-1.25 X 40
|
N/A | View Replacement | |
| 145 | P0701145 | BEARING END CAP | $14.75 | ||
| 146 |
P0701146
Replaced By P51105
|
THRUST BEARING 51105
|
N/A | View Replacement | |
| 147 | P0701147 | TENSION CABLE | $4.75 | ||
| 148 | P0701148 | CORD CLAMP 5/16" | $1.25 | ||
| 149 |
P0701149
Replaced By PHTEK15M
|
TAP SCREW M4 X 10
|
N/A | View Replacement | |
| 150 |
P0701150
Replaced By P0636X016
|
UPPER WHEEL HINGE
|
N/A | View Replacement | |
| 151 |
P0701151
Replaced By PS38M
|
PHLP HD SCR M4-.7 X 10
|
N/A | View Replacement | |

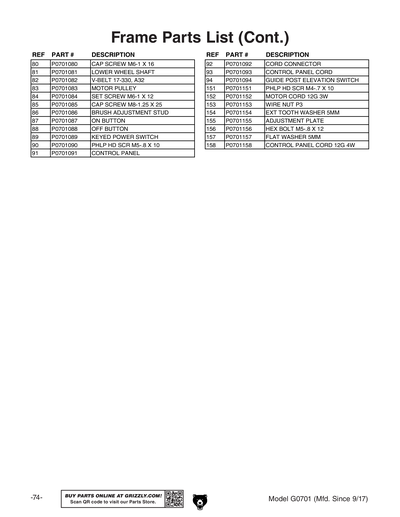

| 152 | P0701152 | MOTOR CORD 10G 3W | $13.50 | ||
| 153 | P0701153 | WIRE NUT P3 | $1.25 | ||
| 154 |
P0701154
Replaced By PTLW02M
|
EXT TOOTH WASHER 5MM
|
N/A | View Replacement | |
| 155 | P0701155 | ADJUSTMENT PLATE | $7.75 | ||
| 156 |
P0701156
Replaced By PB107M
|
HEX BOLT M5-.8 X 12
|
N/A | View Replacement | |
| 157 |
P0701157
Replaced By PW02M
|
FLAT WASHER 5MM
|
N/A | View Replacement | |
| 158 | P0701158 | MOTOR CORD 10G 3W | $23.50 | ||

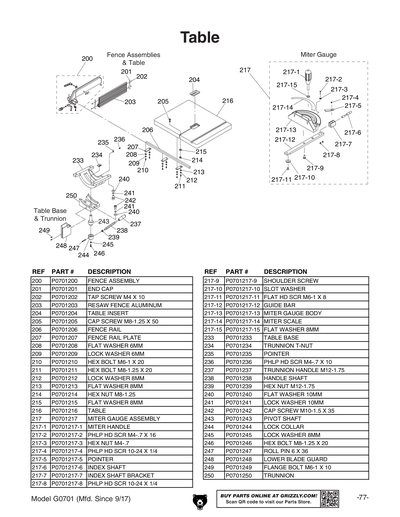

| 200 | P0701200 | FENCE ASSY | $202.25 | ||
| 201 |
P0701201
Replaced By P0636X123
|
FENCE PIECE 148 X 22 X 1
|
N/A | View Replacement | |
| 202 |
P0701202
Replaced By PHTEK15M
|
TAP SCREW M4 X 10
|
N/A | View Replacement | |
| 203 | P0701203 | RESAW FENCE ALUMINUM | $70.00 | ||
| 204 |
P0701204
Replaced By T24386
|
Table Insert
|
N/A | View Replacement | |
| 205 |
P0701205
Replaced By PCAP05M
|
CAP SCREW M8-1.25 X 50
|
N/A | View Replacement | |
| 206 | P0701206 | FENCE RAIL | $125.25 | ||
| 207 | P0701207 | FENCE RAIL PLATE | $11.50 | ||
| 208 |
P0701208
Replaced By PW03M
|
FLAT WASHER 6MM
|
N/A | View Replacement | |
| 209 |
P0701209
Replaced By PLW03M
|
LOCK WASHER 6MM
|
N/A | View Replacement | |
| 210 |
P0701210
Replaced By PB08M
|
HEX BOLT M6-1 X 20
|
N/A | View Replacement | |
| 211 |
P0701211
Replaced By PB09M
|
HEX BOLT M8-1.25 X 20
|
N/A | View Replacement | |
| 212 |
P0701212
Replaced By PLW04M
|
LOCK WASHER 8MM
|
N/A | View Replacement | |
| 213 |
P0701213
Replaced By PW01M
|
FLAT WASHER 8MM
|
N/A | View Replacement | |
| 214 |
P0701214
Replaced By PN03M
|
HEX NUT M8-1.25
|
N/A | View Replacement | |
| 215 |
P0701215
Replaced By PW01M
|
FLAT WASHER 8MM
|
N/A | View Replacement | |
| 216 | P0701216 | TABLE | $436.75 | ||
| 217 |
P0701217
Replaced By P0636X160
|
MITER GAUGE ASSY
|
N/A | View Replacement | |
| 217-1 |
P0701217-1
Replaced By P0636X160
|
MITER GAUGE ASSY
|
N/A | View Replacement | |
| 217-10 | P0701217-10 | SLOT WASHER | $2.25 | ||
| 217-11 |
P0701217-11
Replaced By PFH04M
|
FLAT HD SCR M6-1 X 8
|
N/A | View Replacement | |
| 217-12 |
P0701217-12
Replaced By P0636X160
|
MITER GAUGE ASSY
|
N/A | View Replacement | |
| 217-13 |
P0701217-13
Replaced By P0636X160
|
MITER GAUGE ASSY
|
N/A | View Replacement | |
| 217-14 | P0701217-14 | MITER SCALE | $2.25 | ||
| 217-15 |
P0701217-15
Replaced By PW01M
|
FLAT WASHER 8MM
|
N/A | View Replacement | |
| 217-2 |
P0701217-2
Replaced By PS56M
|
PHLP HD SCR M4-.7 X 16
|
N/A | View Replacement | |
| 217-3 |
P0701217-3
Replaced By PN04M
|
HEX NUT M4-.7
|
N/A | View Replacement | |
| 217-4 |
P0701217-4
Replaced By PS18
|
PHLP HD SCR 10-24 X 1/4
|
N/A | View Replacement | |
| 217-5 |
P0701217-5
Replaced By P0636X160
|
MITER GAUGE ASSY
|
N/A | View Replacement | |
| 217-6 |
P0701217-6
Replaced By P0636X160
|
MITER GAUGE ASSY
|
N/A | View Replacement | |
| 217-7 |
P0701217-7
Replaced By P0636X160
|
MITER GAUGE ASSY
|
N/A | View Replacement | |
| 217-8 |
P0701217-8
Replaced By PS18
|
PHLP HD SCR 10-24 X 1/4
|
N/A | View Replacement | |
| 217-9 |
P0701217-9
Replaced By P0636X160
|
MITER GAUGE ASSY
|
N/A | View Replacement | |
| 233 |
P0701233
Replaced By P0636X157
|
TRUNNION BLOCK
|
N/A | View Replacement | |
| 234 |
P0701234
Replaced By P0636X158
|
PRESS BLOCK
|
N/A | View Replacement | |
| 235 |
P0701235
Replaced By P0636X155
|
POINTER
|
N/A | View Replacement | |
| 236 |
P0701236
Replaced By PS38M
|
PHLP HD SCR M4-.7 X 10
|
N/A | View Replacement | |
| 237 |
P0701237
Replaced By P0636X153
|
HANDLE KNOB M12-1.75 FEMALE
|
N/A | View Replacement | |
| 238 |
P0701238
Replaced By P0636X152
|
HANDLE SHAFT
|
N/A | View Replacement | |
| 239 |
P0701239
Replaced By PN09M
|
HEX NUT M12-1.75
|
N/A | View Replacement | |
| 240 |
P0701240
Replaced By PW04M
|
FLAT WASHER 10MM
|
N/A | View Replacement | |
| 241 |
P0701241
Replaced By PLW06M
|
LOCK WASHER 10MM
|
N/A | View Replacement | |
| 242 |
P0701242
Replaced By PCAP84M
|
CAP SCREW M10-1.5 X 35
|
N/A | View Replacement | |
| 243 |
P0701243
Replaced By P0636X150
|
PRESS SHAFT
|
N/A | View Replacement | |
| 244 |
P0701244
Replaced By P0636X149
|
MICRO ADJUSTING RING
|
N/A | View Replacement | |
| 245 |
P0701245
Replaced By PLW04M
|
LOCK WASHER 8MM
|
N/A | View Replacement | |
| 246 |
P0701246
Replaced By PB09M
|
HEX BOLT M8-1.25 X 20
|
N/A | View Replacement | |
| 247 |
P0701247
Replaced By PRP31M
|
ROLL PIN 6 X 36
|
N/A | View Replacement | |
| 248 |
P0701248
Replaced By P0636X146
|
BLADE GUARD
|
N/A | View Replacement | |
| 249 |
P0701249
Replaced By PFB09M
|
FLANGE BOLT M6-1 X 10
|
N/A | View Replacement | |
| 250 |
P0701250
Replaced By P0636X154
|
TRUNNION HOUSING
|
N/A | View Replacement | |

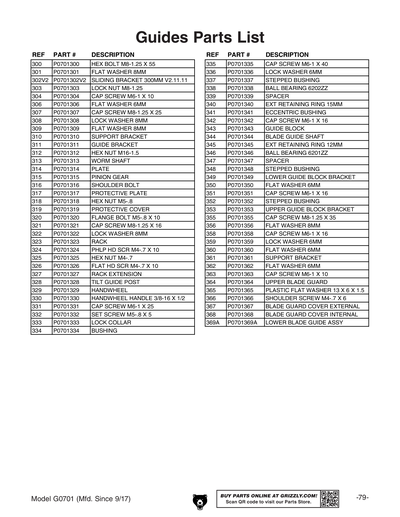

| 300 |
P0701300
Replaced By PB30M
|
HEX BOLT M8-1.25 X 55
|
N/A | View Replacement | |
| 301 |
P0701301
Replaced By PW01M
|
FLAT WASHER 8MM
|
N/A | View Replacement | |
| 302 |
P0701302
Replaced By P0636X233
|
SLIDING PLATE 220MM 3 HOLE V1
|
N/A | View Replacement | |
| 302V2 |
P0701302V2
Replaced By P0636X233V2
|
SLIDING PLATE 300MM 2 HOLE V2.06.08
|
N/A | View Replacement | |
| 303 |
P0701303
Replaced By PLN04M
|
LOCK NUT M8-1.25
|
N/A | View Replacement | |
| 304 |
P0701304
Replaced By PCAP04M
|
CAP SCREW M6-1 X 10
|
N/A | View Replacement | |
| 305 |
P0701305
Replaced By PLW03M
|
LOCK WASHER 6MM
|
N/A | View Replacement | |
| 306 |
P0701306
Replaced By PW03M
|
FLAT WASHER 6MM
|
N/A | View Replacement | |
| 307 |
P0701307
Replaced By PCAP31M
|
CAP SCREW M8-1.25 X 25
|
N/A | View Replacement | |
| 308 |
P0701308
Replaced By PLW04M
|
LOCK WASHER 8MM
|
N/A | View Replacement | |
| 309 |
P0701309
Replaced By PW01M
|
FLAT WASHER 8MM
|
N/A | View Replacement | |

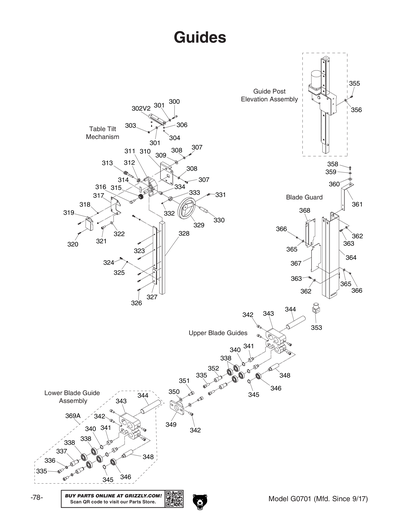

| 310 | P0701310 | SUPPORT BRACKET | $40.25 | ||
| 311 |
P0701311
Replaced By P0636X199
|
TABLE TILT BRACKET
|
N/A | View Replacement | |
| 312 |
P0701312
Replaced By PN05M
|
HEX NUT M16-1.5
|
N/A | View Replacement | |
| 313 |
P0701313
Replaced By P0636X201
|
WORM CYLINDER
|
N/A | View Replacement | |
| 314 |
P0701314
Replaced By P0636X203
|
FIXED PLATE
|
N/A | View Replacement | |
| 315 |
P0701315
Replaced By P0636X202
|
WORM GEAR
|
N/A | View Replacement | |
| 316 |
P0701316
Replaced By P0636X204
|
FIXED BOLT
|
N/A | View Replacement | |
| 317 |
P0701317
Replaced By P0636X205
|
TABLE TILT GUIDE BRACKET COVER
|
N/A | View Replacement | |
| 318 |
P0701318
Replaced By PN06M
|
HEX NUT M5-.8
|
N/A | View Replacement | |
| 319 |
P0701319
Replaced By P0636X209
|
COVER
|
N/A | View Replacement | |
| 320 |
P0701320
Replaced By PFB08M
|
FLANGE BOLT M5-.8 X 10
|
N/A | View Replacement | |
| 321 |
P0701321
Replaced By PCAP11M
|
CAP SCREW M8-1.25 X 16
|
N/A | View Replacement | |
| 322 |
P0701322
Replaced By PLW04M
|
LOCK WASHER 8MM
|
N/A | View Replacement | |
| 323 |
P0701323
Replaced By P0636X212
|
RACK
|
N/A | View Replacement | |
| 324 |
P0701324
Replaced By PS38M
|
PHLP HD SCR M4-.7 X 10
|
N/A | View Replacement | |
| 325 |
P0701325
Replaced By PN04M
|
HEX NUT M4-.7
|
N/A | View Replacement | |
| 326 |
P0701326
Replaced By PFH19M
|
FLAT HD SCR M4-.7 X 10
|
N/A | View Replacement | |
| 327 |
P0701327
Replaced By P0636X213
|
EXTENSION RACK
|
N/A | View Replacement | |
| 328 |
P0701328
Replaced By P0636X214
|
SQUARE TUBE
|
N/A | View Replacement | |
| 329 |
P0701329
Replaced By P0636X192
|
HANDWHEEL W/O HANDLE V1
|
N/A | View Replacement | |
| 330 |
P0701330
Replaced By P0636X190
|
HANDLE 3/8-16 X 1/2
|
N/A | View Replacement | |
| 331 |
P0701331
Replaced By PCAP06M
|
CAP SCREW M6-1 X 25
|
N/A | View Replacement | |
| 332 |
P0701332
Replaced By PSS07M
|
SET SCREW M5-.8 X 5
|
N/A | View Replacement | |
| 333 |
P0701333
Replaced By P0636X193
|
LOCK COLLAR
|
N/A | View Replacement | |
| 334 |
P0701334
Replaced By P0636X169
|
BUSHING
|
N/A | View Replacement | |
| 335 |
P0701335
Replaced By PCAP29M
|
CAP SCREW M6-1 X 40
|
N/A | View Replacement | |
| 336 |
P0701336
Replaced By PLW03M
|
LOCK WASHER 6MM
|
N/A | View Replacement | |
| 337 |
P0701337
Replaced By P0636X245
|
HANDLE BUSHING
|
N/A | View Replacement | |
| 338 |
P0701338
Replaced By P6202ZZ
|
BALL BEARING 6202ZZ
|
N/A | View Replacement | |
| 339 |
P0701339
Replaced By P0701369A
|
|
N/A | View Replacement | |
| 340 |
P0701340
Replaced By PR05M
|
EXT RETAINING RING 15MM
|
N/A | View Replacement | |
| 341 |
P0701341
Replaced By P0636X242
|
ECCENTRIC SHAFT
|
N/A | View Replacement | |
| 342 |
P0701342
Replaced By PCAP01M
|
CAP SCREW M6-1 X 16
|
N/A | View Replacement | |
| 343 |
P0701343
Replaced By P0636X240
|
BLADE GUIDE SUPPORT
|
N/A | View Replacement | |
| 344 |
P0701344
Replaced By P0636X239
|
SHAFT
|
N/A | View Replacement | |
| 345 |
P0701345
Replaced By PR03M
|
EXT RETAINING RING 12MM
|
N/A | View Replacement | |
| 346 |
P0701346
Replaced By P6201ZZ
|
BALL BEARING 6201ZZ
|
N/A | View Replacement | |
| 347 |
P0701347
Replaced By P0701369A
|
|
N/A | View Replacement | |
| 348 |
P0701348
Replaced By P0636X249
|
SPACING SLEEVE
|
N/A | View Replacement | |
| 349 |
P0701349
Replaced By P0636X238
|
LOWER SUPPORT BRACKET
|
N/A | View Replacement | |
| 350 |
P0701350
Replaced By PW03M
|
FLAT WASHER 6MM
|
N/A | View Replacement | |
| 351 |
P0701351
Replaced By PCAP01M
|
CAP SCREW M6-1 X 16
|
N/A | View Replacement | |
| 352 |
P0701352
Replaced By P0636X245
|
HANDLE BUSHING
|
N/A | View Replacement | |
| 353 | P0701353 | GUIDE BLOCK BRACKET UPPER | $24.25 | ||
| 355 |
P0701355
Replaced By PCAP40M
|
CAP SCREW M8-1.25 X 35
|
N/A | View Replacement | |
| 356 |
P0701356
Replaced By PW01M
|
FLAT WASHER 8MM
|
N/A | View Replacement | |
| 358 |
P0701358
Replaced By PCAP01M
|
CAP SCREW M6-1 X 16
|
N/A | View Replacement | |
| 359 |
P0701359
Replaced By PLW03M
|
LOCK WASHER 6MM
|
N/A | View Replacement | |
| 360 |
P0701360
Replaced By PW03M
|
FLAT WASHER 6MM
|
N/A | View Replacement | |
| 361 | P0701361 | SUPPORT BRACKET | $28.00 | ||
| 362 |
P0701362
Replaced By PW03M
|
FLAT WASHER 6MM
|
N/A | View Replacement | |
| 363 |
P0701363
Replaced By PCAP04M
|
CAP SCREW M6-1 X 10
|
N/A | View Replacement | |
| 364 | P0701364 | UPPER BLADE GUARD | $171.50 | ||
| 365 |
P0701365
Replaced By P0701014
|
PLASTIC FLAT WASHER 13 X 6 X 1.5
|
N/A | View Replacement | |
| 366 |
P0701366
Replaced By P0701013
|
SHOULDER SCREW M4-.7 X 6
|
N/A | View Replacement | |
| 367 | P0701367 | BLADE GUARD COVER EXTERNAL | $28.00 | ||
| 368 | P0701368 | BLADE GUARD COVER INTERNAL | $28.00 | ||
| 400 |
P0701400
Replaced By PFH25M
|
FLAT HD SCR M4-.7 X 12
|
N/A | View Replacement | |
| 401 | P0701401 | RACK EXTENSION | $6.00 | ||
| 402 | P0701402 | RACK | $12.00 | ||
| 403 |
P0701403
Replaced By PFS14M
|
FLANGE SCREW M6-1 X 16
|
N/A | View Replacement | |
| 404 | P0701404 | GUIDE POST UPPER | $149.50 | ||
| 405 | P0701405 | GUIDE POST MOTOR 40W 12V 1-PH | $358.50 | ||
| 406 |
P0701406
Replaced By PFH39M
|
FLAT HD SCR M5-.8 X 16
|
N/A | View Replacement | |
| 407 | P0701407 | MOTOR MOUNT | $39.25 | ||
| 408 | P0701408 | WORM SHAFT | $22.25 | ||
| 409 | P0701409 | ELEVATION GEAR HOUSING | $82.00 | ||
| 410 | P0701410 | PINION GEAR | $30.25 | ||
| 411 | P0701411 | SHOULDER BOLT | $6.00 | ||
| 412 | P0701412 | GEAR HOUSING COVER | $28.75 | ||
| 413 |
P0701413
Replaced By PLW01M
|
LOCK WASHER 5MM
|
N/A | View Replacement | |
| 414 |
P0701414
Replaced By PCAP24M
|
CAP SCREW M5-.8 X 16
|
N/A | View Replacement | |
| 415 |
P0701415
Replaced By PS07M
|
PHLP HD SCR M4-.7 X 8
|
N/A | View Replacement | |
| 416 | P0701416 | BRACKET | $14.75 | ||
| 417 |
P0701417
Replaced By PSTB002M
|
STEEL BALL 8MM
|
N/A | View Replacement | |
| 418 | P0701418 | COMPRESSION SPRING | $1.25 | ||
| 419 |
P0701419
Replaced By PSS30M
|
SET SCREW M10-1.5 X 10
|
N/A | View Replacement | |
| 420 | P0701420 | NYLON SET SCREW M7-1 X 10 | $1.25 | ||
| 421 |
P0701421
Replaced By PSS51M
|
SET SCREW M4-.7 X 8
|
N/A | View Replacement | |
| 422 | P0701422 | LOCK COLLAR | $9.25 | ||
| 423 |
P0701423
Replaced By PSS79M
|
SET SCREW M4-.7 X 6
|
N/A | View Replacement | |
| 424 |
P0701424
Replaced By PN06M
|
HEX NUT M5-.8
|
N/A | View Replacement | |
| 425 |
P0701425
Replaced By PS104M
|
PHLP HD SCR M5-.8 X 55
|
N/A | View Replacement | |
| 426 | P0701426 | RUBBER SPACER 6MM | $6.00 | ||
| 427 |
P0701427
Replaced By PW03M
|
FLAT WASHER 6MM
|
N/A | View Replacement | |
| 428 | P0701428 | GEAR BUSHING | $2.75 | ||
| 429 | P0701429 | NYLON INSERT | $2.75 | ||
| 500 |
P0701500
Replaced By P0636X129
|
LOCK KNOB M8-1.25 X 44
|
N/A | View Replacement | |
| 501 |
P0701501
Replaced By PW01M
|
FLAT WASHER 8MM
|
N/A | View Replacement | |
| 502 |
P0701502
Replaced By PCAP14M
|
CAP SCREW M8-1.25 X 20
|
N/A | View Replacement | |
| 503 |
P0701503
Replaced By PN03M
|
HEX NUT M8-1.25
|
N/A | View Replacement | |
| 504 |
P0701504
Replaced By P0636X125
|
FENCE
|
N/A | View Replacement | |
| 505 |
P0701505
Replaced By P0636X163
|
NYLON PIECE
|
N/A | View Replacement | |
| 506 |
P0701506
Replaced By P0636X126
|
MOVING PLATE
|
N/A | View Replacement | |
| 507 |
P0701507
Replaced By P0636X135
|
POINTER
|
N/A | View Replacement | |
| 508 |
P0701508
Replaced By PFS01M
|
FLANGE SCREW M5-.8 X 8
|
N/A | View Replacement | |
| 509 |
P0701509
Replaced By P0636X162
|
SHAFT
|
N/A | View Replacement | |
| 510 |
P0701510
Replaced By PFS17M
|
FLANGE SCREW M4-.7 X 8
|
N/A | View Replacement | |
| 511 |
P0701511
Replaced By P0636X133
|
SPRING PIECE
|
N/A | View Replacement | |
| 512 |
P0701512
Replaced By P0636X132
|
FENCE HANDLE M8-1.25 X 20
|
N/A | View Replacement | |
| 513 |
P0701513
Replaced By PN03M
|
HEX NUT M8-1.25
|
N/A | View Replacement | |
| 514 |
P0701514
Replaced By P0636X130
|
PIVOT BLOCK
|
N/A | View Replacement | |
| 515 |
P0701515
Replaced By P0636X127
|
PLASTIC SET SCREW
|
N/A | View Replacement | |
| 516 |
P0701516
Replaced By PSS14M
|
SET SCREW M8-1.25 X 12
|
N/A | View Replacement | |
| 517 |
P0701517
Replaced By PWR1013
|
WRENCH 10 X 13MM OPEN-ENDS
|
N/A | View Replacement | |
| 518 |
P0701518
Replaced By PWR1719
|
WRENCH 17 X 19MM OPEN-ENDS
|
N/A | View Replacement | |
| 519 |
P0701519
Replaced By PAW05M
|
HEX WRENCH 5MM
|
N/A | View Replacement | |
| 520 |
P0701520
Replaced By PAW06M
|
HEX WRENCH 6MM
|
N/A | View Replacement | |

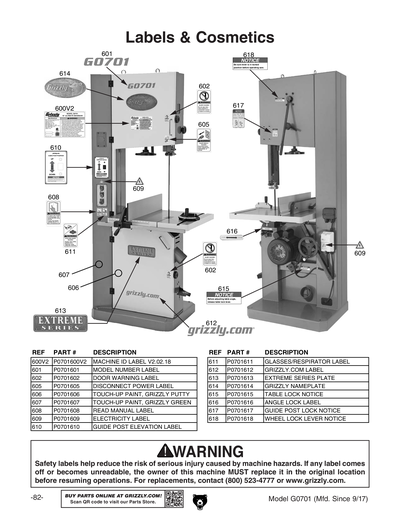

| 600 | P0701600 | MACHINE ID LABEL V1 | $9.50 | ||
| 600V2 | P0701600V2 | MACHINE ID LABEL (CSA) V2.02.18 | $9.50 | ||
| 601 | P0701601 | MODEL NUMBER LABEL | $9.25 | ||
| 602 |
P0701602
Replaced By PLABEL-20
|
DONT OPEN 2W X 3.3H
|
N/A | View Replacement | |
| 603 |
P0701603
Replaced By PLABEL-21
|
BS MOVING/ADJUST 2W X 3.3H
|
N/A | View Replacement | |
| 604 |
P0701604
Replaced By PLABEL-19A
|
BANDSAW BLADE 2W X 3.3H V2.04.08
|
N/A | View Replacement | |
| 605 |
P0701605
Replaced By PLABEL-62A
|
DISCONNECT 110V 1.5W X 2.5H
|
N/A | View Replacement | |
| 606 |
P0701606
Replaced By PPAINT-11
|
GREY PUTTY REF G0504
|
N/A | View Replacement | |
| 607 |
P0701607
Replaced By PPAINT-1
|
N/S GRIZZLY GREEN G1023S
|
N/A | View Replacement | |
| 608 |
P0701608
Replaced By PLABEL-12A
|
READ MANUAL 2W X 3.3H V2.07.05
|
N/A | View Replacement | |
| 609 |
P0701609
Replaced By PLABEL-14
|
ELECTRICITY 1.4W X 1.2H
|
N/A | View Replacement | |
| 610 | P0701610 | GUIDE POST ELEVATION LABEL | $1.25 | ||
| 611 |
P0701611
Replaced By PLABEL-11A
|
SAFETY GLASSES 2W X 3.3H V2.04.08
|
N/A | View Replacement | |
| 612 | P0701612 | GRIZZLY.COM LABEL | $15.50 | ||
| 613 |
P0701613
Replaced By H7942
|
Extreme Series Nameplate
|
N/A | View Replacement | |
| 614 |
P0701614
Replaced By G8589
|
Name Plates - Large
|
N/A | View Replacement | |
| 615 | P0701615 | TABLE LOCK NOTICE | $9.50 | ||
| 616 | P0701616 | ANGLE LOCK LABEL | $9.50 | ||
| 617 | P0701617 | GUIDE POST LOCK NOTICE | $9.50 | ||
| 618 | P0701618 | WHEEL LOCK LEVER NOTICE | $9.50 | ||
| MAN | P0701MAN | MANUAL G0701 MFD-06.09-02.12 V1.10.09 | $28.75 | ||
| MANV2 | P0701MANV2 | MANUAL G0701 MFD-03.12-08.17 V2.03.12 | $14.25 | ||
| MANV3 | P0701MANV3 | MANUAL G0701 MFD-09.17+ V3.03.19 | $14.25 |
