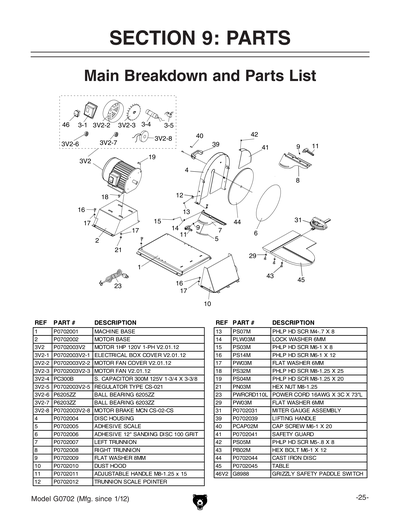

Parts for G0702 12" Disc Sander w/ Brake

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
MACHINE BASE
2
MOTOR BASE
3
*DISCD*MOTOR 1HP 120V 1-PH V1
Item is no longer available
Price
N/A
3-1
ELECTRICAL BOX COVER
3-2
*DISCD*MOTOR FAN COVER V1
Item is no longer available
Price
N/A
3-3
*DISCD*MOTOR FAN (METAL) V1
Item is no longer available
Price
N/A
3-4
S CAPACITOR 300M 125V 1-3/4 X 3-3/8
Price
N/A
3-5
RECTIFIER TYPE CS-021
3-8
MOTOR BRAKE MCN CS-02-CS
3V2
MOTOR 1HP 120V 1-PH V2.11.12
3V2-1
ELECTRICAL BOX COVER
Price
N/A
3V2-2
MOTOR FAN COVER V2.11.12
3V2-3
MOTOR FAN (PLASTIC) V2.11.12
3V2-5
RECTIFIER TYPE CS-021
Price
N/A
3V2-6
BALL BEARING 6205ZZ
Price
N/A
3V2-7
BALL BEARING 6203ZZ
Price
N/A
3V2-8
MOTOR BRAKE MCN CS-02-CS
Price
N/A
4
DISC HOUSING
5
ADHESIVE SCALE
6
Now: D1337
12" A/O Sanding Disc, 100 Grit PSA, 2 Pk.
Price
N/A
7
LEFT TRUNNION
8
RIGHT TRUNNION
10
DUST HOOD
11
ADJUSTABLE HANDLE M8-1.25 X 15
12
POINTER
Price
N/A
13
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
14
LOCK WASHER 6MM
Price
N/A
15
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
16
Now: PS76M
PHLP HD SCR M8-1.25 X 12
Price
N/A
17
Now: PW01M
FLAT WASHER 8MM
Price
N/A
18
Now: PS32M
PHLP HD SCR M8-1.25 X 25
Price
N/A
19
Now: PS04M
PHLP HD SCR M8-1.25 X 20
Price
N/A
21
Now: PN03M
HEX NUT M8-1.25
Price
N/A
23
POWER CORD 16G X 3W 73"L
Price
N/A
29
Now: PW03M
FLAT WASHER 6MM
Price
N/A
31
MITER GAUGE ASSEMBLY
39
GEARBOX COVER HANDLE
Price
N/A
40
CAP SCREW M5-.8 X 12
Price
N/A
41
SAFETY GUARD
42
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
43
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
44
CAST IRON DISC
45
TABLE
46
Now: G8988
Safety Paddle Switch
Price
N/A
46V2
Now: G8988
Safety Paddle Switch
Price
N/A
100

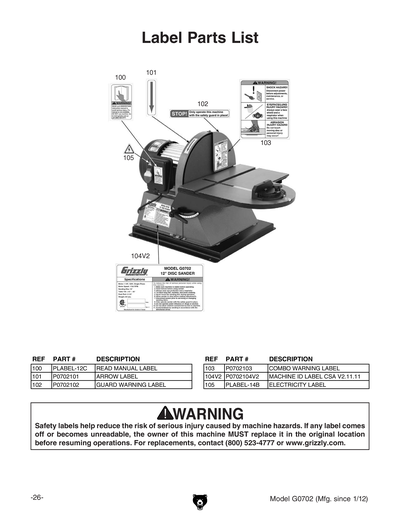

READ MANUAL 1.5W X 2.5H
Price
N/A
101
ARROW LABEL
102
GUARD WARNING LABEL
103
COMBO WARNING LABEL
104
MACHINE ID LABEL V1
104V2
MACHINE ID LABEL CSA V2.11.11
105
ELECTRICITY 0.5W X 0.4H
Price
N/A
MAN
MANUAL FOR G0702 09/10
