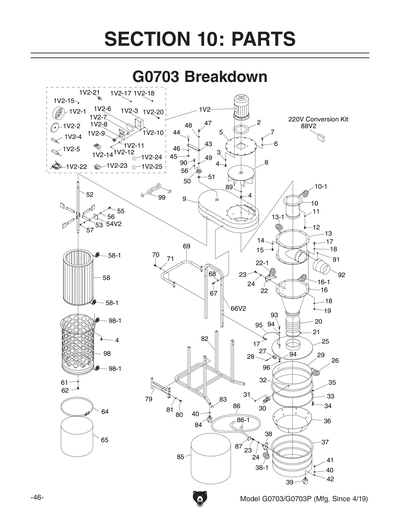

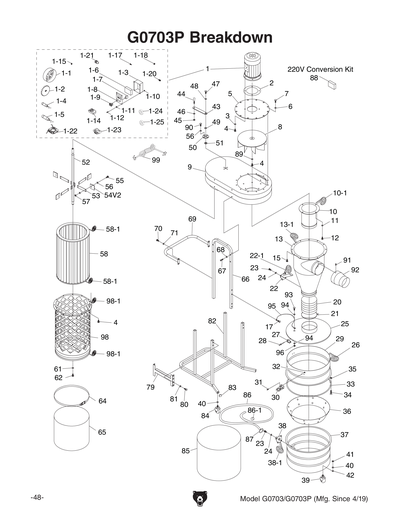

Parts for G0703 - 1-1/2 HP 2 Stage Cyclone Dust Collector

IMPORTANT: Parts may have multiple versions. This will be indicated by V1, V2, or V3 on the part number and/or description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID Label to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
MOTOR 1.5HP 110V/220V 1-PH V1
Price
$456.70
1-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
1-2
MOTOR FAN
Item is no longer available
Price
N/A
1-3
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
1-4
S CAPACITOR 300M 125V 1-1/2 X 3-1/8
Price
$27.60
1-5
R CAPACITOR 40M 250V 1-3/8 X 2-3/8
Price
N/A
1V2
MOTOR 1.5HP 110V/220V 1-PH V2.01.12
Price
$661.55
1V2-1
Price
$24.15
1V2-10
HEX NUT 10-24
Price
N/A
1V2-11
FLAT WASHER #10
Price
N/A
1V2-12
PHLP HD SCR 10-24 X 3/8
Price
N/A
1V2-14
REMOTE CONTROLLER 256 CODE
Price
$55.20
1V2-15
LOCK WASHER 5MM
Price
N/A
1V2-17
PHLP HD SCR M5-.8 X 15 COPPER
Item is no longer available
Price
N/A
1V2-18
HEX NUT M5-.8 COPPER
Item is no longer available
Price
N/A
1V2-19
PHLP HD SCR 10-24 X 3/8
Price
N/A
1V2-2
MOTOR FAN
Item is no longer available
Price
N/A
1V2-20
TERMINAL NUT SW-74BH
Item is no longer available
Price
N/A
1V2-21
STRAIN RELIEF TYPE-6 ST
Item is no longer available
Price
N/A
1V2-22
CENTRIFUGAL SWITCH 3450 W/CONTACT PLATE
Price
N/A
1V2-23
CENTRIFUGAL SWITCH 3450 W/CONTACT PLATE
Price
$31.05
1V2-24
BALL BEARING 6205ZZ
Price
N/A
1V2-25
BALL BEARING 6203ZZ
Price
N/A
1V2-3
REMOTE RECEIVER BOX
Item is no longer available
Price
N/A
1V2-4
S CAPACITOR 300M 125V 1-1/2 X 3-1/8
Price
N/A
1V2-5
R CAPACITOR 40M 250V 1-3/8 X 2-3/8
Price
N/A
1V2-6
CIRCUIT BOARD 110V 256 CODE
Price
$103.50
1V2-7
Price
$10.95
1V2-8
Price
$31.05
1V2-9
Price
$11.25
2
Price
$4.05
3
P0703003
Now: PW07
FLAT WASHER 5/16
Price
N/A
4
P0703004
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
5
Price
$58.65
6
P0703006
Now: PW07
FLAT WASHER 5/16
Price
N/A
7
P0703007
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
7V2
HEX BOLT 5/16-18 X 5/8
Price
N/A
8
Price
$151.80
9
Price
$189.75
10
Price
$51.75
10-1
Price
$3.45
11
P0703011
Now: PW07
FLAT WASHER 5/16
Price
N/A
12
P0703012
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
13
INTAKE BARREL 9-13/16 X 16-1/2" V2.09.20
Price
N/A
13-1
Price
$5.20
13V2
INTAKE BARREL 9-13/16 X 16-1/2" V2.09.20
Item is no longer available
Price
N/A
14
P0703014
Now: PW07
FLAT WASHER 5/16
Price
N/A
15
P0703015
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
15V2
HEX BOLT 5/16-18 X 5/8
Price
N/A
16
Price
$144.90
16-1
CYCLONE FUNNEL SEAL
Item is no longer available
Price
N/A
16V2
CYCLONE FUNNEL 7" V2.09.20
Item is no longer available
Price
N/A
17
P0703017
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
18
P0703018
Now: PW07
FLAT WASHER 5/16
Price
N/A
19
P0703019
Now: PN02
HEX NUT 5/16-18
Price
N/A
20
Price
$44.85
21
HOSE CLAMP 7"
Price
N/A
22
Price
$17.25
22-1
FUNNEL SUCTION PIPE SEAL
Price
$2.90
23
P0703023
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
23V2
HEX BOLT 5/16-18 X 1/2
Price
N/A
24
LOCK WASHER 5/16
Price
N/A
25
COLLECTION DRUM LID 7" V1
Price
$93.15
25V2
COLLECTION DRUM LID 7" V2.09.20
Item is no longer available
Price
N/A
26
COLLECTION DRUM SEAL 1.6M
Price
$15.55
27
Price
$1.49
28
RIVET 4 X 13MM BLIND, STEEL
Price
$1.49
29
UPPER COLLECTION DRUM V1
Price
$120.75
29V2
UPPER COLLECTION DRUM V2.09.20
Item is no longer available
Price
N/A
30
DRUM LID LATCH ASSEMBLY
Price
N/A
31
P0703031
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
32
P0703032
Now: PN07
HEX NUT 10-24
Price
N/A
33
Price
$27.60
34
P0703034
Now: PB04
HEX BOLT 5/16-18 X 3
Price
N/A
35
P0703035
Now: PN02
HEX NUT 5/16-18
Price
N/A
36
Price
$96.60
37
COLLECTION DRUM LOWER V1
Price
$138.00
37V2
COLLECTION DRUM LOWER V2.09.20
Item is no longer available
Price
N/A
38
Price
$20.70
38-1
Price
$4.60
39
CASTER 2"
Price
N/A
40
LOCK WASHER 3/8
Price
N/A
41
P0703041
Now: PN08
HEX NUT 3/8-16
Price
N/A
42
P0703042
Now: PW02
FLAT WASHER 3/8
Price
N/A
43
Price
$13.80
44
Price
$3.45
45
LOCK NUT 3/8-16
Price
N/A
46
P0703046
Now: PW02
FLAT WASHER 3/8
Price
N/A
47
P0703047
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
48
P0703048
Now: PW07
FLAT WASHER 5/16
Price
N/A
49
INT RETAINING RING 20MM
Price
N/A
50
Price
$12.65
51
SEAL
Item is no longer available
Price
N/A
52
Price
$43.15
53
Price
$6.05
54
Price
$6.90
54V2
Price
$5.75
55
P0703055
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
56
P0703056
Now: PW06
FLAT WASHER 1/4
Price
N/A
57
LOCK NUT 1/4-20
Price
N/A
58
Price
$372.60
58V2
CANISTER FILTER 386 X 534MM V2.03.11
Price
$255.30
58V2-1
CANISTER FILTER SEAL V2.03.11
Price
$17.25
59
PADDLE SUPPORT
Item is no longer available
Price
N/A
60
TAP SCREW M4 X 12
Price
N/A
61
P0703061
Now: PW07
FLAT WASHER 5/16
Price
N/A
62
P0703062
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
63
CARTRIDGE FILTER CLAMP
Item is no longer available
Price
N/A
64
BAG CLAMP 400MM V1.06.05
Price
N/A
64V2
BAG CLAMP 400MM V1.06.05
Price
N/A
65
PLASTIC BAG 400 X 600MM
Price
$9.20
66
Price
$27.60
67
CAP SCREW 5/16-18 X 3/4
Price
N/A
68
P0703068
Now: PW07
FLAT WASHER 5/16
Price
N/A
69
Price
$24.75
70
P0703070
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
71
P0703071
Now: PW07
FLAT WASHER 5/16
Price
N/A
72
ELECTRICAL BOX MOUNTING PLATE
Price
$20.70
73
P0703073
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
74
P0703074
Now: PW07
FLAT WASHER 5/16
Price
N/A
75
REMOTE MAG SWITCH 110V V2.02.06
Price
N/A
75-1
CONTACTOR NHD C-09D 110V
Item is no longer available
Price
N/A
75-2
OL RELAY NHD NTH-21 17-21A
Price
$41.40
75-3
Price
$62.10
75-4
ON/OFF SWITCH 110/220V
Item is no longer available
Price
N/A
75-5
REMOTE CONTROL BOX
Item is no longer available
Price
N/A
76
POWER CORD 14AWG W/PLUG V1.02.05
Price
N/A
77
*DISCD*MOTOR CORD 12G 3C
Price
N/A
78
REMOTE CONTROLLER
Price
N/A
79
Price
$19.00
80
P0703080
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
81
P0703081
Now: PW07
FLAT WASHER 5/16
Price
N/A
82
FRAME LOWER
Item is no longer available
Price
N/A
83
FRAME END CAP
Item is no longer available
Price
N/A
84
CASTER 2"
Price
N/A
85
BAG 510 X 1070MM PLASTIC
Price
$10.10
86
DUST HOSE GREY 1" X 6-1/2'
Price
$15.55
86-1
Price
$1.49
87
HOSE CLAMP 1"
Item is no longer available
Price
N/A
88
Price
$189.75
88-1
CONTACTOR NHD C-09D 220V
Price
$29.90
88-2
Price
$32.80
88-3
Price
$75.90
88V2
CIRCUIT BOARD 220V 256 CODE
Price
N/A
89
IMPELLER FENDER WASHER 5/16
Price
N/A
90
P0703090
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
91
PHLP HD SCR M4-.7 X 12
Price
N/A
92
INLET RESTRICTOR 5" X 6"
Price
$65.55
93
PHLP HD SCR M5-.8 X 12
Price
N/A
94
LOCK WASHER 5MM
Price
N/A
95
GROUND WIRE
Item is no longer available
Price
N/A
96
HEX NUT M5-.8 COPPER
Item is no longer available
Price
N/A
97
P0703097
Now: PW03
FLAT WASHER #10
Price
N/A
98
GREEN CANISTER CAGE ASSY V1
Price
$241.50
98-1
CANISTER FILTER CAGE SEAL
Price
N/A
98A
GREEN CANISTER ASSEMBLY V1
Item is no longer available
Price
N/A
98AV2
BEIGE CANISTER ASSEMBLY V2.07.12
Item is no longer available
Price
N/A
98V2
BEIGE CANISTER CAGE ASSY V2.07.12
Price
$276.00
MAN
MANUAL G0703 MFD-08.09-02.12 V1.08.09
Price
N/A
100
MACHINE ID LABEL V1
Item is no longer available
Price
N/A
100V2
MACHINE ID LABEL CSA V2.01.12
Item is no longer available
Price
N/A
101
EAR PROTECTION 2W X 3.3H V1.04.08
Price
N/A
102
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
103
GLASSES/RESPIRATOR DC LABEL 2W X 3.3H
Price
N/A
104
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
105
ELECTRICITY 1.4W X 1.2H
Price
N/A
106
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
107
N/S GRIZZLY GREEN G1023S
Price
N/A
108
GRIZZLY.COM LABEL RED 11 X 2-1/4"
Item is no longer available
Price
N/A
111
HEX BOLT 3/8-16 X 11
Price
N/A
112
CYCLONE FUNNEL ADAPTER
Item is no longer available
Price
N/A
113
COLLECTION LID HANDLE
Item is no longer available
Price
N/A
114
P0703114
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
115
DRUM LID CONNECTING PLATE
Item is no longer available
Price
N/A
116
FLAT WASHER 5/16 THIN
Item is no longer available
Price
N/A
117
LOCK NUT 5/16-18
Price
N/A
118
DRUM LID SPRING
Item is no longer available
Price
N/A
119
P0703119
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
120
FENDER WASHER 5/16
Price
N/A
121
PLASTIC DRUM HANDLE
Item is no longer available
Price
N/A
122
P0703122
Now: PN40
ACORN NUT 5/16-18
Price
N/A
123
DRUM WINDOW 80MM
Item is no longer available
Price
N/A
124
RIVET
Item is no longer available
Price
N/A
MAN
MANUAL G0703 MFD-08.09-02.12 V1.08.09
Item is no longer available
Price
N/A
MANV2
MANUAL G0703 MFD-03.12-03.19 V2.04.12
Item is no longer available
Price
N/A
MANV3
MANUAL G0703 MFD-04.19+ V3.04.19
Item is no longer available
Price
N/A
