Parts for G0703P - 1-1/2 HP Cyclone Dust Collector - Polar Bear Series

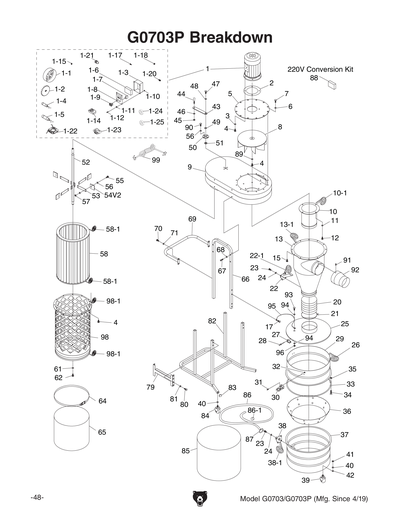

Part Diagram for G0703P
Part Diagram for G0703P
Part Diagram for G0703P
Part Diagram for G0703P
Part Diagram for G0703P
Part Diagram for G0703P
Part Diagram for G0703P
Part Diagram for G0703P
Part Diagram for G0703P
Part Diagram for G0703P

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

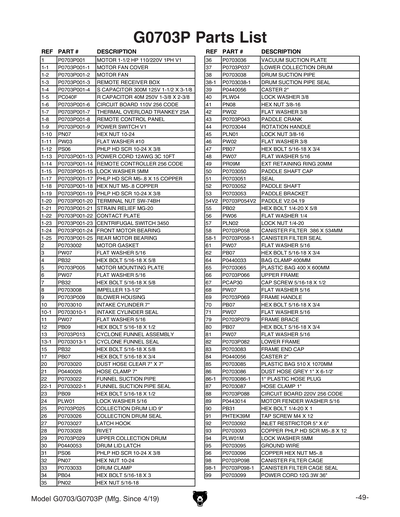

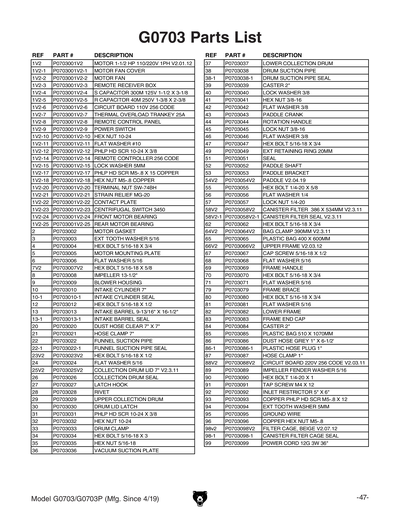

Ref #
Part #
Description
1
MOTOR 1.5HP 110V/220V 1-PH
Price
$558.15
1-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
1-10
HEX NUT 10-24
Price
N/A
1-11
FLAT WASHER #10
Price
N/A
1-12
PHLP HD SCR 10-24 X 3/8
Price
N/A
1-13
POWER CORD 12AWG 3C 10FT
Item is no longer available
Price
N/A
1-14
REMOTE CONTROLLER 256 CODE
Price
$70.60
1-15
LOCK WASHER 5MM
Price
N/A
1-17
PHLP HD SCR M5-.8 X 15 COPPER
Price
N/A
1-18
HEX NUT M5-.8 COPPER
Price
N/A
1-19
PHLP HD SCR 10-24 X 3/8
Price
N/A
1-2
MOTOR FAN
Item is no longer available
Price
N/A
1-20
TERMINAL NUT SW-74BH
Price
N/A
1-21
STRAIN RELIEF TYPE-6 ST
Price
N/A
1-22
CENTRIFUGAL SWITCH 3450 W/CONTACT PLATE
Price
N/A
1-23
CENTRIFUGAL SWITCH 3450 W/CONTACT PLATE
Price
N/A
1-24
BALL BEARING 6205ZZ
Price
N/A
1-25
BALL BEARING 6203ZZ
Price
N/A
1-3
REMOTE RECEIVER BOX
Item is no longer available
Price
N/A
1-4
S CAPACITOR 300M 125V 1-1/2 X 3-1/8
Price
N/A
1-5
R CAPACITOR 40M 250V 1-3/8 X 2-3/8
Price
N/A
1-6
CIRCUIT BOARD 110V 256 CODE
Price
$94.20
1-7
OVERLOAD TRANKEY 25A
Price
N/A
1-8
REMOTE CONTROL PANEL
Price
$40.60
1-9
POWER SWITCH
Price
$11.85
2
MOTOR GASKET
Price
N/A
3
FLAT WASHER 5/16
Price
N/A
4
HEX BOLT 5/16-18 X 5/8
Price
N/A
5
MOTOR MOUNTING PLATE
Item is no longer available
Price
N/A
6
FLAT WASHER 5/16
Price
N/A
7
HEX BOLT 5/16-18 X 5/8
Price
N/A
8
IMPELLER 13-1/2"
Price
N/A
9
BLOWER HOUSING
Price
$135.70
10
INTAKE CYLINDER 7"
Price
N/A
10-1
INTAKE CYLINDER SEAL
Price
N/A
11
FLAT WASHER 5/16
Price
N/A
12
HEX BOLT 5/16-18 X 1/2
Price
N/A
13
CYCLONE FUNNEL ASSEMBLY
Price
$210.15
13-1
INTAKE BARREL SEAL
Price
N/A
14
FLAT WASHER 5/16
Price
N/A
15
HEX BOLT 5/16-18 X 5/8
Price
N/A
17
HEX BOLT 5/16-18 X 3/4
Price
N/A
20
DUST HOSE CLEAR 7 X 7"
Price
N/A
21
HOSE CLAMP 7"
Price
N/A
22
FUNNEL SUCTION PIPE
Price
N/A
22-1
FUNNEL SUCTION PIPE SEAL
Price
N/A
23
HEX BOLT 5/16-18 X 1/2
Price
N/A
24
LOCK WASHER 5/16
Price
N/A
25
COLLECTION DRUM LID 9"
Item is no longer available
Price
N/A
26
COLLECTION DRUM SEAL 1.6M
Price
N/A
27
LATCH HOOK
Price
N/A
28
RIVET 4 X 13MM BLIND, STEEL
Price
N/A
29
UPPER COLLECTION DRUM
Price
$137.70
30
DRUM LID LATCH ASSEMBLY
Price
N/A
31
PHLP HD SCR 10-24 X 3/8
Price
N/A
32
HEX NUT 10-24
Price
N/A
33
DRUM CLAMP
Price
N/A
34
HEX BOLT 5/16-18 X 3
Price
N/A
35
HEX NUT 5/16-18
Price
N/A
36
VACUUM SUCTION PLATE
Price
N/A
37
LOWER COLLECTION DRUM
Price
$271.70
38
DRUM SUCTION PIPE
Price
N/A
38-1
DRUM SUCTION PIPE SEAL
Price
N/A
39
CASTER 2"
Price
N/A
40
LOCK WASHER 3/8
Price
N/A
41
HEX NUT 3/8-16
Price
N/A
42
FLAT WASHER 3/8
Price
N/A
43
PADDLE CRANK
Item is no longer available
Price
N/A
44
ROTATION HANDLE
Price
N/A
45
LOCK NUT 3/8-16
Price
N/A
46
FLAT WASHER 3/8
Price
N/A
47
HEX BOLT 5/16-18 X 3/4
Price
N/A
48
FLAT WASHER 5/16
Price
N/A
49
EXT RETAINING RING 20MM
Price
N/A
50
PADDLE SHAFT CAP
Price
N/A
51
SEAL
Price
N/A
52
PADDLE SHAFT
Price
N/A
53
PADDLE BRACKET
Price
N/A
54
PADDLE V2.04.19
Price
N/A
54V2
PADDLE V2.04.19
Price
N/A
55
HEX BOLT 1/4-20 X 5/8
Price
N/A
56
FLAT WASHER 1/4
Price
N/A
57
LOCK NUT 1/4-20
Price
N/A
58
CANISTER FILTER 386 X 534MM
Price
$275.35
58-1
CANISTER FILTER SEAL
Price
$18.15
61
FLAT WASHER 5/16
Price
N/A
62
HEX BOLT 5/16-18 X 3/4
Price
N/A
64
BAG CLAMP 400MM V1.06.05
Price
N/A
65
PLASTIC BAG 400 X 600MM
Price
N/A
66
UPPER FRAME
Price
$63.55
67
CAP SCREW 5/16-18 X 1/2
Price
N/A
68
FLAT WASHER 5/16
Price
N/A
69
FRAME HANDLE
Item is no longer available
Price
N/A
70
HEX BOLT 5/16-18 X 3/4
Price
N/A
71
FLAT WASHER 5/16
Price
N/A
79
FRAME BRACE
Item is no longer available
Price
N/A
80
HEX BOLT 5/16-18 X 3/4
Price
N/A
81
FLAT WASHER 5/16
Price
N/A
82
LOWER FRAME
Item is no longer available
Price
N/A
83
FRAME END CAP
Price
N/A
84
CASTER 2"
Price
N/A
85
BAG 510 X 1070MM PLASTIC
Price
N/A
86
DUST HOSE GREY 1" X 6-1/2'
Price
N/A
86-1
PLASTIC HOSE PLUG 1"
Price
N/A
87
HOSE CLAMP 1"
Price
N/A
88
CIRCUIT BOARD 220V 256 CODE
Price
$101.45
89
IMPELLER FENDER WASHER 5/16
Price
N/A
90
HEX BOLT 1/4-20 X 1
Price
N/A
91
PHLP HD SCR M4-.7 X 12
Price
N/A
92
INLET RESTRICTOR 5" X 6"
Price
N/A
93
PHLP HD SCR M5-.8 X 12
Price
N/A
94
LOCK WASHER 5MM
Price
N/A
95
GROUND WIRE
Price
N/A
96
HEX NUT M5-.8 COPPER
Price
N/A
98
CANISTER FILTER CAGE
Price
$258.75
98-1
CANISTER FILTER CAGE SEAL
Price
$17.10
100

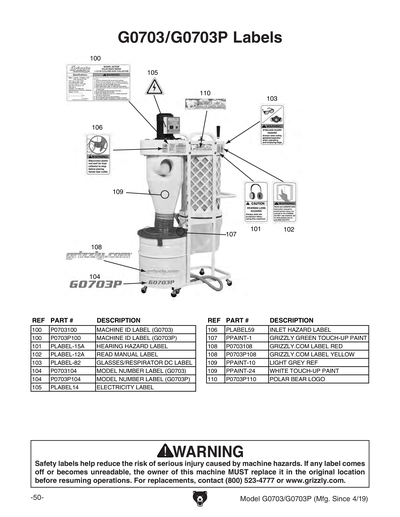

MACHINE ID LABEL
Item is no longer available
Price
N/A
101
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
102
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
103
GLASSES/RESPIRATOR DC 2W X 3.3H
Price
N/A
104
MODEL NUMBER LABEL
Price
$5.00
105
ELECTRICITY 1.4W X 1.2H
Price
N/A
106
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
107
N/S GRIZZLY GREEN G1023S
Price
N/A
108
GRIZZLY.COM LABEL YELLOW
Price
$2.75
109
POLAR BEAR WHITE TOUCH-UP PAINT
Price
N/A
110
POLAR BEAR LOGO
Price
$4.05
MAN
MANUAL FOR G0703P 11/10
Item is no longer available
Price
N/A
