Parts for G0704 7" x 27" 1 HP Mill/Drill with Stand

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1

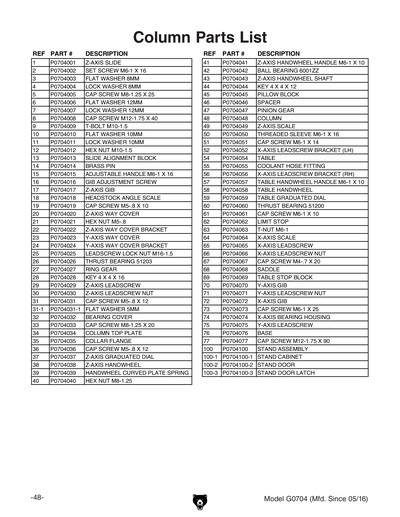

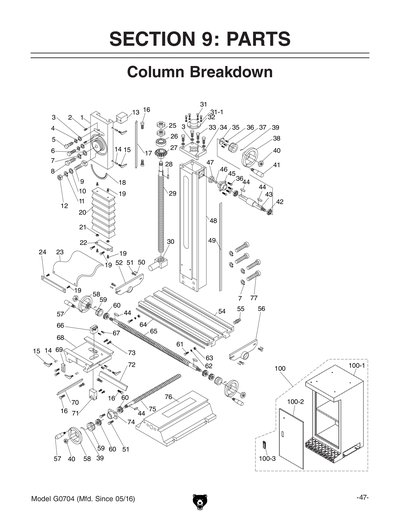

Z-AXIS SLIDE
2
SET SCREW M6-1 X 16
Price
N/A
3
Now: PW01M
FLAT WASHER 8MM
Price
N/A
4
LOCK WASHER 8MM
Price
N/A
5
CAP SCREW M8-1.25 X 25
Price
N/A
6
Now: PW06M
FLAT WASHER 12MM
Price
N/A
7
LOCK WASHER 12MM
Price
N/A
8
CAP SCREW M12-1.75 X 40
Price
N/A
9
T-BOLT M10-1.5
10
Now: PW04M
FLAT WASHER 10MM
Price
N/A
11
LOCK WASHER 10MM
Price
N/A
12
Now: PN02M
HEX NUT M10-1.5
Price
N/A
13
SLIDE ALIGNMENT BLOCK
14
LOCK PLUNGER, BRASS
15
ADJUSTABLE HANDLE M6-1 X 16
16
GIB ADJUSTMENT SCREW
17
Z-AXIS GIB
18
HEADSTOCK ANGLE SCALE
19
CAP SCREW M5-.8 X 10
Price
N/A
20
Z-AXIS WAY COVER
21
Now: PN06M
HEX NUT M5-.8
Price
N/A
22
Z-AXIS WAY COVER BRACKET
23
Y-AXIS WAY COVER
24
Y-AXIS WAY COVER BRACKET
25
Z-AXIS LEADSCREW LOCK NUT
26
THRUST BEARING 51203
Price
N/A
27
BEVEL GEAR
28
Now: PK37M
KEY 4 X 4 X 16
Price
N/A
29
Z-AXIS LEADSCREW
29-1
BUSHING 17MM ID X 22MM OD X 36MM L
29-2
BUSHING 17MM ID X 22MM OD X 3MM W
30
Z-AXIS LEADSCREW NUT
31
CAP SCREW M5-.8 X 12
Price
N/A
31-1
Now: PW02M
FLAT WASHER 5MM
Price
N/A
32
BEARING COVER
33
CAP SCREW M8-1.25 X 20
Price
N/A
34
COLUMN TOP PLATE
35
COLLAR FLANGE
36
CAP SCREW M5-.8 X 12
Price
N/A
37
Z-AXIS GRADUATED DIAL
38
Z-AXIS HANDWHEEL
39
HANDWHEEL CURVED PLATE SPRING
40
Now: PN03M
HEX NUT M8-1.25
Price
N/A
41
Z-AXIS HANDWHEEL HANDLE M6-1 X 10
42
BALL BEARING 6001ZZ
Price
N/A
43
Z-AXIS HANDWHEEL SHAFT
44
Now: PK69M
KEY 4 X 4 X 12
Price
N/A
45
PILLOW BLOCK
46
SPACER
47
PINION GEAR
48
COLUMN
49
Z-AXIS SCALE
50
ROLL PIN 6 X 16
Price
N/A
51
CAP SCREW M6-1 X 14
Price
N/A
52
X-AXIS LEADSCREW BRACKET (LH)
54
TABLE
55
COOLANT HOSE FITTING
56
X-AXIS LEADSCREW BRACKET (RH)
57
TABLE HANDWHEEL HANDLE M6-1 X 10
58
TABLE HANDWHEEL
59
TABLE GRADUATED DIAL
60
THRUST BEARING 51200
Price
N/A
61
CAP SCREW M6-1 X 10
Price
N/A
62
LIMIT STOP
63
T-NUT M6-1
64
X-AXIS SCALE
65
X-AXIS LEADSCREW
66
X-AXIS LEADSCREW NUT
67
CAP SCREW M4-.7 X 20
Price
N/A
68
SADDLE
69
TABLE STOP BLOCK
70
Y-AXIS GIB
71
Y-AXIS LEADSCREW NUT
72
X-AXIS GIB
73
CAP SCREW M6-1 X 25
Price
N/A
74
X-AXIS BEARING HOUSING
75
Y-AXIS LEADSCREW
76
BASE
77
CAP SCREW M12-1.75 X 90
Price
N/A
78
CIRCUIT BOARD
79
SPINDLE SPEED KNOB WX14-12
79-1
SPINDLE SPEED POTENTIOMETER
80
CAP SCREW M3-.5 X 16
Price
N/A
80-1
Now: PN07M
HEX NUT M3-.5
Price
N/A
81
CIRCUIT BOARD YSDY-C 2020-06-02
81-1
5-WIRE RIBBON - TYPE CORD
83
ON/OFF SWITCH KEDU KJD-178/120V
84
CAP SCREW M4-.7 X 10
Price
N/A
85
CONTROL PANEL PLATE
86
CAP SCREW M4-.7 X 6
Price
N/A
87
RPM DIGITIAL DISPLAY ZD-SX-THL
88

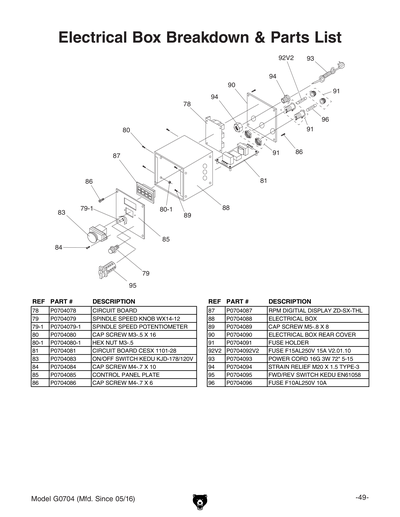

ELECTRICAL BOX
89
CAP SCREW M5-.8 X 8
Price
N/A
90
ELECTRICAL BOX REAR COVER
91
FUSE HOLDER
92
FUSE 10A FAST ACTING V1
92V2
FUSE 15A 250V FAST-ACTING GLASS V2.01.11
93
POWER CORD 16G 3W 72" 5-15
94
STRAIN RELIEF M20 X 1.5 TYPE-3
95
FWD/REV SWITCH KEDU EN61058
96
FUSE 10A 250V FAST-ACTING GLASS
97
SPINDLE DRO WIRING HARNESS
100
STAND ASSY
100-1
STAND CABINET
100-2
STAND DOOR
100-3
STAND DOOR LATCH
201
QUILL RETAINING CLIP
202
BUSHING
203
COMPRESSION SPRING
204
Now: PR56M
EXT RETAINING RING 45MM
Price
N/A
205
BALL BEARING 6209ZZ
Price
N/A
206
COMBO GEAR 60/70T
206-1
SPINDLE RING 16MM
206-2
CAP SCREW M3-.5 X 8
Price
N/A
207
BALL BEARING 6007-2RS
Price
N/A
208
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
209
GEAR 37T 15MM ID BORE
209-1
GEAR GUARD
209-2
CAP SCREW M3-.5 X 6
Price
N/A
210
Now: PR37M
EXT RETAINING RING 32MM
Price
N/A
211
BALL BEARING 6002ZZ
Price
N/A
212
COMBO GEAR 42/62T
213
SHAFT
214
Now: PK36M
KEY 5 X 5 X 50
Price
N/A
215
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
216
FORK
217
FORK ARM
218
SET SCREW M5-.8 X 8
Price
N/A
219
DRAWBAR CAP
220
MOTOR COVER V1
220V2
MOTOR COVER V2.11.12
221
MOTOR 1HP 110V (14MM SHAFT) V3.04.13
Price
N/A
221-1
CARBON BRUSH (SINGLE)
221-1V2
CARBON BRUSH (SINGLE)
221-2
MOTOR CARBON BRUSH CAP 1-PC V1
221-2V2
CARBON BRUSH CAP 1-PC V2.11.12
221V2
MOTOR 1HP 110V (14MM SHAFT) V3.04.13
Price
N/A
221V3
MOTOR 1HP 110V (14MM SHAFT) V3.04.13
222
Now: PW05M
FLAT WASHER 4MM
Price
N/A
223
CAP SCREW M4-.7 X 8
Price
N/A
224
CAP SCREW M6-1 X 14
Price
N/A
225
SPEED SENSOR BRACKET
225-1
SPEED SENSOR CORD
225-2
CAP SCREW M3-.5 X 6
Price
N/A
226
SPEED SENSOR
227
MOTOR MOUNT
228
CAP SCREW M5-.8 X 12
Price
N/A
229
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
229V2
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
230
GEAR 20T (ID 10MM) V1
230V2
GEAR 20T (ID 14MM) V2.04.13
231
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
231V2
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
232
SET SCREW M5-.8 X 6
Price
N/A
233
CAP SCREW M3-.5 X 6
Price
N/A
234
Z-AXIS DRO ASSEMBLY
234-1
Z-AXIS DRO BRACKET
234-2
CAP SCREW M4-.7 X 10
Price
N/A
234-3
Z-AXIS DRO BATTER COVER
235
Z-AXIS DRO SLIDE MOUNT
236
QUILL LOCKING LEVER
237
SPINDLE LOCK PIN
238

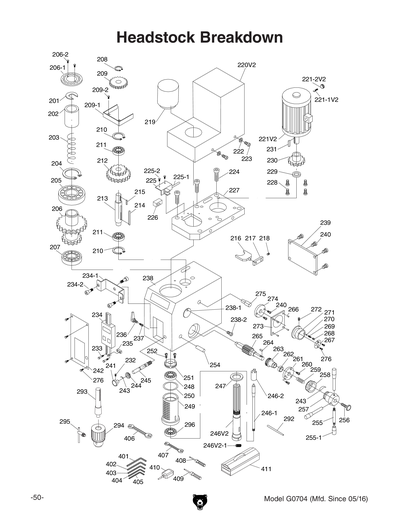

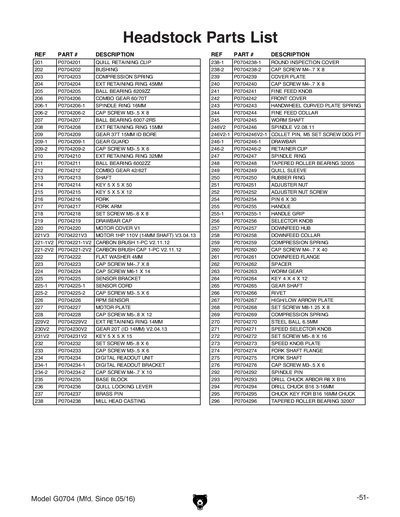

HEADSTOCK CASTING
238-1
ROUND INSPECTION COVER
238-2
CAP SCREW M4-.7 X 8
Price
N/A
238A
COMPLETE HEADSTOCK ASSEMBLY
239
HEADSTOCK REAR COVER
240
CAP SCREW M4-.7 X 8
Price
N/A
241
FINE FEED KNOB
242
HEADSTOCK FRONT COVER
243
HANDWHEEL CURVED PLATE SPRING
244
FINE DOWNFEED GRADUATED DIAL
245
WORM SHAFT
246
SPINDLE R8 V2.08.11
Price
N/A
246-1
DRAWBAR 7/16-20 X 9-11/16
246-2
DRAWBAR RETAINER CAP
246V2
SPINDLE R8 V2.08.11
246V2-1
*DISCD*SPNDL ALIGN SCR M5-.8 X 6 DOG PT
Item is no longer available
Price
N/A
247
SPINDLE RING 2MM
247V2
SPRING RING 1.5MM V2.06.23
248
TAPER ROLLER BEARING 32005
249
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
249-1
SPINDLE ASSEMBLY
249V2
QUILL 1.5MM V2.06.23
250
QUILL SEAL, RUBBER (UPPER)
251
PRELOAD ADJUSTER NUT
252
ADJUSTER SCREW M5-.8 X 10
254
DOWEL PIN 6 X 30
255
DOWNFEED LEVER M10-1.5 X 14
255-1
DOWNFEED LEVER GRIP M10-1.5
256
KNOB BOLT M8-1.25 X 30
257
COARSE DOWNFEED HUB
258
DOWNFEED GRADUATED DIAL
259
COMPRESSION SPRING
260
CAP SCREW M4-.7 X 40
Price
N/A
261
DOWNFEED FLANGE
262
BUSHING
263
WORM GEAR
264
Now: PK69M
KEY 4 X 4 X 12
Price
N/A
265
GEAR SHAFT 16T
266
RIVET 2 X 3MM NAMEPLATE, ALUMINUM
267
HI/LO INDICATOR PLATE
268
SET SCREW M8-1.25 X 8
Price
N/A
269
COMPRESSION SPRING
270
STEEL BALL 6.5MM
Price
N/A
271
HI/LO HANDWHEEL
272
SET SCREW M5-.8 X 16
Price
N/A
273
SPEED KNOB PLATE
274
FORK SHAFT FLANGE
275
FORK SHAFT
276
CAP SCREW M3-.5 X 6
Price
N/A
277
Now: PW07M
FLAT WASHER 3MM
Price
N/A
278
Now: PN07M
HEX NUT M3-.5
Price
N/A
279
CAP SCREW M4-.7 X 20
Price
N/A
280
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
281
WAVY WASHER 12MM
282
GUARD MOUNTING BLOCK
283
*DISCD*LIMIT SWITCH L-BRACKET, COPPER
Item is no longer available
Price
N/A
284
LIMIT SWITCH DATER KW1-103
285
PROTECTIVE PAPER
286
SET SCREW M5-.8 X 10
Price
N/A
287
CHIP GUARD POST
288
CHIP GUARD

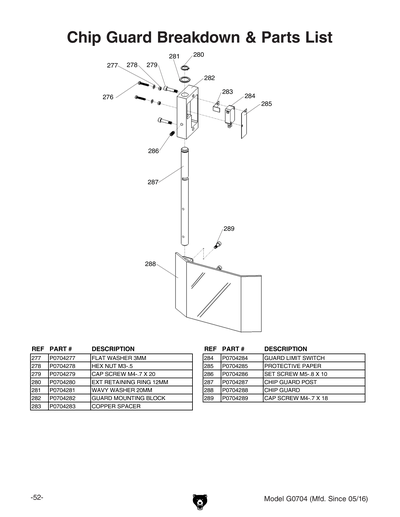

289
CAP SCREW M4-.7 X 18
Price
N/A
290
CHIP PAN
291
STAND
292
SPINDLE PIN
293
DRILL CHUCK ARBOR R8 X B16
294
DRILL CHUCK B16 3-16MM
295
DRILL CHUCK KEY 1/4" STD 11T SD-3/4"
296
TAPER ROLLER BEARING 32007
Price
N/A
297
CAP SCREW M3-.5 X 16
Price
N/A
298
ROUND INSPECTION COVER
Price
N/A
301
READ MANUAL 1.5W X 2.5H
Price
N/A
302
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
303

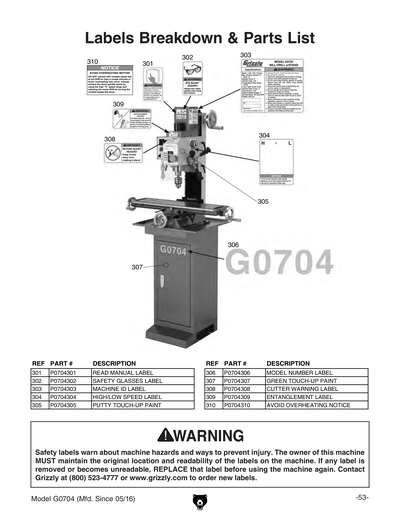

MACHINE ID LABEL
304
HIGH/LOW SPEED LABEL
305
GREY PUTTY REF G0504
Price
N/A
306
MODEL NUMBER LABEL
307
N/S GRIZZLY GREEN G1023S
Price
N/A
308
CUTTER WARNING LABEL
309
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
310
AVOID OVERHEATING LABEL
310A
COMPLETE TOOL BOX
311
GRIZZLY.COM LABEL 10.5",BEIGE
Price
N/A
312
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
313
OIL BOTTLE
314
EMPTY TOOL BOX
315
T-BOLT M10-1.5 X 60
316
HEX WRENCH 2MM
Price
N/A
317
HEX WRENCH 3MM
Price
N/A
318
HEX WRENCH 4MM
Price
N/A
319
HEX WRENCH 5MM
Price
N/A
320
HEX WRENCH 6MM
Price
N/A
321
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
322
PHLP HD SCREWDRIVER
323
FLAT HD SCREWDRIVER
401
HEX WRENCH 6MM
Price
N/A
402
HEX WRENCH 5MM
Price
N/A
403
HEX WRENCH 4MM
Price
N/A
404
HEX WRENCH 3MM
Price
N/A
405
HEX WRENCH 2MM
Price
N/A
406
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
407
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
408
Now: PSDF2
SCREWDRIVER FLAT #2
Price
N/A
409
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
410
BOTTLE FOR OIL
411
TOOLBOX
BOX2
COMPLETE STAND ASSEMBLY
MAN
MAN FOR G0704 MFD 09.09-07.11 V1.06.11
MANV2
MAN FOR G0704 MFD 08.11-03.13 V2.09.14
MANV3
MANUAL FOR G0704 MFD 04.13+ V3.07.15
