Parts for G0705 - 8" x 29" 2 HP Mill/Drill with Stand

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty

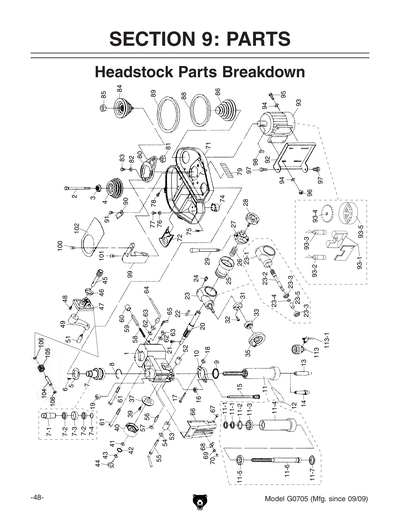

001 P0705001
HEAD CASTING
N/A
002 P0705002 DRAWBAR 7/16-20 X 17-3/4 $23.50
002-1 P0705002-1
FLANGE NUT M10-1.75
N/A
003 P0705003 SPINDLE LOCK NUT $5.50
004 P0705004
SPINDLE PULLEY
N/A
005 P0705005
OUTER BEARING PLATE
N/A
006 P0705006
CAP SCREW 1/4-20 X 1/2
Item is no longer available
P0705006 Replaced By PCAP04
N/A View Replacement
007 P0705007
SPINDLE TAPER SLEEVE SET
N/A
007-1 P0705007-1 SPINDLE TAPER SLEEVE $29.00
007-2 P0705007-2
BALL BEARING 6009ZZ
Item is no longer available
P0705007-2 Replaced By P6009ZZ
N/A View Replacement
007-3 P0705007-3
SPACER 74MM
N/A
007-4 P0705007-4
EXT RETAINING RING 41MM
Item is no longer available
P0705007-4 Replaced By PR92M
N/A View Replacement
008 P0705008
INT RETAINING RING 80MM
Item is no longer available
P0705008 Replaced By PR50M
N/A View Replacement
009 P0705009 RUBBER FLANGE $3.00
010 P0705010 QUILL CLAMP $31.56
011 P0705011 QUILL ASSEMBLY $219.75
011-1 P0705011-1 SPANNER NUT $5.50
011-2 P0705011-2 TOOTHED SPINDLE WASHER $3.00
011-3 P0705011-3
TAPERED ROLLER BEARING 30206
Item is no longer available
P0705011-3 Replaced By P30206
N/A View Replacement
011-4 P0705011-4 SPINDLE SLEEVE MT#3 $93.75
011-5 P0705011-5
TAPERED ROLLER BEARING 30207
Item is no longer available
P0705011-5 Replaced By P30207
N/A View Replacement
011-6 P0705011-6 SPINDLE SHAFT $99.06
011-7 P0705011-7 SPINDLE CUP $16.25
012 P0705012 DRIFT KEY $5.50
013 P0705013 CHUCK ARBOR R8-B16 $27.19
014 P0705014 DRILL CHUCK ARBOR R8 X MT3 $41.50
015 P0705015 DEPTH STOP SCREW $25.00
016 P0705016 DEPTH STOP ADJUSTER $9.06
017 P0705017
CAP SCREW 1/4-20 X 2
Item is no longer available
P0705017 Replaced By PCAP159
N/A View Replacement
018 P0705018
HEX NUT 1/4-20
Item is no longer available
P0705018 Replaced By PN05
N/A View Replacement
019 P0705019 DEPTH STOP BLOCK $22.50
020 P0705020 PINION SHAFT $54.00
021 P0705021
FLAT HD SCR 10-24 X 1/2
Item is no longer available
P0705021 Replaced By PFH08
N/A View Replacement
022 P0705022
KEY 7 X 7 X 20
Item is no longer available
P0705022 Replaced By PK25M
N/A View Replacement
023 P0705023 DOWNFEED ASSEMBLY $79.25
023-1 P0705023-1
CASE
N/A
023-2 P0705023-2 WORM SHAFT $23.50
023-3 P0705023-3
BALL BEARING 6202ZZ
Item is no longer available
P0705023-3 Replaced By P6202ZZ
N/A View Replacement
023-4 P0705023-4
EXT RETAINING RING 15MM
Item is no longer available
P0705023-4 Replaced By PR05M
N/A View Replacement
023-5 P0705023-5
SPACER 34MM
N/A
024 P0705024
CAP SCREW 5/16-18 X 3/4
Item is no longer available
P0705024 Replaced By PCAP07
N/A View Replacement
025 P0705025 SLEEVE ASSEMBLY $13.75
026 P0705026 COMPRESSION SPRING $3.00
027 P0705027 LEVER BASE $49.69
028 P0705028 FEED ADJUST KNOB M10-1.5 X 45 $5.50
029 P0705029 LEVER $8.44
031 P0705031 WORM SHAFT COVER $8.00
032 P0705032
CAP SCREW 10-24 X 3/8
Item is no longer available
P0705032 Replaced By PCAP02
N/A View Replacement
033 P0705033 MICRO ADJUST INDICATOR SET $3.00
035 P0705035 HANDWHEEL ASSEMBLY $11.00
037 P0705037 TORSION SPRING BASE $5.50
039 P0705039
CAP SCREW 10-24 X 3/4
Item is no longer available
P0705039 Replaced By PCAP33
N/A View Replacement
040 P0705040 TORSION SPRING W/COVER $14.50
040-1 P0705040-1 TORSION SPRING COVER $7.50
041 P0705041
LOCK WASHER 1/4
Item is no longer available
P0705041 Replaced By PLW02
N/A View Replacement
042 P0705042
FLAT WASHER 1/4
Item is no longer available
P0705042 Replaced By PW06
N/A View Replacement
043 P0705043
LOCK WASHER 1/4
Item is no longer available
P0705043 Replaced By PLW02
N/A View Replacement
044 P0705044 KNOB BOLT M8-1.25 X 12 $2.00
045 P0705045 WORM SHAFT $20.31
046 P0705046 WORM SHAFT BUSHING $2.20
047 P0705047 ELEVATION CASTING $12.19
047-1 P0705047-1 PINION GEAR $9.00
047-2 P0705047-2 GEAR AXLE $7.50
047-3 P0705047-3
EXT RETAINING RING 14MM
Item is no longer available
P0705047-3 Replaced By PR02M
N/A View Replacement
048 P0705048
CAP SCREW 1/4-20 X 3/4
Item is no longer available
P0705048 Replaced By PCAP05
N/A View Replacement
049 P0705049 ELEVATION CRANK $20.31
051 P0705051 CLAMP HANDLE $6.88
052 P0705052 OUTER QUILL CLAMP $5.50
053 P0705053
INNER QUILL CLAMP
N/A
054 P0705054
*DISCD*QUILL CLAMP SPACER
Item is no longer available
N/A
055 P0705055 QUILL CLAMP HANDLE $8.00
056 P0705056
SCREW KEY
N/A
057 P0705057
HEX NUT 3/8-16
Item is no longer available
P0705057 Replaced By PN08
N/A View Replacement
058 P0705058 COMPRESSION SPRING $2.00
059 P0705059
BELT TENSION PIN
N/A
060 P0705060 RUBBER PAD $2.00
061 P0705061
HEX BOLT 5/8-11 X 6
Item is no longer available
P0705061 Replaced By PB46
N/A View Replacement
062 P0705062
FLAT WASHER 5/8
Item is no longer available
P0705062 Replaced By PW14
N/A View Replacement
063 P0705063
HEX NUT 5/8-11
Item is no longer available
P0705063 Replaced By PN04
N/A View Replacement
064 P0705064 HEADSTOCK WRENCH $3.00
065 P0705065 LOCK HANDLE M8-1.25 X 25 $5.50
066 P0705066 FRONT COVER PLATE ASSEMBLY $67.50
067 P0705067
CAP SCREW 1/4-20 X 1/2
Item is no longer available
P0705067 Replaced By PCAP04
N/A View Replacement
068 P0705068 LIMIT PLATE $5.00
069 P0705069
FLAT WASHER #10
Item is no longer available
P0705069 Replaced By PW03
N/A View Replacement
070 P0705070
PHLP HD SCR 5-40 X 1/4
Item is no longer available
P0705070 Replaced By PS50
N/A View Replacement
071 P0705071 BELT COVER $171.25
072 P0705072
LOWER BELT PLATE
N/A
074 P0705074
SPINDLE COVER
N/A
075 P0705075
CAP SCREW M3-.5 X 16
Item is no longer available
P0705075 Replaced By PCAP158M
N/A View Replacement
076 P0705076
FLAT WASHER 5/16
Item is no longer available
P0705076 Replaced By PW07
N/A View Replacement
077 P0705077
HEX BOLT 5/16-18 X 5/8
Item is no longer available
P0705077 Replaced By PB32
N/A View Replacement
078 P0705078
CAP SCREW 1/4-20 X 1/2
Item is no longer available
P0705078 Replaced By PCAP04
N/A View Replacement
079 P0705079 SPEED CHART $3.75
080 P0705080 PULLEY IDLER PLATE $43.25
081 P0705081
HEX NUT 5/8-11
Item is no longer available
P0705081 Replaced By PN04
N/A View Replacement
082 P0705082
FLAT WASHER 5/16
Item is no longer available
P0705082 Replaced By PW07
N/A View Replacement
083 P0705083
CAP SCREW 5/16-18 X 1-1/2
Item is no longer available
P0705083 Replaced By PCAP08
N/A View Replacement
084 P0705084 IDLER PULLEY $104.50
085 P0705085
HEX NUT 5/8-11
Item is no longer available
P0705085 Replaced By PN04
N/A View Replacement
086 P0705086 MOTOR PULLEY SET $92.00
088 P0705088
V-BELT A33
Item is no longer available
P0705088 Replaced By PVA33
N/A View Replacement
089 P0705089
V-BELT A39
Item is no longer available
P0705089 Replaced By PVA39
N/A View Replacement
090 P0705090
WIRE CLIP
N/A
091 P0705091
CAP SCREW 5/16-18 X 5/8
Item is no longer available
P0705091 Replaced By PCAP09
N/A View Replacement
092 P0705092
MOTOR MOUNT PLATE
N/A
093 P0705093 MOTOR 2HP 110/220V 1-PH $301.40
093-1 P0705093-1 MOTOR JUNCTION BOX $32.50
093-2 P0705093-2
S CAPACITOR 150M 250V 1-21/32 X 3-1/8
Item is no longer available
P0705093-2 Replaced By PC150D
N/A View Replacement
093-3 P0705093-3
R CAPACITOR 20M 450V 1-5/8 X 3-1/4
Item is no longer available
P0705093-3 Replaced By PC20B
N/A View Replacement
093-4 P0705093-4 MOTOR FAN $18.00
093-5 P0705093-5 MOTOR FAN COVER $18.00
094 P0705094
FLAT WASHER 5/16
Item is no longer available
P0705094 Replaced By PW07
N/A View Replacement
095 P0705095
HEX BOLT 5/16-18 X 1
Item is no longer available
P0705095 Replaced By PB03
N/A View Replacement
096 P0705096
HEX NUT 5/16-18
Item is no longer available
P0705096 Replaced By PN02
N/A View Replacement
097 P0705097
HEX BOLT 7/16-14 X 3/4
Item is no longer available
P0705097 Replaced By PB36
N/A View Replacement
098 P0705098
KEY 7 X 7 X 35
Item is no longer available
P0705098 Replaced By PK109M
N/A View Replacement
099 P0705099
*DISCD*GUARD BRACKET
Item is no longer available
N/A
100 P0705100
CAP SCREW M5-.8 X 8
Item is no longer available
P0705100 Replaced By PCAP03M
N/A View Replacement
101 P0705101
CAP SCREW M6-1 X 12
Item is no longer available
P0705101 Replaced By PCAP26M
N/A View Replacement
102 P0705102
*DISCD*PROTECTIVE PLATE
Item is no longer available
N/A
104 P0705104 SHAFT $7.50
105 P0705105 HELICAL GEAR $9.00
106 P0705106
EXT RETAINING RING 14MM
Item is no longer available
P0705106 Replaced By PR02M
N/A View Replacement
113 P0705113 CHUCK B16 1-13MM $20.31
113-1 P0705113-1 DRL CHK KEY 7.92MM STD 11T SD-15.93MM $4.00
114 P0705114
CUTTER ASSEMBLY
N/A

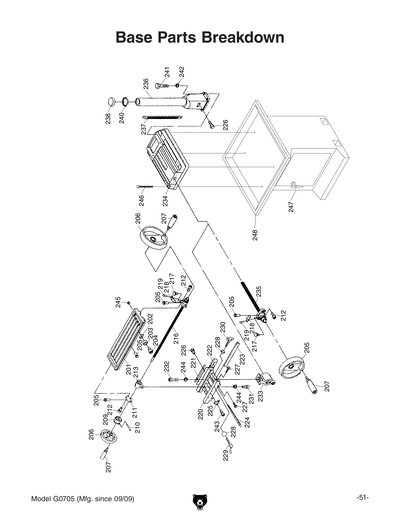

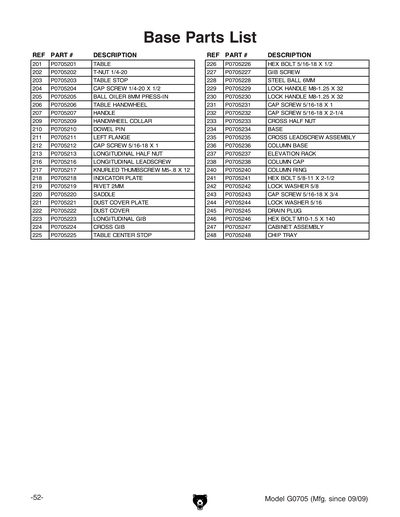

201 P0705201 TABLE $420.00
202 P0705202 T-NUT 1/4-20 $4.00
203 P0705203 TABLE STOP $2.50
204 P0705204
CAP SCREW 1/4-20 X 1/2
Item is no longer available
P0705204 Replaced By PCAP04
N/A View Replacement
205 P0705205
BALL OILER 8MM PRESS-IN
Item is no longer available
P0705205 Replaced By PLUBE002M
N/A View Replacement
206 P0705206 TABLE HANDWHEEL $18.00
207 P0705207 HANDLE $5.50
209 P0705209 HANDWHEEL COLLAR $12.00
209-1 P0705209-1
TABLE GRADUATED DIAL
Item is no longer available
P0705209-1 Replaced By P0754210
N/A View Replacement
210 P0705210 DOWEL PIN $6.00
211 P0705211 X & Y LEADSCREW FLANGE $14.00
212 P0705212
CAP SCREW 5/16-18 X 1
Item is no longer available
P0705212 Replaced By PCAP03
N/A View Replacement
213 P0705213 LONGITUDINAL HALF NUT $212.50
216 P0705216 LONGITUDINAL LEADSCREW $79.25
217 P0705217 KNURLED THUMBSCREW M5-.8 X 12 $2.20
218 P0705218 INDICATOR PLATE $1.56
219 P0705219
RIVET 2 X 5MM NAMEPLATE, ALUMINUM
Item is no longer available
P0705219 Replaced By PRIV024M
N/A View Replacement
220 P0705220 SADDLE $248.50
221 P0705221 DUST COVER PLATE $6.88
222 P0705222 DUST COVER $9.06
222-1 P0705222-1
COLUMN DUST COVER PLATE
N/A
223 P0705223 LONGITUDINAL GIB $29.38
224 P0705224 CROSS GIB $25.00
225 P0705225
TABLE CENTER STOP
N/A
226 P0705226
HEX BOLT 5/16-18 X 1/2
Item is no longer available
P0705226 Replaced By PB09
N/A View Replacement
227 P0705227 GIB SCREW $1.25
228 P0705228
STEEL BALL 6MM
Item is no longer available
P0705228 Replaced By PSTB003M
N/A View Replacement
229 P0705229 LOCK HANDLE M8-1.25 X 32 $6.32
230 P0705230
LOCK HANDLE M8-1.25 X 32
Item is no longer available
P0705230 Replaced By P0705229
N/A View Replacement
231 P0705231
CAP SCREW 5/16-18 X 1
Item is no longer available
P0705231 Replaced By PCAP03
N/A View Replacement
232 P0705232
CAP SCREW 5/16-18 X 2-1/4
Item is no longer available
P0705232 Replaced By PCAP107
N/A View Replacement
233 P0705233 CROSS HALF NUT $62.50
234 P0705234
BASE
N/A
235 P0705235 CROSS LEADSCREW ASSEMBLY $99.00
236 P0705236
COLUMN BASE
N/A
237 P0705237 ELEVATION RACK $72.00
238 P0705238 COLUMN CAP $16.25
240 P0705240 COLUMN RING $33.75
241 P0705241
HEX BOLT 5/8-11 X 2-1/2
Item is no longer available
P0705241 Replaced By PB64
N/A View Replacement
242 P0705242
LOCK WASHER 5/8
Item is no longer available
P0705242 Replaced By PLW06
N/A View Replacement
243 P0705243
CAP SCREW 5/16-18 X 3/4
Item is no longer available
P0705243 Replaced By PCAP07
N/A View Replacement
244 P0705244
LOCK WASHER 5/16
Item is no longer available
P0705244 Replaced By PLW01
N/A View Replacement
245 P0705245
DRAIN PLUG
N/A
246 P0705246 HEX BOLT M10-1.5 X 140 $3.00
247 P0705247 CABINET ASSEMBLY $405.00
248 P0705248 CHIP TRAY $87.00
249 P0705249
TOOLBOX
N/A
250 P0705250
LUG WRENCH
N/A
251 P0705251
T-BOLT ASSEMBLY
N/A
252 P0705252
SPINDLE SLEEVE R8 X MT3
N/A
253 P0705253
SPINDLE SLEEVE MT3 X MT2
N/A
254 P0705254
BOTTLE FOR OIL
N/A
255 P0705255
T-BOLT M14-2 X 55
Item is no longer available
P0705255 Replaced By P0761271
N/A View Replacement
256 P0705256
FLAT WASHER 14MM
N/A
257 P0705257
HEX BOLT M14-2
N/A
258 P0705258 TABLE SCALE $6.00
259 P0705259
LOCK HANDLE ASSY W/ KEY
N/A

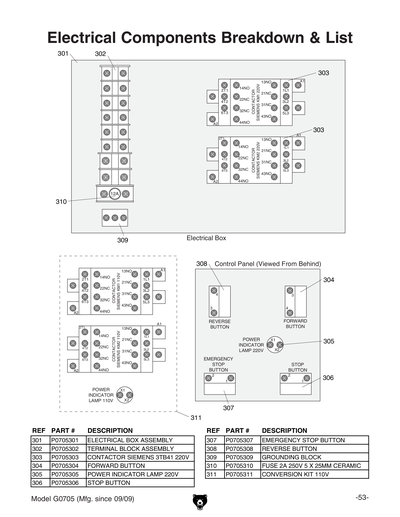

301 P0705301 ELECTRICAL BOX ASSEMBLY $337.50
302 P0705302 TERMINAL BLOCK ASSEMBLY $9.06
303 P0705303 CONTACTOR SIEMENS 3TB41 220V $48.75
303-1 P0705303-1 CONTACTOR SIEMENS 110V $35.00
304 P0705304 FORWARD BUTTON $75.00
305 P0705305
POWER INDICATOR LAMP 220V
P0705305 Replaced By P4002002
N/A
306 P0705306 STOP BUTTON $18.00
307 P0705307 EMERGENCY STOP BUTTON $22.50
308 P0705308 REVERSE BUTTON $18.00
309 P0705309
GROUNDING BLOCK
N/A
310 P0705310
FUSE 2A 250V 5 X 25MM
Item is no longer available
P0705310 Replaced By P0755404
N/A View Replacement
310-1 P0705310-1 FUSE HOLDER $0.00
311 P0705311 CONVERSION KIT 110V $147.50

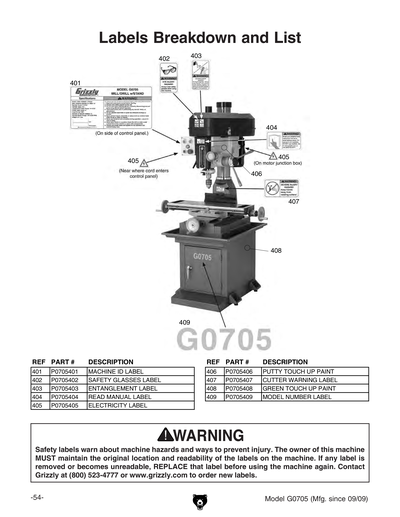

401 P0705401
MACHINE ID LABEL
N/A
402 P0705402
SAFETY GLASSES 1.5W X 2.5H
Item is no longer available
P0705402 Replaced By PLABEL-11B
N/A View Replacement
403 P0705403
ENTANGLEMENT HAZARD 1.5W X 2.5H
Item is no longer available
P0705403 Replaced By PLABEL-55A
N/A View Replacement
404 P0705404
READ MANUAL 1.5W X 2.5H
Item is no longer available
P0705404 Replaced By PLABEL-12C
N/A View Replacement
405 P0705405
ELECTRICITY 0.7W X 0.6H
Item is no longer available
P0705405 Replaced By PLABEL-14A
N/A View Replacement
406 P0705406
GREY PUTTY REF G0504
Item is no longer available
P0705406 Replaced By PPAINT-11
N/A View Replacement
407 P0705407 CUTTER WARNING LABEL $1.00
408 P0705408
N/S GRIZZLY GREEN G1023S
Item is no longer available
P0705408 Replaced By PPAINT-1
N/A View Replacement
409 P0705409 MODEL NUMBER LABEL $5.75
410 P0705410
COMPLETE TOOLBOX
N/A
500 P0705500 G0705 BOX 2 OF 2 STAND $425.62
MAN P0705MAN
MANUAL G0705 MFD-02.10+ V1.04.13
N/A
P0760012 P0760012
DRIFT KEY
Item is no longer available
P0760012 Replaced By P0705012
N/A View Replacement
P0760021 P0760021
FLAT HD SCR 10-24 X 1/2
Item is no longer available
P0760021 Replaced By PFH08
N/A View Replacement
P0760029 P0760029
LEVER
Item is no longer available
P0760029 Replaced By P0705029
N/A View Replacement
P0760039 P0760039
CAP SCREW 10-24 X 3/4
Item is no longer available
P0760039 Replaced By PCAP33
N/A View Replacement
P0760248-7 P0760248-7
DOWEL PIN 6 X 30
Item is no longer available
P0760248-7 Replaced By P0704254
N/A View Replacement
