Parts for G0706 - 12" Jointer with Spiral Cutterhead

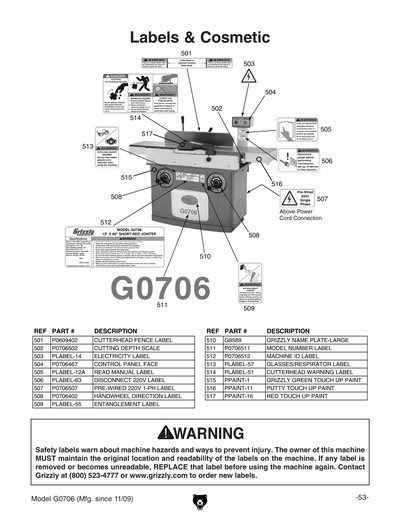

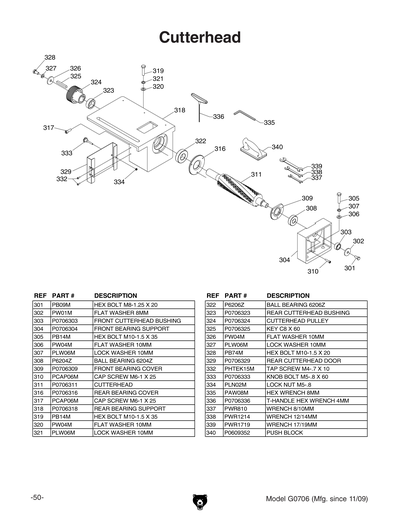

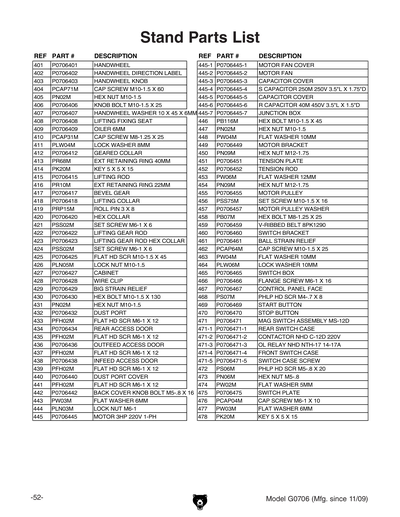

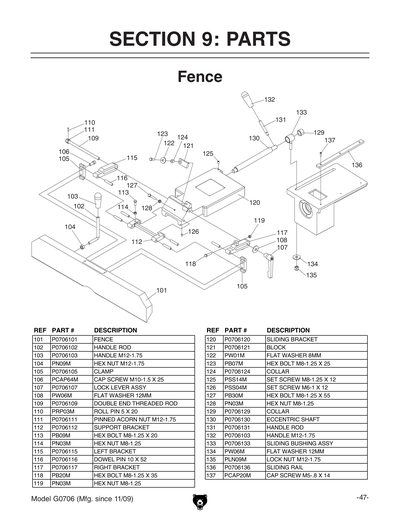

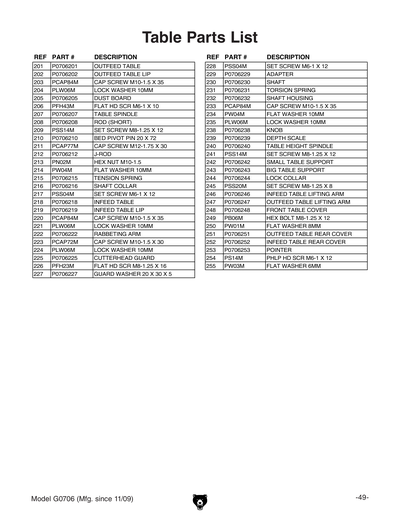

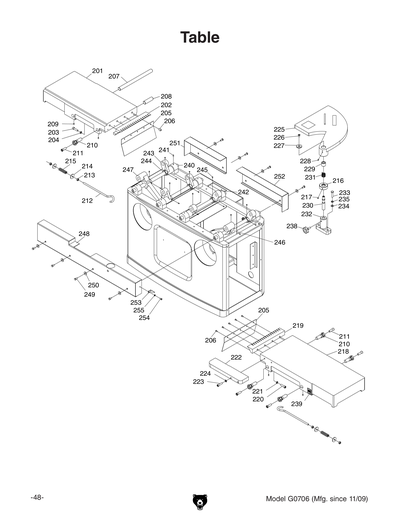

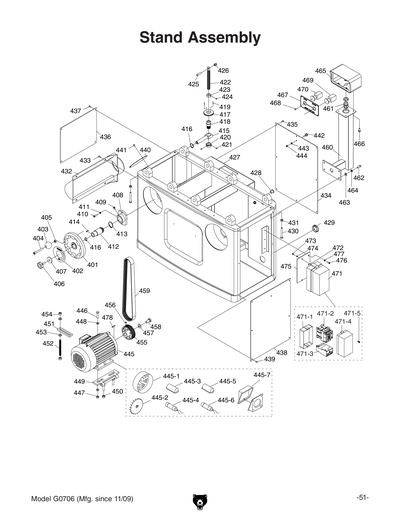

Part Diagram for G0706
Part Diagram for G0706
Part Diagram for G0706
Part Diagram for G0706
Part Diagram for G0706
Part Diagram for G0706
Part Diagram for G0706
Part Diagram for G0706
Part Diagram for G0706
Part Diagram for G0706
Part Diagram for G0706
Part Diagram for G0706
Part Diagram for G0706
Part Diagram for G0706

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
101
FENCE
Price
$125.45
102
HANDLE ROD
Item is no longer available
Price
N/A
103
HANDLE M12-1.75
Item is no longer available
Price
N/A
104
HEX NUT M12-1.75
Price
N/A
105
CLAMP
Item is no longer available
Price
N/A
106
CAP SCREW M10-1.5 X 25
Price
N/A
107
LOCK LEVER ASSY
Price
$5.50
108
FLAT WASHER 12MM
Price
N/A
109
DOUBLE END THREADED ROD
Price
$2.05
110
ROLL PIN 5 X 20
Price
N/A
111
PINNED ACORN NUT M12-1.75
Price
$1.49
112
SUPPORT BRACKET
Item is no longer available
Price
N/A
113
HEX BOLT M8-1.25 X 20
Price
N/A
114
HEX NUT M8-1.25
Price
N/A
115
LEFT BRACKET
Item is no longer available
Price
N/A
116
DOWEL PIN 10 X 52
Item is no longer available
Price
N/A
117
RIGHT BRACKET
Item is no longer available
Price
N/A
118
HEX BOLT M8-1.25 X 35
Price
N/A
119
HEX NUT M8-1.25
Price
N/A
120
SLIDING BRACKET
Item is no longer available
Price
N/A
121
BLOCK
Item is no longer available
Price
N/A
122
FLAT WASHER 8MM
Price
N/A
123
HEX BOLT M8-1.25 X 25
Price
N/A
124
COLLAR
Item is no longer available
Price
N/A
125
SET SCREW M8-1.25 X 12
Price
N/A
126
SET SCREW M6-1 X 12
Price
N/A
127
HEX BOLT M8-1.25 X 55
Price
N/A
128
HEX NUT M8-1.25
Price
N/A
129
COLLAR
Item is no longer available
Price
N/A
130
ECCENTRIC SHAFT
Item is no longer available
Price
N/A
131
HANDLE ROD
Item is no longer available
Price
N/A
132
HANDLE M12-1.75
Price
N/A
133
SLIDING BUSHING ASSY
Item is no longer available
Price
N/A
134
FLAT WASHER 12MM
Price
N/A
135
LOCK NUT M12-1.75
Price
N/A
136
SLIDING RAIL
Item is no longer available
Price
N/A
137
CAP SCREW M5-.8 X 14
Price
N/A
201
OUTFEED TABLE
Item is no longer available
Price
N/A
202
OUTFEED TABLE LIP
Price
$21.85
203
CAP SCREW M10-1.5 X 35
Price
N/A
204
LOCK WASHER 10MM
Price
N/A
205
DUST BOARD
Price
$4.35
206
FLAT HD SCR M6-1 X 10
Price
N/A
207
TABLE SPINDLE
Item is no longer available
Price
N/A
208
SHORT ROD
Item is no longer available
Price
N/A
209
SET SCREW M8-1.25 X 12
Price
N/A
210
BED PIVOT PIN 20 X 72
Item is no longer available
Price
N/A
211
CAP SCREW M12-1.75 X 30
Price
N/A
212
J-ROD
Item is no longer available
Price
N/A
213
HEX NUT M10-1.5
Price
N/A
214
FLAT WASHER 10MM
Price
N/A
215
TENSION SPRING
Item is no longer available
Price
N/A
216
SHAFT COLLAR
Item is no longer available
Price
N/A
217
SET SCREW M6-1 X 12
Price
N/A
218
INFEED TABLE
Price
$324.30
219
INFEED TABLE LIP
Item is no longer available
Price
N/A
220
CAP SCREW M10-1.5 X 35
Price
N/A
221
LOCK WASHER 10MM
Price
N/A
222
RABBETING ARM
Item is no longer available
Price
N/A
223
CAP SCREW M10-1.5 X 30
Price
N/A
224
LOCK WASHER 10MM
Price
N/A
225
CUTTERHEAD GUARD
Price
$65.30
226
FLAT HD SCR M8-1.25 X 16
Price
N/A
227
GUARD WASHER 20 X 30 X 5MM
Item is no longer available
Price
N/A
228
SET SCREW M6-1 X 12
Price
N/A
229
ADAPTER
Price
$1.90
230
SHAFT
Item is no longer available
Price
N/A
231
*DISCD*TORSION SPRING
Item is no longer available
Price
N/A
232
SHAFT HOUSING
Item is no longer available
Price
N/A
233
CAP SCREW M10-1.5 X 35
Price
N/A
234
FLAT WASHER 10MM
Price
N/A
235
LOCK WASHER 10MM
Price
N/A
238
KNOB
Item is no longer available
Price
N/A
239
CUTTING DEPTH SCALE
Price
N/A
240
TABLE HEIGHT SPINDLE
Item is no longer available
Price
N/A
241
SET SCREW M8-1.25 X 12
Price
N/A
242
SMALL TABLE SUPPORT
Item is no longer available
Price
N/A
243
BIG TABLE SUPPORT
Item is no longer available
Price
N/A
244
LOCK COLLAR
Item is no longer available
Price
N/A
245
SET SCREW M8-1.25 X 8
Price
N/A
246
INFEED TABLE LIFTING ARM
Item is no longer available
Price
N/A
247
OUTFEED TABLE LIFTING ARM
Item is no longer available
Price
N/A
248
FRONT TABLE COVER
Item is no longer available
Price
N/A
249
HEX BOLT M8-1.25 X 12
Price
N/A
250
FLAT WASHER 8MM
Price
N/A
251
OUTFEED TABLE REAR COVER
Item is no longer available
Price
N/A
252
INFEED TABLE REAR COVER
Item is no longer available
Price
N/A
253
POINTER
Item is no longer available
Price
N/A
254
PHLP HD SCR M6-1 X 12
Price
N/A
255
FLAT WASHER 6MM
Price
N/A
301
HEX BOLT M8-1.25 X 20
Price
N/A
302
FLAT WASHER 8MM
Price
N/A
303
FRONT CUTTERHEAD BUSHING
Item is no longer available
Price
N/A
304
FRONT BEARING SUPPORT
Item is no longer available
Price
N/A
305
HEX BOLT M10-1.5 X 35
Price
N/A
306
FLAT WASHER 10MM
Price
N/A
307
LOCK WASHER 10MM
Price
N/A
308
BALL BEARING 6204Z
Price
N/A
309
FRONT BEARING COVER
Item is no longer available
Price
N/A
310
CAP SCREW M6-1 X 25
Price
N/A
311
CUTTERHEAD V1
Item is no longer available
Price
N/A
311V2
CUTTERHEAD V2.04.15
Item is no longer available
Price
N/A
316
REAR BEARING COVER
Item is no longer available
Price
N/A
317
CAP SCREW M6-1 X 25
Price
N/A
318
REAR BEARING SUPPORT
Price
$108.70
319
HEX BOLT M10-1.5 X 35
Price
N/A
320
FLAT WASHER 10MM
Price
N/A
321
LOCK WASHER 10MM
Price
N/A
322
BALL BEARING 6206Z
Price
N/A
323
REAR CUTTERHEAD BUSHING
Item is no longer available
Price
N/A
324
ALUMINUM CUTTERHEAD PULLEY V2.03.09
Price
N/A
325
KEY 7 X 8 X 60
Price
$1.90
326
FLAT WASHER 10MM
Price
N/A
327
LOCK WASHER 10MM
Price
N/A
328
HEX BOLT M10-1.5 X 20
Price
N/A
329
REAR CUTTERHEAD DOOR
Item is no longer available
Price
N/A
332
TAP SCREW M4 X 10
Price
N/A
333
KNOB BOLT M5-.8 X 60
Item is no longer available
Price
N/A
334
LOCK NUT M5-.8
Price
N/A
335
HEX WRENCH 8MM
Price
N/A
336
WRENCH T-HANDLE HEX 4MM
Price
$7.20
337
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
338
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
339
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
340
Safety Push Block - Small
Price
N/A
341
Indexable Carbide Inserts - 14.18 x 14.18 x 2mm, 10-Pk.
Price
N/A
341V2
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
342
FLAT HD TORX T20 M6-1 X 15
Price
N/A
401
HANDWHEEL
Price
$23.00
402
HANDWHEEL DIRECTION LABEL
Price
$1.00
403
HANDWHEEL KNOB
Price
$2.90
404
CAP SCREW M10-1.5 X 60
Price
N/A
405
HEX NUT M10-1.5
Price
N/A
406
KNOB BOLT M10-1.5 X 25
Item is no longer available
Price
N/A
407
HANDWHEEL WASHER 10 X 45 X 6MM
Item is no longer available
Price
N/A
408
LIFTING FIXING SEAT
Item is no longer available
Price
N/A
409
OILER-M6
Item is no longer available
Price
N/A
410
CAP SCREW M8-1.25 X 25
Price
N/A
411
LOCK WASHER 8MM
Price
N/A
412
GEARED COLLAR
Item is no longer available
Price
N/A
413
EXT RETAINING RING 40MM
Price
N/A
414
KEY 5 X 5 X 15
Price
N/A
415
LIFTING ROD
Item is no longer available
Price
N/A
416
EXT RETAINING RING 22MM
Price
N/A
417
BEVEL GEAR
Item is no longer available
Price
N/A
418
LIFTING COLLAR
Item is no longer available
Price
N/A
419
ROLL PIN 3 X 8
Price
N/A
420
HEX COLLAR
Item is no longer available
Price
N/A
421
SET SCREW M6-1 X 6
Price
N/A
422
LIFTING GEAR ROD
Item is no longer available
Price
N/A
423
LIFTING GEAR ROD HEX COLLAR
Item is no longer available
Price
N/A
424
SET SCREW M6-1 X 6
Price
N/A
425
FLAT HD SCR M10-1.5 X 45
Item is no longer available
Price
N/A
426
LOCK NUT M10-1.5
Price
N/A
427
CABINET
Item is no longer available
Price
N/A
428
WIRE CLIP
Item is no longer available
Price
N/A
429
BIG STRAIN RELIEF
Item is no longer available
Price
N/A
430
HEX BOLT M10-1.5 X 130
Item is no longer available
Price
N/A
431
HEX NUT M10-1.5
Price
N/A
432
DUST PORT
Item is no longer available
Price
N/A
433
FLAT HD SCR M6-1 X 12
Price
N/A
434
REAR ACCESS DOOR
Item is no longer available
Price
N/A
435
FLAT HD SCR M6-1 X 12
Price
N/A
436
OUTFEED ACCESS DOOR
Item is no longer available
Price
N/A
437
FLAT HD SCR M6-1 X 12
Price
N/A
438
INFEED ACCESS DOOR
Item is no longer available
Price
N/A
439
FLAT HD SCR M6-1 X 12
Price
N/A
440
DUST PORT COVER
Item is no longer available
Price
N/A
441
FLAT HD SCR M6-1 X 12
Price
N/A
442
BACK COVER KNOB BOLT M5-.8 X 16
Item is no longer available
Price
N/A
443
FLAT WASHER 6MM
Price
N/A
444
LOCK NUT M6-1
Price
N/A
445
MOTOR 3HP 220V 1-PH
Price
$397.50
445-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
445-2
MOTOR FAN
Item is no longer available
Price
N/A
445-3
CAPACITOR COVER
Item is no longer available
Price
N/A
445-4
S CAPACITOR 250M 250V 1-3/4 X 3-1/2 V2
Price
N/A
445-5
CAPACITOR COVER
Item is no longer available
Price
N/A
445-6
*DISCD*R CAP 40M 450V 3.5"L X 1.5"D
Price
$15.50
445-7
JUNCTION BOX
Item is no longer available
Price
N/A
446
HEX BOLT M10-1.5 X 45
Price
N/A
447
HEX NUT M10-1.5
Price
N/A
448
FLAT WASHER 10MM
Price
N/A
449
MOTOR BRACKET
Item is no longer available
Price
N/A
450
HEX NUT M12-1.75
Price
N/A
451
TENSION PLATE
Item is no longer available
Price
N/A
452
TENSION ROD
Item is no longer available
Price
N/A
453
FLAT WASHER 12MM
Price
N/A
454
HEX NUT M12-1.75
Price
N/A
455
MOTOR PULLEY
Price
$33.10
456
SET SCREW M10-1.5 X 16
Price
N/A
457
MOTOR PULLEY WASHER
Price
$1.49
458
HEX BOLT M8-1.25 X 25
Price
N/A
459
V-RIBBED BELT 8PK1371
Price
$26.25
460
SWITCH BRACKET
Price
$23.90
461
BALL STRAIN RELIEF
Item is no longer available
Price
N/A
462
CAP SCREW M10-1.5 X 25
Price
N/A
463
FLAT WASHER 10MM
Price
N/A
464
LOCK WASHER 10MM
Price
N/A
465
SWITCH BOX
Item is no longer available
Price
N/A
466
FLANGE SCREW M6-1 X 16
Price
N/A
467
CONTROL PANEL FACE
Price
$8.65
468
PHLP HD SCR M4-.7 X 8
Price
N/A
469
START BUTTON
Price
$16.95
470
E-STOP BUTTON W/3 ARROW NHD NLB22-R V2
Price
N/A
471
MAG SWITCH ASSEMBLY MS-12D
Item is no longer available
Price
N/A
471-1
REAR SWITCH CASE
Item is no longer available
Price
N/A
471-2
CONTACTOR NHD C-12D 220V
Item is no longer available
Price
N/A
471-3
OL RELAY NHD NTH-17 14-17A
Item is no longer available
Price
N/A
471-4
FRONT SWITCH CASE
Price
$16.40
471-5
WHITE SWITCH COVER SCREW V1.12.95
Price
N/A
472
PHLP HD SCR M5-.8 X 20
Price
N/A
473
HEX NUT M5-.8
Price
N/A
474
FLAT WASHER 5MM
Price
N/A
475
SWITCH PLATE
Item is no longer available
Price
N/A
476
CAP SCREW M6-1 X 10
Price
N/A
477
FLAT WASHER 6MM
Price
N/A
478
KEY 5 X 5 X 15
Price
N/A
501
CUTTERHEAD WARNING LABEL
Price
N/A
502
CUTTING DEPTH SCALE
Item is no longer available
Price
N/A
503
ELECTRICITY 1.4W X 1.2H
Price
N/A
504
CONTROL PANEL FACE
Price
N/A
505
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
506
DISCONNECT 220V 2W X 3.3H
Price
N/A
507
PRE-WIRED 220V 1-PH LABEL
Item is no longer available
Price
N/A
508
HANDWHEEL DIRECTION LABEL
Price
N/A
509
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
510
Nameplate - Large
Price
N/A
511
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
512
MACHINE ID LABEL
Item is no longer available
Price
N/A
513
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
514
CUTTERHEAD WARNING 6W X 3.2H
Price
N/A
515
N/S GRIZZLY GREEN G1023S
Price
N/A
516
GREY PUTTY REF G0504
Price
N/A
517
RED REF TOOL BOXES
Price
N/A
MAN
MANUAL G0706 MFD-11.09+ V1.11.09
Item is no longer available
Price
N/A
