Parts for G0709 - 14" x 40" Gunsmithing Gearhead Lathe

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

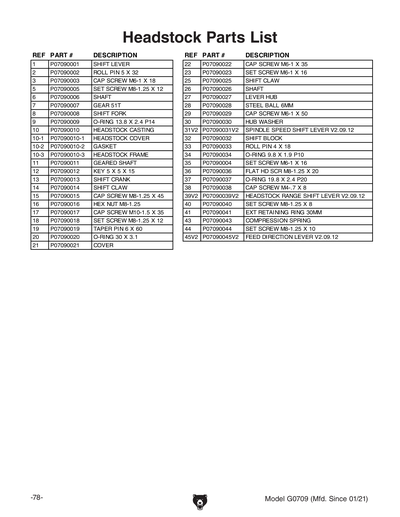

Ref # Part # Description Price Qty

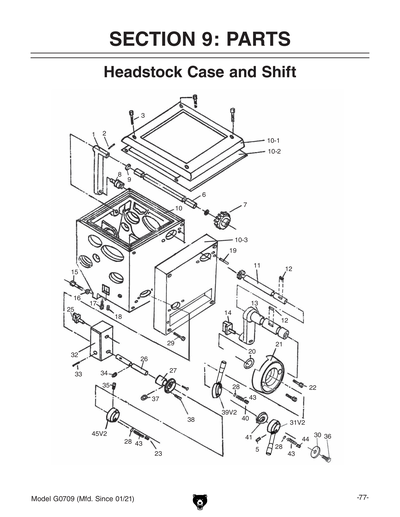

1 P07090001 SHIFT LEVER $16.25
2 P07090002
Replaced By PRP45M
ROLL PIN 5 X 32
N/A View Replacement
3 P07090003
Replaced By PCAP74M
CAP SCREW M6-1 X 18
N/A View Replacement
4 P07090004
Replaced By PSS11M
SET SCREW M6-1 X 16
N/A View Replacement
5 P07090005
Replaced By PSS14M
SET SCREW M8-1.25 X 12
N/A View Replacement
6 P07090006 SHAFT $32.25
7 P07090007 GEAR 51T $36.50
8 P07090008 SHIFT FORK $8.25
9 P07090009 O-RING 13.8 X 2.4 P14 $1.25
10 P07090010 HEADSTOCK CASTING $685.25
10-1 P07090010-1 HEADSTOCK COVER $125.00
10-2 P07090010-2 GASKET $11.00
10-3 P07090010-3 HEADSTOCK CONTROL PANEL PLATE W/ID LABEL $183.00
10-4 P07090010-4 HEADSTOCK OIL FILL PLUG $3.50
11 P07090011 GEARED SHAFT $48.50
12 P07090012
Replaced By PK20M
KEY 5 X 5 X 15
N/A View Replacement
13 P07090013 SHIFT CRANK $37.25
14 P07090014 SHIFT CLAW $11.00
15 P07090015
Replaced By PCAP45M
CAP SCREW M8-1.25 X 45
N/A View Replacement
16 P07090016
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
17 P07090017
Replaced By PCAP84M
CAP SCREW M10-1.5 X 35
N/A View Replacement
18 P07090018
Replaced By PSS14M
SET SCREW M8-1.25 X 12
N/A View Replacement
19 P07090019 TAPER PIN 6 X 60 $1.25
20 P07090020 O-RING 30 X 3.1 $1.25
21 P07090021 COVER V1 $32.25
21V2 P07090021V2 COVER V2.06.14 $42.00
22 P07090022
Replaced By PCAP48M
CAP SCREW M6-1 X 35
N/A View Replacement
23 P07090023
Replaced By PSS11M
SET SCREW M6-1 X 16
N/A View Replacement
25 P07090025 SHIFT CLAW $8.25
26 P07090026 SHAFT $20.25
27 P07090027 LEVER HUB $16.25
28 P07090028
Replaced By PSTB003M
STEEL BALL 6MM
N/A View Replacement
29 P07090029
Replaced By PCAP37M
CAP SCREW M6-1 X 50
N/A View Replacement
30 P07090030 HUB WASHER $1.25
31 P07090031 SPINDLE SPEED SHIFT LEVER V1 $20.25
31V2 P07090031V2 SPINDLE SPEED SHIFT LEVER V2.06.14 $26.50
32 P07090032 SHIFT BLOCK $24.25
33 P07090033
Replaced By PRP01M
ROLL PIN 4 X 18
N/A View Replacement
34 P07090034 O-RING 9.8 X 1.9 P10 $1.25
36 P07090036
Replaced By PFH21M
FLAT HD SCR M8-1.25 X 25
N/A View Replacement
37 P07090037 O-RING 19.8 X 2.4 P20 $1.75
38 P07090038
Replaced By PCAP18M
CAP SCREW M4-.7 X 8
N/A View Replacement
39 P07090039 HEADSTOCK RANGE SHIFT LEVER V1 $20.25
40 P07090040
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
41 P07090041
Replaced By PR15M
EXT RETAINING RING 30MM
N/A View Replacement

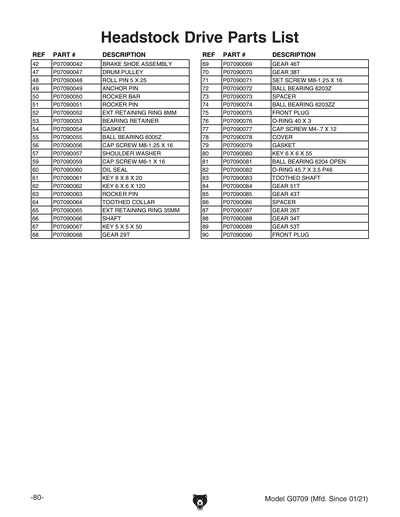

42 P07090042 BRAKE SHOE ASSEMBLY $36.50
43 P07090043 COMPRESSION SPRING $1.25
44 P07090044
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
45 P07090045 FEED DIRECTION LEVER $20.25
45V2 P07090045V2 FEED DIRECTION LEVER V2.09.12 $23.25
47 P07090047 DRUM PULLEY $54.75
48 P07090048
Replaced By PRP49M
ROLL PIN 5 X 25
N/A View Replacement
49 P07090049 ANCHOR PIN $4.25
50 P07090050 ROCKER BAR $6.25
51 P07090051 ROCKER PIN $6.25
52 P07090052
Replaced By PR39M
EXT RETAINING RING 8MM
N/A View Replacement
53 P07090053 BEARING RETAINER $30.75
54 P07090054 GASKET $4.75
55 P07090055
Replaced By P6005Z
BALL BEARING 6005Z
N/A View Replacement
56 P07090056
Replaced By PCAP11M
CAP SCREW M8-1.25 X 16
N/A View Replacement
57 P07090057 DOCK WASHER 8MM $2.25
59 P07090059
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
60 P07090060 OIL SEAL $4.75
61 P07090061
Replaced By PK107M
KEY 8 X 8 X 20
N/A View Replacement
62 P07090062
Replaced By PK50M
KEY 6 X 6 X 120
N/A View Replacement
63 P07090063 ROCKER PIN $4.25
64 P07090064 TOOTHED COLLAR $36.50
65 P07090065
Replaced By PR12M
EXT RETAINING RING 35MM
N/A View Replacement
66 P07090066 SHAFT $52.75
67 P07090067
Replaced By PK36M
KEY 5 X 5 X 50
N/A View Replacement
68 P07090068 GEAR 29T $36.50
69 P07090069 GEAR 46T $50.50
70 P07090070 GEAR 38T $36.50
71 P07090071
Replaced By PSS06M
SET SCREW M8-1.25 X 16
N/A View Replacement
72 P07090072
Replaced By P6204ZZ
BALL BEARING 6204ZZ
N/A View Replacement
73 P07090073 SPACER $4.25
74 P07090074
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
75 P07090075 FRONT PLUG $8.25
76 P07090076 O-RING 40 X 3 $1.25
77 P07090077
Replaced By PCAP23M
CAP SCREW M4-.7 X 12
N/A View Replacement
78 P07090078 COVER $28.25
79 P07090079 GASKET $3.25
80 P07090080
Replaced By PK49M
KEY 6 X 6 X 55
N/A View Replacement
81 P07090081
Replaced By P6204-OPEN
BALL BEARING 6204-OPEN
N/A View Replacement
82 P07090082 O-RING 45.7 X 3.5 P46 $1.25
83 P07090083 TOOTHED SHAFT $68.25
84 P07090084 GEAR 51T $50.50
85 P07090085 GEAR 43T $36.50
86 P07090086 SPACER $8.25
87 P07090087 GEAR 26T $28.25
88 P07090088 GEAR 34T $32.25
89 P07090089 GEAR 53T $52.50
90 P07090090 FRONT PLUG $4.25

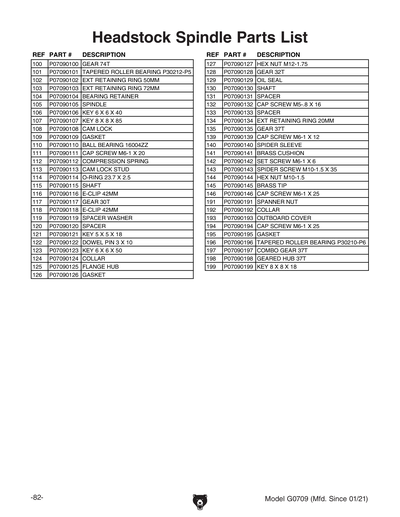

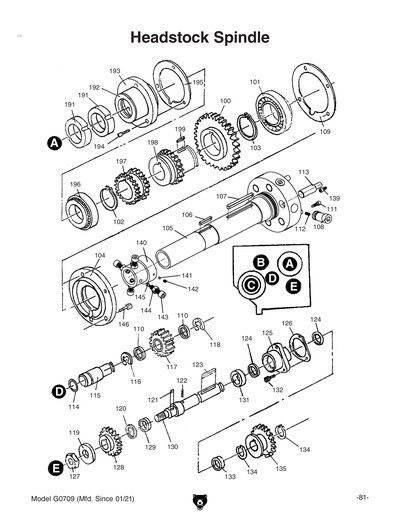

100 P07090100 GEAR 74T $72.75
101 P07090101
Replaced By P30212-P5-N
TAPERED ROLLER BEARING 30212 P5 NSK
N/A View Replacement
102 P07090102
Replaced By PR43M
EXT RETAINING RING 50MM
N/A View Replacement
103 P07090103
Replaced By PR44M
EXT RETAINING RING 72MM
N/A View Replacement
104 P07090104 BEARING RETAINER $36.50
105 P07090105 SPINDLE $604.50
106 P07090106
Replaced By PK11M
KEY 6 X 6 X 40
N/A View Replacement
107 P07090107
Replaced By PK167M
KEY 8 X 8 X 85
N/A View Replacement
108 P07090108 CAM LOCK $8.25
109 P07090109 GASKET $6.25
110 P07090110
Replaced By P16004ZZ
BALL BEARING 16004ZZ
N/A View Replacement
111 P07090111
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
112 P07090112 COMPRESSION SPRING $1.75
113 P07090113 CAM LOCK STUD $6.25
114 P07090114 O-RING 23.7 X 2.5 $1.25
115 P07090115 SHAFT $32.25
116 P07090116
Replaced By PEC20M
E-CLIP 42MM
N/A View Replacement
117 P07090117 GEAR 30T $36.50
118 P07090118
Replaced By PEC20M
E-CLIP 42MM
N/A View Replacement
119 P07090119 ***USE PW06M*** $3.25
120 P07090120 SPACER $2.25
121 P07090121
Replaced By PK14M
KEY 5 X 5 X 18
N/A View Replacement
122 P07090122 DOWEL PIN 3 X 10 $1.25
123 P07090123
Replaced By PK44M
KEY 6 X 6 X 50
N/A View Replacement
124 P07090124 COLLAR $4.25
125 P07090125 FLANGE HUB $24.25
126 P07090126 GASKET $4.50
127 P07090127
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
128 P07090128 GEAR 32T $36.50
129 P07090129 OIL SEAL $4.75
130 P07090130 SHAFT $65.25
131 P07090131 SPACER $4.25
132 P07090132
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
N/A View Replacement
133 P07090133 SPACER $4.25
134 P07090134
Replaced By PR09M
EXT RETAINING RING 20MM
N/A View Replacement
135 P07090135 GEAR 37T $40.50
139 P07090139
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
140 P07090140 SPIDER SLEEVE $46.50
141 P07090141 COPPER CUSHION $3.25
142 P07090142
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
143 P07090143 SPIDER SCREW M10-1.5 X 35 W/BRASS TIP $4.75
144 P07090144
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
145 P07090145 ***USE P07090143*** $2.81
146 P07090146
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
191 P07090191 SPANNER NUT $12.25
192 P07090192 COLLAR $8.25
193 P07090193 OUTBOARD COVER $20.25
194 P07090194
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
195 P07090195 GASKET $5.50
196 P07090196
Replaced By P30210-P6-N
TAPERED ROLLER BEARING 30210 P6 NSK
N/A View Replacement
197 P07090197 COMBO GEAR 37T $52.50
198 P07090198 GEARED HUB 37T $60.50
199 P07090199
Replaced By PK51M
KEY 8 X 8 X 18
N/A View Replacement
201 P07090201
Replaced By PN31M
HEX NUT M12-1.5
N/A View Replacement
202 P07090202
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement

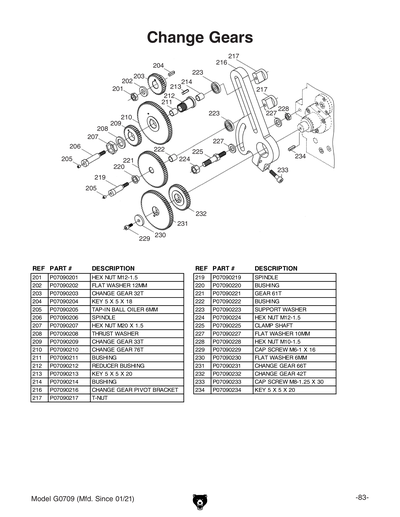

203 P07090203 CHANGE GEAR 32T $14.25
204 P07090204
Replaced By PK14M
KEY 5 X 5 X 18
N/A View Replacement
205 P07090205
Replaced By PLUBE001M
BALL OILER 6MM PRESS-IN
N/A View Replacement
206 P07090206 SPINDLE $6.25
207 P07090207
Replaced By PN17M
HEX NUT M20-1.5
N/A View Replacement
208 P07090208 DOCK WASHER 18MM $1.25
209 P07090209 CHANGE GEAR 33T $21.75
210 P07090210 CHANGE GEAR 76T $42.00
211 P07090211 BUSHING $4.25
212 P07090212 REDUCER BUSHING $11.00
213 P07090213
Replaced By PK34M
KEY 5 X 5 X 20
N/A View Replacement
214 P07090214 BUSHING $4.25
216 P07090216 CHANGE GEAR PIVOT BRACKET $32.25
217 P07090217 T-NUT $4.25
219 P07090219 SPINDLE $4.25
220 P07090220 BUSHING $4.25
221 P07090221 GEAR 61T $37.25
222 P07090222 BUSHING $4.25
223 P07090223
Replaced By PWF10M
FENDER WASHER 10MM
N/A View Replacement
224 P07090224
Replaced By PN31M
HEX NUT M12-1.5
N/A View Replacement
225 P07090225 CLAMP SHAFT $8.25
227 P07090227
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
228 P07090228
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
229 P07090229
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
230 P07090230
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
231 P07090231 CHANGE GEAR 66T $37.25
232 P07090232 CHANGE GEAR 42T $24.25
233 P07090233
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
N/A View Replacement
234 P07090234
Replaced By PK34M
KEY 5 X 5 X 20
N/A View Replacement

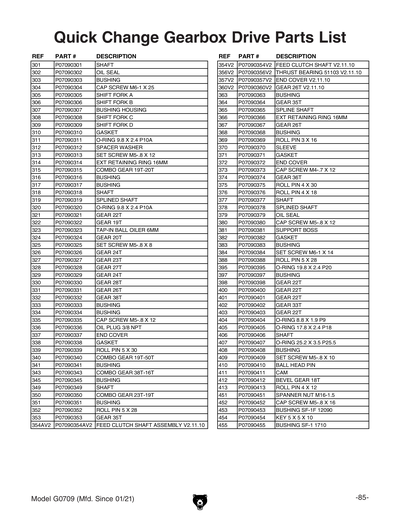

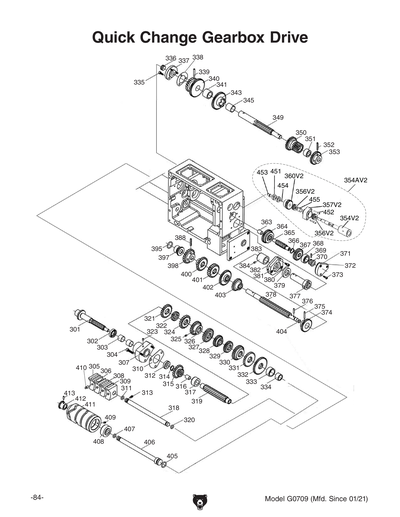

301 P07090301 SHAFT $52.75
302 P07090302 OIL SEAL $3.25
303 P07090303 BUSHING $4.25
304 P07090304
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
305 P07090305 SHIFT FORK A $8.25
306 P07090306 SHIFT FORK B $8.25
307 P07090307 BUSHING HOUSING $20.25
308 P07090308 SHIFT FORK C $8.25
309 P07090309 SHIFT FORK D $8.25
310 P07090310 GASKET $4.75
311 P07090311 O-RING 9.8 X 2.4 P10A $1.75
312 P07090312 DOCK WASHER $2.25
313 P07090313
Replaced By PSS53M
SET SCREW M5-.8 X 12
N/A View Replacement
314 P07090314
Replaced By PR06M
EXT RETAINING RING 16MM
N/A View Replacement
315 P07090315 COMBO GEAR 19T/20T $28.25
316 P07090316 BUSHING $4.25
317 P07090317 BUSHING $6.25
318 P07090318 SHAFT $32.25
319 P07090319 SPLINED SHAFT $40.50
320 P07090320 O-RING 9.8 X 2.4 P10A $1.25
321 P07090321 GEAR 22T $28.25
322 P07090322 GEAR 19T $24.25
323 P07090323
Replaced By PLUBE001M
BALL OILER 6MM PRESS-IN
N/A View Replacement
324 P07090324 GEAR 20T $28.25
325 P07090325
Replaced By PSS31M
SET SCREW M5-.8 X 8
N/A View Replacement
326 P07090326 GEAR 24T $28.25
327 P07090327 GEAR 23T $28.25
328 P07090328 GEAR 27T $28.25
329 P07090329 GEAR 24T $28.25
330 P07090330 GEAR 28T $28.25
331 P07090331 GEAR 26T $28.25
332 P07090332 GEAR 38T $32.25
333 P07090333 BUSHING $4.25
334 P07090334 BUSHING $4.25
335 P07090335
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
336 P07090336 OIL PLUG 3/8 NPT $3.25
337 P07090337 END COVER $24.25
338 P07090338 GASKET $4.75
339 P07090339
Replaced By PRP05M
ROLL PIN 5 X 30
N/A View Replacement
340 P07090340 COMBO GEAR 19T/50T $48.50
341 P07090341 BUSHING $4.25
342 P07090342 GASKET $5.50

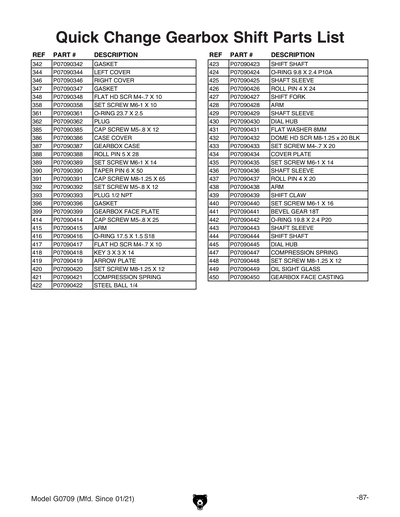

343 P07090343 COMBO GEAR 38T/16T $44.50
344 P07090344 LEFT COVER $28.25
345 P07090345 BUSHING $4.25
346 P07090346 RIGHT COVER $24.25
347 P07090347 GASKET $4.75
348 P07090348
Replaced By PFH19M
FLAT HD SCR M4-.7 X 10
N/A View Replacement
349 P07090349 SHAFT $40.50
350 P07090350 COMBO GEAR 23T/19T $44.50
351 P07090351 BUSHING $4.25
352 P07090352
Replaced By PRP27M
ROLL PIN 5 X 28
N/A View Replacement
353 P07090353 GEAR 35T $9.00
354 P07090354 FEED CLUTCH SHAFT V1 $32.25
354A P07090354A FEED CLUTCH SHAFT ASSEMBLY V1 $90.00
354AV2 P07090354AV2 FEED CLUTCH SHAFT ASSEMBLY V2.11.10 $90.00
354V2 P07090354V2 FEED CLUTCH SHAFT V2.11.10 $32.25
355 P07090355
Replaced By PRP27M
ROLL PIN 5 X 28
N/A View Replacement
356 P07090356 OIL SEAL V1 $16.25
356V2 P07090356V2 THRUST BEARING 51103 V2.11.10 $16.25
357 P07090357 SHOULDER BUSHING V1 $8.25
357V2 P07090357V2 END COVER V2.11.10 $14.00
358 P07090358
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
359 P07090359 GASKET $3.25
360 P07090360 GEAR 26T V1 $20.25
360V2 P07090360V2 GEAR 26T V2.11.10 $20.25
361 P07090361 O-RING 23.7 X 2.5 $1.75
362 P07090362 PLUG $4.25
363 P07090363 BUSHING $4.25
364 P07090364 GEAR 35T $32.25
365 P07090365 SPLINE SHAFT $32.25
366 P07090366
Replaced By PR06M
EXT RETAINING RING 16MM
N/A View Replacement
367 P07090367 GEAR 26T $28.25
368 P07090368 BUSHING $4.25
369 P07090369
Replaced By PRP02M
ROLL PIN 3 X 16
N/A View Replacement
370 P07090370 SLEEVE $8.25
371 P07090371 GASKET $4.75
372 P07090372 END COVER $24.25
373 P07090373
Replaced By PCAP23M
CAP SCREW M4-.7 X 12
N/A View Replacement
374 P07090374 GEAR 36T $32.25
375 P07090375
Replaced By PRP73M
ROLL PIN 4 X 30
N/A View Replacement
376 P07090376
Replaced By PRP01M
ROLL PIN 4 X 18
N/A View Replacement
377 P07090377 SHAFT $32.25
378 P07090378 SPLINED SHAFT $48.50
379 P07090379 OIL SEAL $3.25
380 P07090380
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
381 P07090381 SUPPORT BOSS $28.25
382 P07090382 GASKET $4.75
383 P07090383 BUSHING $4.25
384 P07090384
Replaced By PSS91M
SET SCREW M6-1 X 14
N/A View Replacement
385 P07090385
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
386 P07090386 CASE COVER $28.25
387 P07090387 GEARBOX CASE $181.50
387A P07090387A COMPLETE GEARBOX ASSEMBLY $1,751.50
388 P07090388
Replaced By PRP27M
ROLL PIN 5 X 28
N/A View Replacement
389 P07090389
Replaced By PSS91M
SET SCREW M6-1 X 14
N/A View Replacement
390 P07090390 TAPER PIN 6 X 50 $1.25
391 P07090391
Replaced By PCAP66M
CAP SCREW M8-1.25 X 65
N/A View Replacement
392 P07090392
Replaced By PSS53M
SET SCREW M5-.8 X 12
N/A View Replacement
393 P07090393 PLUG 1/2 NPT $4.25
395 P07090395 O-RING 19.8 X 2.4 P20 $1.25
396 P07090396 GASKET $9.50
397 P07090397 BUSHING $6.25
398 P07090398 GEAR 22T $37.25
399 P07090399 GEARBOX FACE PLATE $32.25
400 P07090400 GEAR 22T $28.25
401 P07090401 GEAR 22T $28.25
402 P07090402 GEAR 33T $28.25
403 P07090403 GEAR 22T $28.25
404 P07090404 O-RING 8.8 X 1.9 P9 $1.25
405 P07090405 O-RING 17.8 X 2.4 P18 $1.75
406 P07090406 SHAFT $32.25
407 P07090407 O-RING 25.2 X 3.5 P25.5 $1.75
408 P07090408 BUSHING $4.25
409 P07090409
Replaced By PSS05M
SET SCREW M5-.8 X 10
N/A View Replacement
410 P07090410 BALL HEAD PIN $1.25
411 P07090411 CAM $64.50
412 P07090412 BEVEL GEAR 18T $28.25
413 P07090413
Replaced By PRP18M
ROLL PIN 4 X 12
N/A View Replacement
414 P07090414
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
N/A View Replacement
415 P07090415 ARM $8.25
416 P07090416 O-RING 17.5 X 1.5 S18 $1.25
417 P07090417
Replaced By PFH19M
FLAT HD SCR M4-.7 X 10
N/A View Replacement
418 P07090418
Replaced By PK146M
KEY 3 X 3 X 14
N/A View Replacement
419 P07090419 ARROW PLATE 38MM $2.25
419-1 P07090419-1 ARROW PLATE UPPER - 52MM $3.50
420 P07090420
Replaced By PSS14M
SET SCREW M8-1.25 X 12
N/A View Replacement
421 P07090421 COMPRESSION SPRING $1.25
422 P07090422
Replaced By PSTB001
STEEL BALL 1/4
N/A View Replacement
423 P07090423 SHIFT SHAFT $6.25
424 P07090424 O-RING 9.8 X 2.4 P10A $1.25
425 P07090425 SHAFT SLEEVE $6.25
426 P07090426
Replaced By PRP04M
ROLL PIN 4 X 24
N/A View Replacement
427 P07090427 SHIFT FORK $11.00
428 P07090428 ARM $8.25
429 P07090429 SHAFT SLEEVE $6.25
430 P07090430 DIAL HUB $28.25
431 P07090431
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
432 P07090432 DOME HD SCR M8-1.25 X 20 BLK $1.25
433 P07090433
Replaced By PSS50M
SET SCREW M4-.7 X 20
N/A View Replacement
434 P07090434 COVER PLATE $3.25
435 P07090435
Replaced By PSS91M
SET SCREW M6-1 X 14
N/A View Replacement
436 P07090436 SHAFT SLEEVE $6.25
437 P07090437
Replaced By PRP39M
ROLL PIN 4 X 20
N/A View Replacement
438 P07090438 ARM $8.25
439 P07090439 SHIFT CLAW $8.25
440 P07090440
Replaced By PSS11M
SET SCREW M6-1 X 16
N/A View Replacement
441 P07090441 BEVEL GEAR 18T $28.25
442 P07090442 O-RING 19.8 X 2.4 P20 $1.75
443 P07090443 SHAFT SLEEVE $6.25
444 P07090444 SHIFT SHAFT $6.25
445 P07090445 DIAL HUB $28.25
447 P07090447 COMPRESSION SPRING $1.25
448 P07090448
Replaced By PSS14M
SET SCREW M8-1.25 X 12
N/A View Replacement
449 P07090449 OIL SIGHT GLASS $4.25
450 P07090450 GEARBOX FACE CASTING $80.75
451 P07090451 SPANNER NUT M16-1.5 $6.25
452 P07090452
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
N/A View Replacement
453 P07090453 BUSHING SF-1F 12090 $4.75
454 P07090454
Replaced By PK06M
KEY 5 X 5 X 10
N/A View Replacement
455 P07090455 BUSHING SF-1 1710 $4.75

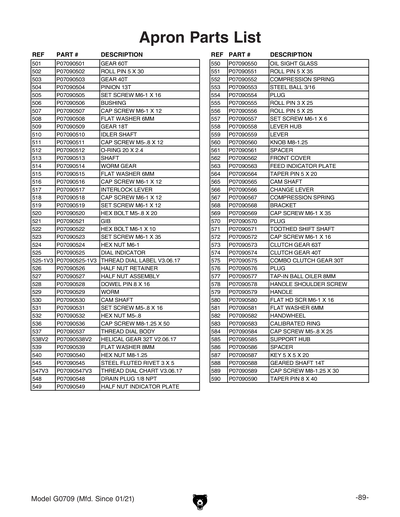

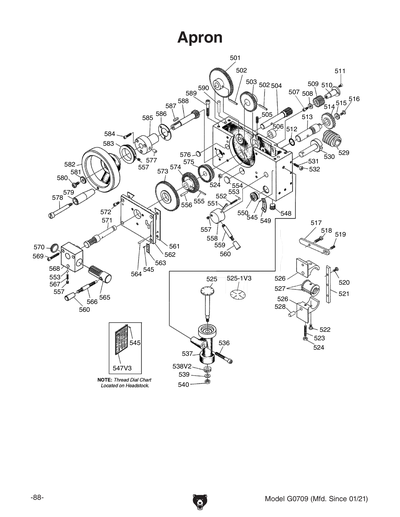

500 P07090500 APRON CASTING $262.00
501 P07090501 GEAR 60T $38.50
502 P07090502
Replaced By PRP05M
ROLL PIN 5 X 30
N/A View Replacement
503 P07090503 GEAR 40T $20.25
504 P07090504 PINION 13T $26.50
505 P07090505
Replaced By PSS11M
SET SCREW M6-1 X 16
N/A View Replacement
506 P07090506 BUSHING $4.25
507 P07090507
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
508 P07090508
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
509 P07090509 GEAR 18T $16.25
510 P07090510 IDLER SHAFT $10.25
511 P07090511
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
512 P07090512 O-RING 20 X 2.4 $1.75
513 P07090513 SHAFT $18.50
514 P07090514 WORM GEAR $38.75
515 P07090515
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
516 P07090516
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
517 P07090517 INTERLOCK LEVER $10.25
518 P07090518
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
519 P07090519
Replaced By PSS04M
SET SCREW M6-1 X 12
N/A View Replacement
520 P07090520
Replaced By PB42M
HEX BOLT M5-.8 X 20
N/A View Replacement
521 P07090521 GIB $10.25
522 P07090522
Replaced By PB04M
HEX BOLT M6-1 X 10
N/A View Replacement
523 P07090523
Replaced By PSS29M
SET SCREW M6-1 X 35
N/A View Replacement
524 P07090524
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
525 P07090525 DIAL INDICATOR $12.25
525-1 P07090525-1
*DISCD*THREAD DIAL LABEL V1
Item is no longer available
N/A
525-1V2 P07090525-1V2 THREADED DIAL LABEL V2.05.11 $3.25
525-1V3 P07090525-1V3 THREAD DIAL LABEL V3.06.17 $3.25
526 P07090526 HALF NUT RETAINER $20.25
527 P07090527 HALF NUT ASSEMBLY $52.75
528 P07090528 DOWEL PIN 8 X 16 $1.25
529 P07090529 WORM $20.25
530 P07090530 CAM SHAFT $18.50
531 P07090531
Replaced By PSS34M
SET SCREW M5-.8 X 16
N/A View Replacement
532 P07090532
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
536 P07090536
Replaced By PCAP05M
CAP SCREW M8-1.25 X 50
N/A View Replacement
537 P07090537 THREAD DIAL BODY $26.50
538 P07090538 HELICAL GEAR 24T V1 $28.00
538V2 P07090538V2 HELICAL GEAR 32T V2.06.17 $20.25
539 P07090539
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
540 P07090540
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
545 P07090545
Replaced By PRIV014M
RIVET 5 X 20MM BLIND, STEEL
N/A View Replacement
547 P07090547
*DISCD*THREAD DIAL CHART V1
Item is no longer available
N/A
547V2 P07090547V2 THREAD DIAL CHART V2.05.11 $7.75
547V3 P07090547V3 THREAD DIAL CHART V3.06.17 $6.25
548 P07090548 DRAIN PLUG 1/8 NPT $2.25
549 P07090549 HALF NUT INDICATOR PLATE $2.25
550 P07090550 OIL SIGHT GLASS $5.50
551 P07090551
Replaced By PRP91M
ROLL PIN 5 X 35
N/A View Replacement
552 P07090552 COMPRESSION SPRING $1.25
553 P07090553
Replaced By PSTB004
STEEL BALL 3/16
N/A View Replacement
554 P07090554 PLUG $3.25
555 P07090555
Replaced By PRP16M
ROLL PIN 3 X 25
N/A View Replacement
556 P07090556
Replaced By PRP49M
ROLL PIN 5 X 25
N/A View Replacement
557 P07090557
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
558 P07090558 LEVER HUB $9.00
559 P07090559 LEVER $4.25
560 P07090560
Replaced By P07090566
CHANGE LEVER W/KNOB M8-1.25
N/A View Replacement
561 P07090561 SPACER $4.25
562 P07090562 FRONT COVER $24.25
563 P07090563 FEED INDICATOR PLATE $2.25
564 P07090564 TAPER PIN 5 X 20 $1.25
565 P07090565 CAM SHAFT $16.25
566 P07090566 CHANGE LEVER W/KNOB M8-1.25 $4.25
567 P07090567 COMPRESSION SPRING $1.25
568 P07090568 BRACKET $24.25
569 P07090569
Replaced By PCAP48M
CAP SCREW M6-1 X 35
N/A View Replacement
570 P07090570 PLUG $1.25
571 P07090571 TOOTHED SHIFT SHAFT $32.25
572 P07090572
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
573 P07090573 CLUTCH GEAR 63T $24.25
574 P07090574 CLUTCH GEAR 40T $20.25
575 P07090575 COMBO CLUTCH GEAR 30T $28.25
576 P07090576 PLUG $1.25
577 P07090577
Replaced By PLUBE002M
BALL OILER 8MM PRESS-IN
N/A View Replacement
578 P07090578 HANDLE SHOULDER SCREW $4.25
579 P07090579 HANDLE $6.25
580 P07090580
Replaced By PFH38M
FLAT HD SCR M6-1 X 16
N/A View Replacement
581 P07090581
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
582 P07090582 HANDWHEEL $42.00
583 P07090583 CALIBRATED RING $18.50
584 P07090584
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
N/A View Replacement
585 P07090585 SUPPORT HUB $20.25
586 P07090586 SPACER $3.25
587 P07090587
Replaced By PK34M
KEY 5 X 5 X 20
N/A View Replacement
588 P07090588 GEARED SHAFT 14T $26.50
589 P07090589
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
N/A View Replacement
590 P07090590 TAPER PIN 8 X 40 $1.25

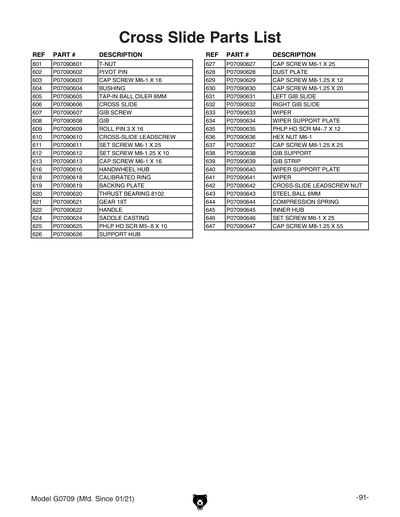

601 P07090601 T-NUT $1.25
602 P07090602 PIVOT PIN $4.75
603 P07090603
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
604 P07090604 BUSHING $2.25
605 P07090605
Replaced By PLUBE002M
BALL OILER 8MM PRESS-IN
N/A View Replacement

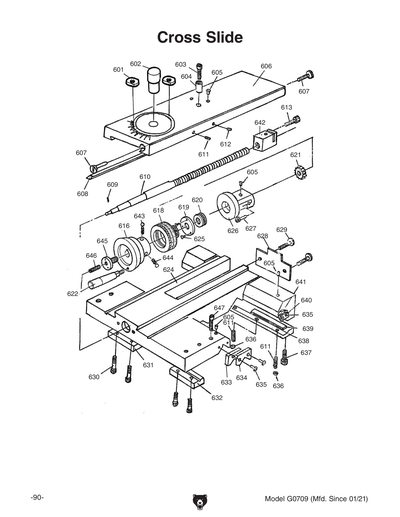

606 P07090606 CROSS SLIDE $121.00
606-1 P07090606-1 CROSS SLIDE SCALE $6.25
607 P07090607 GIB SCREW $3.25
608 P07090608 GIB $34.25
609 P07090609
Replaced By PRP02M
ROLL PIN 3 X 16
N/A View Replacement
610 P07090610 CROSS-SLIDE LEADSCREW $62.00
611 P07090611
Replaced By PSS12M
SET SCREW M6-1 X 25
N/A View Replacement
612 P07090612
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
613 P07090613
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
616 P07090616 HANDWHEEL HUB $20.25
618 P07090618 CALIBRATED RING $24.25
619 P07090619 SPACER $8.25
620 P07090620
Replaced By P8102
THRUST BEARING 8102
N/A View Replacement
621 P07090621 GEAR 19T $12.25
622 P07090622 HANDLE $5.50
624 P07090624 SADDLE CASTING $418.50
625 P07090625
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
626 P07090626 SUPPORT HUB $26.50
627 P07090627
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
628 P07090628 DUST PLATE $6.25
629 P07090629
Replaced By PCAP58M
CAP SCREW M8-1.25 X 12
N/A View Replacement
630 P07090630
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
631 P07090631 LEFT GIB SLIDE $15.50
632 P07090632 GIB/CARRIAGE LOCK $11.00
633 P07090633 WIPER, RIGHT $4.25
633-1 P07090633-1 WIPER, LEFT $6.25
634 P07090634 WIPER SUPPORT PLATE, RIGHT $4.25
634-1 P07090634-1 WIPER SUPPORT PLATE, LEFT $6.25
635 P07090635
Replaced By PS02M
PHLP HD SCR M4-.7 X 12
N/A View Replacement
636 P07090636
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
637 P07090637
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
638 P07090638 GIB SUPPORT $38.75
639 P07090639 GIB STRIP $9.50
640 P07090640 WIPER SUPPORT PLATE $6.25
641 P07090641 WIPER $4.25
642 P07090642 CROSS-SLIDE LEADSCREW NUT $42.00
643 P07090643
Replaced By PSTB003M
STEEL BALL 6MM
N/A View Replacement
644 P07090644 COMPRESSION SPRING $1.25
645 P07090645
Replaced By P07090715
INNER HUB
N/A View Replacement
646 P07090646
Replaced By PSS12M
SET SCREW M6-1 X 25
N/A View Replacement
647 P07090647
Replaced By PCAP60M
CAP SCREW M8-1.25 X 55
N/A View Replacement

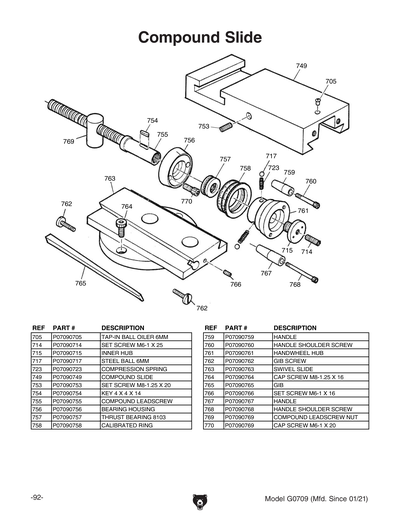

705 P07090705
Replaced By PLUBE001M
BALL OILER 6MM PRESS-IN
N/A View Replacement
714 P07090714
Replaced By PSS12M
SET SCREW M6-1 X 25
N/A View Replacement
715 P07090715 INNER HUB $2.25
717 P07090717
Replaced By PSTB003M
STEEL BALL 6MM
N/A View Replacement
723 P07090723 COMPRESSION SPRING $1.25
749 P07090749 COMPOUND SLIDE $131.75
753 P07090753
Replaced By PSS09M
SET SCREW M8-1.25 X 20
N/A View Replacement
754 P07090754
Replaced By PK97M
KEY 4 X 4 X 14
N/A View Replacement
755 P07090755 COMPOUND LEADSCREW $36.50
756 P07090756 BEARING HOUSING $16.25
757 P07090757
Replaced By P8103
THRUST BEARING 8103
N/A View Replacement
758 P07090758 CALIBRATED RING $20.25
759 P07090759 HANDLE $4.25
760 P07090760 HANDLE SHOULDER SCREW $4.25
761 P07090761 HANDWHEEL HUB $20.25
762 P07090762 GIB SCREW $3.25
763 P07090763 SWIVEL SLIDE $100.75
764 P07090764
Replaced By PCAP11M
CAP SCREW M8-1.25 X 16
N/A View Replacement
765 P07090765 GIB $10.25
766 P07090766
Replaced By PSS11M
SET SCREW M6-1 X 16
N/A View Replacement
767 P07090767 HANDLE $4.25
768 P07090768 HANDLE SHOULDER SCREW $4.25
769 P07090769 COMPOUND LEADSCREW NUT $31.00

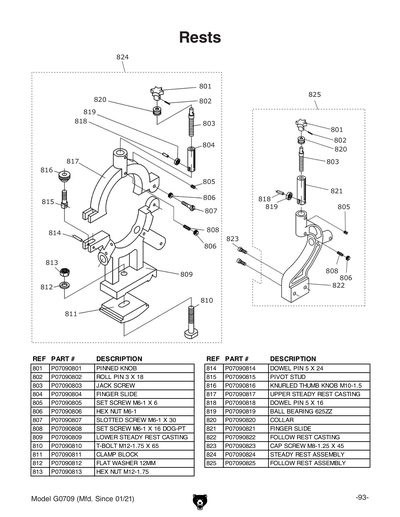

801 P07090801 PINNED KNOB $4.25
802 P07090802
Replaced By PRP64M
ROLL PIN 3 X 18
N/A View Replacement
803 P07090803 JACK SCREW $10.25
804 P07090804 FINGER SLIDE $21.75
805 P07090805
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
806 P07090806
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
807 P07090807 SLOTTED SCREW M6-1 X 30 $1.25
808 P07090808
Replaced By PSS121M
SET SCREW M6-1 X 16 DOG-PT
N/A View Replacement
809 P07090809 LOWER STEADY REST CASTING $40.50
810 P07090810 T-BOLT M12-1.75 X 65 $4.75
811 P07090811 CLAMP BLOCK $21.75
812 P07090812
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
813 P07090813
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
814 P07090814 DOWEL PIN 5 X 24 $1.25
815 P07090815 PIVOT STUD $3.25
816 P07090816 KNURLED THUMB KNOB M10-1.5 $3.25
817 P07090817 UPPER STEADY REST CASTING $32.25
818 P07090818 DOWEL PIN 5 X 16 $2.50
819 P07090819
Replaced By G3848
Bearing - 16mm x 5mm
N/A View Replacement
820 P07090820 COLLAR $4.25
821 P07090821 FINGER SLIDE $21.75
822 P07090822 FOLLOW REST CASTING $40.50
823 P07090823
Replaced By PCAP45M
CAP SCREW M8-1.25 X 45
N/A View Replacement
824 P07090824 STEADY REST ASSEMBLY $109.00
825 P07090825 FOLLOW REST ASSEMBLY $84.75

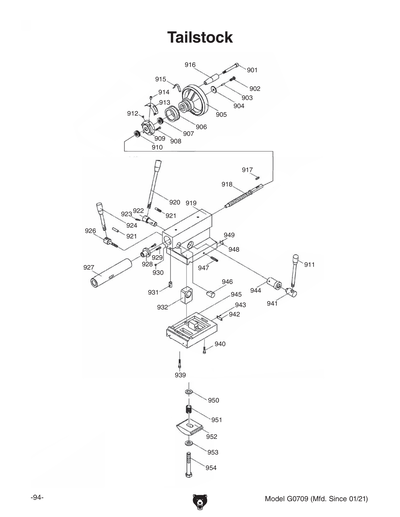

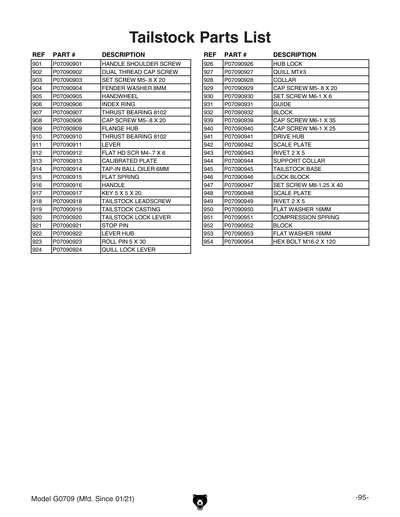

900 P07090900 COMPLETE TAILSTOCK ASSEMBLY $480.50
901 P07090901 HANDLE SHOULDER SCREW $4.25
902 P07090902 HOLLOW-THREAD SPANNER SCREW $1.75
903 P07090903
Replaced By PSS57M
SET SCREW M5-.8 X 20
N/A View Replacement
904 P07090904
Replaced By PWF08M
FENDER WASHER 8MM
N/A View Replacement
905 P07090905 HANDWHEEL $24.25
906 P07090906 INDEX RING $18.75
907 P07090907
Replaced By P8102
THRUST BEARING 8102
N/A View Replacement
908 P07090908
Replaced By PCAP15M
CAP SCREW M5-.8 X 20
N/A View Replacement
909 P07090909 FLANGE HUB $14.50
910 P07090910
Replaced By P8102
THRUST BEARING 8102
N/A View Replacement
911 P07090911 LEVER $6.25
912 P07090912
Replaced By PFH27M
FLAT HD SCR M4-.7 X 6
N/A View Replacement
913 P07090913 CALIBRATED PLATE $3.25
914 P07090914
Replaced By PLUBE001M
BALL OILER 6MM PRESS-IN
N/A View Replacement
915 P07090915 FLAT SPRING $1.75
916 P07090916 HANDLE $4.25
917 P07090917
Replaced By PK34M
KEY 5 X 5 X 20
N/A View Replacement
918 P07090918 TAILSTOCK LEADSCREW $36.50
919 P07090919 TAILSTOCK CASTING $193.50
920 P07090920 TAILSTOCK LOCK LEVER $8.25
921 P07090921 STOP PIN $1.25
922 P07090922 LEVER HUB $4.25
923 P07090923
Replaced By PRP05M
ROLL PIN 5 X 30
N/A View Replacement
924 P07090924 QUILL LOCK LEVER $6.25
926 P07090926 HUB LOCK $4.25
927 P07090927 QUILL MT#3 $76.00
928 P07090928 COLLAR $18.50
929 P07090929
Replaced By PCAP15M
CAP SCREW M5-.8 X 20
N/A View Replacement
930 P07090930
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
931 P07090931 GUIDE $1.25
932 P07090932 BLOCK $4.25
933 P07090933
*DISCD*V-WIPER
Item is no longer available
N/A
934 P07090934
*DISCD*WIPER RETAINING PLATE
Item is no longer available
N/A
935 P07090935
Replaced By PS02M
PHLP HD SCR M4-.7 X 12
N/A View Replacement
936 P07090936
Replaced By PCAP23M
CAP SCREW M4-.7 X 12
N/A View Replacement
937 P07090937
*DISCD*WIPER RETAINING PLATE
Item is no longer available
N/A
938 P07090938
*DISCD*FLAT WIPER
Item is no longer available
N/A
939 P07090939
Replaced By PCAP48M
CAP SCREW M6-1 X 35
N/A View Replacement
940 P07090940
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
941 P07090941 DRIVE HUB $4.25
942 P07090942 SCALE PLATE $1.25
943 P07090943
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
N/A View Replacement
944 P07090944 SUPPORT COLLAR $6.25
945 P07090945 TAILSTOCK BASE $88.75
946 P07090946 LOCK BLOCK $4.25
947 P07090947
Replaced By PSS44M
SET SCREW M8-1.25 X 40
N/A View Replacement
948 P07090948 SCALE PLATE $1.25
949 P07090949
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
N/A View Replacement
950 P07090950
Replaced By PW08M
FLAT WASHER 16MM
N/A View Replacement
951 P07090951 COMPRESSION SPRING $1.25
952 P07090952 BLOCK $18.75
953 P07090953
Replaced By PW08M
FLAT WASHER 16MM
N/A View Replacement
954 P07090954
Replaced By PB113M
HEX BOLT M16-2 X 120
N/A View Replacement

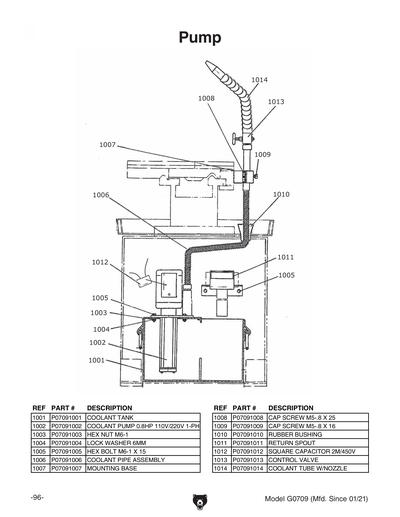

1001 P07091001 COOLANT TANK $60.50
1002 P07091002 COOLANT PUMP 0.8HP 110V/220V 1PH $242.00
1002-1 P07091002-1 COOLANT PUMP WIRE HARNESS $11.00
1003 P07091003
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
1004 P07091004
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
1005 P07091005
Replaced By PB18M
HEX BOLT M6-1 X 15
N/A View Replacement
1006 P07091006 COOLANT PIPE ASSEMBLY $49.75
1007 P07091007 MOUNTING BASE $20.25
1008 P07091008
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
N/A View Replacement
1009 P07091009
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
N/A View Replacement
1010 P07091010 RUBBER BUSHING $4.25
1011 P07091011 RETURN SPOUT $28.25
1012 P07091012 SQUARE CAPACITOR 2M 450V $16.25
1013 P07091013 CONTROL VALVE $20.25
1014 P07091014 COOLANT TUBE W/NOZZLE $42.00

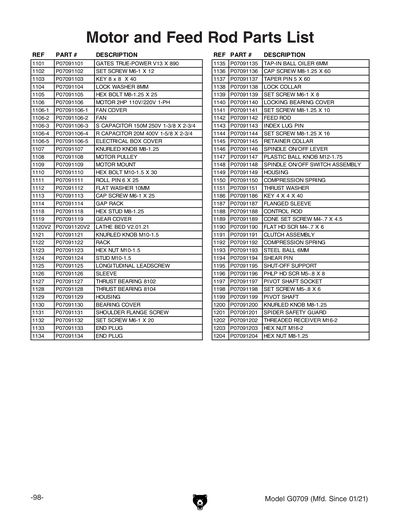

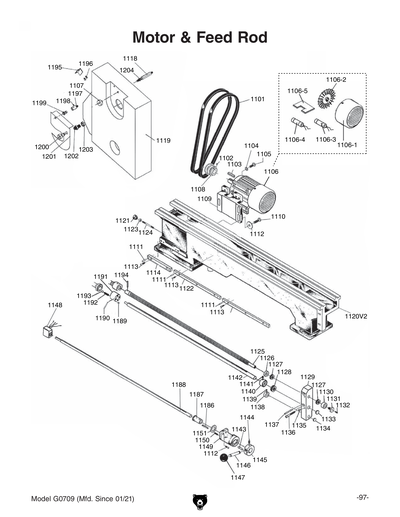

1101 P07091101 V-BELT GATES TRUE-POWER V13 X 890 $24.25
1102 P07091102
Replaced By PSS04M
SET SCREW M6-1 X 12
N/A View Replacement
1103 P07091103
Replaced By PK41M
KEY 8 X 8 X 40
N/A View Replacement
1104 P07091104
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
1105 P07091105
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
1106 P07091106 MOTOR 2HP 110V/220V 1-PH $605.25
1106-1 P07091106-1 FAN COVER $32.25
1106-2 P07091106-2 FAN $36.50
1106-3 P07091106-3
Replaced By PC150D
S CAPACITOR 150M 250V 1-21/32 X 3-1/8
N/A View Replacement
1106-4 P07091106-4
Replaced By PC20A
R CAPACITOR 20M 400V 1-5/8 X 2-3/4
N/A View Replacement
1106-5 P07091106-5 ELECTRICAL BOX COVER $25.00
1106-6 P07091106-6 MOTOR CORD 12G 5W 24" $9.50
1106-7 P07091106-7 JUNCTION BOX $21.75
1107 P07091107 KNURLED KNOB M8-1.25 $1.75
1108 P07091108 MOTOR PULLEY $44.50
1109 P07091109 MOTOR MOUNT $52.50
1110 P07091110
Replaced By PB01M
HEX BOLT M10-1.5 X 30
N/A View Replacement
1111 P07091111
Replaced By PRP93M
ROLL PIN 6 X 25
N/A View Replacement
1112 P07091112
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
1113 P07091113
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
1114 P07091114 GAP RACK $16.25
1115 P07091115 GAP INSERT $121.00
1116 P07091116
Replaced By PCAP47M
CAP SCREW M10-1.5 X 40
N/A View Replacement
1117 P07091117 TAPER PIN 8 X 60 $1.25
1118 P07091118 STANDOFF- HEX STUD M8-1.25 $1.25
1119 P07091119 GEAR COVER $242.00
1120 P07091120 LATHE BED $1,813.50
1120V2 P07091120V2 LATHE BED V2.01.21 $2,123.50
1121 P07091121 KNURLED KNOB M10-1.5 $3.25
1122 P07091122
Replaced By P08241022
RACK
N/A View Replacement
1123 P07091123
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
1124 P07091124 STUD- UDE M8-1.25 X 140 12 37 $1.25
1125 P07091125 LONGITUDINAL LEADSCREW $248.00
1126 P07091126 SLEEVE $4.25
1127 P07091127
Replaced By P8102
THRUST BEARING 8102
N/A View Replacement
1128 P07091128
Replaced By P8104
THRUST BEARING 8104
N/A View Replacement
1129 P07091129 HOUSING $48.50
1130 P07091130 BEARING COVER $4.25
1131 P07091131 SHOULDER FLANGE SCREW $3.25
1132 P07091132
Replaced By PSS25M
SET SCREW M6-1 X 20
N/A View Replacement
1133 P07091133 END PLUG $1.75
1134 P07091134 END PLUG $1.25
1135 P07091135
Replaced By PLUBE001M
BALL OILER 6MM PRESS-IN
N/A View Replacement
1136 P07091136
Replaced By PCAP35M
CAP SCREW M8-1.25 X 60
N/A View Replacement
1137 P07091137 TAPER PIN 5 X 60 $1.25
1138 P07091138 LOCK COLLAR $4.25
1139 P07091139
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
1140 P07091140 LOCKING BEARING COVER $4.25
1141 P07091141
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
1142 P07091142 FEED ROD $68.75
1143 P07091143
Replaced By P07091145
RETAINER COLLAR W/ LUG PIN
N/A View Replacement
1144 P07091144
Replaced By PSS06M
SET SCREW M8-1.25 X 16
N/A View Replacement
1145 P07091145 RETAINER COLLAR W/ LUG PIN $4.25
1146 P07091146 SPINDLE ON/OFF LEVER $4.25
1147 P07091147 PLASTIC BALL KNOB M12-1.75 $3.25
1148 P07091148
Replaced By P0750G0331
SPINDLE ON/OFF SWITCH
N/A View Replacement
1149 P07091149 HOUSING $37.25
1150 P07091150 COMPRESSION SPRING $1.25
1151 P07091151 FENDER WASHER 24MM $1.25
1186 P07091186
Replaced By PK68M
KEY 4 X 4 X 40
N/A View Replacement
1187 P07091187 FLANGED SLEEVE $4.25
1188 P07091188 CONTROL ROD $68.75
1189 P07091189
Replaced By PRP28M
ROLL PIN 5 X 40
N/A View Replacement
1190 P07091190
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
1191 P07091191 CLUTCH ASSEMBLY $18.25
1192 P07091192 COMPRESSION SPRING $1.25
1193 P07091193
Replaced By PSTB003M
STEEL BALL 6MM
N/A View Replacement
1194 P07091194 SHEAR PIN $1.25
1195 P07091195
*DISCD*SHUT-OFF SUPPORT
Item is no longer available
N/A
1196 P07091196
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
1197 P07091197 PIVOT SHAFT SOCKET $3.25
1198 P07091198
Replaced By PSS26M
SET SCREW M5-.8 X 6
N/A View Replacement
1199 P07091199
Replaced By P07091201
SPIDER SAFETY GUARD W/ PIVOT SHAFT
N/A View Replacement
1200 P07091200 KNURLED KNOB M8-1.25 $3.25
1201 P07091201 SPIDER SAFETY GUARD W/ PIVOT SHAFT $36.50
1202 P07091202 THREADED RECEIVER M16-2 $1.25
1203 P07091203
Replaced By PN13M
HEX NUT M16-2
N/A View Replacement
1204 P07091204
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement

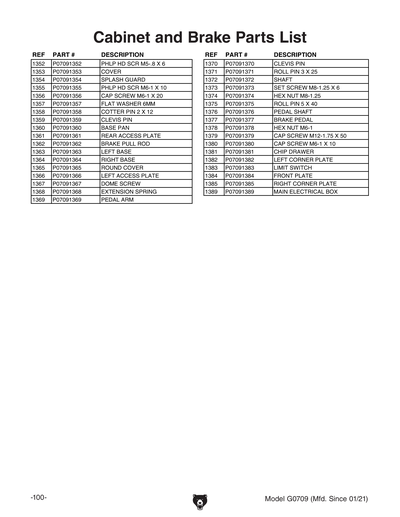

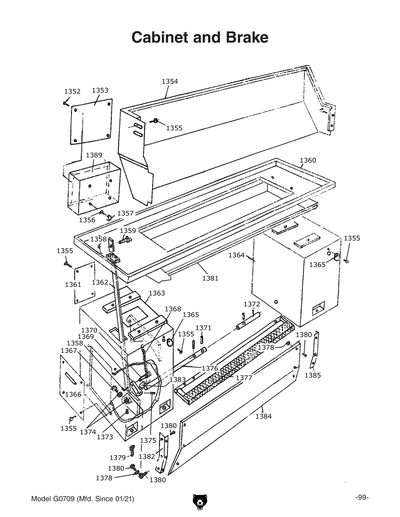

1352 P07091352
Replaced By PS19M
PHLP HD SCR M5-.8 X 6
N/A View Replacement
1353 P07091353 COVER $20.25
1354 P07091354 SPLASH GUARD $300.75
1355 P07091355
Replaced By PS68M
PHLP HD SCR M6-1 X 10
N/A View Replacement
1356 P07091356
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
1357 P07091357
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
1358 P07091358 COTTER PIN 2 X 12 $1.25
1359 P07091359 CLEVIS PIN $2.25
1360 P07091360 BASE PAN $248.00
1361 P07091361 REAR ACCESS PLATE $20.25
1362 P07091362 BRAKE PULL ROD $28.25
1363 P07091363 LEFT BASE $967.25
1364 P07091364 RIGHT BASE $846.50
1365 P07091365 ROUND COVER $2.25
1366 P07091366 LEFT ACCESS PLATE $47.25
1367 P07091367 DOME SCREW $2.25
1368 P07091368 EXTENSION SPRING $12.25
1369 P07091369 PEDAL ARM $12.25
1370 P07091370 CLEVIS PIN $2.25
1371 P07091371
Replaced By PRP16M
ROLL PIN 3 X 25
N/A View Replacement
1372 P07091372 SHAFT $12.25
1373 P07091373
Replaced By PSS17M
SET SCREW M8-1.25 X 6
N/A View Replacement
1374 P07091374
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
1375 P07091375
Replaced By PRP28M
ROLL PIN 5 X 40
N/A View Replacement
1376 P07091376 PEDAL SHAFT $36.50
1377 P07091377 BRAKE PEDAL $44.50
1378 P07091378
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
1379 P07091379
Replaced By PCAP73M
CAP SCREW M12-1.75 X 50
N/A View Replacement
1380 P07091380
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
1381 P07091381 CHIP DRAWER $161.25
1382 P07091382 LEFT CORNER PLATE $32.25
1383 P07091383 LIMIT SWITCH $20.25
1384 P07091384 FRONT PLATE $56.50
1385 P07091385 RIGHT CORNER PLATE $32.25

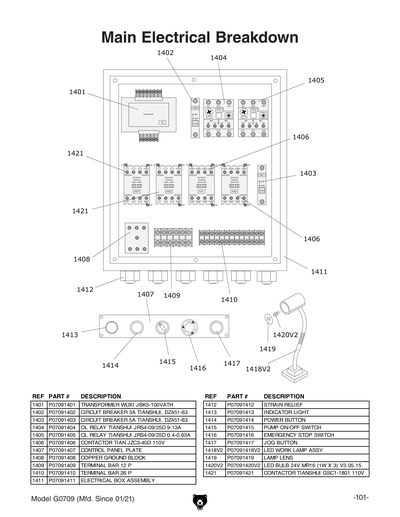

1389 P07091389 MAIN ELECTRICAL BOX $105.50
1401 P07091401 TRANSFORMER JBK5 100 VA 110/400V-24/110V $167.50
1402 P07091402 CIRCUIT BREAKER 3A HUIL DZ451-63 C3 1P $6.25
1403 P07091403
Replaced By P4003G1203
CIRCUIT BREAKER 5A HUIL DZ451-63 C5 1P
N/A View Replacement
1404 P07091404
Replaced By P4003G1204
OL RELAY TIANSHUI JRS4-09 25D 9-13A
N/A View Replacement
1405 P07091405 OL RELAY TIANSHUI JRS4-09/25D 0.4-0.63A $93.00
1406 P07091406 CONTACTOR TIAN JZC3-40D 110V $40.50
1407 P07091407 CONTROL PANEL PLATE $8.25
1408 P07091408 COPPER GROUND BLOCK $8.25
1409 P07091409 TERMINAL BAR 12P $24.25
1410 P07091410 TERMINAL BAR 26P $24.25
1411 P07091411 ELECTRICAL BOX ASSEMBLY $786.00
1412 P07091412 STRAIN RELIEF M20 TYPE-6 ST $12.25
1413 P07091413
Replaced By P4002002
POWER INDICATOR LIGHT HUI XD103 22MM GRN
N/A View Replacement
1414 P07091414 POWER BUTTON $8.25
1415 P07091415 PUMP ON/OFF SWITCH $22.25
1416 P07091416 EMERGENCY STOP SWITCH $20.25
1417 P07091417 JOG BUTTON HUI LA103 22MM BLK $25.00
1418 P07091418 WORK LAMP ASSEMBLY V1 $44.15
1418V2 P07091418V2
Replaced By P4003G1215V2
LED WORK LAMP ASSY.
N/A View Replacement
1419 P07091419 LAMP LENS $5.75
1420 P07091420
Replaced By PBULB3
HALOGEN BULB 50W 24V BI-PIN
N/A View Replacement
1420V2 P07091420V2
Replaced By P4003G1215-3V3
LED BULB 24V MR16 (1W X 3) V3.05.15
N/A View Replacement
1421 P07091421 CONTACTOR TIANSHUI GSC1-1801 110V $83.75

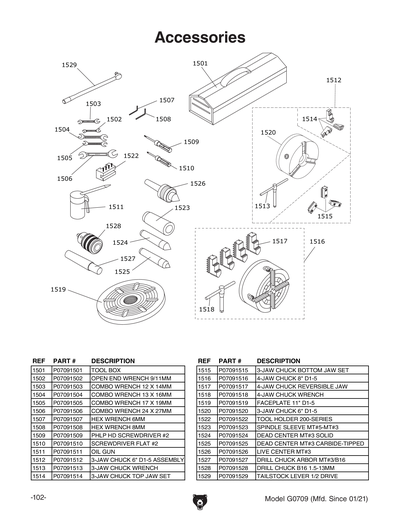

1501 P07091501 TOOL BOX $36.50
1502 P07091502
Replaced By PWR911
WRENCH 9 X 11MM OPEN-ENDS
N/A View Replacement
1503 P07091503
Replaced By PWR1214
WRENCH 12 X 14MM OPEN-ENDS
N/A View Replacement
1504 P07091504
Replaced By PWR1316
WRENCH 13 X 16MM OPEN-ENDS
N/A View Replacement
1505 P07091505
Replaced By PWR1719
WRENCH 17 X 19MM OPEN-ENDS
N/A View Replacement
1506 P07091506
Replaced By PWR2427
WRENCH 24 X 27MM OPEN-ENDS
N/A View Replacement
1507 P07091507
Replaced By PAW06M
HEX WRENCH 6MM
N/A View Replacement
1508 P07091508
Replaced By PAW08M
HEX WRENCH 8MM
N/A View Replacement
1509 P07091509
Replaced By PSDP2
SCREWDRIVER PHILLIPS #2
N/A View Replacement
1510 P07091510
Replaced By PSDF2
SCREWDRIVER FLAT #2
N/A View Replacement
1511 P07091511 OIL GUN $6.25
1512 P07091512 CHUCK 3-JAW 6" D1-5 ASSEMBLY $406.25
1513 P07091513 CHUCK 3-JAW WRENCH $25.00
1514 P07091514
Replaced By P4003G0036-1
3-JAW CHUCK TOP JAW SET
N/A View Replacement
1515 P07091515
Replaced By P4003G0036-2
3-JAW CHUCK BOTTOM JAW SET
N/A View Replacement
1516 P07091516 CHUCK 4-JAW 8" D1-5 $480.50
1517 P07091517 CHUCK 4-JAW REVERSIBLE JAW $127.25
1518 P07091518 CHUCK 4-JAW WRENCH $20.25
1519 P07091519 FACEPLATE 11" D1-5 $139.50
1520 P07091520
Replaced By P4003G0036-3
3-JAW CHUCK BODY 6"
N/A View Replacement
1522 P07091522 TOOL HOLDER 200-SERIES $40.50
1523 P07091523 SPINDLE SLEEVE MT#5-MT#3 $42.00
1524 P07091524 DEAD CENTER MT#3 SOLID $16.25
1525 P07091525
Replaced By P4003G0024
DEAD CENTER MT#3 CARBIDE TIPPED
N/A View Replacement
1526 P07091526 LIVE CENTER MT#3 $60.50
1527 P07091527 DRILL CHUCK ARBOR MT#3/B16 $16.25
1528 P07091528 DRILL CHUCK B16 1.5-13MM $28.25
1529 P07091529 TAILSTOCK LEVER 1/2 DRIVE $16.25
1530 P07091530 TOOL HOLDER WRENCH $16.25

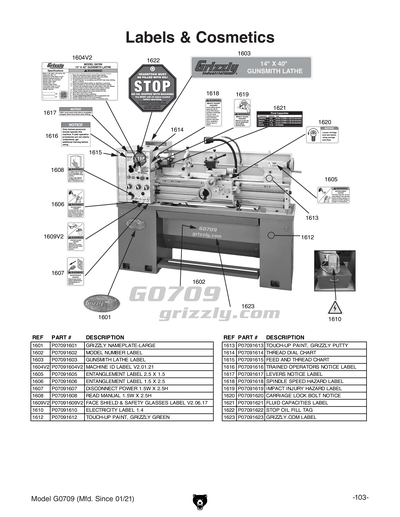

1601 P07091601
Replaced By G8589
Name Plates - Large
N/A View Replacement
1602 P07091602 MODEL NUMBER LABEL $20.25
1603 P07091603 GUNSMITH LATHE LABEL $11.00
1604 P07091604
Replaced By P07090010-3
HEADSTOCK CONTROL PANEL PLATE W/ID LABEL
N/A View Replacement
1605 P07091605
Replaced By PSBLABEL08HS
ENTANGLEMENT LABEL 2.5 X 1.5
N/A View Replacement
1606 P07091606
Replaced By PSBLABEL08VS
ENTANGLEMENT LABEL 1.5 X 2.5
N/A View Replacement
1607 P07091607
Replaced By PLABEL-53A
DISCONNECT HARDWIRED POWER 1.5W X 2.5H
N/A View Replacement
1608 P07091608
Replaced By PLABEL-12C
READ MANUAL 1.5W X 2.5H
N/A View Replacement
1609 P07091609
Replaced By PLABEL-11B
SAFETY GLASSES 1.5W X 2.5H
N/A View Replacement
1609V2 P07091609V2
Replaced By PLABEL-88A
FACE SHIELD & SAFETY GLASSES 2W X 3.3H
N/A View Replacement

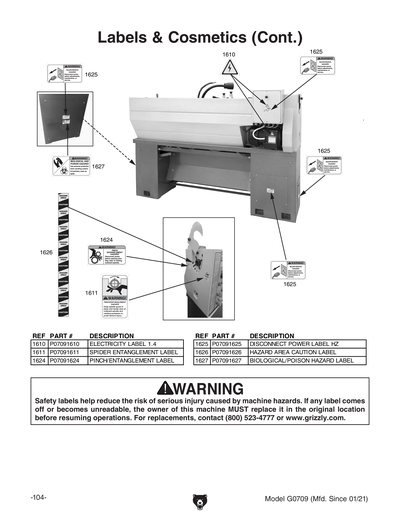

1610 P07091610
Replaced By PSBLABEL15S
ELECTRICITY LABEL 1.4
N/A View Replacement
1611 P07091611 SPIDER ENTANGLEMENT LABEL $1.00
1612 P07091612
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
1613 P07091613
Replaced By PPAINT-11
GREY PUTTY REF G0504
N/A View Replacement
1614 P07091614
Replaced By P07090547V2
THREAD DIAL CHART V2.05.11
N/A View Replacement
1615 P07091615 FEED AND THREAD CHART $31.00
1616 P07091616 TRAINED OPERATORS NOTICE LABEL $4.75
1617 P07091617 LEVERS NOTICE LABEL $4.75
1620 P07091620 CARRIAGE LOCK BOLT NOTICE $4.75
1621 P07091621 FLUID CAPACITIES LABEL $4.75
1622 P07091622 STOP OIL FILL TAG $7.75
1623 P07091623 GRIZZLY.COM LABEL $7.75
1624 P07091624
Replaced By PLABEL-86C
PINCH/ENTANGLEMENT LABEL 2.8W X 1.5H
N/A View Replacement
1625 P07091625
Replaced By PLABEL-62C
DISCONNECT 110V 2.8W X 1.5H
N/A View Replacement
1626 P07091626 HAZARD AREA CAUTION LABEL $11.00
1627 P07091627
Replaced By PLABEL-50C
BIOLOGICAL/POISON HAZARD 2.8W X 1.5H
N/A View Replacement
525-1 P0709525-1
Replaced By P07090525-1
*DISCD*THREAD DIAL LABEL V1
N/A View Replacement
MAN P0709MAN
Replaced By P0709MANV1
MANUAL FOR G0709 MFG 03/10 V1.05.10
N/A View Replacement
MANV1 P0709MANV1 MANUAL FOR G0709 MFG 03/10 V1.05.10 $17.25
MANV2 P0709MANV2 MANUAL FOR G0709 MFG 03/10 V2.06.10 $17.25
MANV3 P0709MANV3 MANUAL FOR G0709 MFG 03/11 V3.01.11 $17.25
MANV4 P0709MANV4 MANUAL FOR G0709 MFG 05/11 V4.05.11 $17.25
