Parts for G0710 - 1 HP Wall Hanging Dust Collector

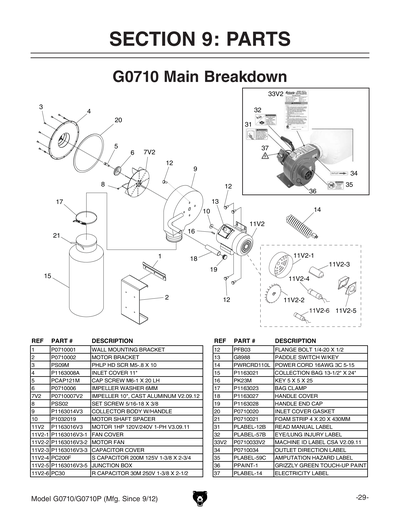

Part Diagram for G0710
Part Diagram for G0710

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$27.65
2
Price
$67.40
3
PHLP HD SCR M5-.8 X 10
Price
N/A
4
INLET COVER 11" V2.01.06
Price
N/A
5
CAP SCREW M6-1 X 20 LH
Price
N/A
6
Price
$1.49
7
STEEL IMPELLER 10" V2.12.09
Price
N/A
7V2
CAST ALUMINUM IMPELLER 10" V2.09.12
Price
N/A
8
SET SCREW 5/16-18 X 3/8
Price
N/A
9
COLLECTOR BODY W/HANDLE V3.12.09
Price
N/A
10
GASKET
Price
N/A
11
MOTOR 1HP 120V/240V 1-PH V2.09.11
Price
N/A
11-1
FAN COVER V2.06.08
Price
N/A
11-2
MOTOR FAN V2.06.08
Price
N/A
11-3
CAPACITOR COVER
Price
N/A
11-4
S CAPACITOR 300M 125V 1-3/4 X 3-3/8
Price
N/A
11-4V2
S CAPACITOR 200M 125V 1-3/8 X 2-3/4
Price
N/A
11-5
JUNCTION BOX V2.06.08
Price
N/A
11-6
R CAPACITOR 30M 250V 1-3/8 X 2-1/2
Price
N/A
11V2
MOTOR 1HP 120V/240V 1-PH V2.09.11
Price
N/A
11V2-1
FAN COVER
Price
N/A
11V2-2
MOTOR FAN
Price
N/A
11V2-3
CAPACITOR COVER
Price
N/A
11V2-4
S CAPACITOR 200M 125V 1-3/8 X 2-3/4
Price
N/A
11V2-5
JUNCTION BOX
Price
N/A
11V2-6
R CAPACITOR 30M 250V 1-3/8 X 2-1/2
Price
N/A
12
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
13
Safety Paddle Switch
Price
N/A
14
POWER CORD 16G X 3W 73"L
Price
N/A
15
Replacement Bag for G1163P Dust Collector
Price
N/A
16
KEY 5 X 5 X 25
Price
N/A
17
CLAMP
Price
N/A
18
HANDLE COVER
Price
N/A
19
HANDLE CAP
Price
N/A
20
Price
$2.05
21
FOAM STRIP 4 X 20 X 430MM
Price
$3.05
31
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
32
GLASSES/RESPIRATOR 3.8 X 2H
Price
N/A
33
Price
$16.40
33V2
MACHINE ID LABEL CSA V2.09.11
Price
$16.40
34
Price
$1.85
35
HANDS/DUST COLLECTOR OUTLET 2.8W X 1.5H
Price
N/A
36
N/S GRIZZLY GREEN G1023S
Price
N/A
37
ELECTRICITY 1.4W X 1.2H
Price
N/A
11V2-1
FAN COVER
Price
N/A
MAN
MANUAL FOR G0710 MFG 09.11 V2.09.11
Price
N/A
MANV1
MANUAL FOR G0710 MFG 06.10 V1.07.10
Price
$11.50
MANV2
MANUAL FOR G0710 MFG 09.11 V2.09.11
Price
$12.00
MANV3
MANUAL FOR G0710 MFG 11.11 V3.01.12
Price
$12.00
