Parts for G0716 10" 1 HP Drum Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

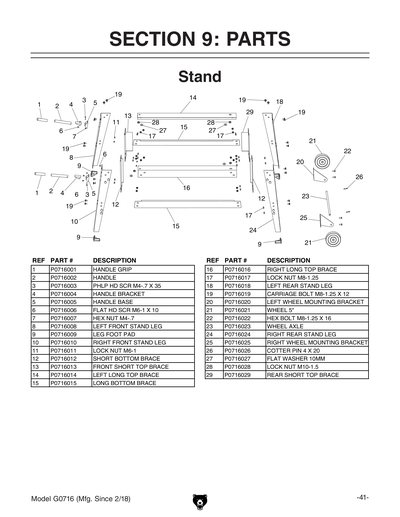

1
HANDLE GRIP
2
HANDLE
3
Now: PS25M
PHLP HD SCR M4-.7 X 35
Price
N/A
4
HANDLE BRACKET
5
HANDLE BASE
6
FLAT HD SCR M6-1 X 10
Price
N/A
7
Now: PN04M
HEX NUT M4-.7
Price
N/A
8
LEFT FRONT STAND LEG
9
LEG FOOT PAD
10
RIGHT FRONT STAND LEG
11
LOCK NUT M6-1
Price
N/A
12
SHORT BOTTOM BRACE
13
FRONT SHORT TOP BRACE
14
LEFT LONG TOP BRACE
15
LONG BOTTOM BRACE
16
RIGHT LONG TOP BRACE
17
LOCK NUT M8-1.25
Price
N/A
18
LEFT REAR STAND LEG
19
CARRIAGE BOLT M8-1.25 X 12
Price
N/A
20
LEFT WHEEL MOUNTING BRACKET
21
WHEEL 5"
22
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
23
WHEEL AXLE
24
RIGHT REAR STAND LEG
25
RIGHT WHEEL MOUNTING BRACKET
26
COTTER PIN 4 X 20
27
Now: PW04M
FLAT WASHER 10MM
Price
N/A
28
LOCK NUT M10-1.5
Price
N/A
29
REAR SHORT TOP BRACE

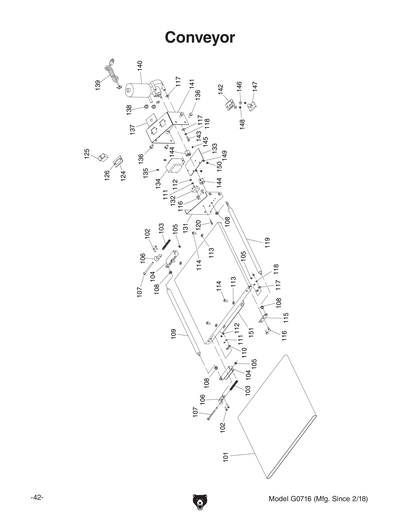

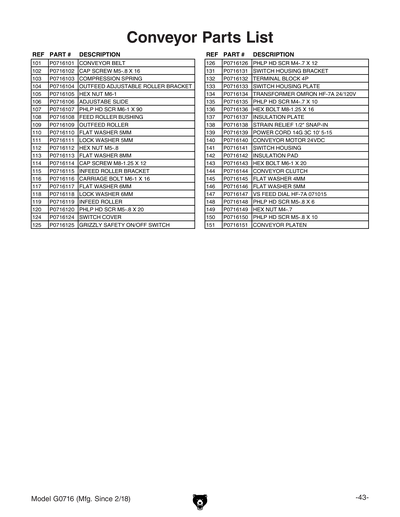

101
CONVEYOR BELT
102
CAP SCREW M5-.8 X 16
Price
N/A
103
COMPRESSION SPRING
104
OUTFEED ADJUSTABLE ROLLER BRACKET
105
Now: PN01M
HEX NUT M6-1
Price
N/A
106
ADJUSTABLE SLIDE
107
PHLP HD SCR M6-1 X 90
Price
N/A
108
FEED ROLLER BUSHING
109
OUTFEED ROLLER 11"
110
Now: PW02M
FLAT WASHER 5MM
Price
N/A
111
LOCK WASHER 5MM
Price
N/A
112
Now: PN06M
HEX NUT M5-.8
Price
N/A
113
Now: PW01M
FLAT WASHER 8MM
Price
N/A
114
CAP SCREW M8-1.25 X 12
Price
N/A
115
INFEED ROLLER BRACKET
116
CARRIAGE BOLT M6-1 X 16
Price
N/A
117
Now: PW03M
FLAT WASHER 6MM
Price
N/A
118
LOCK WASHER 6MM
Price
N/A
119
INFEED ROLLER
120
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
124
CLAMPING SHEET
Price
N/A
125
Now: G8988
Safety Paddle Switch
Price
N/A
126
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
131
SWITCH HOUSING BRACKET
132
TERMINAL BLOCK 4P
133
SWITCH HOUSING PLATE
134
TRANSFORMR 80MM 35VA 120/127V-25.4/20.4V
135
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
136
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
137
LO/HI SPEED LABEL
Price
N/A
138
STRAIN RELIEF M13 TYPE-1 SNAP-IN
Price
N/A
139
POWER CORD 14G 3C 10' 5-15
140
CONVEYOR MOTOR 1/10HP 24V
141
SWITCH HOUSING
142
INSULATION PAD
143
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
144
CONVEYOR CLUTCH
145
Now: PW05M
FLAT WASHER 4MM
Price
N/A
146
Now: PW02M
FLAT WASHER 5MM
Price
N/A
147
POTENTIOMETER B103
147-1
CONVEYOR CIRCUIT BOARD HF-7A
148
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
149
Now: PN04M
HEX NUT M4-.7
Price
N/A
150
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
151
CONVEYOR PLATEN

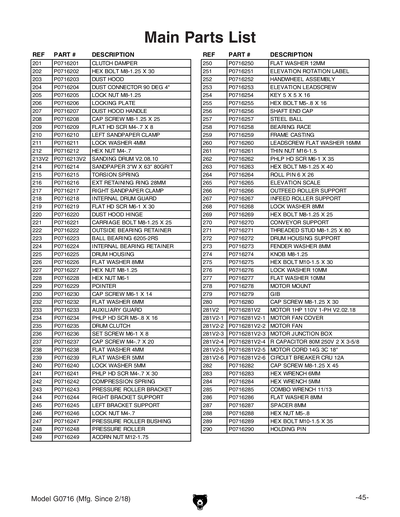

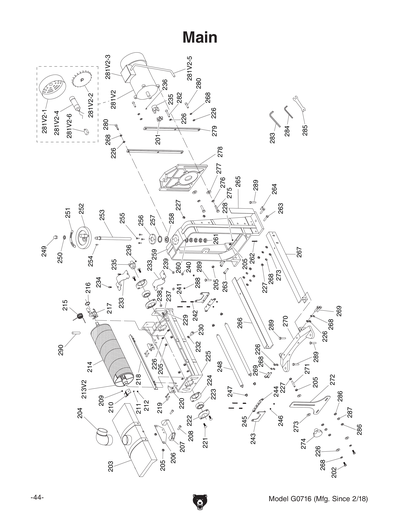

201
CLUTCH DAMPER
202
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
203
DUST HOOD
204
Now: W1017
4" 90 Elbow
Price
N/A
205
LOCK NUT M8-1.25
Price
N/A
206
LOCKING PLATE
207
DUST HOOD HANDLE
208
CAP SCREW M8-1.25 X 25
Price
N/A
209
FLAT HD SCR M4-.7 X 8
Price
N/A
210
LEFT SANDPAPER CLAMP
211
LOCK WASHER 4MM
Price
N/A
212
Now: PN04M
HEX NUT M4-.7
Price
N/A
213
SANDING DRUM W/O HOLE V1
213V2
SANDING DRUM W/HOLE V2.08.10
214
SANDPAPER 3"W X 63" 80GRIT
215
TORSION SPRING
216
Now: PR19M
EXT RETAINING RING 28MM
Price
N/A
217
RIGHT SANDPAPER CLAMP
218
INTERNAL DRUM GUARD
219
FLAT HD SCR M6-1 X 30
Price
N/A
220
DUST HOOD HINGE
221
CARRIAGE BOLT M8-1.25 X 25
Price
N/A
222
OUTSIDE BEARING RETAINER
223
BALL BEARING 6205-2RS
Price
N/A
224
INTERNAL BEARING RETAINER
225
DRUM HOUSING
226
Now: PW01M
FLAT WASHER 8MM
Price
N/A
227
Now: PN03M
HEX NUT M8-1.25
Price
N/A
228
Now: PN01M
HEX NUT M6-1
Price
N/A
229
POINTER
230
CAP SCREW M6-1 X 14
Price
N/A
232
Now: PW03M
FLAT WASHER 6MM
Price
N/A
233
AUXILIARY GUARD
234
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
235
DRUM CLUTCH
236
SET SCREW M6-1 X 8
Price
N/A
237
CAP SCREW M4-.7 X 20
Price
N/A
238
Now: PW05M
FLAT WASHER 4MM
Price
N/A
239
Now: PW02M
FLAT WASHER 5MM
Price
N/A
240
LOCK WASHER 5MM
Price
N/A
241
Now: PS51M
PHLP HD SCR M4-.7 X 30
Price
N/A
242
COMPRESSION SPRING
243
PRESSURE ROLLER BRACKET
244
RIGHT BRACKET SUPPORT
245
LEFT BRACKET SUPPORT
246
LOCK NUT M4-.7
Price
N/A
247
PRESSURE ROLLER BUSHING
248
PRESSURE ROLLER 10-9/16"
249
Now: PN26M
ACORN NUT M12-1.75
Price
N/A
250
Now: PW06M
FLAT WASHER 12MM
Price
N/A
251
ELEVATION ROTATION LABEL
252
HANDWHEEL ASSEMBLY
253
ELEVATION LEADSCREW
254
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
255
Now: PB95M
HEX BOLT M5-.8 X 16
Price
N/A
256
SHAFT END CAP
257
STEEL BALL BEARING 3MM
258
BEARING RACE
259
FRAME CASTING
260
DOCK WASHER 16MM
261
THIN NUT M16-1.5
262
Now: PS31M
PHLP HD SCR M6-1 X 35
Price
N/A
263
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
264
ROLL PIN 6 X 25
Price
N/A
265
ELEVATION SCALE
266
OUTFEED ROLLER SUPPORT
267
INFEED ROLLER SUPPORT
268
LOCK WASHER 8MM
Price
N/A
269
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
270
CONVEYOR SUPPORT
271
STUD-FT M8-1.25 X 50
272
DRUM HOUSING SUPPORT
273
FENDER WASHER 8MM
Price
N/A
274
KNOB M8-1.25
275
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
276
LOCK WASHER 10MM
Price
N/A
277
Now: PW04M
FLAT WASHER 10MM
Price
N/A
278
MOTOR MOUNT
279
GIB
280
CAP SCREW M8-1.25 X 30
Price
N/A
281
MOTOR 1HP 110V 1-PH V2.02.18
Price
N/A
281-1
MOTOR 1HP 110V 1-PH V2.02.18
Price
N/A
281-2
MOTOR 1HP 110V 1-PH V2.02.18
Price
N/A
281-3
MOTOR 1HP 110V 1-PH V2.02.18
Price
N/A
281-4
R CAPACITOR 80M 250V 2 X 3-5/8
Price
N/A
281-5
MOTOR 1HP 110V 1-PH V2.02.18
Price
N/A
281-6
MOTOR 1HP 110V 1-PH V2.02.18
Price
N/A
281V2
MOTOR 1HP 110V 1-PH V2.02.18
281V2-1
MOTOR FAN COVER
281V2-2
MOTOR FAN
281V2-3
MOTOR JUNCTION BOX
281V2-4
R CAPACITOR 80M 250V 2 X 3-5/8
281V2-5
MOTOR CORD 14G 3C 18"
281V2-6
CIRCUIT BREAKER CRU 12A
282
CAP SCREW M8-1.25 X 45
Price
N/A
283
HEX WRENCH 6MM
Price
N/A
284
HEX WRENCH 5MM
Price
N/A
285
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
286
Now: PW01M
FLAT WASHER 8MM
Price
N/A
287
SPACER 8MM
288
Now: PN06M
HEX NUT M5-.8
Price
N/A
289
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
290
HOLDING PIN 5 X 50MM
301

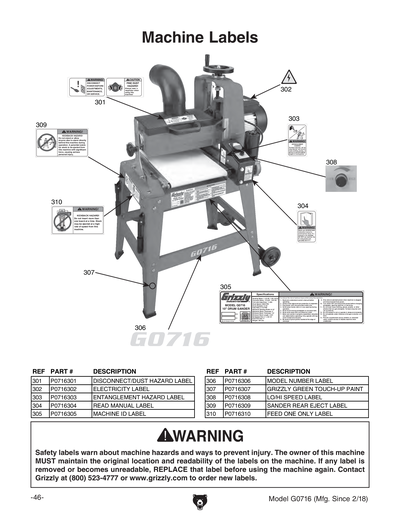

DISCONNECT/DUST HAZARD LABEL
302
ELECTRICITY 1.4W X 1.2H
Price
N/A
303
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
304
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
305
MACHINE ID LABEL
306
MODEL NUMBER LABEL
307
N/S GRIZZLY GREEN G1023S
Price
N/A
308
LO/HI SPEED LABEL
309
SANDER REAR EJECT LABEL
310
FEED ONE ONLY LABEL
MAN
MANUAL FOR G0716 V1 08.10-01.11
MANV2
MANUAL FOR G0716 V2 02.11-01.18
MANV3
MANUAL FOR G0716 V3 02.18+
