Parts for G0723 - 1/4 HP Benchtop Oscillating Sander

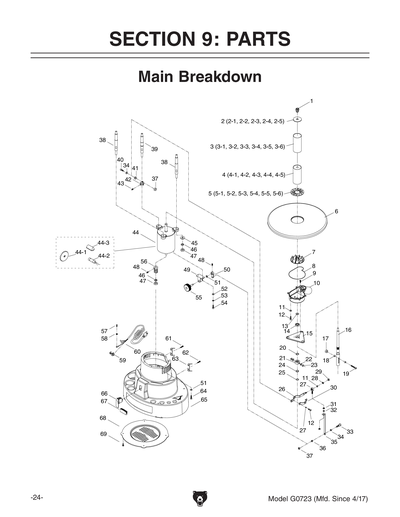

Part Diagram for G0723
Part Diagram for G0723
Part Diagram for G0723
Part Diagram for G0723
Part Diagram for G0723
Part Diagram for G0723

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

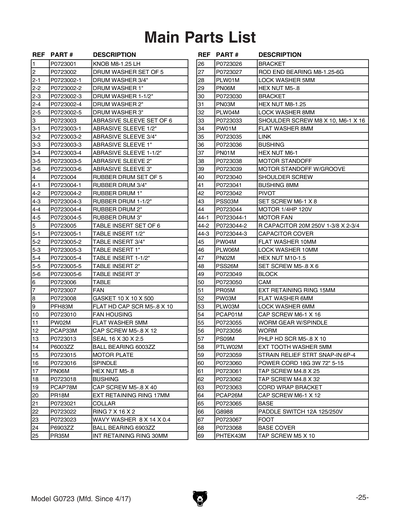

Ref #
Part #
Description
1
KNOB M8-1.25 LH
Price
$5.25
2
DRUM WASHER SET OF 5
Price
$6.95
2-1
DRUM WASHER 3/4"
Price
$1.60
2-2
DRUM WASHER 1"
Price
$1.60
2-3
DRUM WASHER 1-1/2"
Price
$1.60
2-4
DRUM WASHER 2"
Price
$1.60
2-5
DRUM WASHER 3"
Price
$1.60
3
ABRASIVE SLEEVE SET OF 6
Price
$17.15
3-1
ABRASIVE SLEEVE 1/2"
Price
$2.45
3-2
ABRASIVE SLEEVE 3/4"
Price
$2.45
3-3
ABRASIVE SLEEVE 1"
Price
$2.45
3-4
ABRASIVE SLEEVE 1-1/2"
Price
$2.75
3-5
ABRASIVE SLEEVE 2"
Price
$4.85
3-6
ABRASIVE SLEEVE 3"
Price
$7.25
4
RUBBER DRUM SET OF 5
Price
$48.05
4-1
RUBBER DRUM 3/4"
Price
$3.95
4-2
RUBBER DRUM 1"
Price
$4.40
4-3
RUBBER DRUM 1-1/2"
Price
$7.30
4-4
RUBBER DRUM 2"
Price
$10.90
4-5
RUBBER DRUM 3"
Price
$22.70
5
TABLE INSERT SET OF 6
Price
$18.75
5-1
TABLE INSERT 1/2"
Price
$3.40
5-2
TABLE INSERT 3/4"
Price
$3.40
5-3
TABLE INSERT 1"
Price
$3.40
5-4
TABLE INSERT 1-1/2"
Price
$3.40
5-5
TABLE INSERT 2"
Price
$1.60
5-6
TABLE INSERT 3"
Price
$3.40
6
TABLE
Price
$178.00
6V2
CAST IRON TABLE V2.02.18
Price
$165.20
7
FAN
Price
$2.20
8
GASKET 10 X 10 X 500
Price
$1.60
9
FLAT HD CAP SCR M5-.8 X 10
Price
N/A
10
FAN HOUSING
Price
$5.80
11
FLAT WASHER 5MM
Price
N/A
12
CAP SCREW M5-.8 X 12
Price
N/A
13
SEAL 16 X 30 X 2.5
Price
$1.60
14
Bearing - 35mm x 17mm
Price
N/A
15
MOTOR PLATE
Price
$17.20
16
SPINDLE
Price
$34.15
17
HEX NUT M5-.8
Price
N/A
18
BUSHING
Price
$1.60
19
CAP SCREW M5-.8 X 40
Price
N/A
20
EXT RETAINING RING 17MM
Price
N/A
21
COLLAR
Price
$3.05
22
RING 7 X 16 X 2
Price
$1.60
23
WAVY WASHER 8MM
Price
$1.60
24
BALL BEARING 6903ZZ
Price
N/A
25
INT RETAINING RING 30MM
Price
N/A
26
BRACKET
Price
$6.40
27
ROD END BEARING M8-1.25-6G
Price
$6.40
28
LOCK WASHER 5MM
Price
N/A
29
HEX NUT M5-.8
Price
N/A
30
BRACKET
Price
$2.75
31
HEX NUT M8-1.25
Price
N/A
32
LOCK WASHER 8MM
Price
N/A
33
SHOULDER SCREW M8 X 10, M6-1 X 16
Price
$1.60
34
FLAT WASHER 8MM
Price
N/A
35
LINK
Price
$4.60
36
BUSHING
Price
$2.20
37
HEX NUT M6-1
Price
N/A
38
MOTOR STANDOFF
Price
$7.00
39
MOTOR STANDOFF W/GROOVE
Price
$7.25
40
SHOULDER SCREW
Price
$1.60
41
BUSHING 8MM
Price
$2.20
42
PIVOT
Price
$2.75
43
SET SCREW M6-1 X 8
Price
N/A
44
MOTOR 1/4HP 120V 1-PH V1
Price
$168.20
44-1
MOTOR FAN
Price
$3.05
44-2
R CAPACITOR 20M 250V 1-3/8 X 2-3/4
Price
$11.85
44-3
CAPACITOR COVER
Price
$3.40
44V2
MOTOR 1/3 HP 120V 1-PH V2.03.24
Price
$253.00
44V2-1
MOTOR FAN
Price
N/A
44V2-2
R CAPACITOR 30M 250V 1-3/8 X 2-3/4
Price
$8.10
44V2-3
CAPACITOR COVER
Price
N/A
45
FLAT WASHER 10MM
Price
N/A
46
LOCK WASHER 10MM
Price
N/A
47
HEX NUT M10-1.5
Price
N/A
48
SET SCREW M5-.8 X 6
Price
N/A
49
BLOCK
Price
$8.80
50
CAM
Price
$3.50
51
EXT RETAINING RING 15MM
Price
N/A
52
FLAT WASHER 6MM
Price
N/A
53
LOCK WASHER 6MM
Price
N/A
54
CAP SCREW M6-1 X 16
Price
N/A
55
WORM GEAR W/SPINDLE
Price
$23.60
56
WORM
Price
$7.15
57
PHLP HD SCR M5-.8 X 10
Price
N/A
58
EXT TOOTH WASHER 5MM
Price
N/A
59
STRAIN RELIEF TYPE-6 ST
Price
$1.60
60
POWER CORD 18G 3W 72" 5-15
Price
$17.55
61
TAP SCREW M4.8 X 25
Price
$1.60
62
TAP SCREW M4.8 X 32
Price
$1.60
63
CORD WRAP BRACKET
Price
$1.60
64
CAP SCREW M6-1 X 12
Price
N/A
65
BASE
Price
$119.55
66
Safety Paddle Switch
Price
N/A
67
FOOT
Price
$1.60
68
BASE COVER
Price
$9.10
69
TAP SCREW M5 X 70
Price
N/A
70

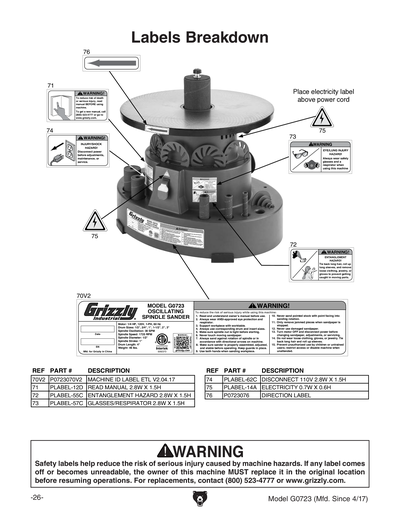

MACHINE ID LABEL V1
Price
$16.40
70MANV2
MACHINE G0723 MFG-04.17 V2.04.17
Price
$17.25
70V2
MACHINE ID LABEL ETL V2.04.17
Price
$16.40
70V3
MACHINE ID LABEL V3.03.24
Price
$10.95
71
READ MANUAL 2.8W X 1.5H
Price
N/A
72
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
73
GLASSES/RESPIRATOR 2.8W X 1.5H
Price
N/A
74
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
75
ELECTRICITY 0.7W X 0.6H
Price
N/A
76
DIRECTION LABEL
Price
$17.35
MAN
MANUAL G0723 MFG-09.11 V1.10.11
Price
$14.65
MANV2
MANUAL G0723 MFD-04.17-02.24 V2.04.17
Price
$17.25
MANV3
MANUAL G0723 MFD-03.24+ V3.02.24
Price
$14.65
