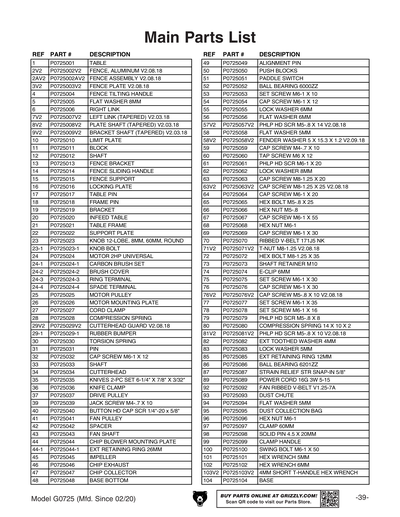

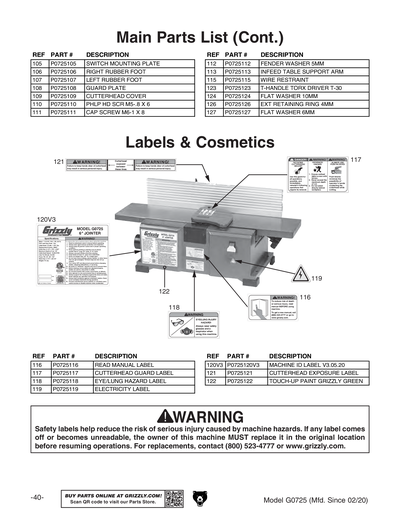

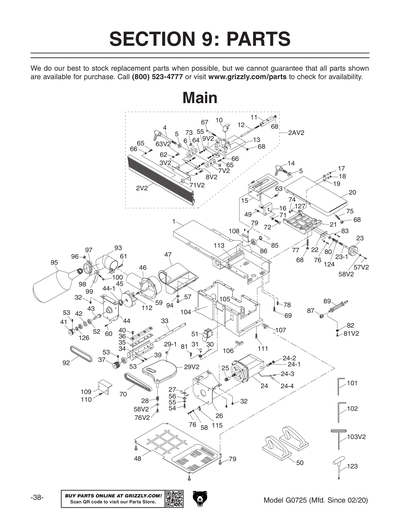

Parts for G0725 6" x 28" Benchtop Jointer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
TABLE
2
*DISCD*FENCE, CAST IRON V1
Item is no longer available
Price
N/A
2A
*DISCD*FENCE ASSEMBLY V1
Item is no longer available
Price
N/A
2AV2
FENCE ASSEMBLY V2.08.18
2V2
FENCE, ALUMINUM V2.08.18
3
*DISCD*FENCE PLATE V1
Item is no longer available
Price
N/A
3V2
FENCE PLATE V2.08.18
4
HANDLE
Price
N/A
5
Now: PW04M
FLAT WASHER 10MM
Price
N/A
6
RIGHT LINK
7
LINK LEFT
Price
N/A
7V2
LEFT LINK (TAPERED) V2.03.18
8
PLATE SHAFT V1
Item is no longer available
Price
N/A
8V2
PLATE SHAFT (TAPERED) V2.03.18
9
BRACKET SHAFT V1
9V2
BRACKET SHAFT (TAPERED) V2.03.18
10
LIMIT PLATE
11
*DISCD*BLOCK
Item is no longer available
Price
N/A
12
SHAFT
13
FENCE BRACKET
14
FENCE SLIDING HANDLE
15
FENCE SUPPORT
16
LOCKING PLATE
17
TABLE PIN
18
FRAME PIN
19
BRACKET
20
INFEED TABLE
21
TABLE FRAME
22
SUPPORT PLATE
23
KNOB 12-LOBE, 8MM, 60MM, ROUND
23-1
KNOB BOLT
24
MOTOR 2HP UNIVERSAL
24-1
CARBON BRUSH (SET OF 2)
24-2
BRUSH COVER
24-3
RING TERMINAL
Item is no longer available
Price
N/A
24-4
SPADE TERMINAL
Item is no longer available
Price
N/A
25
MOTOR PULLEY
26
MOTOR MOUNTING PLATE
27
CORD CLAMP
Item is no longer available
Price
N/A
28
COMPRESSION SPRING
29
CUTTERHEAD GUARD V2.08.18
Price
N/A
29-1
RUBBER BUMPER
29V2
CUTTERHEAD GUARD V2.08.18
30
TORSION SPRING
31
PIN
32
CAP SCREW M6-1 X 12
Price
N/A
33
SHAFT
34
CUTTERHEAD
35
Now: H9837
6-1/4" x 7/8" x 3/32" HSS Jointer Knives, Set of 2
Price
N/A
36
KNIFE CLAMP
37
DRIVE PULLEY
39
JACK SCREW M4-.7 X 10
40
BUTTON HD CAP SCR 1/4-20 X 5/8
Price
N/A
41
FAN PULLEY
42
SPACER
43
FAN SHAFT
44
CHIP BLOWER MOUNTING PLATE
44-1
Now: PR17M
EXT RETAINING RING 26MM
Price
N/A
45
IMPELLER
46
CHIP EXHAUST
Price
N/A
47
CHIP COLLECTOR
Item is no longer available
Price
N/A
48
BASE BOTTOM
Item is no longer available
Price
N/A
49
ALIGNMENT PIN
50
Now: W1400
Safety Push Block - Small
Price
N/A
51
Now: G8988
Safety Paddle Switch
Price
N/A
52
BALL BEARING 6000ZZ
Price
N/A
53
SET SCREW M6-1 X 10
Price
N/A
54
CAP SCREW M6-1 X 12
Price
N/A
55
LOCK WASHER 6MM
Price
N/A
56
Now: PW03M
FLAT WASHER 6MM
Price
N/A
57
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
57V2
Now: PS57M
PHLP HD SCR M5-.8 X 14
Price
N/A
58
Now: PW02M
FLAT WASHER 5MM
Price
N/A
58V2
FENDER WASHER 5 X 15.3 X 1.2 V2.09.18
59
CAP SCREW M4-.7 X 10
Price
N/A
60
TAP SCREW M2.2 X 4.5
Price
N/A
61
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
62
LOCK WASHER 8MM
Price
N/A
63
CAP SCREW M8-1.25 X 20
Price
N/A
63V2
CAP SCREW M8-1.25 X 25
Price
N/A
64
CAP SCREW M6-1 X 20
Price
N/A
65
Now: PB94M
HEX BOLT M5-.8 X 25
Price
N/A
66
Now: PN06M
HEX NUT M5-.8
Price
N/A
67
CAP SCREW M6-1 X 55
Price
N/A
68
Now: PN01M
HEX NUT M6-1
Price
N/A
69
CAP SCREW M6-1 X 30
Price
N/A
70
CUTTERHEAD BELT 171J5 NK
Price
N/A
71
Now: PN03M
HEX NUT M8-1.25
Price
N/A
71V2
T-NUT M8-1.25 V2.08.18
72
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
73
SHAFT RETAINER M10
74
E-CLIP 6MM
Price
N/A
75
SET SCREW M6-1 X 30
Price
N/A
76
CAP SCREW M6-1 X 30
Price
N/A
76V2
CAP SCREW M5-.8 X 10
Price
N/A
77
SET SCREW M6-1 X 35
Price
N/A
78
SET SCREW M6-1 X 16
Price
N/A
79
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
80
COMPRESSION SPRING 14 X 10 X 2
81
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
81V2
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
82
EXT TOOTH WASHER 4MM
Price
N/A
83
LOCK WASHER 5MM
Price
N/A
84
WIRE NUT
Item is no longer available
Price
N/A
85
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
86
BALL BEARING 6201ZZ
Price
N/A
87
STRAIN RELIEF TYPE-6 ST
Item is no longer available
Price
N/A
89
POWER CORD 16G 3W 5-15
Item is no longer available
Price
N/A
90
SPADE TERMINAL
Item is no longer available
Price
N/A
91
RING TERMINAL
Item is no longer available
Price
N/A
92
FAN BELT 25-7A V1.19.07
Price
N/A
93
DUST CHUTE
94
Now: PW02M
FLAT WASHER 5MM
Price
N/A
95
DUST COLLECTION BAG
96
Now: PN01M
HEX NUT M6-1
Price
N/A
97
CLAMP 60MM
Price
N/A
98
SOLID PIN 4.5 X 20MM
99
CLAMP HANDLE
100
SWING BOLT M6-1 X 50
101
HEX WRENCH 5MM
Price
N/A
102
HEX WRENCH 6MM
Price
N/A
103
HEX WRENCH 4MM
Price
N/A
103V2
4MM SHORT T-HANDLE HEX WRENCH
104
BASE
Item is no longer available
Price
N/A
105
SWITCH MOUNTING PLATE
106
RIGHT RUBBER FOOT
107
LEFT RUBBER FOOT
108
GUARD PLATE
Item is no longer available
Price
N/A
109
CUTTERHEAD COVER
110
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
111
CAP SCREW M6-1 X 8
Price
N/A
112
FENDER WASHER 5MM
Price
N/A
113
INFEED TABLE SUPPORT ARM
Item is no longer available
Price
N/A
114
CHIP COLLECTOR COVER PLATE
Item is no longer available
Price
N/A
115
WIRE RESTRAINT
Item is no longer available
Price
N/A
116
READ MANUAL 2.8W X 1.5H
Price
N/A
117
CUTTERHEAD GUARD LABEL
Item is no longer available
Price
N/A
118
GLASSES/RESPIRATOR 2.8W X 1.5H
Price
N/A
119
ELECTRICITY 1.4W X 1.2H
Price
N/A
120
MACHINE ID LABEL V2.12.14
Price
N/A
120V2
MACHINE ID LABEL V2.12.14
Item is no longer available
Price
N/A
120V3
MACHINE ID LABEL V3.05.20
Item is no longer available
Price
N/A
121
CUTTERHEAD EXPOSURE LABEL
Item is no longer available
Price
N/A
122
N/S GRIZZLY GREEN G1023S
Price
N/A
123
T-HANDLE TORX DRIVER T-30
Price
N/A
124
Now: PW04M
FLAT WASHER 10MM
Price
N/A
126
EXT RETAINING RING 4MM
Item is no longer available
Price
N/A
127
Now: PW03M
FLAT WASHER 6MM
Price
N/A
2Z637
FAN COVER MOUNTING PLATE W/ FILTER
Price
N/A
MAN
MANUAL G0725 MFD-09.11-07.18 V1.09.11
MANV2
MANUAL G0725 MFD-08.18-01.20 V2.09.18
Item is no longer available
Price
N/A
MANV3
MANUAL G0725 MFD-02.20+ V3.05.20
