Parts for G0726 - 12" x 54" Milling Machine

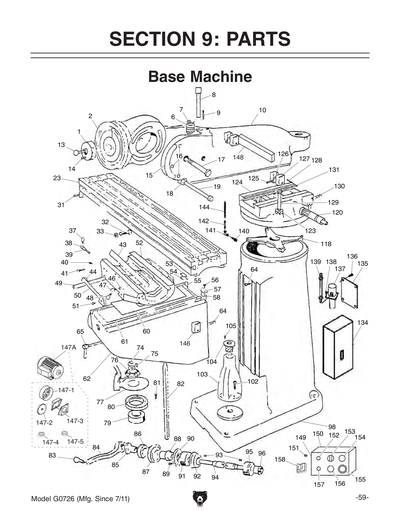

Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726
Part Diagram for G0726

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

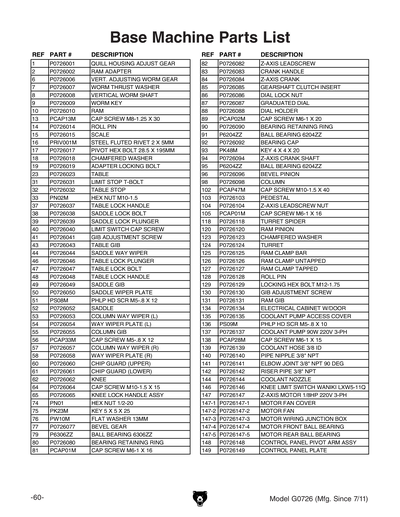

Ref #
Part #
Description
1
*DISCD*QUILL HOUSING ADJUST GEAR
Item is no longer available
Price
N/A
2
*DISCD*RAM ADAPTER
Item is no longer available
Price
N/A
6
*DISCD*VERT. ADJUSTING WORM GEAR
Item is no longer available
Price
N/A
7
*DISCD*WORM THRUST WASHER
Item is no longer available
Price
N/A
8
*DISCD*VERTICAL WORM SHAFT
Item is no longer available
Price
N/A
9
*DISCD*WORM KEY
Item is no longer available
Price
N/A
10
*DISCD*RAM
Item is no longer available
Price
N/A
13
CAP SCREW M8-1.25 X 30
Price
N/A
14
*DISCD*ROLL PIN
Item is no longer available
Price
N/A
15
*DISCD*SCALE
Item is no longer available
Price
N/A
16
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
17
*DISCD*PIVOT HEX BOLT 28.5 X 195MM
Item is no longer available
Price
N/A
18
*DISCD*CHAMFERED WASHER
Item is no longer available
Price
N/A
19
*DISCD*ADAPTER LOCKING BOLT
Item is no longer available
Price
N/A
23
*DISCD*TABLE
Item is no longer available
Price
N/A
31
*DISCD*LIMIT STOP T-BOLT
Item is no longer available
Price
N/A
32
*DISCD*TABLE STOP
Item is no longer available
Price
N/A
33
HEX NUT M10-1.5
Price
N/A
37
*DISCD*TABLE LOCK HANDLE W/ PLUNGER AND
Price
N/A
37A
*DISCD*TABLE LOCK HANDLE W/ PLUNGER AND
Item is no longer available
Price
N/A
38
*DISCD*SADDLE WAY WIPER W/ WIPER PLATE
Price
N/A
38A
*DISCD*SADDLE WAY WIPER W/ WIPER PLATE
Item is no longer available
Price
N/A
39
*DISCD*SADDLE LOCK PLUNGER
Item is no longer available
Price
N/A
40
*DISCD*LIMIT SWITCH CAP SCREW
Item is no longer available
Price
N/A
41
*DISCD*GIB ADJUSTMENT SCREW
Item is no longer available
Price
N/A
43
*DISCD*TABLE GIB
Price
$112.15
44A
*DISCD*SADDLE WAY WIPER W/ WIPER PLATE
Item is no longer available
Price
N/A
46
*DISCD*TABLE LOCK HANDLE W/ PLUNGER AND
Price
N/A
47
*DISCD*TABLE LOCK HANDLE W/ PLUNGER AND
Price
N/A
48
*DISCD*TABLE LOCK HANDLE W/ PLUNGER AND
Price
N/A
49
*DISCD*SADDLE GIB
Item is no longer available
Price
N/A
50
*DISCD*SADDLE WAY WIPER W/ WIPER PLATE
Price
N/A
51
PHLP HD SCR M5-.8 X 12
Price
N/A
52
*DISCD*SADDLE
Item is no longer available
Price
N/A
53
*DISCD*LEFT COLUMN WAY WIPER W/ WIPER PL
Price
N/A
54
*DISCD*LEFT COLUMN WAY WIPER W/ WIPER PL
Price
N/A
55
*DISCD*COLUMN GIB
Item is no longer available
Price
N/A
56
CAP SCREW M5-.8 X 12
Price
N/A
57
*DISCD*RIGHT COLUMN WAY WIPER
Item is no longer available
Price
N/A
57A
*DISCD*RIGHT COLUMN WAY WIPER W/ WIPER P
Item is no longer available
Price
N/A
58
*DISCD*RIGHT COLUMN WAY WIPER W/ WIPER P
Price
N/A
60
*DISCD*UPPER CHIP GUARD
Item is no longer available
Price
N/A
61
*DISCD*LOWER CHIP GUARD
Item is no longer available
Price
N/A
62
*DISCD*KNEE
Item is no longer available
Price
N/A
64
*DISCD*CAP SCREW M10-1.5 X 15
Item is no longer available
Price
N/A
65
*DISCD*KNEE LOCK HANDLE ASSY
Item is no longer available
Price
N/A
74
P0726074
Now: PN01
HEX NUT 1/2-20
Price
N/A
75
KEY 5 X 5 X 25
Price
N/A
76
FLAT WASHER 14MM
Price
N/A
77
*DISCD*BEVEL GEAR
Item is no longer available
Price
N/A
79
BALL BEARING 6306ZZ
Price
N/A
80
*DISCD*BEARING COVER STEEL
Item is no longer available
Price
N/A
81
CAP SCREW M6-1 X 16
Price
N/A
82
*DISCD*Z-AXIS LEADSCREW
Item is no longer available
Price
N/A
83
*DISCD*CRANK HANDLE
Item is no longer available
Price
N/A
84
*DISCD*Z-AXIS CRANK
Item is no longer available
Price
N/A
85
*DISCD*GEARSHAFT CLUTCH INSERT
Price
$20.70
86
*DISCD*DIAL LOCK NUT
Item is no longer available
Price
N/A
87
*DISCD*GRADUATED DIAL
Item is no longer available
Price
N/A
88
*DISCD*DIAL HOLDER
Item is no longer available
Price
N/A
89
CAP SCREW M6-1 X 20
Price
N/A
90
*DISCD*BEARING COVER ALUMINUM
Item is no longer available
Price
N/A
91
BALL BEARING 6204ZZ
Price
N/A
92
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
93
KEY 4 X 4 X 20
Price
N/A
94
*DISCD*Z-AXIS CRANK SHAFT
Item is no longer available
Price
N/A
95
BALL BEARING 6204ZZ
Price
N/A
96
*DISCD*BEVEL PINION
Price
$55.20
97
*DISCD*Z-AXIS SAFETY SWITCH
Price
$80.50
98
*DISCD*COLUMN
Item is no longer available
Price
N/A
102
CAP SCREW M10-1.5 X 40
Price
N/A
103
*DISCD*PEDESTAL
Item is no longer available
Price
N/A
104
*DISCD*Z-AXIS LEADSCREW NUT
Price
$327.75
105
CAP SCREW M6-1 X 16
Price
N/A
118
*DISCD*TURRET SPIDER
Item is no longer available
Price
N/A
120
*DISCD*RAM PINION
Item is no longer available
Price
N/A
123
*DISCD*CHAMFERED WASHER
Item is no longer available
Price
N/A
124
*DISCD*TURRET
Item is no longer available
Price
N/A
128
*DISCD*ROLL PIN
Item is no longer available
Price
N/A
129
*DISCD*LOCKING HEX BOLT M12-1.75
Item is no longer available
Price
N/A
130
*DISCD*GIB ADJUSTMENT SCREW
Item is no longer available
Price
N/A
131
*DISCD*RAM GIB
Item is no longer available
Price
N/A
134

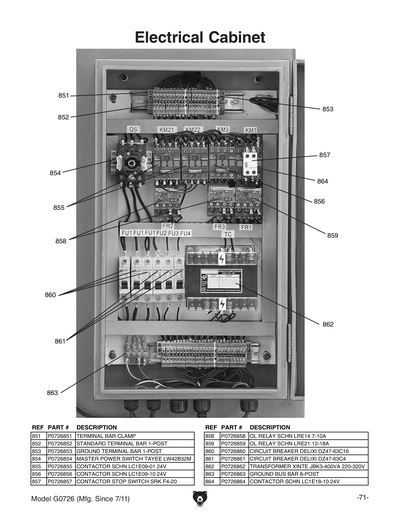

*DISCD*ELECTRICAL CABINET W/DOOR
Item is no longer available
Price
N/A
135
*DISCD*COOLANT PUMP ACCESS COVER
Item is no longer available
Price
N/A
136
PHLP HD SCR M5-.8 X 10
Price
N/A
137
*DISCD*COOLANT PUMP 90W 220V 3-PH
Item is no longer available
Price
N/A
138
CAP SCREW M6-1 X 15
Price
N/A
139
*DISCD*COOLANT HOSE 3/8 ID
Price
$55.20
140
*DISCD*PIPE NIPPLE 3/8" NPT
Item is no longer available
Price
N/A
141
*DISCD*ELBOW JOINT 3/8" NPT 90 DEG
Item is no longer available
Price
N/A
144
*DISCD*COOLANT NOZZLE
Item is no longer available
Price
N/A
146
*DISCD*KNEE LIMIT SWITCH WANIKI LXW5-11Q
Item is no longer available
Price
N/A
147
*DISCD*Z-AXIS MOTOR 1/8HP 220V 3-PH
Item is no longer available
Price
N/A
147-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
147-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
147-3
*DISCD*MOTOR WIRING JUNCTION BOX
Item is no longer available
Price
N/A
147A
*DISCD*ELEVATION MOTOR 1/2HP 220V 3-PH
Price
$1,460.50
148
*DISCD*CONTROL PANEL PIVOT ARM ASSY
Item is no longer available
Price
N/A
149
*DISCD*CONTROL PANEL PLATE
Item is no longer available
Price
N/A
150
*DISCD*CONTROL PANEL BOX
Item is no longer available
Price
N/A
151
PHLP HD SCR M5-.8 X 10
Price
N/A
152
*DISCD*UP BUTTON SHSMAO Y090-LAY37
Item is no longer available
Price
N/A
153
*DISCD*PUMP SWITCH SHSMAO Y090-LAY37
Item is no longer available
Price
N/A
154
*DISCD*POWER INDICATOR LIGHT AD56 22DS 2
Item is no longer available
Price
N/A
155
*DISCD*E-STOP BUTTON SHSMAO Y090-LAY37
Item is no longer available
Price
N/A
156
*DISCD*ON BUTTON SHSMAO Y090-LAY37
Item is no longer available
Price
N/A
157
*DISCD*DOWN BUTTON SHSMAO Y090-LAY37
Item is no longer available
Price
N/A
158
*DISCD*SPINDLE SWITCH YK AC3 200-500V
Item is no longer available
Price
N/A

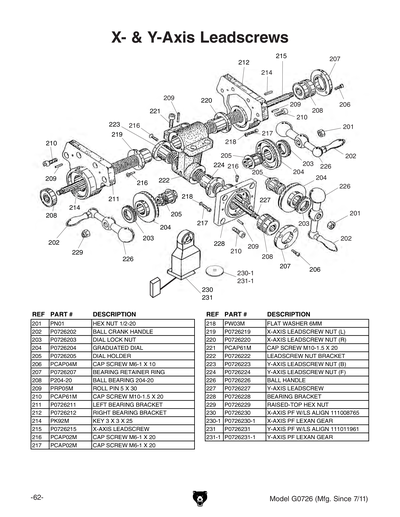

201
P0726201
Now: PN01
HEX NUT 1/2-20
Price
N/A
202
*DISCD*BALL CRANK HANDLE
Price
$41.40
203
*DISCD*DIAL LOCK NUT
Item is no longer available
Price
N/A
204
*DISCD*GRADUATED DIAL
Item is no longer available
Price
N/A
205
*DISCD*DIAL HOLDER
Item is no longer available
Price
N/A
206
CAP SCREW M6-1 X 10
Price
N/A
207
*DISCD*BEARING RETAINER RING
Item is no longer available
Price
N/A
208
BALL BEARING 204ZZ
Price
N/A
209
ROLL PIN 5 X 30
Price
N/A
210
CAP SCREW M10-1.5 X 20
Price
N/A
211
*DISCD*LEFT BEARING BRACKET
Item is no longer available
Price
N/A
212
*DISCD*RIGHT BEARING BRACKET
Item is no longer available
Price
N/A
214
KEY 3 X 3 X 25
Price
N/A
215
*DISCD*X-AXIS LEADSCREW
Item is no longer available
Price
N/A
216
CAP SCREW M6-1 X 20
Price
N/A
217
CAP SCREW M6-1 X 20
Price
N/A
218
FLAT WASHER 6MM
Price
N/A
219
*DISCD*LEFT X-AXIS LEADSCREW NUT
Item is no longer available
Price
N/A
220
*DISCD*RIGHT X-AXIS LEADSCREW NUT
Item is no longer available
Price
N/A
221
CAP SCREW M10-1.5 X 20
Price
N/A
222
*DISCD*LEADSCREW NUT BRACKET
Item is no longer available
Price
N/A
223
*DISCD*FRONT AND BACK Y-AXIS LEADSCREW N
Price
N/A
223A
*DISCD*FRONT AND BACK Y-AXIS LEADSCREW N
Item is no longer available
Price
N/A
224
*DISCD*FRONT AND BACK Y-AXIS LEADSCREW N
Price
N/A
226
*DISCD*BALL HANDLE
Price
$48.30
227
*DISCD*Y-AXIS LEADSCREW
Item is no longer available
Price
N/A
228
*DISCD*BEARING BRACKET
Item is no longer available
Price
N/A
229
*DISCD*RAISED-TOP HEX NUT
Item is no longer available
Price
N/A
230
AL510SX Power Feed X-Axis
Price
N/A
230-1
*DISCD*X-AXIS PF LEXAN GEAR
Item is no longer available
Price
N/A
231
*DISCD*Y-AXIS PF W/LS ALIGN 111011961
Item is no longer available
Price
N/A
231-1
*DISCD*Y-AXIS PF LEXAN GEAR
Item is no longer available
Price
N/A
231-2
*DISCD*BRASS BEVEL GEAR
Item is no longer available
Price
N/A
231-3
*DISCD*KEY FOR BRASS BEVEL GEAR
Price
$1.75

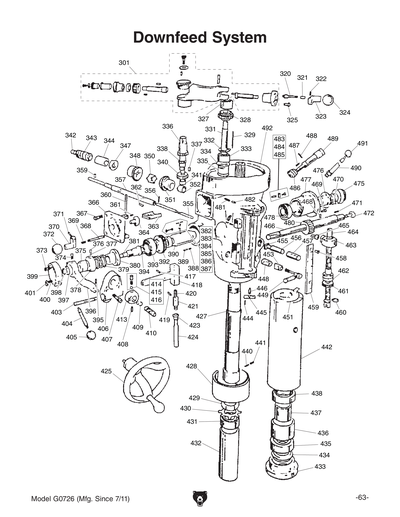

301
*DISCD*DOWNFEED SHAFT ASSEMBLY
Price
$476.10
320

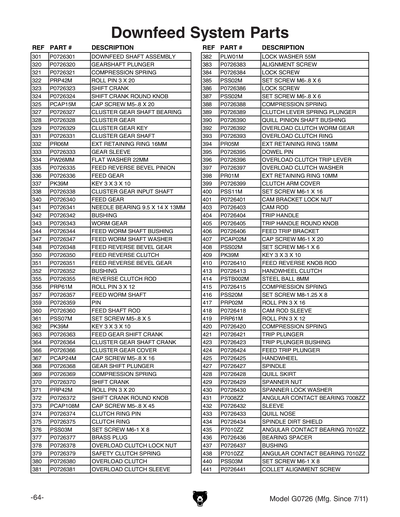

*DISCD*GEARSHAFT PLUNGER
Item is no longer available
Price
N/A
321
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
322
ROLL PIN 3 X 20
Price
N/A
323
*DISCD*SHIFT CRANK
Item is no longer available
Price
N/A
324
*DISCD*SHIFT CRANK ROUND KNOB
Item is no longer available
Price
N/A
325
CAP SCREW M5-.8 X 20
Price
N/A
327
*DISCD*CLUSTER GEAR SHAFT BEARING
Item is no longer available
Price
N/A
328
*DISCD*CLUSTER GEAR
Item is no longer available
Price
N/A
329
*DISCD*CLUSTER GEAR KEY
Item is no longer available
Price
N/A
331
*DISCD*FEED REV BEVEL PINION W/CLUSTER G
Price
N/A
331A
*DISCD*FEED REV BEVEL PINION W/CLUSTER G
Item is no longer available
Price
N/A
332
EXT RETAINING RING 16MM
Price
N/A
333
*DISCD*GEAR SLEEVE
Item is no longer available
Price
N/A
334
FLAT WASHER 22MM
Price
N/A
335
*DISCD*FEED REV BEVEL PINION W/CLUSTER G
Price
N/A
336
*DISCD*DOWNFEED SHAFT ASSEMBLY
Price
N/A
337
KEY 3 X 3 X 10
Price
N/A
338
*DISCD*DOWNFEED SHAFT ASSEMBLY
Price
N/A
340
*DISCD*DOWNFEED SHAFT ASSEMBLY
Price
N/A
341
*DISCD*NEEDLE BEARING 9.5 X 14 X 13MM
Item is no longer available
Price
N/A
342
*DISCD*BUSHING
Item is no longer available
Price
N/A
343
*DISCD*WORM GEAR
Item is no longer available
Price
N/A
344
*DISCD*FEED WORM SHAFT BUSHING
Item is no longer available
Price
N/A
347
*DISCD*FEED WORM SHAFT WASHER
Item is no longer available
Price
N/A
348
*DISCD*FEED REVERSE BEVEL GEAR
Item is no longer available
Price
N/A
350
*DISCD*FEED REVERSE CLUTCH
Item is no longer available
Price
N/A
351
*DISCD*FEED REVERSE BEVEL GEAR W/BUSHING
Price
N/A
351A
*DISCD*FEED REVERSE BEVEL GEAR W/BUSHING
Item is no longer available
Price
N/A
352
*DISCD*FEED REVERSE BEVEL GEAR W/BUSHING
Price
N/A
355
*DISCD*REVERSE CLUTCH ROD
Item is no longer available
Price
N/A
356
ROLL PIN 3 X 12
Price
N/A
357
*DISCD*FEED WORM SHAFT
Item is no longer available
Price
N/A
359
*DISCD*PIN
Item is no longer available
Price
N/A
360
*DISCD*FEED SHAFT ROD
Item is no longer available
Price
N/A
361
SET SCREW M5-.8 X 5
Price
N/A
362
KEY 3 X 3 X 10
Price
N/A
363
*DISCD*FEED GEAR SHIFT CRANK
Item is no longer available
Price
N/A
364
*DISCD*CLUSTER GEAR SHAFT CRANK
Item is no longer available
Price
N/A
366
*DISCD*CLUSTER GEAR COVER
Item is no longer available
Price
N/A
367
CAP SCREW M5-.8 X 16
Price
N/A
368
*DISCD*GEAR SHIFT PLUNGER
Item is no longer available
Price
N/A
369
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
370
*DISCD*SHIFT CRANK
Item is no longer available
Price
N/A
371
ROLL PIN 3 X 20
Price
N/A
372
*DISCD*SHIFT CRANK ROUND KNOB
Item is no longer available
Price
N/A
373
CAP SCREW M5-.8 X 45
Price
N/A
374
*DISCD*CLUTCH RING PIN
Item is no longer available
Price
N/A
375
*DISCD*CLUTCH RING
Item is no longer available
Price
N/A
376
SET SCREW M6-1 X 8
Price
N/A
378
*DISCD*OVERLOAD CLUTCH LOCK NUT
Item is no longer available
Price
N/A
379
*DISCD*SAFETY CLUTCH SPRING
Item is no longer available
Price
N/A
380
*DISCD*OVERLOAD CLUTCH
Item is no longer available
Price
N/A
381
*DISCD*OVERLOAD CLUTCH SLEEVE
Item is no longer available
Price
N/A
382
LOCK WASHER 5MM
Price
N/A
384
*DISCD*LOCK SCREW
Item is no longer available
Price
N/A
385
SET SCREW M6-1 X 6
Price
N/A
386
*DISCD*LOCK SCREW
Item is no longer available
Price
N/A
387
SET SCREW M6-1 X 6
Price
N/A
388
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
389
*DISCD*CLUTCH LEVER SPRING PLUNGER
Item is no longer available
Price
N/A
390
*DISCD*QUILL PINION SHAFT BUSHING
Item is no longer available
Price
N/A
392
*DISCD*OVERLOAD CLUTCH WORM GEAR W/RING
Price
N/A
392A
*DISCD*OVERLOAD CLUTCH WORM GEAR W/RING
Item is no longer available
Price
N/A
393
*DISCD*OVERLOAD CLUTCH WORM GEAR W/RING
Price
N/A
394
EXT RETAINING RING 15MM
Price
N/A
395
*DISCD*DOWEL PIN
Item is no longer available
Price
N/A
396
*DISCD*OVERLOAD CLUTCH TRIP LEVER
Item is no longer available
Price
N/A
397
*DISCD*OVERLOAD CLUTCH WASHER
Item is no longer available
Price
N/A
398
EXT RETAINING RING 10MM
Price
N/A
399
*DISCD*CLUTCH ARM COVER
Item is no longer available
Price
N/A
400
SET SCREW M6-1 X 16
Price
N/A
401
*DISCD*CAM BRACKET LOCK NUT
Item is no longer available
Price
N/A
403
*DISCD*CAM ROD
Item is no longer available
Price
N/A
404
*DISCD*TRIP HANDLE
Item is no longer available
Price
N/A
405
*DISCD*TRIP HANDLE ROUND KNOB
Item is no longer available
Price
N/A
406
*DISCD*FEED TRIP BRACKET
Item is no longer available
Price
N/A
407
CAP SCREW M6-1 X 20
Price
N/A
408
SET SCREW M6-1 X 6
Price
N/A
409
KEY 3 X 3 X 10
Price
N/A
410
*DISCD*FEED REVERSE KNOB ROD
Item is no longer available
Price
N/A
413
*DISCD*HANDWHEEL CLUTCH
Item is no longer available
Price
N/A
414
STEEL BALL 8MM
Price
N/A
415
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
416
SET SCREW M8-1.25 X 8
Price
N/A
417
ROLL PIN 3 X 16
Price
N/A
418
*DISCD*CAM ROD SLEEVE
Item is no longer available
Price
N/A
419
ROLL PIN 3 X 12
Price
N/A
420
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
421
*DISCD*TRIP PLUNGER
Item is no longer available
Price
N/A
423
*DISCD*TRIP PLUNGER BUSHING
Item is no longer available
Price
N/A
424
*DISCD*FEED TRIP PLUNGER
Item is no longer available
Price
N/A
425
*DISCD*HANDWHEEL
Item is no longer available
Price
N/A
427
*DISCD*SPINDLE W/SPANNER
Price
N/A
427A
*DISCD*SPINDLE W/SPANNER
Item is no longer available
Price
N/A
428
*DISCD*QUILL SKIRT
Item is no longer available
Price
N/A
429
*DISCD*SPINDLE W/SPANNER
Price
N/A
430
*DISCD*SPANNER LOCK WASHER
Item is no longer available
Price
N/A
431
BALL BEARING 6008ZZ
Price
N/A
433
*DISCD*QUILL NOSE
Item is no longer available
Price
N/A
434
*DISCD*SPINDLE DIRT SHIELD
Item is no longer available
Price
N/A
435
ANGULAR CONTACT BEARING 7010C
Price
N/A
436
*DISCD*BEARING SPACER W/BUSHING
Price
N/A
436A
*DISCD*BEARING SPACER W/BUSHING
Item is no longer available
Price
N/A
437
*DISCD*BEARING SPACER W/BUSHING
Price
N/A
438
ANGULAR CONTACT BEARING 7010C
Price
N/A
440
SET SCREW M6-1 X 8
Price
N/A
441
*DISCD*COLLET ALIGNMENT SCREW
Item is no longer available
Price
N/A
442
*DISCD*QUILL
Item is no longer available
Price
N/A
444
SET SCREW M4-.7 X 20
Price
N/A
445
*DISCD*FEED TRIP LEVER
Item is no longer available
Price
N/A
446
*DISCD*TRIP LEVER PIN
Item is no longer available
Price
N/A
448
*DISCD*QUILL LOCK SLEEVE
Item is no longer available
Price
N/A
449
*DISCD*QUILL LOCK HANDLE
Item is no longer available
Price
N/A
453
*DISCD*QUILL LOCK SLEEVE TAPPED
Item is no longer available
Price
N/A
455
*DISCD*T-BOLT
Item is no longer available
Price
N/A
457
*DISCD*CLAMPING BOLT LOCK
Item is no longer available
Price
N/A
458
PHLP HD SCR M4-.7 X 6
Price
N/A
459
*DISCD*SCALE
Item is no longer available
Price
N/A
460
*DISCD*QUILL LEADSCREW LOCK SCREW
Item is no longer available
Price
N/A
461
*DISCD*QUILL LOCK NUT W/STOP NUT
Price
N/A
461A
*DISCD*QUILL LOCK NUT W/STOP NUT
Item is no longer available
Price
N/A
462
*DISCD*QUILL LOCK NUT W/STOP NUT
Price
N/A
463
*DISCD*QUILL DOG
Item is no longer available
Price
N/A
464
*DISCD*QUILL LEADSCREW
Item is no longer available
Price
N/A
465
CAP SCREW M10-1.5 X 18
Price
N/A
466
*DISCD*QUILL PINION AND SHAFT
Price
N/A
468
ROLL PIN 4 X 18
Price
N/A
469
PHLP HD SCR M4-.7 X 12
Price
N/A
470
ROLL PIN 5 X 10
Price
N/A
471
KEY 3 X 3 X 18
Price
N/A
472
*DISCD*PINION SHAFT HUB SCREW
Item is no longer available
Price
N/A
475
*DISCD*RACK FEED HANDLE HUB
Item is no longer available
Price
N/A
476
*DISCD*PINION SHAFT HUB SLEEVE
Item is no longer available
Price
N/A
477
*DISCD*TORSION SPRING W/COVER
Price
N/A
478
*DISCD*TORSION SPRING W/COVER
Price
N/A
478A
*DISCD*TORSION SPRING W/COVER
Item is no longer available
Price
N/A
480
*DISCD*QUILL PINION AND SHAFT
Price
$86.25
481
SET SCREW M6-1 X 16
Price
N/A
482
*DISCD*HEAD CASTING SCREW
Item is no longer available
Price
N/A
483
*DISCD*REVERSE TRIP BALL LEVER
Item is no longer available
Price
N/A
484
*DISCD*FEED REVERSE TRIP PLUNGER
Item is no longer available
Price
N/A
485
*DISCD*REVERSE TRIP BALL LEVER SCREW
Item is no longer available
Price
N/A
486
*DISCD*WORM GEAR
Price
$30.50
487
KEY 4 X 4 X 20
Price
N/A
488
SET SCREW M6-1 X 8
Price
N/A
489
*DISCD*WORM SHAFT
Price
$62.10
490
*DISCD*PINION SHAFT HUB HANDLE
Item is no longer available
Price
N/A
491
*DISCD*PINON SHAFT ROUND KNOB
Item is no longer available
Price
N/A
492
*DISCD*HEAD CASTING
Item is no longer available
Price
N/A

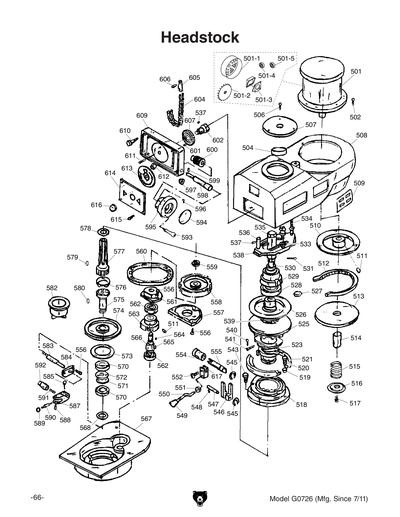

501
*DISCD*MOTOR 5HP 220V 3-PH AEVF 112-4
Item is no longer available
Price
N/A
501-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
501-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
501-3
*DISCD*MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
501-4
BALL BEARING 6205ZZ
Price
N/A
501-5
BALL BEARING 6205ZZ
Price
N/A
502
*DISCD*MOTOR MOUNT CAP SCREW 3/8-16
Price
N/A

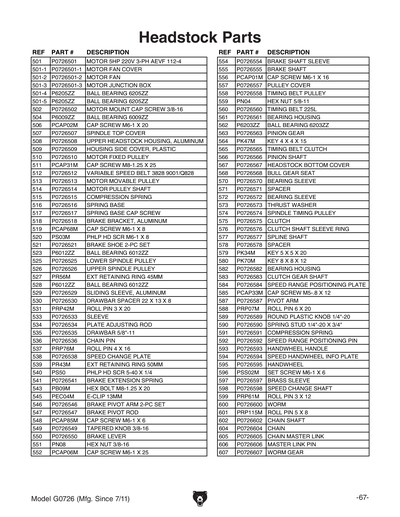

504
BALL BEARING 6009ZZ
Price
N/A
506
CAP SCREW M6-1 X 20
Price
N/A
507
*DISCD*SPINDLE TOP COVER
Price
N/A
508
*DISCD*UPPER HEADSTOCK HOUSING (ALUMINUM
Price
N/A
509
*DISCD*HOUSING SIDE COVER, PLASTIC
Price
N/A
510
*DISCD*MOTOR ASSEMBLY
Price
N/A
511
CAP SCREW M8-1.25 X 25
Price
N/A
512
*DISCD*VARIABLE SPEED BELT 3828 9001/Q82
Price
N/A
513
*DISCD*MOTOR ASSEMBLY
Price
N/A
514
*DISCD*MOTOR ASSEMBLY
Price
N/A
515
*DISCD*MOTOR ASSEMBLY
Price
N/A
516
*DISCD*MOTOR ASSEMBLY
Price
N/A
517
*DISCD*MOTOR ASSEMBLY
Price
N/A
518
*DISCD*BRAKE BRACKET, ALUMINUM
Price
N/A
519
CAP SCREW M6-1 X 8
Price
N/A
520
PHLP HD SCR M6-1 X 8
Price
N/A
521
*DISCD*BRAKE SHOE 2-PC SET
Price
N/A
523
BALL BEARING 6012ZZ
Price
N/A
525
*DISCD*SPINDLE PULLEY ASSEMBLY
Price
N/A
526
*DISCD*SPINDLE PULLEY ASSEMBLY
Price
N/A
527
EXT RETAINING RING 45MM
Price
N/A
528
BALL BEARING 6012ZZ
Price
N/A
529
*DISCD*SLIDING SLEEVE, ALUMINUM
Price
N/A
530
*DISCD*DRAWBAR SPACER 22 X 13 X 8
Price
N/A
531
ROLL PIN 3 X 20
Price
N/A
533
*DISCD*SLEEVE
Price
N/A
534
*DISCD*PLATE ADJUSTING ROD
Price
N/A
535
*DISCD*DRAWBAR 5/8"-11
Item is no longer available
Price
N/A
536
*DISCD*CHAIN PIN
Price
N/A
537
ROLL PIN 4 X 16
Price
N/A
538
*DISCD*SPEED CHANGE PLATE
Price
N/A
539
EXT RETAINING RING 50MM
Price
N/A
540
P0726540
Now: PS50
PHLP HD SCR 5-40 X 1/4
Price
N/A
541
*DISCD*BRAKE EXTENSION SPRING
Price
N/A
543
HEX BOLT M8-1.25 X 20
Price
N/A
545
E-CLIP 13MM
Price
N/A
546
*DISCD*BRAKE PIVOT ARM 2-PC SET
Price
N/A
547
*DISCD*BRAKE PIVOT ROD
Price
N/A
548
CAP SCREW M6-1 X 6
Price
N/A
549
*DISCD*TAPERED KNOB 3/8-16
Price
N/A
550
*DISCD*BRAKE LEVER
Price
N/A
551
P0726551
Now: PN08
HEX NUT 3/8-16
Price
N/A
552
CAP SCREW M6-1 X 25
Price
N/A
554
*DISCD*BRAKE SHAFT SLEEVE
Price
N/A
555
*DISCD*BRAKE SHAFT
Price
N/A
556
CAP SCREW M6-1 X 16
Price
N/A
557
*DISCD*PULLEY COVER
Price
N/A
558
*DISCD*TIMING BELT PULLEY
Price
N/A
559
P0726559
Now: PN04
HEX NUT 5/8-11
Price
N/A
560
*DISCD*TIMING BELT 225L
Price
N/A
561
*DISCD*BEARING HOUSING
Price
N/A
562
BALL BEARING 6203ZZ
Price
N/A
563
*DISCD*PINION GEAR
Price
N/A
564
KEY 4 X 4 X 15
Price
N/A
565
*DISCD*TIMING BELT CLUTCH
Price
N/A
566
*DISCD*PINION SHAFT
Price
N/A
567
*DISCD*HEADSTOCK BOTTOM COVER
Price
N/A
568
*DISCD*BULL GEAR SEAT
Price
N/A
570
*DISCD*BEARING SLEEVE
Price
N/A
571
*DISCD*SPACER AND BEARING ASSEMBLY
Price
N/A
572
*DISCD*SPACER AND BEARING ASSEMBLY
Price
N/A
572-1
CAP SCREW M4-.7 X 10
Price
N/A
573
*DISCD*THRUST WASHER
Price
N/A
574
*DISCD*SPINDLE TIMING PULLEY
Price
N/A
575
*DISCD*CLUTCH
Price
N/A
576
*DISCD*CLUTCH SHAFT SLEEVE RING
Price
N/A
577
*DISCD*SPINDLE PULLEY ASSEMBLY
Price
N/A
578
*DISCD*SPACER
Price
N/A
579
KEY 5 X 5 X 20
Price
N/A
580
KEY 8 X 8 X 12
Price
N/A
582
*DISCD*BEARING HOUSING
Price
N/A
583
*DISCD*CLUTCH GEAR SHAFT
Price
N/A
584
*DISCD*SPEED RANGE POSITIONING PLATE
Price
N/A
585
CAP SCREW M5-.8 X 12
Price
N/A
587
*DISCD*PIVOT ARM
Price
N/A
588
ROLL PIN 6 X 20
Price
N/A
589
*DISCD*ROUND PLASTIC KNOB 1/4"-20
Price
N/A
590
*DISCD*SPRING STUD 1/4"-20 X 3/4"
Price
N/A
591
*DISCD*COMPRESSION SPRING
Price
N/A
592
*DISCD*SPEED RANGE POSITIONING PIN
Price
N/A
593
*DISCD*HANDWHEEL HANDLE
Price
N/A
594
*DISCD*SPEED HANDWHEEL INFO PLATE
Price
N/A
595
*DISCD*HANDWHEEL
Price
N/A
596
SET SCREW M6-1 X 6
Price
N/A
597
*DISCD*BRASS SLEEVE
Price
N/A
598
*DISCD*SPEED CHANGE SHAFT
Price
N/A
599
ROLL PIN 3 X 12
Price
N/A
600
*DISCD*WORM
Price
N/A
601
*DISCD*ROLL PIN 5 X 8
Price
N/A
602
*DISCD*CHAIN SHAFT
Price
N/A
604
*DISCD*CHAIN
Price
N/A
605
*DISCD*CHAIN MASTER LINK
Price
N/A
606
*DISCD*MASTER LINK PIN
Price
N/A
607
*DISCD*WORM GEAR
Price
N/A
608-4
BALL BEARING 6206ZZ
Price
N/A
608-5
BALL BEARING 6205ZZ
Price
N/A

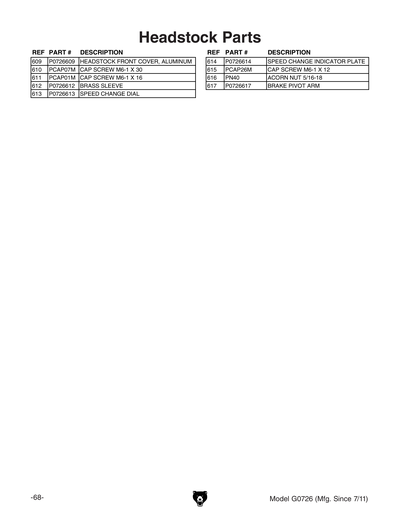

609
*DISCD*HEADSTOCK FRONT COVER, ALUMINUM
Price
N/A
610
CAP SCREW M6-1 X 30
Price
N/A
611
CAP SCREW M6-1 X 16
Price
N/A
612
*DISCD*BRASS SLEEVE
Price
N/A
613
*DISCD*SPEED CHANGE DIAL
Price
N/A
614
*DISCD*SPEED CHANGE INDICATOR PLATE
Price
N/A
615
CAP SCREW M6-1 X 12
Price
N/A
616
P0726616
Now: PN40
ACORN NUT 5/16-18
Price
N/A
617
CAP SCREW M4-.7 X 16
Price
N/A
618
FLAT WASHER 10MM
Price
N/A
623
BALL BEARING 6012ZZ
Price
N/A
626
EXT RETAINING RING 50MM
Price
N/A
629-1
CAP SCREW M6-1 X 18
Price
N/A
630
BALL BEARING 6012ZZ
Price
N/A
635
P0726635
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
639
KEY 7 X 7 X 30
Price
N/A
641
SET SCREW M6-1 X 6
Price
N/A
646
CAP SCREW M6-1 X 25
Price
N/A
647
EXT RETAINING RING 26MM
Price
N/A
648
CAP SCREW M5-.8 X 20
Price
N/A
651
KEY 8 X 8 X 20
Price
N/A
655
CAP SCREW M5-.8 X 20
Price
N/A
659
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
662
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
664
PHLP HD SCR M6-1 X 20
Price
N/A
666
EXT RETAINING RING 8MM
Price
N/A
672
SET SCREW M6-1 X 6
Price
N/A
676
ROLL PIN 6 X 6
Price
N/A
677
SET SCREW M6-1 X 6
Price
N/A

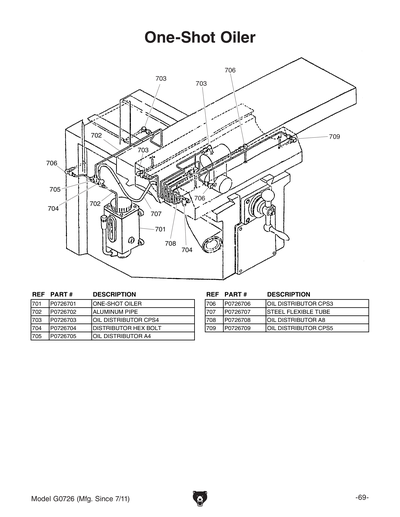

701
*DISCD*ONE-SHOT OILER
Item is no longer available
Price
N/A
702
*DISCD*ALUMINUM PIPE
Item is no longer available
Price
N/A
703
*DISCD*OIL DISTRIBUTOR CPS4
Item is no longer available
Price
N/A
704
*DISCD*DISTRIBUTOR HEX BOLT
Item is no longer available
Price
N/A
705
*DISCD*OIL DISTRIBUTOR A4
Item is no longer available
Price
N/A
706
*DISCD*OIL DISTRIBUTOR CPS3
Item is no longer available
Price
N/A
707
*DISCD*STEEL FLEXIBLE TUBE
Price
$43.65
708
*DISCD*OIL DISTRIBUTOR A8
Item is no longer available
Price
N/A
709
*DISCD*OIL DISTRIBUTOR CPS5
Item is no longer available
Price
N/A

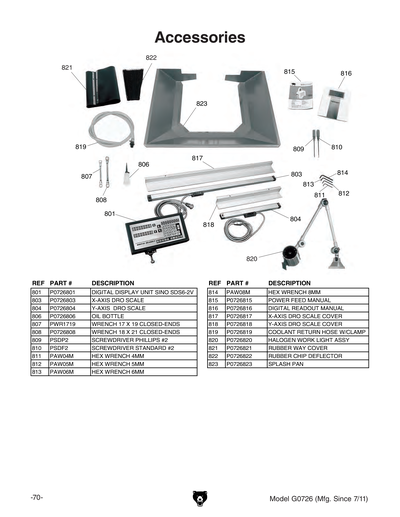

801
*DISCD*DIGITAL DISPLAY UNIT SINO SDS6-2V
Item is no longer available
Price
N/A
803
*DISCD*X-AXIS DRO SCALE
Item is no longer available
Price
N/A
804
*DISCD*Y-AXIS DRO SCALE
Price
$345.00
806
*DISCD*OIL BOTTLE
Item is no longer available
Price
N/A
807
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
808
*DISCD*WRENCH 18 X 21 CLOSED-ENDS
Item is no longer available
Price
N/A
809
SCREWDRIVER PHILLIPS #2
Price
N/A
810
SCREWDRIVER FLAT #2
Price
N/A
811
HEX WRENCH 4MM
Price
N/A
812
HEX WRENCH 5MM
Price
N/A
813
HEX WRENCH 6MM
Price
N/A
814
HEX WRENCH 8MM
Price
N/A
815
*DISCD*POWER FEED MANUAL
Price
$6.90
816
*DISCD*DIGITAL READOUT MANUAL
Price
$6.90
817
*DISCD*X-AXIS DRO SCALE COVER
Item is no longer available
Price
N/A
818
*DISCD*Y-AXIS DRO SCALE COVER
Item is no longer available
Price
N/A
819
*DISCD*COOLANT RETURN HOSE W/CLAMP
Price
$48.30
820
*DISCD*HALOGEN WORK LIGHT ASSY
Item is no longer available
Price
N/A
821
*DISCD*RUBBER WAY COVER
Item is no longer available
Price
N/A
822
*DISCD*RUBBER CHIP DEFLECTOR
Item is no longer available
Price
N/A
823
*DISCD*SPLASH PAN
Item is no longer available
Price
N/A
851
*DISCD*TERMINAL BAR CLAMP
Item is no longer available
Price
N/A
852
*DISCD*STANDARD TERMINAL BAR 1-POST
Item is no longer available
Price
N/A
853
*DISCD*GROUND TERMINAL BAR 1-POST
Item is no longer available
Price
N/A
854
*DISCD*MASTER POWER SWITCH TAYEE LW42B32
Item is no longer available
Price
N/A
855
*DISCD*CONTACTOR SCHN LC1E0901 24V
Item is no longer available
Price
N/A
856
*DISCD*CONTACTOR SCHN LC1E0910 24V
Price
$77.65
857
*DISCD*CONTACTOR STOP SWITCH SRK F4-20
Item is no longer available
Price
N/A
858
*DISCD*OL RELAY SCHN LRE14 7-10A
Price
$103.50
859
*DISCD*OL RELAY SCHN LRE21 12-18A
Item is no longer available
Price
N/A
860
*DISCD*CIRCUIT BREAKER 16A DELIX DZ47-63
Price
$25.90
861
*DISCD*CIRCUIT BREAKER 4A DELIX DZ47-63
Price
$25.90
862
*DISCD*TRANSFORMER JBK3 400VA 220-24V
Item is no longer available
Price
N/A
863
*DISCD*GROUND BUS BAR 8-POST
Item is no longer available
Price
N/A
864
*DISCD*CONTACTOR SCHN LC1E1810 24V
Price
$62.10

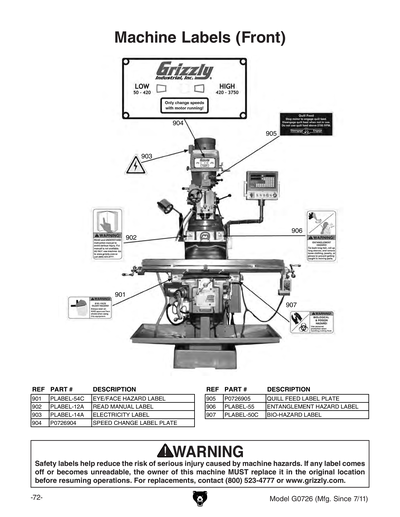

901
FACE SHIELD 2.8W X 1.5H
Price
N/A
902
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
903
ELECTRICITY 0.7W X 0.6H
Price
N/A
904
*DISCD*SPEED CHANGE LABEL PLATE
Item is no longer available
Price
N/A
905
*DISCD*QUILL FEED LABEL PLATE
Item is no longer available
Price
N/A
906
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
907
BIOLOGICAL/POISON HAZARD 2.8W X 1.5H
Price
N/A

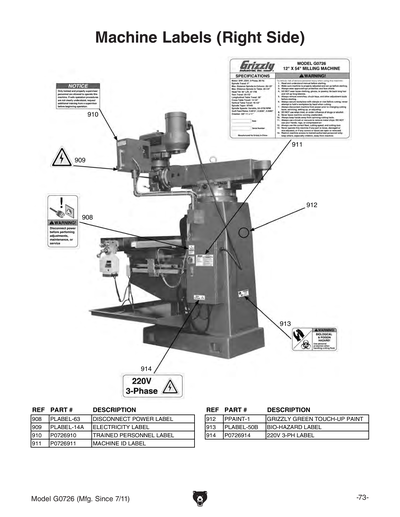

908
DISCONNECT 220V 2W X 3.3H
Price
N/A
909
ELECTRICITY 0.7W X 0.6H
Price
N/A
910
*DISCD*TRAINED PERSONNEL LABEL
Item is no longer available
Price
N/A
911
MACHINE ID LABEL
Item is no longer available
Price
N/A
912
N/S GRIZZLY GREEN G1023S
Price
N/A
913
BIOLOGICAL/POISON HAZARD 3.8W X 2H
Price
N/A
914
*DISCD*220V 3-PH LABEL
Item is no longer available
Price
N/A
MAN
MANUAL G0726 MFG 7/11 V1.04.13
Item is no longer available
Price
N/A
