Parts for G0728 Vertical Mill

IMPORTANT

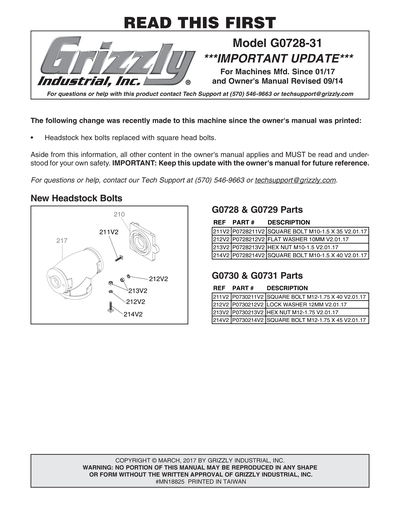

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

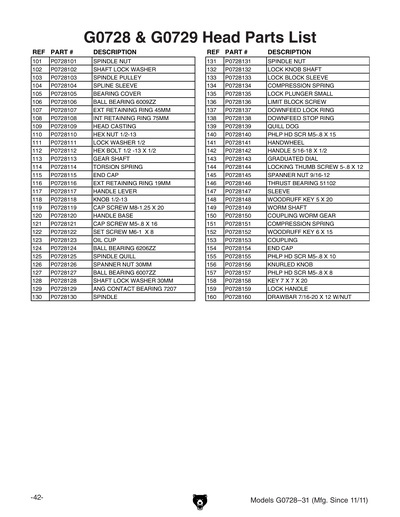

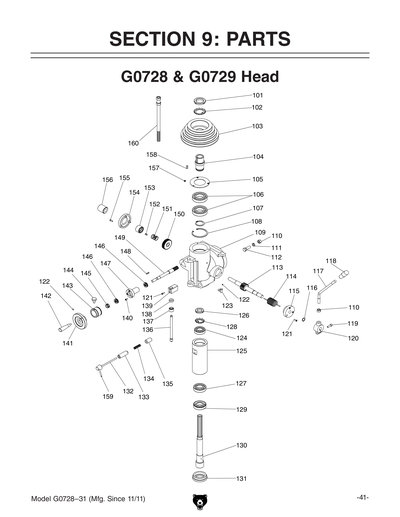

101
SPINDLE NUT
102
SHAFT LOCK WASHER
103
SPINDLE PULLEY
104
SPLINE SLEEVE
105
BEARING COVER
106
BALL BEARING 6009ZZ
Price
N/A
107
Now: PR56M
EXT RETAINING RING 45MM
Price
N/A
108
Now: PR67M
INT RETAINING RING 75MM
Price
N/A
109
HEAD CASTING
110
Now: PN13
HEX NUT 1/2-13
Price
N/A
111
Now: PLW07
LOCK WASHER 1/2
Price
N/A
113
GEAR SHAFT
114
TORSION SPRING
115
END CAP
Item is no longer available
Price
N/A
116
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
117
HANDLE LEVER
118
KNOB 1/2-13
119
CAP SCREW M8-1.25 X 20
Price
N/A
120
HANDLE BASE
121
CAP SCREW M5-.8 X 16
Price
N/A
122
SET SCREW M6-1 X 8
Price
N/A
123
OIL CUP 1/8" NPT X 8MM X 24MM ELBOW
Price
N/A
124
BALL BEARING 6206ZZ
Price
N/A
125
SPINDLE QUILL
126
SPANNER NUT 30MM
Item is no longer available
Price
N/A
127
BALL BEARING 6007ZZ
Price
N/A
128
SHAFT LOCK WASHER 30MM
Item is no longer available
Price
N/A
129
Now: P7207
ANGULAR CONTACT BEARING 7207
Price
N/A
130
SPINDLE
130-1
SET SCREW M4-.7 X 10
Price
N/A
131
SPINDLE NUT
132
LOCK KNOB SHAFT
133
LOCK BLOCK SLEEVE
134
COMPRESSION SPRING
135
LOCK PLUNGER SMALL
136
LIMIT BLOCK SCREW
137
DOWNFEED LOCK RING
138
DOWNFEED STOP RING
139
QUILL DOG
140
Now: PS20M
PHLP HD SCR M5-.8 X 15
Price
N/A
141
HANDWHEEL
142
HANDLE 5/16-18 X 1/2
143
GRADUATED DIAL
144
LOCKING THUMB SCREW 5-.8 X 12
145
SPANNER NUT 9/16-12
146
THRUST BEARING 51102
Price
N/A
147
SLEEVE
148
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
149
WORM SHAFT
150
COUPLING WORM GEAR
151
COMPRESSION SPRING
152
KEY 6 X 6 X 15
153
BUSHING
Price
N/A
154
END CAP
155
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
156
KNURLED KNOB
157
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
158
Now: PK25M
KEY 7 X 7 X 20
Price
N/A
159
LOCK HANDLE
160
DRAWBAR 7/16-20 X 12 W/NUT

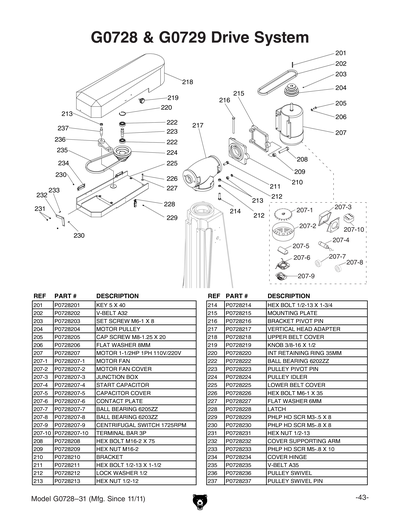

201
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
202
Now: PVA32
V-BELT A32
Price
N/A
203
SET SCREW M6-1 X 8
Price
N/A
204
MOTOR PULLEY
205
CAP SCREW M8-1.25 X 20
Price
N/A
206
Now: PW01M
FLAT WASHER 8MM
Price
N/A
207
MOTOR 1.5HP 110V/220V 1-PH
207-1
MOTOR FAN
Item is no longer available
Price
N/A
207-10
TERMINAL BAR 3P
Item is no longer available
Price
N/A
207-2
MOTOR FAN COVER
Item is no longer available
Price
N/A
207-3
JUNCTION BOX
Item is no longer available
Price
N/A
207-4
S CAPACITOR 400M 125V 1-3/4 X 3-9/16
Item is no longer available
Price
N/A
207-5
CAPACITOR COVER
207-6
CONTACT PLATE
Item is no longer available
Price
N/A
207-7
BALL BEARING 6205ZZ
Price
N/A
207-8
BALL BEARING 6203ZZ
Price
N/A
207-9
CENTRIFUGAL SWITCH 1725RPM
Item is no longer available
Price
N/A
208
HEX BOLT M16-2 X 75
Price
N/A
209
Now: PN13M
HEX NUT M16-2
Price
N/A
210
BRACKET
211V2
SQUARE BOLT M10-1.5 X 35 V2.01.17
212V2
Now: PW04M
FLAT WASHER 10MM
Price
N/A
213V2
Now: PN02M
HEX NUT M10-1.5
Price
N/A
214V2
SQUARE BOLT M10-1.5 X 40 V2.01.17
215
MOUNTING PLATE
216
PIVOT BOLT 1/2 X 140
Price
N/A
217
VERTICAL HEAD ADAPTER
Item is no longer available
Price
N/A
218
UPPER BELT COVER
219
KNOB 3/8-16 X 1/2
220
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
222
BALL BEARING 6202ZZ
Price
N/A
223
PULLEY PIVOT PIN
224
PULLEY IDLER
225
LOWER BELT COVER
226
Now: PB52M
HEX BOLT M6-1 X 35
Price
N/A
227
Now: PW03M
FLAT WASHER 6MM
Price
N/A
228
LATCH
Price
N/A
229
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
230
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
231
Now: PN13
HEX NUT 1/2-13
Price
N/A
232
COVER SUPPORTING ARM
233
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
234
COVER HINGE
235
Now: PVA35
V-BELT A35
Price
N/A
236
PULLEY SWIVEL
Item is no longer available
Price
N/A
237
PULLEY SWIVEL PIN

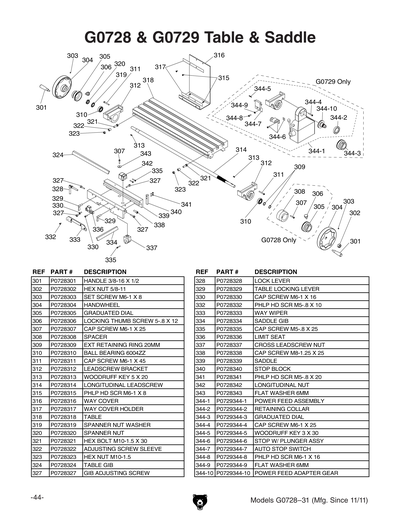

301
HANDLE 3/8-16 X 1/2
302
Now: PN04
HEX NUT 5/8-11
Price
N/A
303
SET SCREW M6-1 X 8
Price
N/A
304
HANDWHEEL
305
GRADUATED DIAL
306
LOCKING THUMB SCREW 5-.8 X 12
307
CAP SCREW M6-1 X 25
Price
N/A
308
SPACER
309
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
310
BALL BEARING 6004ZZ
Price
N/A
311
CAP SCREW M6-1 X 45
Price
N/A
312
LEADSCREW BRACKET
313
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
314
LONGITUDINAL LEADSCREW
315
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
316
WAY COVER
317
WAY COVER HOLDER
318
TABLE
Item is no longer available
Price
N/A
319
SPANNER NUT WASHER
Item is no longer available
Price
N/A
320
SPANNER NUT
321
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
322
ADJUSTING SCREW SLEEVE
Item is no longer available
Price
N/A
323
Now: PN02M
HEX NUT M10-1.5
Price
N/A
324
TABLE GIB
327
GIB ADJUSTING SCREW
328
LOCK LEVER
Item is no longer available
Price
N/A
329
TABLE LOCKING LEVER
330
CAP SCREW M6-1 X 16
Price
N/A
332
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
333
WAY WIPER
334
SADDLE GIB
335
CAP SCREW M5-.8 X 25
Price
N/A
336
LIMIT SEAT
337
CROSS LEADSCREW NUT
338
CAP SCREW M8-1.25 X 25
Price
N/A
339
SADDLE
Item is no longer available
Price
N/A
340
LIMIT BLOCK
Price
N/A
341
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
342
LONGITUDINAL NUT
343
Now: PW03M
FLAT WASHER 6MM
Price
N/A
403
COLUMN
Item is no longer available
Price
N/A
405
CAP SCREW M6-1 X 8
Price
N/A
406
KNEE GIB
407
GIB ADJUSTMENT SCREW
409
KNEE
410
KNEE COVER
Item is no longer available
Price
N/A
411
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
412
LOCK LEVER
Item is no longer available
Price
N/A
415
SPANNER NUT
416
TAB WASHER
Item is no longer available
Price
N/A
417
BEVEL GEAR
418
BALL BEARING 6004ZZ
Price
N/A
419
GEAR SHAFT SLEEVE
Item is no longer available
Price
N/A
420
CAP SCREW M6-1 X 16
Price
N/A
421
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
422
VERTICAL CRANK SHAFT
Item is no longer available
Price
N/A
423
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
424
CLUTCH
Item is no longer available
Price
N/A
425
SET SCREW M6-1 X 8
Price
N/A
426
LOCKING THUMB SCREW 5-.8 X 12
427
GRADUATED DIAL
428
CRANK HANDLE ARM
429
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
430
HANDLE 3/8-16 X 1/2
Price
N/A
431
HANDWHEEL
432
GRADUATED DIAL
433
THRUST BEARING 51104
Price
N/A
434
BEARING HOUSING
Item is no longer available
Price
N/A
435
CROSS LEAD SCREW
436
BALL BEARING 6204ZZ
Price
N/A
437
LEADSCREW
Item is no longer available
Price
N/A
438
PEDESTAL
Item is no longer available
Price
N/A
441
MACHINE BASE
Item is no longer available
Price
N/A
444
LIMIT TRACK
Item is no longer available
Price
N/A
445
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
446
SLEEVE
Item is no longer available
Price
N/A
447
Now: PN02M
HEX NUT M10-1.5
Price
N/A
448
Now: PB29M
HEX BOLT M6-1 X 30
Price
N/A
449
Now: PB72
HEX BOLT 1/2-13 X 2
Price
N/A
450
Now: PLW07
LOCK WASHER 1/2
Price
N/A
452
SPINDLE SWITCH KEDU ZH-HC-3
454
COLUMN ACCESS PANEL
Item is no longer available
Price
N/A
455
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
456
MOTOR CORD 14G 5W 36"
Item is no longer available
Price
N/A
457
STRAIN RELIEF TYPE-10 ST
Item is no longer available
Price
N/A
459
POWER CORD 14G 3W 72" 5-15
Item is no longer available
Price
N/A
460
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
461
Now: PN08
HEX NUT 3/8-16
Price
N/A
462
STAND
Item is no longer available
Price
N/A
463
Now: PS20M
PHLP HD SCR M5-.8 X 15
Price
N/A
464
ONE SHOT OILER ASSEMBLY
Item is no longer available
Price
N/A
465
JOINT
466
Now: PS60M
PHLP HD SCR M5-.8 X 30
Price
N/A
467
LIMIT BLOCK
Price
N/A
468
Now: PN06M
HEX NUT M5-.8
Price
N/A
469
OIL TUBING 4MM X 100MM
Item is no longer available
Price
N/A
470
OIL TUBING 4MM X 340MM
471
Now: PW02
FLAT WASHER 3/8
Price
N/A
472
Now: PLW04
LOCK WASHER 3/8
Price
N/A

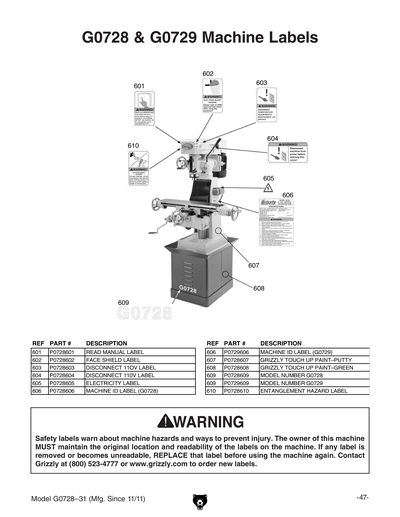

601
READ MANUAL 1.5W X 2.5H
Price
N/A
602
FACE SHIELD 1.5W X 2.5H
Price
N/A
603
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
604
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
605
ELECTRICITY 0.7W X 0.6H
Price
N/A
606
MACHINE ID LABEL
Item is no longer available
Price
N/A
607
GREY PUTTY REF G0504
Price
N/A
608
N/S GRIZZLY GREEN G1023S
Price
N/A
609
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
610
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
611
MANUAL G0728 MFG-9.11 V1.12.11
Item is no longer available
Price
N/A
MAN
MANUAL G0728-31 MFD-11/11+ V1.05.13
